5160XDYL6
-
Dong Run Ze
-
8705905900
-
1
SITRAK Chassis ZZ1186K501GF1
Main technical parameters
Overall dimensions: | 9350,9270×2530×3925,3832(mm) | DMT5160XDYL6 | |
Total mass: | 15800(Kg) | Net | 15605(Kg) |
Approach Angle/Departure Angle: | 16/9(°) | Front/rear overhang: | 1450/2900,1450/2820(mm) |
Axle Load: | 5700/10100 | Wheelbase: | 3600,3800,4200,4500,4700,5000,5200,5600,5800,6300,5400,6100(mm) |
Number of shafts: | 2 | Maximum speed: | 110(km/h) |
Number of tires: | 6(pcs) | Tire Specifications: | 295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR,315/60R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/4,2/3+2,3/3+2,3/9+8,3/7+3,3/7+6,7/7+3,7/7+6,11/9+8,3/-,3/2+-,2/2+-,2/-,11/10+7 |
Front wheel base: | 1900,1950,1998,2015,2035,2065(mm) | Rear wheel base: | 1850(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
WP6H245E61; MC07H.29-60; MC07.29-60; MC07.27-60; MC05H.20-60; MC05H.25-60; WP4.6 NQ220E61; MC05H.23-60; MC07.25-60; WP7.300 E61. WP7.270 E61. WP6H270E61; WP7H220E62; WP7H245E62; WP7H270E62 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD | 6220; 7360; 6870; 6870; 4910; 4910; 4580; 4910; 6870; 7470; 7470; 6220; 6800; 6800; 6800 | 180; 213; 213; 202; 147; 180; 162; 166; 188; 220; 199; 199; 162; 180; 199 |

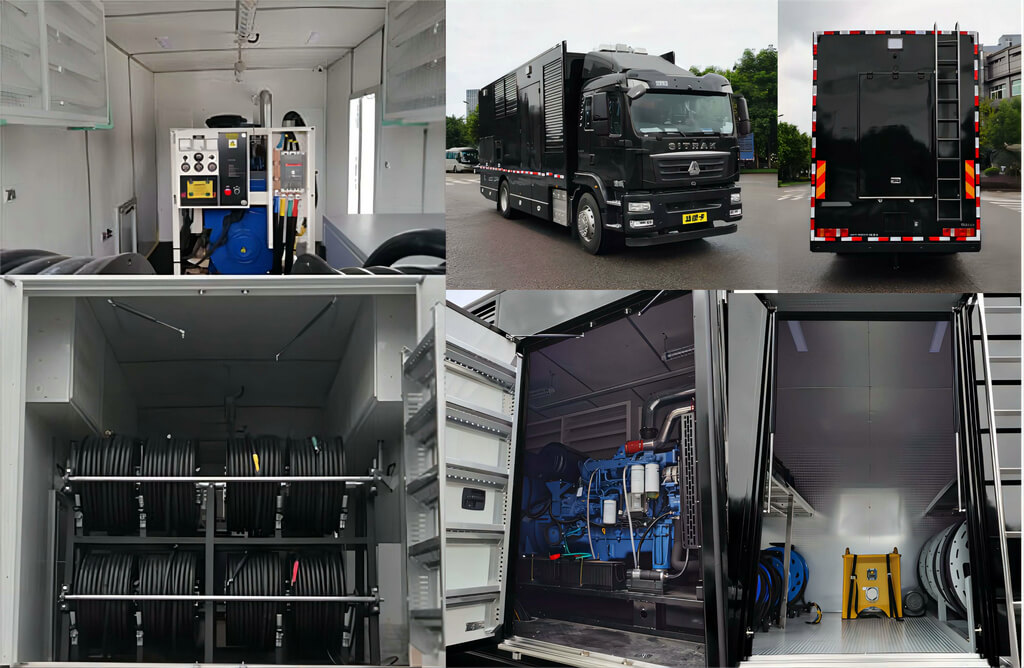

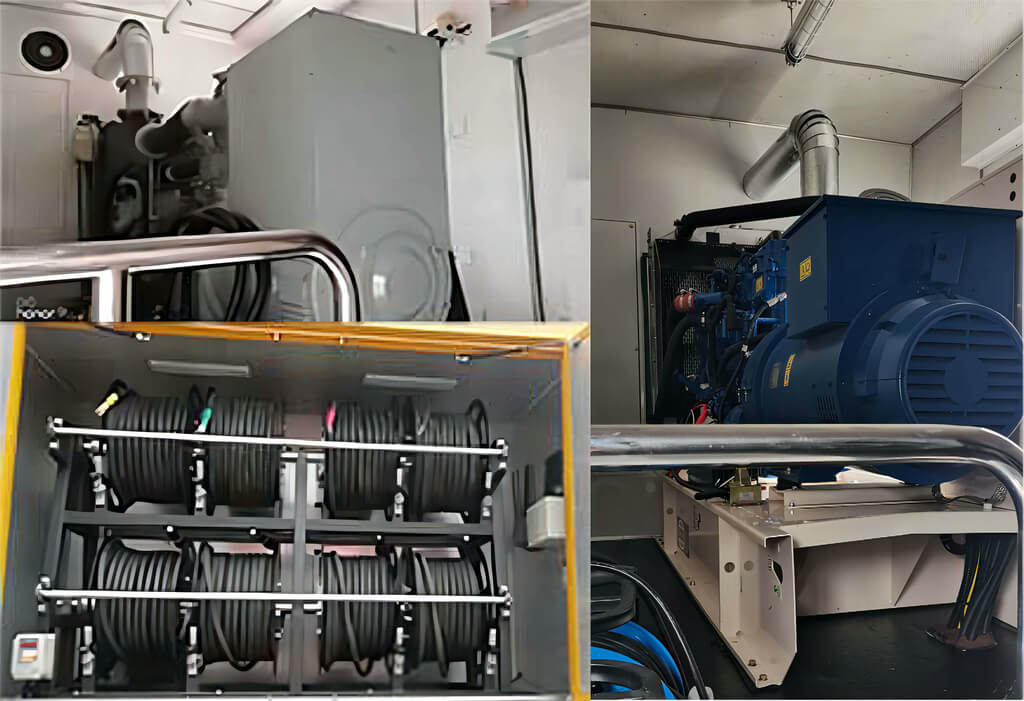

1. Main special devices: generator set, site lighting, main and auxiliary cable winch, etc.
2, the skirt structure side protection height from the ground 396mm; The rear protection is made of Q235A material, the rear protection section size is 140×80, the rear protection bracket is connected with the frame by bolts, and the height from the ground is 450mm.
3. The top is closed and cannot be opened.
4, only the wheelbase is 5000mm.
5, with the original car installed ABS,ABS system controller manufacturer/model WABCO (Shanghai) Management Co., LTD. /4460046300; Optional EBS,EBS system controller manufacturer/model is WABCO (Shanghai) Management Co., LTD. /EBS3. Extend a look, interior style, and size. 6, select a rear protection device: Q235A material, rear protection section size 120×60, rear protection bracket and frame with bolts, 480mm above the ground. 7, expand the option to install an exterior and interior layout.

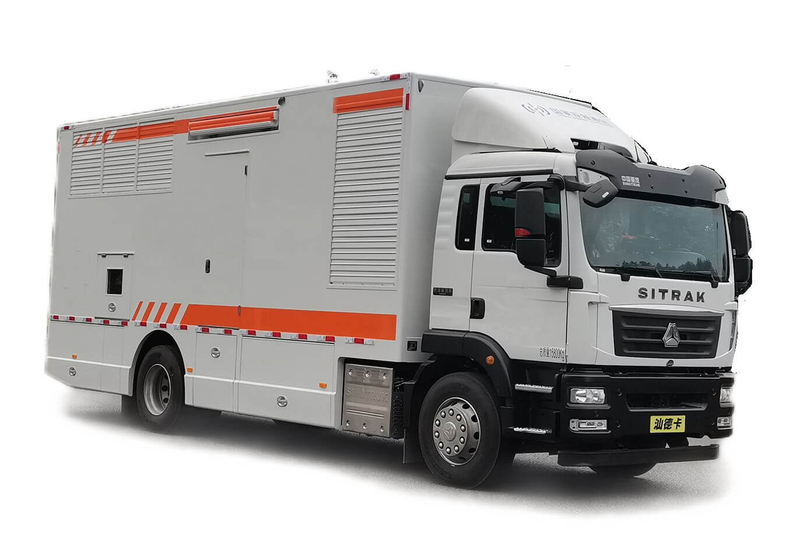

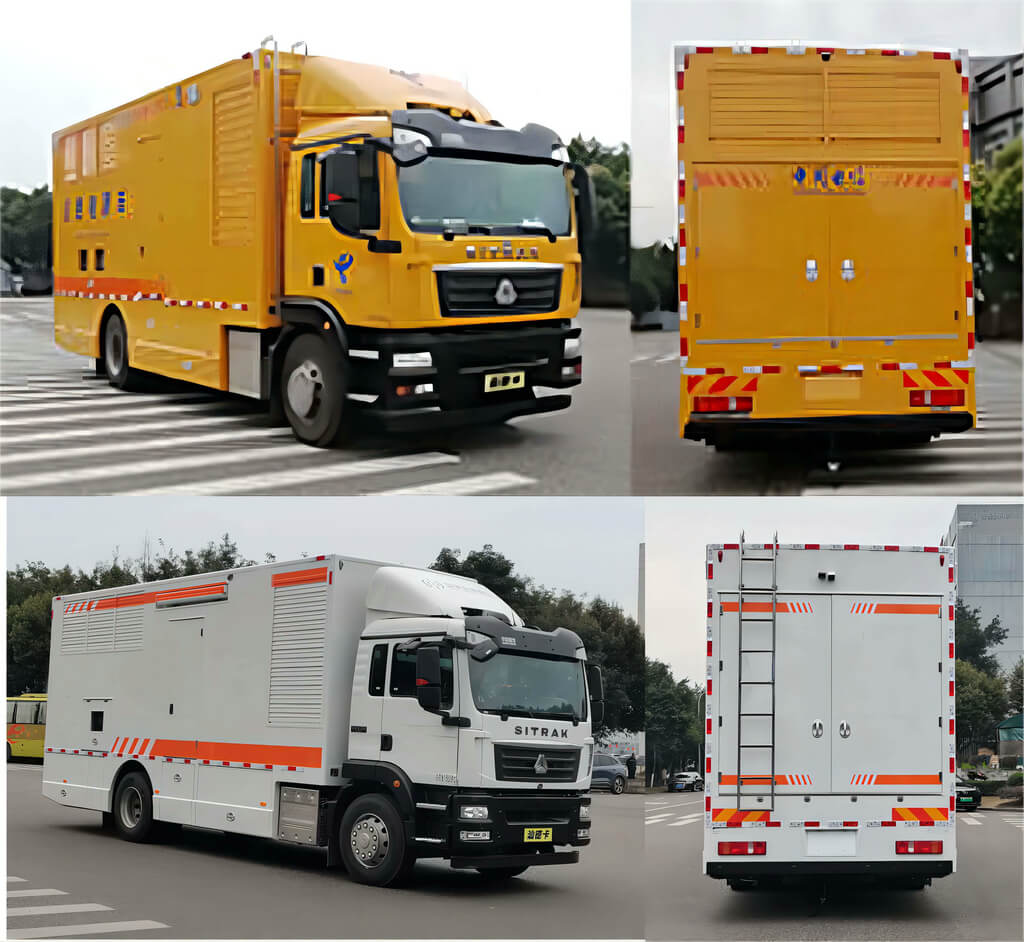

Generator Electric/Power Supply Truck Emergency Power Supply Truck with engine, alternator and genset.
TRUCK MOUNTED GENERATORS
