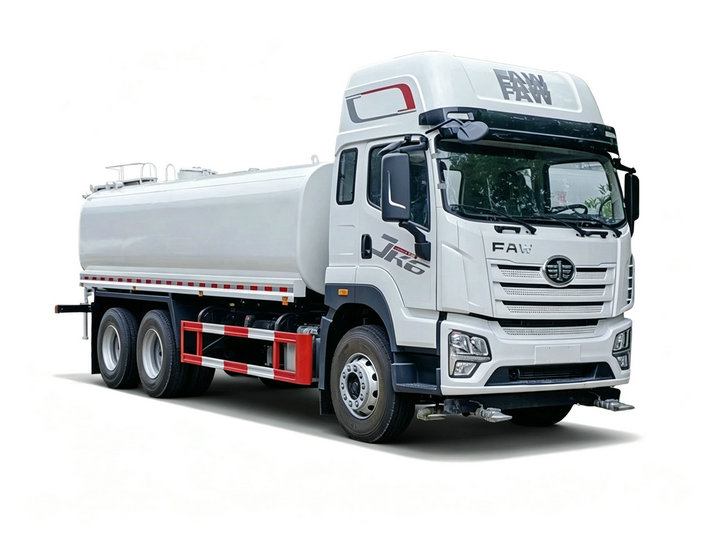

FAW 6x4 Dust Control 20000L Water Bowser Truck

FAW 6x4 20000L Water Bowser Truck | 20CBM Heavy Duty Water Tanker Truck

FAW 6x4 20000L Water Bowser Truck - 20CBM Carbon Steel Water Tanker for Dust Control & Water Delivery

Model: DRZ5250GSSCA
Capacity: 20,000 Liters (20 Cubic Meters)
Drive Mode: 6×4
Engine Power: 260 HP
Engine Model: CA6DF3-26E3 (XICHAI Euro 3 Diesel Engine)

Our FAW 6x4 20000L water bowser truck is a heavy-duty commercial water tanker customized for large-volume water transportation, road dust suppression, construction site watering, and rural water supply projects. Equipped with an original FAW LHD truck chassis, XICHAI 260HP diesel engine and FAST 9-speed manual gearbox, this 20CBM water tanker delivers stable power, high working efficiency and outstanding durability. Featuring a thickened carbon steel water tank and self-priming water pump with full inlet and outlet functions, the FAW water cart truck is widely applicable for urban environmental sanitation, highway maintenance, mining dust control, farmland irrigation and emergency water delivery, especially ideal for harsh working conditions in Africa.

Products Description

The Jiefang (FAW) water sprinkler truck is a professional special vehicle designed for road watering, dust removal and environmental greening. We support customized tank volumes ranging from 3,000L to 40,000L (800 to 10,000 gallons) to meet diverse project demands. Fitted with high-efficiency water pumps and multi-angle sprinkler nozzles, the water tanker can thoroughly clean road surfaces, reduce floating dust and effectively improve ambient air quality.

All FAW water tanker trucks feature robust integrated structure, humanized operation design and ultra-wide spraying coverage. With reliable performance and low failure rate, these heavy-duty water bowsers have become mainstream equipment for urban cleaning, road construction, environmental protection engineering and water resource transportation worldwide.

Core Key Features

• Low-Gravity Oval Tank Design: Adopts optimized oval tank structure to lower the vehicle center of gravity, ensuring stable driving and avoiding rollover risks during high-speed and heavy-load transportation.

• Electrophoretic Anti-Corrosion Tank Body: The whole tank undergoes professional electrophoretic painting treatment, featuring anti-rust, anti-corrosion and anti-aging performance, greatly extending the service life of the water tanker.

• Self-Priming Water Pump with Dual Inlet & Outlet Function: Equipped with high-power self-priming pump, realizing automatic water absorption and rapid water discharge, supporting remote water extraction and large-area watering operations.

• Full-Coverage Sprinkler System: Precisely arranged water spray nozzles at front, middle and rear positions to achieve omnidirectional road spraying without dead angles.

• Rear Water Cannon & Operation Platform: Equipped with high-pressure water cannon on the rear working platform, which can adjust water spray range and angle freely, suitable for high-altitude greening watering and dust reduction.

• Optional Pneumatic Control Air Valve: Optional air valve configuration simplifies operating steps, realizes flexible switch of water supply modes and improves overall working efficiency.

Complete Technical Specification

FAW 20000L water bowser truck strictly follows international manufacturing standards. All vehicles undergo rigorous factory testing to ensure stable performance, easy daily operation and convenient maintenance. Standardized use and regular maintenance can effectively guarantee long-term stable operation and extend the service life of the water tanker truck.

1. Chassis Configuration

• Chassis Brand: Original Customized FAW Heavy-Duty Truck Chassis

• Engine: XICHAI CA6DF3-26E3 Diesel Engine, 260HP, Euro 3 Emission Standard

• Drive Mode: 6×4 Heavy-Duty Drive

• Steering Mode: Left-Hand Drive (LHD)

• Cabin: Single Row Cabin with Air Conditioner, Comfortable Driving Experience

2. Water Tank Parameter

• Tank Structure: Reinforced cylindrical pressure-resistant & vacuum-resistant tank body, matched with auxiliary chassis to prevent torsion deformation

• Effective Capacity: 20,000 Liters (±5% Tolerance)

• Tank Material: 6mm Thick St.52 Carbon Steel, High Strength and Impact Resistance

• Manhole: ≥500mm Large-Caliber Manhole with Aluminum Alloy Cover, Convenient for Tank Cleaning and Maintenance

• Chassis Connection: 8mm St.52 Steel Auxiliary Chassis, Fixed with Flexible Connection to Buffer Vibration

• Tank Slope Design: 3% Rearward Slope for thorough water discharge without residual water

• Suction Valve: 4-inch Manual Gate Valve + Top Telescopic Suction Boom for fast water absorption

• Discharge Valve: 6-inch Pneumatic Control Gate Valve for efficient water output

• Liquid Level Gauge: 3 Sets of Transparent Disc Liquid Level Gauges for real-time water volume monitoring

• Sludge Prevention Chute: Rear sludge chute with side wings to avoid sludge accumulation and splashing

3. Rear Lid System

• Rear Lid Material: 8mm Thick St.52 Carbon Steel

• Opening Mode: Top Hinged Hydraulic Vertical Opening, Labor-Saving and Efficient

• Locking Device: 4 Sets of Hydraulic Automatic Locks for tight sealing and anti-leakage

4. Water Pump Performance

• Working Flow: 60 m³/h

• Driving Mode: PTO / Split Shaft PTO Drive

• Max Water Delivery Distance: 90m

• Rated Speed: 1180 r/min

• Rated Power: 24kW

5. Safety Protection System

• Top Safety Ball Valve: Stainless steel safety ball installed on the tank top to prevent overpressure damage

• Dual Safety Protection: Secondary safety ball equipped between vacuum pump and discharge valve for double protection

• Pressure Relief Valve: Equipped with high-efficiency relief valves at key positions to ensure safe operation

• Emergency Stop System: Central control panel with emergency stop button; all equipment can only be restarted from the cab after emergency shutdown

6. Standard Accessories

• 3pcs 4-inch × 3m Suction Pipes

• 2pcs 2-inch × 20m Water Delivery Hoses

• Dual-Side Fixed Hose Lockers

• Special Suction Wrenches

• Tank Top Maintenance Ladder

• Vehicle Toolbox

• 1pc Spare Tire (Matched with Original Vehicle Specification)

7. Other Standard Configuration

• Painting: Standard white color, customized color available

• Documents: Complete English Operation & Maintenance Manual

• Warranty: 1-year free warranty for manufacturing defects

• Spare Parts Support: 10-year spare parts supply guarantee

• Service Support: On-site FAT factory acceptance and professional operation training in Dohuk, Iraq

• Running Spare Parts: Optional 50,000km fast-wearing spare parts package (oil filter, fuel filter, air filter) with original brand certification

Advantages of Heavy-Duty FAW Water Tank Trucks for African Market

Large-capacity heavy-duty water bowser trucks are essential infrastructure equipment for water resource management, agricultural construction and disaster relief in Africa. Our 20000L FAW water tanker solves core water shortage problems for African regions, with outstanding market value reflected in the following aspects:

1. Boost Local Agricultural Development

Most African regions suffer from long-term drought and water scarcity, restricting crop planting and agricultural output. The 20CBM large-volume water tanker can transport stable water sources for farmland irrigation, ensure crop growth water demand, effectively improve crop yield and quality, and enhance regional food security.

2. Realize Efficient Water Resource Reserve

Many African towns and remote villages lack complete reservoir and well water supply systems. Our heavy-duty water cart truck can collect and store rainwater, and transport clean water from long distances, realizing flexible water resource reserve and solving daily water supply shortages for residents and farmland.

3. Support Rapid Disaster Emergency Response

African regions are frequently affected by droughts, floods and other natural disasters. The high-capacity water bowser can serve as emergency rescue equipment, providing timely drinking water and irrigation water for disaster-stricken areas, minimizing disaster losses and supporting post-disaster reconstruction.

4. Promote Remote Community Construction

For remote and underdeveloped areas in Africa with insufficient municipal water supply, FAW water tanker trucks provide stable domestic and production water sources, improve residents’ living conditions, boost regional community development, and alleviate local poverty caused by water shortage.

5. Optimize Environmental Protection & Ecological Management

The professional water transport and sprinkling function helps African governments realize scientific water resource allocation, reduce water resource waste and urban floating dust pollution. Reasonable water spraying and irrigation can also protect soil structure, reduce water and soil erosion, and maintain regional ecological balance.

Vehicle Core Details

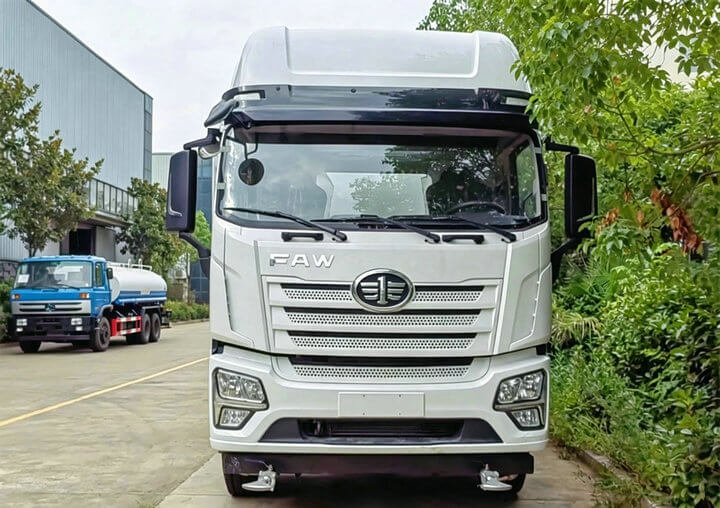

• FAW Air-Conditioned Cabin: Equipped with original comfortable driving cabin with A/C, adapting to high-temperature and harsh outdoor working environments

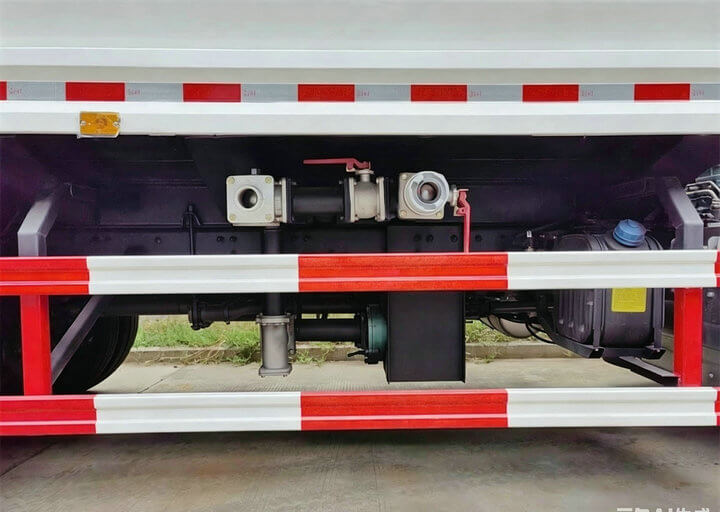

• Dual Water Pump Valves: Independent pump-in and pump-out control valves for precise water flow control and flexible operation

• 11.00R20 Steel Tires: Customized heavy-duty steel tires with strong bearing capacity and wear resistance, suitable for gravel roads and rough construction sites

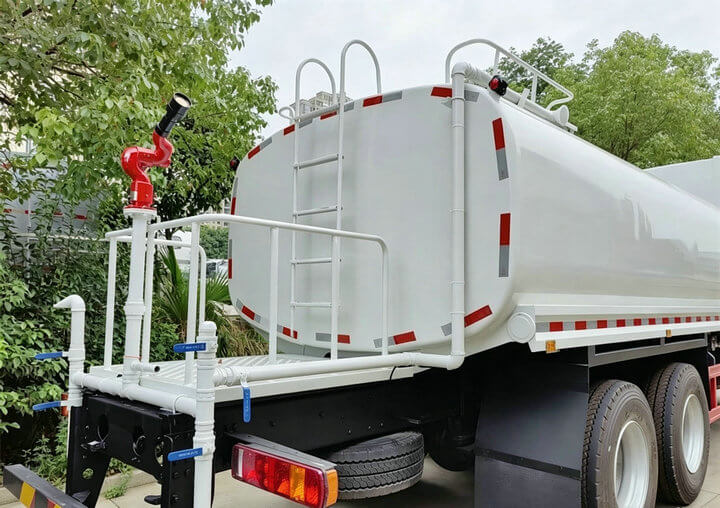

• High-Pressure Rear Water Cannon: Adjustable water spray range, supporting long-distance dust reduction and high-altitude watering

• Front Sprinkler System: Front multi-nozzle spraying design for comprehensive road cleaning and dust suppression

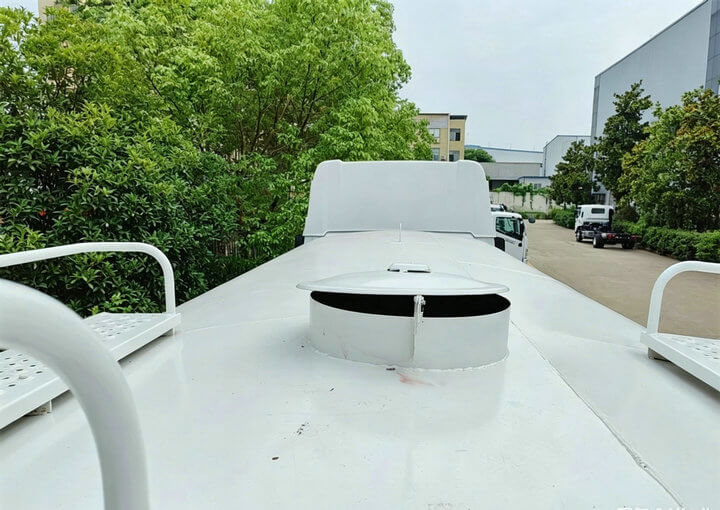

• Top Safety Platform & Manhole: Anti-slip working platform + large-caliber manhole, safe and convenient for daily inspection and cleaning

Water Bowser Truck Operation & Maintenance Guide

Scientific daily operation and regular maintenance are key to ensuring the long-term stable operation of the FAW water sprinkler truck and reducing failure rates. The standardized maintenance guidelines are as follows:

1. Daily Cleaning & Appearance Maintenance

Clean the tank interior, spray nozzles and water delivery pipes thoroughly after each use to prevent sediment accumulation and nozzle blockage. Regularly check the vehicle body for scratches, rust and corrosion, and repair paint and damaged parts in time to protect the vehicle structure.

2. Lubrication & Oil Maintenance

Regularly inspect and replace chassis lubricating oil, engine antifreeze and hydraulic system oil. Ensure all transmission and mechanical moving parts are fully lubricated to avoid abnormal wear and mechanical failure.

3. Cooling System Inspection

Check the radiator and engine cooling system regularly to keep them clean and unobstructed. Replace coolant on schedule to ensure the engine maintains normal working temperature and avoid overheating failure during high-load operation.

4. Electrical System Maintenance

Inspect vehicle lines, control panels and electrical accessories regularly to ensure stable circuit connection and normal operation of all electrical equipment, eliminating potential safety hazards caused by circuit faults.

5. Scheduled Overhaul & Maintenance

Follow the official operation and maintenance manual to conduct regular minor repairs and comprehensive overhauls. Check the water pump, valve system, hydraulic system and chassis performance item by item to ensure the vehicle maintains optimal working condition for a long time.
