Isuzu 15T Dust Control Water Bowser Stainless Steel Tanker Truck

Isuzu 15T Dust Control Water Bowser Stainless Steel Tanker Truck
Remarks: Water tank capacity can be customized 12KL- 15KL
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 71800
Discount Price: $ 70000
Availability:
Quantity:

  • DRZ5220GSSQL

  • DONG RUN ZE

  • 8705909990

  • Shanghai, China

  • 1000

  • T/T, Western Union

  • Nil

  • 1

ISUZU GIGA 4x2 Potable Water Bowser Truck 15000L Euro 6 Water Sprinkler Truck

 1. Product Overview – ISUZU 4HK1/6UZ1 Water Hauling Sprinkler Truck

Our ISUZU GIGA 4x2 potable water bowser truck, also named ISUZU water hauling truck, street cleaning sprinkler truck and fresh water delivery tanker, is specially customized for municipal road washing, construction dust suppression, urban green irrigation and emergency fire rescue.This ISUZU 15000L water cart truck adopts genuine ISUZU GIGA 4×2 heavy-duty chassis, matched with reliable 6UZ1-TCG61 380HP Euro 6 diesel engine (4HK1 optional for light-duty version). The full set of watering accessories including front/rear/side sprinkler nozzles, rear high-pressure water cannon and self-priming water pump makes it a multi-functional municipal water service vehicle.Model standard tank volume reaches 15000L (4000 gallon), maximum sprinkling width over 14 meters, water cannon shooting distance up to 28 meters, ideal for urban, industrial and construction site daily water distribution work.
This ISUZU GIGA sprinkler truck is equipped with a high-efficiency 80QZF-60/90N self-priming water pump, flow rate 60m³/h, delivery head 90m. Integrated water manifold control system supports one-key switching of flushing, sprinkling, irrigation and fire fighting modes. With tropical radiator cooling system and heavy load 295/80R22.5 tires, the ISUZU potable water bowser truck runs stably under high temperature and rough road working environments.


 2. Complete Technical Specifications of 15000L ISUZU Water Tank Truck

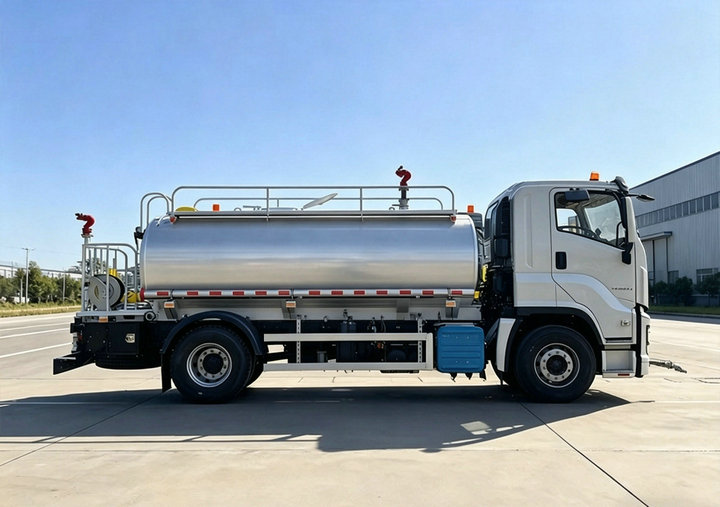

ISUZU 15KL Stainless steel Potable Water Bowser Truck (5)


Classification Item Parameter
Whole Vehicle Product Name ISUZU 4HK1 Engine Potable Water Bowser Truck / ISUZU GIGA 4x2 Water Sprinkler Truck

Vehicle Model DRZ5220GSSQL

Drive Type 4x2

Gross Vehicle Weight(GVW) 22000 kg

Curb Weight 7050 kg

Front Axle Load 9 tons

Rear Axle Load 13 tons

Max Travel Speed 110 km/h

Overall Dimension LWH 8500x2500x3250 mm
Power Engine Engine Model Standard:6UZ1-TCG61; Optional:4HK1

Fuel Type Diesel

Rated Power 380 HP / 279 KW

Emission Standard Euro 6

Displacement 9839 ml

Engine Structure 4-stroke, water-cooled, turbocharged intercooled
Chassis Configuration Chassis Brand Genuine ISUZU GIGA Heavy Chassis

Tire Quantity 6+1 spare tire

Tire Spec 295/80R22.5

Wheelbase 4600 mm

Gearbox FAST 12-speed manual transmission, 12 forward + 2 reverse gears

Driving Type Left Hand Drive (LHD, RHD customizable)

Brake System Full air brake

Radiator Tropical high-temperature cooling radiator

Clutch Reinforced diaphragm clutch
Cabin Cabin Type Single sleeper cabin with factory air conditioner
Water Tank Tank Volume 15000 L / 4000 gallon cylindrical steel tank
Sprinkler Working Index Suction Depth ≥7m, self-priming depth 4m within 1.5min

Sprinkler Coverage Width ≥14m

Water Cannon Range ≥28m
Tank Accessories Manhole DN600mm standard inspection manhole ×1 unit
Core Water Pump Pump Model 80QZF-60/90N (N/S domestic famous brand)

Pump Flow Rate 60m³/h

Max Delivery Head 90m

Self-priming Speed 1.5min for 4m water suction

Working Efficiency 95%

Matched Rotating Speed 1180 r/min

Supporting Power 22 KW

Standard sprinkler accessories: Front flush nozzles, side sprinkling nozzles, rear irrigation nozzles, rear working platform + long-distance water cannon, full set pressure monitoring gauges, anti-corrosion multi-way control valves.

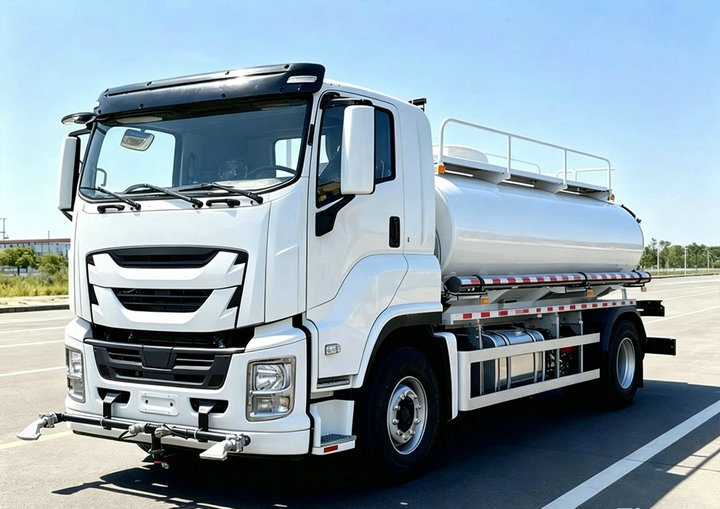

ISUZU 15KL Stainless steel Potable Water Bowser Truck (6)

3. Premium Tank & Production Craftsmanship of ISUZU Water Bowser Truck

3.1 Durable High-Strength Steel Tank Body
Our ISUZU potable water delivery tanker tank adopts thickened high-strength carbon steel plates, integral frame reinforced structure. Adopting automatic one-time forming and robot full welding technology, the cylindrical tank owns strong pressure resistance and anti-vibration performance. Even long-distance continuous water transportation and frequent sprinkling operations, the tank will not deform or leak, greatly extending the service life of the ISUZU water hauling truck. ISUZU 15KL Stainless steel Potable Water Bowser Truck (1) ISUZU 15KL Stainless steel Potable Water Bowser Truck (14)
3.2 Strict Digital Production & Nondestructive Welding Inspection
All tank forming processes are controlled by CNC digital cutting equipment. All longitudinal and circumferential welding seams are finished by automatic robotic welding to reduce thermal deformation. Every weld joint will pass professional non-destructive testing (NDT) according to international industrial standards, ensuring zero leakage for municipal water tank trucks during long-term outdoor service.


4. Advanced Hydraulic & Water Control System

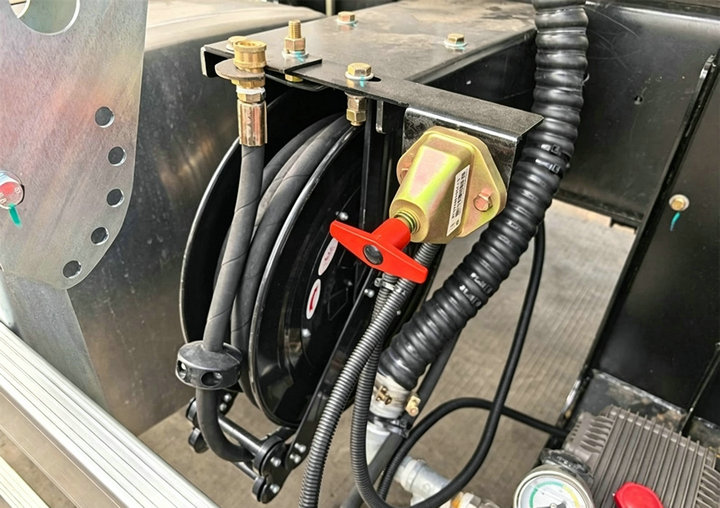

ISUZU 15KL Stainless steel Potable Water Bowser Truck (13)


4.1 Real-Time Precision Pressure Monitoring Gauge
Equipped with dual-scale color-marked pressure gauges, operators can real-time check pump and pipeline water pressure during road flushing, green irrigation and fire fighting. Strictly calibrated pressure measuring device supports accurate water flow adjustment, effectively avoid pipeline overload and improve the safety of ISUZU water bowser truck operation.
4.2 Integrated Anti-Corrosion Water Control Manifold
Multi-valve integrated control manifold is the core component of ISUZU 15000L sprinkler truck. Standard universal interfaces realize fast switching of front flushing, side watering, rear irrigation and high-pressure water cannon fire suppression modes. All valve bodies and handles are made of anti-rust alloy materials, ergonomic layout reduces operation difficulty, suitable for long-hour municipal sanitation work.

5. Wide Application Scenarios for ISUZU Municipal Water Truck

  1. Urban Road Cleaning & Daily Sanitation MaintenanceMunicipal road networks need wide-coverage water cleaning vehicles to wash road dust and garbage while saving water resources. ISUZU GIGA 4x2 water cart truck with 4600mm short wheelbase keeps flexible turning in narrow city streets. 14m super-wide sprinkling coverage reduces single cleaning cycle, greatly improving sanitation work efficiency.
  2. Urban Park & Landscape Green IrrigationPublic green belts, city parks, roadside plants require adjustable low-pressure irrigation equipment. The variable-flow control nozzle system of our ISUZU fresh water delivery truck can adjust water output according to different plant types, avoid water waste and realize precise landscape watering.
  3. Construction Site Dust SuppressionMining zones, building construction sites produce heavy flying dust. The 380HP high-power ISUZU chassis and large-flow 60m³/h water pump can continuously spray water to suppress dust. Thick 295/80R22.5 heavy-duty tires and reinforced rear axle adapt muddy and rugged construction site road conditions.
  4. Emergency Initial Fire Support15000L large water storage volume + 28m long-range high-pressure water cannon provides temporary water supply for fire rescue. Max speed 110km/h ensures the ISUZU potable water bowser truck arrives at fire accident sites rapidly for emergency fire fighting assistance.
  5. Industrial Factory Area Washing & Temperature CoolingChemical parks, manufacturing workshops need high-pressure cleaning and summer ground cooling. The 90m high-lift water pump of this ISUZU water hauling tanker provides strong water pressure for factory floor washing. Tropical cooling radiator guarantees stable continuous operation under high-temperature industrial environments.
  6. Large-Scale Event Temporary Sanitation ServiceSports matches, large exhibitions, outdoor celebrations need mobile sanitation support vehicles. The multi-functional ISUZU sprinkler truck can finish ground washing, dust reduction and green watering at the same time, supporting all-day continuous sanitation work for temporary public activity venues.

6. Core Advantages of Our ISUZU GIGA 15000L Water Sprinkler Truck

  1. High-Efficiency Complete Water Sprinkler ConfigurationFamous brand 80QZF series self-priming pump with 60m³/h large flow and 90m delivery head, matching full set multi-direction sprinkler accessories. 14m ultra-wide flushing width and 28m long shooting water cannon reduce working times and cut labor costs for municipal teams.
  2. Reliable Genuine ISUZU Heavy-Duty Chassis PlatformOriginal ISUZU GIGA 4×2 heavy chassis with 22-ton GVW carries stable load. Full air brake system improves driving safety; tropical customized radiator solves high-temperature overheating problems in Southeast Asia, Middle East and African tropical markets. FAST 12-speed transmission brings smooth shifting for long-distance water transportation.
  3. Anti-Leak Reinforced Cylindrical Water TankCylindrical structural steel tank disperses internal water pressure evenly, anti-fatigue against bumpy road vibration. Automatic robot welding + full inspection effectively prevent water leakage, compared with square tanks, cylindrical tanks have longer service life for water bowser trucks.
  4. Low Fuel Consumption & Environmentally Friendly Euro 6 Power6UZ1-TCG61 380HP Euro VI emission diesel engine owns strong power output with optimized fuel combustion technology. Low fuel consumption lowers long-term operation cost for clients; Euro 6 standard meets global mainstream environmental access standards for export.
  5. Multi-Scenario Customization ServiceWe support customized items: RHD chassis, smaller 4HK1 engine, food-grade stainless potable water tank, additional foam fire fighting device, remote control water cannon, different tank volumes (10000L/12000L/18000L/20000L).

7. ISUZU Potable Water Delivery Truck

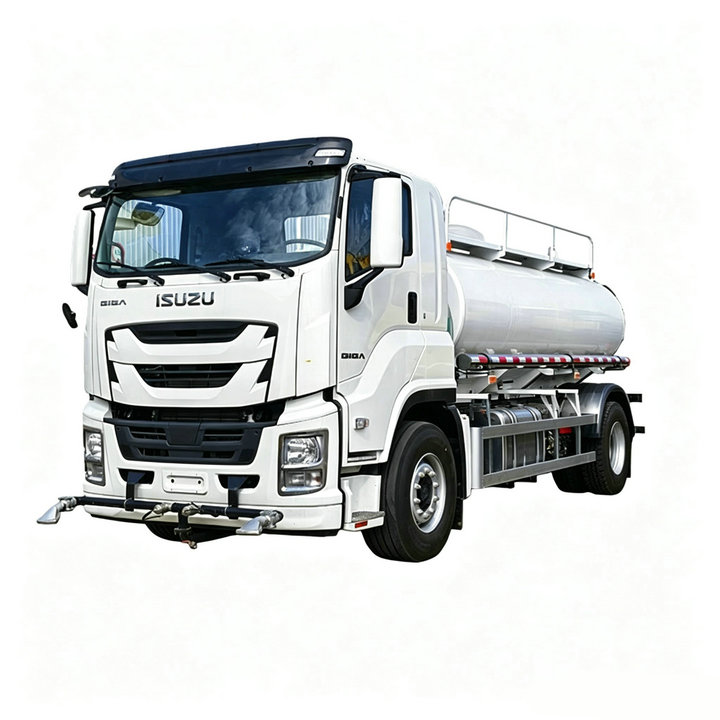

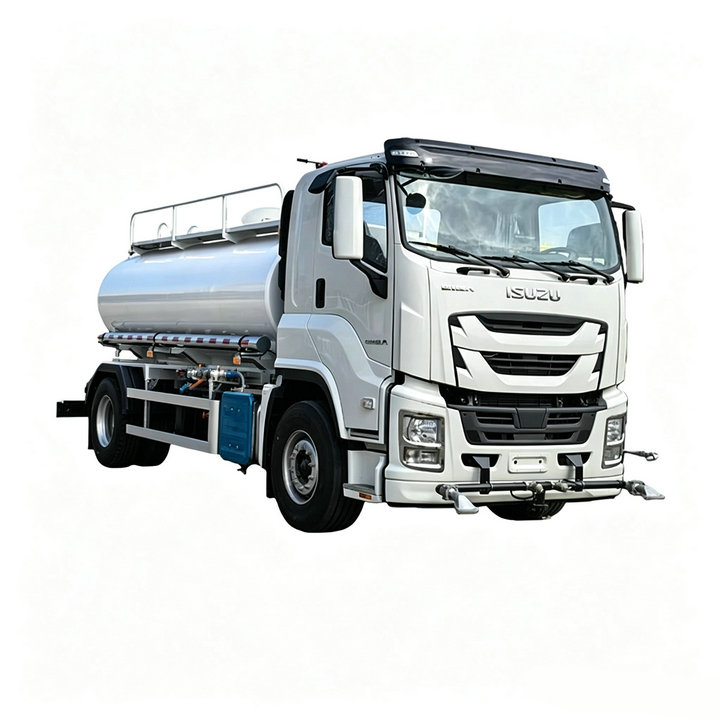

  • Front Right View of ISUZU 4HK1 Engine Potable Water Bowser Truck

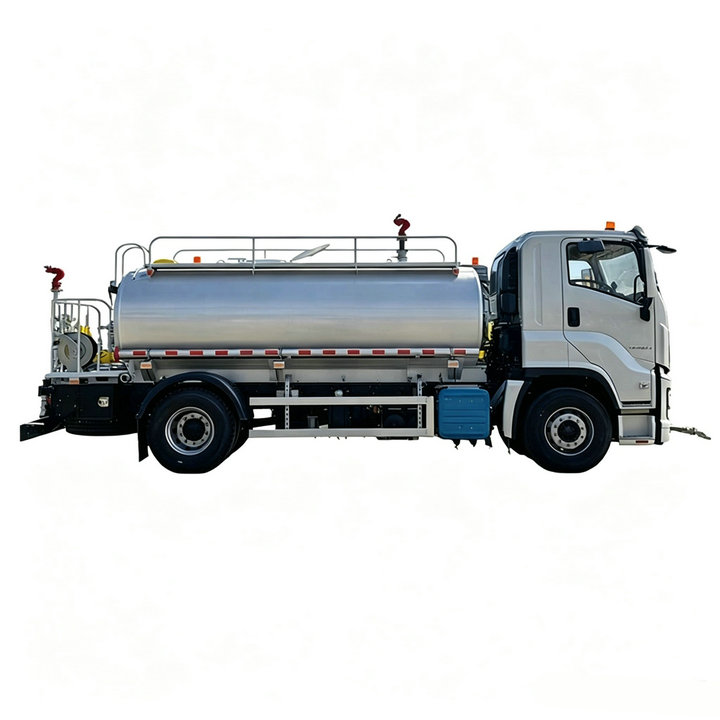

  • Full Right Side View of ISUZU GIGA 4x2 Water Hauling Truck

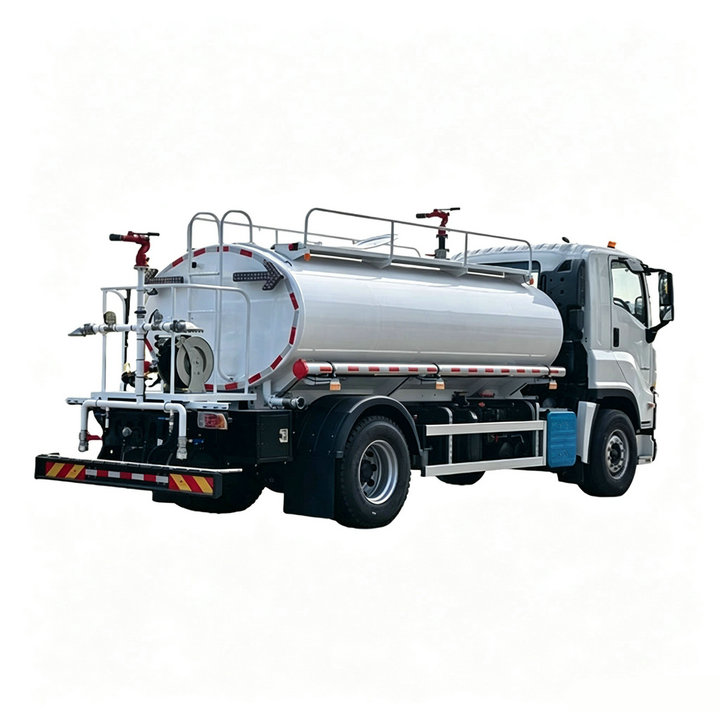

  • Rear Right View of ISUZU 15000L Water Sprinkler Truck

  • Front Left Side View of ISUZU Water Tank Truck

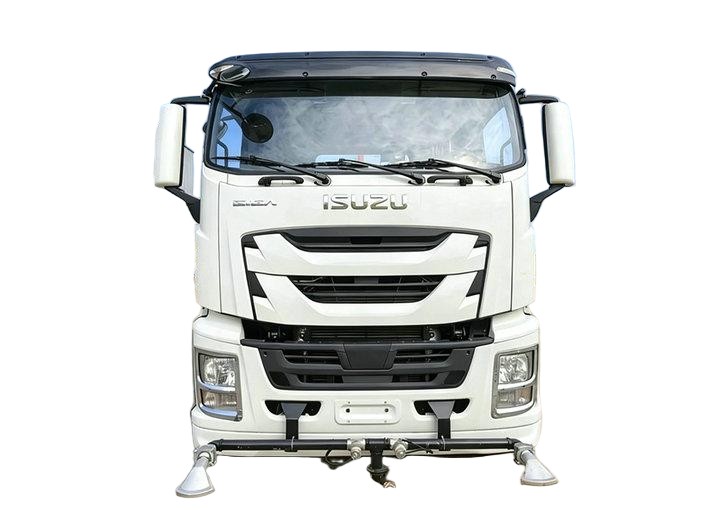

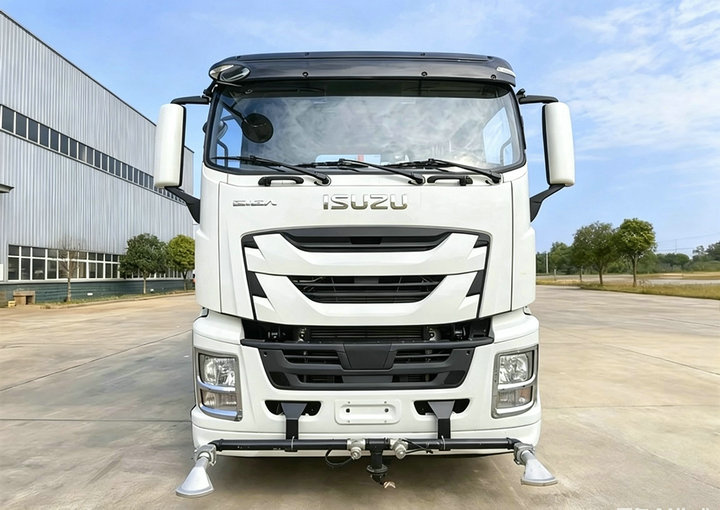

  • Full Front View of ISUZU Construction Dust Control Water Truck

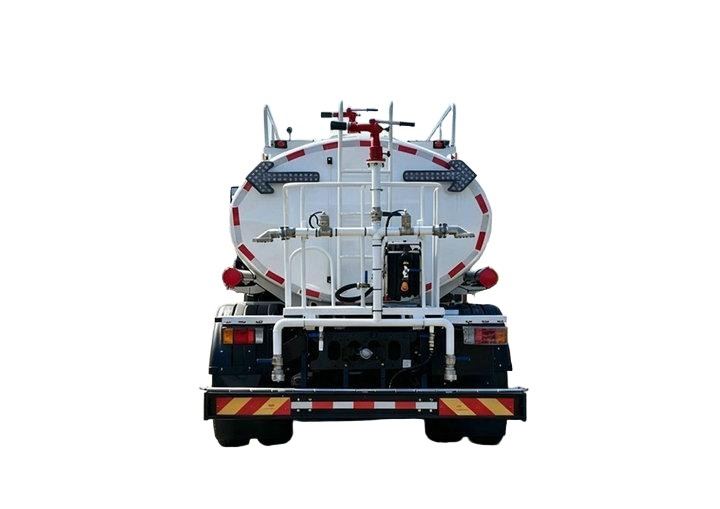

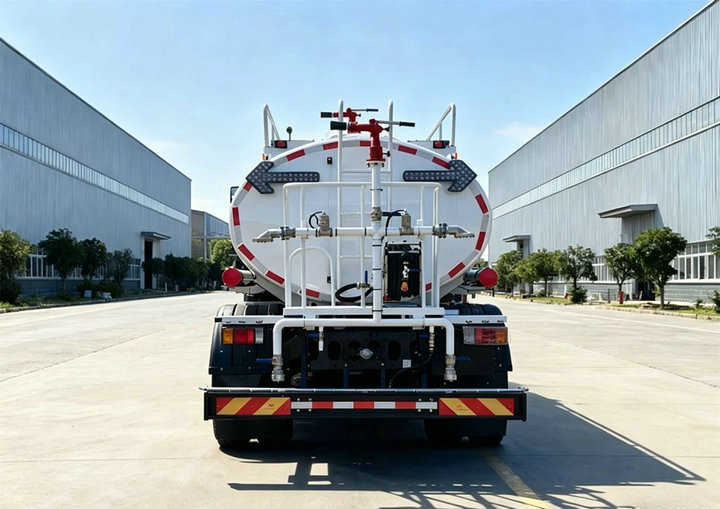

  • Rear Full View of ISUZU All-Terrain Water Bowser Truck

8. FAQ About ISUZU 15000L Water Tank Truck

Q1: What engine options can I choose for this ISUZU water bowser truck?A: Standard model equips 6UZ1-TCG61 380HP heavy-duty engine; light load transportation clients can select optional ISUZU 4HK1 engine version. Both meet Euro 6 emission standards.
Q2: Is the tank suitable for transporting drinking potable water?A: Yes, we can provide food-grade anti-rust coating or stainless steel tank customization for potable fresh water delivery.
Q3: Can you produce right-hand drive ISUZU water sprinkler trucks for Southeast/Africa markets?A: Sure, LHD and RHD ISUZU GIGA chassis are both available for customized production.
Q4: What certifications can you provide for export?A: We offer complete CO, CI, factory inspection certificate, vehicle export certification, support EAC certification for Russian & Central Asia markets.

9. Contact Us to Customize ISUZU Water Bowser Truck

We are professional China ISUZU water bowser truck manufacturer and factory, supplying wholesale ISUZU potable water delivery tanker, municipal sprinkler truck, construction dust suppression water cart truck with competitive factory price.If you need detailed quotation, technical drawing, vehicle pictures and video, please send inquiry to us directly. We provide one-stop customization and export service for global clients.
isuzu 4hk1 engine potable water bowser truck, ISUZU GIGA 4x2 water sprinkler truck, 15000L isuzu water hauling truck, Euro 6 ISUZU water tank truck

Long-tail Search Tags

China ISUZU potable water bowser truck manufacturer, ISUZU municipal street cleaning truck, construction dust suppression water cart truck, ISUZU fresh water delivery tanker truck, 380HP ISUZU irrigation water truck

Chassis Model

Horsepower

Wheelbase

Engine Model

Transmission Option

Cab Configuration

ISUZU FVR (4x2)

240 HP

4500/5550/5800

/6300/7150

6HK1-TCG61

FAST 8-speed Transmission

New ISUZU VC61 Series Cab

ISUZU FVZ (4x2 /6x4)

300 HP

4500/   7150

4350+1370/4650+1370

5100+1370/5800+1370

1850+2980+1370

1850+4575+1370

6HK1-TCG60

FAST 9-speed Transmission

New ISUZU VC61 Series Cab

ISUZU VC66 Series 6x4

350 HP

1850+4575+1370

6UZ1-TCG61

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series (4x2 /6x4/8x4)

380 HP

3900/4600/5600

3900+1370

3985+1370

4600+1370

1850+3000+1370

1850+2980+1370

6UZ1-TCG61

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series(6x4 )

420 HP

4800+1370

5200+1370

6WG1-TCG60

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series

460 HP

4600

4600+1370

4800+1370

5200+1370

5400+1370

2100+4325+1370 1850+4575+1370

6WG1-TCG61

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab

ISUZU VC66 Series( 6x4/8x4)

520 HP

4800+1370

5400+1370

2100+4325+1370

6WG1-TCG62

ZF 8-speed (ZF8) / FAST 12-speed

New ISUZU VC61 Series Cab
