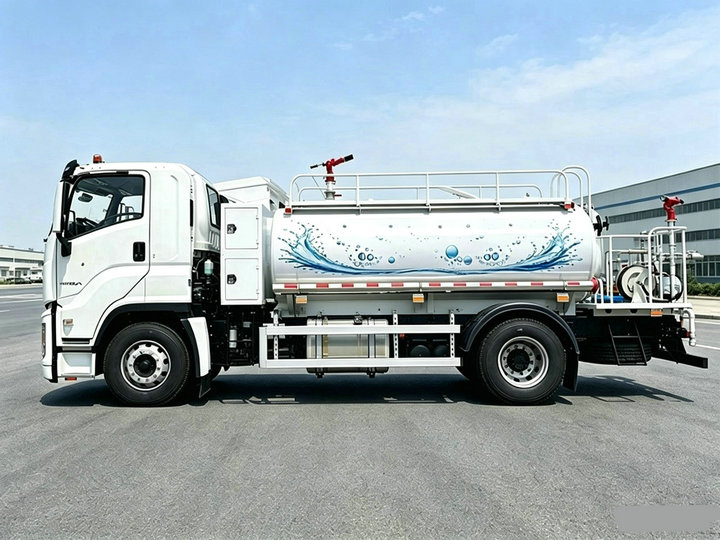

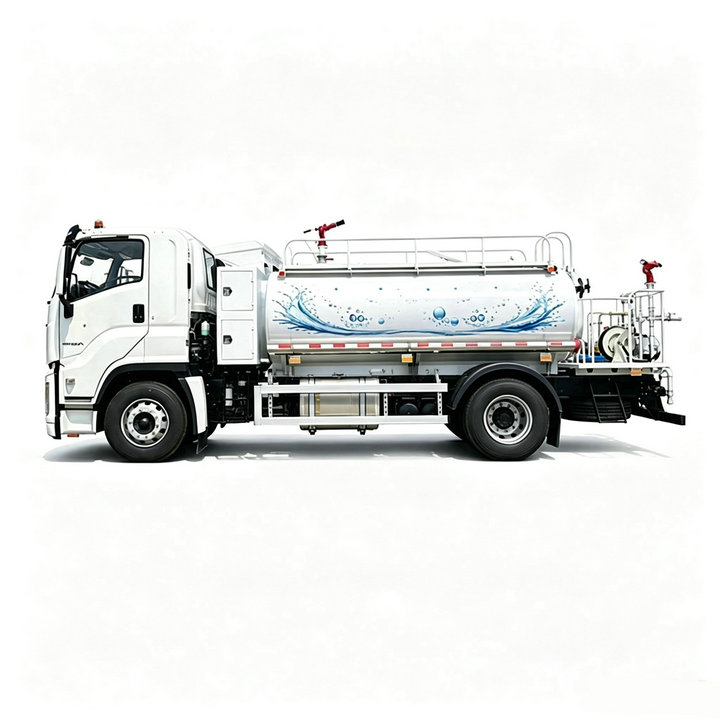

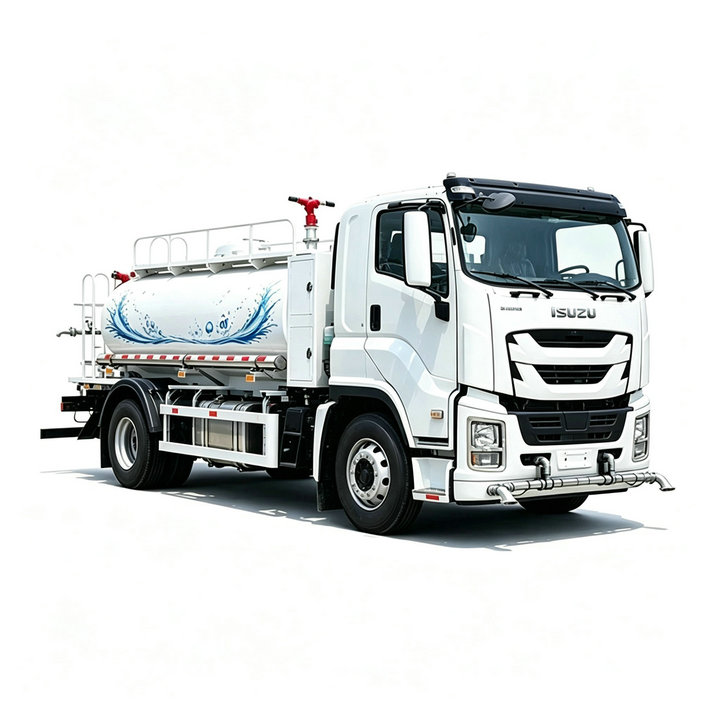

ISUZU GIGA 12000L Water Tanker Bowser Fire Trucks
ISUZU GIGA 12000L / 3200 Gallons Water Bowser Fire Truck | Multi-Purpose Sprinkler & Fire Fighting Tanker
1. Core Vehicle Overview
2. Complete Chassis & Powertrain Parameters
Product Name | Panama ISUZU 3200 Gallons Water Bowser Fire Truck | ||
Overall | Vehicle Model | DRZ5180GSSQL | |
Drive Type | 4*2 | ||
Water Tanker Capcity | 12000Liters/3200Gallons | ||
Gross Vehicle Weight | 18000 kg | ||
Curb Weight | 9496 kg | ||
Maximum Speed | 105 km/h | ||
Front Axle Weight | 6.3 T | ||
Rear Axle Weight | 13 T | ||
Overall Dimensions L*W*H | 13 T | ||
Engine | Engine Model | 6HK1-TCG60 | |
Fuel Type | Diesel | ||
Power | 300 HP(221KW) | ||
Emission Standard | Euro 6 | ||
Displacement | 7790 ml | ||
Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
Chassis | Chassis Brand | ISUZU | |
Cabin | FVR, GIGA 5X, Row half cab | ||
Tire No. | 6 tires+1 spare tire | ||
Tire Specification | 295/80R22.5 | ||
Wheelbase | 4500 mm | ||
Gear Box | FAST 9JS119TA, 9-speed forwards and 1 reverse | ||
Steering Wheel | Left hand drive | ||
Brake | Air brake | ||
Superstructure | Water Tank Capacity | 12000 Liters / 3200Gallons | |
Water Tank Thickness | 5mm | ||
Shape of Tank | Elliptic / Oval | ||
Sprinkler System | Front Flush Nozzles | Sprinkling width≥14m | |
Rear Sprinklers | Sprinkling width≥12m | ||
Water Cannon | 360 degree rotation, Shooting range ≥28m | ||
Working Platform | an operator standing there to operate the water cannon | ||
Compartment No. | 1 (Can be divided according to customer requirements) | ||
Baffle | 1 No, 3 mm carbon steel | ||
Standard Configuration | Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder. Seat Belts, Side Door Lock Mirror, Heavy-duty Air Compressor, Front Shaft Stabilizer, Room Lamp Key Lock Fuel Tank Cap, Bottom Mounted Spare Wheel Carrier, Halogen Headlamps, Radiator Protector. | ||
Selective Configuration | Stainless steel/aluminum alloy water tank, insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights. | ||
Water Pump | Brand | Chinese famous pump WEILONG water pump 80QZF-60/90 model | |
Vertical suction height | 7m | ||
Water intake time for full tank | About 10 min | ||
Chassis Configuration
Chassis Brand: ISUZU GIGA 4×2
Cabin: FVR GIGA 5X row half cab with air conditioning & power steering, left-hand drive
Wheelbase: 4500mm
Gearbox: FAST 9JS119TA 9-speed manual transmission (9 forward + 1 reverse gear)
Brake System: Full air brake system
Tire: 295/80R22.5 tires, 6 running tires + 1 spare tire
Axle Load: Front axle 6.3 tons, rear axle 13 tons
Max Driving Speed: 105 km/h
Engine Performance
Model: 6HK1-TCG60 inline 6-cylinder water-cooled turbo intercooled diesel engine
Displacement: 7790ml
Rated Power: 300 HP / 221 KW
Emission Standard: Euro 6, meets global highway emission requirements
Fuel Type: Diesel

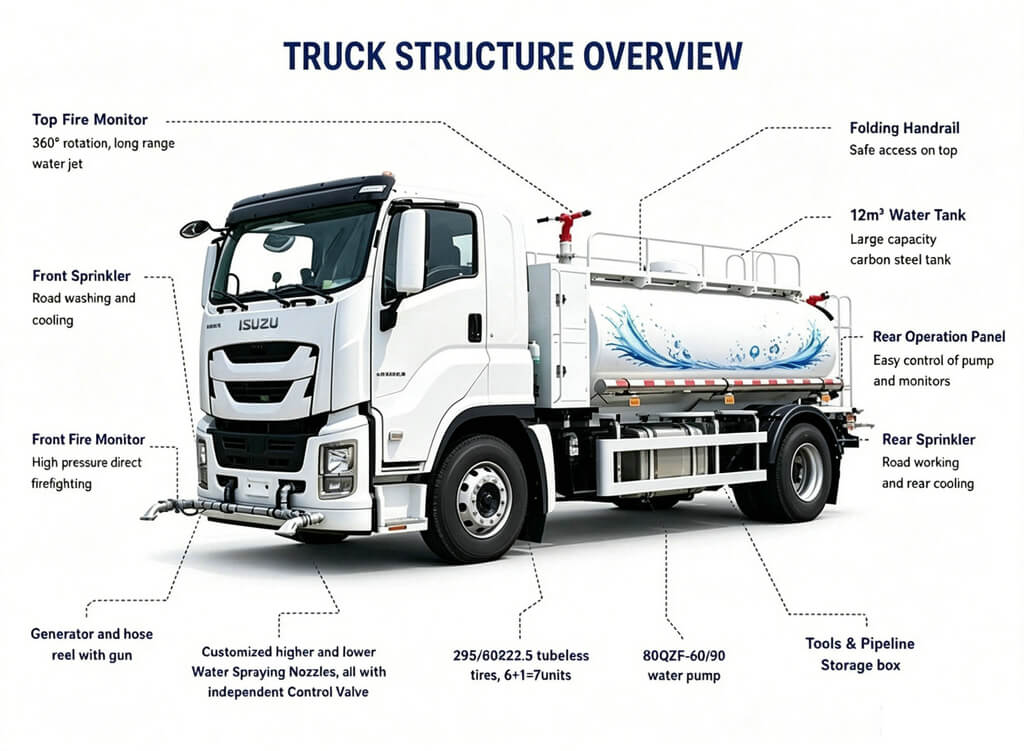

3. Superstructure: 12000L Elliptical Water Tank & Full Sprinkler System
Full Range Spraying & Fire Fighting System
Front Flush Nozzles
Opposed duckbill front flush nozzles deliver a maximum sprinkling width over 14 meters, ideal for heavy road cleaning, mud flushing and pavement wetting.
Rear Side Sprinklers
Side duckbill sprinklers cover a spraying width ≥12 meters, evenly watering roads, green belts and factory yards for dust suppression.
360° Rotating High-Pressure Water Cannon
Mounted on the rear operation platform, the full-circle rotary water cannon features a maximum shooting range of 28 meters. Operators stand safely on the rear working platform to control the cannon for wildfire suppression, tall building washing and long-distance irrigation.

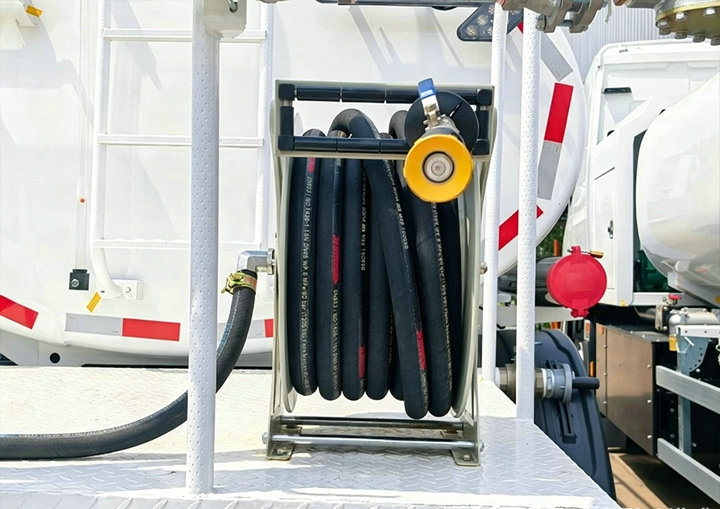

Supporting Accessories: High-pressure explosion-proof water hose reel, fire valve, climbing ladder, tool storage compartment.
4. WEILONG 80QZF Self-Priming Centrifugal Water Pump (PTO-Driven)
Vertical suction height: 7 meters
Rated flow rate: 1000 L/min
Full tank filling time: Only 10 minutes for the 12000L tank
Wide water source adaptability: Able to draw water from rivers, ponds, fire hydrants and open water sources without complex auxiliary equipment.
5. Standard & Optional Custom Configurations
Standard Full Equipment
Optional Upgrade Accessories
Tank material upgrade: Stainless steel / aluminum alloy water tank, tank thermal insulation layer
Pump upgrade: Stainless steel water pump, dedicated fire pump
Agricultural spraying kit: Pesticide spray plate, gasoline/diesel pesticide spraying machine, hanging pesticide barrel, rear pesticide spraying device
Auxiliary lighting: LED traffic arrow warning lights
Extra equipment: Onboard crane, hanging work basket, Honda auxiliary water pump, extra warning light sets
6. Working Principle of ISUZU 12CBM Water Bowser
Water Intake Stage: Engage chassis PTO to activate the WEILONG self-priming pump, extract water from external water sources into the elliptical tank, complete full filling within 10 minutes with 7m suction lift.
Pressure Build-Up Stage: The 300HP Euro 6 engine outputs power to drive the centrifugal pump, generating stable water pressure for all spraying outlets.
Road Spraying Stage: Activate front flush nozzles and rear side sprinklers to realize 12–14m wide coverage for municipal cleaning and dust reduction.
Fire Cannon Operation: Operate the rear 360° rotary water cannon from the dedicated platform to launch long-range water jets for fire fighting and high-altitude washing.
Tank Draining: Open the bottom discharge valve to empty residual water via gravity or pump pressure for tank maintenance.
7. Multi-Scenario Application Solutions
Municipal Engineering: City road cleaning, pavement watering, green belt irrigation, urban dust reduction

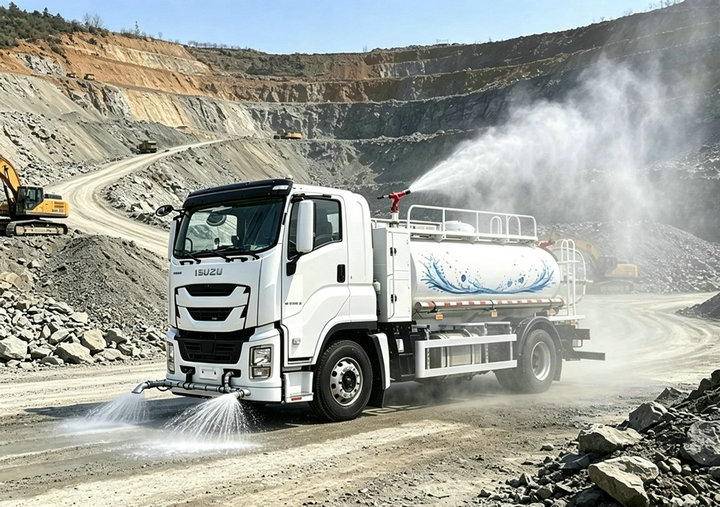

Mining & Construction Sites: Construction ground dust suppression, quarry surface watering

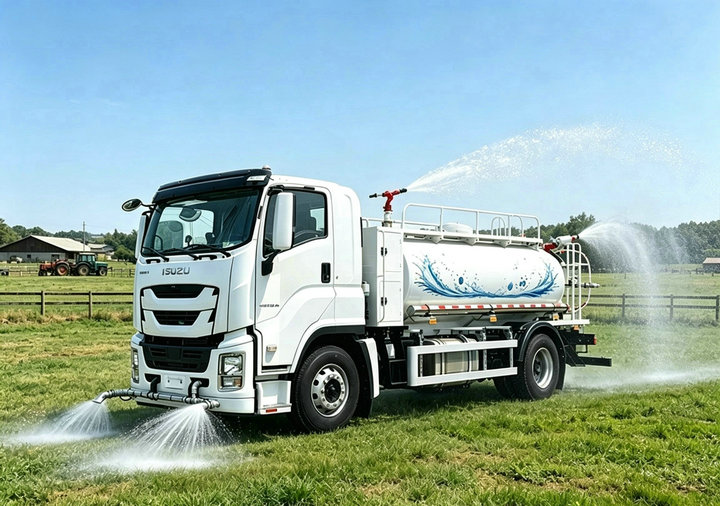

Agricultural Industry: Farmland irrigation, orchard pesticide spraying

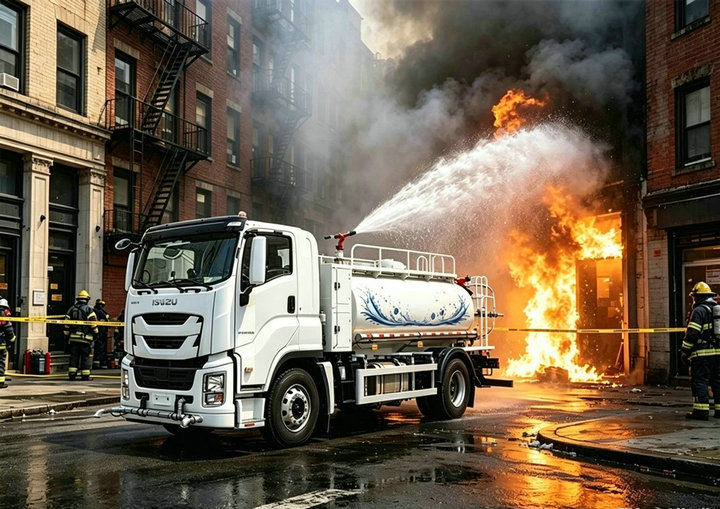

Fire Emergency Prevention: Wildland fire suppression, factory fire emergency rescue
Port & Park Maintenance: Large scenic area watering, open yard dust control
8. Frequently Asked Questions
Q1. What is the tank capacity of this ISUZU GIGA water bowser fire truck?
Q2. What pump is equipped and what are its performance parameters?
Q3. What is the spraying coverage and water cannon range?
Q4. Can this truck work for both fire rescue and municipal watering?
Q5. Are there custom chassis and tank options available?

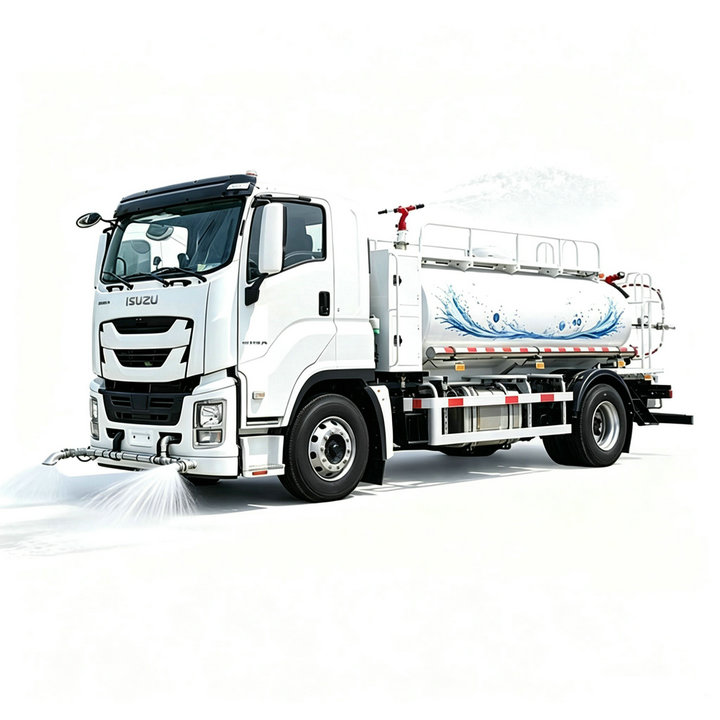

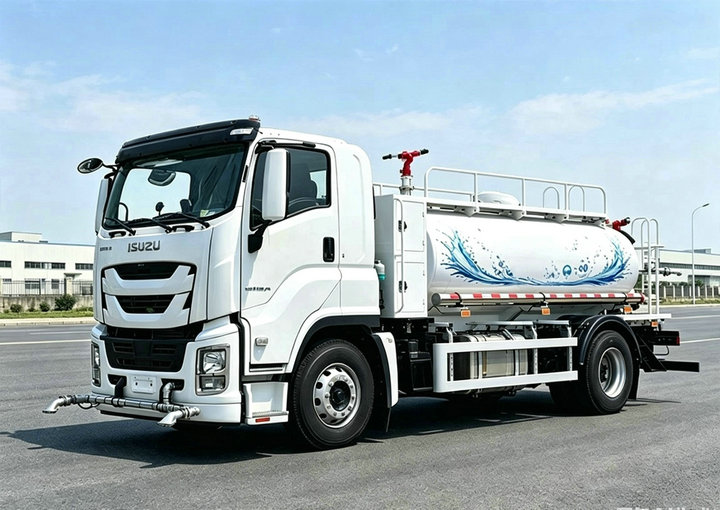

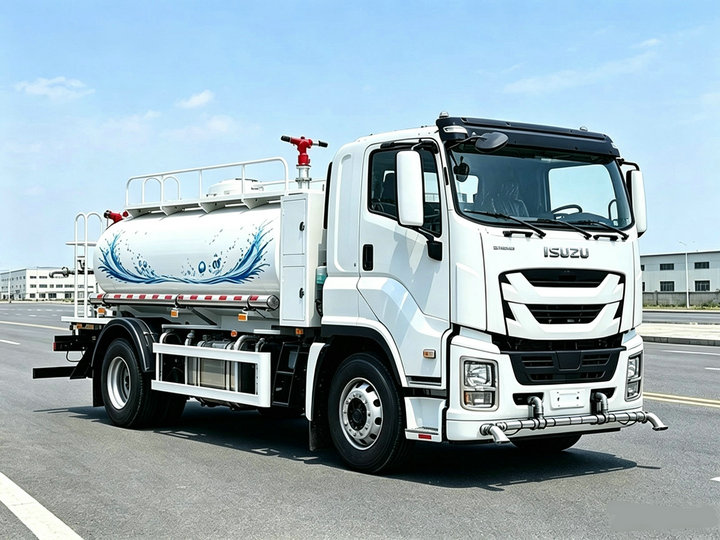

Alt: ISUZU GIGA 12000L water bowser fire truck front left view 300HP Euro6 dust suppression sprinkler truck

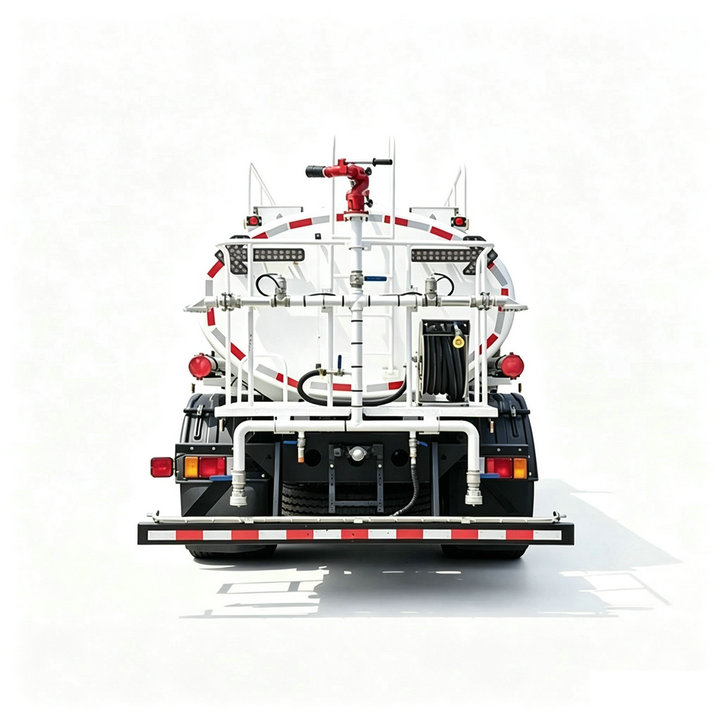

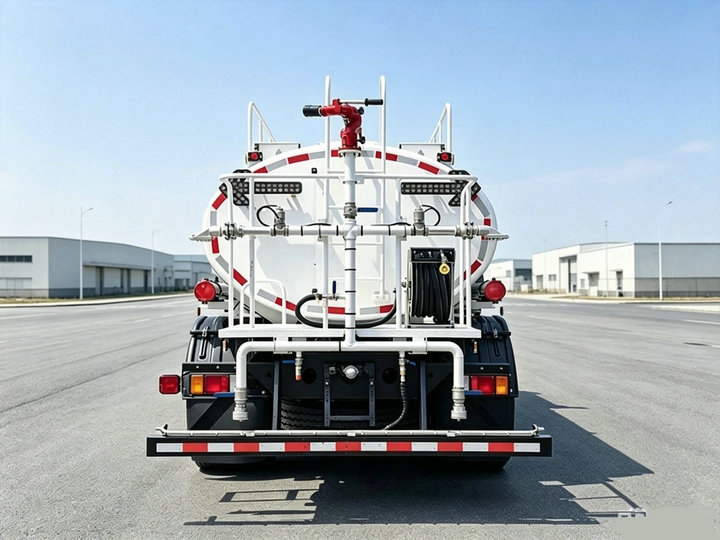

Alt: Rear view of ISUZU 3200 gallons water tanker with 360° long range water cannon for fire fighting
Alt: WEILONG 80QZF self-priming centrifugal pump installed on ISUZU GIGA water sprinkling truck
Alt: 5mm carbon steel elliptical water tank 12CBM ISUZU municipal watering truck internal baffle

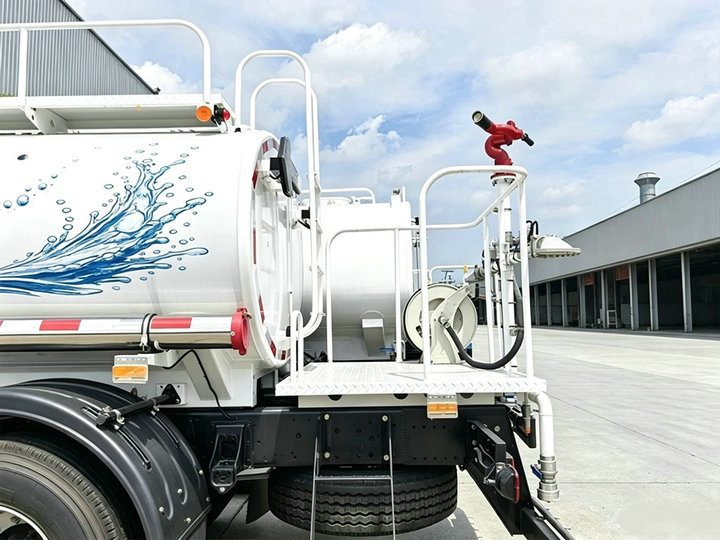

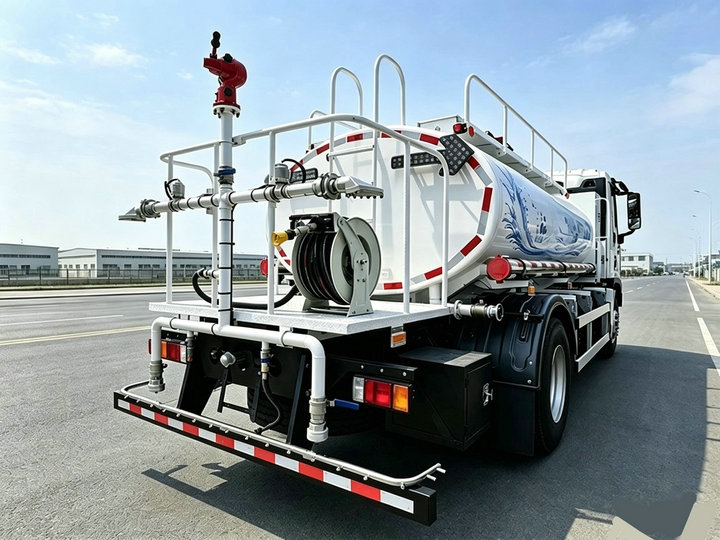

Alt: Rear operation platform for 28m range water cannon ISUZU multi-purpose fire bowser truck

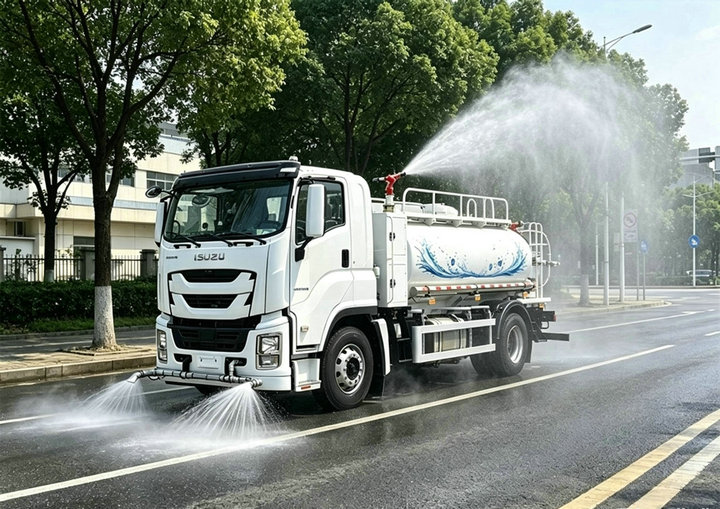

Alt: Front duckbill flush nozzles 14m wide spraying ISUZU road cleaning water truck
Alt: ISUZU GIGA 4×2 water tanker full chassis 6HK1-TCG60 300HP Euro 6engine compartment
-
Chassis Model
Horsepower
Wheelbase
Engine Model
Transmission Option
Cab Configuration
ISUZU FVR (4x2)
240 HP
4500/5550/5800
/6300/7150
6HK1-TCG61
FAST 8-speed Transmission
New ISUZU VC61 Series Cab
ISUZU FVZ (4x2 /6x4)
300 HP
4500/ 7150
4350+1370/4650+1370
5100+1370/5800+1370
1850+2980+1370
1850+4575+1370
6HK1-TCG60
FAST 9-speed Transmission
New ISUZU VC61 Series Cab
ISUZU VC66 Series 6x4
350 HP
1850+4575+1370
6UZ1-TCG61
ZF 8-speed (ZF8) / FAST 12-speed
New ISUZU VC61 Series Cab
ISUZU VC66 Series (4x2 /6x4/8x4)
380 HP
3900/4600/5600
3900+1370
3985+1370
4600+1370
1850+3000+1370
1850+2980+1370
6UZ1-TCG61
ZF 8-speed (ZF8) / FAST 12-speed
New ISUZU VC61 Series Cab
ISUZU VC66 Series(6x4 )
420 HP
4800+1370
5200+1370
6WG1-TCG60
ZF 8-speed (ZF8) / FAST 12-speed
New ISUZU VC61 Series Cab
ISUZU VC66 Series
460 HP
4600
4600+1370
4800+1370
5200+1370
5400+1370
2100+4325+1370 1850+4575+1370
6WG1-TCG61
ZF 8-speed (ZF8) / FAST 12-speed
New ISUZU VC61 Series Cab
ISUZU VC66 Series( 6x4/8x4)
520 HP
4800+1370
5400+1370
2100+4325+1370
6WG1-TCG62
ZF 8-speed (ZF8) / FAST 12-speed
New ISUZU VC61 Series Cab
