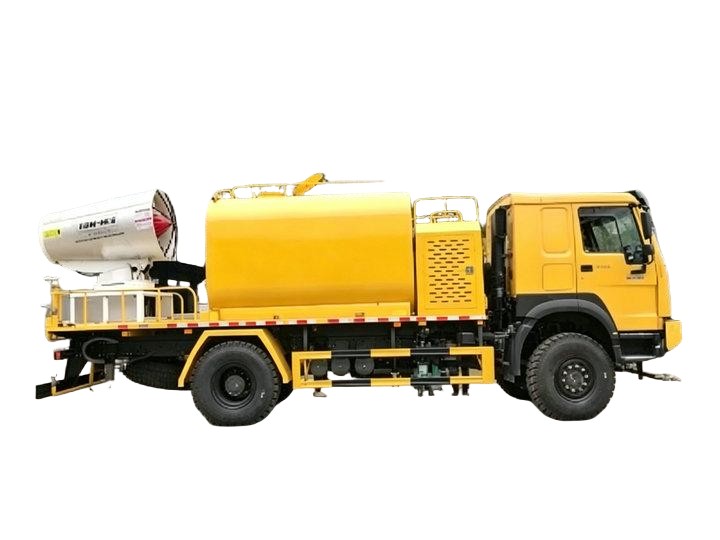

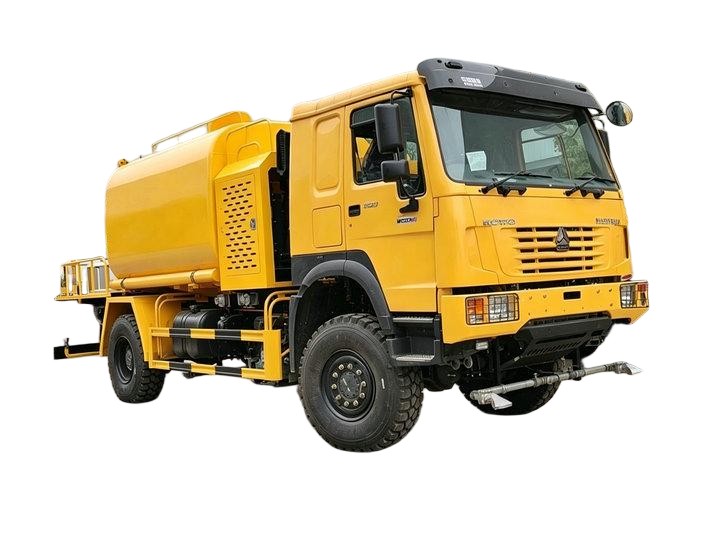

AWD 4x4 Howo Dust Control Mining Sprinkler Tanker Truck with 80m Suppress Dust Water Cannon
Remarks: Water tank capacity can be customized 5KL- 6KL
Stainless Steel /Aluminum Alloy
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5130SLZZ
-
DONG RUN ZE
-
8705909990
-
Shanghai, China
-
1000
-
T/T, Western Union
-
Nil
-
1
AWD 4x4 Howo Dust Control Mining Sprinkler Tanker Truck with 80m Suppress Dust Water Cannon
Howo Dust Control Mining Sprinkler Tanker Truck
10 CBM howo off-road dust suppression truck
Howo 4x4 Dust Suppression Water Tank Truck is a special truck designed for mining environments and has powerful dust suppression capabilities. The main purpose of Howo mining sprinkler tanker truck is to reduce dust pollution generated during mining through effective dust reduction measures, thereby protecting the environment and workers' health.
Model: DRZ5130SLZZ
Capacity: 6 CBM
Drive: 4×4
Engine power: 300 HP
Engine type: Weichai
Overview | |
Name | Howo 4x4 Dust Suppression Water Tank Truck |
Dimension(LxWxH) | 6890x2450x2850 |
Total Mass | 13000kg |
Rated Payload | 5000kg |
Curb Weight | 5800kg |
Passenger | 3 |
Approach/Departure Angle | 18/21(°) |
The Parameters of Chassis | |
Driving Type | 4X4 left/right hand drive |
Wheelbase | 4500mm |
Gearbox | 6 speed forward and 1 reverse, manual |
Tire | 12.00R20 |
The Number of Tires | 6+1(spare tire) |
Front/Rear Suspension | 2041/1830mm |
Brake system | Service brake:dual-circuit pneumatic brake |
The Parameters of Engine | |
Manufacturer/Model | WP7H300E62 |
Rated Power | 300Hp |
Fuel Type | Diesel oil |
Displacement/Capacity | 6800ml |
Emission Standard | Euro3 |
The Parameters of Equipment | |
Tank Capacity | 5-6m3 |
Tanker Material | Carbon steel |
Front flushing water spraying width | 15-20m |
Rear platform sprinkler anti-aircraft gun lift | 30-35m |
Vertical suction head of sprinkler pump | 7m |
Standard Configuration | Front flushing, rear spraying, side spraying, S-type water spraying anti-aircraft gun, fire interface |
Optional | 80-100m spray |
Howo 4x4 Dust Suppression Water Tank Truck for Mining Operations

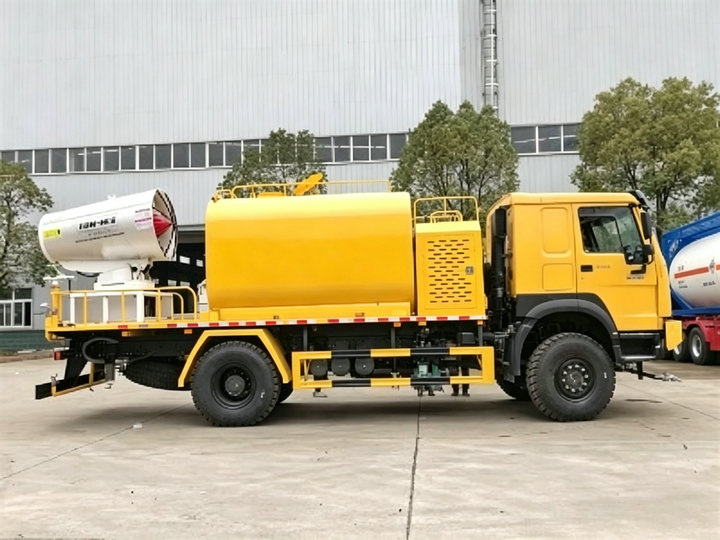

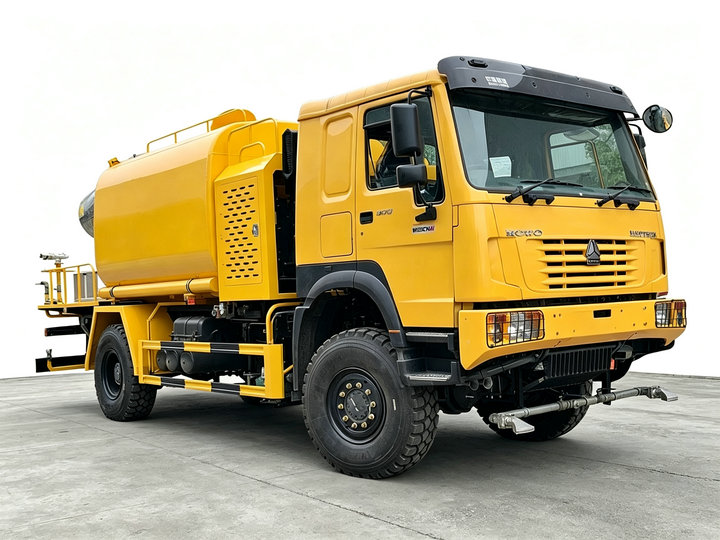

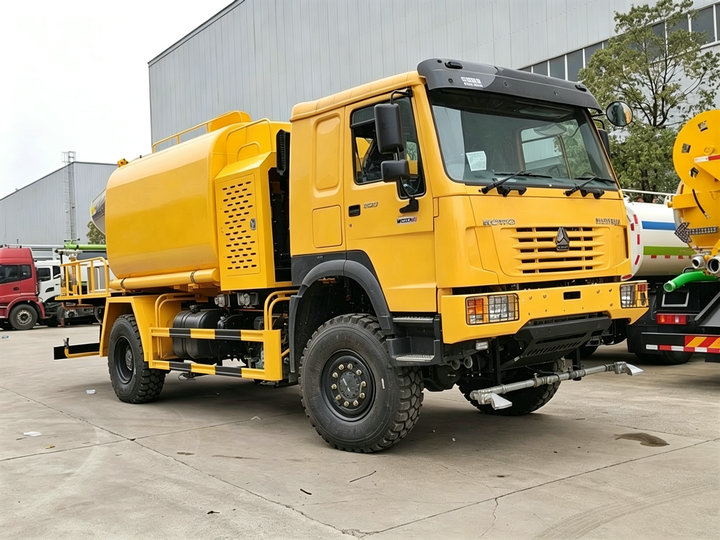

The Howo 4x4 Dust Suppression Water Tank Truck is a heavy-duty, off-road water sprinkler purpose-built for dust control in mining quarries, construction sites, and unpaved industrial roads. Mounted on a genuine Howo 4×4 full-drive chassis with a 300 hp WP7H300E62 diesel engine, it combines a 6–8 m³ carbon-steel water tank with front flushing, rear spraying, side spraying, and an S-type anti-aircraft spray gun to deliver reliable dust suppression, road cleaning, and fire-fighting support in the harshest terrains.
Why Choose Our Howo 4x4 Mining Sprinkler Truck?
1. Full-Time 4×4 Chassis for Rough Mining Terrain
A true 4-wheel-drive system (available in left-hand or right-hand drive) with a 4500 mm wheelbase and 12.00R20 off-road tires gives the truck excellent cross-country mobility on mud, gravel, slopes, and unpaved haul roads — keeping dust-suppression operations continuous even in wet or rainy seasons.
2. 300 hp Euro 3 Diesel Engine (WP7H300E62)
Powered by the Weichai WP7H300E62 6.8 L diesel engine delivering 300 horsepower, the truck reserves plenty of torque for uphill water loading, high-pressure spraying, and long shifts. It meets Euro 3 emission standards and is compatible with the heavy diesel fuel commonly available at mine sites.
3. Multi-Mode Dust Suppression System

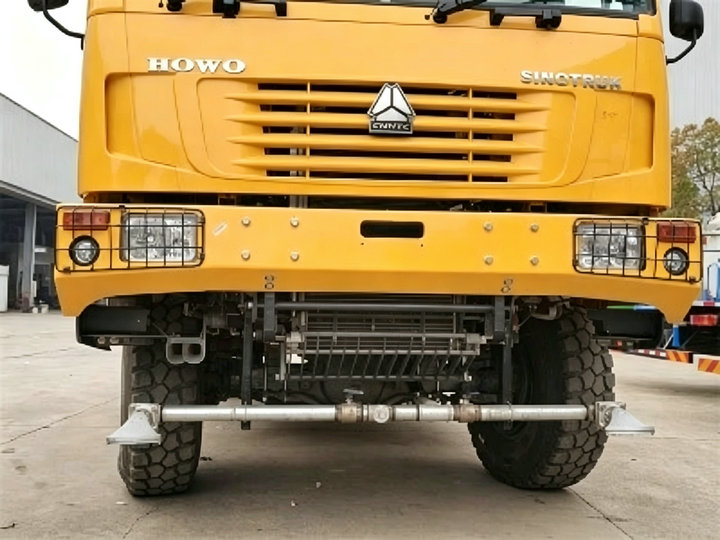

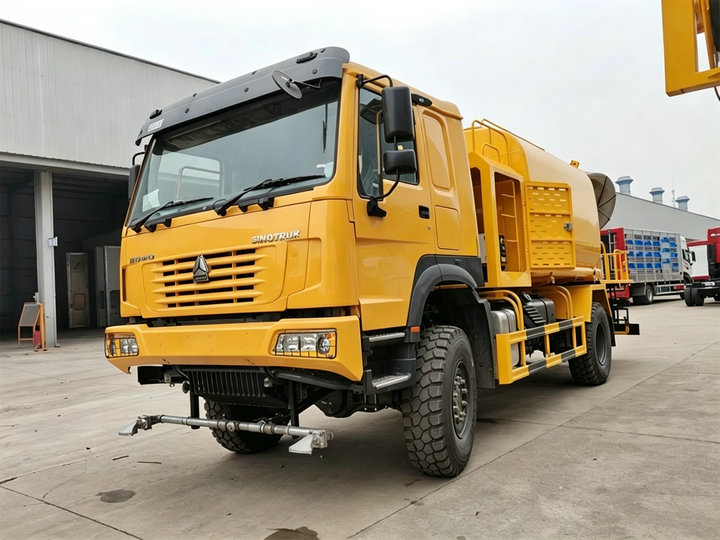

Front flushing bar: 15–20 m spray width for road washing

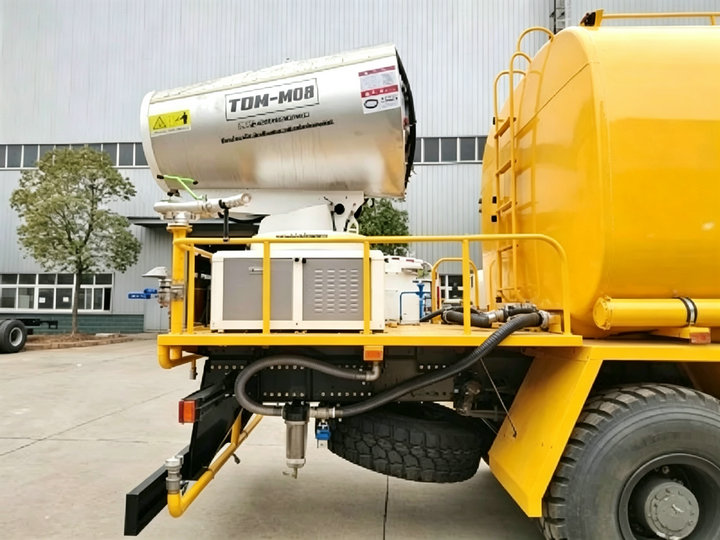

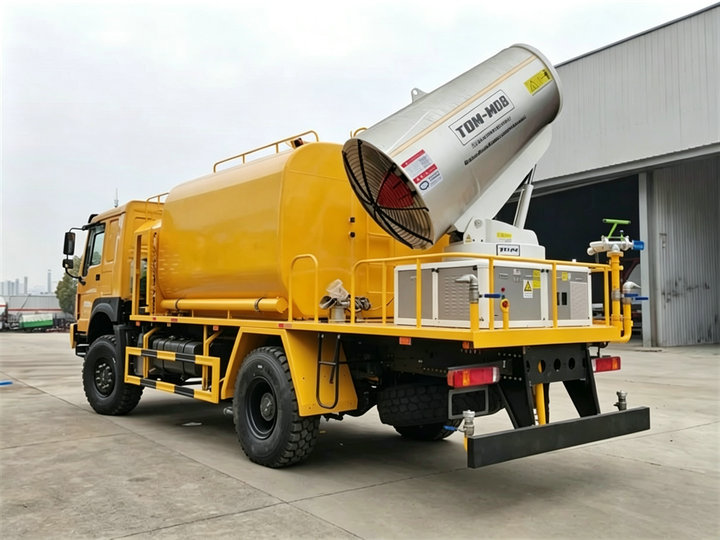

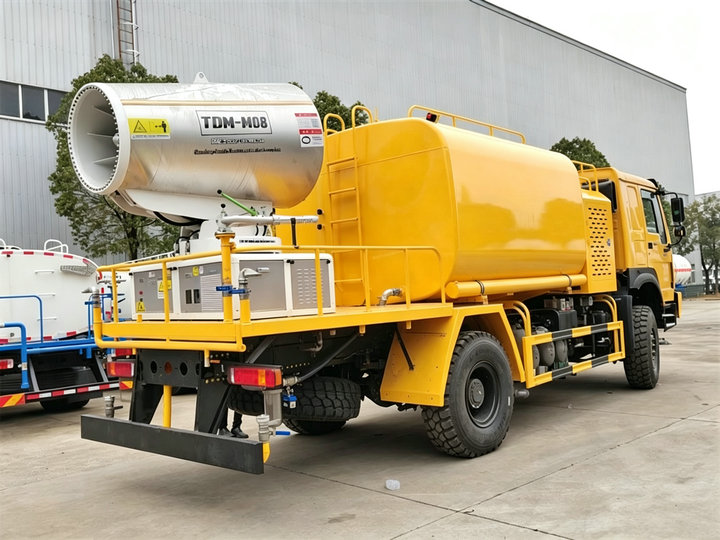

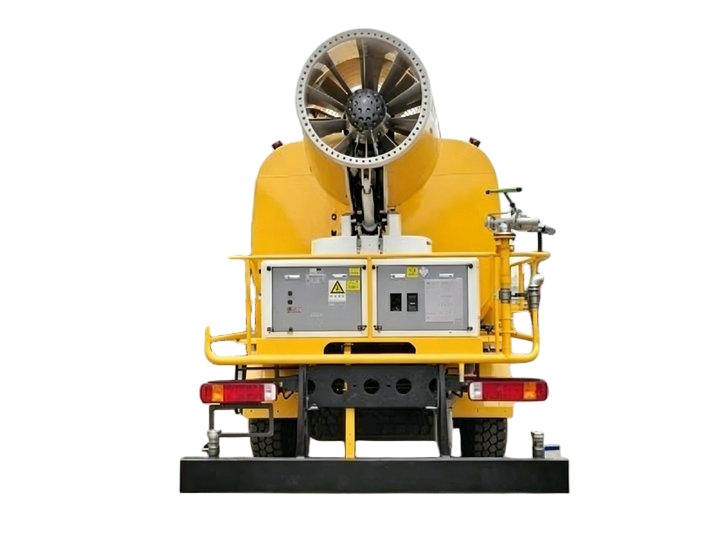

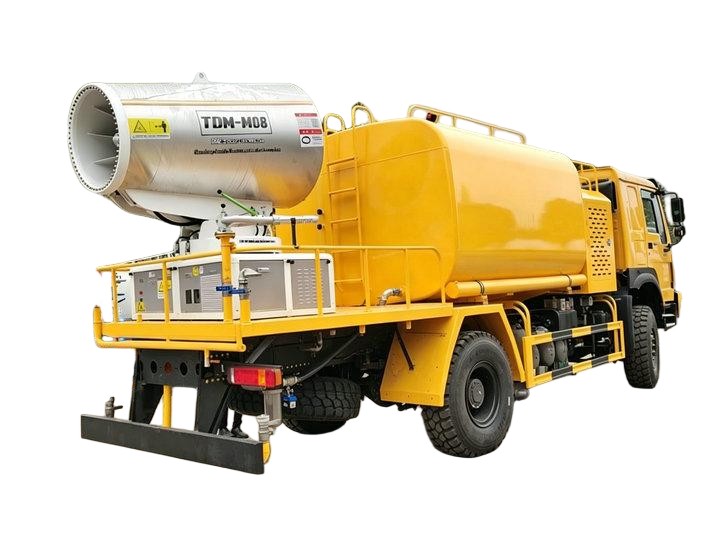

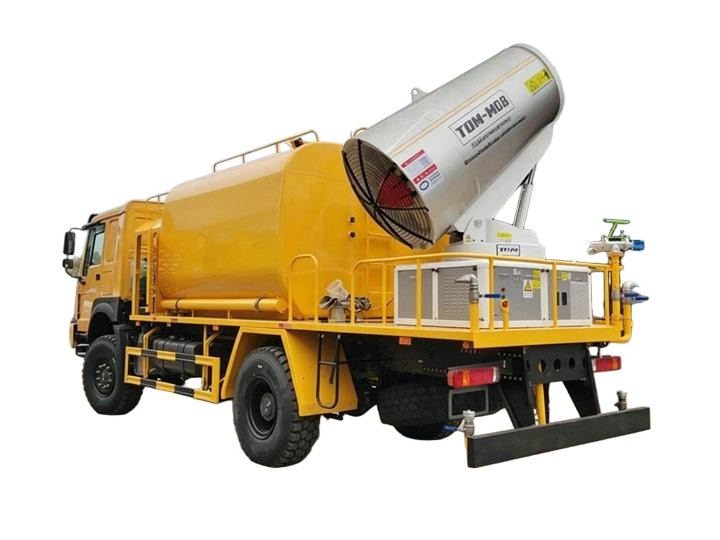

Rear platform sprinkler + anti-aircraft gun: up to 30–35 m vertical reach

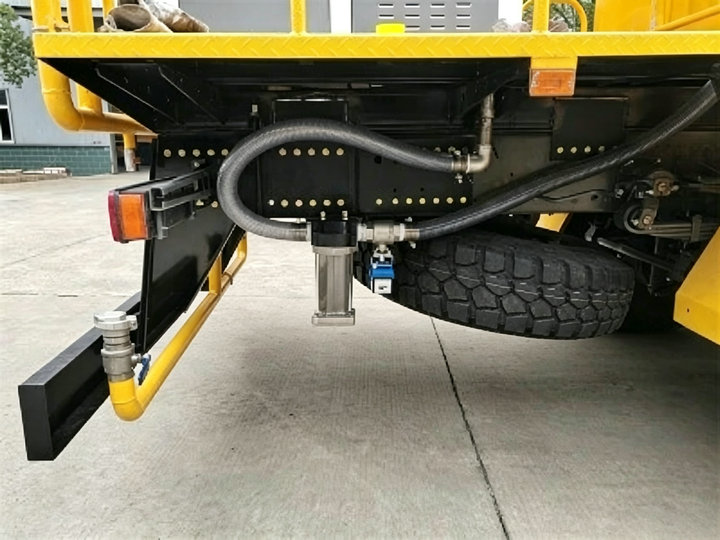

Side spraying: curb and shoulder wetting

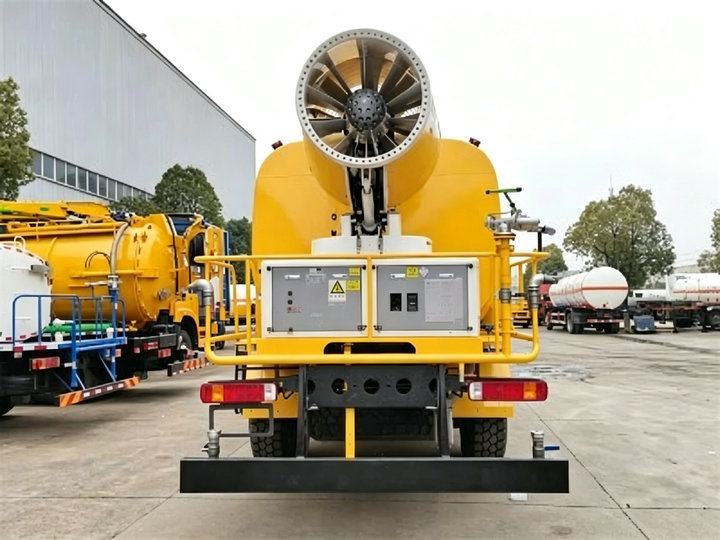

S-type water cannon: adjustable jet / mist cone
Fire interface: emergency fire-fighting connection
Optional high-range cannon: 30–120 m for open-pit dust and snow melting

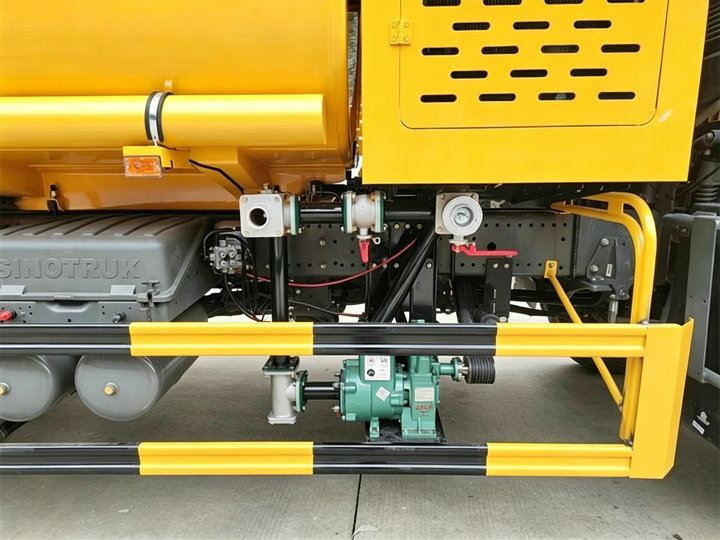

The water pump offers a 7 m vertical suction head, so the truck can draft directly from creeks, ponds, or mine water sumps.
4. Heavy-Duty Braking & Safety
Service brake: dual-circuit pneumatic
Parking brake: energy-storage spring air-cutoff
Auxiliary brake: engine exhaust brake
This triple-brake setup is essential for a 13,000 kg GVW truck loaded with water on mine slopes.
5. Durable Build for 24/7 Mining Duty
The 6–8 m³ tank is rolled from carbon steel with anti-corrosion internal coating. Wear parts (nozzles, pump seals, valve seats) are selected for continuous duty, and the chassis undergoes salt-spray and vibration testing before leaving the factory.
6. Smart Monitoring (Optional)
An intelligent controller monitors pump pressure, tank level, and spray-gun angle in real time; GPS + telematics allow remote fleet tracking and operation-log reporting for mine HSE management.
Full Specifications
| Item | Specification |
|---|---|
| Brand / Model | Howo 4×4 Dust Suppression Water Tank Truck |
| Dimensions (L×W×H) | 6890 × 2450 × 2850 mm |
| Total Mass (GVW) | 13,000 kg |
| Rated Payload | 5,000 kg |
| Curb Weight | 5,800 kg |
| Cab Seating | 3 persons |
| Approach / Departure Angle | 18° / 21° |
Chassis
| Item | Specification |
|---|---|
| Driving Type | 4×4, left / right hand drive |
| Wheelbase | 4,500 mm |
| Gearbox | 6 forward + 1 reverse, manual |
| Tires | 12.00R20 (6 + 1 spare) |
| Front / Rear Suspension | 2,041 / 1,830 mm |
| Service Brake | Dual-circuit pneumatic |
| Parking Brake | Energy-storage spring, air cutoff |
| Auxiliary Brake | Engine exhaust brake |
Engine
| Item | Specification |
|---|---|
| Model | Weichai WP7H300E62 |
| Rated Power | 300 hp |
| Fuel | Diesel |
| Displacement | 6,800 ml (6.8 L) |
| Emission Standard | Euro 3 |
Water & Spray Equipment
| Item | Specification |
|---|---|
| Tank Capacity | 6–8 m³ |
| Tank Material | Carbon steel |
| Front Flushing Width | 15–20 m |
| Rear Cannon Reach | 30–35 m |
| Pump Vertical Suction Head | 7 m |
| Standard Config | Front flush, rear spray, side spray, S-type anti-aircraft gun, fire interface |
| Optional Cannon | 30–120 m range |
Typical Applications
Open-pit mine dust suppression and haul-road watering
Quarry, aggregate plant, and stockpile misting
Construction site and earthwork road dust control
Municipal road flushing and greening irrigation
Emergency water transport and fire-fighting support
Snow melting and dust control on factory yards / ports
Why Buy Direct from Our Factory?
✅ OEM/ODM welcome — tank size, color, and logo customizable
✅ Genuine Howo chassis + Weichai engine with factory warranty
✅ Export packaging suitable for RORO, container, and bulk vessel shipment
✅ Spare parts supply worldwide
✅ Right-hand-drive version for Africa, Middle East, Southeast Asia
FAQ
Q: What is the water tank capacity?A: Standard is 6–8 cubic meters (m³), made of carbon steel with anti-corrosion coating. Custom sizes are available.
Q: How far can the rear spray gun reach?A: The standard S-type anti-aircraft gun reaches 30–35 m vertically; an optional high-range cannon extends up to 120 m for open-pit dust control.
Q: Is a right-hand drive version available?A: Yes. The truck is offered in both left-hand drive (LHD) and right-hand drive (RHD) configurations for export markets.
Q: Which emission standard does the engine meet?A: The WP7H300E62 6.8 L diesel engine is rated Euro 3. Euro 2 / Euro 4 options can be discussed depending on destination country.
Q: Can it suck water from a natural source?A: Yes. The dedicated water pump has a 7 m vertical suction head, allowing direct drafting from ponds, streams, or mine sump water.
Q: What is the delivery time? customized units take 45–65 working days after deposit.
