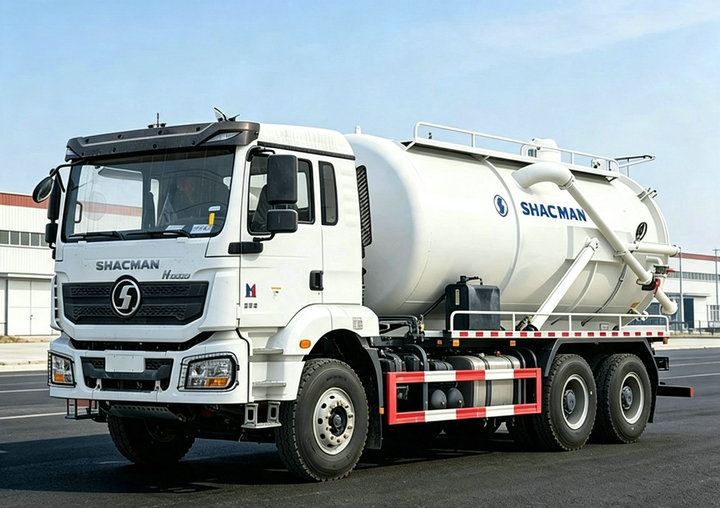

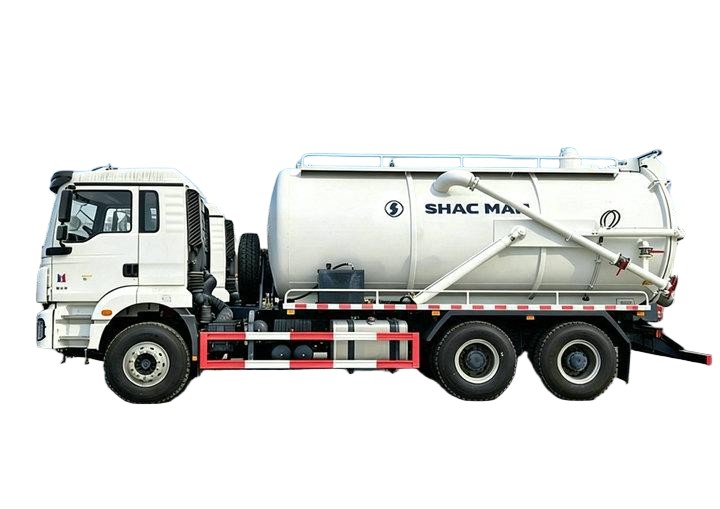

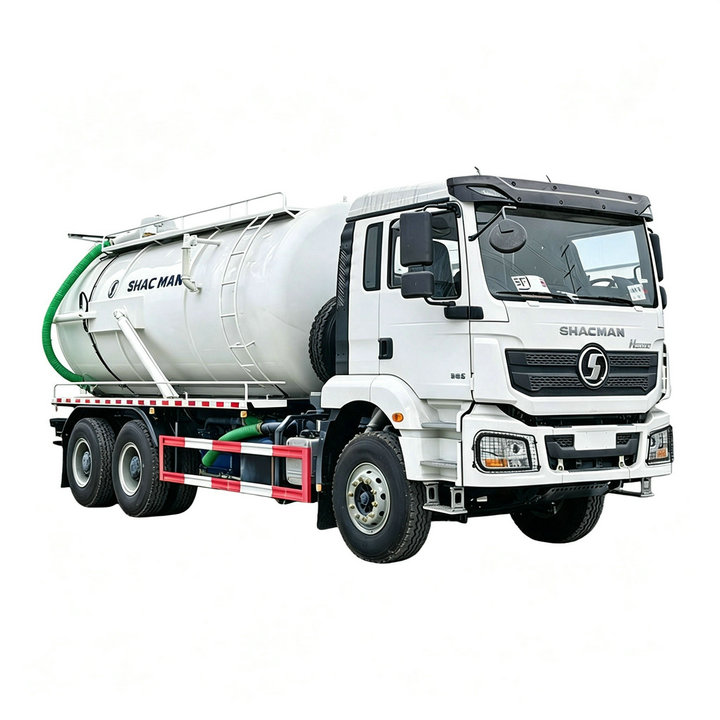

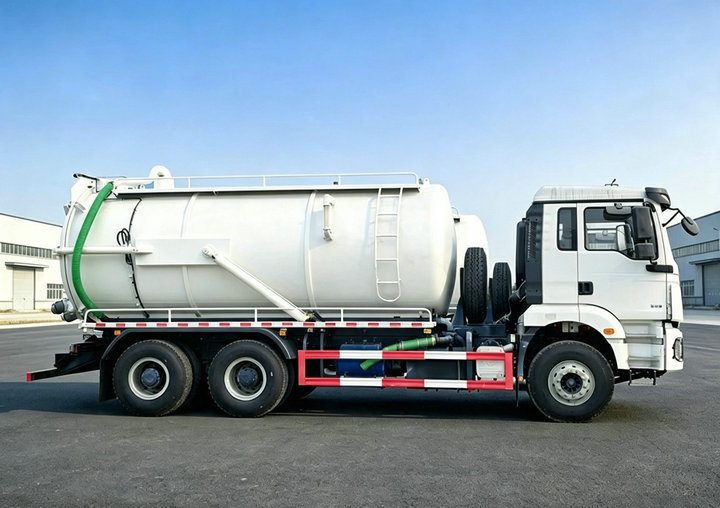

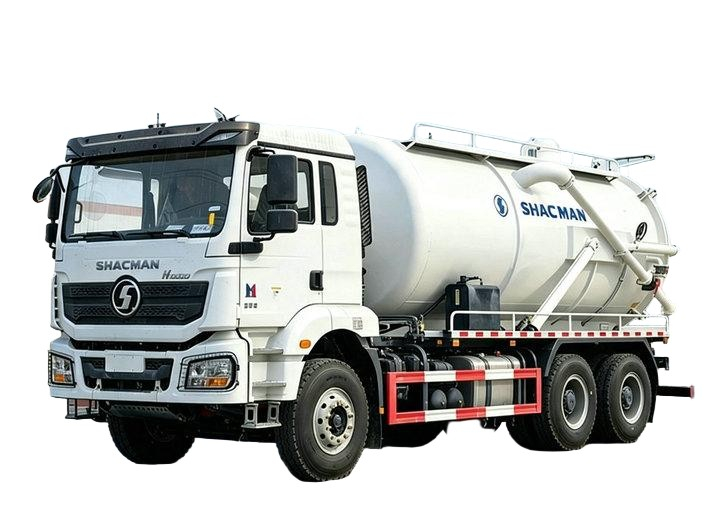

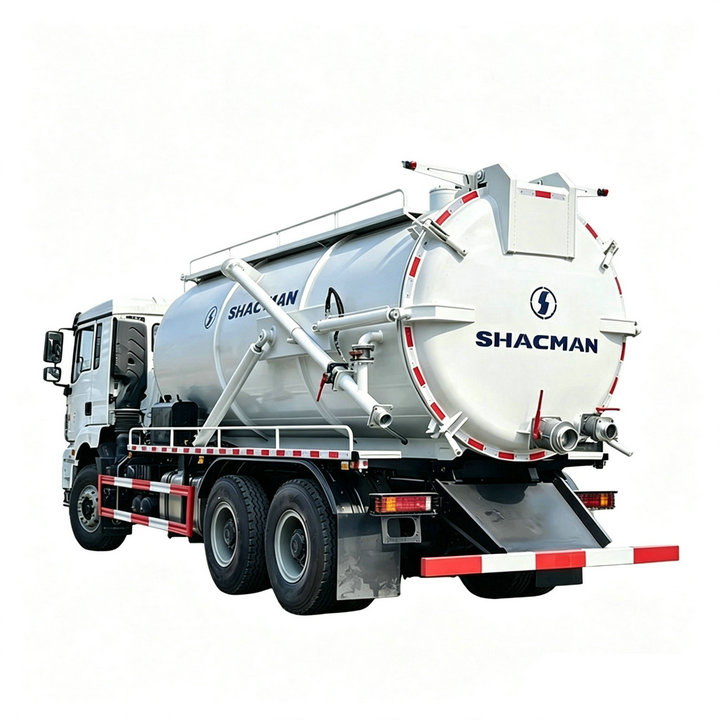

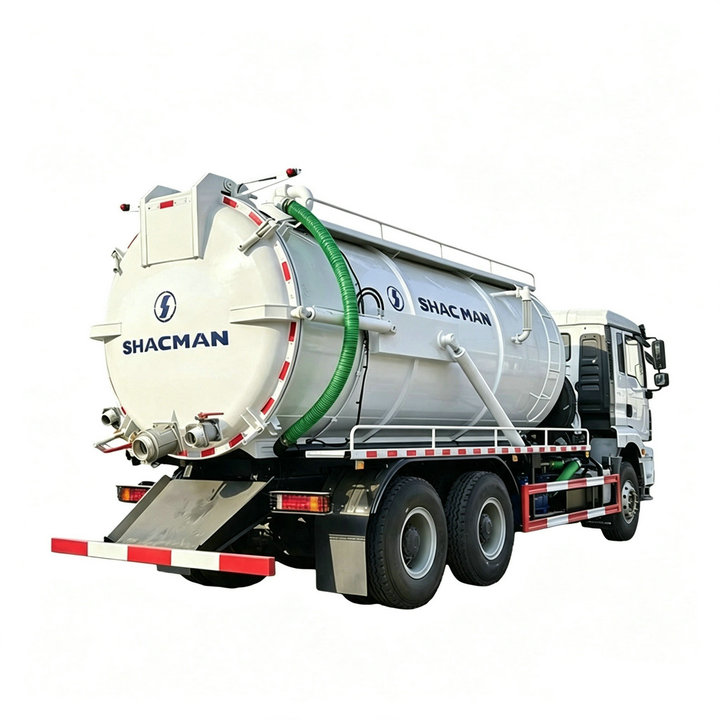

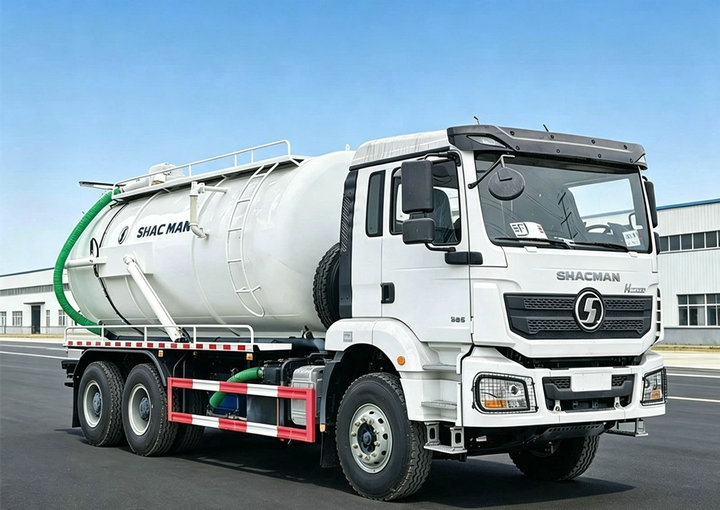

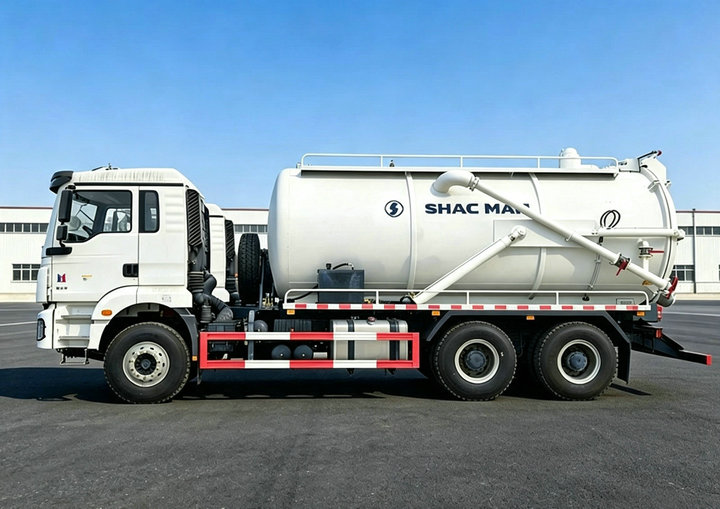

SHACMAN H3000 Truck Mounted 20 CBM Vacuum Tanker Cesspit Emptier
Tank capacity can be customized 18-20KL
MEC Series Vacuum Pump
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5250GXWSX
-
DRZ
-
8705909990
SHACMAN H3000 Truck Mounted 20 CBM Vacuum Tanker Cesspit Emptier
SHACMAN H3000 Truck Mounted 20 CBM Vacuum Tanker
Reliable Factory Manufacturer for Special Sanitation Trucks
Ⅰ. Product Overview & Core Advantages
1. SHACMAN H3000 6×4 Professional Sanitation Chassis
2. High‑Strength Anti‑Corrosion Vacuum Tank
3. High‑Efficiency 2BE‑204 Liquid Ring Vacuum Pump System
Working flow: 21m3/m
Suction displacement efficiency ≥93%
Fast pumping & discharging, maximum vertical suction depth reaches 10m
Optional imported brand vacuum pumps are available for ultra‑heavy‑load working conditions.
4. Diversified Suction & Discharge Accessories
5. Multi‑Dimensional Safety Control System
✅ Pressure relief valve & overload protection device to avoid tank overpressure during pumping
✅ Static conductive grounding system + explosion‑proof electrical components eliminate electrostatic risks on site
✅ Emergency stop button + hydraulic interlock mechanism for immediate system shutdown in accidents
Ⅱ. Complete Technical Parameters
| Category | Item | Specification |
|---|---|---|
| Whole Vehicle | Product Name | SHACMAN H3000 20 CBM Vacuum Tanker |
| Vehicle Model | DRZ5250GXWSX | |
| Drive Type | 6×4 | |
| Gross Vehicle Weight | 25,000 kg | |
| Curb Weight | 11,870 kg | |
| Maximum Travel Speed | 90 km/h | |
| Overall Dimension(L×W×H) | 9500x2500x3300 mm | |
| Engine | Model | Cummins ISM11E5 diesel engine |
| Fuel Type | Diesel | |
| Rated Power | 385 HP (283 kW) | |
| Emission Standard | Euro 5 | |
| Displacement | 10,800 ml | |
| Structure | Inline 6‑cylinder, water‑cooled, turbocharged & intercooled diesel engine | |
| Chassis | Brand | SHACMAN |
| Tire Quantity | 10 working tires + 1 spare tire | |
| Tire Specification | 12.00R20 | |
| Wheelbase | 4375+1400 mm | |
| Gearbox | FAST 10 forward gears + 2 reverse gears | |
| Steering Mode | Left‑hand drive / Right‑hand drive customizable | |
| Braking System | Air brake | |
| Radiator | Tropical‑climate adaptive radiator | |
| Coating | Metallic anti‑scratch paint | |
| Cabin | Configuration | Sleeper berth, factory‑installed air conditioner |
| Superstructure | Effective Tank Capacity | 20,000 L (20 CBM) |
| Tank Material | Q355 carbon steel (optional stainless steel) | |
| Tank Thickness | Cylinder wall 6 mm, end caps 8 mm | |
| Max Vertical Suction Head | 10 m | |
| Vacuum Pump Model | 2BE‑204 water‑ring vacuum pump, flow 21m3/m vacuum rate ≥93% | |
| Suction Horizontal Depth | 6 m | |
| Standard Hose | Steel‑wire reinforced high‑pressure hose | |

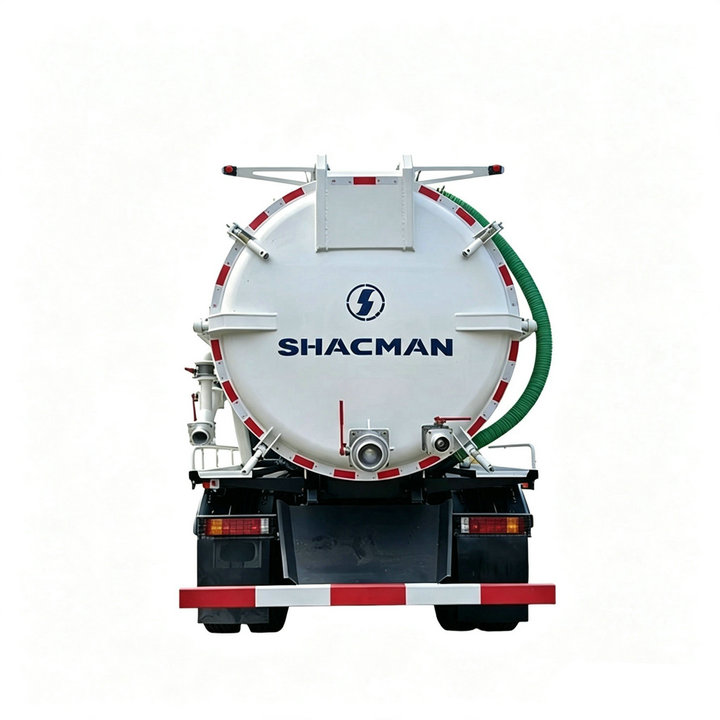

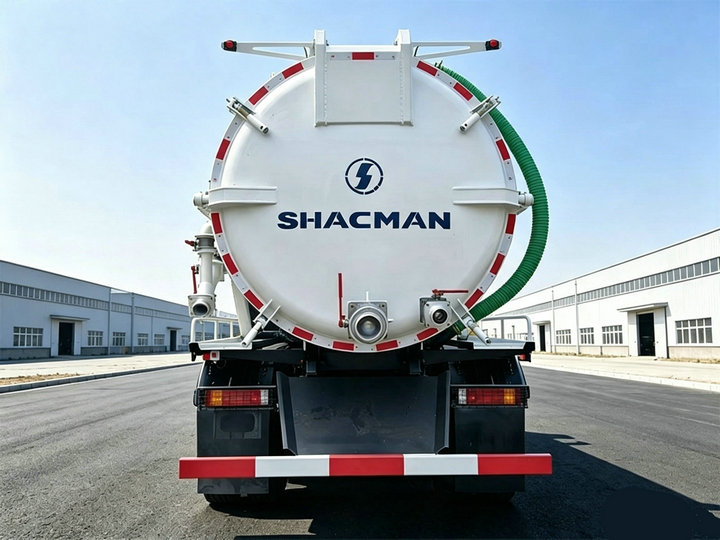

| Rear Discharge Design | Hydraulic opening rear end cover for full discharge of solid sludge & debris | |
| Standard Fittings | Suction port, discharge port, anti‑overflow valve and full set of connecting pipelines |
Ⅲ. Structural Details Introduction
3.1 Tank Body
Single‑compartment 20CBM vacuum tank with reinforced end caps, perfectly suitable for industrial sludge, septic waste and high‑viscosity sewage transportation;
Manholes on tank top fitted with safety valves and anti‑overflow sensors; surrounding protective handrails meet international occupational safety standards;

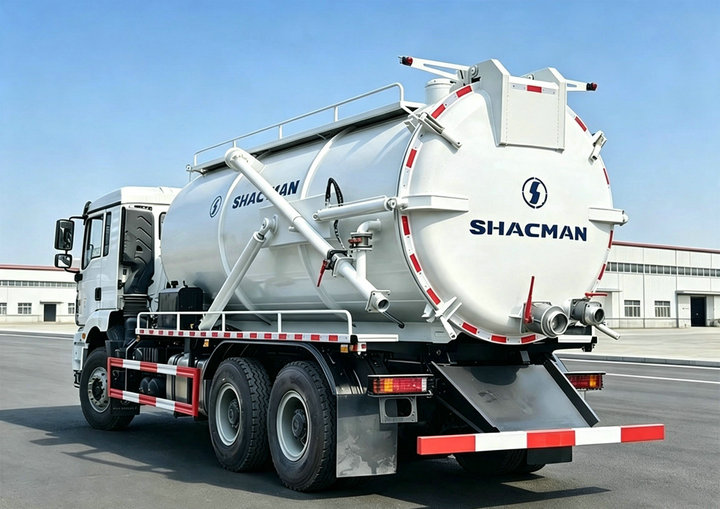

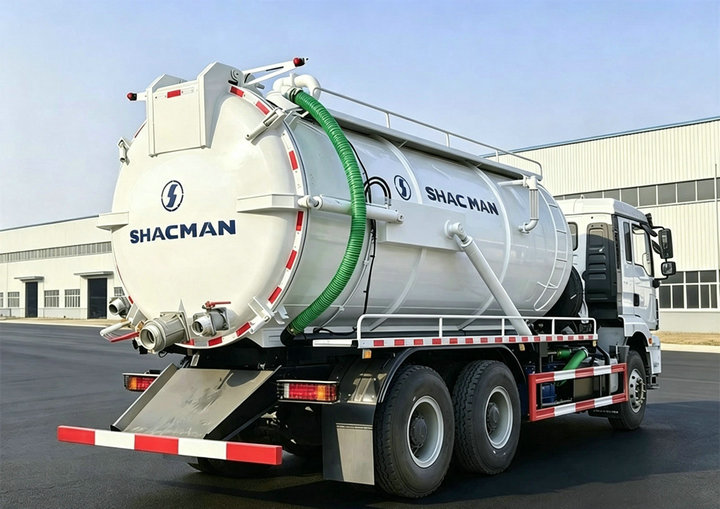

Sloped tank bottom design ensures zero residual sewage during unloading; hydraulic rear door can be fully opened to discharge solid debris like gravel and silt;
Integrated external climbing ladder and operation platform facilitate daily inspection and maintenance of top accessories.
3.2 Powertrain Assembly
3.3 Hydraulic Control System
Multi‑circuit combined hydraulic valve bank: dual control levers independently operate tank tipping lifting, rear door opening/closing and suction arm retraction;
High‑precision hydraulic pressure gauge displays real‑time system pressure to remind operators of abnormal working status timely.
3.4 Discharge Operation System
Ⅳ. Working Principle of 2BE‑204 Vacuum Pump

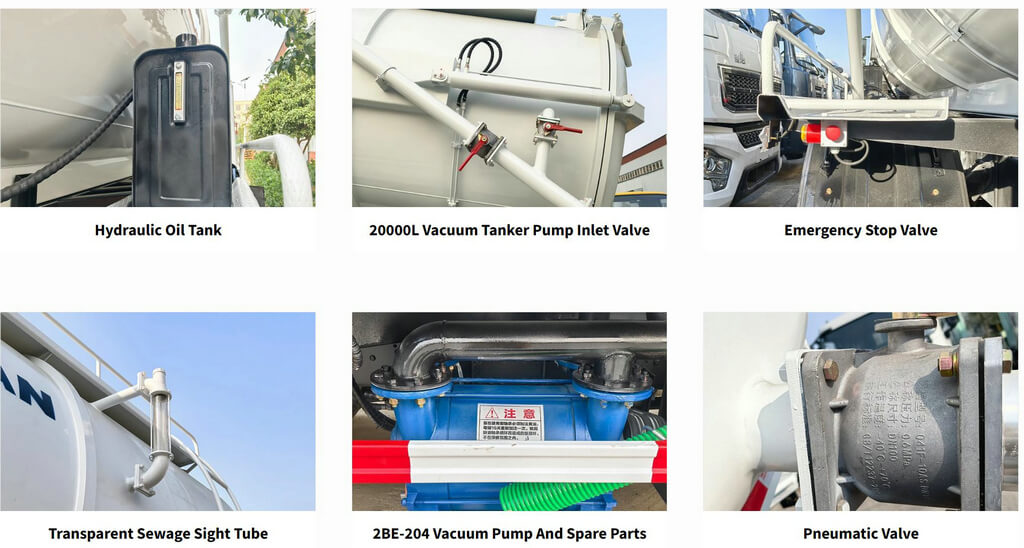

List of Core Spare Parts for Reference
Hydraulic oil tank | Pump inlet valve | Emergency stop valve | Transparent sewage sight glass | 2BE‑204 vacuum pump & consumables | Pneumatic control valve | Sleeper cabin | Manual transmission assembly | Spare tire

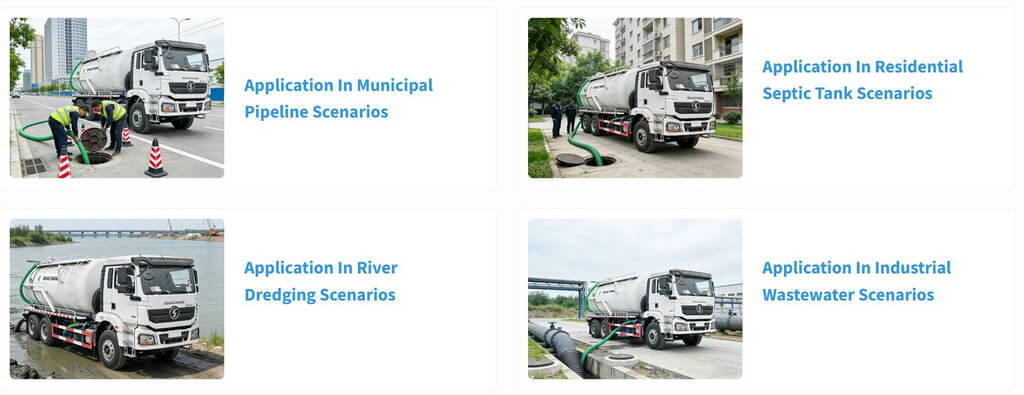

Ⅴ. Typical Application Scenarios & Solutions
Municipal Pipeline Maintenance：Suck blockages in urban sewer pipelines and transport waste to treatment plants;
Residential Septic Tank Cleaning：Regular pumping and cleaning of community septic tanks to eliminate odor and health hazards;
River & Lake Dredging：Collect underwater silt and polluted sediment for centralized disposal;
Industrial Wastewater Treatment：Transport factory high‑concentration wastewater and precipitated sludge to designated treatment facilities.
| Product Name | Shacman H3000 Truck Mounted 20 CBM Vacuum Tanker | ||
| Overall | Vehicle Model | DRZ5250GXWSX | |
| Drive Type | 6*4 | ||
| Gross Vehicle Weight | 25000 kg | ||
| Curb Weight | 11870 kg | ||
| Maximum Speed | 90 km/h | ||
| Overall Dimensions L*W*H(mm) | 9500x2500x3300 mm | ||
| Engine | Engine Model | CUMMINS diesel engine ISM11E5 | |
| Fuel Type | Diesel | ||
| Power | 385 HP(283 KW) | ||
| Emission Standard | Euro 5 / 6 | ||
| Displacement | 10800 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | SHACMAN | |
| Tire No. | 10 tyres and 1 spare tyre | ||
| Tire Specification | 12.00R20 | ||
| Wheelbase) | 4375+1400 mm | ||
| Gear Box | FAST gearbox,10 forward and 2 reverse | ||
| Steering Wheel | left hand or right hand drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for tropical climate | ||
| Paint | Metallic paint | ||
| Cabin | with rear sleeper, with air conditioner. | ||
| Super Structure | Tank Capacity | 20,000Litres | |
| Tank Material | Carbon steel Q355 material | ||
| thickness 6mm and cover 8mm | |||
| Suction Head | 10 m | ||
| Vacuum Pump | 2BE-204 model with flow rate 21m3/min | ||
| Highly efficient,vacuum rate 93%, | |||
| quick suction and discharge, suction 6m. | |||
| Hose | High quality, wire strengthened hose | ||
| Rear door can be hydraulic opened for complete discharge of solid stuff. | |||
| All standard accessories: inlet,discharge,antifll valve. | |||
| Optional | Tank material could be carbon steel,stainless steel. | ||
| Vacuum pump could be imported brand. | |||
Our Service Advantages for Global Buyers
Product Promise: 100% Customized Solutions
Customize tank material (carbon steel / stainless steel), pump brand, drive side (LHD/RHD) and painting color according to local regulations;
Factory direct pricing with competitive cost performance without middleman markup;
Complete original/OEM/replacement spare parts supply with exclusive bulk discount;
Professional design team optimizes configuration matching your local working conditions.
Logistics Promise: Safe, Fast & Traceable
After‑Sales Promise: 7×24 Hours Global Support
Prompt production scheduling and fast delivery after order confirmation;
7‑day & 24‑hour online technical consultation;
On‑site installation guidance and operator training available in main overseas regions;
Long‑term spare parts supply after warranty period.
