DRZ5100GXWZZ
-
DRZ
-
8705909990

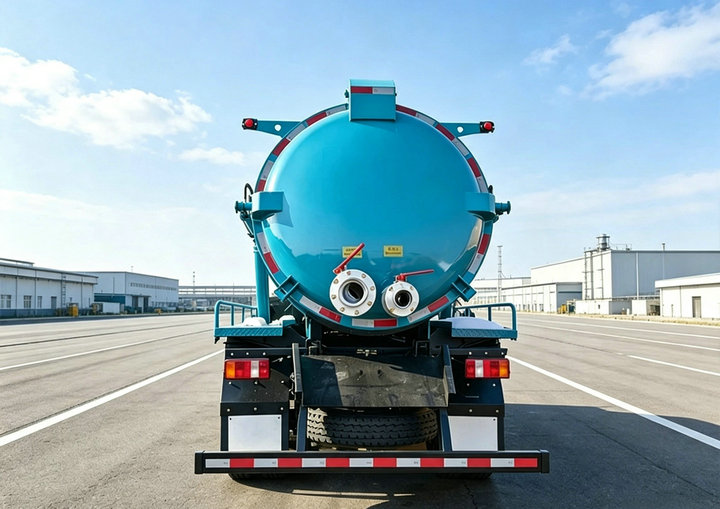

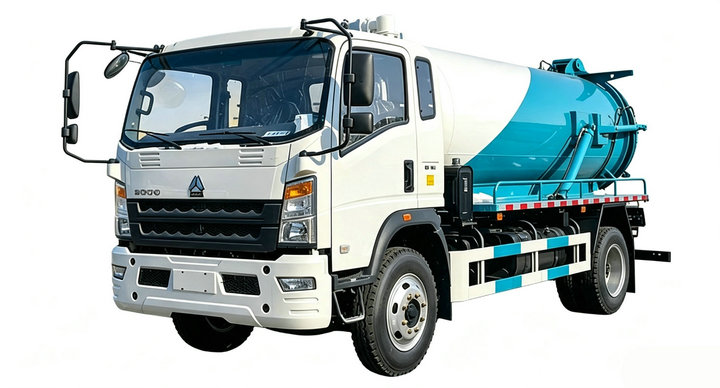

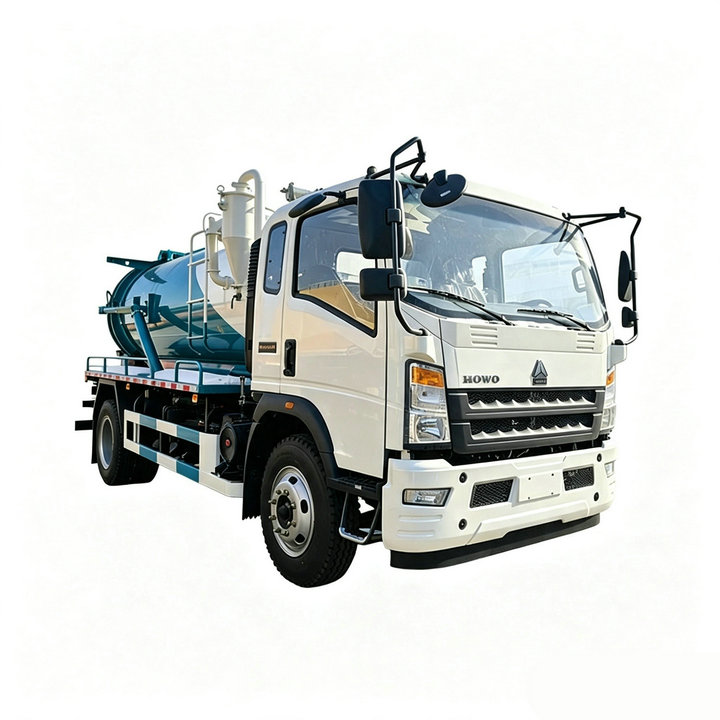

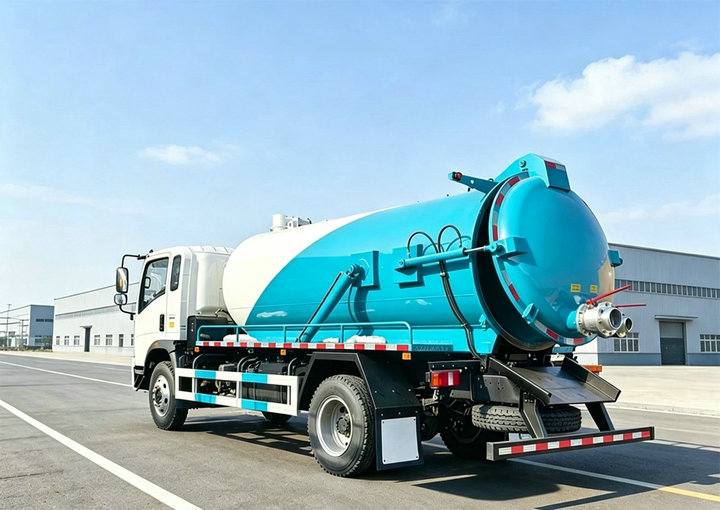

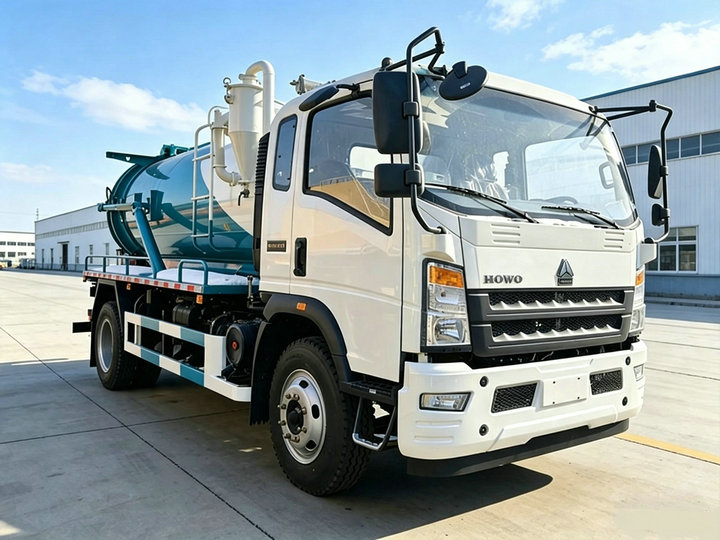

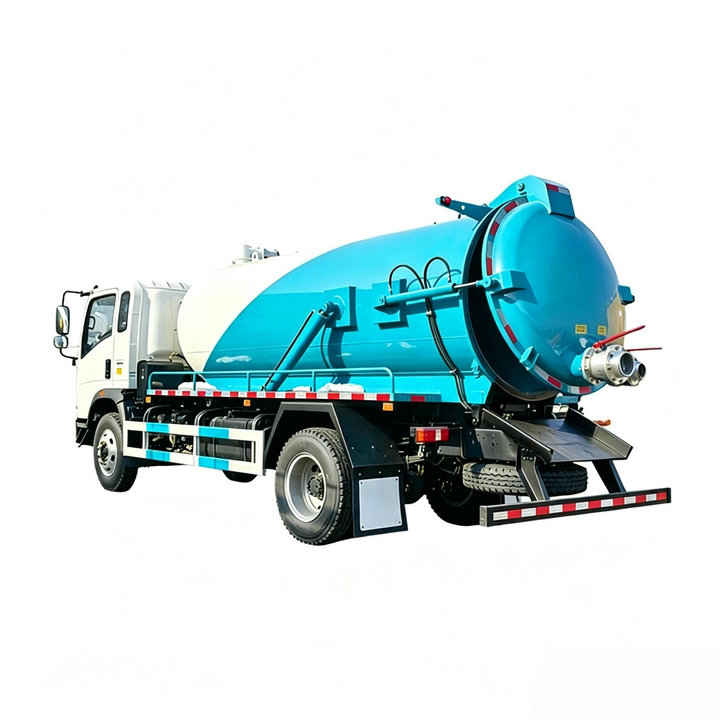

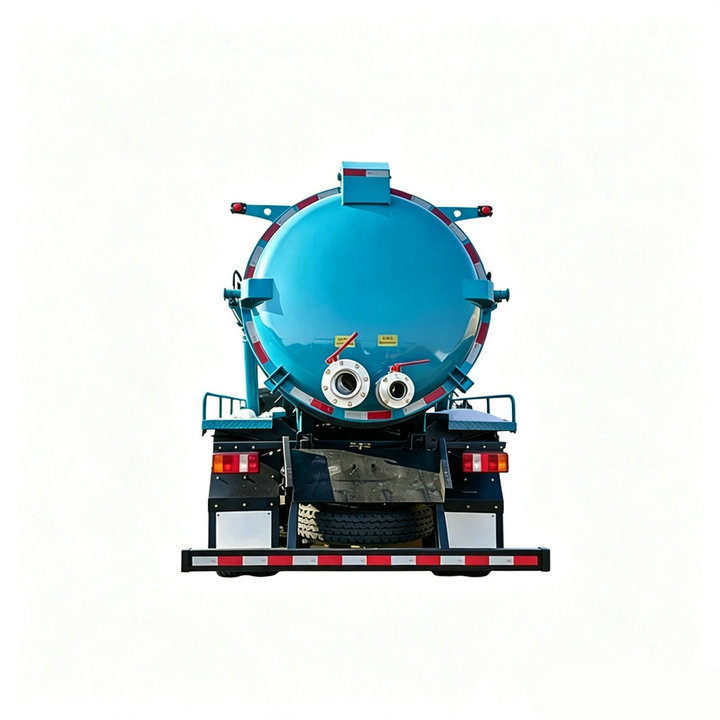

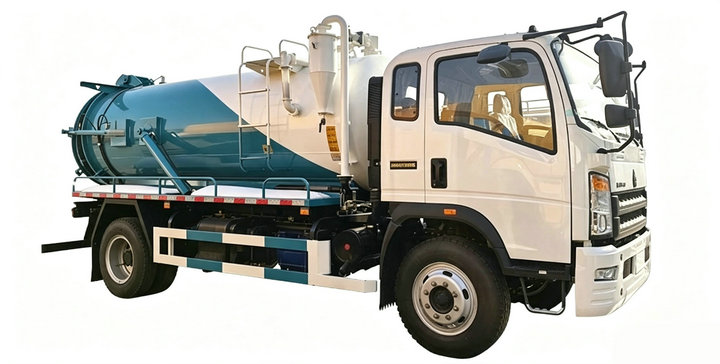

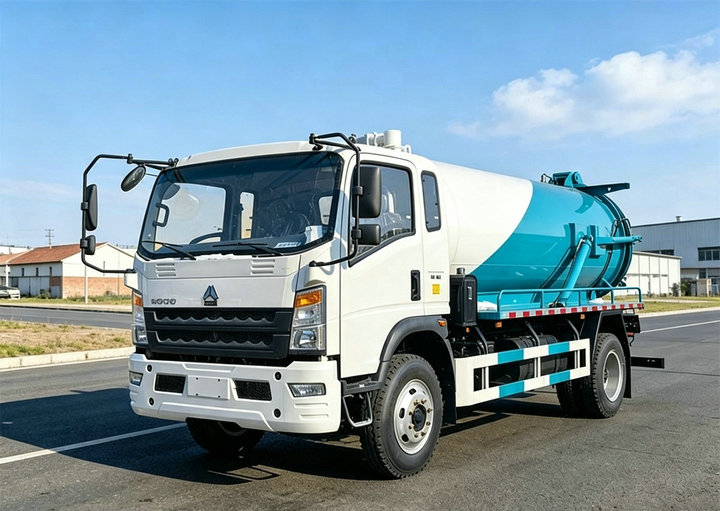

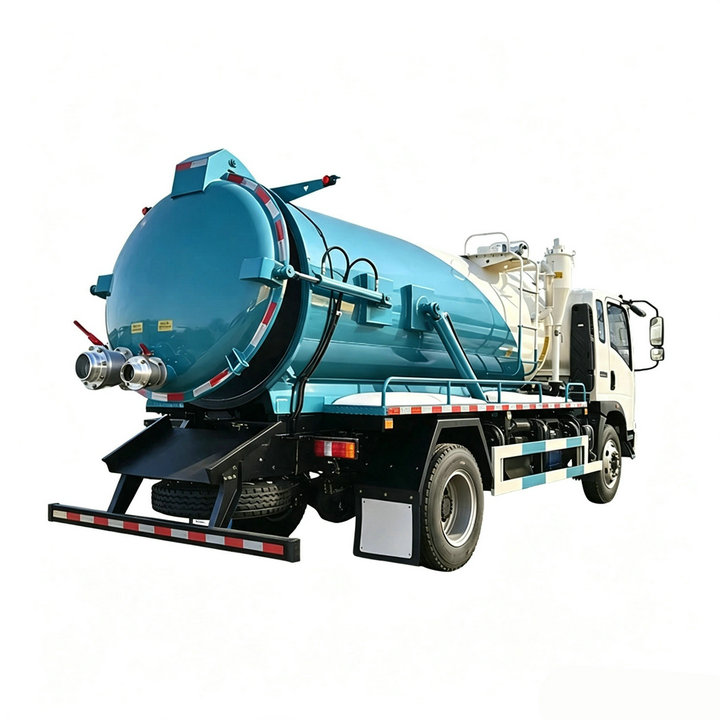

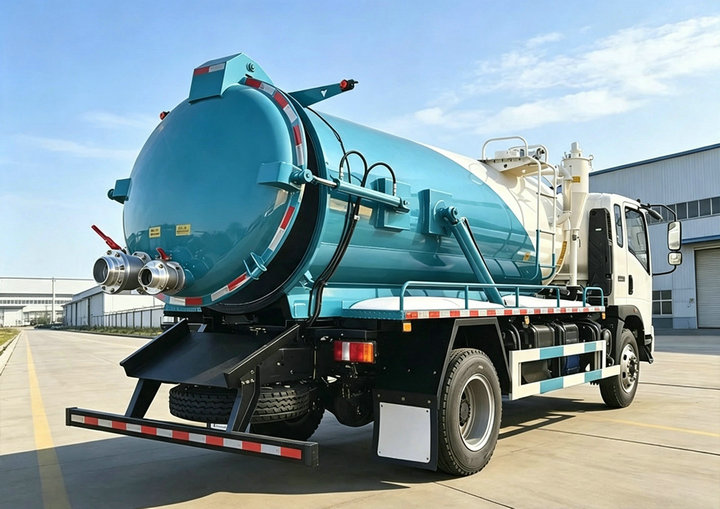

6KL HOWO Septic Pump Vacuum Truck
HOWO Septic Pump Vacuum Truck
Product Overview
The HOWO 6000L Sewer Vacuum Pump Tanker Truck equips an efficient vacuum pump system and hydraulically controlled tank assembly with a 6000L carbon steel tank. Designed for fast sewage and sludge extraction, it reaches suction time ≤3 minutes and effective suction depth ≥7 meters, perfectly fitting municipal sanitation, septic tank cleaning and emergency waste disposal projects.
Model: DRZ5100GXWZZCapacity: 6 CBM / 2000 GallonsDrive Mode: 4×2 Engine Power: 160 HPEngine Model: YC4E160‑33Contact us for latest quotation!
Also called sewage suction truck or vacuum septic tanker, this HOWO septic pump vacuum truck handles residential septic tank dredging, urban sewage collection and industrial sludge removal. The matched 160HP powertrain and 6000L tank deliver stable performance for urban & rural sanitation work.Guaranteeing 100% brand‑new original vehicles with premium quality.
1. Core Configuration Highlights
✅ Chassis: Original HOWO 4×2 chassis powered by 160HP Yuchai diesel engine
✅ Tank: 6000L single‑compartment cylindrical tank made of 5mm anti‑corrosion carbon steel with internal anti‑slosh baffles
✅ Vacuum System: Liquid ring vacuum pump with 9cbm/m flow rate; suction time ≤3 min, effective suction depth ≥7 m
✅ Application: Septic tank cleaning, municipal sewage pumping, factory sludge collection
2. Structured Technical Specs
| Category | Item | Specification |
|---|---|---|
| Vehicle Basics | Model | DRZ5100GXWZZ |
| Drive Type | 4×2 | |
| GVW / Curb Weight | 11000 kg / 4850 kg | |
| Max Speed | 100 km/h | |
| Dimension(L×W×H) | 6300×2350×2560 mm | |
| Powertrain | Engine | YC4E160‑33, Euro 3, 160HP(118kW), 4257ml |
| Chassis | Transmission | HW90510C2 manual gearbox (10 forward +2 reverse) |
| Cabin | Single‑row 2 seats with A/C, left‑hand drive | |
| Superstructure | Tank Volume | 6000L, 5mm carbon steel |
| Vacuum Pump | low noise & high vacuum | |
| Operation Index | Suction ≤3min, suction depth ≥7m, dump angle ≥45° | |
| Standard Accessories | Inspection window, 5m suction hose, oil‑water separator, hydraulic lifting tank & hydraulic open rear door | |
| Optional Upgrade | Stainless steel tank, imported Spanish vacuum pump, tank internal anti‑rust coating |
3. Functional Advantages
Chassis Stability: Heavy‑duty frame and balanced axle load ensure smooth operation during suction, transportation and hydraulic unloading.Power Performance: Turbo inter‑cooled diesel engine plus 10‑speed manual gearbox adapts to complicated rural and urban working conditions.Hydraulic Control: Multi‑way hydraulic valves control tank lifting and rear door opening synchronously for fast waste discharging.Suction & Discharge Design: φ102mm quick‑connect suction port pairs with stainless steel pneumatic ball valves; 45° hydraulic tipping realizes residue‑free unloading.
4. Working Principle
Suction: vacuum pump pumps sewage from septic tanks/manholes within 3 minutes via quick‑connect suction hoses;
Discharge: Hydraulically tilted tank and pneumatic discharge valves empty waste thoroughly;
Quick switching of suction/discharge hoses greatly improves on‑site working efficiency for sanitation teams.
5. Application Scenarios
Residential community septic tank dredging | Municipal street sewage cleaning | Construction site sludge collection | Industrial park wastewater transportation
Sewage Suction Truck Product Introduction
Sewage Suction Truck is a special vehicle designed for the cleaning and transportation of sewage. It is equipped with a high-power vacuum pump and a sealed storage tank, which can efficiently collect and dispose of different kinds of sewage including domestic sewage.
Here are the five major applications of this truck:
- Sewage CleaningThe sewage suction truck clears sewage accumulated on roads, in public areas, industrial zones and sewage pipelines. Solid-liquid mixed waste is pumped into the storage tank by the vacuum pump for subsequent harmless treatment.
- Sewage Transfer & TreatmentIt collects wastewater discharged from industrial parks and other facilities, and delivers the loaded wastewater to professional sewage treatment plants for centralized disposal.
- Drainage Pipeline DredgingFor urban drainage networks, the truck removes stagnant water and blockages inside sewers. Relying on the strong suction of the vacuum pump, it rapidly extracts water and debris to keep the drainage system unobstructed.
- Decentralized Sewage CollectionIn rural regions and zones without laid sewage pipelines, the truck serves as the core carrier for domestic sewage collection. It gathers sewage from toilets, bathrooms, kitchens and other household scenarios, then transports the sewage to designated treatment sites.
- Industrial Waste Liquid & Sludge DisposalThe vehicle can collect and process waste liquid and sludge produced by factories. It helps enterprises discharge wastes in line with environmental regulations and lower pollution risks to the surrounding environment.
| Product Name | ISUZU FVZ 3000 Gallon Fire Tanker Truck | ||
| Overall | Vehicle Model | DZR5100GXWZZ | |
| Drive Type | 4*2 | ||
| Gross Vehicle Weight | 11000 kg | ||
| Curb Weight | 4850 kg | ||
| Front Axle Weight | 3200 kg | ||
| Rear Axle weight | 8000 kg | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H | 6300*2350*2560 mm | ||
| Engine | Engine Model | YC4E160-33 | |
| Fuel Type | Diesel | ||
| Power | 160 HP(118KW) | ||
| Emission Standard | Euro 3 | ||
| Displacement | 4257 ml | ||
| Engine Type | 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | HOWO | |
| Tire No. | 6 tires and 1 spare tire | ||
| Tire Specification | 8.25R20 | ||
| Wheelbase | 3800 mm | ||
| Gear Box | HW90510C2 gearbox, manual, 10 gears forward with 2 reverse | ||
| Cabin | HOWO, single row,2 seats, with A/C | ||
| Steering Wheel | Left hand drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for a tropical climate | ||
| Superstructure | Tank Capacity | 6000 Litres | |
| Material | 5mm thickness, high-quality carbon steel | ||
| Pump | Type | SK 9 | |
| Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | ||
| Pipe | Suction and discharge pipe | ||
| Special function | Suction time ≤ 3min, | ||
| effective suction range ≥ 7, | |||
| Max vacuum degree ≤ 15 KPa, | |||
| dump angle ≥ 45° | |||
| Standard configuration | Equipped with an inspection window, discharge valve, | ||
| cleaning apparatus, 5-meter-long suction pipe, | |||
| oil-water separators, overflow valve, etc. | |||
| The cylinder vacuum tank can be lifted hydraulically | |||
| to a 40-45 degree angle. The rear door can be opened and closed hydraulically. | |||
| Optional configuration | Tanker material: stainless steel. | ||
| Vacuum pump: China or Spain vacuum pumps. | |||
| Anti-rust coating inside the tank | |||
SK‑6, SK‑9, SK‑12, SK‑20, SK‑30, SK‑42 Water Ring Vacuum Pumps Core Technical Specifications
| Model | Nominal Pumping Speed (m³/min) | Ultimate Vacuum | Motor Power (kW) | Speed (r/min) | Water Supply (L/min) | Inlet/Outlet Diameter (mm) |
|---|---|---|---|---|---|---|
| SK‑6 | 6 | −0.093 MPa (−700 mmHg) | 11 | 1440 | 20–30 | 80 |
| SK‑9 | 9 | −0.093 MPa | 15 | 1440 | 30–40 | 65 |
| SK‑12 | 12 | −0.094 MPa | 18.5 | 970 | 70–80 | 80 |
| SK‑20 | 20 | −0.094 MPa | 37 | 740 | 120–140 | 150 |
| SK‑30 | 30 | −0.093 MPa | 55 | 740 | 150 | 150 |
| SK‑42 | 42 | −0.093 MPa | 75 | 740 | 150 | 150 |
100% brand‑new factory direct sales; fast global shipping; 7‑day inquiry reply & 24‑hour online after‑sales support.
