SINOTRUK HOWO 5 CBM Cesspit Emptier Vacuum Super Sucker Septic Tank Truck
Tank capacity can be customized 4-5KL
MEC Series Vacuum Pump
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5100GXWZZ
-
DRZ
-
8705909990
SINOTRUK HOWO 5 CBM Cesspit Emptier Vacuum Super Sucker Septic Tank Truck
SINOTRUK HOWO 5 CBM Cesspit Vacuum Sucker Truck
Brief Overview
Model: DRZ5100GXWZZTank Capacity: 5 CBMDrive Layout: 4×2Rated Engine Power: 160 HPEngine Model: YC4E160‑33
Product Description
I. Manufacturer Profile & Core Advantages
Key Features
✅ Chassis: Original SINOTRUK 4×2 chassis fitted with 160 HP diesel engine
✅ Tank Volume: 5000-liter vacuum storage tank
✅ Tank Fabrication: Premium carbon steel, 3 mm for side plates and 4 mm for the thicker bottom plate
✅ Suction Assembly: Rear-mounted suction unit driven by engine PTO for stable vacuum power
✅ Application Range: Septic tank desilting, municipal sewage extraction, industrial sludge collection
II. Full Technical Parameters
| Category | Item | Specification |
|---|---|---|
| Basic Vehicle | Product Name | SINOTRUK HOWO 5 CBM Cesspit Vacuum Sucker Truck |
| Model | DRZ5100GXWZZ | |
| Drive Type | 4×2 | |
| Gross Vehicle Weight | 11 000 kg | |
| Curb Weight | 8 600 kg | |
| Front Axle Load | 3 200 kg | |
| Rear Axle Load | 8 000 kg | |
| Max Travel Speed | 100 km/h | |
| Overall Dimension (L×W×H) | 7100 mm × 2300 mm × 2800 mm | |
| Powertrain | Engine Model | YC4E140‑33；YC4E160‑33 |
| Fuel Type | Diesel | |
| Rated Power | 140 HP ；160 HP (118 kW) | |
| Emission Standard | Euro 3 | |
| Displacement | 4260 ml | |
| Engine Structure | Inline 4‑cylinder, water‑cooled, turbocharged & intercooled diesel engine | |
| Chassis | Chassis Brand | SINOTRUK |
| Tire Quantity | 6 working tires + 1 spare tire | |
| Tire Size | 8.25R20 | |
| Wheelbase | 3360 mm ；3800mm | |
| Transmission | WLY651 manual gearbox: 6 forward gears + 1 reverse gear | |
| Steering Mode | Left‑hand drive / Right‑hand drive optional | |
| Braking System | Air brake | |
| Radiator | Tropical‑climate customized radiator for high‑temperature regions | |
| Superstructure | Tank Capacity | 5000 L |
| Tank Material | High‑grade carbon steel | |
| Tank Thickness | Side: 3 mm; Bottom: 4 mm | |
| Vacuum Pump | Italy Moro vacuum pump or domestic premium vacuum pump | |
| Rated Suction Head | 6–8 m | |
| Standard Fittings | PTO-driven hydraulic system, multi-way valve, vacuum pressure gauge, water‑gas separator, oil‑gas separator, hydraulic oil tank, liquid level inspection window | |
| Customizable Item | Tank paint color per client requirement | |
| Optional Upgrades | Vacuum Pump | Italian / Spanish imported vacuum pump |
| Tank Material | Stainless steel tank | |
| Surface Treatment | Internal anti‑corrosion coating inside the tank |
III. System‑by‑System Introduction
3.1 Chassis Configuration
3.2 Powertrain System
3.3 Hydraulic Control Valve
3.4 Sewage Storage Tank
The 5000‑liter carbon steel tank uses 3–4 mm thick steel plates and is equipped with top guardrails and maintenance ladders for operator safety. The built‑in transparent liquid level sight window pairs with the PTO hydraulic drive system to support efficient suction work at a 6–8 meter suction depth.
MEC Series Pump Models Available
Standard accessories: 4-way control valve, non-return check valve
Hose connection sizes: Ø27mm / Ø45mm / G1” / G1 1/4”

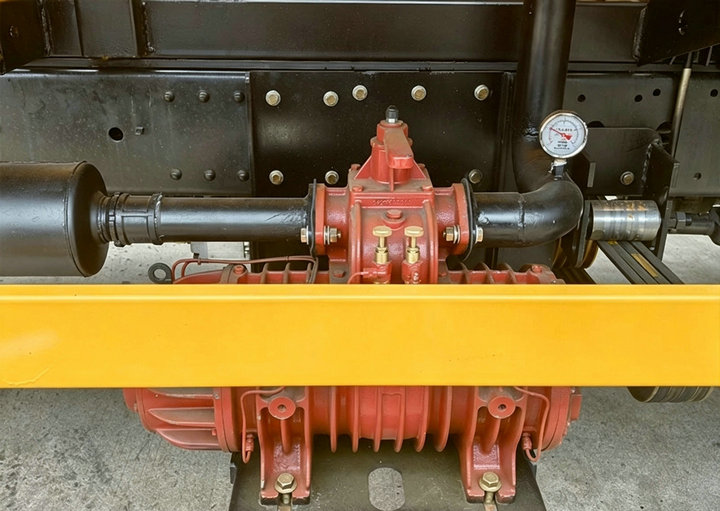

Battioni Pagani MEC Series Vacuum Pump Technical Parameter
Model | Geometrical capacity – m³/h | Geometrical capacity – l/min | Geometrical capacity – cfm | Max rpm M/HM | Max rpm P/D/H | Max abs pressure Bar/PSI | Max vacuum % (inHg) | Max continuous vacuum % (inHg) | Power at max vacuum kW (HP) | Weight M (kg) | Weight P (kg) | Weight D (kg) | Weight H (kg) | Weight HM (kg) |
MEC5000 | 369 | 6150 | 217 | 600 | 1400 | 2,5 (36) | 94% (28,0') | 60% (18'') | 11 (14,7) | 130 | 121 | 121 | 136 | 132 |
MEC6500 | 420 | 7000 | 247 | 600 | 1400 | 2,5 (36) | 94% (28,0') | 60% (18'') | 12,5 (16,7) | 148 | 139 | 139 | 154 | 150 |
MEC8000 | 486 | 8100 | 286 | 600 | 1400 | 2,5 (36) | 94% (28,0') | 60% (18'') | 16 (21,4) | 160 | 151 | 151 | 167 | 162 |
Five Core Advantages of Battioni Pagani Vacuum Pumps
High Efficient Performance
Adopts proprietary Italian rotary vane technology, stable high flow & vacuum pressure, fast liquid/gas conveying speed, meets high-frequency continuous suction work demand.
Super Long Service Life & Durability
Made of wear-resistant alloy raw materials, excellent anti-corrosion, high temperature and high pressure resistance, stable operation under heavy load harsh working conditions, low wearing loss.
Low Energy Consumption & Eco-Friendly
Optimized internal fluid structure reduces power loss, cuts vehicle fuel consumption, low noise and low emission, conforms international environmental protection standards, lowers long-term operation cost.
Simple Operation & Intelligent Control
Humanized valve control system, intuitive operation interfaces, supports automatic constant vacuum pressure control; operators can easily monitor and adjust working status.
High Customization Compatibility
Flexible matching for light, medium and heavy-duty vacuum trucks; adjustable flow and vacuum pressure according to clients’ actual working scenarios, compatible with sewage, sludge, oily wastewater, organic waste liquid transport.
IV. Working Principle
Core Power Source: The Italian vacuum pump acts as the core suction component, directly powered by truck PTO and backed by the 160 HP Yuchai engine to sustain stable high vacuum output.
Suction Performance: With a 6–8 m effective suction head, the unit pumps sludge, wastewater, crude oil and solid‑laden slurry effectively and lowers secondary pollution risks.
Structural Matching: The 5000 L carbon steel tank is optimized for high‑frequency municipal and industrial sewage operation cycles.
Application Coverage: Fully competent for septic tank cleaning, municipal sewage extraction and industrial sludge disposal projects.
V. Component Showcase

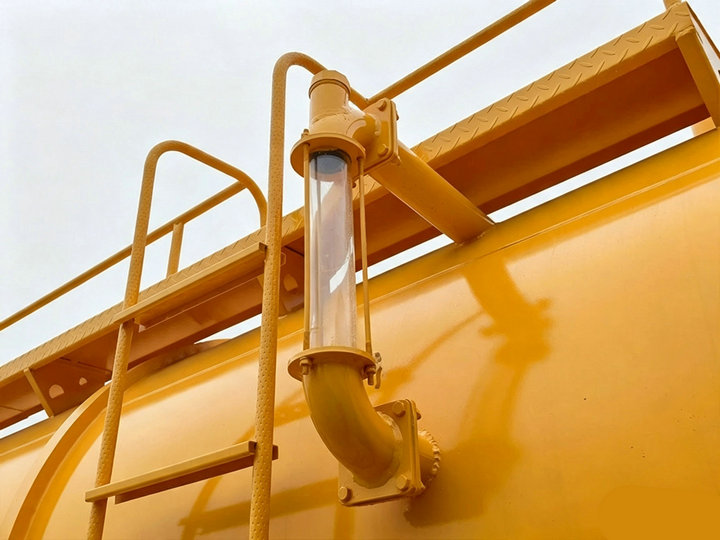

Liquid Level Observation Tube

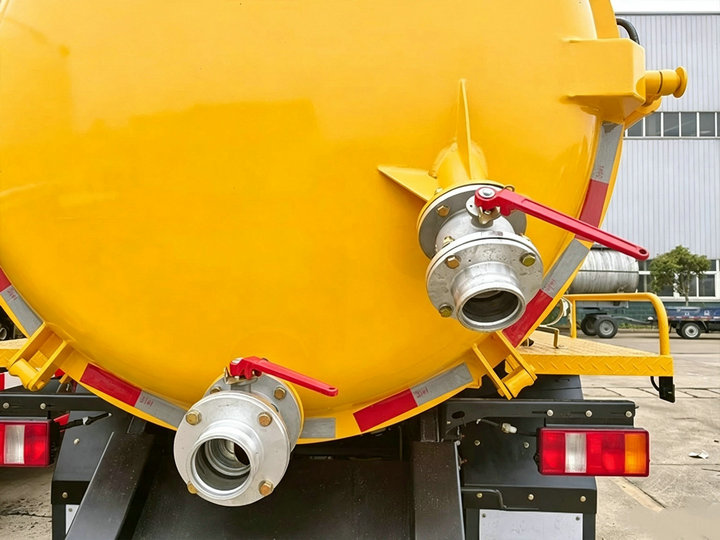

Sewage Suction Tank Port Valve Assembly

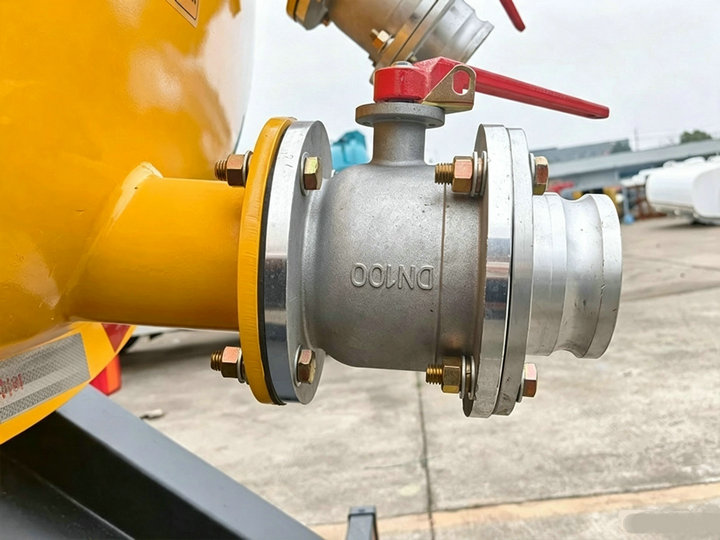

DN100 Tank Port Valve
Vacuum Pressure Gauge
Driver’s Cab of HOWO Vacuum Sucker Truck
WLY651 6‑Speed Gear Shift Lever
VI. Target Application Scenarios

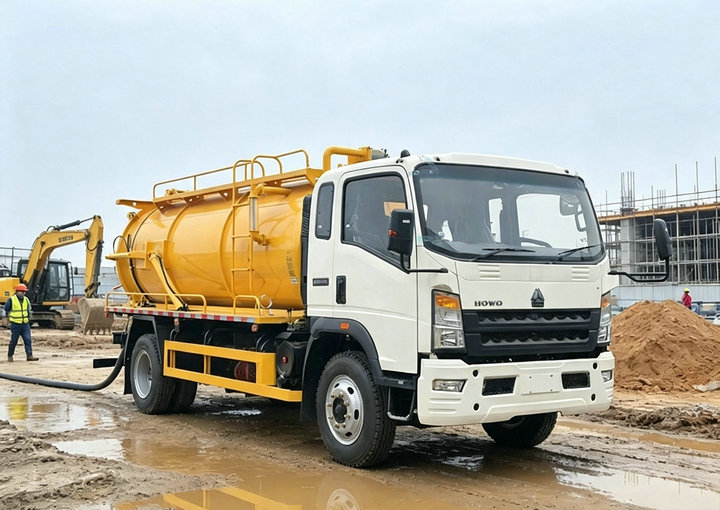

Construction Site Waste Collection: HOWO Cesspit Vacuum Sucker Truck for construction campsites
Mining Area Sanitation: HOWO Sewer Vacuum Sucker Truck for mine sewage treatment

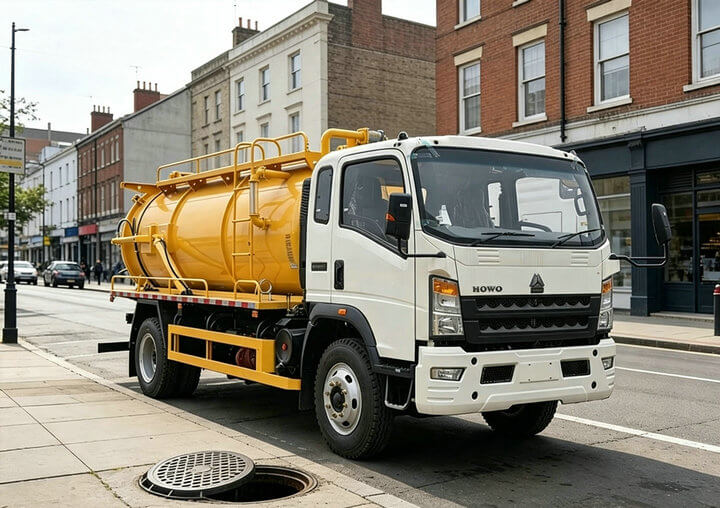

Urban Public Sanitation: HOWO Septic Tank Truck for municipal street daily maintenance
Industrial Park Operation: HOWO Sewage Tanker Truck for factory zone sludge disposal
-
Sewage Suction Truck Product Introduction
- Sewage Suction Truck is a special vehicle designed for the cleaning and transportation of sewage. It is equipped with a high-power vacuum pump and a sealed storage tank, which can efficiently collect and dispose of different kinds of sewage including domestic sewage.
- Here are the five major applications of this truck:
-
- Sewage CleaningThe sewage suction truck clears sewage accumulated on roads, in public areas, industrial zones and sewage pipelines. Solid-liquid mixed waste is pumped into the storage tank by the vacuum pump for subsequent harmless treatment.
- Sewage Transfer & TreatmentIt collects wastewater discharged from industrial parks and other facilities, and delivers the loaded wastewater to professional sewage treatment plants for centralized disposal.
- Drainage Pipeline DredgingFor urban drainage networks, the truck removes stagnant water and blockages inside sewers. Relying on the strong suction of the vacuum pump, it rapidly extracts water and debris to keep the drainage system unobstructed.
- Decentralized Sewage CollectionIn rural regions and zones without laid sewage pipelines, the truck serves as the core carrier for domestic sewage collection. It gathers sewage from toilets, bathrooms, kitchens and other household scenarios, then transports the sewage to designated treatment sites.
- Industrial Waste Liquid & Sludge DisposalThe vehicle can collect and process waste liquid and sludge produced by factories. It helps enterprises discharge wastes in line with environmental regulations and lower pollution risks to the surrounding environment.
-
VII. Gallery Description

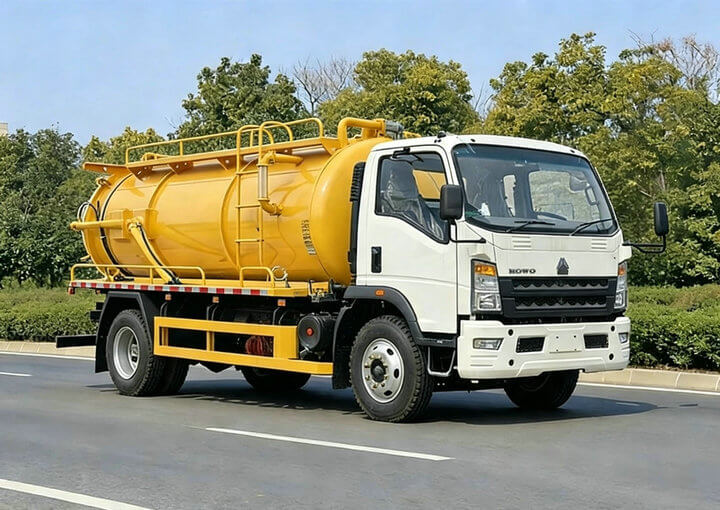

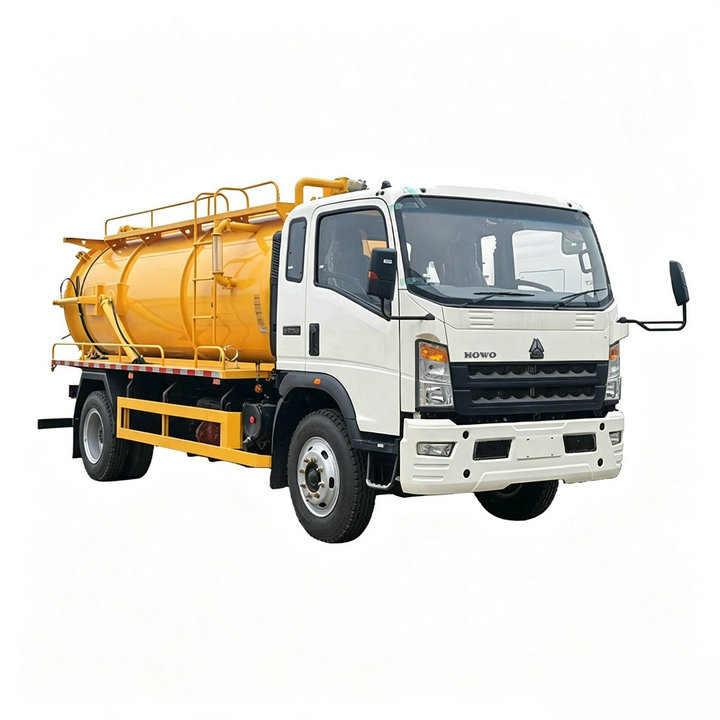

Front Right View of HOWO 5 CBM Cesspit Vacuum Sucker Truck

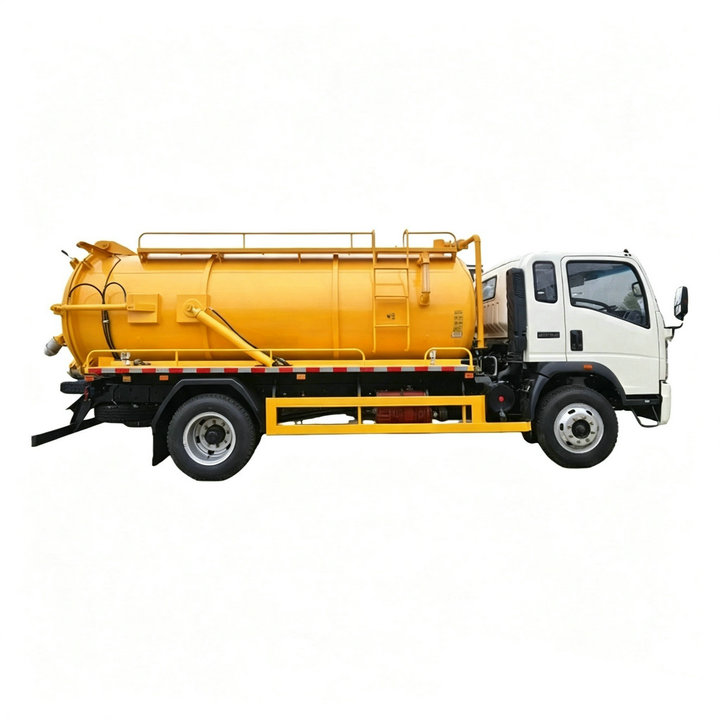

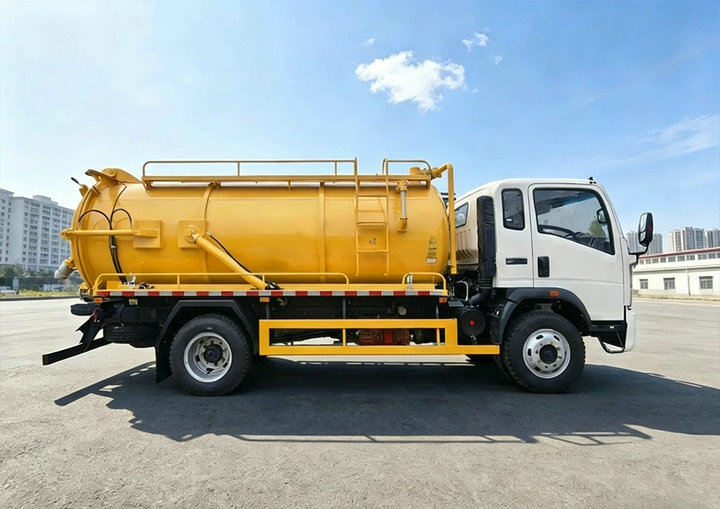

Right Side View of HOWO 5 CBM Sludge Sucker Pumper Truck

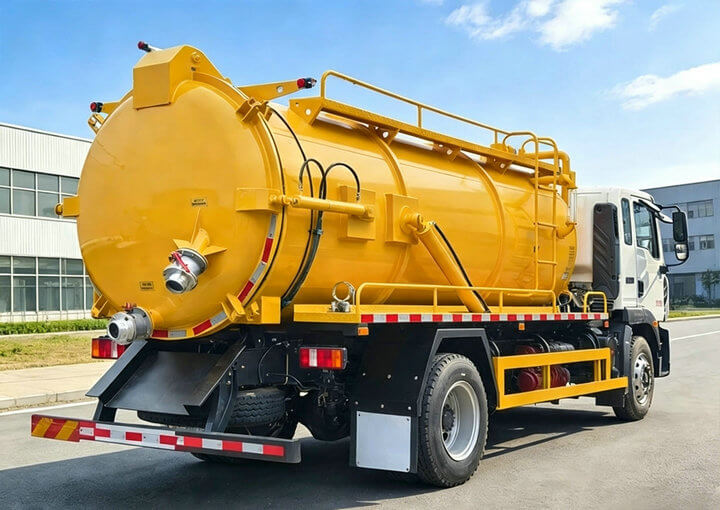

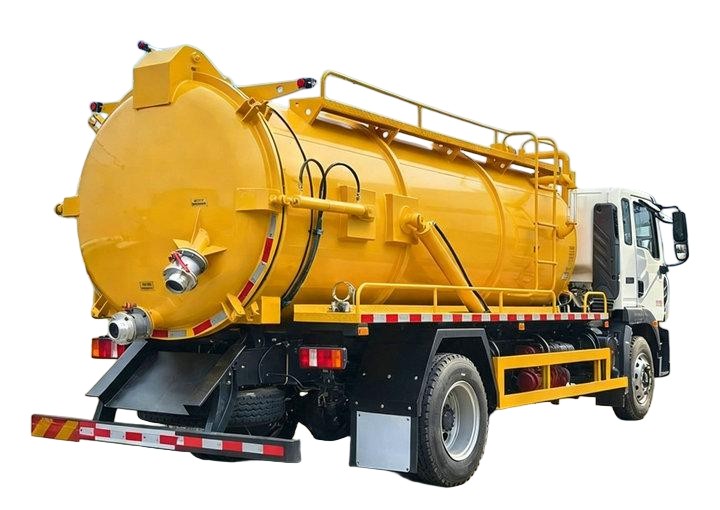

Rear Right View of HOWO 5 CBM Septic Pump Truck
Front View of HOWO Sewage Suction Truck

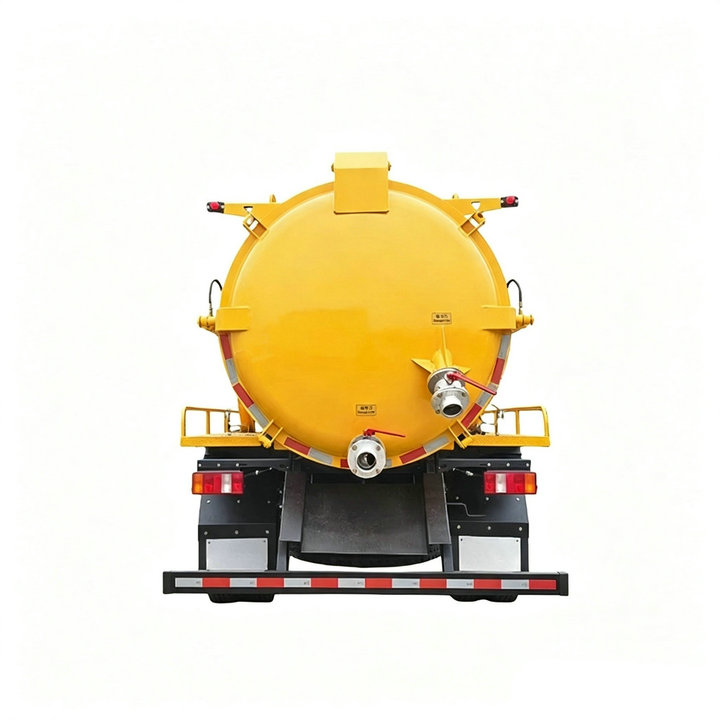

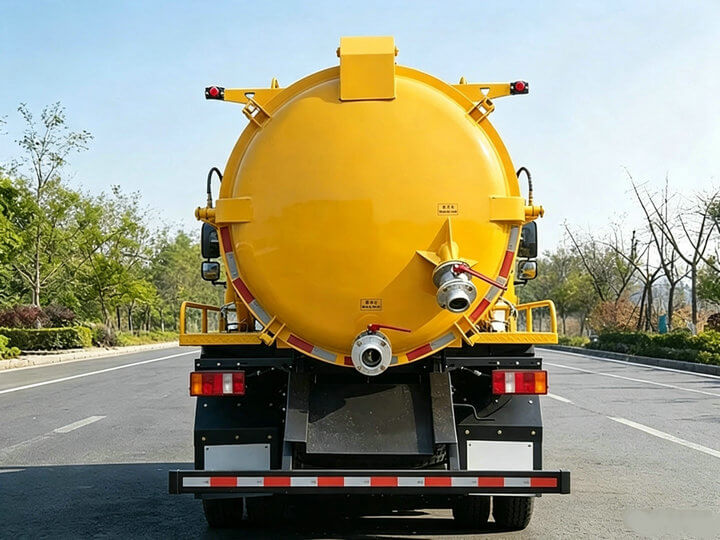

Rear View of HOWO Septic Tank Truck
VIII. Factory Service Promise
Chassis Advantage: YC4E160‑33 160 HP diesel engine + WLY651 manual 6‑speed transmission maximize efficiency for urban sewage haulage.
Tank Advantage: Thickened carbon steel cylindrical tank with optional internal anti‑corrosion coating extends service life.
Suction System Advantage: Imported Italian vacuum pump and PTO hydraulic assembly achieve 6–8 m suction depth and controllable discharge.
Safety Configuration: Air brake, tropical radiator and multi‑function hydraulic valves improve adaptability across different countries and climates.
