Beiben 12000L Vacuum Sewage Suction Septic Tank Truck

Beiben 12000L Vacuum Sewage Suction Septic Tank Truck
Tank capacity can be customized 8-12KL
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 50000
Discount Price: $ 48000
Availability:
Quantity:

  • DRZ5190GXWND

  • DRZ

  • 8705909990

 Beiben 12000L  Vacuum Sewage Suction Septic Tank Truck

Beiben 12000L Sewer Vacuum Suction Truck

The Beiben 1929 Sewage Suction Truck equips high-performance Wloong vacuum pump (68 L/s) and 45-degree hydraulic dumping system mounted on heavy-duty Beiben 4×2 chassis with a 12000L vacuum tank. Purpose-built for septic tank emptying, municipal sewage transportation and industrial sludge collection, it delivers stable and powerful performance for rigorous municipal sanitation and industrial waste disposal projects.
Tank Capacity: 12 CBM | Drive: 4×2 | Engine: 290 HP WP10.290E32

Product Description

Beiben 1929 sewage suction tanker truck, also called vacuum sewer truck, cesspit emptier truck, industrial sludge suction truck, is specially developed for waste collection work. Typical applications include septic tank cleaning, urban sewage extraction, sediment and industrial sludge transportation.Fitted with a 12000-liter vacuum tank and 290 horsepower powertrain, the 4×2 Beiben chassis ensures steady maneuverability during urban operations, offering reliable waste handling solutions for municipal authorities and industrial enterprises.
The cylindrical vacuum tank has an effective volume of 12000L, constructed with 6mm thick carbon steel for long service life. The truck is fully equipped with professional vacuum pump assemblies, integrated control valves and complete suction & discharge pipelines.

Beiben 1929 Sewage Suction Tanker Truck Main Features

✅ Chassis: Beiben 4×2 heavy-duty chassis, matched with 290HP Weichai diesel engine

✅ Tank Volume: 12000 Liters vacuum tank

✅ Tank Material: 6mm thick carbon steel, optimized cylindrical structure

✅ Suction Assembly: Rear-mounted high-power vacuum suction system

✅ Application: Septic tank cleaning, municipal sewage extraction, industrial sludge collection

Complete Technical Parameters | Beiben 12 CBM Sewage Suction Truck

Item Specification
Product Name Congo Beiben 1929 Sewage Suction Tanker Truck
Vehicle Model DRZ5190GXWND
Drive Type 4x2
Gross Vehicle Weight 19000 kg
Curb Weight 10300 kg
Maximum Speed 100 km/h
Overall Dimension (L×W×H) 8200×2550×3150 mm
Engine
Engine Model WP10.290E32
Engine Brand Weichai
Fuel Type Diesel
Rated Power 290 HP (213 KW)
Emission Standard Euro III
Displacement 9726 ml
Engine Structure 6-cylinder inline, water-cooled, turbocharged intercooled diesel engine
Chassis
Chassis Brand Beiben
Tire Quantity 6+1 spare tire
Tire Size 12.00R20 16PR
Wheelbase 4800 mm
Transmission FAST 9JS150A, 9 forward gears + 1 reverse gear
Steering Left Hand Drive (LHD)
Braking System Air brake
Radiator Specially adapted for tropical climate
Superstructure
Vacuum Tank Volume 12000 Litres
Tank Shape Horizontal Cylindrical
Tank Plate 6mm carbon steel
Suction Hose 10m, DN100
Discharge Valve DN100
Tipping Angle 45° hydraulic dumping
Vacuum Pump
Pump Brand Wloong (Famous Chinese brand)
Pump Model 68/7000
Ultimate Pressure 7000 Pa
Pumping Speed 68 L/s
Max Vacuum Rate 93%
Rated Rotation Speed 800 rpm

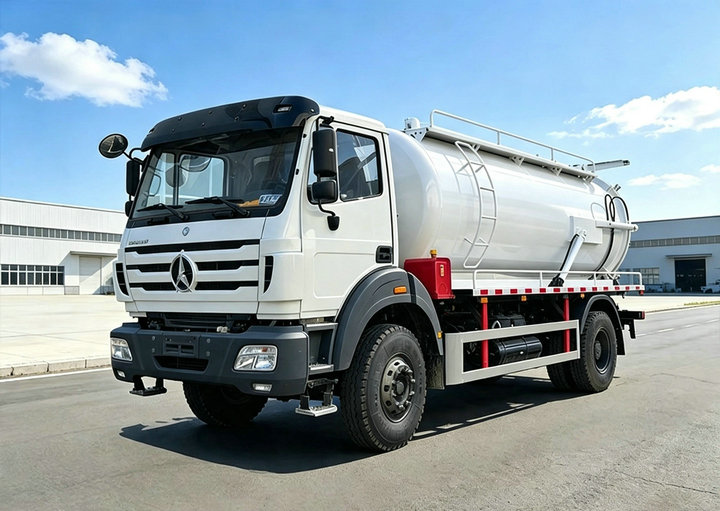

BEIBEN 1929 Sewage Suction Tanker Truck (4)

Detailed Introduction


1. Chassis Configuration

The heavy-duty Beiben chassis has a GVW of 19 tons and curb weight of 10300kg, supporting large payload for sewage and sludge transportation. Equipped with FAST 9JS150A 9-speed gearbox and 4800mm wheelbase, it guarantees stable power output for continuous cyclic suction work.

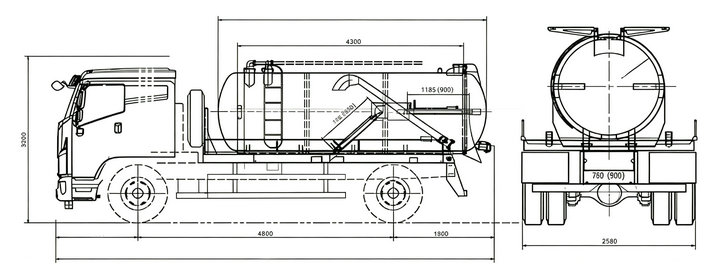

BEIBEN 1929 Sewage Suction Tank Truck

2. Powertrain System

WP10.290E32 inline six-cylinder turbocharged intercooled diesel engine outputs 290HP, complying with Euro III emission standard with 9726ml displacement. Cooperated with 4×2 drive and 9-speed transmission, the whole power system maintains stable operation under complex working conditions.

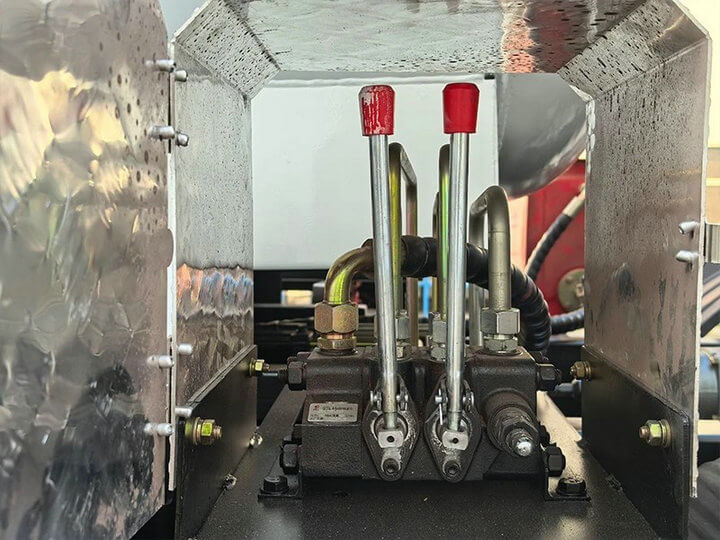

3. Integrated Hydraulic Control Valve

Central control valve manipulates the Wloong high-flow vacuum pump (68 L/s) and the 45° hydraulic tipping system, realizing full-process control from material suction to waste unloading. It realizes efficient power distribution and precise hydraulic linkage, being the core control component of the sanitation truck.

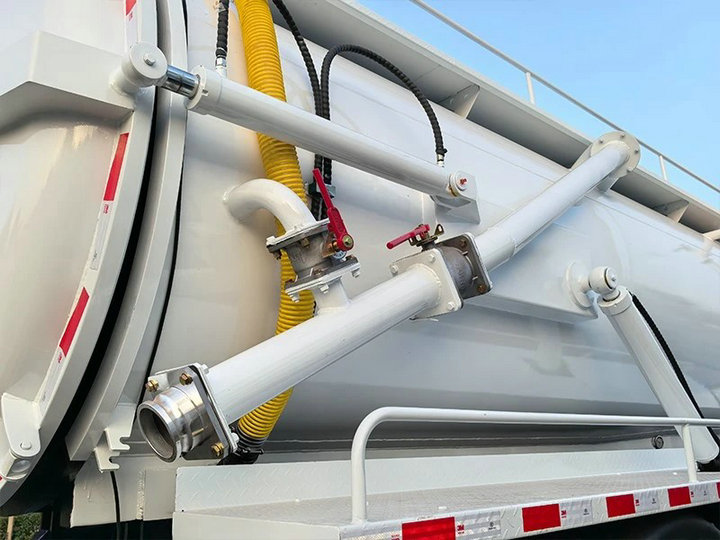

4. Rear Door Safety & Discharge Assembly

Fitted with manual quick opening handle, wear-resistant valve body and quick connector for hoses. The bottom discharge outlet ensures thorough waste discharge after suction operation. Safety chain is installed on the rear tank door to avoid accidental opening during tipping.

Working Principle of Beiben Sewage Suction Truck

  1. Power Input: Driven by truck PTO, powered by the 290HP Weichai engine to form high vacuum environment inside tank

  2. Core Performance: 68 L/s pumping speed, up to 93% vacuum degree, achieving fast and efficient material suction

  3. Structural Design: Perfectly matched with 12000L tank, suitable for high-frequency municipal and industrial sewage cleaning

  4. Main Function: Generate negative pressure to suck septic waste, sewage, sludge into the vacuum tank

Wloong 68/7000 Vacuum Pump Technical Sheet

Parameter Data
Model 68/7000
Application Heavy-duty vacuum tanker trucks
Brand Wloong
Net Weight 65 kg
Drive Mode PTO drive
Medium Transported Air
Rated Power 5 kw
Ultimate Pressure 7000 pa
Pumping Rate 68 L/s
Rotation Speed 800 r/min
Outlet Diameter 50 mm
Max Working Temperature 85℃

Standard Equipment

  • 12 CBM 6mm Carbon Steel Vacuum Tank

  • DN65 Aluminum Alloy Suction Valve

  • 6mm Plexiglass Observation Window

  • Beiben Original Driving Cabin

  • Anti-slip Side Access Ladder

  • Independent Hydraulic Oil Tank

Application Scenarios

✔ Municipal Street Sewage & Septic Tank Cleaning✔ River Sediment & Floating Waste Collection✔ Mining Site Sewage & Sludge Transportation✔ Industrial Park Wastewater & Residue Disposal

Product Views

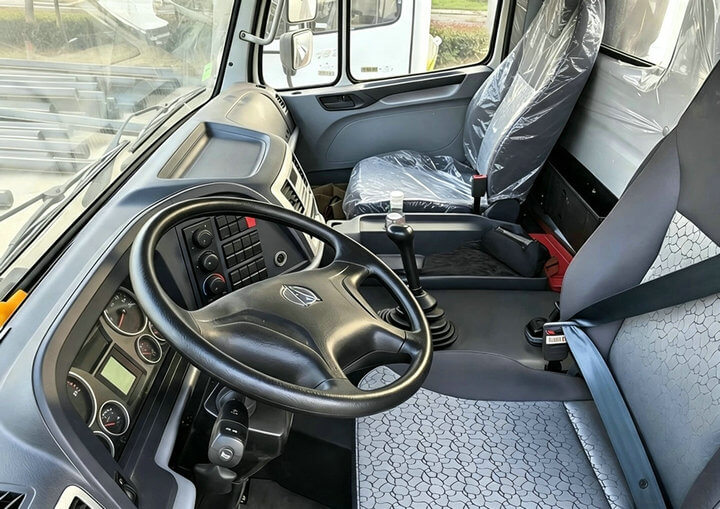

BEIBEN 1929 Sewage Suction Tanker Truck (9)BEIBEN 1929 Sewage Suction Tanker Truck (7)BEIBEN 1929 Sewage Suction Tanker Truck (20)BEIBEN 1929 Sewage Suction Tanker Truck (5)BEIBEN 1929 Sewage Suction Tanker Truck (6)BEIBEN 1929 Sewage Suction Tanker Truck (11)BEIBEN 1929 Sewage Suction Tanker Truck (18)

BEIBEN 1929 Sewage Suction Tanker Truck (3)

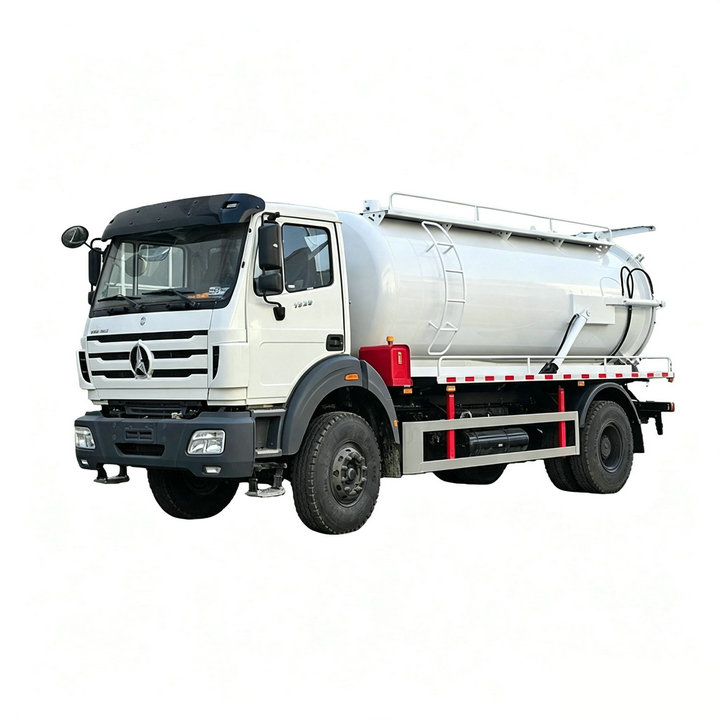

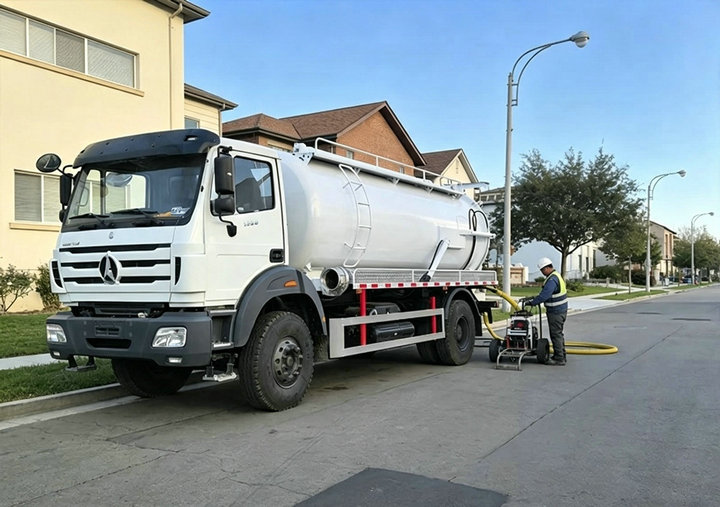

  • Front Left View of Beiben Septic Tank Pump Truck

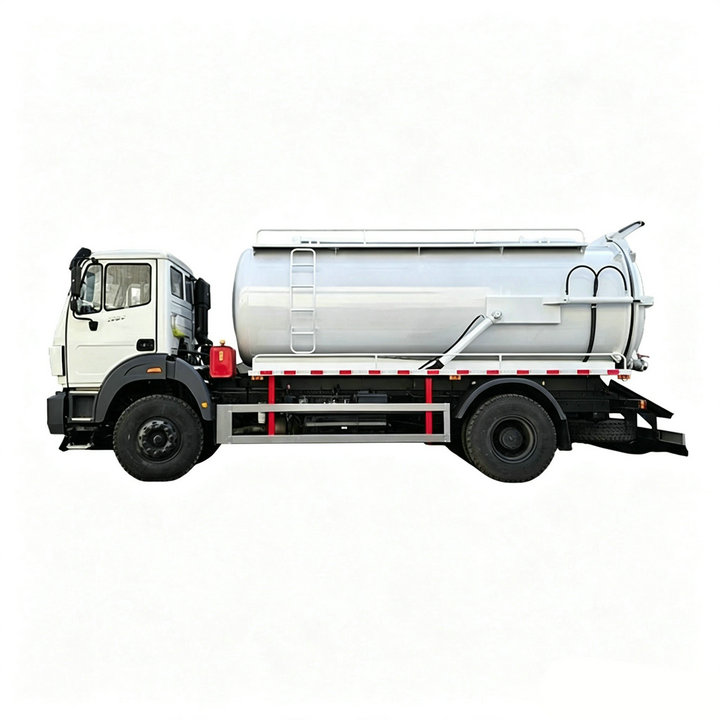

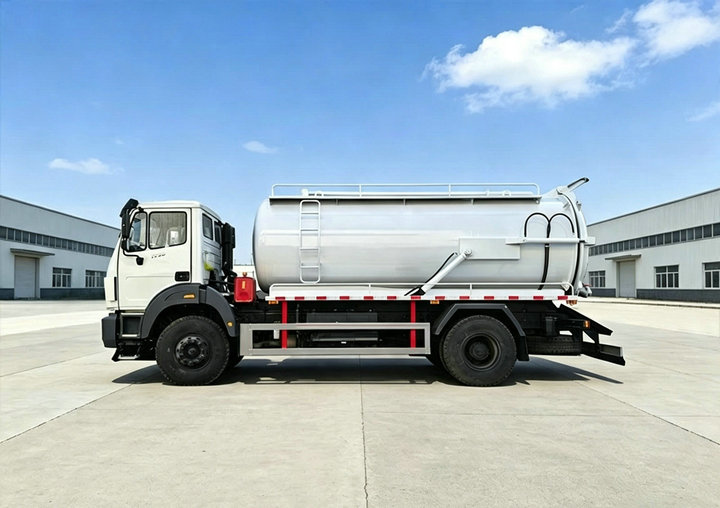

  • Left Side View of Beiben 12000L Sewer Jetter Truck

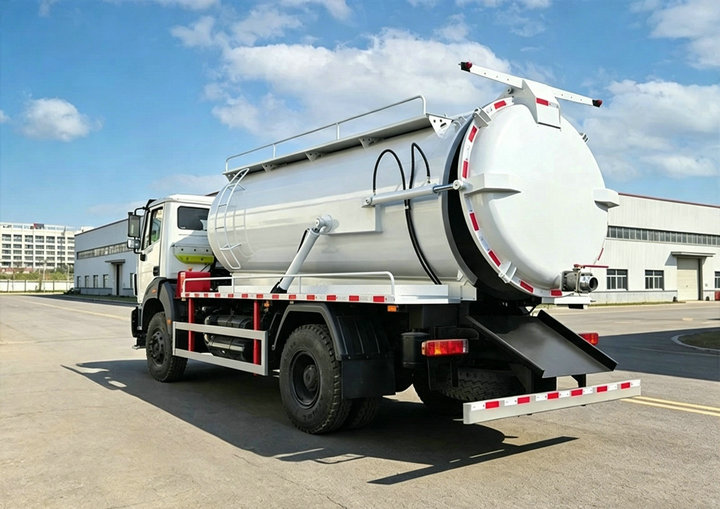

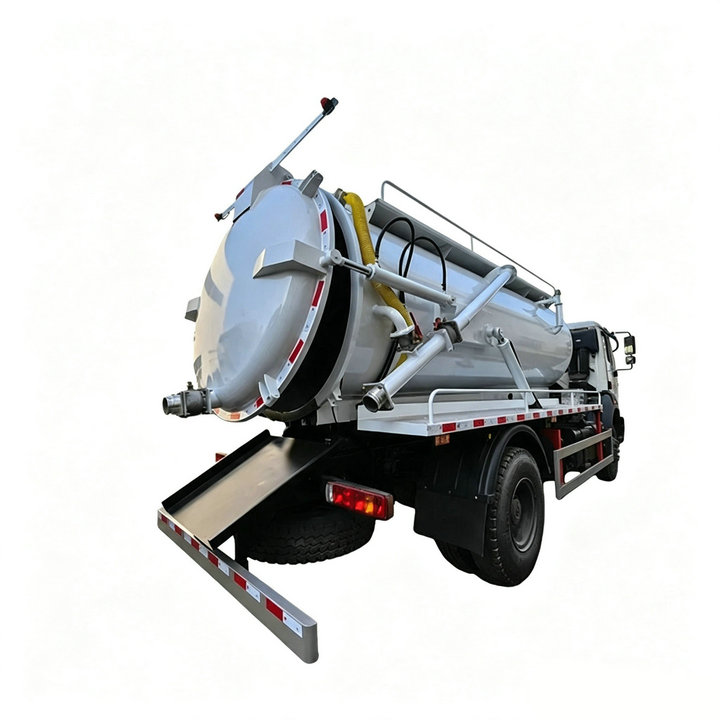

  • Rear Left View of Beiben 12CBM Septic Suction Truck

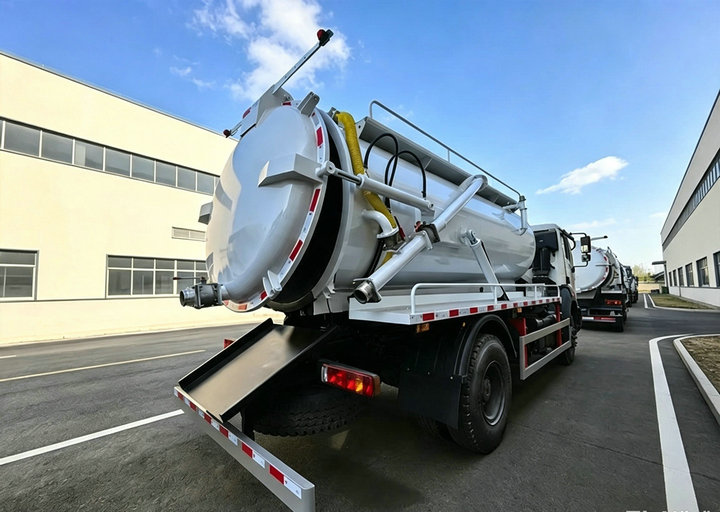

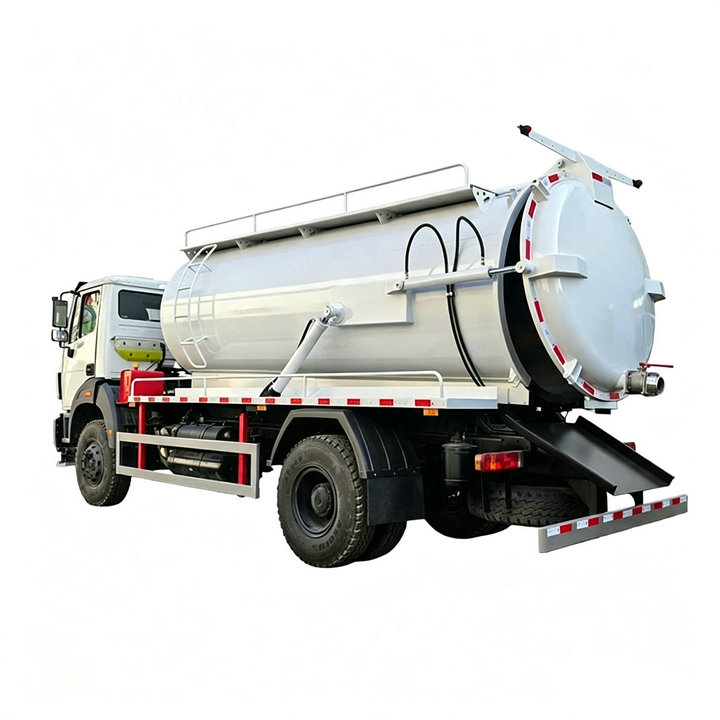

  • Rear Right View of Beiben 12CBM Septic Tank Truck

  • Front View of Beiben 12CBM Sewage Truck with NG80B Cabin

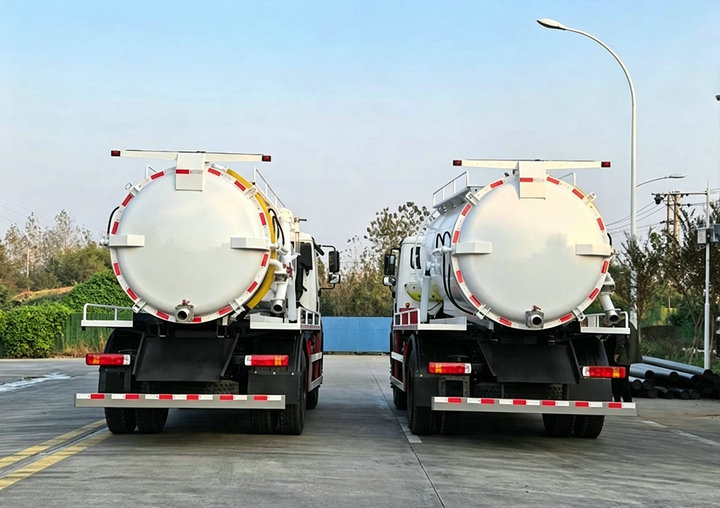

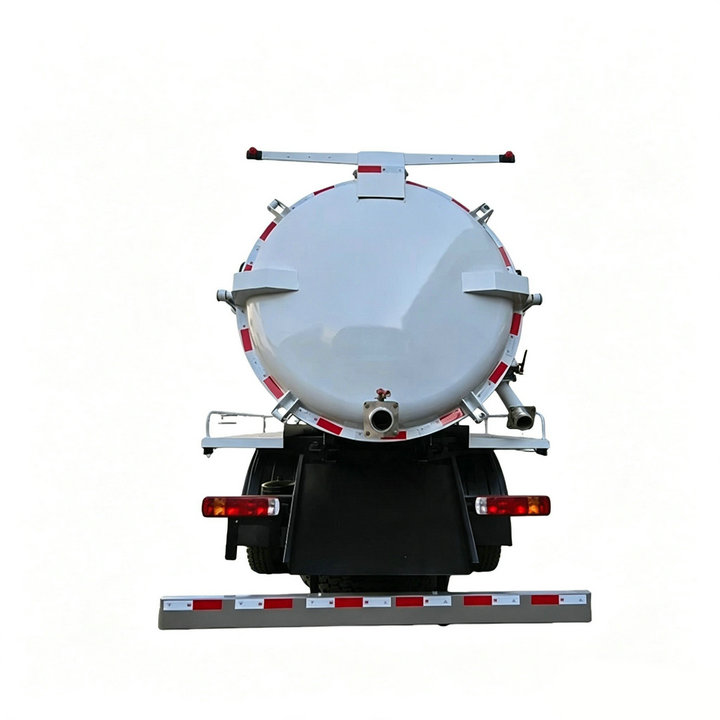

  • Rear End View of Beiben Septic Tank Pump Truck

  • Beiben 1929 Sewage Suction Tanker Truck | 12000L 4×2 Vacuum Septic Sludge Suction Truck
  • Brand new Beiben 1929 sewage suction tanker truck with 12CBM carbon steel vacuum tank, 290HP Weichai WP10 engine, Wloong 68L/s vacuum pump, 45° hydraulic tipping system. Suitable for septic tank cleaning, municipal sewage & industrial sludge collection. LHD Euro III 4×2 sewer vacuum truck for Congo market.


Our Advantages

100% Brand-new Beiben chassis sanitation trucks direct from Chinese factory

Fast, convenient and reliable global shipping service

Note: The original text has conflicting engine parameter descriptions (WP10.290E32 / 4KH1CN6HB). I retained the main parameter WP10.290E32 as official specification; we can delete the conflicting paragraph if needed.
