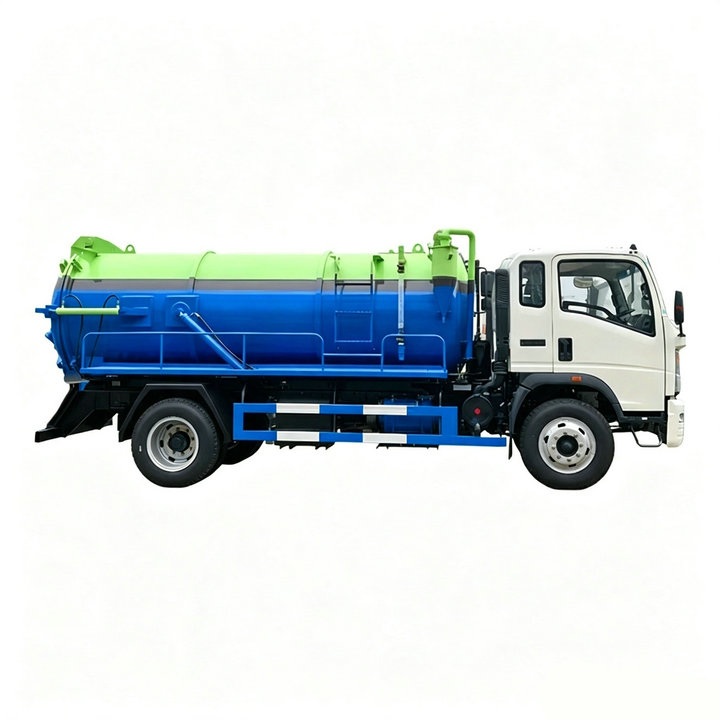

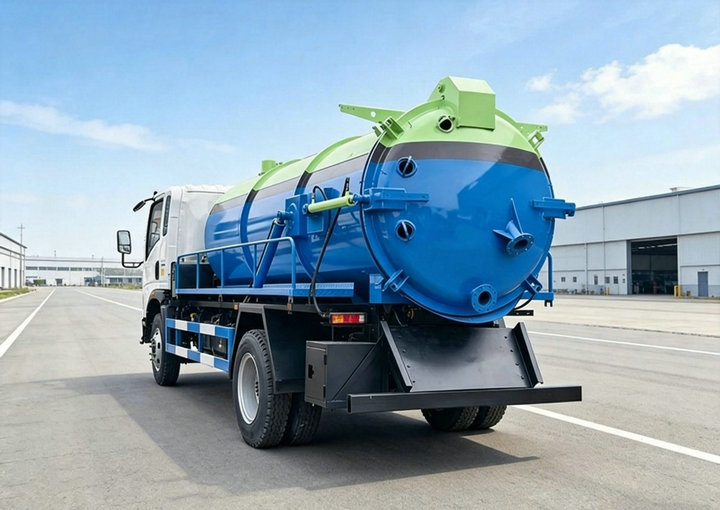

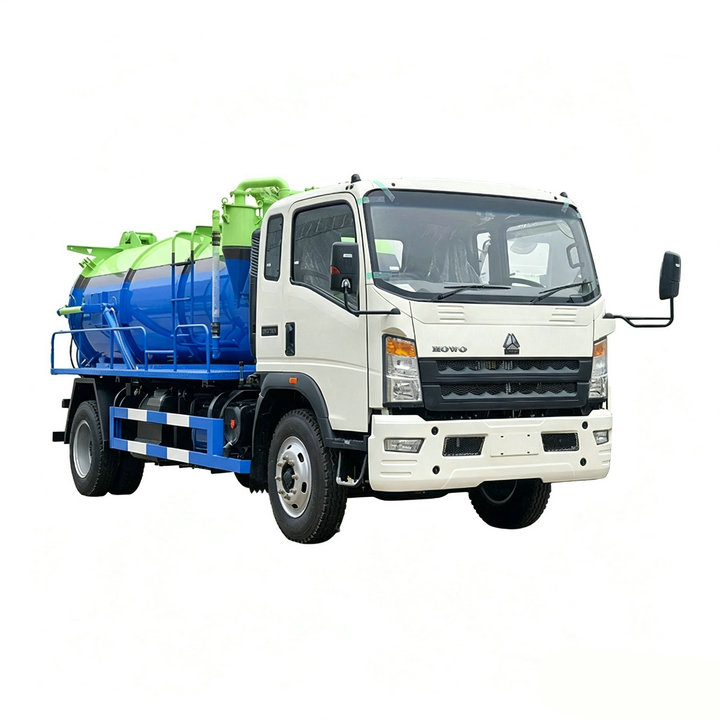

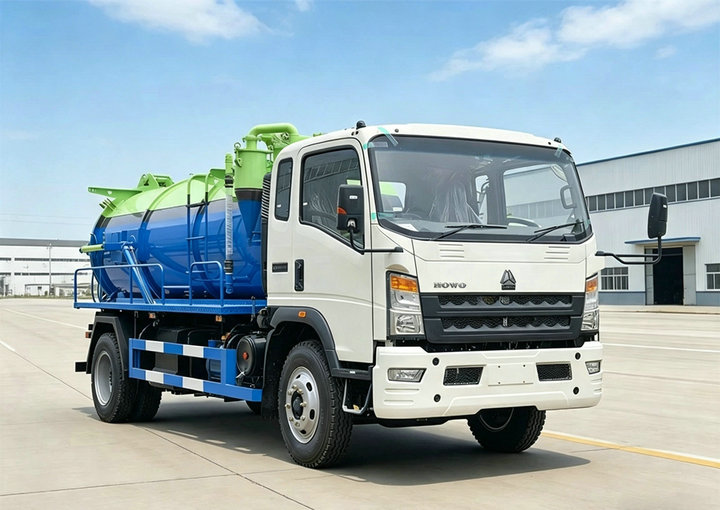

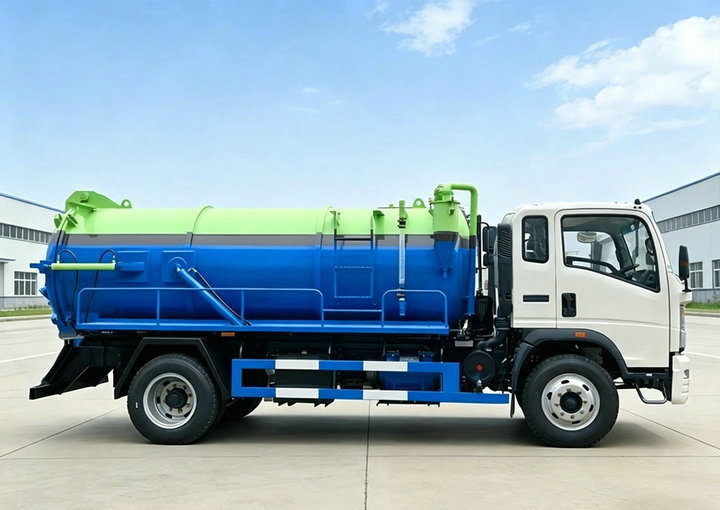

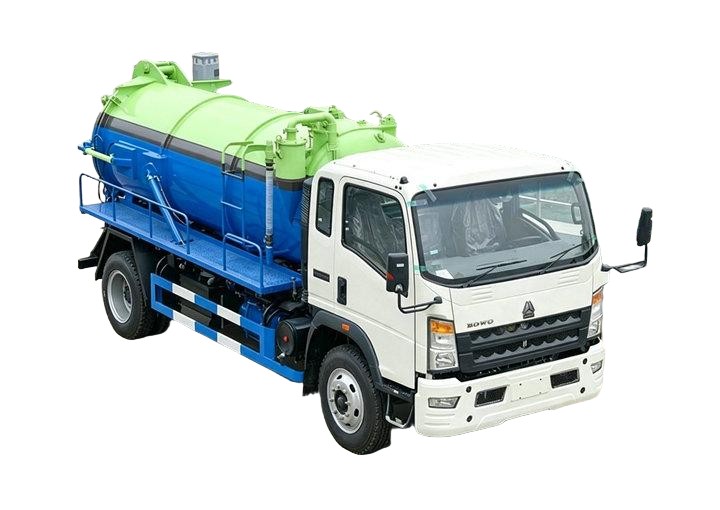

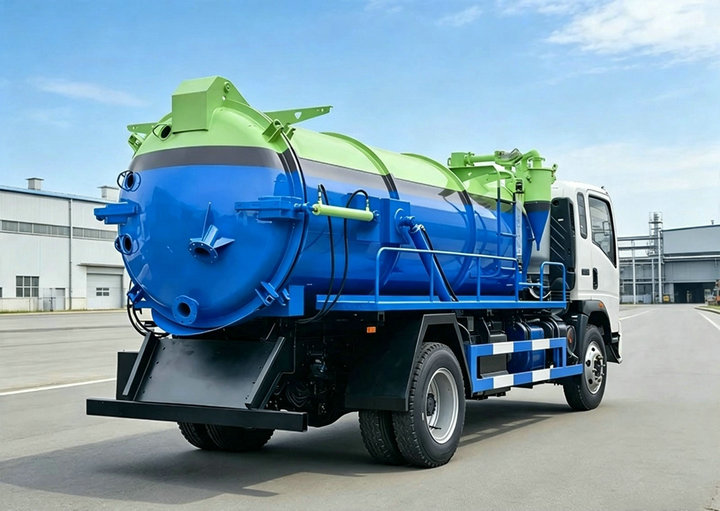

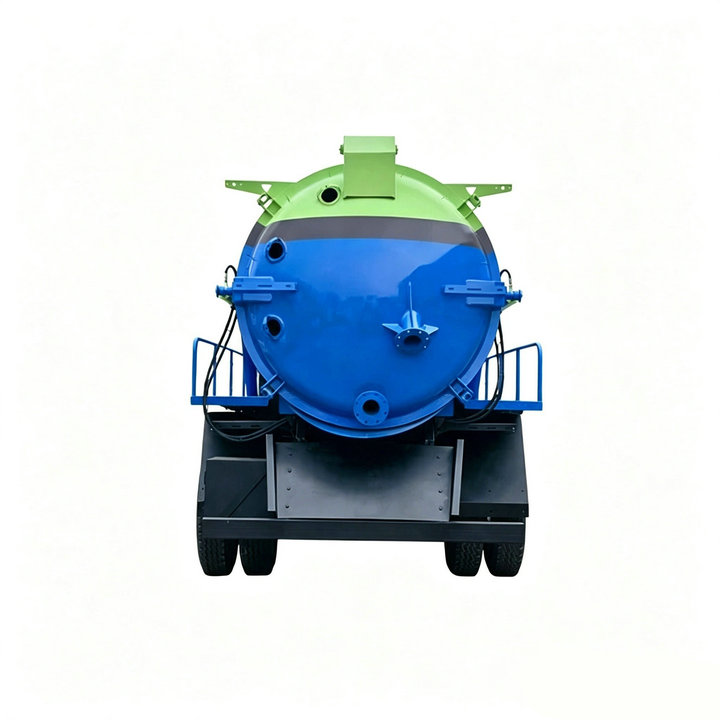

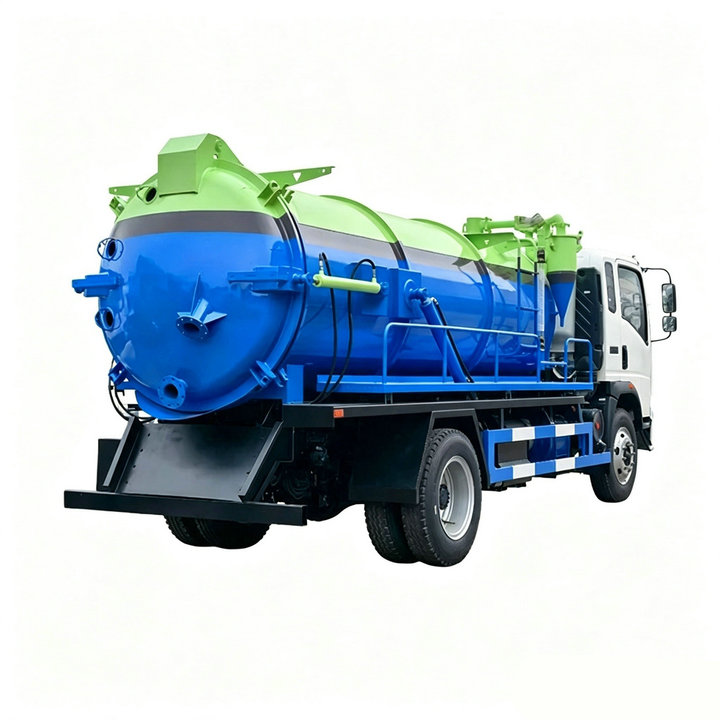

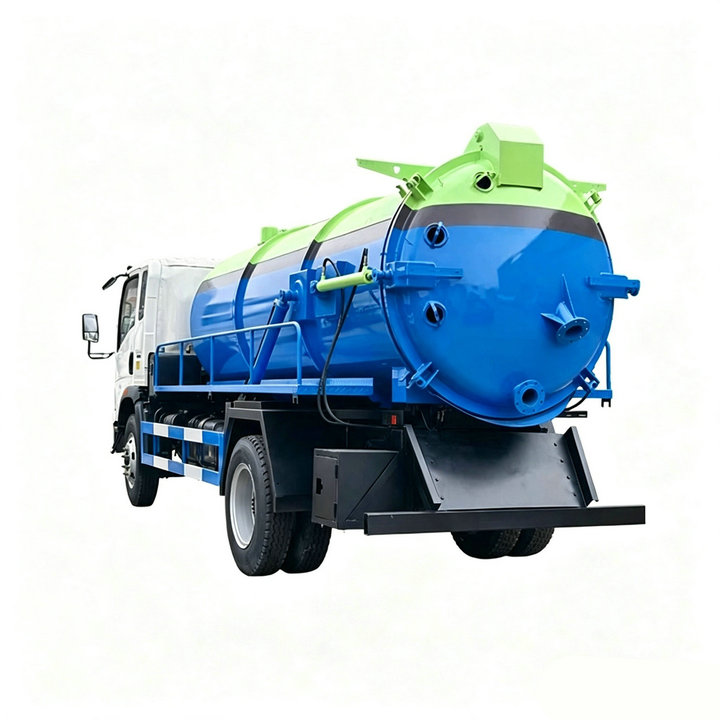

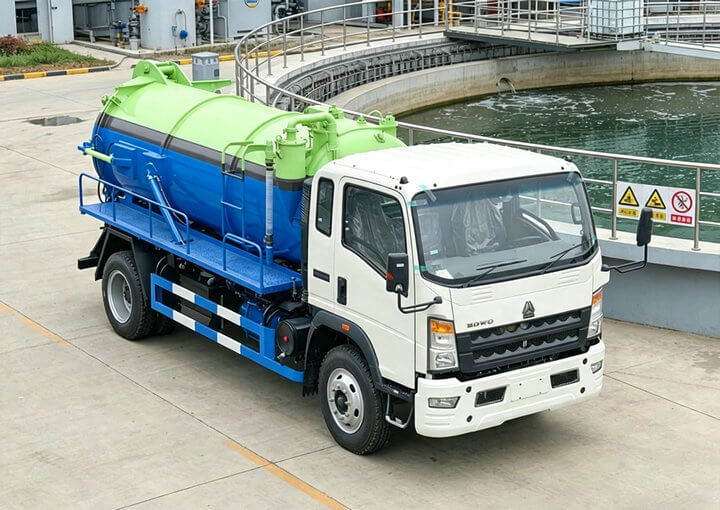

HOWO 8000L Sludge Vacuum Super Sucker Septic Tank Truck
HOWO 8 CBM Sewage Suction Truck Equipped with Septic Vacuum Pump
Product Overview
HOWO 8 CBM Sludge Vacuum Super Sucker Truck
I. Product Definition & Introduction
Core Advantages
▶ Chassis: Original SINOTRUK 4×2 chassis paired with a 160HP diesel engine
▶ Vacuum Tank Volume: 8000-liter effective storage capacity
▶ Tank Fabrication: Cylindrical structure constructed from 6mm carbon steel plate
▶ Suction Assembly: Rear-mounted Wloong vacuum pump (68 L/s flow rate) driven by chassis PTO
▶ Applicable Scenarios: Septic tank cleaning, municipal sewage extraction, industrial sludge transportation
II. Technical Parameters of HOWO 8 CBM Sludge Vacuum Pump Truck
| Category | Item | Specification |
|---|---|---|
| Basic Vehicle Info | Product Name | HOWO 8000L Sludge Vacuum Super Sucker Truck |
| Vehicle Model | DZR5160GXWZZ | |
| Drive Type | 4×2 | |
| Gross Vehicle Weight | 15795 kg | |
| Curb Weight | 6460 kg | |
| Front Axle Rated Load | 3200 kg | |
| Rear Axle Rated Load | 8000 kg | |
| Maximum Design Speed | 95 km/h | |
| Overall Dimension (L×W×H) | 8230mm×2550mm×3150mm | |
| Powertrain | Engine Model | YC4E160-33 |
| Engine Brand | WEICHAI | |
| Fuel Type | Diesel | |
| Rated Power | 160 HP (118 kW) | |
| Emission Standard | Euro III | |
| Displacement | 4260 ml | |
| Engine Specification | Inline 4-cylinder, water-cooled, four-stroke, turbocharged inter-cooled direct-injection diesel engine | |
| Chassis Configuration | Chassis Brand | SINOTRUK |
| Tire Quantity | 6 running tires + 1 spare tire | |
| Tire Spec | 8.25R20 | |
| Wheelbase | 4200,4500,4700 mm | |
| Transmission | WLY6TS55, HW90510C2, 6 or 10 forward gears + 1 reverse gear | |
| Steering Layout | Left-hand drive, or Right Hand Drive | |
| Braking System | Air brake | |
| Radiator | Tropical climate customized radiator | |
| Clutch | Reinforced diaphragm clutch | |
| Cab | Single sleeper cab equipped with factory air conditioning | |
| Vacuum Tank Assembly | Effective Capacity | 8000 L |
| Tank Shape | Cylindrical | |
| Tank Material | 6mm thick carbon steel | |
| Suction Hose | 10-meter DN100 flexible hose | |
| Discharge Valve | DN100 caliber | |
| Vacuum Pump | Max Tipping Angle | 45° |
| Pump Brand | Wlong (renowned domestic pump brand in China Optional SK‑9Water Ring Vacuum Pumps) | |
| Pump Model | 68/7000 | |
| Ultimate Negative Pressure | 7000 Pa | |
| Pumping Flow Rate | 68 L/s | |
| Maximum Vacuum Degree | 0.93 | |
| Rated Rotating Speed | 800 rpm |
III. Detailed Configuration Description
1. Chassis Performance
2. Powertrain System
3. Hydraulic Control Valve

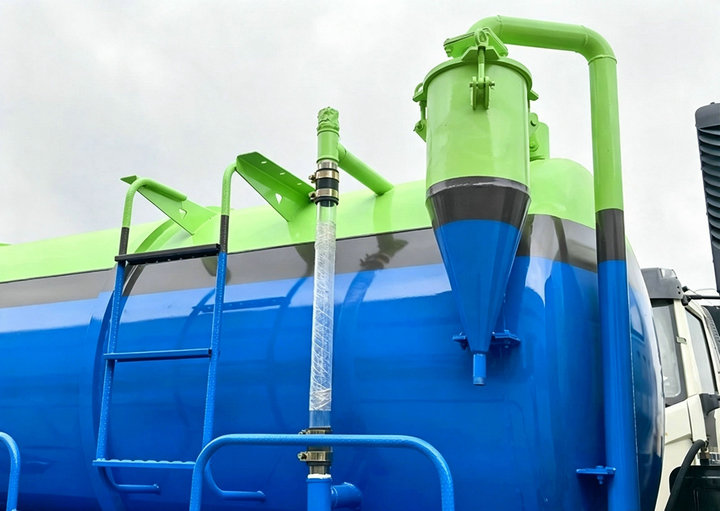

4. Level Sight Glass & Gas-Water Separator
Sight Glass: The transparent liquid-level tube mounted on the tank enables real-time waste level monitoring during suction work, effectively preventing overfilling and blocking liquid impurities from entering the vacuum pump.
Water Separator: The cyclone separator removes moisture and solid particles from intake airflow before air enters the pump core, prolonging vacuum pump service life and cutting routine maintenance frequency.
IV. Working Principle of HOWO Sewage Suction Truck
Core Power Source: Centered on the Wlong 68/7000 vacuum pump (68 L/s pumping flow), the pump is driven by engine PTO and powered by the 160HP Yuchai engine to sustain stable high-vacuum suction performance.
Suction Efficiency: Full tank filling completes within 3 minutes with an effective suction distance over 7 meters, efficiently transporting sludge, sewage and septic waste and lowering secondary pollution on construction sites.
System Matching: The 8000L carbon steel vacuum tank serves as the storage carrier, tailored for regular municipal sewage collection and industrial sludge recycling tasks.
Application Coverage: Fully meets operation demands for septic tank cleaning, municipal sewage extraction and industrial waste disposal across urban and rural construction sites.
V. Target Application Scenarios
✅ Municipal street sanitation: HOWO cesspit vacuum sucker truck for urban routine cleaning
✅ Industrial park operation: HOWO septic tank cleaning truck for factory zone waste disposal
✅ Water environment governance: HOWO super sucker vacuum truck for river sludge dredging
✅ Mining area service: HOWO cesspool suction truck for mine sewage and sludge collection
Service Advantages
Supply: All trucks are directly supplied by Chinese official HOWO factories with authentic original parts
Logistics: Fast, flexible and efficient global shipping arrangements
️ After-sales: 7-day order guarantee + 24/7 online technical support
Core Selling Points Summary
Reliable Chassis: SINOTRUK 4×2 platform fitted with YC4E160-33 160HP diesel engine and six-speed manual transmission, ideal for sewage collection and transportation in urban and rural regions.
Durable Vacuum Tank: 6mm carbon steel cylindrical tank with 8000L capacity, paired with a 10-meter DN100 suction hose and DN100 discharge valve; anti-corrosion coating extends tank service life greatly.

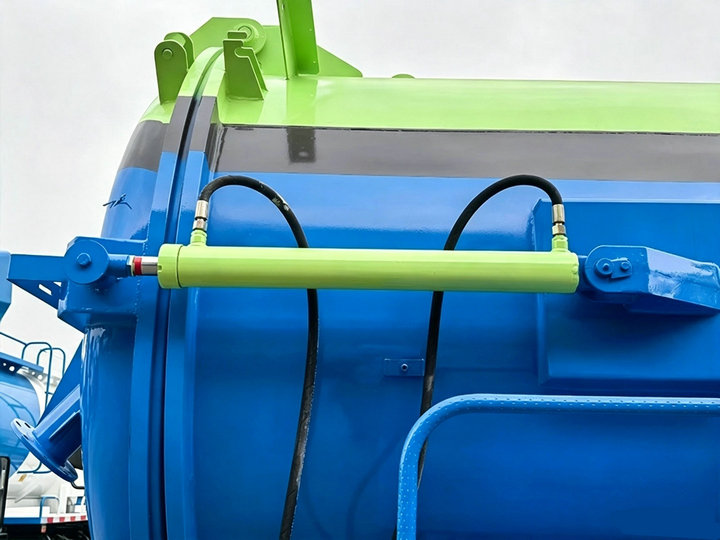

High-Efficiency Suction & Discharge System: Wlong 68/7000 vacuum pump (68 L/s flow rate, 7000 Pa ultimate pressure) powered by PTO hydraulic drive; tank completes full suction within 3 minutes and tilts 45° hydraulically for thorough waste unloading.
Safety & Adaptability: Standard overload-protected hydraulic control, tropical customized radiator, air brake system and reinforced diaphragm clutch ensure stable daily performance under harsh sanitation working conditions.
Water Ring Vacuum Pumps Core Technical Specifications K‑6, SK‑9, SK‑12, SK‑20, SK‑30, SK‑42
Model Nominal Pumping Speed (m³/min) Ultimate Vacuum Motor Power (kW) Speed (r/min) Water Supply (L/min) Inlet/Outlet Diameter (mm) SK‑6 6 −0.093 MPa (−700 mmHg) 11 1440 20–30 80 SK‑9 9 −0.093 MPa 15 1440 30–40 65 SK‑12 12 −0.094 MPa 18.5 970 70–80 80 SK‑20 20 −0.094 MPa 37 740 120–140 150 SK‑30 30 −0.093 MPa 55 740 150 150 SK‑42 42 −0.093 MPa 75 740 150 150
-
Sewage Suction Truck Product Introduction
- Sewage Suction Truck is a special vehicle designed for the cleaning and transportation of sewage. It is equipped with a high-power vacuum pump and a sealed storage tank, which can efficiently collect and dispose of different kinds of sewage including domestic sewage.
- Here are the five major applications of this truck:
-
- Sewage CleaningThe sewage suction truck clears sewage accumulated on roads, in public areas, industrial zones and sewage pipelines. Solid-liquid mixed waste is pumped into the storage tank by the vacuum pump for subsequent harmless treatment.
- Sewage Transfer & TreatmentIt collects wastewater discharged from industrial parks and other facilities, and delivers the loaded wastewater to professional sewage treatment plants for centralized disposal.
- Drainage Pipeline DredgingFor urban drainage networks, the truck removes stagnant water and blockages inside sewers. Relying on the strong suction of the vacuum pump, it rapidly extracts water and debris to keep the drainage system unobstructed.
- Decentralized Sewage CollectionIn rural regions and zones without laid sewage pipelines, the truck serves as the core carrier for domestic sewage collection. It gathers sewage from toilets, bathrooms, kitchens and other household scenarios, then transports the sewage to designated treatment sites.
- Industrial Waste Liquid & Sludge DisposalThe vehicle can collect and process waste liquid and sludge produced by factories. It helps enterprises discharge wastes in line with environmental regulations and lower pollution risks to the surrounding environment.
-
