DRZ5150XWBJ
-
DRZ
-
8705909990

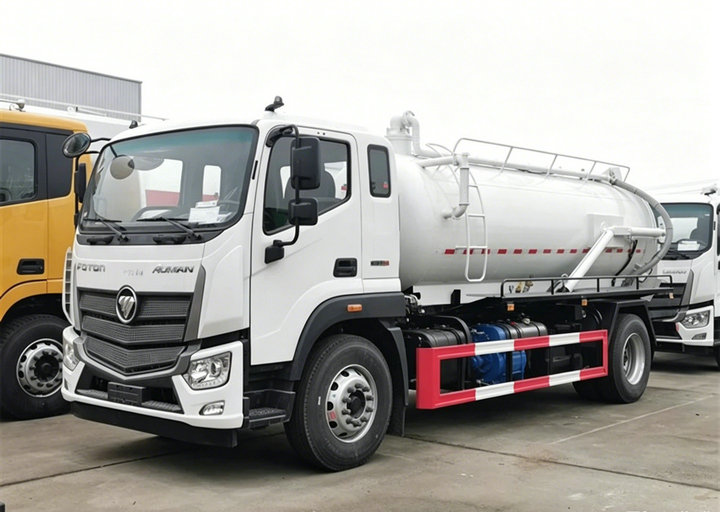

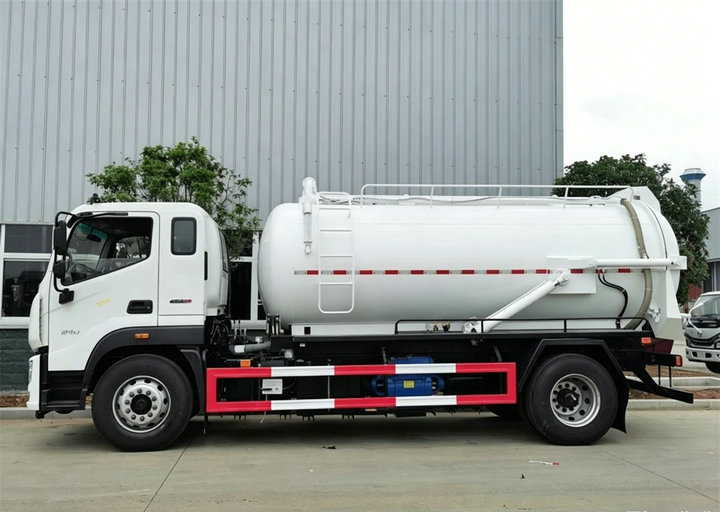

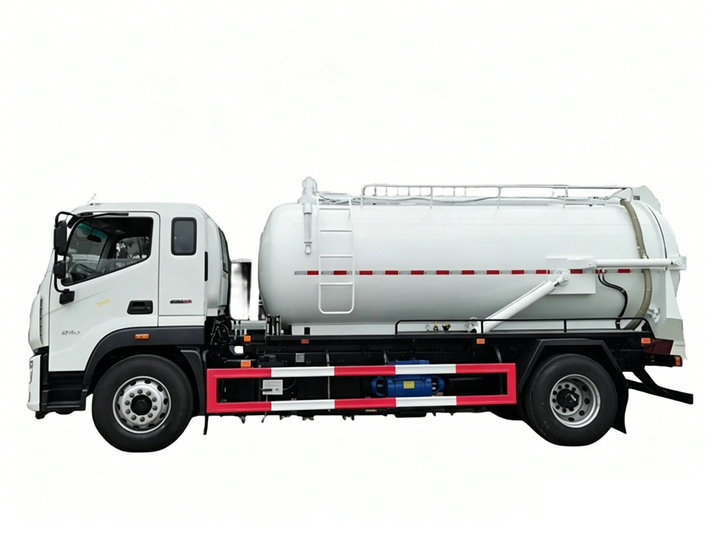

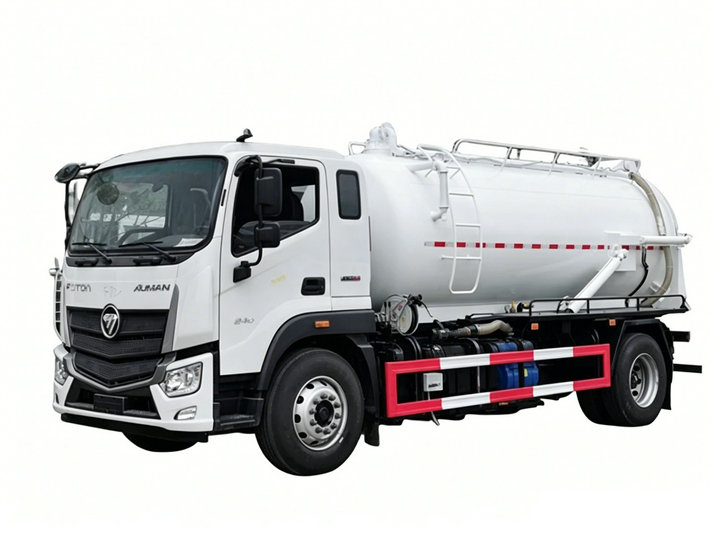

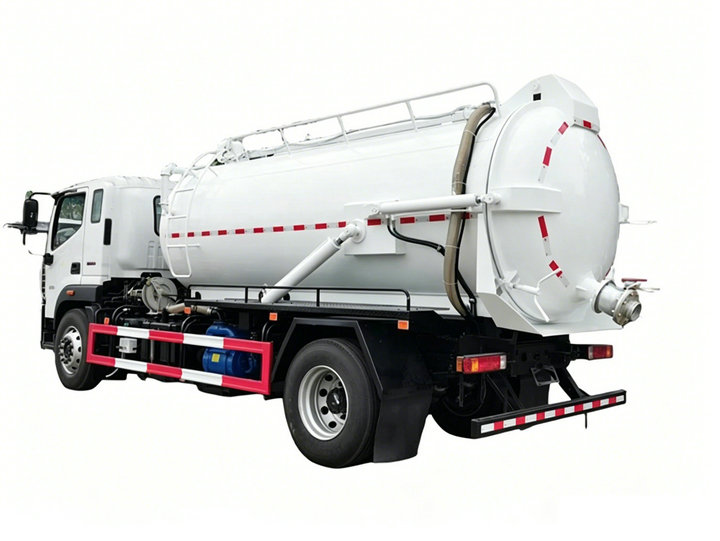

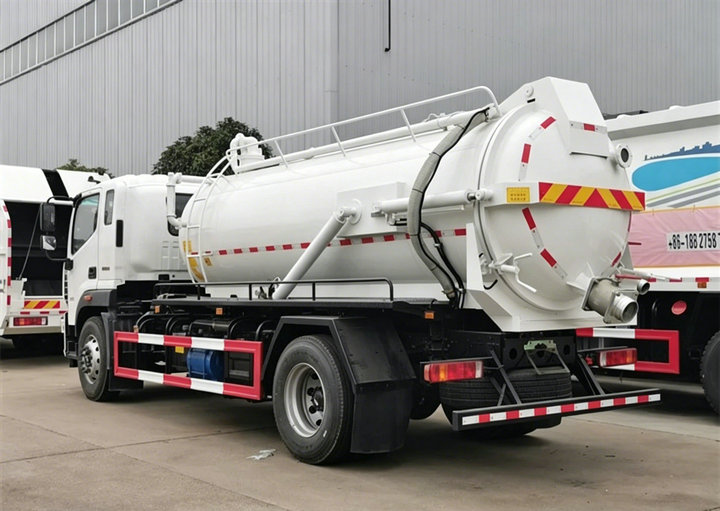

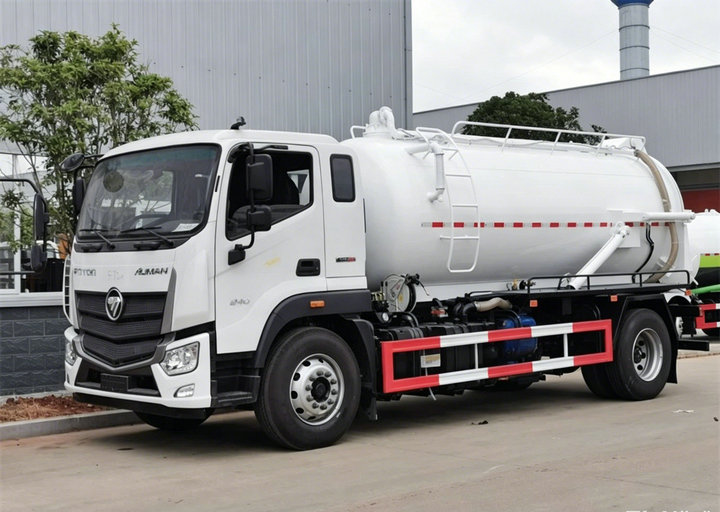

Foton Sewage Vacuum Septic Tank Truck 10KL
Overview
The Foton 10 CBM septic service truck is a purpose-built vacuum sewage tanker designed for professional septic tank cleaning, sewer maintenance, and wastewater transport. Built on a robust Foton 4×2 chassis with a 240 HP Yuchai diesel engine and fitted with an industry-leading Jurop PN155R rotary vane vacuum pump, this 10,000-liter septic truck delivers reliable suction performance and heavy-duty payload capacity for municipal, industrial, and agricultural sewage operations.
Key Features
Foton Ouman cab with power steering, A/C, and electronic flameout for operator comfort
Yuchai YC6A240-33 engine — 240 HP, 7.255L turbocharged diesel, EURO 2 compliant
Jurop PN155R vacuum pump — 11,000 L/min airflow, suction depth up to 8 m, full-tank suction in 12–15 min
10 m³ carbon steel tank (5 mm Q235) with fully opening rear door and dual sight glasses
HC16 drive axles with hub reduction for heavy-load durability
Hydraulic tipping system — lifting time ≤ 45 s, cover opening angle ≥ 75°
Suction height ≥ 9 m, maximum vacuum ≥ 11 MPa, maximum inclination ≥ 45°
3 m × 100 mm suction hose with hose racks on both sides (7 hoses each)
Applications
Ideal for septic tank pumping, sewer line cleaning, wastewater collection and transport, sludge removal, and industrial waste handling in urban, rural, and industrial environments.
Technical Specifications (Structured for Rich Snippets)
| Parameter | Value |
|---|---|
| Model | DRZ5150XWBJ |
| Tank Capacity | 10,000 L (10 m³) |
| Drive Type | 4×2, LHD or RHD |
| Engine | Yuchai YC6A240-33, 240 HP |
| Displacement | 7.255 L |
| Max Torque | 1,350 N·m @ 1,100–1,600 rpm |
| Gearbox | 10-speed |
| GVW | 22,000 kg |
| Wheelbase | 4,800 mm |
| Dimensions (L×W×H) | 8,255 × 2,460 × 2,820 mm |
| Vacuum Pump | Jurop PN155R, 11,000 L/min |
| Suction Depth | 8 m |
| Full-Tank Suction Time | 12–15 min |
| Tire | 295/80R22.5 (10+1) |
| Max Speed | 90 km/h |
| General Description | |||
| truck model | DRZ5150XWBJ | ||
| Cab | Ouman single row cab, with power steering. Electronic flameout, A/C | ||
| Driving Type | 4x2 Left hand driving | ||
| Max Speed (km/h) | 90 | ||

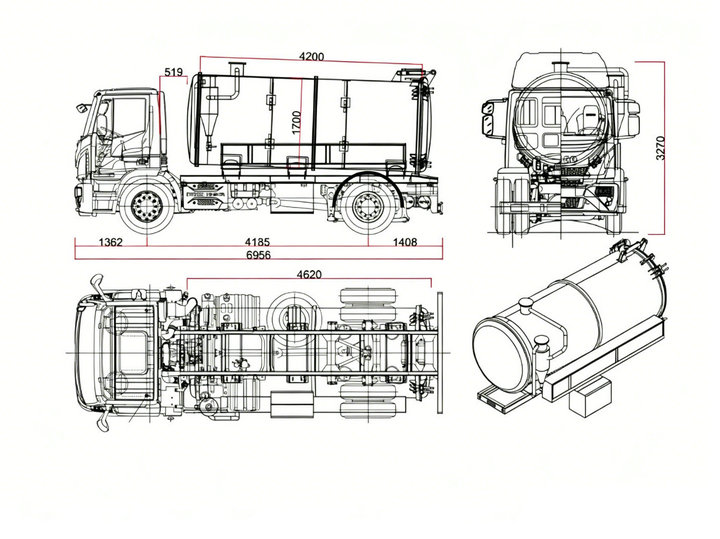

| Overall dimension(mm) | 8255×2460×2820 | ||
| GVW( kg) | 22000 | ||
| Mass in working order ( kg) | 13575 | ||
| Wheelbase(mm) | 4800 | ||
| F/R track base (mm) | 2022/1830 | ||
| F/R overhang (mm) | 1500/2380 | ||
| Approach/Departure Angel | 16/14 | ||
| Tire | 295/80R22.5 (10+1) | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 10-speed | ||
| Bridge | Front axle | 7T | |
| Rear axle | 13T+13T | ||
| Enging | Model | YC6A240-33 | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled six-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 7.255L | ||
| Max output power/rotate speed (hp /rpm ) | 336/2200 | ||
| Max torque/rotate speed(N.m/rpm) | 1350/1100~1600 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper body specification | |||
| Volume of tank | 10 m3 | ||
| Color | Painted in the corporation's colours with logo on both front doors as specified by the client | ||
| Material of tanker | 5mm Carbon stell (Q235) | ||
| Special function | Suction height | ≥9(m) | |
| Suction time | 250(S) | ||
| Maximum Inclination Angle | ≥45° | ||
| maximum vacuum | ≥11 MPa | ||
| Lifting time | ≤45 S | ||
| the Cover opening Angle | ≥75° | ||
| The cover opening time | ≤25 S | ||
| Suction pipe | 3m length and 100 mm in diameter | ||
| Hose Racks | Fitted on both sides of tank, to accommodate a minimum of seven hoses each | ||
| Fittings | Four-way change valve fitted to pump | ||
| Drain separator | |||
| vacuum pump | |||

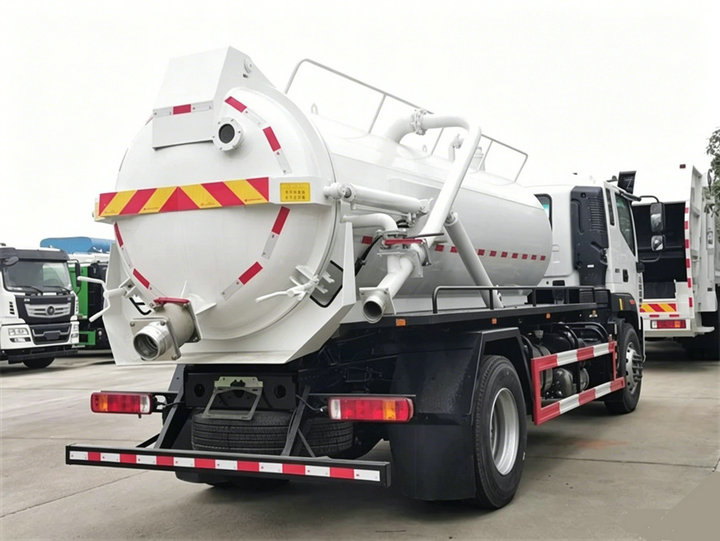

| Fully opening rear door | |||
| Sight glasses at top and bottom of tank | |||
| Ladder: For access to top of tank complete with cat walk on top of tank | |||
| vacuum pump | pump type | Jurop PN155R vacuum pump | |
| Max Air Flow | 11000L/min | ||
| Time to suction full tank | 12-15 minuted | ||
| Suction Depth | 8 m | ||
| suction pressure (MPa) | 5.4 | ||
| diameter (mm) | 80 | ||
| Brief introduction of function | It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system. | ||
Hot Tags
septic service truck · Foton septic truck · vacuum sewage truck · 10 CBM septic tanker · sewer suction truck · Jurop PN155R · Yuchai 240HP · 4x2 vacuum truck · septic tank cleaning truck · sewage sludge transport
Sewage Suction Truck
Sewage Suction Truck is a purpose-built vacuum vehicle engineered for the efficient collection, transportation, and disposal of sewage and liquid waste. Equipped with a high-capacity sealed storage tank and a powerful vacuum pump system, it safely handles a wide range of waste streams — from domestic sewage and sludge to industrial wastewater and septic tank residue — making it an indispensable asset for municipal sanitation, industrial facilities, and environmental service contractors.
Five Key Applications
1. Sewage Cleaning & Road Maintenance
The Sewage Suction Truck is widely deployed for cleaning sewage spills and standing wastewater on roads, public squares, construction sites, and industrial zones. Its high-performance vacuum pump draws solid-liquid mixtures directly into the sealed tank, enabling safe, odor-free transport to designated treatment or disposal facilities.
2. Industrial Wastewater Collection & Transfer
Factories, processing plants, and commercial facilities rely on the Sewage Suction Truck to collect and transport process wastewater, oily effluent, and other liquid by-products to licensed sewage treatment plants. The sealed tank design prevents leakage and secondary pollution during transit, ensuring full regulatory compliance.
3. Drainage & Sewer Dredging
In urban drainage networks, the Sewage Suction Truck plays a critical role in clearing accumulated water, sludge, and blockages from sewers, storm drains, and catch basins. Its powerful vacuum system rapidly removes standing water and debris, restoring flow capacity and preventing urban flooding during heavy rainfall.
4. Decentralized Sewage Collection
In rural areas, suburban communities, and remote sites lacking permanent sewage pipelines, the Sewage Suction Truck serves as the primary solution for domestic waste management. It efficiently collects sewage from septic tanks, toilets, bathrooms, and kitchens, then transports it to centralized treatment facilities — significantly improving sanitation in underserved regions.
5. Compliant Industrial Liquid Waste Disposal
The Sewage Suction Truck assists factories and industrial enterprises in the compliant collection and treatment of waste liquids and industrial by-products. By providing a controlled, traceable waste-handling chain, it helps businesses meet environmental regulations, reduce illegal discharge risks, and minimize their ecological footprint.
Product Highlights
| Feature | Specification |
|---|---|
| Tank Capacity | Customizable (4,000 – 20,000 L) |
| Vacuum Pump | High-efficiency liquid-ring / rotary vane pump |
| Tank Material | Carbon steel / stainless steel (anti-corrosion) |
| Suction Depth | Up to 6 – 10 meters |
| Discharge Method | Hydraulic tipping + gravity / pressure discharge |
| Chassis Options | HOWO, Shacman, Isuzu, Foton, FAW, Dongfeng |
