DRZ5290XWBJ
-
DRZ
-
8705909990

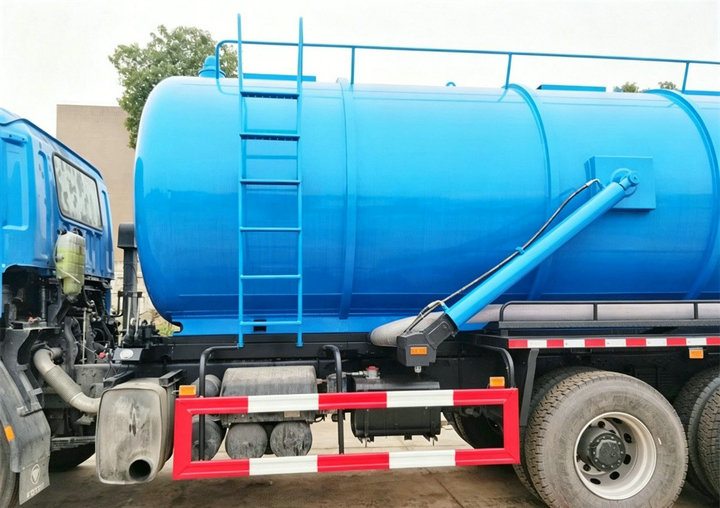

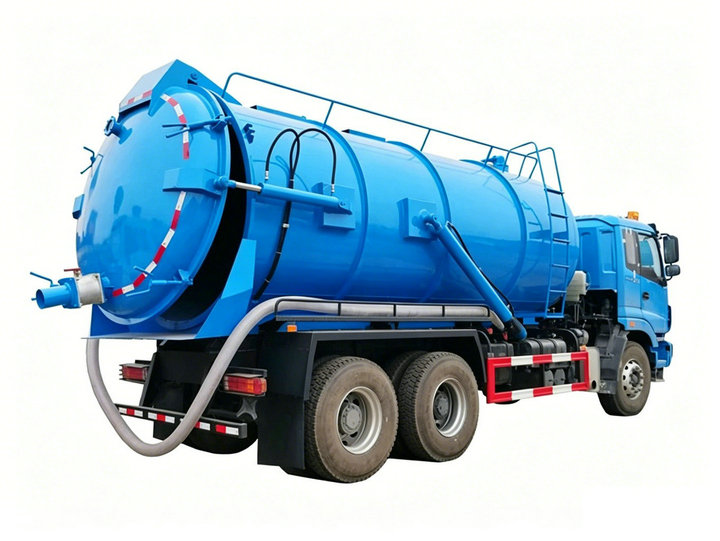

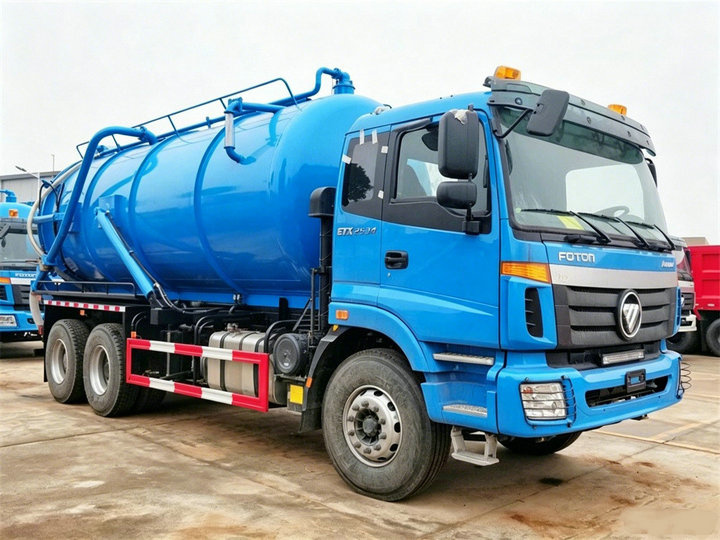

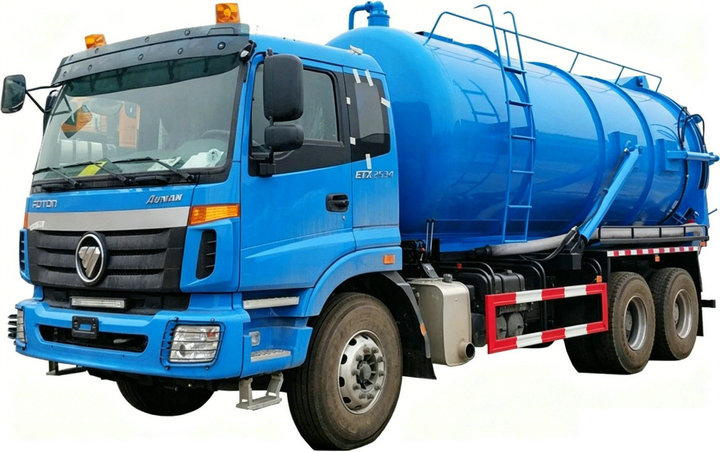

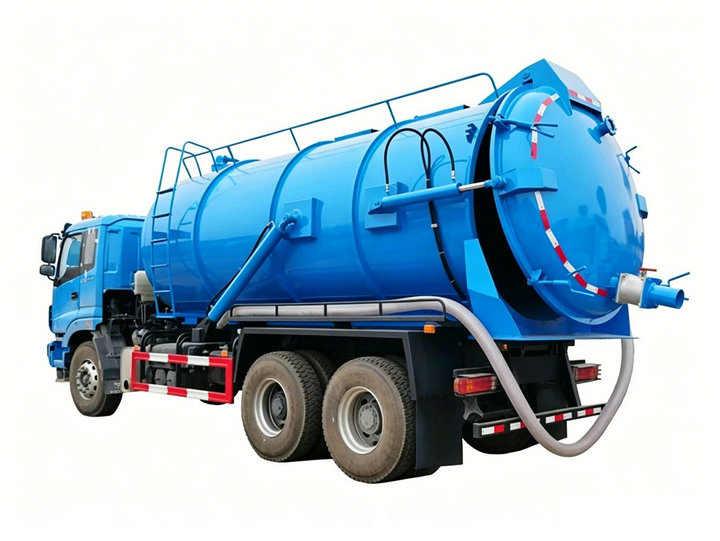

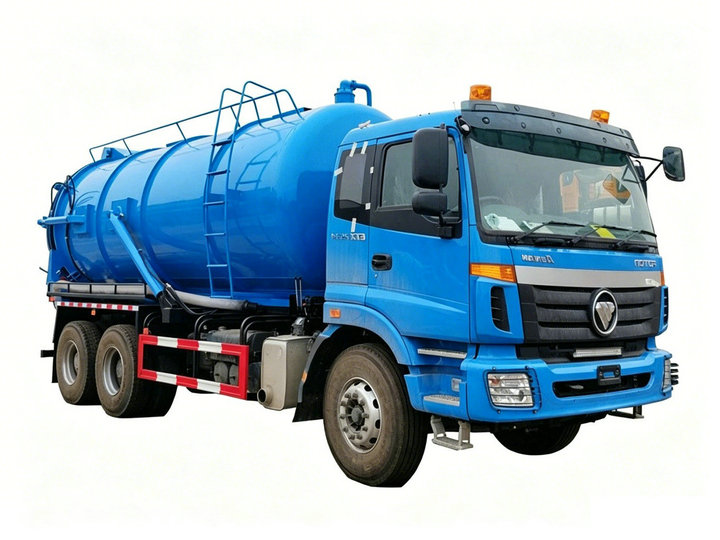

Foton Sewage Disposal Vacuum Truck
Foton Sewage Disposal Truck 20 CBM | 6×4 ETX Cabin | 320 HP Weichai Engine
20 CBM Foton sewage disposal truck on 6×4 ETX chassis, 320 HP Weichai Euro 3 engine, Weilong vacuum pump, Q235-B steel tank. Factory direct, 1-year warranty. Send inquiry now.
Product Overview
The Foton Ouman Sewage Disposal Truck — also known as a Foton sewer vacuum truck or septic service truck — is a heavy-duty waste-management vehicle engineered for municipal sewage collection, pipeline cleaning, and septic-tank desludging. Built on a robust Foton ETX 6×4 chassis and powered by a 320 HP Weichai diesel engine, this 20,000-liter vacuum tanker delivers reliable suction performance for environmental engineering projects, city drainage maintenance, and industrial waste-water transfer.
Equipped with a high-performance Weilong liquid-ring vacuum pump (68 L/s suction speed, 99.6% vacuum degree), the truck rapidly extracts sludge, sewage, and liquid waste from septic tanks, cesspools, storm drains, and municipal sewer networks. An integrated water-gas separator and anti-overflow system protect the pump from solid debris and liquid backflow, minimizing clogging and extending service life.
Model: DRZ5290XWBJ Capacity: 20,000 L (20 CBM)Drive: 6×4Engine Power: 320 HP Engine Type: Weichai Diesel, Euro 3
Key Features & Selling Points
| # | Feature | Benefit |
|---|---|---|
| 1 | Foton ETX luxury cabin, 6×4 tandem-axle chassis | Heavy-load stability and driver comfort on long municipal routes |
| 2 | Weichai 320 HP turbocharged diesel engine (Euro 3) | Strong power for 20-ton payload with low operating cost |
| 3 | Weilong 65QZXDG-68/400 vacuum pump, 68 L/s, 99.6% vacuum | Fast, reliable suction from deep tanks and long pipelines |
| 4 | 20 CBM Q235-B carbon-steel tank (6 mm body / 8 mm end caps) | Large capacity, corrosion-resistant, built for continuous duty |
| 5 | Hydraulic rear door + DN100 ball valve discharge | Quick, clean unloading; manual locking for safe transport |
| 6 | Anti-overflow float valve + pressure gauge + multi-way valve | Operator safety and pump protection against liquid backflow |
| 7 | Dual 6 m suction hoses (2 pcs) + dual pump configuration | Extended reach and redundancy for large job sites |
| 8 | 12-month warranty on engine, gearbox, axle, tank, and pump | Factory-direct after-sales support and spare-parts supply |
Technical Specifications
Chassis & Cabin
| Item | Specification |
|---|---|
| Cabin | Foton ETX, 2 seats + 1 sleeper, A/C |
| Drive type | 6×4 (tandem rear axle) |
| Overall dimensions (L×W×H) | 11,000 × 2,500 × 3,800 mm |
| Wheelbase | 4,600 + 1,350 mm |
| Wheel track (front/rear) | 2,022 / 1,830 mm |
| Approach / departure angle | 16° / 18° |
| Tare weight | 12,400 kg |
| Payload | 20,000 kg |
| Front axle load | 1 × 9,000 kg |
| Rear axle load | 2 × 16,000 kg |
| Max. speed | 90 km/h |
| Steering | ZF8118 power steering |
| Tires | 12R20 radial steel, 10 pcs + 1 spare |
Engine & Drivetrain
| Item | Specification |
|---|---|
| Engine brand | Weichai |
| Type | 4-stroke direct injection, 6-cylinder in-line, turbocharged & intercooled |
| Power | 320 HP |
| Emission standard | Euro 3 |
| Gearbox | 10 forward + 2 reverse |
| Fuel type | Diesel |
Sewage Tank & Vacuum System
| Item | Specification |
|---|---|
| Effective tank volume | 20,000 L (20 CBM) |
| Tank material | Carbon steel Q235-B |
| Tank thickness | Body 6 mm, end caps 8 mm |
| Tank color | Customizable |
| Vacuum pump brand | Weilong |
| Pump model | 65QZXDG-68/400 |
| Rotation speed | 500 r/min |
| Absolute working pressure | 400 Pa (99.6% vacuum) |
| Pumping speed | 68 L/s |
| Exhaust diameter | 65 mm |
| Pump power | 5 kW |
| Pump quantity | 2 pcs |
| Suction hose | 6 m length, 2 pcs |
Standard Components
Water-gas separator
Oil-gas separator
Tank body with pipe boxes on both sides
Protective nets on both sides
Multi-way valve
Anti-overflow valve
Pressure gauge
Floating-ball level alarm
Hydraulically controlled rear cover with manual lock
DN100 mm ball valve at tank rear
Applications
Municipal sewer maintenance — cleaning urban drainage systems, storm pipes, and catch basins
Septic tank desludging — residential and commercial septic-tank pumping
Industrial waste-water transfer — factories, farms, and food-processing plants
Cesspool and sewage-well cleaning — public facilities, communities, and construction sites
Environmental remediation projects — emergency spill response and liquid-waste hauling
Why Choose Vacuum Suction Trucks
Proven chassis — Foton ETX 6×4, widely supported with global parts availability
Reliable vacuum system — Weilong pump with quiet operation, misalignment compensation, and easy installation
Customization — tank capacity, color, RHD/LHD, pump brand, and accessory packages built to order
After-sales — 12-month warranty on key components (engine, gearbox, axle, tank body, vacuum pump) with dedicated spare-parts supply
Export experience — shipped to Russia, Central Asia, Africa, Southeast Asia, and Latin America
Hot Tags (SEO Keywords)
Foton sewage disposal truck, China Foton sewage disposal truck manufacturers, Foton sewer vacuum truck, 20 CBM vacuum tanker, 6×4 septic service truck, Weichai 320 HP sewage truck, Weilong vacuum pump truck, municipal sewer cleaning truck, Q235-B vacuum tank truck, sewage disposal, Foton ETX vacuum truck, 20000L sewage suction truck, heavy-duty cesspool truck, factory direct vacuum truck
Septic Tanker Truck 20 CBM
| General Description | |||
| Cabin | Driving type 6x4. Right hand driven RHD | ||
Foton ETX cab, with two seats ,one sleeper. with air condition A/C. | |||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 11000×2500×3800 | |
| Wheel base (mm) | 4600+1350 | ||
| Wheel track (front/rear) (mm) | 2022/1830 | ||
| Approach/Departure angle(°) | 16/18 | ||
| Weight in KGS | Tare Weight | 12400 | |
| Payload | 20000 | ||
| Front axles loading capacity | 1x9000 | ||
| Rear axles loading capacity | 2x16000 | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Brand | Sinotruk | |
| Model | Weichai | ||
| Type | 4-stroke direct injection, 6-cylinder in-line, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 320 | ||
| Emission standard | Euro 3 | ||
| Gearbox | 10-speed forward and 2 reverse gear | ||
| Tire Model | 12R20 radial steel tires, 10 pieces with one spare | ||
| Steering | ZF8118 | ||
| Fuel Type | Diesel | ||
| Sewage Tank | Color | As requirements | |
| Effective Tank Volume | 20000L | ||
| Tank Thickness | Tank body 6 mm, seal is 8 mm | ||
| Tank Material | Carbon Steel Q235-B | ||
| Vacuum Pump | Pump brand | Weilong | |
| Pump model | 65QZXDG-68/400 | ||
| Rotation speed | 500(r/min) | ||
| Absolute working pressure | 400Pa (99.6%) | ||
| Pumping speed | 68L/s | ||
| Exhaust diameter | 65mm | ||
| Power | 5Kw | ||
| Quantity | 2pcs | ||
| Suction Pipe | Length(m) | 6 m | |
| Quantity(pcs) | 2pcs | ||
| Main Parts | 1. Water-gas separator. | ||
| 2. Oil-gas separator. | |||
| 3. Tank body with pipe boxes on both sides. | |||
| 4. Both sides with protective nets. | |||
| 5. Multi-way valve. | |||
| 6. Anti overflow valve. | |||
| 7. Pressure gauge. | |||
| 8. Floating ball alarm. | |||
| 7. Hydraulic rear cover, manual lock. | |||
| 8. There is a ball valve (DN100MM) at the end of the tank. | |||
| Remarks | Tank with Hydraulic lifting | ||
| Warranty | One Year for key parts: engine, gearbox and axle , tank body and Vacuum Pump | ||
