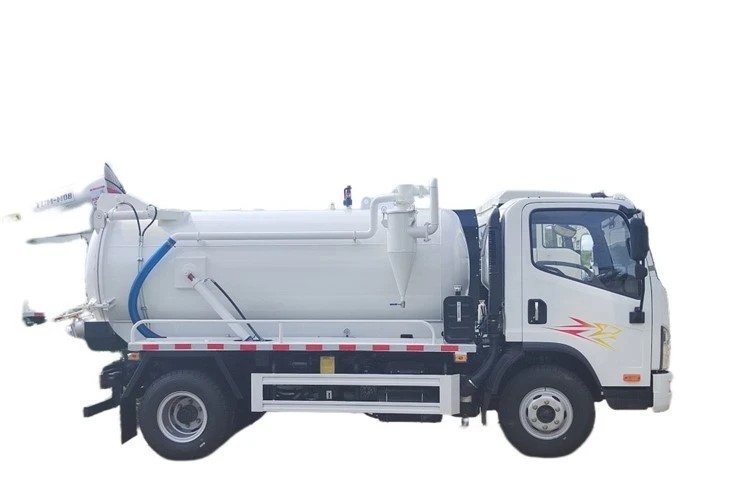

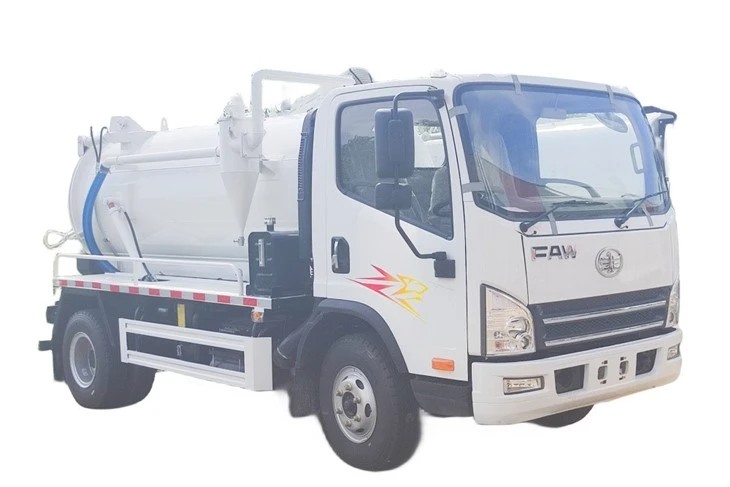

FAW 6KL Cesspit Emptier Septic Tank Truck
FAW 6000L Sewer Jetter Truck | Vacuum Sewage Suction Truck Manufacturer & Supplier
Explore the FAW 6000L vacuum sewage suction truck — a heavy-duty sewer jetter truck built for fast, reliable pipe cleaning. Equipped with a 130HP engine, 120 L/s vacuum pump, 8 m suction depth and a 6 mm high-carbon steel tank. Factory-direct pricing and global export from China. Get a quote today.

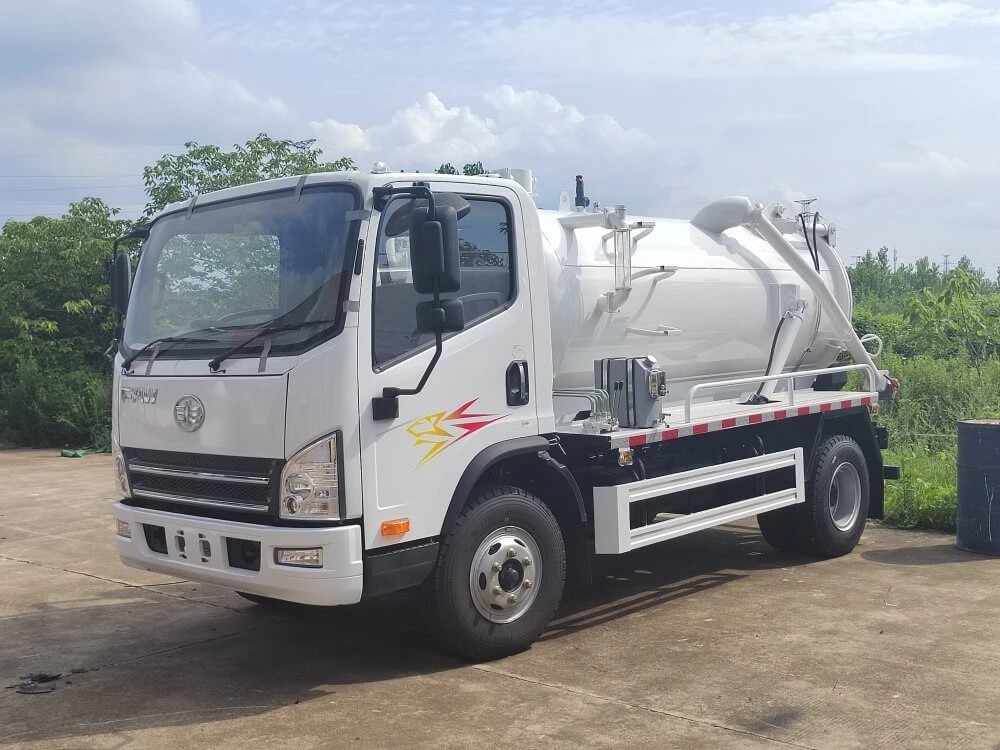

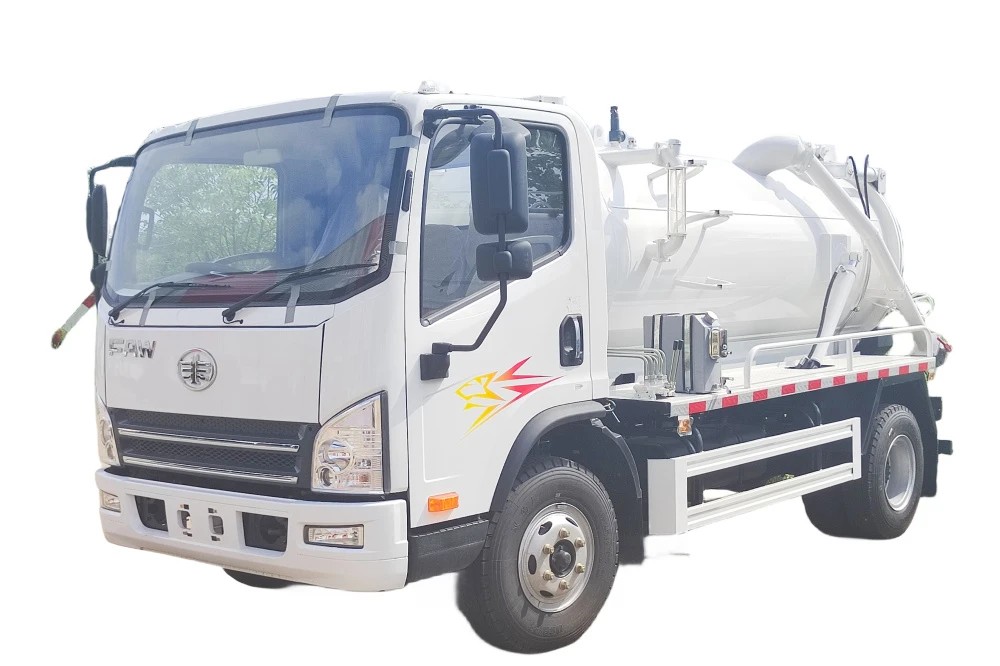

FAW 6000L Vacuum Sewage Suction Truck – Powerful Sewer Jetter Truck for Municipal & Industrial Cleaning
Overview
The FAW 6000L vacuum sewage suction truck is a professional-grade sewer cleaning solution engineered for municipal drainage maintenance, septic tank services, industrial wastewater management and emergency pipeline unblocking. Combining a high-flow vacuum pump, a heavy-duty 6 mm high-carbon steel tank and an operator-friendly rear-mounted hose reel, this sewer jetter truck delivers fast, powerful and cost-effective cleaning performance — even on the toughest blockages.
Key Advantages
1. Powerful Cleaning Engineered for maximum performance, the FAW sewer jetter truck delivers powerful vacuum and flushing force that clears even the most stubborn blockages, sludge and debris in sewer lines, drainage pipes and septic systems.
2. Easy Operation Designed for ease of use, the FAW sewer jetter features intuitive controls and a user-friendly interface, allowing operators to clean sewer systems quickly, safely and with minimal training.
3. Versatile Performance The sewer jetter truck FAW is a true all-rounder, handling a wide range of cleaning tasks — high-pressure flushing, vacuum suction, sludge removal and hydro-excavation — in one highly capable unit.
4. High Efficiency Featuring a fast-fill vacuum pump (full tank in under 5 minutes, empty in under 4 minutes), this unit lets operators finish jobs faster with minimal downtime and maximum productivity.
5. Durable Construction Built to withstand the demands of daily heavy-duty use, the FAW vacuum tanker features rugged construction and durable, corrosion-resistant components that ensure reliable performance and a long service life.
6. Cost-Effective A smart long-term investment for sewer cleaning fleets — low operating costs, minimal maintenance requirements and dependable performance deliver the best return on your budget.
General Specification
| Item | Specification |
|---|---|
| Product Name | FAW 6000L Vacuum Sewage Suction Truck |
| Gross Weight | 9,000 kg |
| Rated Payload | 5,000 kg |
| Curb Weight | 4,805 kg |
| Dimension (L×W×H) | 6,500 × 2,300 × 2,600 mm |
| Tank Volume | 6,000 L |
| Wheelbase | 3,800 mm |
| Axle Number | 2 |
| Axle Load | 6,500 / 11,495 kg |
Chassis Specification
| Item | Specification |
|---|---|
| Tire Number | 6 |
| Approach / Departure Angle | 11.1° / 19.1° |
| Tire Specification | 10.00R20 |
Engine
| Item | Specification |
|---|---|
| Engine Model | YC4D130 |
| Power | 130 HP |
| Displacement | 4,730 ml |
| Emission Standard | Euro 3 / Euro 5/ Euro 6 |

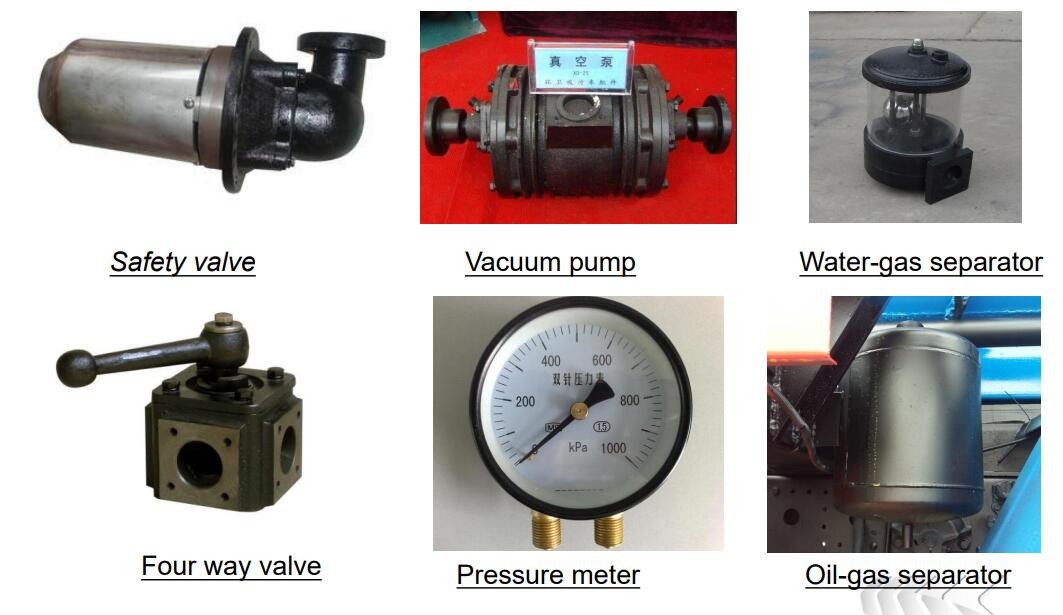

Sewage Suction System
| Item | Specification |
|---|---|
| Type | Vacuum Pump |
| Full Tank Time | < 5 mins |
| Empty Tank Time | < 4 mins |
| Maximum Vertical Suction Depth | 8 m |
| Working Pressure | 8,500 Pa |
| Theoretical Pump Flow | 120 L/s |
| Inlet & Outlet Diameter | 50 mm |
| Drainage Pipe Length | 5 m |
| Tank Capacity | 6,000 L |
| Tank Size | 5,100 × 2,300 × 1,500 mm |
| Tank Material | 6 mm High-Carbon Steel |
Rear-Mounted Hose Reel System
REEL ADVANTAGE The rear-mounted hose reel design with 180° hydraulic articulation takes the operator off the street and away from traffic — improving safety, speed and comfort on every job site.
REEL REACH The rear-mounted hose reel puts more usable power in the hands of the operator, extending reach beyond the truck's width with a 12' (3.6 m) work radius — ideal for cleaning hard-to-access pipes and manholes.
REEL VIEW An unobstructed 270° view provides a far safer field of vision for the driver, reducing blind spots during operation and maneuvering.
Safety Features
The FAW vacuum sewage suction truck is designed with safety at the core, incorporating multiple features that ensure safe operation at all times:
High-Pressure Water Shut-Off Valve – Automatically cuts off the water flow the moment the operator releases the control lever, reducing the risk of injury and equipment damage.
Safety Interlocks – Prevent the truck from operating unless all safety conditions are met:
The water pump cannot be engaged while the truck is not in motion, reducing the risk of accidents and system damage.
Operation is blocked if the debris tank is over-full or the water tank is too low, ensuring safe, efficient and reliable operation.
| Main Technical Data | |
| General Specification | |
| Product name | FAW 6000L Vacuum Sewage Suction Truck |
| Gross weight | 9000 kg |
| Rated payload | 5000 kg |
| Curb weight | 4805 kg |
| Dimension | 6500X2300X2600mm |
| Tank volume | 6000L |
| Wheelbase | 3800 mm |
| Axle number | 2 |
| Axle load | 6500/11495 |
| Chassis Specification | |
| Tire number | 6 |
| Approach/Departure angle(°) | 11/19 |
| Tire speicifcation | 10.00R20 |
| Engine | YC4D130 |
| Power | 130HP |
| Displacement | 4730 ml |
| Emission standard | Euro 3 Euro 4 Euro 5 |
| Sewage Suction Specification | |
| Type | Vacuum pump |
| Full tank time | <5 mins |
| Empty tank | <4 mins |
| Vertical suction depth | 8 m |
| Working pressure | 8500Pa |
| Theoretical pup flow | 120 L/S |
| Inlet and outlet Diameter | 50 mm |
| Drainage pipe length | 5m |
| Tank capacity | 6000L |
| Tank size | 5100×2300×1500 |
| Tank material | 6mm high carbon steel |
