DRZ5160GXWSX
-
DRZ
-
8705909990

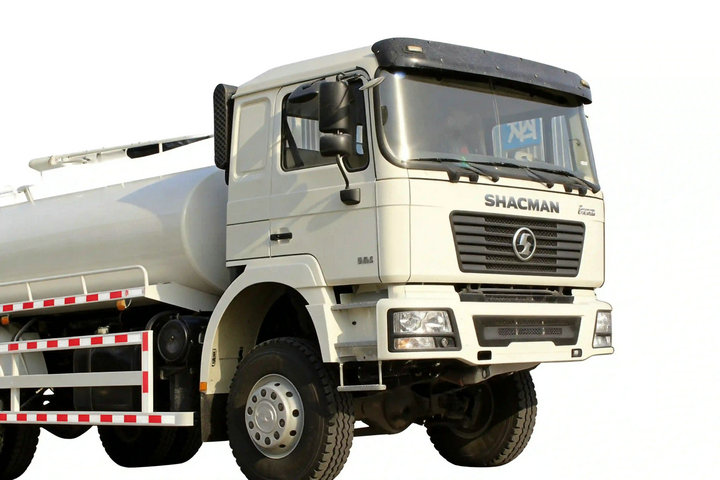

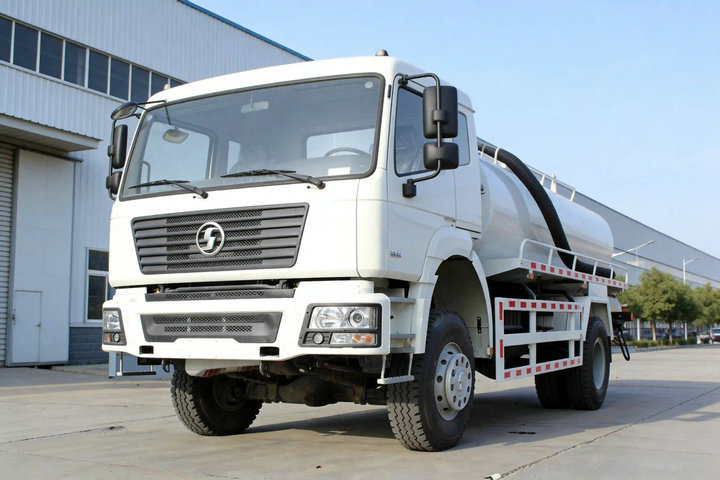

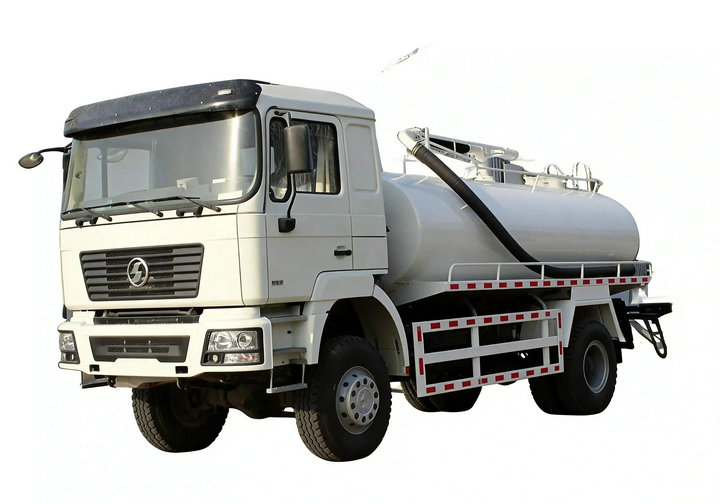

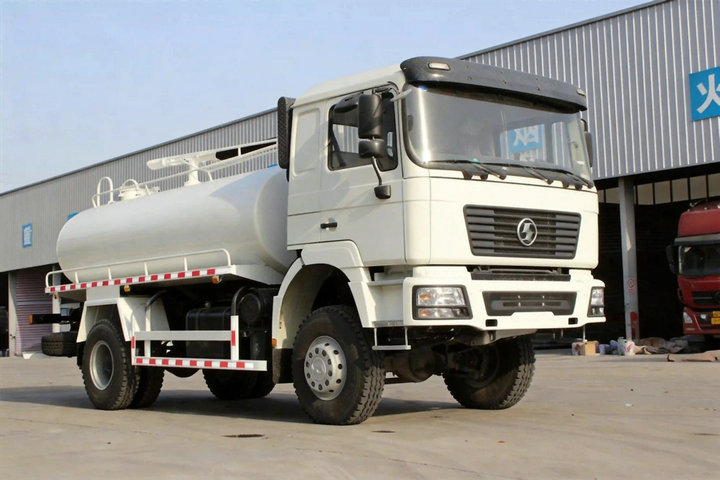

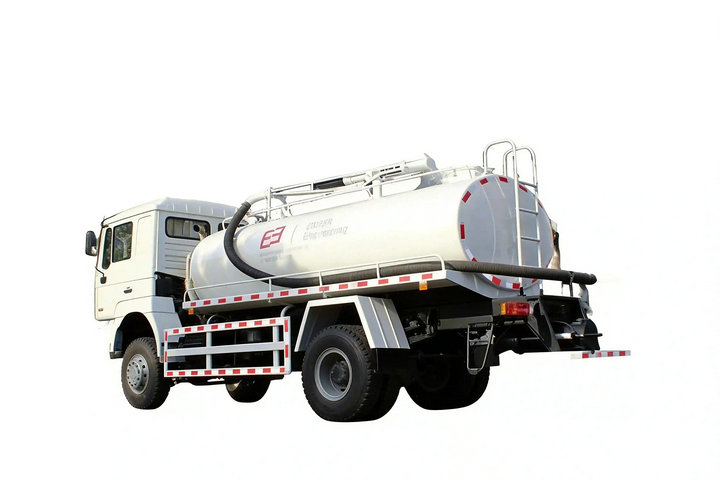

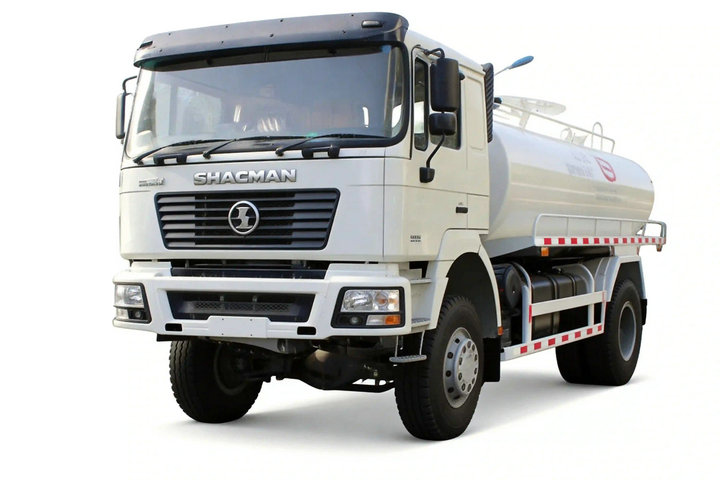

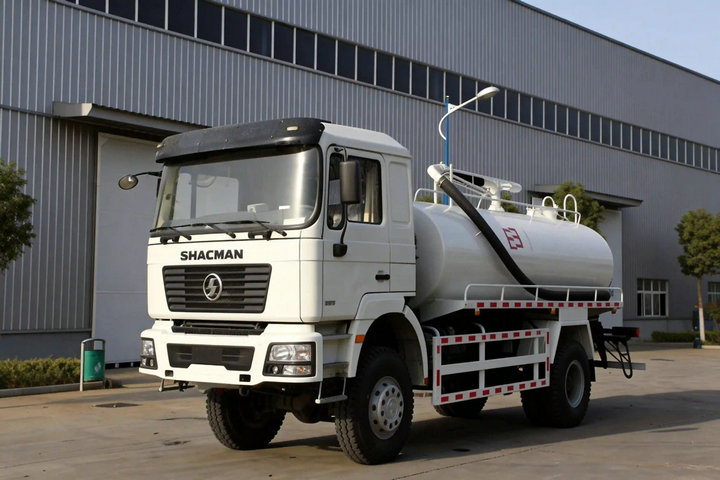

Shacman 4X4 AWD Cesspool Vacuum Septic Tank Truck 12m3
| General Description | |||
| Truck model | DRZ5160GXWSX | ||
| Cab | Shacman F2000 | ||
| Driving Type | 4x4, LHD | ||
| Max Speed (km/h) | 90 | ||
| Overall dimension(mm) | 8000×2500×3000 | ||
| GVW( kg) | 19000 | ||
| Mass in working order ( kg) | 7200 | ||
| Wheelbase(mm) | 4500 | ||
| F/R track base (mm) | 2022/1830 | ||
| F/R overhang (mm) | 1500/2380 | ||
| Approach/Departure Angel | 16/14 | ||
| Tire | 11.00R20 (10+1) | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 10-speed | ||
| Bridge | Front axle | 7T | |
| Rear axle | 13T | ||
| Enging | Model | WEICHAI | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled six-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 7.255L | ||
| Max output power/rotate speed (hp /rpm ) | 320/2200 | ||
| Max torque/rotate speed(N.m/rpm) | 1350/1100~1600 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper body specification | |||
| Volume of tank | 12,000 liters | ||
| Color | Painted in the corporation's colours with logo on both front doors as specified by the client | ||
| Material of tanker | 5mm Carbon stell (Q235) | ||
| Special function | Suction height | ≥9(m) | |
| Suction time | 250(S) | ||
| Maximum Inclination Angle | ≥45° | ||
| maximum vacuum | ≥11 MPa | ||
| Lifting time | ≤45 S | ||
| the Cover opening Angle | ≥75° | ||
| The cover opening time | ≤25 S | ||
| Suction pipe | 3m length and 100 mm in diameter | ||
| Hose Racks | Fitted on both sides of tank, to accommodate a minimum of seven hoses each | ||
| Fittings | Four-way change valve fitted to pump | ||
| Drain separator | |||
| vacuum pump | |||
| Fully opening rear door | |||
| Sight glasses at top and bottom of tank | |||
| Ladder: For access to top of tank complete with cat walk on top of tank | |||
| vacuum pump | pump type | YIFENG vacuum pump | |
| Max Air Flow | 10000L/min | ||
| Time to suction full tank | 12-18 minuted | ||
| Suction Depth | 8 m | ||
| suction pressure (MPa) | 5.4 | ||
| diameter (mm) | 80 | ||
| Brief introduction of function | It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system. | ||
Shacman 4x4 Off‑Road Cesspool Suction Truck 12000 Liters
Model: DRZ5160GXWSX
Product Description
The Shacman 4×4 off‑road cesspool suction truck, also known as a sewage suction tanker or septic pump truck, is a heavy‑duty vacuum waste‑collection vehicle engineered for tough, inaccessible job‑sites. Built on a reliable Shacman 4‑wheel‑drive off‑road chassis powered by a fuel‑saving Weichai 180 HP diesel engine, this all‑wheel‑drive sewage suction truck delivers outstanding traction and stable handling on slippery ground, rough mountain trails, muddy terrain and steep slopes. The 4x4 drivetrain effectively prevents wheel‑slip, drastically boosting operational safety and work efficiency in challenging off‑highway environments.
Widely deployed for municipal sanitation, residential communities, commercial districts and industrial zones, this 12,000‑liter cesspool tanker is specially designed to clear blocked cesspools, septic tanks, drainage pits and storm‑water sumps. Working on the negative‑pressure vacuum principle, its powerful pumping system draws sewage, sludge and waste slurry from underground pits into the sealed onboard tank. Once the tank reaches full capacity, the off‑road cesspool suction truck transports the collected waste to designated waste‑treatment facilities for proper disposal.
Key Features
✅ High efficiency & energy‑saving design, cuts fuel consumption by 20%
✅ 12,000‑Litre large‑capacity tank, 30% larger volume than standard sewage tankers
✅ Multi‑purpose functionality, adaptable to multiple waste‑cleaning scenarios
✅ Heavy‑duty high‑strength carbon steel tank, tank wall thickness over 6 mm for long‑term durability
✅ Intelligent automatic control system supports hands‑free automatic sewage suction operation
Full Technical Specifications
| Item | Parameter |
|---|---|
| Truck Model | DRZ5160GXWSX |
| Cab | Shacman F2000 (F2000) |
| Drive Type | 4×4 All‑Wheel Drive, Left‑Hand Drive (LHD) |
| Max Speed | 90 km/h |
| Overall Dimensions (L×W×H) | 8000 mm × 2500 mm × 3000 mm |
| Gross Vehicle Weight‑GVW | 19000 kg |
| Kerb / Working‑Order Mass | 7200 kg |
| Wheelbase | 4500 mm |
| Front / Rear Track | 2022 mm / 1830 mm |
| Front / Rear Overhang | 1500 mm / 2380 mm |
| Approach / Departure Angle | 16° / 14° |
| Tyre | 11.00R20 (10+1 spare tyre) |
| Clutch | Single‑plate dry diaphragm‑spring clutch |
| Steering | Hydraulic power‑assisted steering |
| Gearbox | 10‑speed manual transmission |
| Front Axle | 7‑ton heavy‑duty front drive axle |
| Rear Axle | 13‑ton rear drive axle |
| Engine | |
| Engine Brand & Model | Weichai Diesel Engine |
| Fuel Type | Diesel |
| Engine Type | Water‑cooled, 6‑cylinder, direct‑injection, turbo‑charged |
| Displacement | 7.255 L |
| Max Power / Speed | 320 HP @ 2200 rpm |
| Max Torque / Speed | 1350 N·m @ 1100‑1600 rpm |
| Braking System | Service brake: Compressed‑air brakeParking brake: Spring‑energy brakeAuxiliary brake: Engine exhaust brake |
| Electrical System | 24 V |
| Superstructure & Tanker | |
| Tank Volume | 12,000 Liters (12 CBM) |
| Tank Material | 5 mm Q235 Carbon Steel |
| Exterior Finish | Custom‑brand paint, customer‑logo printed on both front doors |
| Vertical Suction Height | ≥ 9 m |
| Suction Depth | 8 m |
| Full‑Tank Suction Time | 12‑18 minutes |
| Vacuum Pressure | ≥ 0.11 MPa (Revised from wrong 11 MPa) |
| Suction Hose | 3 m long, DN100 (100 mm) diameter |
| Hose Storage | Dual‑side hose racks, each side holds minimum 7 hoses |
| Fittings | 4‑way change‑over valve for vacuum pump |
| Water‑gas Separator | Equipped |
| Rear Door | Fully‑opening hinged rear tank door |
| Sight Glasses | Top & bottom liquid‑level sight glasses fitted on tank |
| Accessory | Top‑mounted walk‑way catwalk + safety access ladder |
| Vacuum Pump Brand & Type | YIFENG Vacuum Pump |
| Max Airflow Rate | 10000 L/min |
| Max Working Suction Pressure | 5.4 MPa |
| Pump Inlet Diameter | 80 mm |
| Tank Lifting Time | ≤ 45 Seconds |
| Rear‑Cover Opening Angle | ≥ 75° |
| Rear‑Cover Opening Time | ≤ 25 Seconds |
Working Principle
The sewage suction superstructure consists of power take‑off (PTO), drive‑shaft, heavy‑duty vacuum pump, sealed waste tank, hydraulic control unit and complete pipeline assemblies. Powered by the truck engine via the PTO, the vacuum pump generates negative‑pressure vacuum inside the tank, sucking sludge, sewage and septic waste through the suction hose into the tanker body. Hydraulic tipping system enables fast waste discharge once the vehicle arrives at the disposal site.
Core Advantages of Shacman 4×4 All‑Wheel‑Drive Cesspool Suction Truck
- Powerful 4x4 Off‑Road Traction SystemThe full‑time all‑wheel‑drive chassis delivers superior grip on slippery roads, rugged mountain paths and steep gradients. Zero wheel‑slip performance guarantees safe, reliable waste‑collection operations at remote, hard‑to‑reach worksites.
- Combined Suction & High‑Pressure Cleaning FunctionFitted with a heavy‑duty vacuum suction unit and optional high‑pressure water pump, this multi‑functional cesspool truck can perform waste extraction and pipe‑flushing cleaning simultaneously, cutting labour cost and shortening on‑site working hours.
- Large‑Capacity 12CBM Sewage Storage TankThe 12,000‑litre waste tank holds huge volumes of sludge and sewage, reducing the frequency of waste‑transport trips and greatly improving productivity for large‑scale or long‑duration sanitation‑cleaning projects.
- Automatic Intelligent Control SystemAdvanced electronic control modules allow one‑touch adjustment over vacuum suction and discharge parameters. Operators can finish cesspool‑cleaning jobs with simplified operation, improving service quality and reducing human error.
- High Modularity & Flexible ConfigurationModular‑designed superstructure supports fast component disassembly, easy maintenance and flexible function upgrades. Versatile enough for municipal sewer maintenance, construction‑site waste removal, industrial‑park sewage‑cleaning and remote rural septic‑tank emptying.
