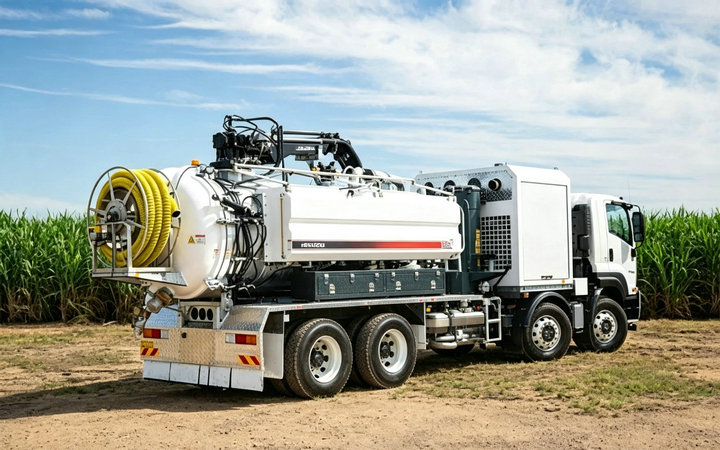

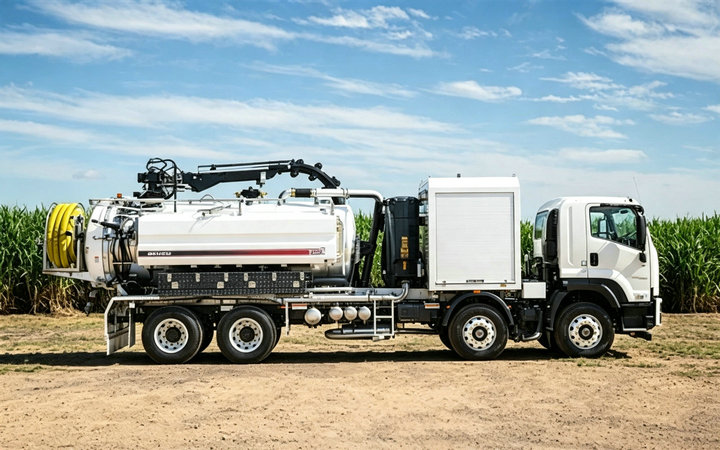

Professional Isuzu 12cbm combined vacuum jetter truck based on Isuzu GIGA 8x4 chassis, 10m³ galvanized sewage tank + 2m³ PP clean water tank, JUROP vacuum pump & PINFL high-pressure pump, for municipal sewer dredging, septic tank sludge suction, river silt cleaning. Brand new, customized, factory direct supply.

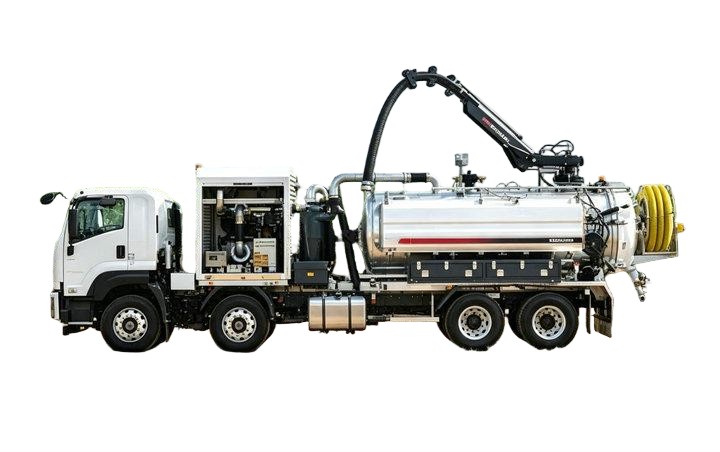

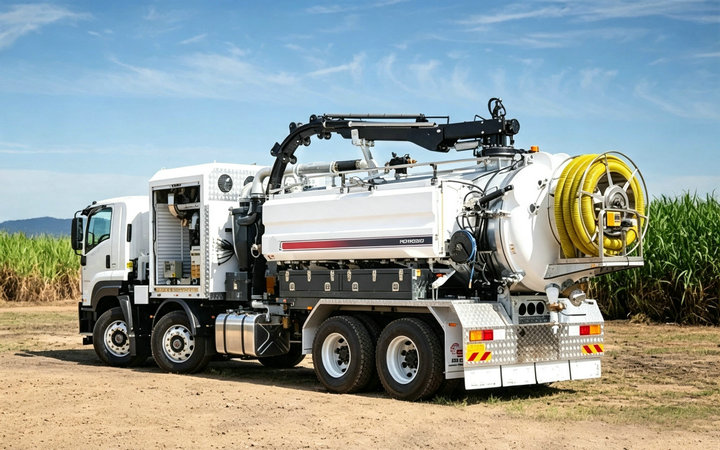

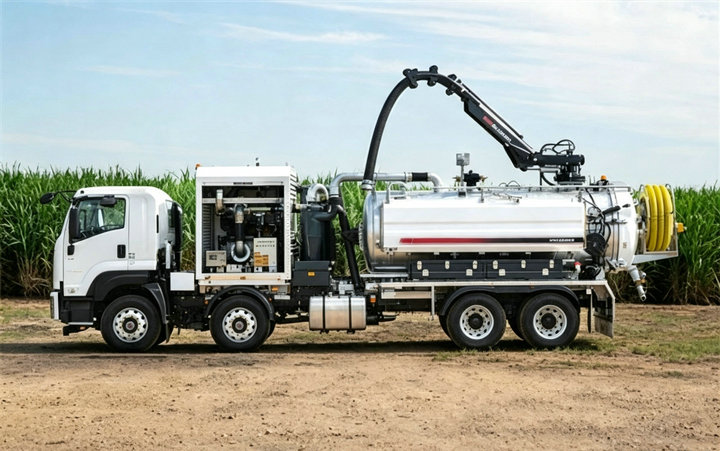

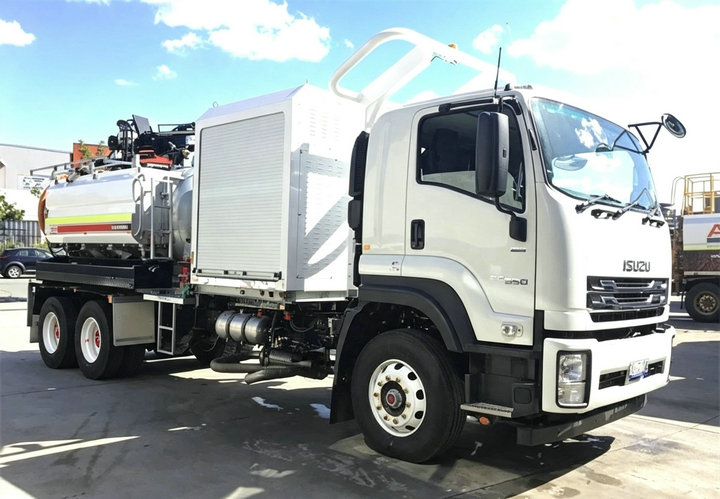

Isuzu 12 Cbm Combination Vacuum Jetter Truck

Product Overview

Model Code

• Complete Vehicle Model: DRZ5310GXHQL

• Total Effective Capacity: 10CBM Sewage Tank + 2CBM Cleaning Water Tank = 12CBM Total Volume

• Drive Format: 8×4 Heavy-Duty Rear Dual Axle Drive

• Rated Engine Power: 380 HP (279kW)

• Engine Model: Isuzu Original 6UZ1-TCG61

Complete Technical Parameters of Isuzu GIGA 8X4 12000L Vacuum Jetter Truck

Basic Vehicle Specs

Chassis & Power System

Superstructure Tank & Standard Configuration

1. Tank Combination: 10000L fully hot dipped galvanized sewage tank, 2000L PP polypropylene cleaning water side tanks

2. Pipeline Accessories: 30m sewage suction hose + 30m high-pressure cleaning hose, 7m foldable sludge suction boom pipe

3. Nozzle Kit: 10 sets interchangeable thrust cleaning nozzles for different pipe dredging diameters

4. Water Filling Ports: Hydrant quick fill connector + top manhole filling opening for clean water tank

5. Auxiliary Independent Engine: Special power unit for vacuum pump & high-pressure pump

6. Visual Sludge Observation Window, real-time liquid level sight glass for dual tanks

7. Hydraulic rear door self-unloading system, DN150 large-caliber sludge discharge ball valve

8. Full-length tool storage cabinets under clean water tanks for maintenance parts

Core Pump Performance

1. JUROP PVT400 Vacuum Pump (Sludge Suction System)

• Max Flow Capacity: 43300 L/min (1530 cfm / 2600 m³/h)

• Working Rotation Speed: 3400 rpm

• Ultimate Vacuum Degree: 93% / 27.8 hg

• Max Working Pressure: 2 bar

• Peak Vacuum Power: 100 HP / 74 kW

• Power Consumption at Max Vacuum: 58 kW

• Air Blower Capacity: 2300 cfm / 28"hg

2. PINFL MGS50 High-Pressure Water Pump (Pipe Jetting System)

• Rated Flow: 287 L/min @ 25 MPa working pressure

• Variable Speed Ratio: 1:2.22 / 1:2.65 / 1:3.29 (1500 / 1800 / 2200 rpm)

• Matching Power Output: 186 HP / 137 kW

Hydraulic & Operation Modules

• 360° rotating hydraulic suction boom on tank top, 8m maximum operation radius

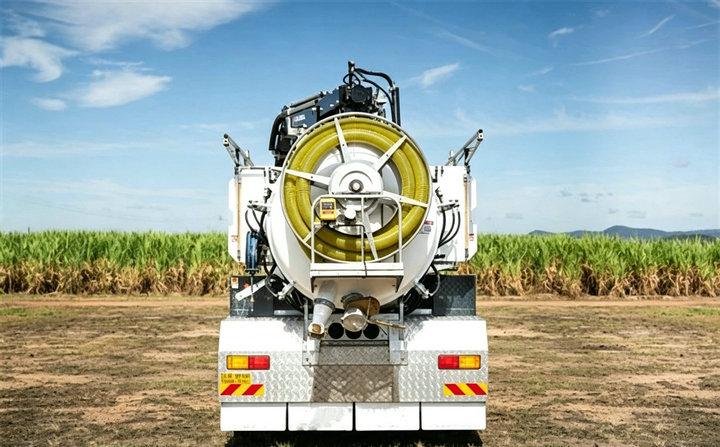

• Tail hydraulic hose reels, auto retraction for sewage suction pipe & high-pressure jetting hose

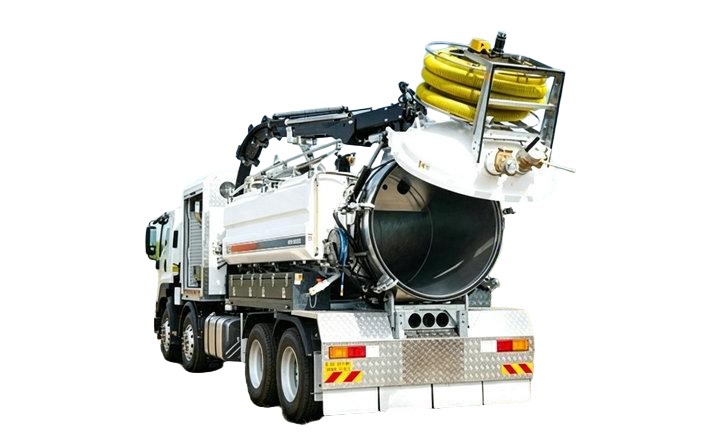

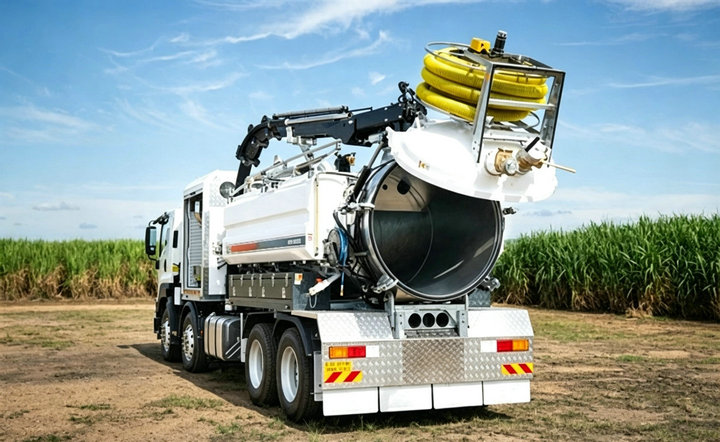

• Hydraulic lock rear tank door with anti-wave baffle to prevent sludge overflow during transport

• Full hydraulic control panel for one-button operation of suction, cleaning, unloading functions



Product Core Advantages

1. Reliable Isuzu Heavy-Duty Chassis Power

• Original Isuzu 6UZ1 engine with 380 horsepower, low fuel consumption, long service life, global after-sales parts support

• 8×4 four rear wheel drive design, powerful climbing performance, adapts to construction sites, rural muddy roads and narrow municipal lanes

• Half-row cab reserves extra space for auxiliary equipment layout, comfortable driving experience with full air conditioning

2. Anti-Corrosion Dual-Tank Structure

• Sewage tank fully hot-dipped galvanized: acid & alkali resistant, anti-rust, withstand long-term contact with corrosive sludge, service life extended by over 5 years compared with ordinary carbon steel tanks

• Side clean water tanks adopt lightweight PP polypropylene material, no rust, easy maintenance, quick water filling via fire hydrant interface to improve working efficiency

3. Separated Auxiliary Engine Drive Design

4. Dual-Function One-Truck Multi-Scenario Application

High-Pressure Jetting Function

Vacuum Sludge Suction Function

Widely Applicable Scenarios

• Municipal sewer pipeline dredging & maintenance

• Community septic tank cleaning & waste transportation

• Urban river, lake sediment suction treatment

• Industrial park chemical sewage & sludge collection

• Road drainage ditch blockage removal

5. Humanized Auxiliary Design

• Transparent liquid level tube to monitor tank volume in real time, avoid overloading during suction operation

• Independent tool storage cabinet to store all nozzles, maintenance tools and spare parts

• Integrated hydraulic control system, centralized operation panel, low learning cost for operators

• Anti-slip aluminum alloy walking platform around tank body for safe daily inspection

Working Principle

1. High-Pressure Pipeline Jetting Process

1. Start independent auxiliary engine to drive PINFL high-pressure pump

2. The pump extracts clean water from 2CBM PP side tanks and pressurizes water to 25MPa

3. High-pressure water flows through 30m retractable high-pressure hose and special cleaning nozzle

4. Powerful rotating water jet washes away pipe wall sediments, breaking blockages into suspended sludge

5. Flushed sewage and sludge will be sucked by vacuum pump into the sewage tank synchronously

2. Vacuum Sludge Suction & Discharge Process

1. Auxiliary engine drives JUROP vacuum pump to extract air inside the galvanized sewage tank, forming stable negative pressure environment

2. External sludge, sewage and waste are sucked into the 10CBM tank via hydraulic suction boom or tail suction pipeline

3. When the liquid level reaches the safety limit, stop suction and transport the truck to designated waste discharge station

4. Open hydraulic rear door and activate DN150 discharge valve to realize gravity self-unloading of sludge rapidly

   Isuzu GIGA 8X4 12000L vacuum cleaner truck

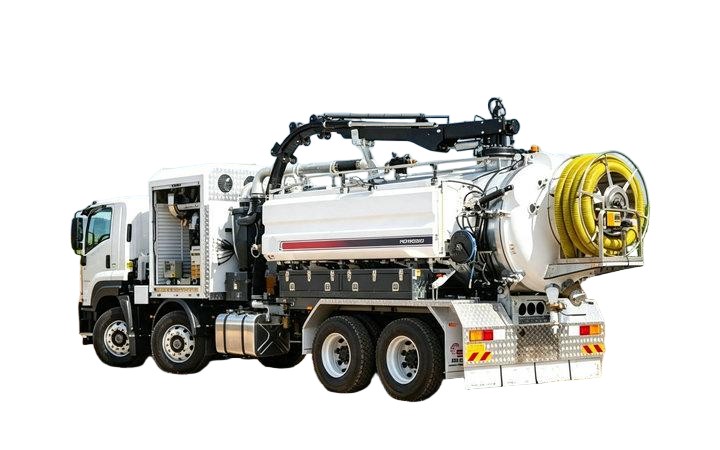

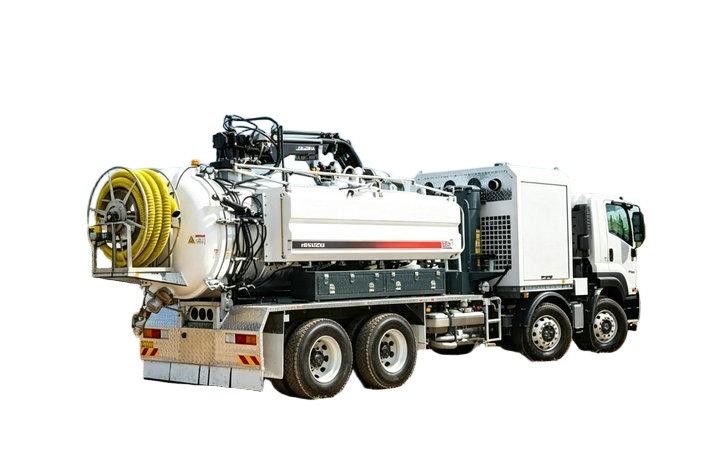

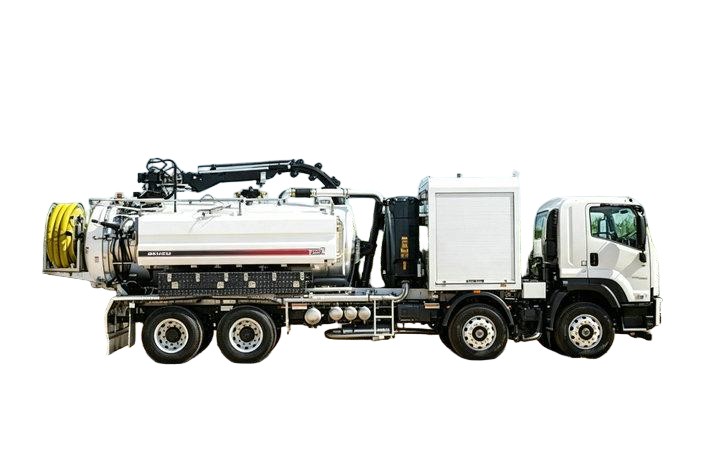

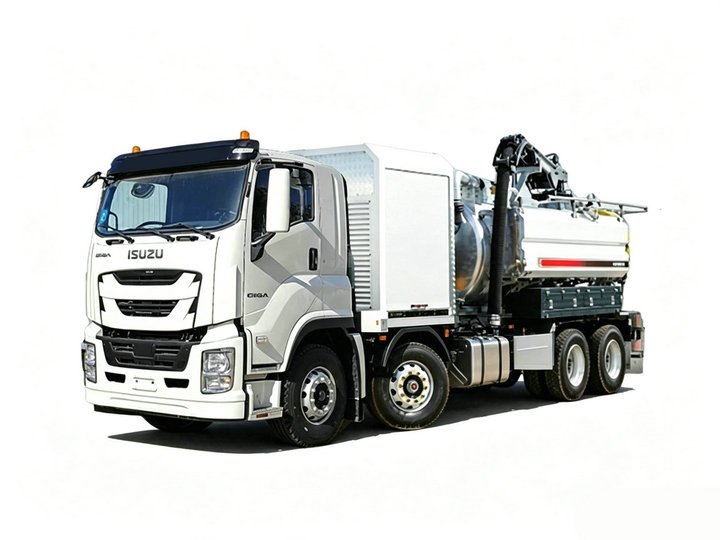

   Isuzu Combination Sewer Vacuum Jetter Truck 10KL Sewage+2KL Clean Water
   Vehicle model	DRZ5310GXHQL
   Overall dimensions	9890 x 2550 x 3350mm
   Gross Vehicle Weight	31000kg
   Curb weight	17850kg
   Wheelbase	1850+3000+1370mm
   Max speed (Km/h)	85km/h
   Chassis
   Cabin	Isuzu GIGA 8x4 VC66 cabin,power steering, one and half row,with air conditioner,USB,direction assistance,
   Drive type	8x4,LHD
   	Brand	ISUZU
   	Type	Isuzu 6UZ1-TCG61
   	Horsepower	380HP/279kW
   	Max torque	1800N.m
   	Displacement	9839ml
   Engine	Emission standard	Euro 6
   Transmission	FAST 12-speed, manual operated
   No.of tire	12 pcs,with a spare tire
   Tire model	385/65R22.5 / 315/80R22.5
   Superstructure
   Tank	10000L sewage tank,2000L cleaning water tank
   	1. Tank is fully hot dipped galvanised.
   Standard configuration	2. Cleaning water tank is PP material.
   	3. Equipped with 30m sewage pipe and 30m high-pressure cleaning pipe,.
   	4. Equipped with 10pcs different thrust cleaning nozzle, suitable for cleaning and dredging of different sewer.
   	5. Equipped with looking sludge window,self flow exit, and 1pcs sludge suction tube length 7m.
   	6. Hydrant fill point for water tanks and top opening for fill
   	7. Auxiliary engine
   	8. Blower: 2300cfm/28"hg
   	9. Suction boom
   	Model	JUROP PVT400
   	Flow capacity	43300 L/min(1530cfm/ 2600 m3/h)
   	Rotation speed	D3400 rpm
   	Vacuum	93% / 27.8hg
   	Max pressure	2bar
   	Max vacuum power	100HP/ 74kW
   Vacuum pump	Power req. at Max Vacuum	58kW
   High pressure water pump	Model	PINFL/ MGS50
   	Flow	287L/min@25MPa
   	Speed(1:2.22,1:2.65,1:3.29)	1500/1800/2200rpm
   	Power	186HP/137kW

Factory Supply & Custom Service

Our Core Service Support

1. Full Customization ServiceWe adjust tank volume, pump brands, driving form (LHD/RHD), emission standards (Euro 5/Euro 6), hose length and auxiliary equipment according to customer local working demands. Custom painting, logo printing is supported.
2. Factory Direct Competitive PriceNo middleman markup, large batch order discount, stable supply cycle, prompt delivery within 15-25 working days after deposit.
3. Complete After-Sales Support7×24 hours online technical service, global spare parts supply (original Isuzu chassis parts, OEM pump replacement parts, hose & nozzle accessories). Long-term spare parts discount for repeat customers.
4. One-Stop Truck SolutionExcept Isuzu 12cbm combination vacuum jetter truck, we also supply HOWO sewer jetting vacuum trucks, Foton sanitation suction trucks, sewage tankers, water sprinklers and all related spare parts.
