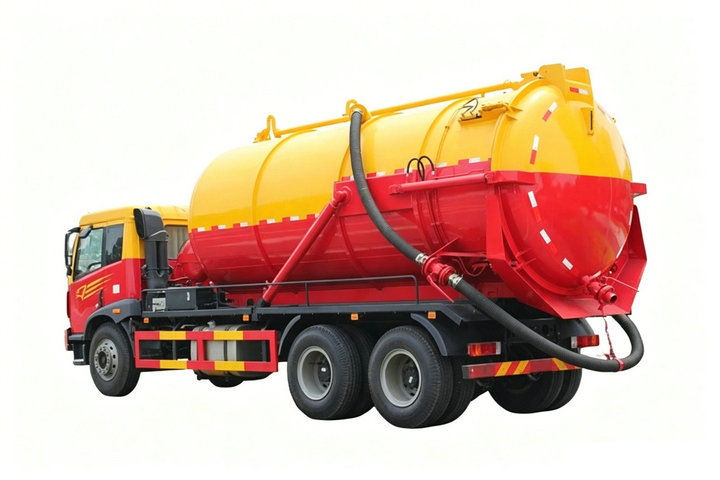

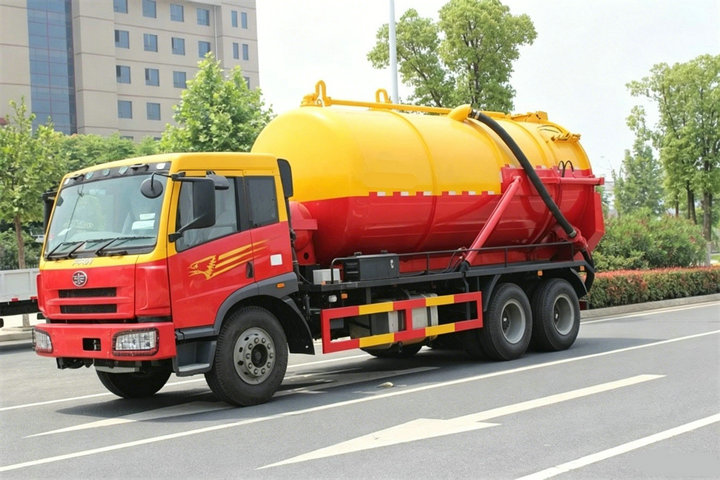

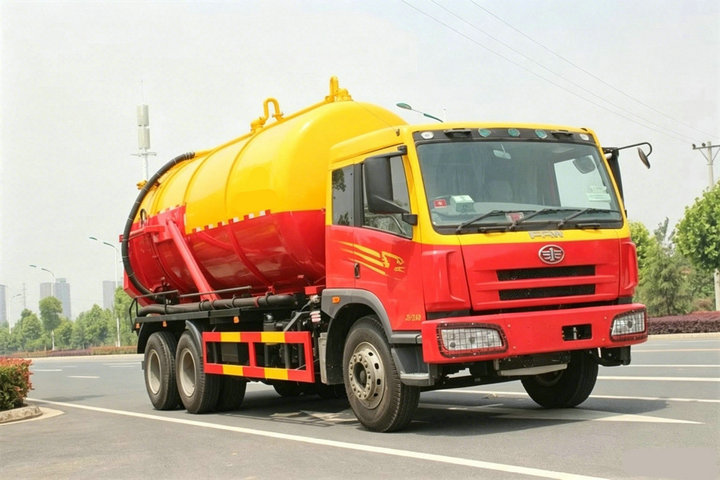

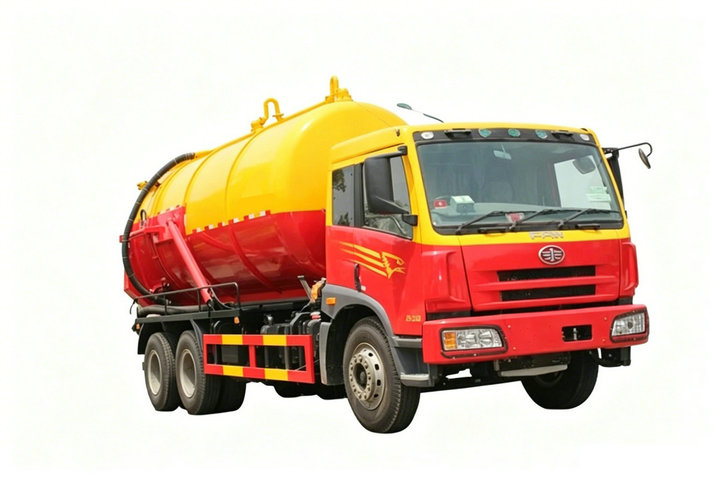

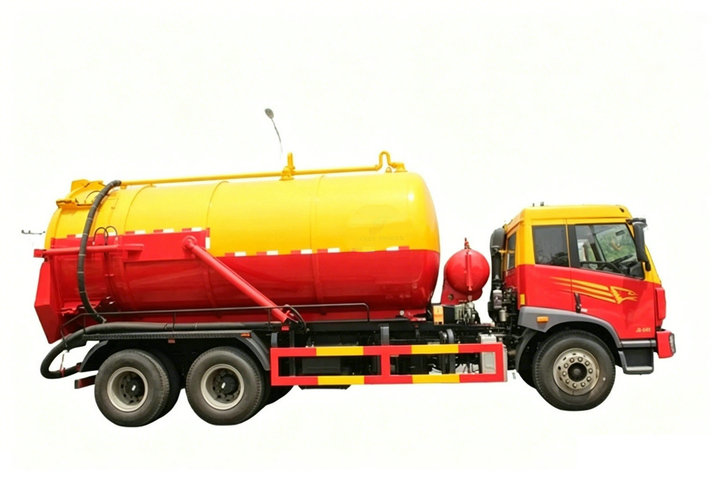

FAW Cesspool Vacuum Septic Tanker Truck 22 CBM
6000 Gallon Vacuum Tanker 22m³ FAW 6×4 for Kenya

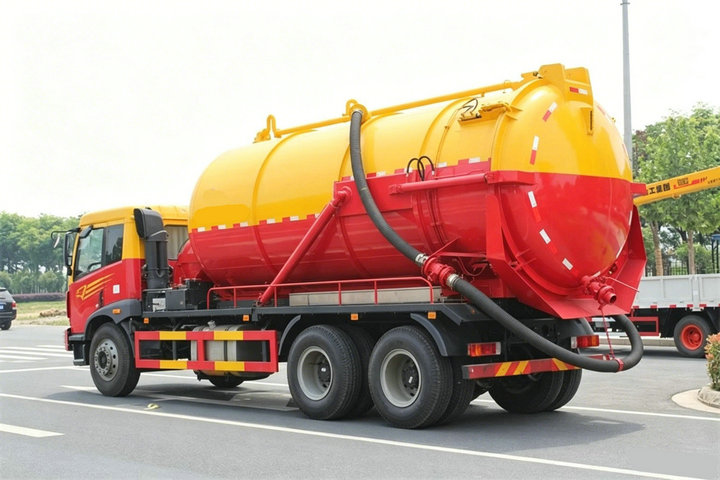

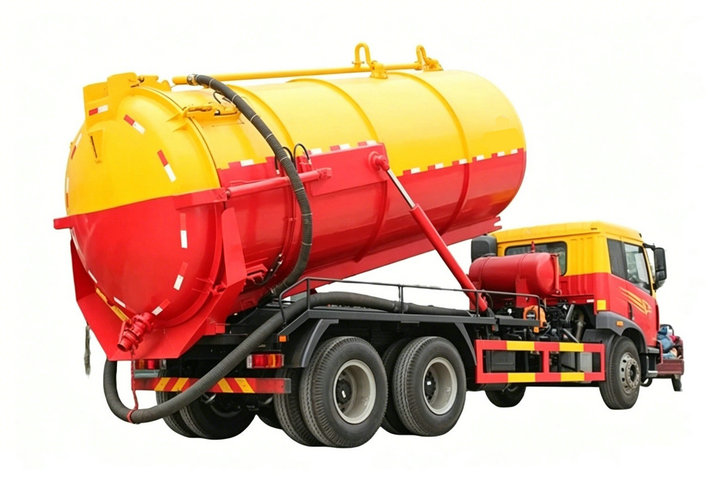

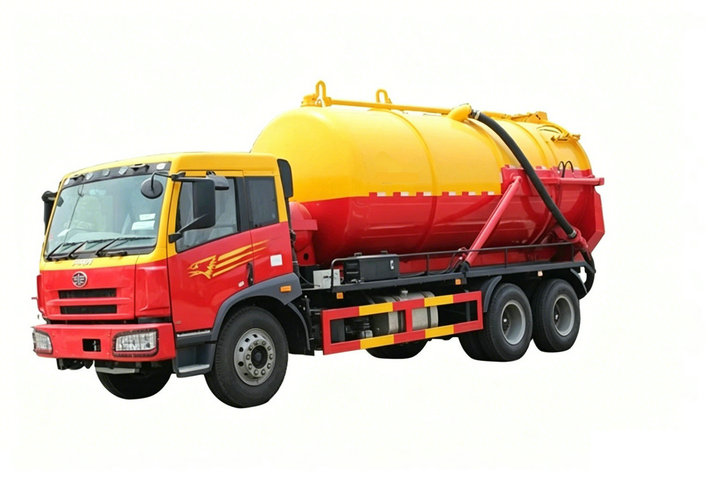

6000 Gallon Vacuum Tanker (22 CBM) — FAW 6×4 Chassis, Right-Hand Drive for Kenya
22 m³ (6,000-gallon) vacuum tanker is built on a rugged FAW 6×4 truck chassis and configured with right-hand drive for Kenyan, Ugandan, and Tanzanian road conditions. Powered by a 320 HP Weichai diesel engine and fitted with an Italy-sourced Jurop PN155R vacuum pump (11,000 L/min airflow), this 10-wheeler sewage suction truck delivers 30% stronger suction and discharge than standard models.
Equipped with spill-prevention and containment systems, anti-corrosion Q235 carbon steel tank, hydraulic rear-door tipping, and intelligent controls, the FAW vacuum tanker is engineered for municipal sewage cleanup, septic tank emptying, industrial waste transport, and sewer-line maintenance. A high-pressure cleaning system can be added on request for combined jetting and suction operations.
Quick Specs
Model: DRZ5290XWCA
Tank Capacity: 22 m³ / 20,000 L (≈6,000 gal)
Drive: 6×4 (10-wheeler)
Engine: Weichai, 320 HP, 7.255 L
Vacuum Pump: Jurop PN155R, 11,000 L/min
Steering: Right-Hand Drive (RHD)
Key Selling Features
Right-Hand Drive — Factory-configured RHD for Kenya, Uganda, and Tanzania; no post-delivery conversion needed.
30% Stronger Suction & Discharge — Jurop PN155R vacuum pump delivers 11,000 L/min airflow with 5.4 MPa suction pressure, outperforming standard pumps by 30%.
Italian Jurop Vacuum Pump — World-renowned Jurop PN155R for reliability, low maintenance, and long service life in demanding waste-management operations.
Anti-Corrosion Construction — 5 mm Q235 carbon steel tank with advanced anti-corrosion treatment for extended service life against sewage and chemical waste.
Intelligent Control System — Integrated cabin controls for suction, discharge, hydraulic tipping, and rear-door operation, reducing operator workload and improving safety.

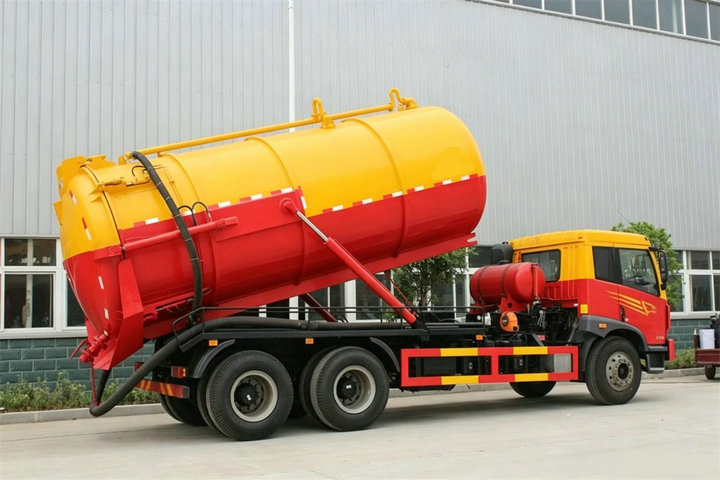

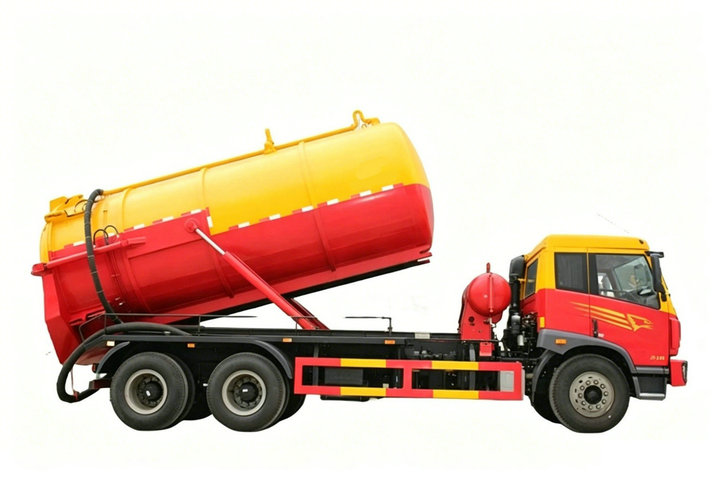

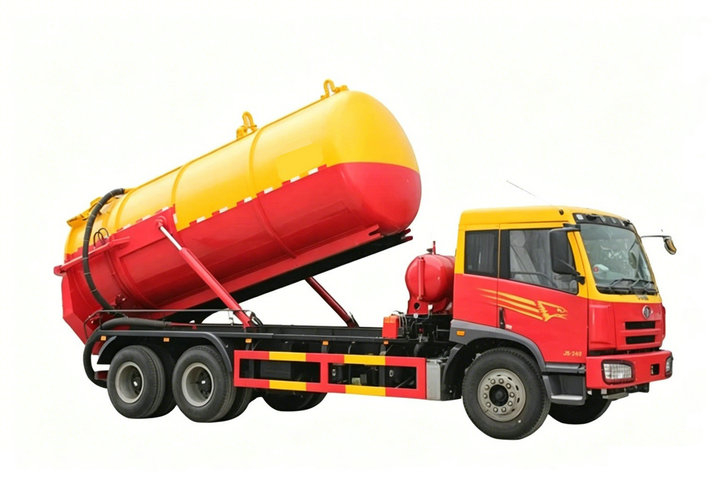

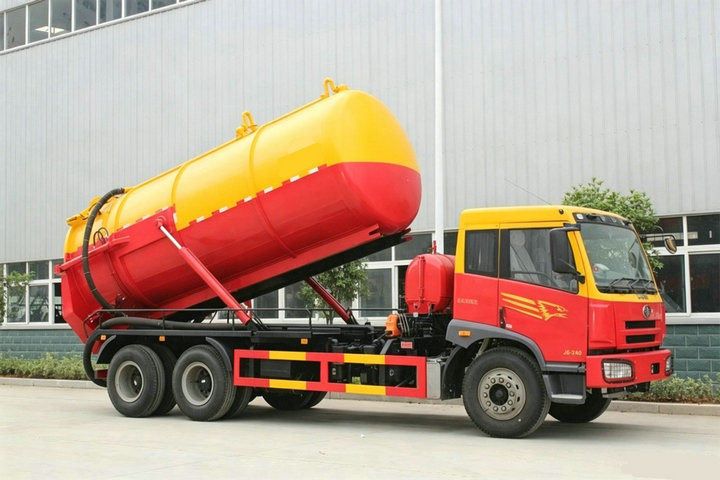

Hydraulic Tipping Rear Door — Fully opening rear door with hydraulic cylinder lifting (≤45 s) for fast, clean discharge; cover opening angle ≥75°.
High Suction Depth — ≥9 m suction height with 8 m rated suction depth, suitable for deep septic tanks and underground sewer access.
Customizable Configurations — Optional high-pressure water jetting system, additional hose reels, tank volume adjustments, and corporate livery.
Full Technical Specifications
Chassis & Drivetrain
| Parameter | Specification |
|---|---|
| Truck Model | DRZ5290XWCA |
| Cab | FAW flat luxury cab, power steering, A/C, electronic engine shutdown |
| Driving Type | 6×4, Right-Hand Drive |
| Max Speed | 90 km/h |
| Overall Dimensions | 11,500 × 2,500 × 3,860 mm |
| GVW | 35,000 kg |
| Kerb Weight | 21,575 kg |
| Wheelbase | 4,350 + 1,350 mm |
| Front/Rear Track | 2,022 / 1,830 mm |
| Front/Rear Overhang | 1,500 / 2,380 mm |
| Approach/Departure Angle | 16° / 14° |
| Tires | 295/80R22.5 (10 + 1 spare) |
| Clutch | Single-plate dry diaphragm spring clutch |
| Steering | Hydraulic power steering |
| Gearbox | 10-speed manual |
| Front Axle | 7 T |
| Rear Axles | 13 T + 13 T |
Engine
| Parameter | Specification |
|---|---|
| Engine Manufacturer | Weichai |
| Fuel Type | Diesel |
| Engine Type | Water-cooled, 6-cylinder, direct injection, turbocharged |
| Displacement | 7.255 L |
| Max Power | 320 HP @ 2,200 rpm |
| Max Torque | 1,350 N·m @ 1,100–1,600 rpm |
Braking & Electrical
| Parameter | Specification |
|---|---|
| Service Brake | Compressed air brake |
| Parking Brake | Spring energy storage |
| Auxiliary Brake | Engine exhaust brake |
| Electrical System | 24 V |
Upper Body (Tank & Equipment)
| Parameter | Specification |
|---|---|
| Tank Volume | 22 m³ |
| Tank Material | 5 mm Q235 carbon steel, anti-corrosion treated |
| Color | Corporate livery with logo on both front doors (client-specified) |
| Suction Height | ≥9 m |
| Suction Time (full tank) | 250 s (≈4 min) |
| Max Tipping Angle | ≥45° |
| Max Vacuum | ≥11 MPa |
| Hydraulic Lifting Time | ≤45 s |
| Rear Cover Opening Angle | ≥75° |
| Rear Cover Opening Time | ≤25 s |
| Suction Pipe | 3 m length, 100 mm diameter |
| Hose Racks | Both sides of tank, each accommodating ≥7 hoses |
| Fittings | Four-way changeover valve, drain separator, fully opening rear door, sight glasses (top & bottom), ladder with top catwalk |
Vacuum Pump
| Parameter | Specification |
|---|---|
| Pump Type | Jurop PN155R (Italy) |
| Max Air Flow | 11,000 L/min |
| Time to Fill Full Tank | 12–15 minutes |
| Suction Depth | 8 m |
| Suction Pressure | 5.4 MPa |
| Inlet Diameter | 80 mm |
System Composition
PTO → transmission shaft → vacuum pump → tanker → hydraulic system → piping system.
Applications & Kenya Market Context
Vacuum tankers are essential equipment across Kenyan cities and towns. Rapid urbanization and population growth have placed significant pressure on municipal sewage treatment plants and sewer networks. The FAW vacuum tanker addresses this gap by providing timely cleanup of clogged sewers, foul-smelling sewage, and septic tank waste — helping maintain cleaner, more hygienic urban environments.
Common Applications in Kenya:
Municipal sewer cleaning and sewage pumping station maintenance
Septic tank emptying for residential, commercial, and industrial facilities
Industrial waste and sediment sludge transport
Drainage and flood-water removal in urban areas
Construction site dewatering and slurry removal
FAQ (Expanded & SEO-Optimized)
Q1: What is a vacuum tanker used for in Kenya?A vacuum tanker (also called a sewage suction truck or septic pump truck) is a specialized waste-management vehicle that uses a vacuum pump to suck liquid and semi-solid waste into a sealed tank for transport to treatment or disposal facilities. In Kenya, it is primarily used for septic tank emptying, sewer line cleaning, municipal sewage removal, and industrial waste transport.
Q2: Is this vacuum tanker right-hand drive for Kenya? Yes. This FAW 6×4 vacuum tanker is factory-configured with right-hand drive (RHD), making it fully compliant for use in Kenya, Uganda, Tanzania, and other left-hand-traffic markets in East Africa. No post-delivery steering conversion is required.
Q3: What is the tank capacity of this vacuum tanker?The tank has a rated volume of 22 cubic meters (22,000 liters), approximately 6,000 US gallons. This large capacity minimizes the number of trips required between collection sites and disposal facilities, improving operational efficiency.
Q4: What vacuum pump is installed, and how reliable is it?The tanker is fitted with an Italian Jurop PN155R vacuum pump, one of the most trusted brands in the global waste-management industry. It delivers 11,000 L/min airflow, 5.4 MPa suction pressure, and can fill the 22 m³ tank in 12–15 minutes. Jurop pumps are known for durability, low maintenance costs, and consistent performance in heavy-duty operations.
Q5: How deep can this vacuum tanker suction?The rated suction depth is 8 meters, with a maximum suction height of ≥9 meters. This is sufficient for most standard septic tanks, underground sewer access points, and drainage sumps encountered in Kenyan urban and peri-urban areas.
Q6: Can the tanker discharge by gravity or does it need a pump?The tanker supports both pump-assisted discharge and gravity discharge via hydraulic tipping. The rear door opens hydraulically (≥75° angle, ≤25 s), and the entire tank tips to ≥45° (≤45 s lifting time) for fast, clean gravity discharge. A four-way changeover valve also allows pump-driven discharge when needed.
Q7: Is a high-pressure cleaning system available?Yes. A high-pressure water jetting system can be added as an optional upgrade, converting the unit into a combined suction-and-jetting truck for thorough sewer line cleaning and drain unblocking. Contact our sales team for configuration and pricing.
Q8: What is the warranty and after-sales support?All vacuum tankers come with a 12-month after-sales warranty covering chassis and upper-body components. We provide spare parts supply, technical documentation, and remote technical support for customers in Kenya and across East Africa.
Q9: How long does production take, and can you ship to Mombasa?Standard production lead time is 20–30 working days after deposit. We ship to Mombasa Port (Kenya) and Dar es Salaam Port (Tanzania) on a regular basis. CIF, FOB, and CIF-to-inland-destination terms are available.
Q10: Can the tanker be customized with our company colors and logo?Yes. The tank is painted in the client's corporate colors with logos applied to both front doors and optional tank-side branding. Custom configurations include tank volume adjustments, additional hose reels, warning beacons, and toolboxes.
Why Choose Vacuum Tankers
FAW 6×4 Truck Chassis — Proven heavy-duty chassis with excellent ground clearance and load capacity for African road conditions.
Reliable Jurop Vacuum Pump — Italian-made Jurop PN155R, industry-leading reliability and suction performance.
22 m³ Large-Capacity Tank — 5 mm Q235 carbon steel with anti-corrosion treatment for long service life.
Super Powerful Suction — 11,000 L/min airflow, 30% stronger than standard vacuum pumps.
High-Pressure Pipe Option — Optional jetting system for combined cleaning and suction operations.
Easy Installation & Maintenance — Modular design with accessible components for straightforward servicing.
12-Month Warranty — Comprehensive after-sales coverage with spare parts and technical support.
Factory-Direct Pricing — Manufactured in our own facility, eliminating middleman markup.
| General Description | |||
| Truck model | DRZ5290XWCA | ||
| Cab | FAW flat luxury cab, with power steering. Electronic flameout, A/C | ||
| Driving Type | 6x4 Left hand driving | ||
| Max Speed (km/h) | 90 | ||
| Overall dimension(mm) | 11500×2500×3860 | ||
| GVW( kg) | 35000 | ||
| Mass in working order ( kg) | 21575 | ||
| Wheelbase(mm) | 4350+1350 | ||
| F/R track base (mm) | 2022/1830 | ||
| F/R overhang (mm) | 1500/2380 | ||
| Approach/Departure Angel | 16/14 | ||
| Tire | 295/80R22.5 (10+1) | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 10-speed | ||
| Bridge | Front axle | 7T | |
| Rear axle | 13T+13T | ||
| Enging | Model | WEICHAI | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled six-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 7.255L | ||
| Max output power/rotate speed (hp /rpm ) | 320/2200 | ||
| Max torque/rotate speed(N.m/rpm) | 1350/1100~1600 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper body specification | |||
| Volume of tank | 22 m3 | ||
| Color | Painted in the corporation's colours with logo on both front doors as specified by the client | ||
| Material of tanker | 5mm Carbon stell (Q235) | ||
| Special function | Suction height | ≥9(m) | |
| Suction time | 250(S) | ||
| Maximum Inclination Angle | ≥45° | ||
| maximum vacuum | ≥11 MPa | ||
| Lifting time | ≤45 S | ||
| the Cover opening Angle | ≥75° | ||
| The cover opening time | ≤25 S | ||
| Suction pipe | 3m length and 100 mm in diameter | ||
| Hose Racks | Fitted on both sides of tank, to accommodate a minimum of seven hoses each | ||
| Fittings | Four-way change valve fitted to pump | ||
| Drain separator | |||
| vacuum pump | |||
| Fully opening rear door | |||
| Sight glasses at top and bottom of tank | |||
| Ladder: For access to top of tank complete with cat walk on top of tank | |||
| vacuum pump | pump type | Jurop PN155R vacuum pump | |
| Max Air Flow | 11000L/min | ||
| Time to suction full tank | 12-15 minuted | ||
| Suction Depth | 8 m | ||
| suction pressure (MPa) | 5.4 | ||
| diameter (mm) | 80 | ||
| Brief introduction of function | It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system. | ||
