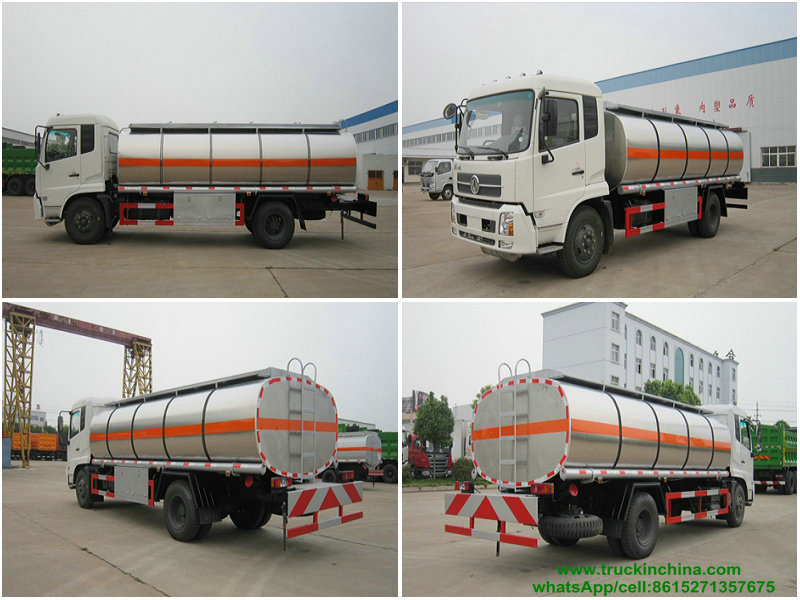

Dongfeng 4x2 Stainless Steel Ammonium Nitrate Solution Transport vehicle 50mm PUF Insulated
50mm PUF Insulated
| FOB: | |
|---|---|
| Availability: | |
| Quantity: | |
|
| |
-
DRZ5160GHYD
-
dongfeng
-
8705909990
Dongfeng 4x2 Stainless Steel Ammonium Nitrate Solution Transport vehicle
Customization! Cost Control ! Built How You Want it ! at a Price You Can Afford !
Dongfeng 4x2 Stainless Steel Ammonium Nitrate Solution Transport vehicle
Customization! Cost Control ! Built How You Want it ! at a Price You Can Afford !
Dongfeng 4x2 Stainless Steel Ammonium Nitrate Solution Transport vehicle
Vehicle Model DRZ5160GHYD
Overall dimensions 8700×2460×2900mm Curb weight 7605kg
Tank dimensions 6200×2050×1445mm Tank volume 6000L-10000L
tank structure
Tank dimensions 6200×2050×1445mm Tank volume 6000L-10000L
External tank material stainless steel External thickness 50mm PUF Insulated
Internal tank material stainless steel Internal tank thickness 5mm
Color and Logo Optional
Standard configuration Chassis, carbon steel external tank, 16mm polyethylene internal tank,sub frame, two full plastic PP ball valves, tool box, manhole,climbing ladder, fire extinguisher, hose.
Selective configuration Chemical pump, stainless steel tank, stainless steel pump,divided into several bins.
Chassis parameters
Chassis model DFL1160BX Chassis brand DONGFENG
Overall dimensions 8290x2370x2760mm Wheel base 4700mm
Front/rear wheel track 1880/1800mm Front/rear suspension 1430/2160mm
Approach/departure angle 20/13° Maximum speed 90km/h
Chassis Manufacturer Dongfeng Motor Company
Cab Configuration Tianjin a row and a half deluxe cab(with sleeping berth),,hydraulic mechanical flip,channel type instrument panel,air conditioner,allowable 3 passengers
Color white,other color is optional
Engine Model B190 33
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 190hp,rated power speed 2500rpm
Displacement 5900ml
Max.torque 640N·m
Bore x stroke 102x120mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 9.00-20 nylon tire
Number 6+1 nos
Clutch push type diaphragm spring clutch,Φ395mm
Frame (250x80x[7+4])mm
Fuel tank 160L,steel
Front axle 3.6T
Rear axle 9.0T main reduction ratio 5.286
Drive form 4X2
Rated voltage 24V,DC
Transmissions Gearbox DF6S750, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Steel wire tire
If there is a slight change in the chassis parameters above,please take the actual product as the standard
