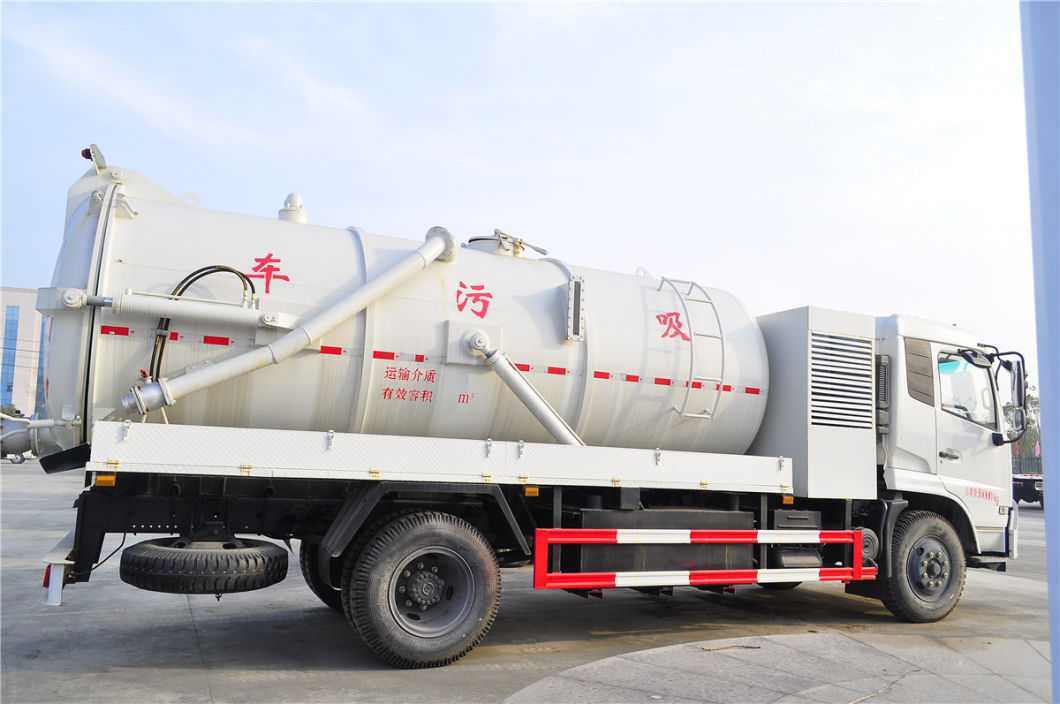

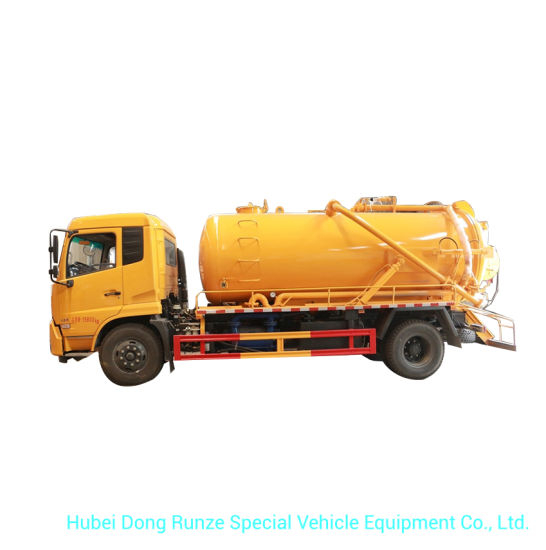

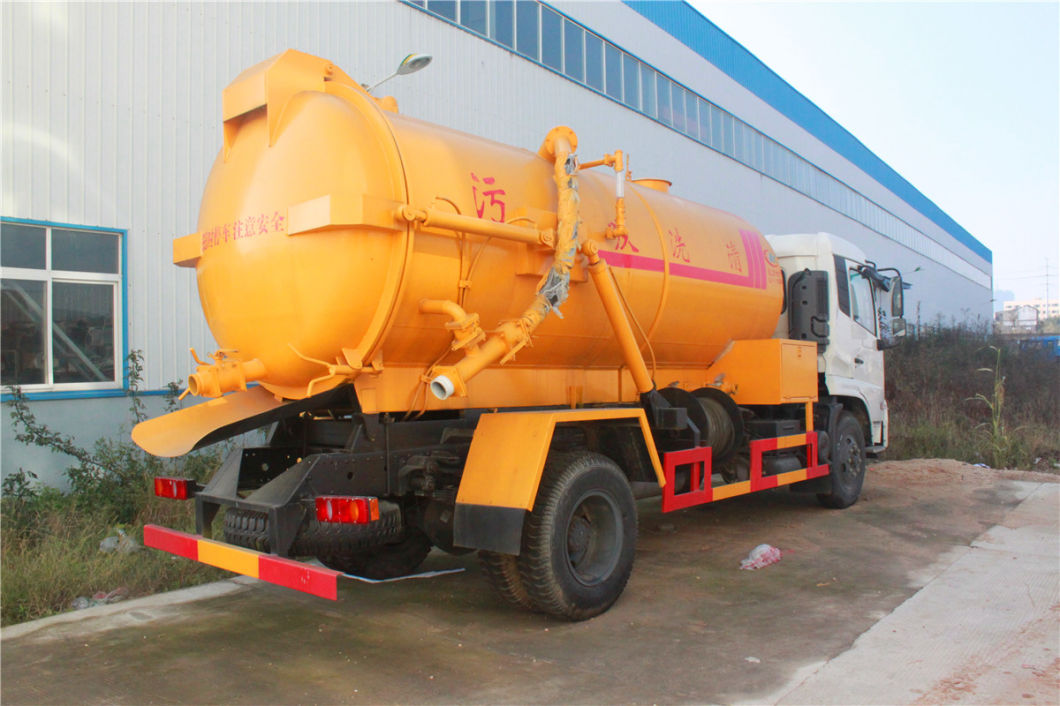

Septic Tank Truck Vacuum Sewage Suction Pump, VAC Tanker Capacity 10cbm Rhd. LHD 4X4.4X2
| Quantity: | |
|---|---|
-
DRZ5160
-
Dongfeng
-
8705
-
Shanghai, China
-
80000
-
T/T
Septic Tank Truck with Vacuum Sewage Suction Pump ,Vac Tanker Capacity 10cbm
carbon - stainless steel
RHD OR LHD 4x4 - 4x2
Dongfeng original chassis, cummins 190HP engine. good performance.
combined vacuum jetting truck, multi function vacuum suction sewage truck, with dirty water tank and clean water tank.
combined vacuum jetting truck, mounted two different pump, high pressure cleaning pump and vacuum suction sewage pump.
6000Liters dirty water tank and 4000Liters clean water tank.
combined vacuum jetting truck, dirty water tank and clean water tank is Integral.
hydraulic operation by handle, easily operate.
combined vacuum jetting truck is especially suitable for suck load and discharge the deposits in the sewer, suck sewage, mud , stones, bricks and other large objects. cleaning industrial drainage pipes, walls and so on.
and also can be used as sprinkler, water transport and flushing high way, emergency fire fighting.
RHD OR LHD Truck
septic tank truck, sewage suction truck, toilet truck, sewer truck, vacuum truck
Technical parameters:
| [main technical parameters] | |||
| Total mass (Kg) | 16000 | Drive form | 4*2 |
| The rated load mass (Kg) | 7500 | Overall dimensions (mm) | 8400×2500×3300 |
| Curb weight (Kg) | 8305 | Bridge must take a number of (a person) | 3 |
Approach Angle/ Angle of departure (°) | 20/11 | Before hanging/ rear suspension (mm) | 1430/1970 |
| Number of shaft | 2 | The wheelbase (mm) | 4700 |
| Axle weight (Kg) | 6000/10000 | Top speed (Km/h) | 90 |
| [chassis technical parameters] | |||
| Chassis models | DFL1160BX5 | The chassis production enterprise | Dongfeng commercial vehicle co., LTD |
| Brand name | watershave | Overall dimensions (mm) | 8790 * 2370 * 2370 |
| Tire size | 9.00 R20 | Number of tires | 6 |
| Steel plate spring leaf number | 8/10 + 8 | Before the wheel track (mm) | 1880 |
| Fuel type | diesel | After the wheel track (mm) | 1860 |
| Emission standards | The four | transmission | A six-speed |
| The cab | D530 flat a row of half flat bridge, electric glass elevator, central door lock, single dashboard, with air conditioning. | ||
| Engine type | Engine manufacturing enterprises | Displacement (ml) | Power (Kw) |
| ISB180 | Dongfeng cummins engine co., LTD | 5900 | 132 |
| [vacuum sewage truck tank] | |||
The effective volume of tank (m3) | 10 | Material of tank | Q235 carbon steel |
| [The characteristics of vacuum sewage truck] | |||
Conductor configuration high-power vacuum pump and the hydraulic system. Back cover, can open hydraulic of tank, tank can be operated by hydraulic lifting upwards, sewage tank directly through the dump was dumped. The car has high vacuum, large capacity, high efficiency, good sealing, use a wider range of features. Smoke pot filled with dung time: 5 min or less, suction: 8 m or higher. Suitable for suction drain warp, such as mud, mud, stone, bricks and other large objects | |||

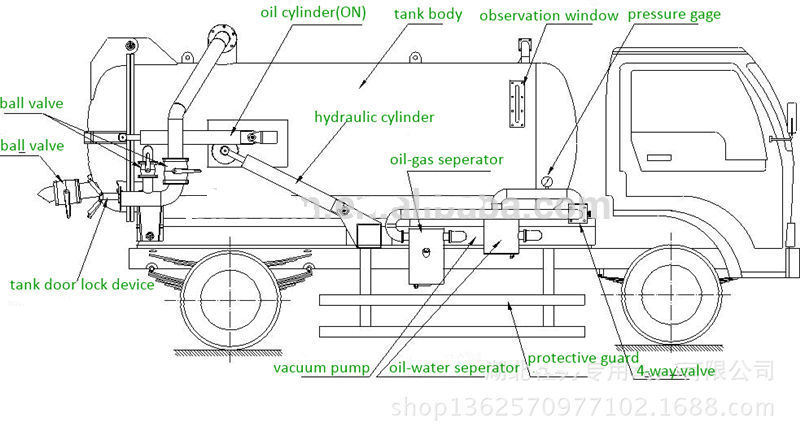

Basic equipment of sludge tank truck
Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,
water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.
1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed
hydraulically. With full opening design, discharge can be very quick&complete.
2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit
emptier.
brand new high pressure vacuum suction truck
Dongfeng 4*2 combined sewer jetting truck | ||
# | Descriptions | Specifications and types |
General | Truck Brand | Dong Run Ze |
| Chassis Brand | Dongfeng |
Approx. Dimension | 6200*2030*2650 mm | |
| GVW./Kerb Wt. | 7360/ 4930 kg |
Cab | Cab Capacity | 3 persons' seat |
| Air Conditioner | Air Conditioner is optional |
Chassis | Drive Type | 4X2,right hand drive or left hand drive |
| Fuel Type | Diesel |
| Engine Make & Model | Chaochai engine |
| Power | 120HP |
| Displacement | 3760 ml |
| Emission Standard | Euro 2 |
| Wheelbase/No.of axle | 3360 mm / 2 |
| Tyre Specfication | 7.00R16 |
| Tyre Number | 6 tyres and 1 spare tyre |
| Axles weight | Front axle 2.4 ton rear axle 4.2 ton |
| Transmission | WLY6T46 6 forwards 1 reverse |
| Max Speed | 80 km/h |
| Paint | Automative metallic paint |
Upper part | Clean water Tank Capacity | 2500 Litres |
| Sewer water tank capacity | 5500 litres |
| High pressure pump | High pressure pump pressure 16mpa, flow rate 130L/min |
| Vacuum pump | China famous brand water ring pump sk-6 |
| Equipped PTO. pressure gauges, one water-gas separator, one oil-gas separator ,one oil tank reservoir, a lever inspection window and a piece of 6m suction hose , rear cover open , sewage tank lifting ,etc | |
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
| Specification of DF Sewage Suction Truck DLK | |||
| Item | Specification | Item | Specification |
| General | |||
| Truck Name | Sewage Suction Truck | Overall Dimension (mm) | 6500×2120×2700 |
| Truck Brand | DF | Gross / Curb Weight (kg) | 8495 / 4300 |
| Truck Model | DFA1080SJ11D3 | Approach / Departure Angle (°) | 24 / 12 |
| Max. Speed (km/h) | 90 | Front / Rear Overhang (mm) | 1210 / 1490 |
| Chassis | |||
| Chassis Brand | DF | Chassis Model | DFA1080SJ11D3 |
| Wheel Base (mm) | 3800 | Leaf Spring | 8/10+7; 11/9+7 |
Traction System | 4 x 2 | Quantity of Axles | 2 |
| Cab Capacity | 1-3 | Front / Rear Axle Load (kg) | 3390 / 5105 |
| Transmission | manual | Front / Rear Wheel Tread (mm) | 1770 / 1586 1831 / 1640 |
| Tyre Model | 7.50-16 12PR, 8.25-16 14PR, 7.50R16 12PR, 8.25R16 14PR | Quantity of Tyre | 6 |
| Engine (Motor) | |||
| Brand | DF | Type of Fuel | Diesel |
| Model | CY4102- | Displacement (ml) | 3856 |
| Max. Power (KW/hp) | 100 / 136 | Emission Standard | Euro 3-5-6 |
| Cylinder Stator | 4, all cylinders arranged vertically in line | Max Torque (N.m) | 420 |
| Quantity of Valves Per Cylinder | 4 | Maximum Torque Speed (rpm) | 1300-1500 |
| Cylinder Diameter × Stroke (mm) | 102 x 118 | Motor Rated Rotating Speed (rmp) | 2800 |
| Full Load Minimum Fuel Consumption Rate (g/KW.h) | ≤200 | Engine Type | Electric control high pressure common rail, water cooling, vertical. |
| Compression Ratio | 17 : 1 | Noise From 1 Meter (dB) | 114 |
| Motor Net Weight (kg) | 430 | ABS | yes |
| Equipments | |||
| Tank Effective Capacity (L) | 5500 | Tank Material | carbon / stainless steel |
| Tank Dimension (length x diameter) (mm) | 3780×1300 | Time to fulfill the tank (min) | ≤5 |
| Suction Height (m) | ≥10 | ||
NOTE: 1. Any part can be customized depending on customers' demand. 2. 12 months whole vehicle warranty 3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance. 4. MOQ: 1 unit
| |||
Looking forward to receiving your inquiry!
