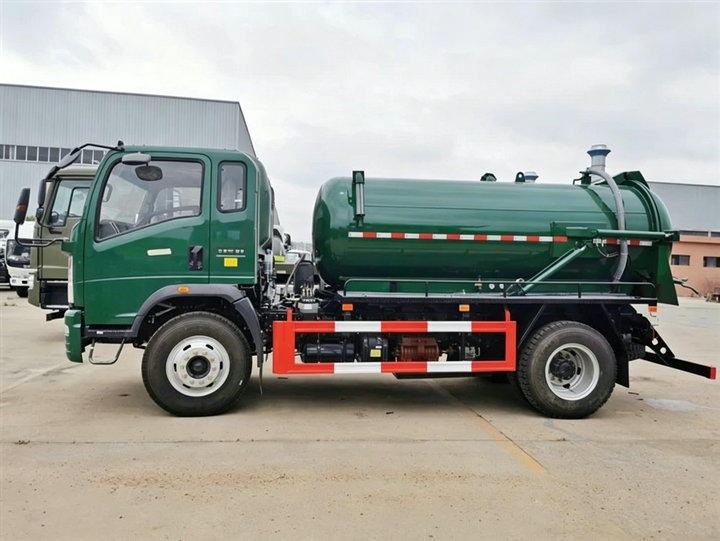

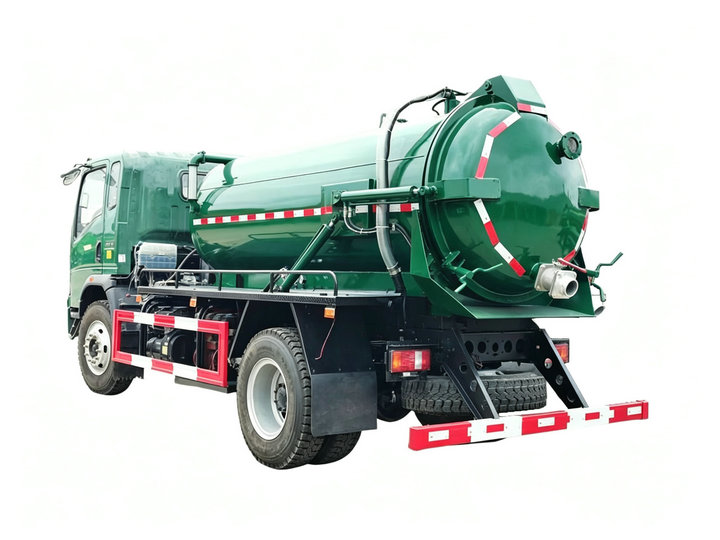

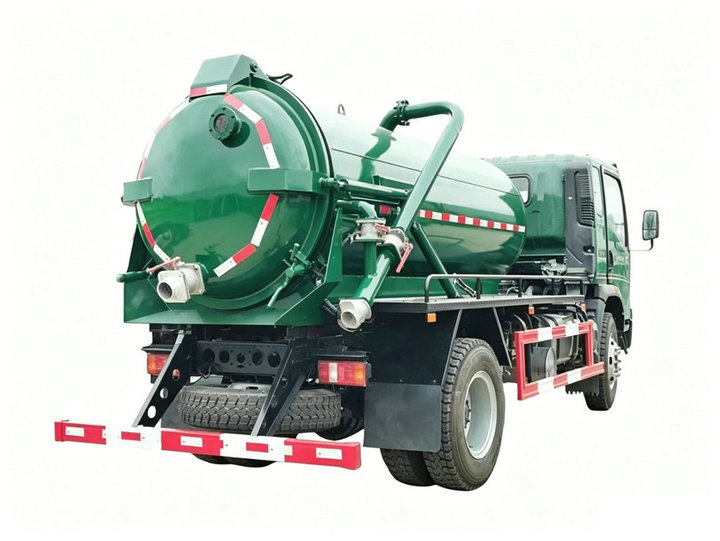

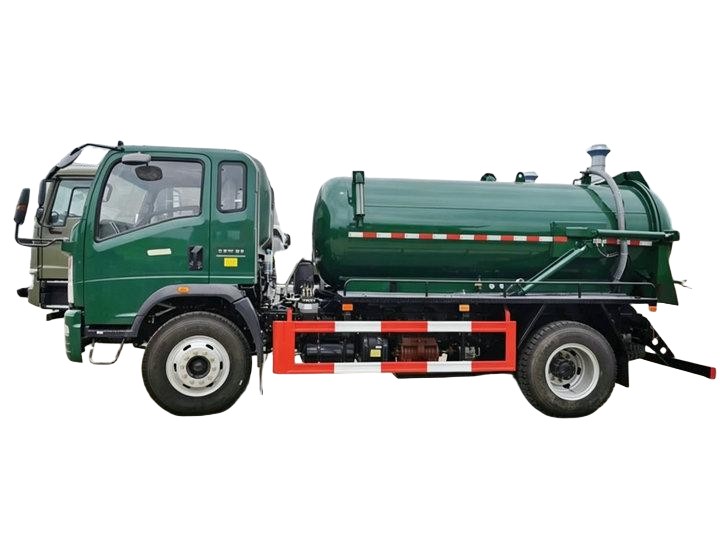

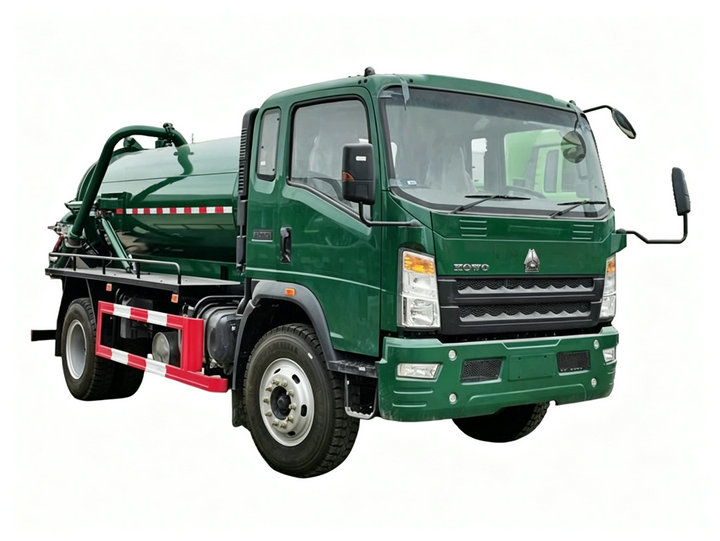

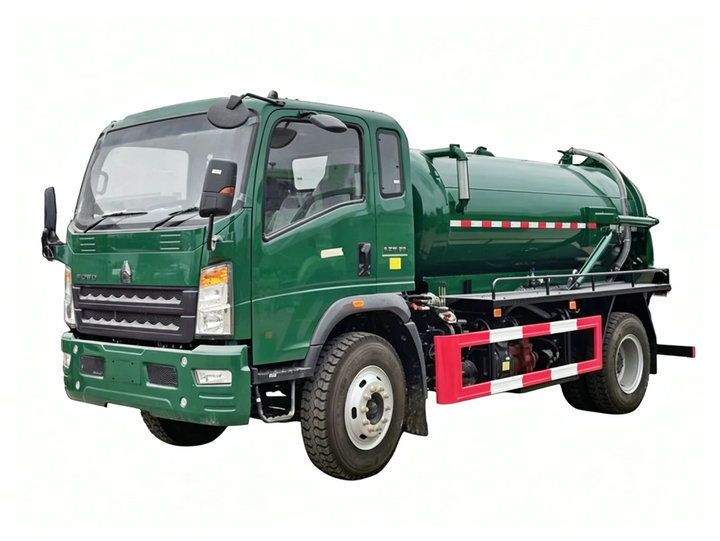

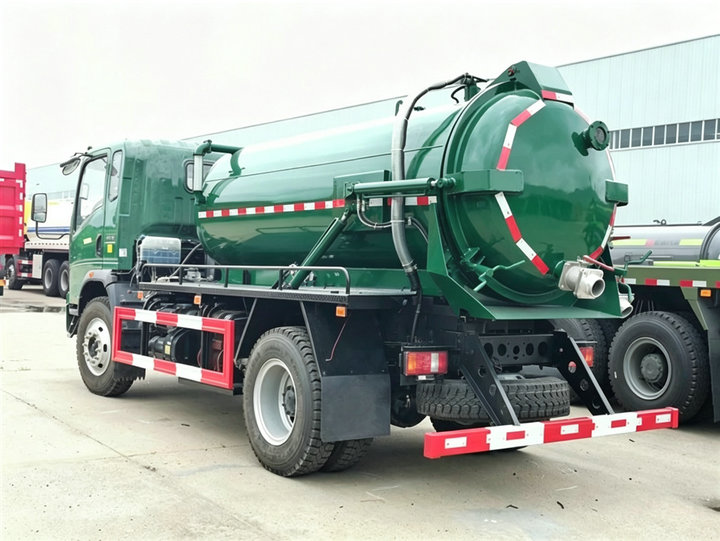

HOWO Septic Tank Vacuum Tanker Sewage Suction Truck 6000L
Super Sucker Truck HOWO
Brand new HOWO 6000Liters sewage suction tanker truck for sale
Vacuum Tanker Truck based on type II HOWO 4x2 Left Hand Drive chassis, capacity for vacuum tank can be up to 6,000Liters, which also installed with best performed Italy brand BP model vacuum pump. The truck main consist of below system: PTO, Driving system, vacuum pump system, Durable vacuum tank system, Pipeline system, Vacuum gauge, View window, Pipeline storage box, side fence system, etc.
Model: DRZ5080XWZZ
Capacity: 6,000 liters
Drive: 4×2
Engine power: 140 HP
Engine type: YUCHAI
Sewage Suction Truck adopts Italy brand technology leading BP vacuum pump, with large suction and long suction range, It is especially suitable for the suction, shipment and discharge of the silt in the sewer, especially the large objects such as sewer mud, silt, stone, brick and so on; The Super Sucker Truck HOWO is a special purpose vehicle mainly used in cleaning the septic-tank, bilge and sewer. It is mainly used for urban and rural sanitation sector suction and delivery feces and other sewage. Suitable for sucking fecal, sewage, mud, and liquid mixed with tiny granules. It is apply to the municipal sanitation, large & small industrial and mining enterprises, neighborhoods, schools, septic tank cleaning & transport , city pipeline cleaning & dredge, factories marsh liquid biogas clean-up.
Sinotruk HOWO 4x2 6000liters Super Sucker Truck | |||
Condition | 4X2,New Condition, LHD、RHD | ||
| Country of Original | China | |
Manufacturer | Dong Run Ze | ||
Brand | HOWO | ||
Overall Dimension(mm) | 6950 x 2200 x 2980 mm | ||
Wheelbase(mm) | 3360mm | ||
Curb weight(kg) | 5660kg | ||
Loading Volume | 6m3, 6000liters | ||
Approach/departure angle(°) | 27/20 degree | ||
Front /rear overhang(mm) | 1250/2505 mm | ||
Wheel truck(front /rear)(mm) | 1800/1860 mm | ||
Max driving speed(km/h) | 95 km/h | ||
Steering gear | Power steering | ||
Tire | Quantity | 7pcs with one spare tire | |
Specification | 7.00R16 | ||
Transmission | Manual type;5 Forward Gear, 1 Backward Gear | ||
Cab | A/C installed ,one row and a half ,two door | ||
Engine | Brand | YC4E140-33 | |
Fuel type | Diesel | ||
Displacement(ml) | 4257 | ||
Power(kw) | 103KW | ||
Horsepower(hp) | 140 HP | ||
Maximum torque | 500N.M | ||
Intake form | Four cylinder in line, water cooling, four stroke, pressurized medium - cooling, direct injection | ||
Emission standard | Euro 3 | ||
Sewage Suction System | |||

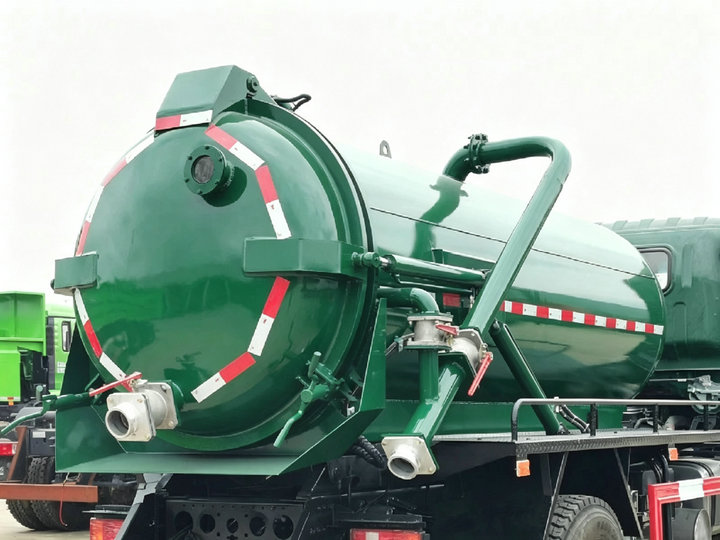

Sewage Tanker | Capacity | 6 cubic meters, 6000liters | |
Material | Q235 high tension steel, 6mm Tank body and End Plate, | ||
Dumping System | Middle Tipper | Hydraulic Controlled Rear Door and Middle lifting. | |
Rear Door | Hydraulic controlled with sewage drain pipe | ||
Pump | High Efficiency Wei long 68/400 Vacuum Suction Pump made in China. | ||
Pump System | 108mmΦ suction pipe, suction time ≤5min, effective suction range≥8,max vacuum degree ≤15 Kpa, dump angle ≥45 | ||
Vacuum Pressure | -0.092Mpa | ||
Sewage Pipe | 8 meters Rubber Pipe (one unit pipe) | ||
Other Parts | Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device | ||
HOWO 6000L Vacuum Sewage Suction Truck with Italy BP Vacuum Pump
A reliable, high-efficiency vacuum sewage suction truck built on a HOWO / ISUZU / FAW chassis, fitted with a genuine Italy Battioni Pagani (BP) vacuum pump and a 3-function Italian hydraulic control valve. Designed for municipal sewer cleaning, septic tank pumping and liquid waste transfer, the truck delivers fast suction, stable operation and easy maintenance — widely adopted by sanitation teams, property management and environmental service contractors.
Key Advantages
Genuine Italy BP vacuum pump — 100% brand-customized, with BP logo and your choice of model: MEC1000, MEC2000, MEC3000, MEC4000, MEC5000, MEC6500 or MEC8000. A reliable and efficient solution for generating stable vacuum pressure.
6 m³ / 6,000 L round tank — strong, clean-look body with ample single-trip capacity.
Full hydraulic system — the tank can be lifted hydraulically and the rear cover opened for quick unloading and cleaning.
3-function Italy hydraulic control valve — one centralized control for jetting, tank lifting and rear-door opening.
Complete working package — PTO, transmission shaft, high-pressure washing circuit, pipe network, observation / clean-out sewage pipe and reel all pre-installed.
Fast suction — full tank suction time under 5 minutes.
Multi-chassis fit — the BP vacuum pump package is widely installed on ISUZU sewage trucks, HOWO vacuum tankers and FAW sewer jetter trucks.

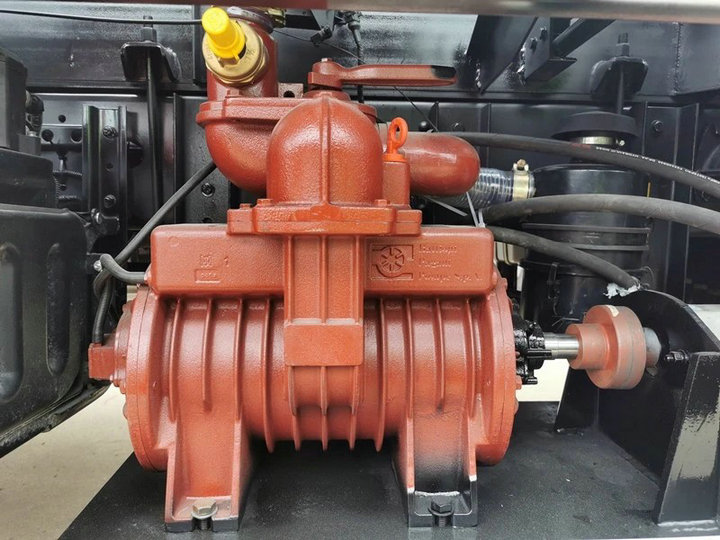

BP Battioni Pagani Vacuum Pump
| Item | Detail |
|---|---|
| Brand | Italy Battioni Pagani (BP) |
| Available models | MEC1000 / MEC2000 / MEC3000 / MEC4000 / MEC5000 / MEC6500 / MEC8000 |
| Function | Creates stable vacuum pressure for suction |
| Customization | 100% brand-customized; BP brand and model selectable |
| Typical application | ISUZU sewage truck, HOWO vacuum tanker, FAW sewer jetter |
| Item | Specification |
|---|---|
| Tank capacity | 6 m³ / 6,000 L, round shape |
| Vacuum pump | Italy BP Battioni Pagani, model selectable |
| Hydraulic system | Tank lifting + rear cover opening |
| Hydraulic control valve | Italy brand, 3 control levels |
| High-pressure washing | 20 m hose reel + jetting gun |
| Power drive | PTO + transmission shaft from truck engine |
| Full suction time | < 5 minutes |
| Chassis options | HOWO / ISUZU / FAW |
| Customization | 100% brand-customized |

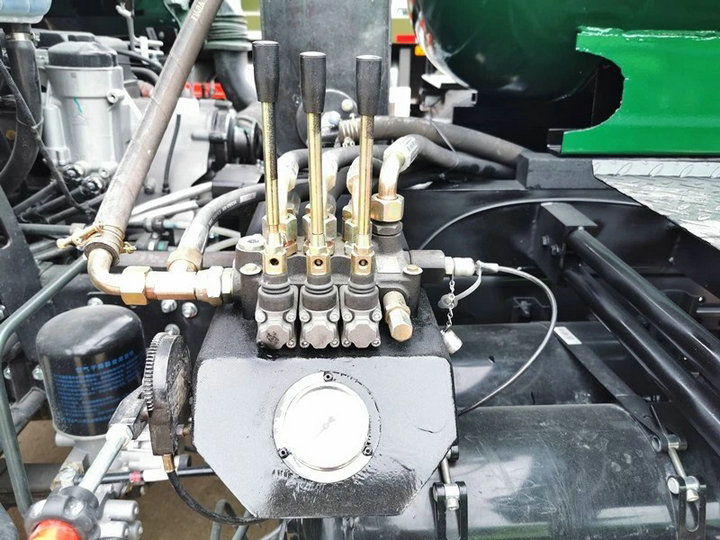

3-Function Italy Hydraulic Control Valve
The multifunction Italian hydraulic valve groups all operations into three levels:
Level 1 — High-pressure washing: controls the jetting device, with a 20 m hose reel and jetting gun for sewer line cleaning.
Level 2 — Tank lift / lower: raises and lowers the sewage tanker.
Level 3 — Rear door: opens and closes the rear door for unloading.

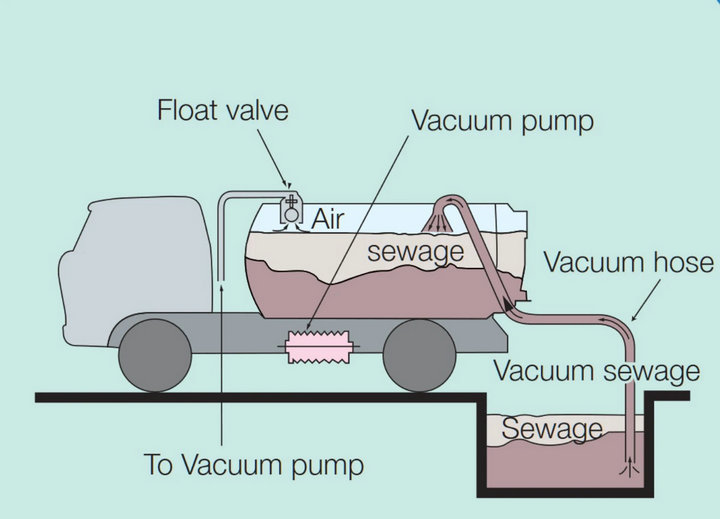

How the Vacuum Truck Works
Power is taken from the truck engine through the PTO, then delivered by the transmission shaft to drive the vacuum system. Operate the valves to begin sucking liquid sewage, and adjust the throttle knob to speed up or slow down suction. After suctioning, use the manual valves to open / close the rear door and to raise / lower the tanker. Once unloading is complete, rinse the tank and the truck is ready for the next job.
Operation & Safety Notes
Keep the vacuum pump at the correct RPM. Over-speeding causes the rotor to overheat; running too slowly can cause engine knock and damage components. Set the hand throttle to the recommended position in advance.
Only lift / tip the tanker on flat ground. Tipping on a slope can distort parts, cause malfunction or lead to an accident.
Open the rear door before tipping the tanker. Skipping this step can cause a serious accident.
Engage the PTO correctly. With the engine idling, fully press the clutch pedal, engage the PTO, then slowly release the clutch.
While driving, keep the PTO joysticks in the middle position.
Do not carry waste oil or other hazardous materials in this vehicle.
Before entering under the raised tank or performing maintenance, use the support rods and safety stop.
When transporting sewage, engage the manual rear-door locking device. Because the vehicle has no water baffle and a high center of gravity, drive at medium or low speed.
Applications & Chassis
Suitable for municipal sanitation departments, property management, industrial liquid waste handling and rental service fleets. Offered on HOWO, ISUZU and FAW chassis to meet local homologation, right-hand-drive and capacity requirements
