DRZ5280XWSX
-
DRZ
-
8705909990

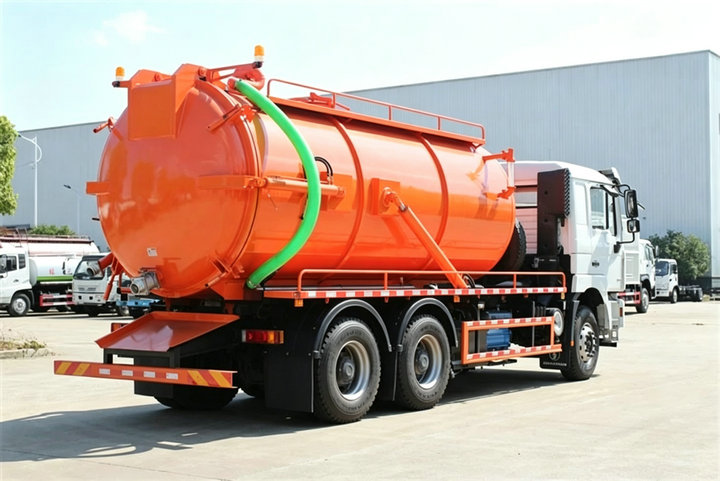

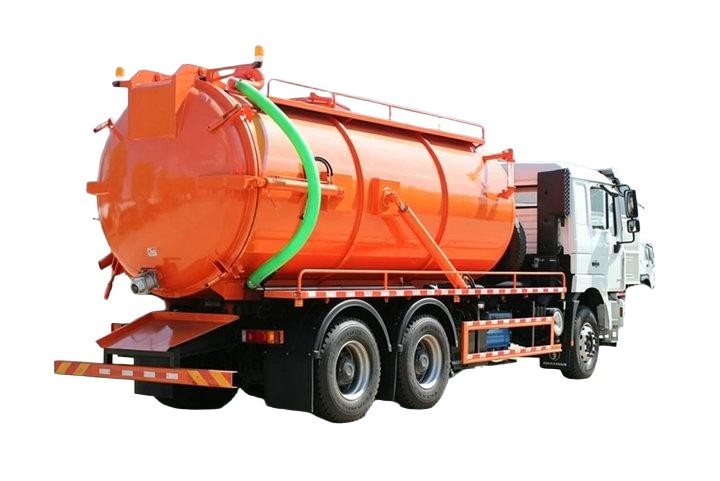

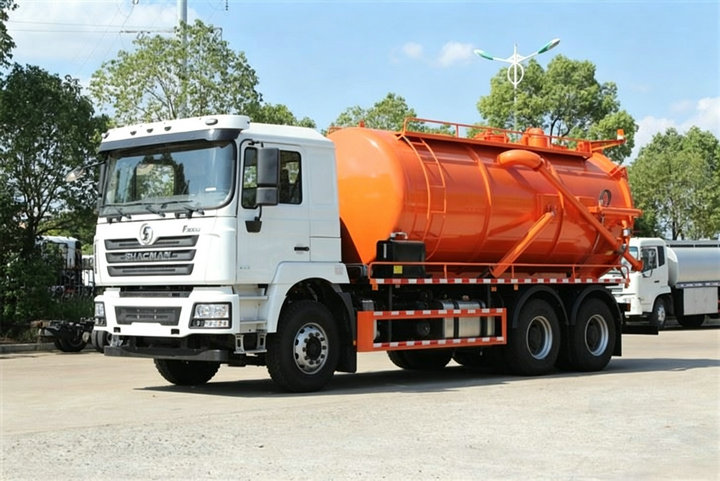

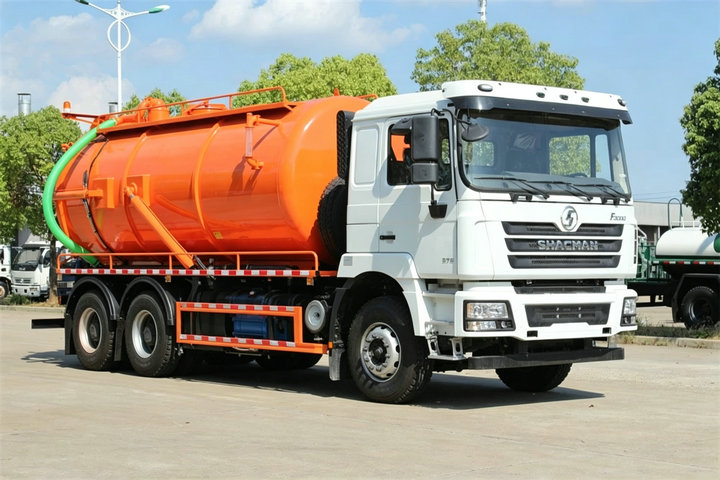

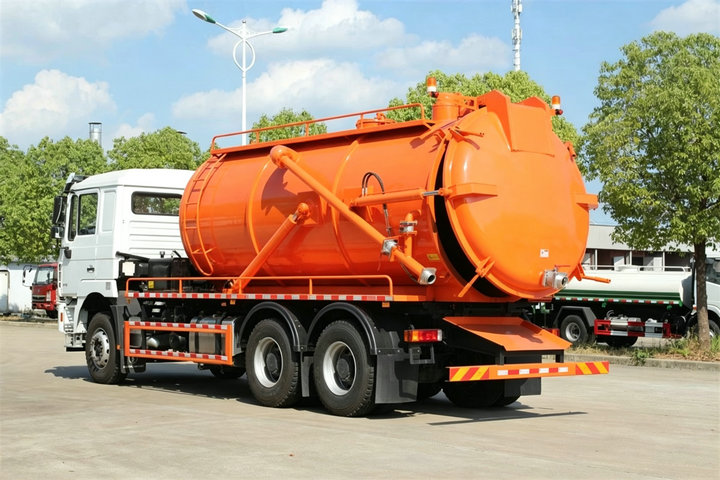

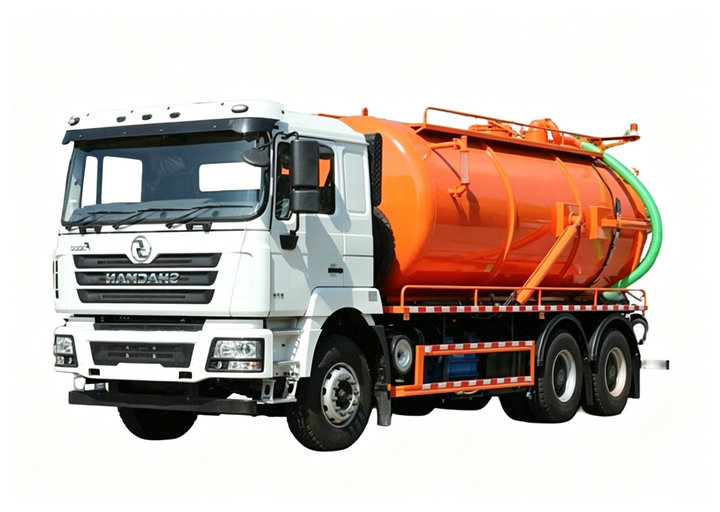

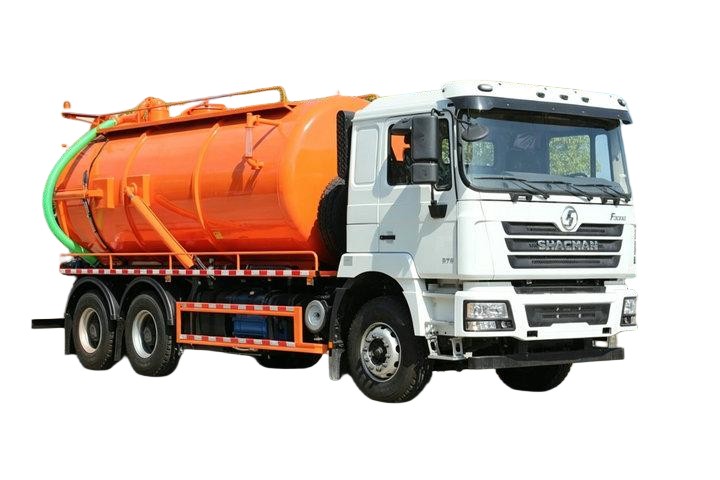

Shacman F3000 Cesspit Emptier Vacuum Tanker Truck 18 M3
18000 L Shacman F3000 vacuum pump Tanker truck
Sewage suction trucks are usually used to clean up dirt on public roads, sewers, sewage treatment plants, factories, construction sites and other places. It can effectively clean sewage, mud, sludge, waste oil, garbage and other solid waste.Cleaning up dirt with sewage suction trucks can effectively reduce the occurrence of environmental pollution and health problems..
Model: DRZ5280XWSX
Capacity: 16000L ~18000 liters
Drive: 6×4 （ Optional AWD 6x6）
Engine power: 340 ~380HP
Engine type: WP10.340 ~ WP10.380
Items | Descriptions | Specifications and Types |
General | Truck Name | Combined sewer truck |
Drive Type | 6*4 | |
Gross Vehicle Weight(kg) | 25000 | |
Curb Weight (kg) | 13000 | |
Overall Dimensions L*W*H(mm) | 11000×2500×3270 | |
Engine | Engine Model | WP10.340E32 |
Engine Brand | Wei Chai | |
Fuel Type | Diesel | |
Power | 340HP | |
Emission Standard | Euro II | |
Displacement(ml) | 9760 | |
Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | |
Chassis | Chassis Brand | SHACMAN |
Tire No. | 10+1 | |
Tire Specification | 12.00R20 Steel tire | |
Wheelbase (mm) | 4375+1400 | |
Axle No. | 3 | |
Front Axle | MAN 7.5T | |
Rear Axle | MAN 13T double grade | |
Steering Wheel | Left Hand Drive with power-assisted | |
Gear Box | FAST 9 speed forward with 2 reverse, manual | |
Brake | Air brake | |
Air Conditional | Suitable for tropical climate | |
Tank | Tank Material | Carbon steel |
Tank Shape | Cylindrical | |
Waste water tank volume(L) | 15000~18000 | |
Pump | High pressure vacuum | Italy imported |
Vacuum pump | Domestic Weilong pump | |
Hose | Suction hose length(m) | 6x2 |
Shape | Cylindrical shaped tank with external reinforce rings |
Material | Mild steel |
Primary shut off | SS float ball prevents overfilling sludge tank. |
Shell thickness | 5mm,6mm |

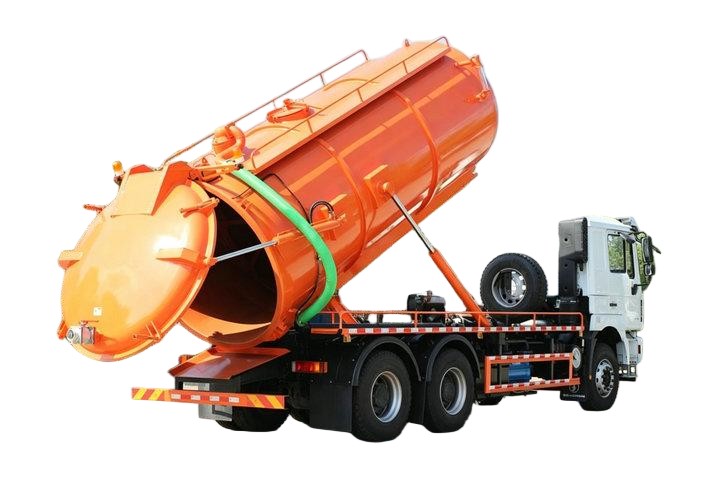

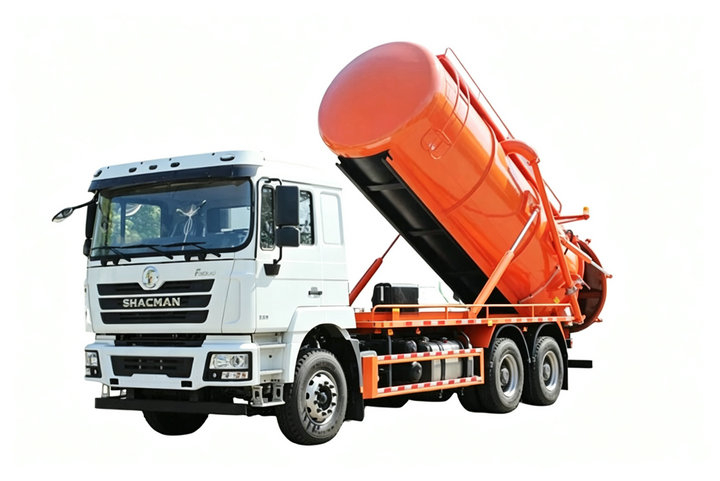

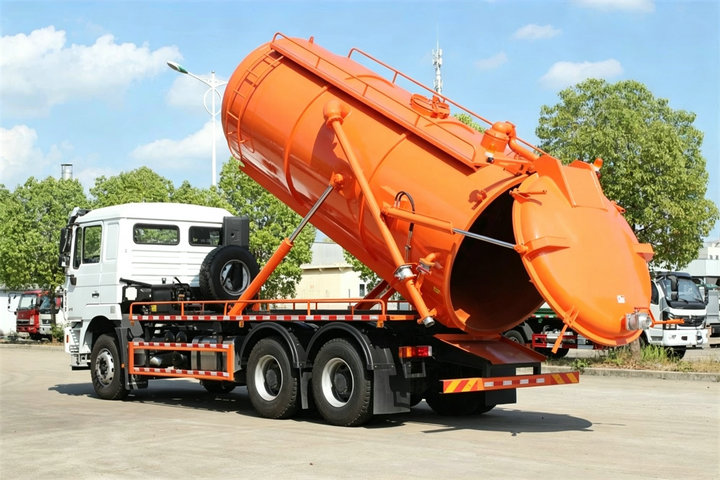

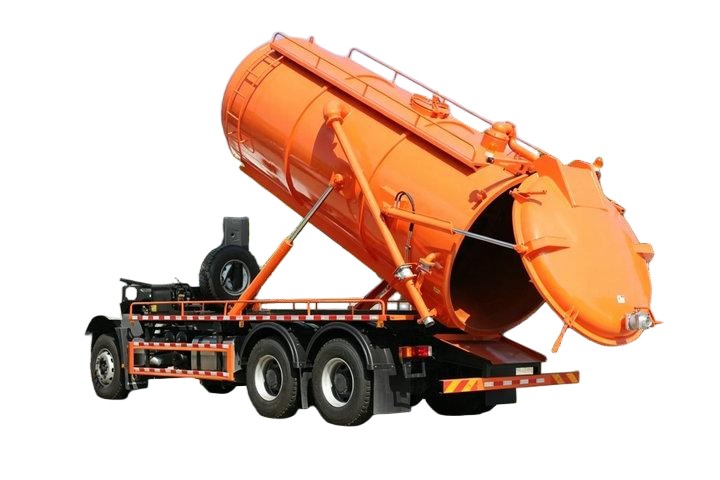

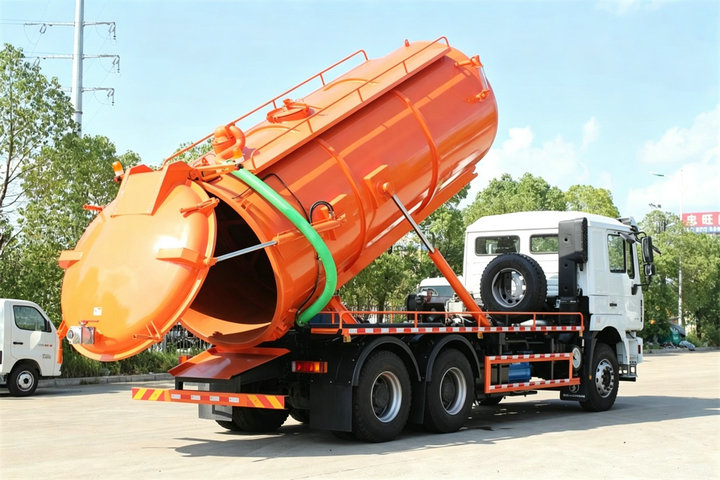

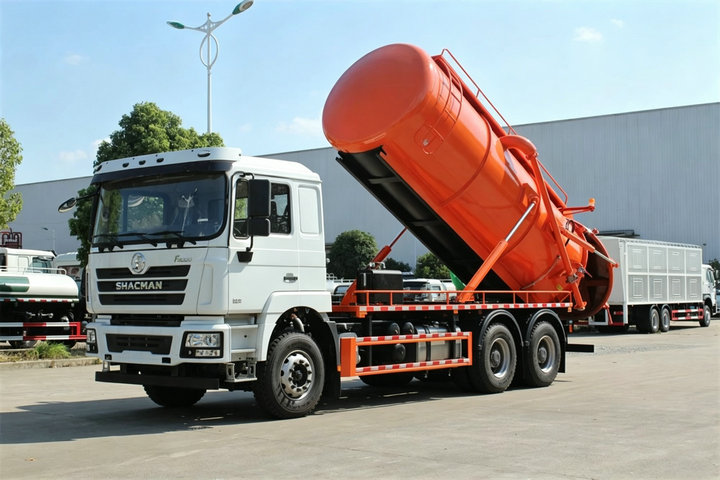

Tipping cylinder | Front tipping and double acting cylinder |
Safety support | Support the tank to ensure safety when it's tipped up |
Sight glasses | 3units are mounted at the rear of the tank |
Over pressure safety | Over pressure relief valve on tank top |
Full opening rear lid | Hydraulically opening and locking |
Inlet and Outlet Valve | Pneumatically and Manual operation |
Vacuum pump | Liquid ring vacuum pump |
Max vacuum level | 95% |
Continuous vacuum level | 80% |
Rotate speed | Max 900r/min |
Pump cooling | Cooling Water tank 1,000L, mounted behind cab |
Protection | 1.Aluminum filter 2. Vacuum pressure relief valve |
Optional Telescopic suction boom | Telescopic suction boom Jib Swivel in both vertical and horizontal plane. |
How Shacman Sewage Suction Trucks Are Solving Water Pollution in Africa
Africa is a continent rich in natural resources and home to a fast-growing population, but underdeveloped sanitation infrastructure has left water pollution a serious problem in many cities and rural areas. Shacman sewage suction trucks — built on the reliable Shacman F3000 heavy-duty chassis — have become one of the practical solutions governments and environmental agencies rely on to collect, transport, and treat contaminated wastewater across the continent.
How the Shacman F3000 Sewage Suction Truck Works
A typical Shacman F3000 sewage suction truck is made up of three core systems:
A powerful vacuum pump that generates strong negative pressure
Sewage suction equipment with filters and separators
A large liquid storage tank mounted on the chassis
Local governments and environmental departments usually set up sewage collection stations at known pollution hotspots. Sewage suction trucks then operate on a regular patrol schedule, deploying to sites as needed.
Once on location, the operator lowers the suction hose close to the pollution source and starts the vacuum system. As sewage is drawn in, the on-board filters and separators remove solid particles and debris, so only liquid wastewater enters the storage tank. This protects the pump and keeps the load clean and transportable.
Two Ways African Sites Dispose of Collected Sewage
Sewage suction trucks in Africa generally use two disposal methods:
1. Delivery to centralized treatment plants
The truck transports the collected sewage directly to established sewage treatment facilities. The water is treated to meet acceptable standards before being discharged back into the environment. This method is the most reliable option in and around cities where treatment plants exist.
2. Discharge into designated treatment areas
In more remote areas, operators regularly empty the storage tank into a designated treatment zone, where microorganisms and native plants further purify the water through the natural ecosystem. This approach lowers transportation costs while supporting ecological restoration.
Challenges Trucks Face in African Conditions
Operating sewage suction trucks in Africa is not straightforward. Two challenges stand out:
Diverse and difficult terrain. Many pollution sources are located off paved roads. The truck needs solid off-road capability, a robust chassis, and reliable suspension to reach remote sites safely.
Mixed and unpredictable pollutants. Wastewater ranges from industrial effluent to rural domestic sewage. The suction equipment, filters, and tank materials must handle different water qualities, debris sizes, and chemical compositions without breaking down.
Shacman's heavy-duty chassis and simple, service-friendly design help operators meet both challenges — the F3000 platform is known for durability on rough roads, and its standard components are easy to maintain locally.
Why Shacman Is a Practical Choice for Africa
Proven heavy-duty chassis — the F3000 6×4 platform handles rough roads and long working hours.
Weichai diesel engine (typically 340–375 hp) provides enough power for both driving and vacuum operation.
Large tank capacity (up to 25,000 L) reduces trips between collection and disposal points.
Easy maintenance — standard inlet, exhaust, and anti-overflow valves plus widely available Shacman and Weichai parts.
Right-hand-drive and export configurations available for African markets.
FAQs
Q: What does a Shacman sewage suction truck consist of?A vacuum pump, suction equipment with filters/separators, and a sealed liquid storage tank on a Shacman F3000 chassis.
Q: How is collected sewage disposed of in Africa?Either transported to centralized treatment plants or discharged into designated natural treatment areas where microorganisms and plants purify the water.
Q: Why are off-road capabilities important?Because many pollution sources in Africa are located in remote areas without paved roads, so the truck must reach them on rough terrain.
Conclusion
Across Africa, Shacman sewage suction trucks are helping close the sanitation gap: they vacuum contaminated water from pollution sources, separate solids on board, and deliver the liquid to treatment plants or natural purification sites. With a rugged chassis, powerful engine, and easy maintenance, the Shacman F3000 is a practical tool for improving water quality and public health in communities that lack full sewer infrastructure.
