DRZ5180GXWCA
-
DRZ
-
8705909990

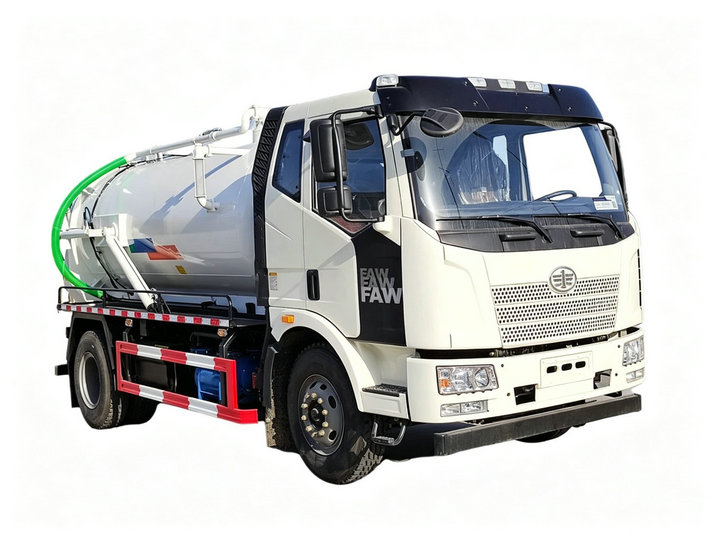

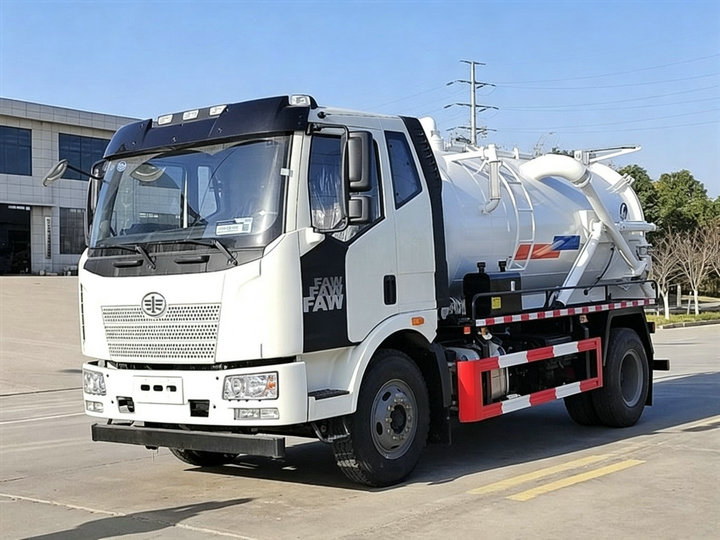

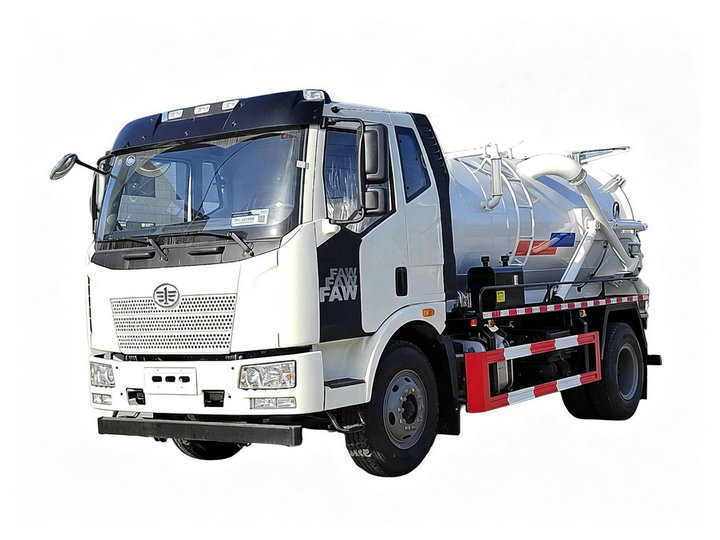

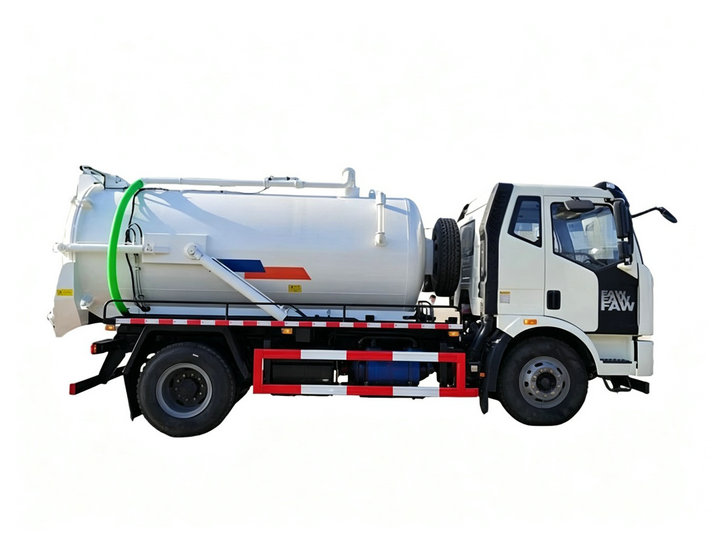

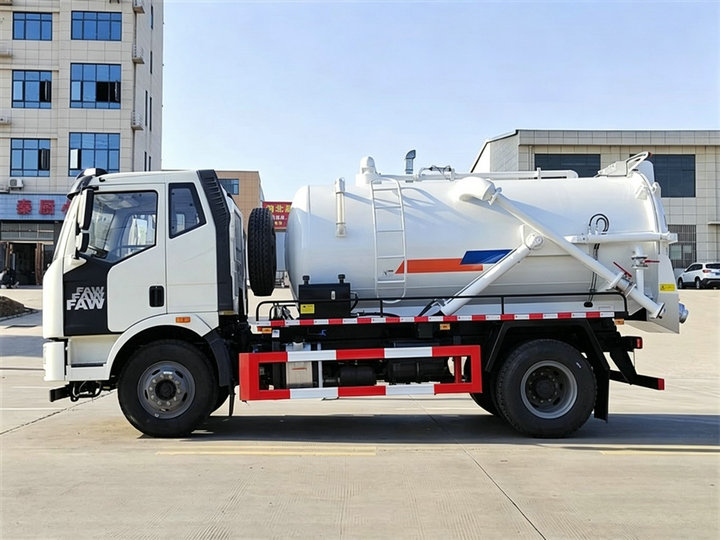

FAW Vacuum Cesspool Septic Tank Truck 10,000L
FAW Septic Vacuum Truck
10,000 liters FAW sewage vacuum pump truck
The FAW J6L sewage suction truck adopts the leading domestic vacuum pump with large suction power and long suction range. It is especially suitable for the suction, transportation and discharge of sludge in the sewer. The vacuum tank is made of Q235 steel and comes with hydraulic opening rear cover. It has features of long service life, fast working speed, and easy operation.
Model: DRZ5180GXWCA
Capacity: 10000 liters
Drive: 4×2
Engine power: 220 HP
Engine type: CA4DK1-22E5
Send Inquiry
Description
FAW 4x2 10000liters Sewage Tank Truck | |||
Vehicle model | DRZ5180GXWCA | ||
| Country of Original | China | |
Make | FAW | ||
Type | FAW J6L | ||
Overall Dimension(mm) | 8200 x 2480 x 3200 mm | ||
Wheelbase(mm) | 4500mm | ||
Curb weight(kg) | 8300kg | ||
Loading Volume | 10 CBM, 10,000 liters | ||
Approach/departure angle(°) | 22/15 degree | ||
Front /rear overhang(mm) | 1400/2100 mm | ||
Wheel track(front /rear)(mm) | 1914/1847 mm | ||
Max driving speed(km/h) | 95 km/h | ||
Steering gear | Power steering | ||
Tire | Quantity | 7pcs with one spare tire | |
Specification | 10.00R20 | ||
Gearbox | Manual type; 6 Forward gear, 1 reverse gear | ||
Cabin | A/C installed ,one row and a half, with sleeper, two door | ||
Engine | Brand | FAW | |
Model | CA4DK1-22E5 | ||
Fuel type | Diesel | ||
Displacement(ml) | 4764 | ||
Power(kw) | 165KW | ||
Horse power | 220HP | ||
Maximum torque | 830N.M | ||
Intake form | Four cylinder in line, water cooling, four stroke, pressurized medium - cooling, direct injection | ||
Emission standard | Euro 5 | ||
Sewage Suction System | |||

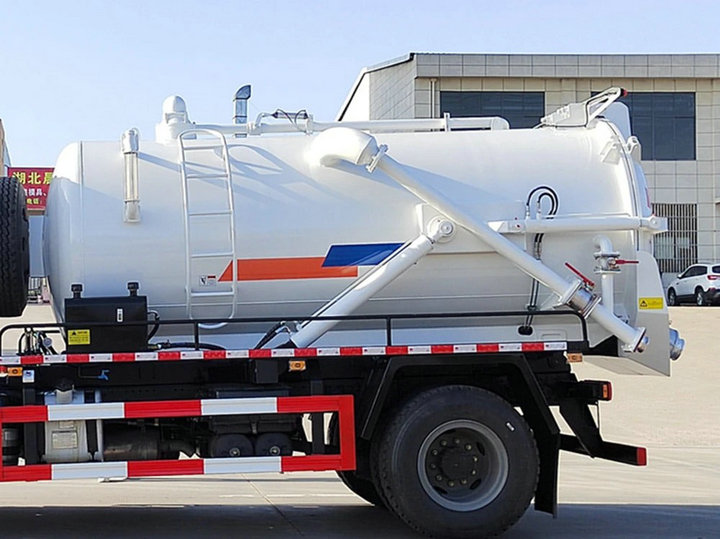

Sewage Tanker | Capacity | 10m3 ,10000liters | |
Material | Q235 high tension steel, 6mm tank body and head cover | ||

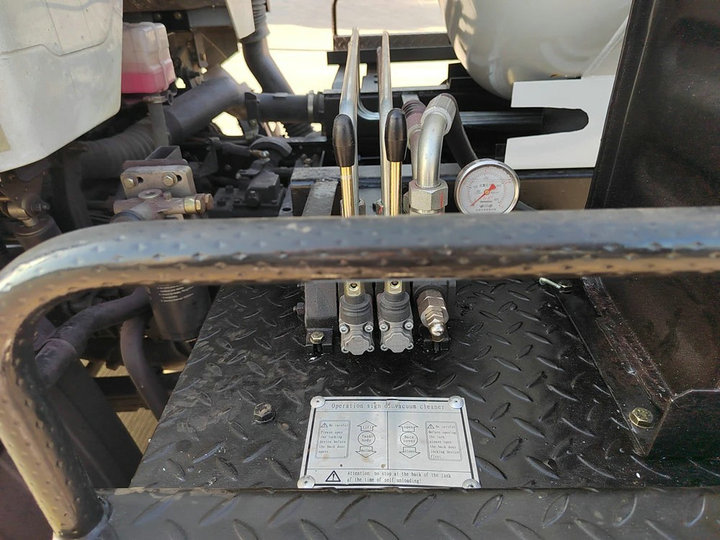

Dumping System | Middle Tipper | Hydraulic controlled rear door and tank lifting | |
Rear Door | Hydraulic opening | ||

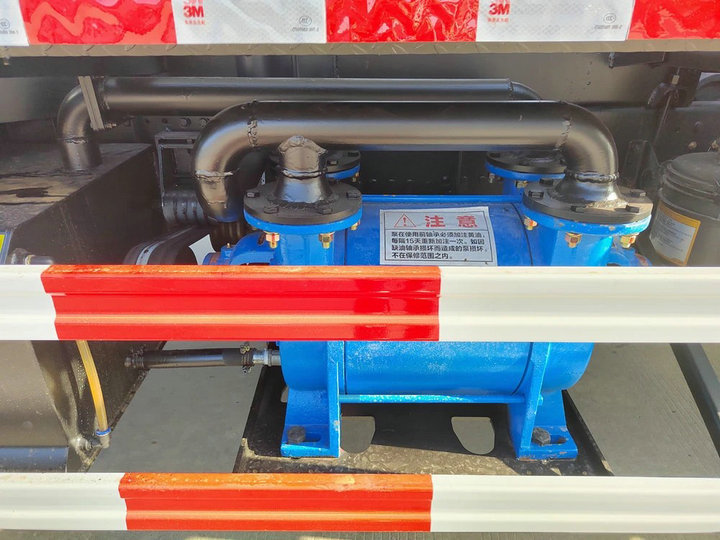

Pump | High efficiency water ring pump | ||
Pump model | SK-15 | ||
Pump System | 108mmΦ suction pipe, suction time ≤5min, effective suction range≥8,max vacuum degree ≤15 Kpa, dump angle ≥45 | ||
Vacuum Pressure | -0.093Mpa | ||
Sewage Pipe | 8 meters steel wire reinforced pipe | ||
Other Parts | Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device | ||
Products Description
FAW Septic vacuum trucks are used to empty wastewater and sewage from septic tanks and sewer systems. They are used in communities, factories, businesses, commercial areas, etc. These special trucks are equipped with a tank for storing wastewater and sewage. A vacuum pump system is used to pump liquid waste into a truck's tank to empty the septic system.
If you have plans to purchase a septic tank truck, our team will help you find the best option. From determining the tank capacity you need to selecting the correct pump model, we have extensive experience assisting customers with the purchase of a suction truck. Our goal is to get you started in business as quickly as possible. If you have any questions about sewage suction trucks, feel free to contact us.
Products features
1. 10000 liters sewage tank made of carbon steel

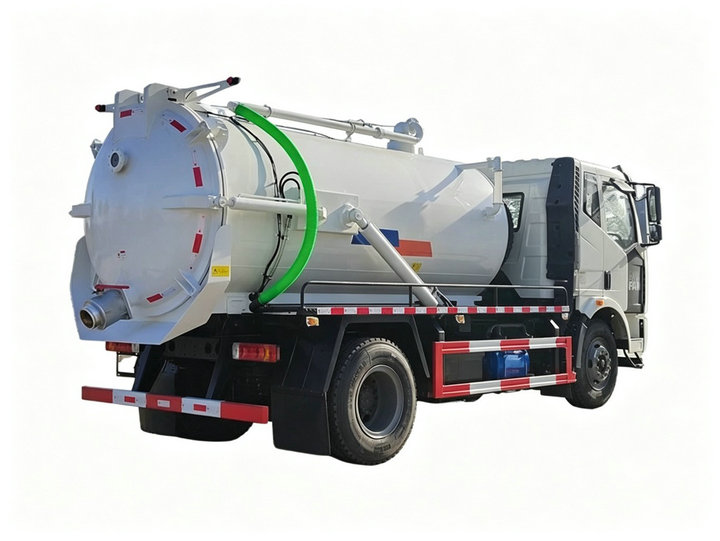

2. Dumping tank with a full opening rear door
3. Anti-corrosion treatment inside the tank for longer service life
4. Water ring vacuum pump SK-15
5. Sight tube on both side and rear
Hot Tags: faw septic vacuum truck, China faw septic vacuum truck manufacturers, suppliers, factory, Sewage Pumping Truck Faw RHD, 6CBM Faw RHD septic pump tank truck service near me, 25 000L Faw cesspit emptier sewage suction tank truck, Faw Septic Pump Truck, FAW Septic Suction Truck
FAW Septic Tank Cleaning Truck
Vacuum Sewer Truck FAW
| Chassis Model 2 | Engine | Transmission | Tires | Wheelbase (mm) | Special Configuration / Options |
| CA3180P62K1L4BAE5 | FAW DE CA6DK1-24E5 (FCRI+SCR, air-assisted) 240 Ps | Fast Gear 8JS118 (flange output PTO) | 11.00R20 18 PR | 4500 | Export vehicle; automatic A/C; steel bumper; electric hydraulic lifting device; raised cab; desert air filter; 300L steel fuel tank; with spare tire; front underrun protection; proprietary air-assisted urea system; mountain version; remote financing lock function; English nameplate & markings |
| CA3180P62K1L4BAE5 | FAW DE CA6DK1-24E5 (FCRI+SCR, air-assisted) 240 Ps | Fast Gear 8JS118 (flange output PTO) | 11.00R20 18 PR | 4500 | Export vehicle; automatic A/C; steel bumper; manual hydraulic lifting device; raised cab; desert air filter; 300L steel fuel tank; with spare tire; proprietary air-assisted urea system; mountain version; English nameplate & markings; manual dual fuel filter |
| CA3180P62K1L4BAE5 | FAWDE CA6DK1-24E5 (FCRI+SCR, air-assisted) 240 Ps | Fast Gear 8JS118 (flange output PTO) | 11.00R20 18 PR | 4500 | Export vehicle; automatic A/C; steel bumper; manual hydraulic lifting device; raised cab; desert air filter; 300L steel fuel tank; with spare tire; proprietary air-assisted urea system; mountain version; English nameplate & markings |
| CA5160XXYP62K1L5A1E5 | FAW DE CA4DK1-22E51 (FCRI+SCR, air-assisted) 220 Ps | Fast Gear 8JS85E (flange output PTO) | 10.00R20 18 PR | 5800 | Export vehicle; automatic A/C; front underrun protection; steel bumper; manual hydraulic lifting device; aluminum radiator; external electronic hand throttle; proprietary air-assisted urea system; engine 50,000 km long oil change interval; speed limiter 89 km/h; right-turn audio warning device; English nameplate & markings |
| CA1180P62K1L2A1E5Z | FAW DE CA4DK1-22E51 (FCRI+SCR, air-assisted) 220 Ps | CA6T138 (direct drive, flange output PTO) | 10.00R20 18 PR | 4500 | Export vehicle; automatic A/C; front underrun protection; steel bumper; manual hydraulic lifting device; suspension: front multi-leaf / rear multi-leaf; reserved one-touch constant-speed PTO switch wiring harness outside cab; engine 50,000 km long oil change interval; [reserved distribution box wiring harness, length 1000 mm]; fuel tank reserved upper-equipment return port; speed limiter 89 km/h; right-turn audio warning device; English nameplate & markings |
| CA5200TXFP63K1L2E5 | FAWDE CA6DK1-32E5 (FCRI+SCR, air-assisted) 320 Ps | CA10TA130M (Tongfa sandwich flange output PTO) | 11.00R20 18 PR | 4600 | Export vehicle; automatic A/C; 200L aluminum fuel tank (rearward); steel bumper; high-efficiency single air filter; aluminum radiator (reinforced); cab rear two-point coil spring suspension; manual hydraulic lifting device; delete black two-tone and “FAW” markings on both doors; delete “FAW Jiefang” marking on cab front; rear overhang 2220 mm; no electronic hand throttle (retain switch and wiring connector); additional cooling device for engine cooling system; suspension: front multi-leaf (reinforced) / rear multi-leaf; frame added upper-equipment connecting plate; front underrun protection; rear underrun protection; spare tire rearward; reserved engine remote shutdown function; engine 50,000 km long oil change interval; right-turn audio warning device; English nameplate & markings |
| CA5180GYYP62K1L5E5 | FAW DE CA6DH1-22E5 (FCRI+SCR, air-assisted) 220 Ps | Fast Gear 8JS85TC | 10.00R20 18 PR | 7100 | Export vehicle; automatic A/C; electric hydraulic lifting device; aluminum radiator; aluminum alloy air reservoir; 300L aluminum fuel tank; suspension 7/7+6; VOSS connectors; water bottle holder; cruise control; wide bumper; English nameplate & markings; front windshield; door glass; rear windshield; exterior mirror with E-mark |
| CA5180XXYP62K1L5E5 | FAWDE CA4DK1-22E5 (FCRI+SCR, air-assisted) 220 Ps | Fast Gear 8JS85TC | 11R22.5 18 PR tubeless | 5800 | Export vehicle; automatic A/C; front underrun protection; wide bumper; electric hydraulic lifting device; aluminum alloy air reservoir; 300L steel fuel tank; 120Ah battery; suspension 7/7+6; VOSS connectors; water bottle holder; cruise control; engine & axle 50,000/50,000 km long oil change interval; seatbelt reminder; brake pad wear warning; English nameplate & markings |
| CA1180P62K1L4E5 | FAWDE CA6DH1-22E5 (FCRI+SCR, air-assisted) 220 Ps | Fast Gear 8JS85F (flange output PTO, torque 400 N·m) | 10.00R20 18 PR | 4800 | Automatic A/C; front underrun protection; 300L fuel tank; electric hydraulic lifting device; aluminum alloy air reservoir; proprietary air-assisted urea system; suspension 10/12+8; VOSS connectors; water bottle holder; cruise control; engine 50,000 km long oil change interval; dual fuel filter; English nameplate & markings; rear overhang 2050 mm |
| CA3180P62K1L2BE5 | FAWDE CA6DH1-22E5 (FCRI+SCR, air-assisted) 220 Ps | Fast Gear 8JS85F (spline output PTO) | 10.00R20 18 PR | 4090 | Automatic A/C; steel bumper; electric hydraulic lifting device; high-efficiency single air filter; 300L steel fuel tank; front underrun protection; mountain version; remote financing lock function; with spare tire; right-turn audio warning device; seatbelt reminder; brake pad wear warning; T-box 1.1; English nameplate, English markings & description; [delete “FAW Group” and “Jiefang” Chinese markings]; [cab side not spray-painted with Chinese characters for GVW, payload, passenger capacity, etc.] |
| CA1160P62K1L2E5Z | FAWDE CA4DK1-18E51 (FCRI+SCR, air-assisted) 180 PS | Fast Gear 8JS85E | 10.00R20 18 PR | 5000 | Export vehicle; automatic A/C; steel bumper; electric hydraulic lifting device; raised cab; proprietary air-assisted urea system; front underrun protection; rear overhang 2500 mm; engine 50,000 km long oil change interval; speed limiter 89 km/h; right-turn audio warning device; T-box 1.1; seatbelt reminder; brake pad wear warning; English nameplate & markings |
