DRZ5310GXWCA
DRZ
8705909990

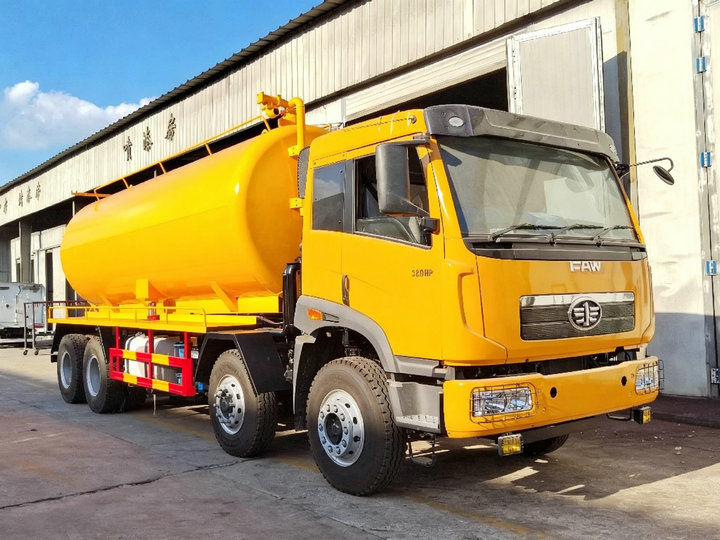

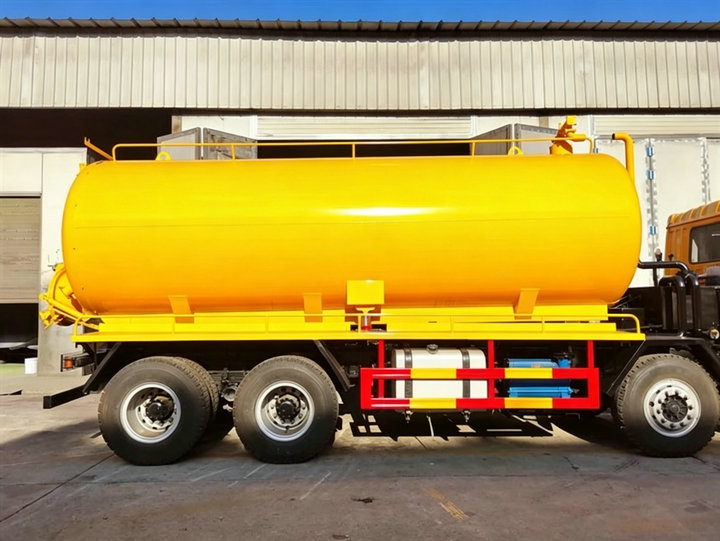

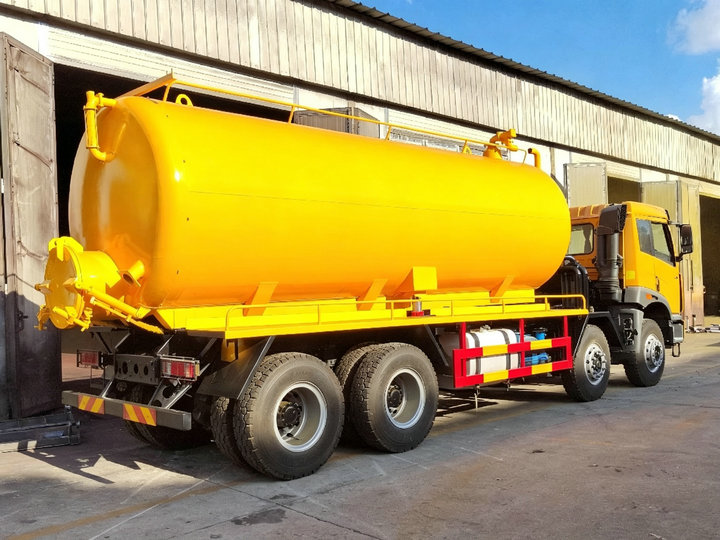

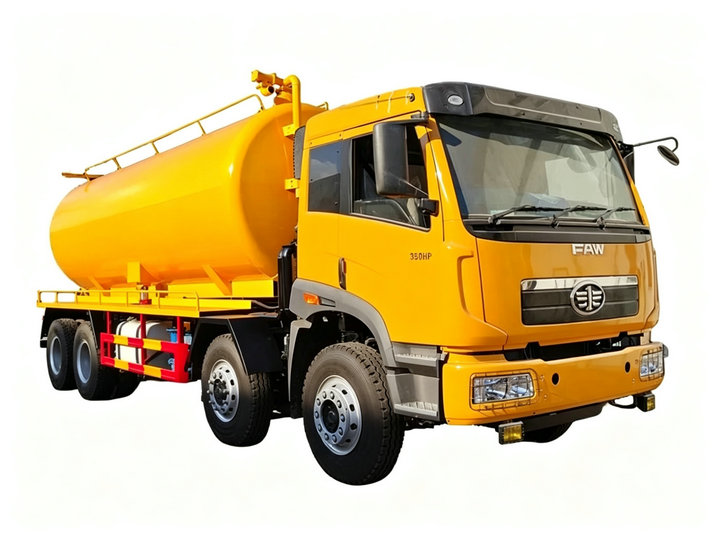

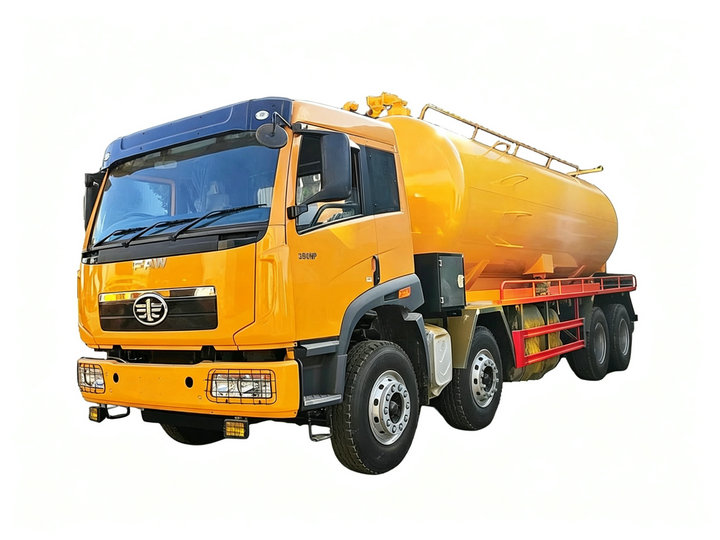

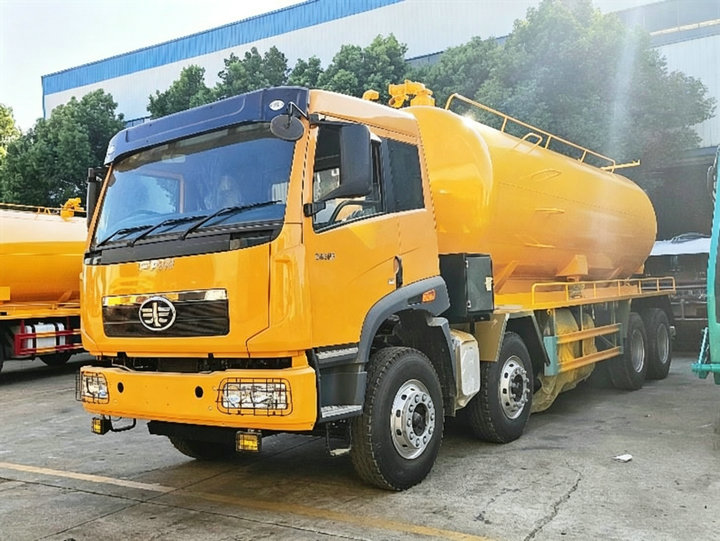

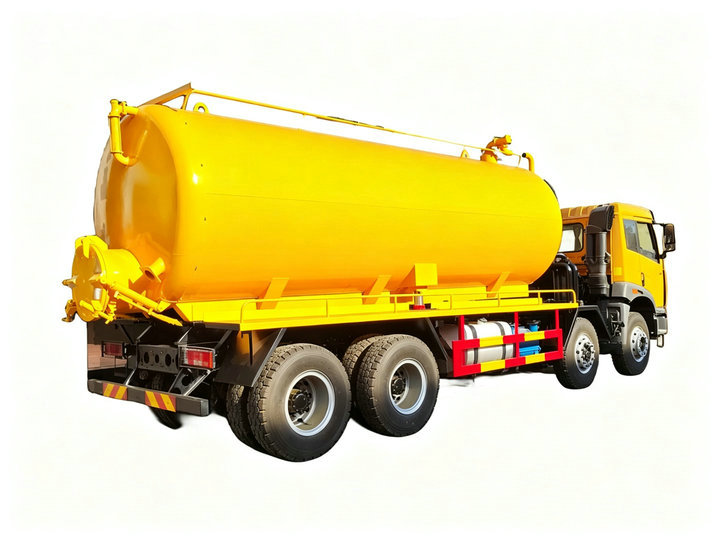

FAW 8x4 Vacuum Tanker Sewage Suction Truck Cesspool Septic Tank 25,000L
25,000L Faw cesspit emptier sewage suction tank truck
FAW brand 8x4 LHD / RHD single cab chassis, condition new FAW truck chassis CA3310P66K24L5T4E, standard wheelbase 1950+4150+1350 mm wheelbase, EURO 3 model xichai 390HP dieseI engine, with model CA6DM2-39E3F, manual 12-speed FAST transmission gear, 12.00R20 raidal tires, 13 pcs including one spare tire, full air brake, power assist steering, etc. 400L Aluminum alloy fuel tanker, customized 25 cubic meters septic tank with original Italy brand PM110W vacuum pump, suction rate can be up to 16400L /min, stronger and durable suitable for cesspool water suction and transportation
Model: DRZ5310GXWCA
Capacity: 25,000 Liters
Drive: 8×4
Engine power: 390 HP
Engine type: CA6DM2-39E3F




Model | DRZ5310GXWCA | |
Chassis brand | FAW(first automobile works) | |
Wheeldrive | 8x4, LHD / RHD | |
New or Used | Brand New | |
Overall dimension | 10800x2500x3500mm | |
Gross weight | 31000kg | |
Curb weight | 16500kg | |
Load | 25 tons | |
Wheelbase | 1950+4150+1350 mm | |
Engine power | xichai CA6DM2-39E3F model 390 HP Euro 3 | |
Fuel type | DieseI | |
Transmission | Manual, FAST brand 12-speed | |
Brake | Full air brake | |
Axle load | 6.5 tons / 13 tons | |
Tire | 12+1 pcs, 12.00R20 radial tires | |
Max speed | 90km/h | |
Sewage Tank | Tank Volume | 25,000 liter |
Material | 5mm carbon steel tank body, 6mm seal head | |
Tailgate | Hydraulic opening | |
Others | Container capacity: 25.4 cubic meters, transportation medium: liquid sewage, density: 860 kg/m3; Size of tank (direct segment length) (mm) : 6259 x 2030. The protective material is made of carbon steel/Q235B, bolt connection, rear protection section size (mm) : 210 x 50, the lower edge is 500mm high. Thickness for tanker 6mm. | |

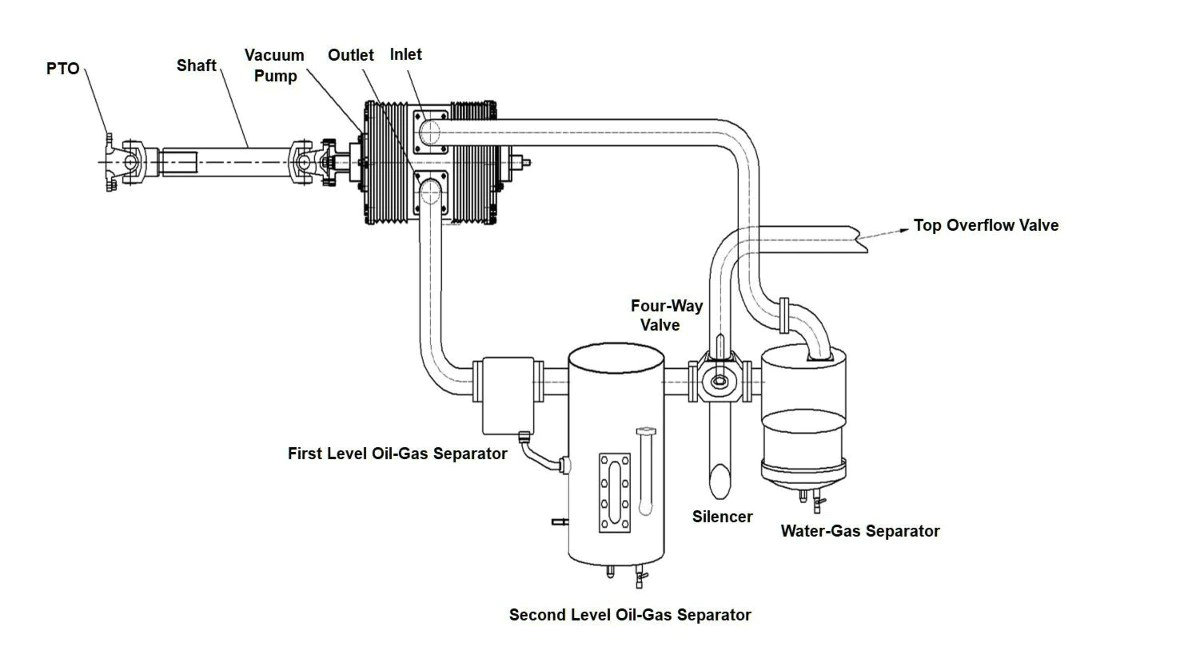

Main Components | Sewage pump | MORO PM110W vacuum pump |
Tank unloading | Hydraulic rear dumping | |
Discharge valve | 1 pcs DN150mm aluminum alloy outlet | |
Suction hose | 1 pcs 8 meters long | |
Level view-window | 1 pcs | |
Oil & water separator | Included | |
Anti-overflow valve | Included | |
Wash hand tank | 1 pcs | |
Performance | Max suction depth | 7 meters |
Suction full-tank time | ≤ 6 minutes | |
Positive pressure pump water time | ≤ 5 minutes | |

When municipalities, contractors, and fleet owners in Kenya, Nigeria, Ghana, Ethiopia, and across Africa look for a reliable septic suction truck, the FAW chassis paired with a Moro PM110W liquid-cooled vacuum pump is one of the most cost-effective combinations on the market. This article explains what the PM110W pump delivers and why a FAW cesspit emptier truck matters for public health in African cities.

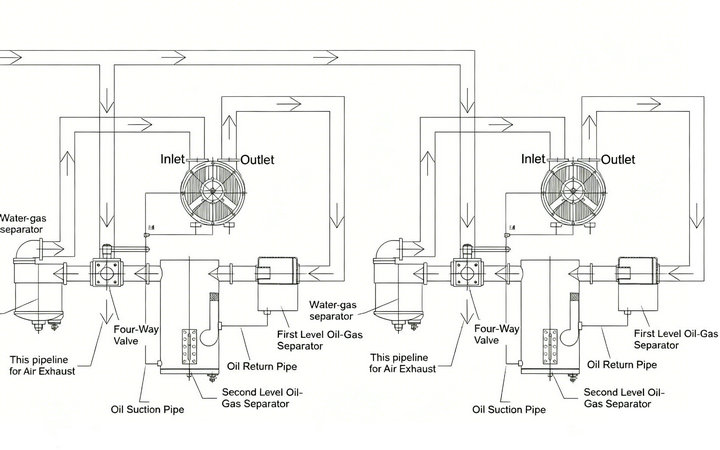

The Moro PM110W is a liquid-cooled, rotary-vane vacuum pump widely specified on medium-to-large vacuum sewage trucks. Its key parameters:
表格
| Item | Specification |
|---|---|
| Pump model | Moro PM110W (liquid-cooled) |
| Free air flow | 630 CFM ≈ 16,400 L/min |
| Flow at 18 inHg | 515 CFM |
| Max intermittent vacuum | 28 inHg (≈ 95%) |
| Continuous-duty vacuum | 24 inHg (≈ 80%, 23.6 inHg) |
| Max pressure | 29 PSI (≈ 2 bar) |
| Operating speed | 1,100–1,400 RPM |
| Power at max vacuum | ≈ 19 kW (≈ 25 hp) |
| Power at max pressure | ≈ 41 kW (≈ 54 hp) |
| Connection / hose | 4 in |
| Oil tank capacity | 4 quarts |
| Oil consumption | ≈ 210 g/h |
| Noise level | ≈ 80 dB(A) |
| Net weight | ≈ 645 lbs (≈ 293 kg) |
| Pump dimensions | ≈ 972 × 452 × 628 mm |
| Recommended tank size | 2,000–6,000 US gal (≈ 7,500–22,700 L) |
A pump of this size comfortably serves 6 CBM RHD septic pump trucks up to 25,000 L tankers, making it a natural match for FAW 4×2 and 6×4 chassis built for export markets.
Many African cities and towns still face inadequate sewage treatment and sanitation infrastructure. A FAW vacuum sewage truck addresses this gap directly — here is how.
FAW cesspit emptier trucks quickly pump sewage, sludge, and wastewater from septic tanks, pit latrines, and sewer lines. Removing waste before it backs up prevents overflow, blockages, and the standing water where germs breed. This directly raises the baseline hygiene level of neighborhoods, markets, schools, and public facilities.
In many parts of Africa, drinking water comes from wells, boreholes, and shallow surface sources that are vulnerable to sewage contamination. A vacuum sewage truck collects and transports wastewater to designated treatment points instead of letting it seep into the ground. This reduces the risk of well-water pollution and supports the safe, sustainable use of local water resources.
Septic tanks, public toilets, and communal latrines need regular emptying. A FAW septic pump truck cleans and maintains these facilities efficiently, keeping them functional and hygienic. For municipal departments and private operators, this means fewer complaints, longer facility life, and a better experience for residents.
Poor sanitation is a known driver of cholera, typhoid, diarrhea, and other waterborne diseases. By removing standing sewage and preventing blockages, a vacuum tank truck reduces breeding grounds for pathogens and helps local health authorities contain outbreaks — a direct public-health benefit.
Collected sewage is delivered to treatment facilities rather than discharged onto soil or into rivers. Combined with efficient pump technology and lower fuel consumption, this supports environmentally friendly, sustainable waste management and reduces the carbon footprint of sanitation services.
Right-hand-drive (RHD) options available for Kenya, Nigeria, Ghana, and other RHD markets.
Durable FAW chassis with FAWDE engines (180–320 hp) tuned for rough roads and high ambient temperatures.
Export configuration: English nameplates, English labels, desert air filter, wide bumper, automatic A/C, mountain-version suspension, and 300 L steel/aluminum fuel tanks.
Tank sizes from 6 CBM up to 25,000 L, with options for aluminum alloy air reservoirs, VOSS connectors, cruise control, and seatbelt reminders.
Local service support and spare-parts supply through Chinese truck dealers.
Q: What size tank can a PM110W pump handle?The PM110W is recommended for tanks from roughly 7,500 L up to about 22,700 L (2,000–6,000 US gal).
Q: Is the FAW septic suction truck available in RHD?Yes. RHD configurations are offered for Kenya, Nigeria, Ghana, and other right-hand-drive markets.
Q: What is the maximum vacuum the PM110W can reach?Up to 28 inHg intermittently, with a continuous-duty rating of about 24 inHg.
For African municipalities and sanitation contractors, a FAW cesspit emptier truck built around the Moro PM110W vacuum pump combines proven chassis durability with high-flow suction performance. It cleans sewage efficiently, protects drinking-water sources, lowers the cost of maintaining public toilets and septic tanks, and supports disease prevention and environmental sustainability — making it a practical investment for improving public health across the continent.
Hot Tags: faw septic suction truck | China faw septic suction truck manufacturers | suppliers | factory | Faw Septic Pump Truck | 25,000L Faw cesspit emptier sewage suction tank truck | 6CBM Faw RHD septic pump tank truck | Sewage Pumping Truck Faw RHD
FAW 8x4 Chassis :
Model Code | Country/Region | Engine | Power | Transmission | Tire Specification | Wheelbase | |
CA1313P2K2L7T4EA80 | Philippines | Weichai WP10.310E53 | 310PS | Shaanxi Fast 12JSD160TA | 11R22.5-16PR | 1900+4500+1350 | |
CA1313P2K2L7T4EA80 | Vietnam | Weichai WP10.310E32 | 310PS | Shaanxi Fast 12JSD160TA | 12R22.5-16PR | 1900+5050+1350 | |
CA1250P2K2L7T4EA80 | Myanmar | Weichai WP10.340E32 | 430PS | Shaanxi Fast 9JSD135T | 11.00R20 | 1900+4500+1350 | |
CA1313P2K2L7T4EA80 | Mozambique | Weichai WP10.340E32 | 340PS | Shaanxi Fast 12JSD160TA | 11R22.5-16 | 1900+4500+1350 | |
CA5313XXYP2K15L7T4EA80-3 | Nigeria | Weichai WP10.340E32 | 340PS | Shaanxi Fast 9JSD135T | 11.00R20 | 1900+4500+1350 | |
CA1312P2K2L7T4EA80 | Indonesia | Weichai WP10.340E32 | 380PS | FAW CA9TB160M | 12.00R20 | 1860+4660+1350 | |
CA1313P2K2L7T4EA80 | Indonesia | Weichai WP10.340E32 | 310PS | FAW CA9TB160M | 11.00R20 | 1900+5050+1350 | |
CA5313XXYP2K15L7T4EA80-3 | North Korea | Weichai WP10.340E32 | 340PS | Shaanxi Fast 9JSD135T | 11.00R20 | 1900+4500+1350 | |
CA1313P2K2L7T4EA80 | Feiji | Weichai WP10.340E32 | 340PS | Shaanxi Fast 12JS160TA | 11R22.5-16PR | 1900+4160+1350 | |
CA1310P25K2L7T4EA80 | Myanmar | Weichai WP9H336E30 | 260PS | Shaanxi Fast 12JSD160TA | 12R22.5-18 | 1900+4150+1350 | |
CA3310P1K2L5T4E5A80 | Myanmar | Weichai WP10.336N | 340PS | FAW CA10TAX160M | 11.00R20 | 1900+3800+1350 | |
CA3310P2K2L4T4E5A80 | Philippines | Weichai WP12.430E50 | 430PS | Shaanxi Fast 12JSD220T | 12.00R20 | 1860+3700+1350 | |
CA3310P2K2L5T4E5A80 | Philippines | Weichai WP12.430E50 | 430PS | Shaanxi Fast 12JSD220T | 12.00R20 | 1860+4360+1350 | |
CA3310P2K2T4EYA80 | South Africa | Weichai WP10.340E32 | 340PS | FAW CA9TB160M | 315/80R22.5-18PR | 1900+3400+1350 | |
CA3312P2K2L4T4EA80 | Pakistan | Weichai WP10.340E32 | 340PS | Shaanxi Fast 9JSD135T | 12.00R20 | 1860+3960+1350 | |
CA3312P2K2L4T4EA80 | Philippines | Weichai WP10.340E32 | 340PS | Shaanxi Fast 12JSD160T | 12.00R20 | 1860+3960+1350 | |
CA3312P2K2L4T4EYA80 | Tanzania | Weichai WP10.380E32 | 380PS | Shaanxi Fast 12JSD160T | 315/80R22.5-20PR | 1860+3960+1350 | |
CA3312P2K2L4T4EA80 | Mali | Weichai WP10.380E32 | 380PS | Shaanxi Fast 12JSD160T | 12.00R20 | 1860+3960+1350 | |
CA3312P2K2L4T4EA80 | Indonesia | Weichai WP10.380E32 | 380PS | FAW CA9TB160M | 12.00R24 | 1860+3910+1450 | |
CA3312P2K2L4T4EA80 | Ghana | Weichai WP10.380E32 | 380PS | Shaanxi Fast 12JSD160T | 13R22.5-18PR | 1860+3960+1350 | |
CA3312P2K2L4T4EA80 | DR Congo | Weichai WP10.380E32 | 380PS | Shaanxi Fast 12JSD160T | 12.00R24 | 1860+3910+1350 | |
CA3312P2K2L4T4EA80 | Congo | Weichai WP10.380E32 | 380PS | Shaanxi Fast 12JSD160T | 12.0,00R20 | 1860+3960+1350 | |
CA3312P2K2L4T4EA80 | Indonesia | Weichai WP10.380E32 | 380PS | FAW CA9TB160M | 12.00R24 | 1860+3910+1350 | |
CA3312P2K2L5T4EA80 | Bolivia | Weichai WP12.380E32 | 380PS | Shaanxi Fast 12JSD160T | 12.00R20 | 1860+4360+1350 | |
CA3312P2K2L4T4EA80 | Philippines | Weichai WP12.380E32 | 380PS | Shaanxi Fast 12JSD160T | 12.00R20 | 1860+3700+1350 | |
CA1310P2K2L7T4YA80 | Malaysia | Xichai CA6DM2-42 | 420PS | Eaton ET-20109A | 295/80R22.5-18 | 1860+5660+1350 | |
CA3312P2K2L4T4EA80 | Ghana | Weichai WP12.420E32 | 420PS | Shaanxi Fast 12JSD200T | 13R22.5-18PR | 1860+3700+1350 | |
CA3310P2K15L4T4NA80 | Armenia | Weichai WP12NG380E51 | 380PS | Shaanxi Fast 12JSD180TA | 12R22.5-18PR | 1860+3960+1350 | |
CA3310P2K15L4T4NA80 | Armenia | Weichai WP12NG380E51 | 380PS | Eaton ET-20109A | 12R22.5-18PR | 1860+3960+1350 | |
CA3310P2K15L4T4NA80 | Armenia | Weichai WP12NG380E51 | 380PS | Shaanxi Fast 12JSD180TA | 12R22.5-18PR | 1860+3960+1350 | |
CA3310P25K15L3T4E5A80 | Chile | Xichai CA6DM2-42E52 | 420PS | Shaanxi Fast 12JSDX240TA | 13R22.5-18PR | 1900+3400+1350 | |
CA3310P25K15L3T4E5A80 | Chile | Xichai CA6DM2-42E52 | 420PS | Shaanxi Fast 12JSDX240TA | 13R22.5-18PR | 1900+3400+1350 | |
CA3310P25K15L3T4E5A80 | Philippines | Weichai WP12.430E50 | 430PS | Shaanxi Fast 12JSDX240TA | 12.00R20 | 1900+3800+1350 | |
CA3310P25K15L3T4E5A80 | Azerbaijan | Weichai WP12.430E50 | 430PS | Shaanxi Fast 12JSDX240TA | 12.00R20 | 1900+3400+1350 | |
CA5310GJBNA80 | Uzbekistan | Weichai WP12NG380E51 | 380PS | Shaanxi Fast 12JSD180TA | 315/80R22.5-20PR | 1860+3960+1350 | |
CA5310GJBNA80 | Mexico-E | Weichai WP12NG400E50 | 400PS | Shaanxi Fast 12JSD180TA | 12.00R20 | 1860+3600+1350 | |
CA1310P2K2T4S2EYA80 | South Africa | Weichai WP10.340E32 | 340PS | FAW CA9TB160M | 315/80R22.5-18 | 1900+3400+1350 | |
CA5310GJBEA80 | Egypt | Weichai WP10.380E32 | 380PS | Shaanxi Fast 12JSD160T | 12.00R24 | 1860+3260+13 m20 | 1860+3260+1350 |
CA5310GJBYA80 | Malaysia | Xichai CA6DM2-39 | 390PS | Eaton ET-20109A | 295/80R22.5 | 1860+4000+1350 | |
CA5310GJBNA80 | Uzbekistan | Weichai WP12NG380E51 | 380PS | Shaanxi Fast 12JSD180TA | 315/80R22.5-20PR | 1860+3960+1350 | |
CA5310P25K15L3T4E5A80 | Chile | Xichai CA6DM2-42E52 | 420PS | Shaanxi Fast 12JSDX240TA | 13R22.5-18PR | 1900+3400+1350 |
