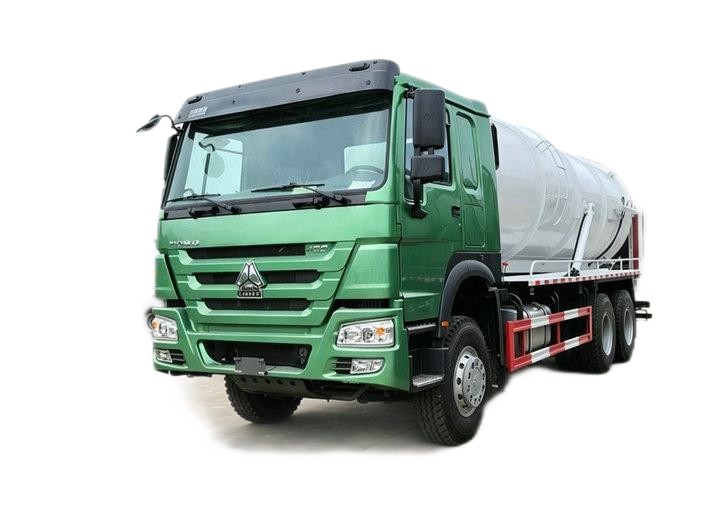

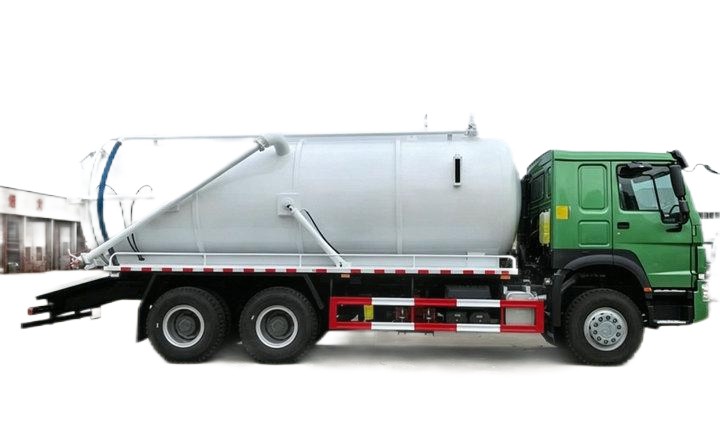

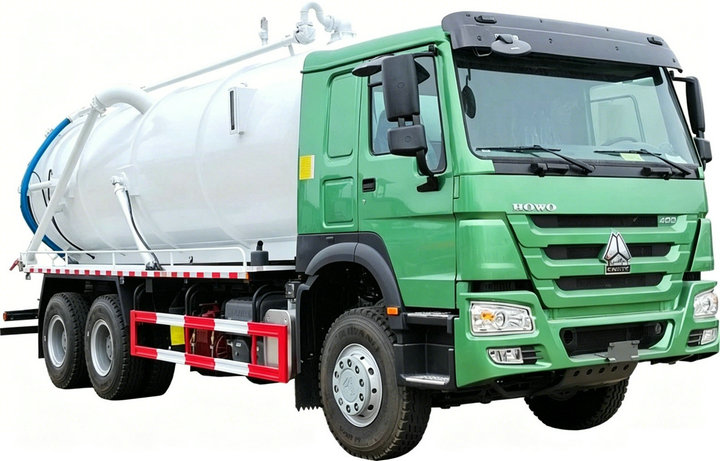

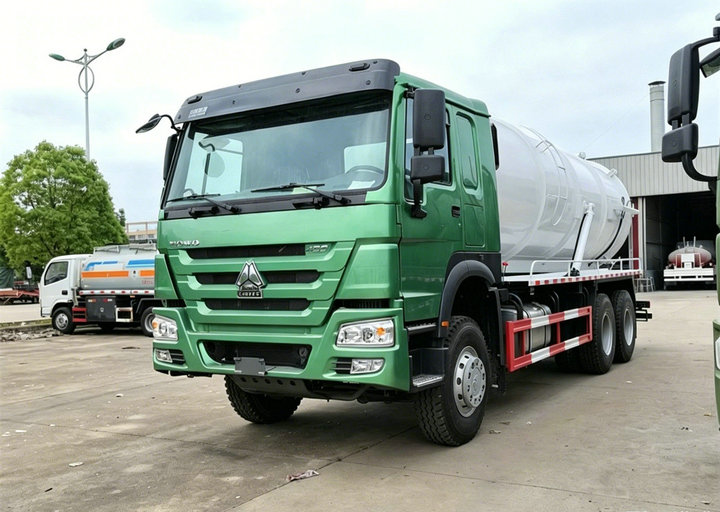

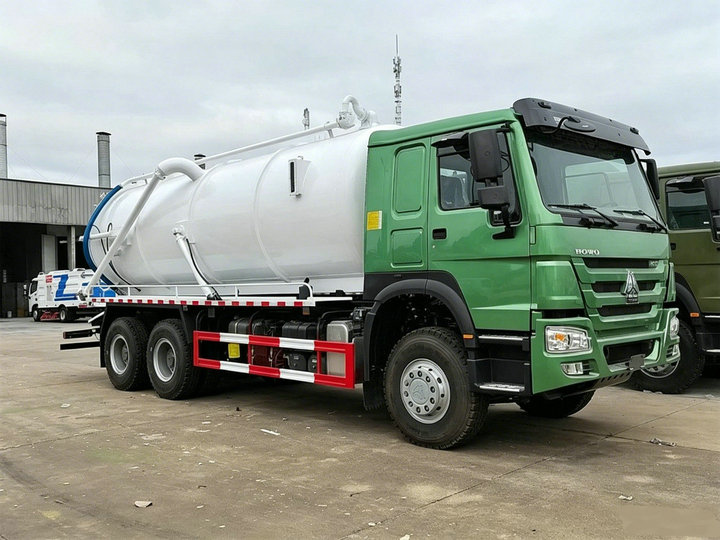

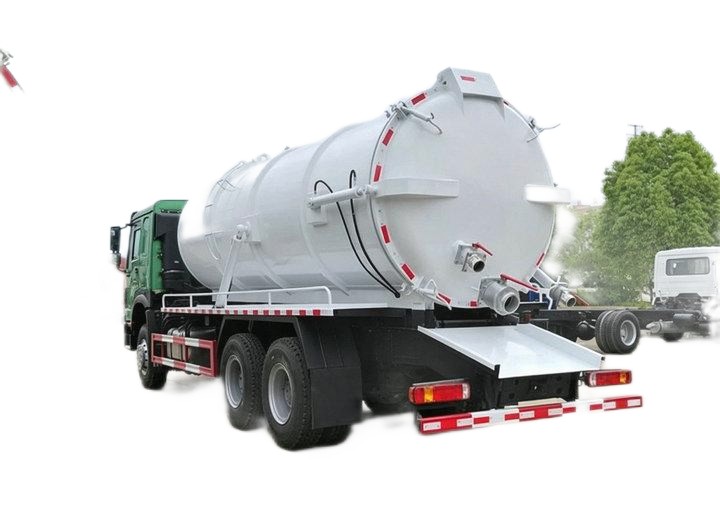

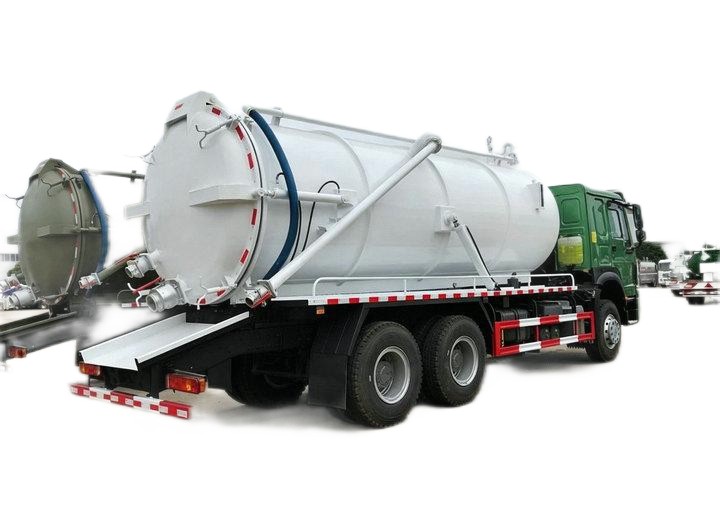

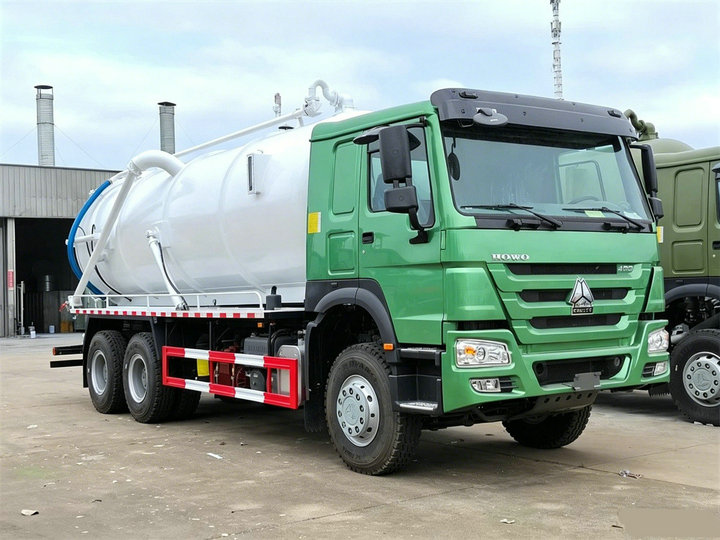

HOWO Cesspit Emptier Vacuum Super Sucker Septic Tank Truck 22m3
Tank capacity can be customized 16-22KL
MEC Series Vacuum Pump
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5290XWZZ
-
DRZ
-
8705909990
HOWO Cesspit Emptier Vacuum Super Sucker Septic Tank Truck 22m3
Howo 22 CBM Septic Tank Truck 6×4 Vacuum Tank Sucker Truck
Product Overview
The Howo Septic Tank Boom Truck (Model DRZ290XWZZ) is a purpose-built vacuum suction truck engineered for efficient cleaning, extraction, and transport of wastewater, sludge, and septage from septic tanks, cesspools, and sewage systems. Built on a robust Sinotruk Howo 6×4 chassis and powered by a 380 HP WP10.380 diesel engine, this 22,000-liter septic tanker delivers heavy-duty performance for municipal sanitation, industrial waste management, and septic service fleets.

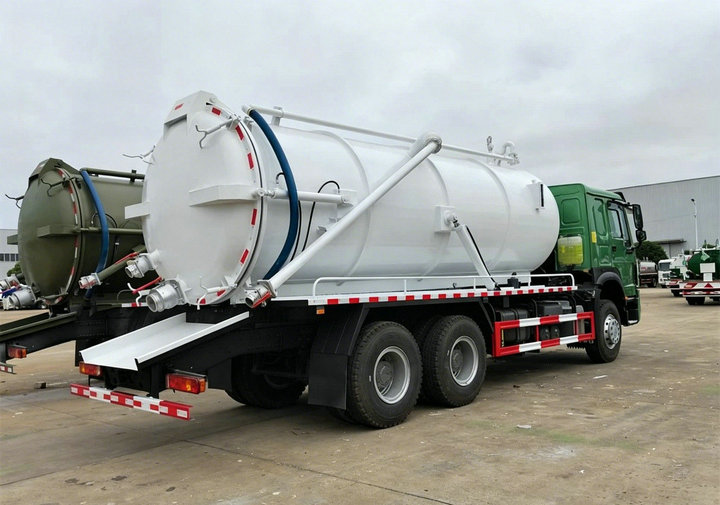

At the heart of the system is an Italy Jurop PN155R rotary vane vacuum pump, renowned for exceptional reliability and continuous-duty suction capability. The rear-mounted boom system with retractable suction hose allows operators to reach and evacuate septic tanks without entering confined spaces, maximizing safety and productivity.
Key Features & Selling Points
| Feature | Benefit |
|---|---|
| 22,000 L (22 CBM) carbon steel tank | Large payload capacity reduces trip frequency and boosts fleet efficiency |
| Sinotruk Howo 6×4 drive, 380 HP WP10.380 engine | Powerful traction and gradeability for urban and off-road job sites |
| Italy Jurop PN155R vacuum pump | Industrial-grade rotary vane pump delivers strong, consistent vacuum suction |

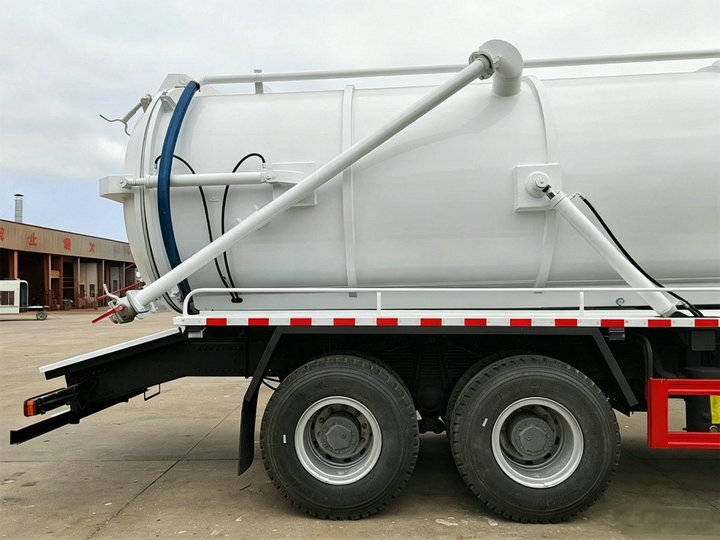

| Rear boom + retractable hose system | Operators work safely without entering septic tanks; extended reach |
| Howo 76 sleeper cab with A/C | Driver comfort for long shifts and remote locations |
| HC16 driving axle with hub reduction | Heavy-load durability and low maintenance |
| 10-speed transmission (10F + 1R) | Optimal gear selection for varied terrain and pump operation |
| DN450/DN500 manhole access | Easy internal inspection and cleaning |
Technical Specifications
Chassis & Drivetrain
| Parameter | Specification |
|---|---|
| Brand | Sinotruk Howo |
| Drive Type | 6×4 |
| Wheelbase | 3,800 + 1,400 mm 4625+1350 mm |
| Gearbox | 10 forward + 1 reverse |
| Steering | Power steering, hydraulic assisted |
| Driving Axle | HC16 with hub reduction |
| Tires | 12.00-20, 10 pcs + 1 spare |
| Cab | Howo 76, 1 sleeper, A/C, 3 passengers |
| Dimensions (L×W×H) | 8,600 × 2,500 × 3,530 mm |
Engine
| Parameter | Specification |
|---|---|
| Engine Model | WP10.380 (Euro 2) WP12.400 (Euro 2) |
| Cylinders | 6, inline |
| Power | 380 HP (280 kW 400 HP (294 kW)) |
| Fuel Type | Diesel |
| Emission Standard | Euro 2 |
Tank & Vacuum System
| Parameter | Specification |
|---|---|
| Tank Capacity | 22,000 L (22 CBM) |
| Tank Material | Carbon steel (stainless steel optional) |
| Tank Thickness | 4 mm / 5 mm / 6 mm (by section) |

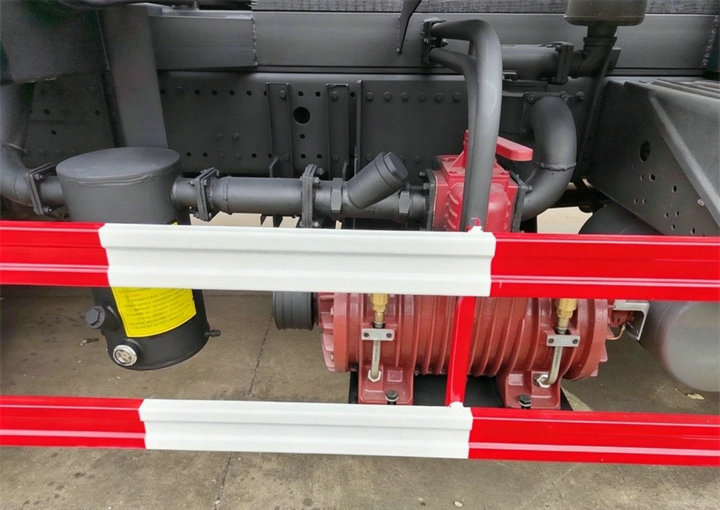

| Vacuum Pump | Italy Jurop PN155R rotary vane |
| Manhole | DN450 / DN500 |
| Suction Hose | Retractable, laminated steel tube + 15 m × Ø10 mm PVC |
| High-Pressure Water Pump | China local brand / Italy brand (optional) |
Applications
Municipal septic tank cleaning and maintenance
Sewage and wastewater suction & transport
Cesspool and pit latrine emptying
Industrial sludge and hazardous waste removal
Chemical equipment cleaning and waste recovery
Public sanitation and disaster-response waste management
Why Choose the Howo Septic Tank Boom Truck?
Proven Powertrain — The WP10.380 / WP12.400 engine paired with a 10-speed gearbox and HC16 reduction axle delivers reliable power under full-load conditions.
Genuine Jurop Vacuum Pump — The PN155R is an industry-standard rotary vane pump trusted for sewage treatment, hazardous waste handling, and chemical cleaning applications worldwide.
Operator Safety — The retractable boom and hose system eliminate the need for personnel to enter septic tanks, reducing confined-space risk.
Low Secondary Pollution — Closed-loop suction and discharge contain waste within the sealed tank during transport.
Factory-Direct Pricing — Available directly from the manufacturer with customizable tank material, pump brand, and accessory configurations.
FAQ
Q: What is the tank capacity of this septic truck?A: The standard tank holds 22,000 liters (22 CBM). Custom capacities are available on request.
Q: Which vacuum pump is installed?A: The truck comes standard with an Italy Jurop PN155R rotary vane vacuum pump. China-local pump options are available as a cost-effective alternative.
Q: Can the tank be made of stainless steel?A: Yes. Standard configuration is carbon steel; stainless steel is available as an upgrade for corrosive waste applications.
Q: What emission standard does the engine meet?A: The WP10.380 engine meets Euro 2 emission standards, suitable for markets with Euro 2 or lower regulatory requirements.
Q: Is the boom system hydraulic?A: Yes, the rear boom is hydraulically operated and includes a retractable suction hose for extended reach.
| General Description | |||
| truck model | |||
| Cab | HW76 Flat-top single row cab, with power steering. Electronic flameout, A/C | ||
| Driving Type | 6x4 Left hand driving / RHD | ||
| Max Speed (km/h) | 90 | ||
| Overall dimension(mm) | 9420×2500×3455 | ||
| GVW( kg) | 25000 | ||
| Mass in working order ( kg) | 13575 | ||
| Wheelbase(mm) | 3800+1400; 4625+1350 | ||
| F/R track base (mm) | 2022/1830 | ||
| F/R overhang (mm) | 1500/2380 | ||
| Approach/Departure Angel | 16/14 | ||
| Tire | 295/80R22.5 (10+1) | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 10-speed | ||
| Bridge | Front axle | 7T | |
| Rear axle | 13T+13T | ||
| Enging | Model | WP10.380 WP12 S400E | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled six-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 9726 11596 | ||
| Max output power/rotate speed (kw /rpm ) | 280/2200 294/1900 | ||
| Max torque/rotate speed(N.m/rpm) | 1350/1100~1600 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper body specification | |||
| Volume of tank | 14 m3,16m3,18m3,20m3,22m3 | ||
| Color | Painted in the corporation's colours with logo on both front doors as specified by the client | ||
| Material of tanker | 5mm Carbon stell (Q235) | ||
| Special function | Suction height | ≥9(m) | |
| Suction time | 250(S) | ||
| Maximum Inclination Angle | ≥45° | ||
| maximum vacuum | ≥11 MPa | ||
| Lifting time | ≤45 S | ||
| the Cover opening Angle | ≥75° | ||
| The cover opening time | ≤25 S | ||
| Suction pipe | 3m length and 100 mm in diameter | ||
| Hose Racks | Fitted on both sides of tank, to accommodate a minimum of seven hoses each | ||
| Fittings | Four-way change valve fitted to pump | ||
| Drain separator | |||
| vacuum pump | |||

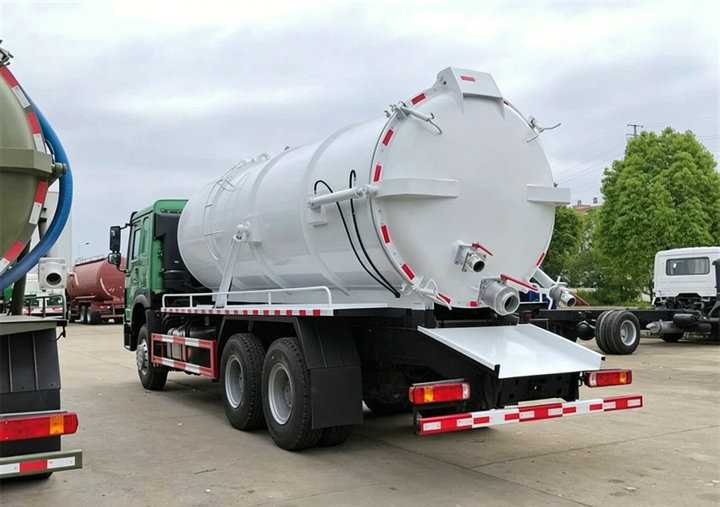

| Fully opening rear door | |||
| Sight glasses at top and bottom of tank | |||
| Ladder: For access to top of tank complete with cat walk on top of tank | |||
| vacuum pump | pump type | 2BEA204 water ring pum Italy Jurop PN155R rotary vane vacuum pumpp | |
| Max Air Flow | 11000L/min | ||
| Time to suction full tank | 12-15 minuted | ||
| Suction Depth | 8 m | ||
| suction pressure (MPa) | 5.4 | ||
| diameter (mm) | 80 | ||
| Brief introduction of function | It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system. | ||
Hot Tags
septic tank boom truck howo, 22 cbm sinotruk vacuum tank sucker truck, howo 6x4 septic suction truck, italy jurop PN155R vacuum pump truck, WP10.380 diesel sewage truck, septic tanker, 22000 liters cesspool suction truck, howo vacuum tanker for africa, septic service truck manufacturer, 6x4 sewage disposal truck factory
Sewage Suction Truck
Sewage Suction Truck is a purpose-built vacuum vehicle engineered for the efficient collection, transportation, and disposal of sewage and liquid waste. Equipped with a high-capacity sealed storage tank and a powerful vacuum pump system, it safely handles a wide range of waste streams — from domestic sewage and sludge to industrial wastewater and septic tank residue — making it an indispensable asset for municipal sanitation, industrial facilities, and environmental service contractors.
Five Key Applications
1. Sewage Cleaning & Road Maintenance
The Sewage Suction Truck is widely deployed for cleaning sewage spills and standing wastewater on roads, public squares, construction sites, and industrial zones. Its high-performance vacuum pump draws solid-liquid mixtures directly into the sealed tank, enabling safe, odor-free transport to designated treatment or disposal facilities.
2. Industrial Wastewater Collection & Transfer
Factories, processing plants, and commercial facilities rely on the Sewage Suction Truck to collect and transport process wastewater, oily effluent, and other liquid by-products to licensed sewage treatment plants. The sealed tank design prevents leakage and secondary pollution during transit, ensuring full regulatory compliance.
3. Drainage & Sewer Dredging
In urban drainage networks, the Sewage Suction Truck plays a critical role in clearing accumulated water, sludge, and blockages from sewers, storm drains, and catch basins. Its powerful vacuum system rapidly removes standing water and debris, restoring flow capacity and preventing urban flooding during heavy rainfall.
4. Decentralized Sewage Collection
In rural areas, suburban communities, and remote sites lacking permanent sewage pipelines, the Sewage Suction Truck serves as the primary solution for domestic waste management. It efficiently collects sewage from septic tanks, toilets, bathrooms, and kitchens, then transports it to centralized treatment facilities — significantly improving sanitation in underserved regions.
5. Compliant Industrial Liquid Waste Disposal
The Sewage Suction Truck assists factories and industrial enterprises in the compliant collection and treatment of waste liquids and industrial by-products. By providing a controlled, traceable waste-handling chain, it helps businesses meet environmental regulations, reduce illegal discharge risks, and minimize their ecological footprint.
Product Highlights
| Feature | Specification |
|---|---|
| Tank Capacity | Customizable (4,000 – 20,000 L) |
| Vacuum Pump | High-efficiency liquid-ring / rotary vane pump |
| Tank Material | Carbon steel / stainless steel (anti-corrosion) |
| Suction Depth | Up to 6 – 10 meters |
| Discharge Method | Hydraulic tipping + gravity / pressure discharge |
| Chassis Options | HOWO, Shacman, Isuzu, Foton, FAW, Dongfeng |
