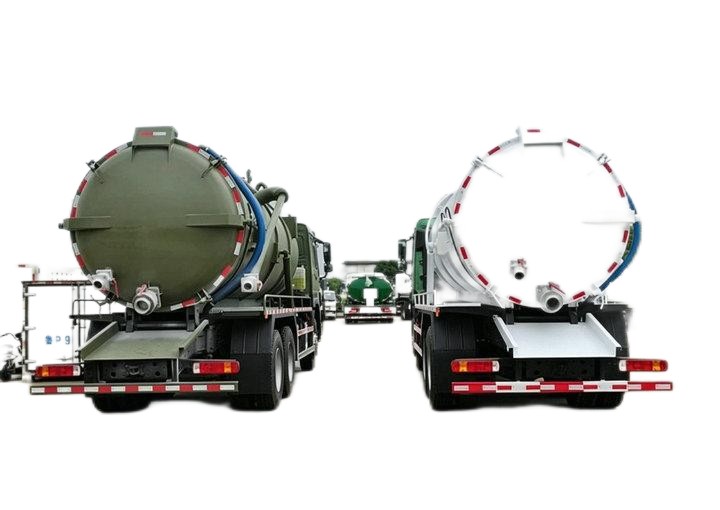

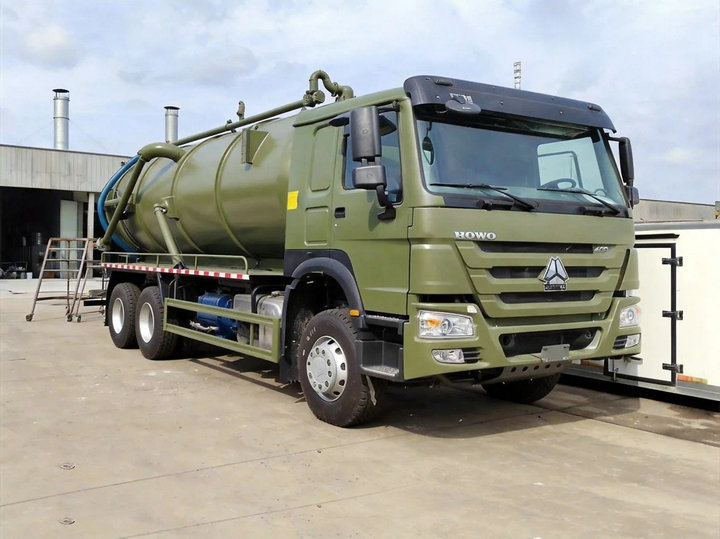

HOWO Vacuum Super Sucker Septic Tanker Truck 20m3 with Liquid Ring Vac Pump
Tank capacity can be customized 14-20KL
MEC Series Vacuum Pump
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5290XWZZ
-
DRZ
-
8705909990
HOWO Vacuum Super Sucker Septic Tanker Truck 20m3 with Liquid Ring Vac Pump

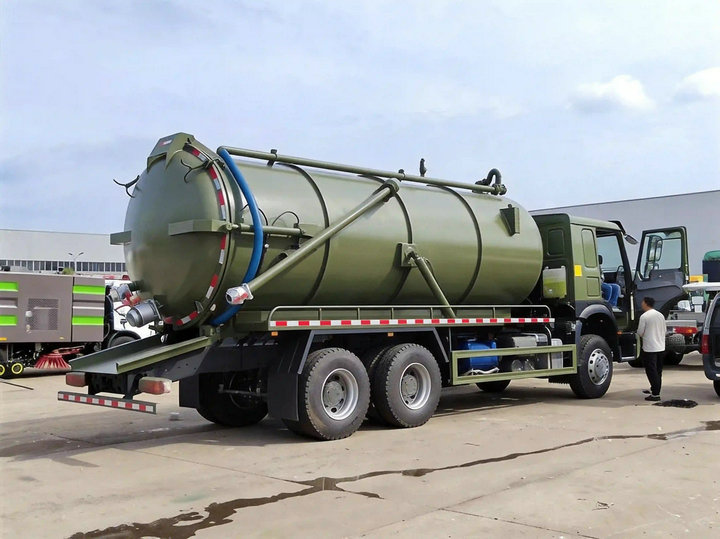

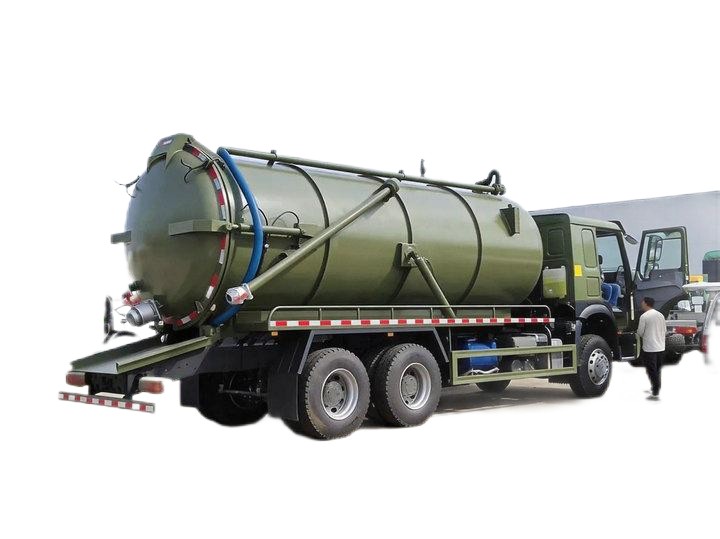

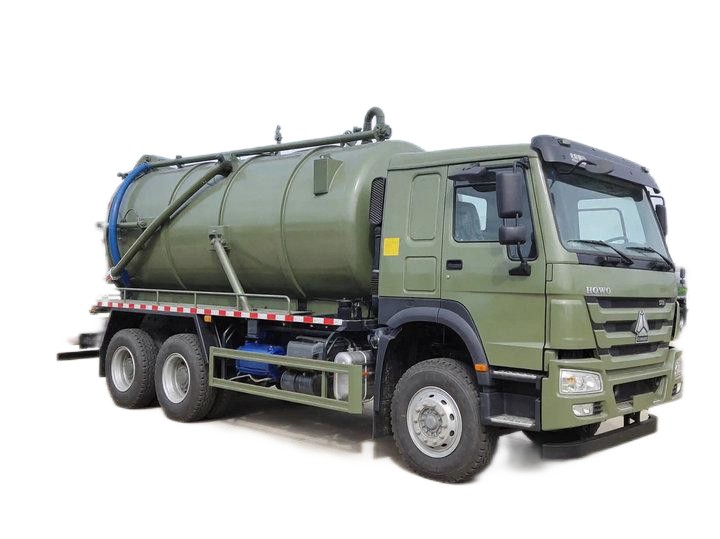

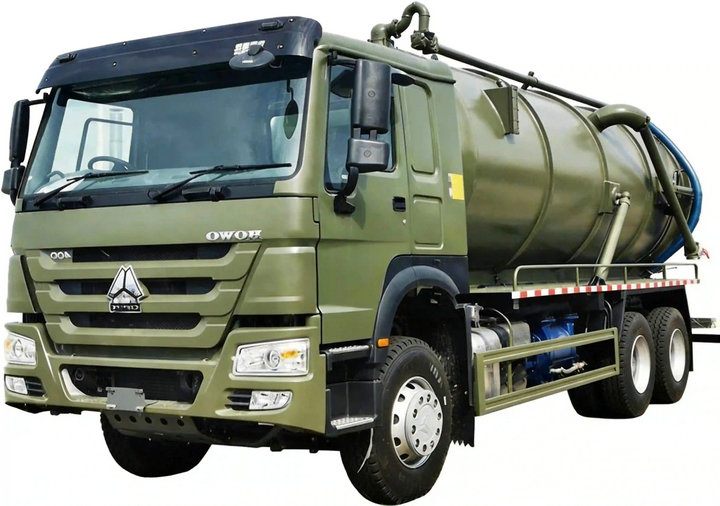

The Howo 14 -20CBM vacuum sucker truck is a heavy-duty waste collection vehicle built on the proven Sinotruk Howo 6×4 chassis. Powered by a 400 HP WP12 .400E diesel engine and fitted with a high-performance 2EBA204 /2BE253 water ring rotary vacuum pump, this truck delivers strong, reliable suction for sludge, sewage, fecal matter, and liquid waste across municipal, industrial, and agricultural job sites.
With a sealed 14,000-20000liter high-strength steel tank and a flexible suction hose system, the Howo vacuum suction truck efficiently pulls waste from septic tanks, sewer lines, lagoons, and drainage pits, then transports it to designated treatment facilities — reducing environmental pollution and maintaining public health.
Key Features & Advantages
Powerful WP12 Diesel Engine — 400 HP (WP12 400E), Euro 2-6 emission standard, proven durability for harsh operating conditions.

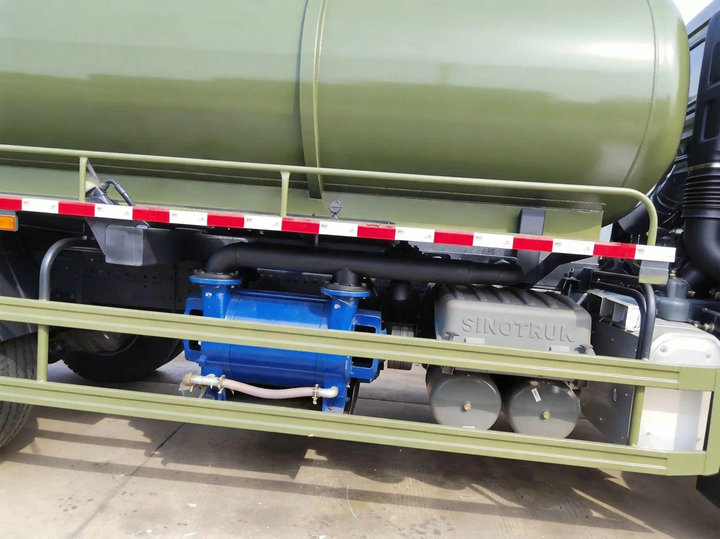

2EBA204 /2BE253 Water Ring Vacuum Pump — rotary vane design generates deep, continuous vacuum suction for fast waste loading.
HW1971 Patented Transmission — 10-speed gearbox, extremely reliable under heavy loads.
HC16 Driving Axle with Hub Reduction — enhanced traction and torque for off-road and rough terrain.
Heavy-Duty Suspension — reinforced leaf spring setup engineered for African and developing-market road conditions.
400L Fuel Tank — extended range for long-distance hauling and remote work sites.

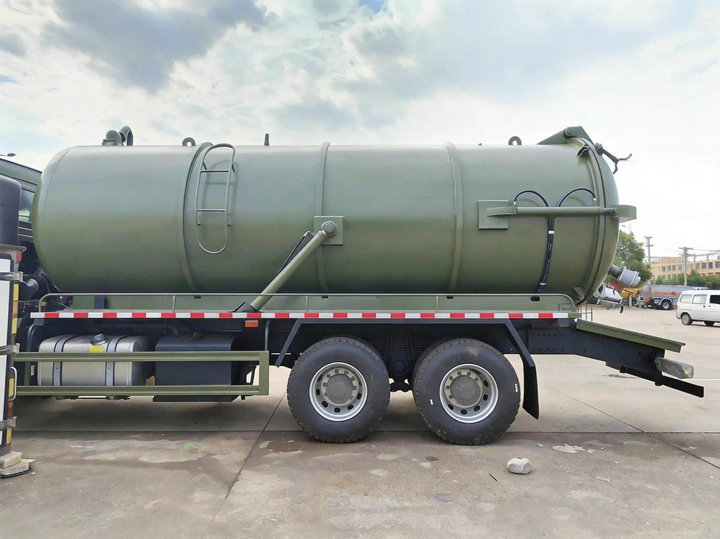

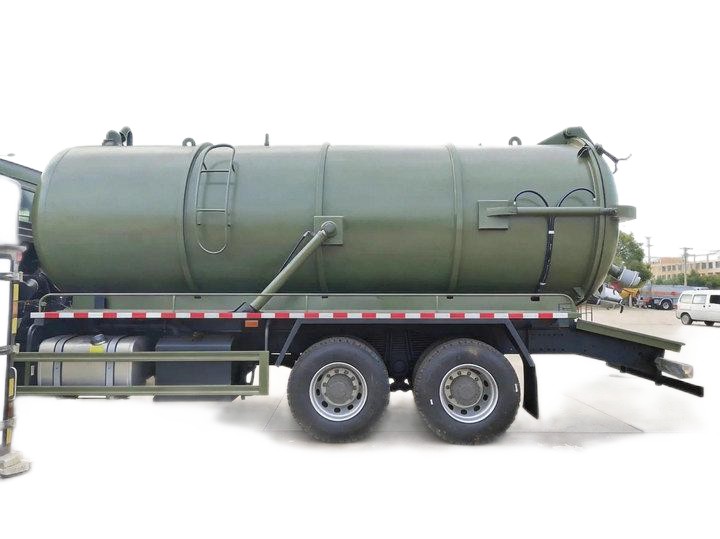

Sealed High-Strength Steel Tank — 14,000 -20000L capacity, withstands high vacuum pressure, corrosion-resistant coating.
Flexible Suction Piping — quick-connect hoses for easy handling and connection to any waste source.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DRZ5290XWZZ |
| Tank Capacity | 14,000 -20000liters (14 -20 CBM) |
| Drive Type | 6×4 |
| Engine Model | WP12 400E |
| Engine Power | 400 HP |
| Emission Standard | Euro 2 /3/5/6 |
| Vacuum Pump | 2EBA204 -2BE253 Water Ring Rotary Vacuum Pump |
| Transmission | HW1971 (10-speed, patented) |
| Driving Axle | HC16 with hub reduction |
| Fuel Tank | 400 L |
| Tank Material | High-strength sealed steel |
| Application | Sewage, fecal sludge, liquid & solid waste |
Applications
The Howo vacuum sucker truck is widely used in:
Municipal sanitation — septic tank cleaning, sewer line maintenance, public toilet emptying
Livestock farms — manure and slurry collection and transport
Agriculture — farmland waste management, biogas digester cleaning
Sewage treatment plants — sludge transfer and waste hauling
Industrial sites — wastewater pit cleaning, factory drainage maintenance
Urban & rural cleaning operations — efficient, energy-saving, environmentally friendly waste removal
Why Choose Our Howo Vacuum Sucker Truck?
Genuine Sinotruk Howo chassis — worldwide parts availability and proven after-sales support.
Factory-direct pricing — competitive export prices from China manufacturer.
Customizable configurations — tank capacity, pump type, and accessories can be tailored to your market.
Export-ready packaging — CKD / SKD / full unit shipping by container or ro-ro vessel.
Global shipping — FOB / CIF / DDP to Africa, Middle East, Southeast Asia, Latin America, and more.
Frequently Asked Questions
Q: What is the maximum suction depth of the 2EBA204 vacuum pump?A: The 2EBA204 / 2BE253 water ring pump supports a suction depth of up to 6–8 meters, suitable for most septic tanks and sewer pits.
Q: Can the tank capacity be changed from 14 -20 CBM?A: Yes. We offer 8 CBM, 10 CBM, 12 CBM, 16 CBM, and 20 CBM configurations on Howo 4×2, 6×4, and 8×4 chassis.
Q: Is the Howo vacuum truck suitable for African road conditions?A: Yes. The HC16 hub-reduction axle, heavy-duty suspension, and high-ground-clearance chassis are specifically designed for rough and unpaved roads.
Q: What payment and shipping terms do you accept?A: We accept T/T, and other negotiated terms. Shipping via container, bulk carrier, or ro-ro to any major port worldwide.
| Feature | Specification |
|---|---|
| Tank Capacity | Customizable (14,000 – 20,000 L) |
| Vacuum Pump | High-efficiency liquid-ring / rotary vane pump |
| Tank Material | Carbon steel / stainless steel (anti-corrosion) |
| Suction Depth | Up to 6 – 10 meters |
| Discharge Method | Hydraulic tipping + gravity / pressure discharge |
| Chassis Options | HOWO, Shacman, Isuzu, Foton, FAW, Dongfeng |
| General Description | |||
| truck model | DRZ290XWZZ | ||
| Cab | HW76 Flat-top single row cab, with power steering. Electronic flameout, A/C | ||
| Driving Type | 6x4Left hand driving | ||
| Max Speed (km/h) | 90 | ||
| Overall dimension(mm) | 9420/10000×2500×3455 | ||
| GVW( kg) | 25000 | ||
| Mass in working order ( kg) | 13575 | ||
| Wheelbase(mm) | 4625+1350 | ||
| F/R track base (mm) | 2022/1830 | ||
| F/R overhang (mm) | 1500/2380 | ||
| Approach/Departure Angel | 16/14 | ||
| Tire | 295/80R22.5 (10+1) | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 10-speed | ||
| Bridge | Front axle | 7T | |
| Rear axle | 13T+13T | ||
| Enging | Model | WP12 . 400E | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled six-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 11596 | ||
| Max output power/rotate speed (kw /rpm ) | 294/1900 | ||
| Max torque/rotate speed(N.m/rpm) | 1350/1100~1600 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper body specification | |||
| Volume of tank | 14 -20m3 | ||
| Color | Painted in the corporation's colours with logo on both front doors as specified by the client | ||
| Material of tanker | 5mm Carbon stell (Q235) | ||
| Special function | Suction height | ≥9(m) | |
| Suction time | 250(S) | ||
| Maximum Inclination Angle | ≥45° | ||
| maximum vacuum | ≥11 MPa | ||
| Lifting time | ≤45 S | ||
| the Cover opening Angle | ≥75° | ||
| The cover opening time | ≤25 S | ||
| Suction pipe | 3m length and 100 mm in diameter | ||
| Hose Racks | Fitted on both sides of tank, to accommodate a minimum of seven hoses each | ||
| Fittings | Four-way change valve fitted to pump | ||
| Drain separator | |||
| vacuum pump | |||
| Fully opening rear door | |||
| Sight glasses at top and bottom of tank | |||
| Ladder: For access to top of tank complete with cat walk on top of tank | |||
| vacuum pump | pump type | 2BEA204 water ring pump | |
| Max Air Flow | 11000L/min | ||
| Time to suction full tank | 12-15 minuted | ||
| Suction Depth | 8 m | ||
| suction pressure (MPa) | 5.4 | ||
| diameter (mm) | 80 | ||
| Brief introduction of function | It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system. | ||
2BEA water rotary vacuum pump specification:
| 2BEA Series Liquid Ring Vacuum Pump — Technical Specifications | |||||||
| Model | Max. Vacuum Degree | Vacuum Speed (m³/h) | Rotating Speed (r/min) | Motor Power (kW) | Motor Model (380V) | Water Flow (m³/h) | Weight (kg) |
| 2BEA 102 | 33 mbar (−0.098 MPa) | 210 | 1450 (Direct) | 5 | Y132M-4 | 300 | |
| 235 | 1300 (Belt) | 5.8 | Y132M-4 | 320 | |||
| 270 | 1625 (Belt) | 6.8 | Y132M-4 | 320 | |||
| 290 | 1750 (Belt) | 8 | Y160M-4 | 350 | |||
| 2BEA 103 | 33 mbar (−0.098 MPa) | 300 | 1450 (Direct) | 7 | Y160M-4 | 350 | |
| 340 | 1300 (Belt) | 8.2 | Y160M-4 | 370 | |||
| 385 | 1625 (Belt) | 9.9 | Y160L-4 | 390 | |||
| 412 | 1750 (Belt) | 11.1 | Y160L-4 | 390 | |||
| 2BEA 153 | 33 mbar (−0.098 MPa) | 600 | 1450 (Direct) | 18.5 | Y180M-4 | 533 | |
| 445 | 1100 (Belt) | 15 | Y160L-4 | 480 | |||
| 540 | 1300 (Belt) | 18.5 | Y180M-4 | 533 | |||
| 660 | 1625 (Belt) | 22 | Y180L-4 | 551 | |||
| 700 | 1750 (Belt) | 30 | Y200L-4 | 601 | |||
| 2BEA 202 | 33 mbar (−0.098 MPa) | 760 | 970 (Direct) | 22 | Y200L2-6 | 0.7–2.1 | 875 |
| 590 | 790 (Belt) | 18.5 | Y180M-4 | 0.57–1.7 | 850 | ||
| 670 | 880 (Belt) | 18.5 | Y180M-4 | 0.63–1.9 | 850 | ||
| 850 | 1100 (Belt) | 30 | Y200L-4 | 0.77–2.3 | 940 | ||
| 890 | 1170 (Belt) | 30 | Y200L-4 | 0.83–2.5 | 945 | ||
| 950 | 1300 (Belt) | 37 | Y225S-4 | 0.9–2.7 | 995 | ||
| 2BEA 203 | 33 mbar (−0.098 MPa) | 1120 | 970 (Direct) | 37 | Y250M-6 | 0.87–2.6 | 1065 |
| 880 | 790 (Belt) | 30 | Y200L-4 | 0.7–2.1 | 995 | ||
| 1000 | 880 (Belt) | 30 | Y200L-4 | 0.77–2.3 | 995 | ||
| 1270 | 1100 (Belt) | 45 | Y225M-4 | 0.97–2.9 | 1080 | ||
| 1320 | 1170 (Belt) | 45 | Y225M-4 | 1.03–3.1 | 1085 | ||
| 1400 | 1300 (Belt) | 55 | Y250M-4 | 1.1–3.4 | 1170 | ||
| 2BEA 252 | 33 mbar (−0.098 MPa) | 1700 | 740 (Direct) | 45 | Y280M-8 | 1.47–4.4 | 1693 |
| 1200 | 558 (Belt) | 30 | Y200L-4 | 1.1–3.3 | 1460 | ||
| 1500 | 660 (Belt) | 37 | Y225S-4 | 1.3–3.9 | 1515 | ||
| 1850 | 832 (Belt) | 55 | Y250M-4 | 1.63–4.9 | 1645 | ||
| 2000 | 885 (Belt) | 75 | Y280S-4 | 1.73–5.2 | 1805 | ||
| 2100 | 938 (Belt) | 75 | Y280S-4 | 1.8–5.5 | 1805 | ||
| 2BEA 253 | 33 mbar (−0.098 MPa) | 2450 | 740 (Direct) | 75 | Y315M-8 | 1.73–5.2 | 2215 |
| 1750 | 560 (Belt) | 45 | Y225M-4 | 1.3–3.9 | 1695 | ||
| 2140 | 660 (Belt) | 55 | Y250M-4 | 1.53–4.6 | 1785 | ||
| 2560 | 792 (Belt) | 75 | Y280S-4 | 1.62–5.0 | 1945 | ||
| 2700 | 833 (Belt) | 90 | Y280M-4 | 1.93–5.8 | 2055 | ||
| 2870 | 885 (Belt) | 90 | Y280M-4 | 2.06–6.2 | 2060 | ||
| 3020 | 938 (Belt) | 110 | Y315S-4 | 2.2–6.5 | 2295 | ||
| 2BEA 303 | 33 mbar (−0.098 MPa) | 4000 | 740 (Direct) | 110 | Y315L2-8 | 3.4–10.1 | 3200 |
| 3200 | 590 (Direct) | 75 | Y315L2-10 | 2.6–7.6 | 3200 | ||
| 2500 | 466 (Belt) | 55 | Y250M-4 | 2.1–6.1 | 2645 | ||
| 2800 | 521 (Belt) | 75 | Y280S-4 | 2.2–6.4 | 2805 | ||
| 3100 | 583 (Belt) | 75 | Y280S-4 | 2.3–6.8 | 2810 | ||
| 3580 | 657 (Belt) | 90 | Y280M-4 | 2.9–8.5 | 2925 | ||
| 4000 | 743 (Belt) | 132 | Y315M-4 | 3.2–9.5 | 3290 | ||
| 2BEA 353 | 33 mbar (−0.098 MPa) | 5300 | 590 (Direct) | 160 | Y355L2-10 | 4.3–12.5 | 4750 |
| 3580 | 390 (Belt) | 75 | Y280S-4 | 2.7–7.9 | 3560 | ||
| 3700 | 415 (Belt) | 90 | Y280M-4 | 3–8.9 | 3665 | ||
| 4100 | 464 (Belt) | 110 | Y315S-4 | 3.4–10 | 3905 | ||
| 4620 | 520 (Belt) | 132 | Y315M-4 | 3.6–10.6 | 4040 | ||
| 5200 | 585 (Belt) | 160 | Y315L1-4 | 3.8–11.2 | 4100 | ||
| 5850 | 660 (Belt) | 185 | Y315L2-4 | 4.8–14 | 4240 | ||
| 2BEA 355 | 160 mbar (−0.085 MPa) | 6200 | 590 (Direct) | 160 | Y355L2-10 | 5000 | |
| 4180 | 390 (Belt) | 90 | Y280M-4 | 3920 | |||
| 4600 | 435 (Belt) | 110 | Y315S-4 | 4150 | |||
| 4850 | 464 (Belt) | 110 | Y315S-4 | 4160 | |||
| 5450 | 520 (Belt) | 132 | Y315M-4 | 4290 | |||
| 5800 | 555 (Belt) | 132 | Y315M-4 | 4300 | |||
| 6100 | 585 (Belt) | 160 | Y315L1-4 | 4350 | |||
| 6350 | 620 (Belt) | 185 | Y315L2-4 | 4450 | |||
| 2BEA 403 | 33 mbar (−0.098 MPa) | 5160 | 330 (Belt) | 132 | Y315M-4 | 5860 | |
| 5700 | 372 (Belt) | 132 | Y315M-4 | 5870 | |||
| 6470 | 420 (Belt) | 160 | Y315L1-4 | 5950 | |||
| 7380 | 472 (Belt) | 200 | Y315L2-4 | 6190 | |||
| 8100 | 530 (Belt) | 250 | Y355M2-4 | 6630 | |||
| 8600 | 565 (Belt) | 280 | Y355L1-4 | — | |||
