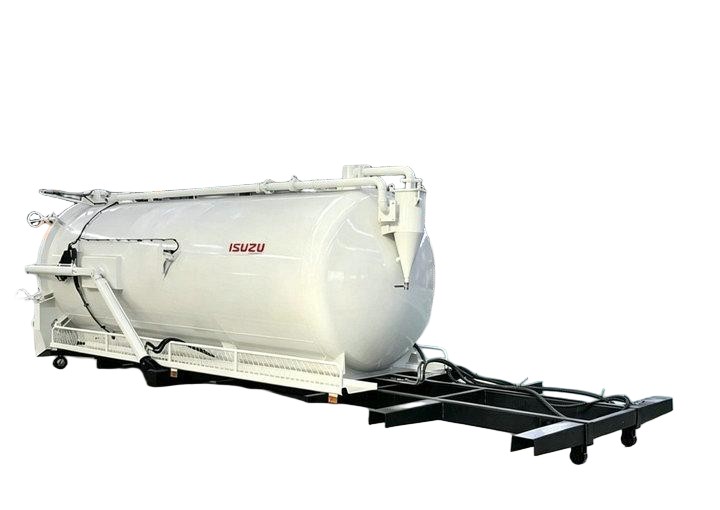

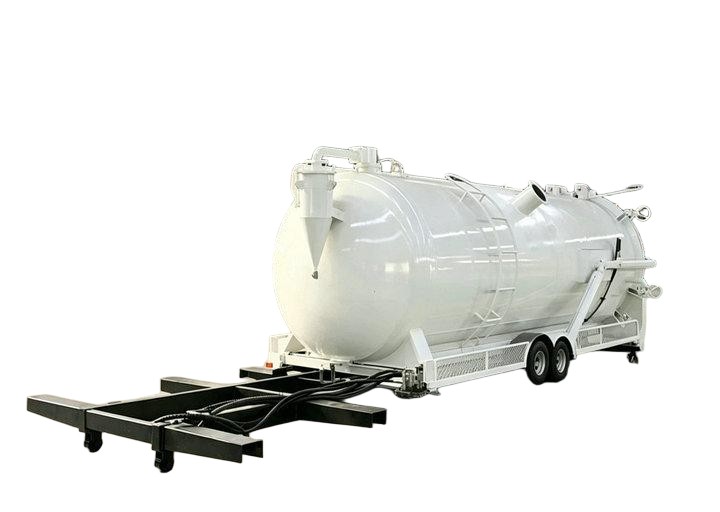

Vacuum Septic Tank Sewage Trucks Body Kit 10000L

Vacuum Septic Tank Sewage Trucks Body Kit 10000L
Tank capacity can be customized 5-20KL
MEC Series Vacuum Pump
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 13800
Discount Price: $ 12800
Availability:
Quantity:

  • DRZ5100GXW

  • DRZ

  • 8705909990

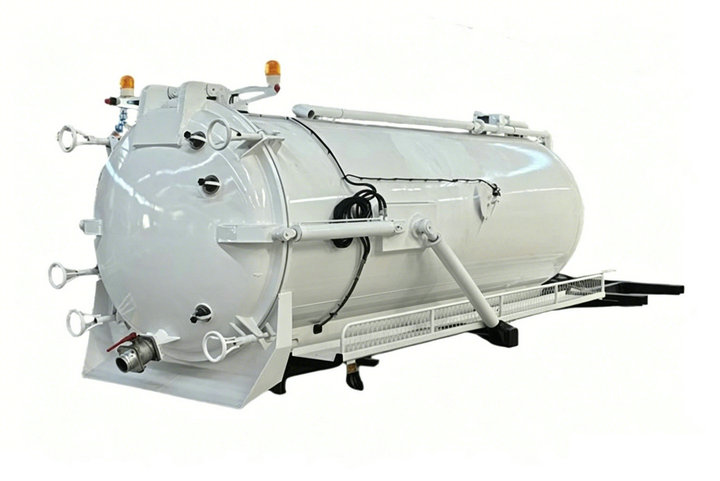

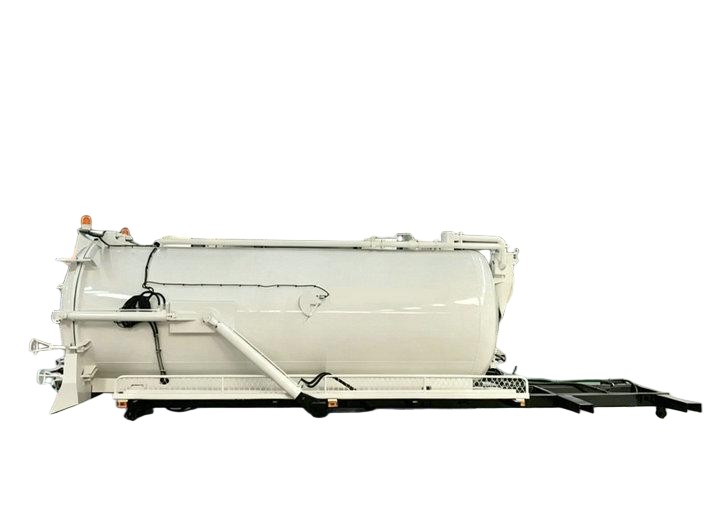

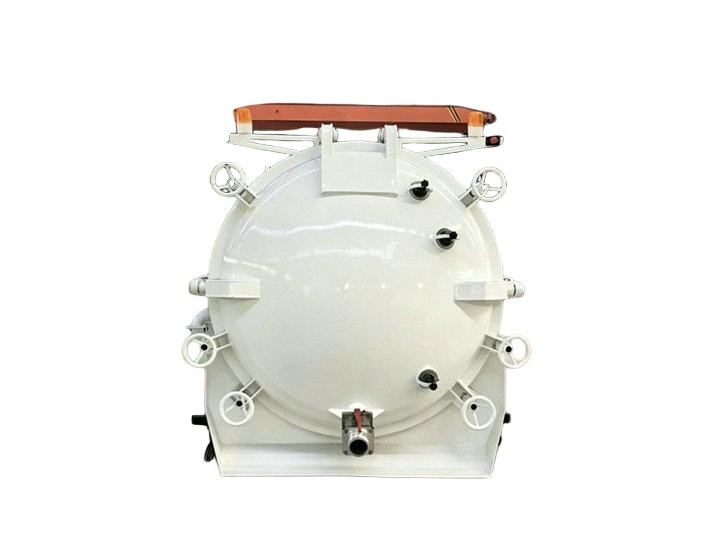

 Vacuum Septic Tank Sewage Trucks Body Kit 10000L

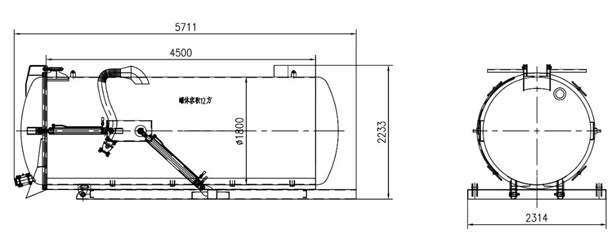

Hooklift Septic Tank Sewage Trucks Body Kit 5KL

10000L Vacuum Truck Tanker Body Kit — ISUZU Sewage Suction Truck Upper Body

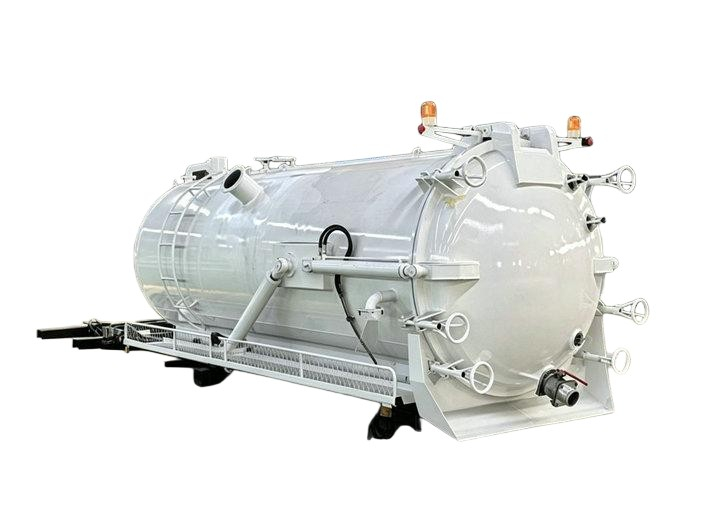

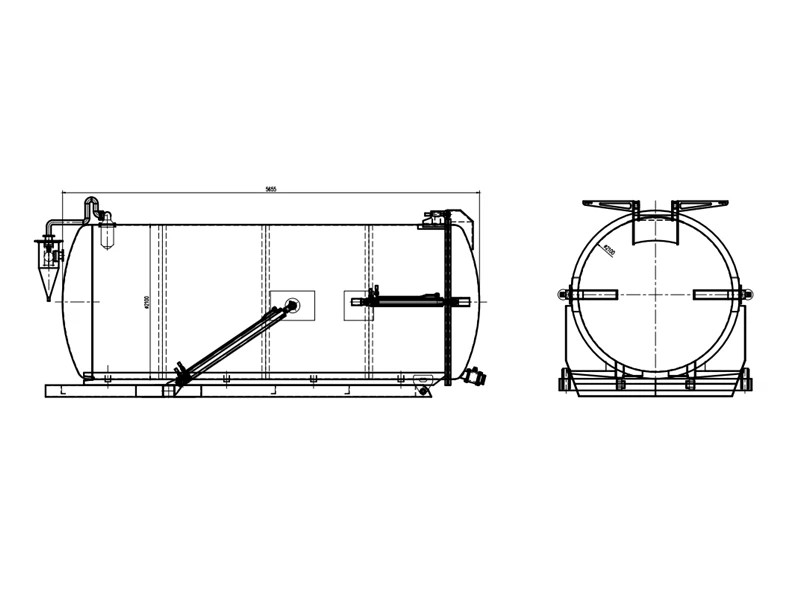

10000L Vacuum Truck Tanker Body Kit (1)

The 10,000L vacuum truck tanker body kit is a purpose-built upper-body assembly designed to mount on an ISUZU 4×2 chassis . It is engineered to collect, transport, and discharge liquid waste — including sewage, sludge, septic tank effluent, crude oil, and semi-solid debris such as stones and bricks.

Ideal for sewer cleaning, cesspit emptying, gully desilting, and municipal sanitation, this vacuum sewage suction tanker body delivers reliable performance in demanding environmental and waste-management applications.


Specification Detail
Model DRZ5100GXW
Tank Capacity 10,000 L (10 m³)
Drive Type 4×2
Engine Power 205 HP
Engine Type ISUZU 4HK1
Vacuum Pump MORO PM80A
Tank Material Q235 carbon steel, 6 mm
Dump Angle Up to 45°

Key Features & Benefits

1. Corrosion-Resistant 10 m³ Tank

The cylindrical tank is constructed from high-quality Q235 carbon steel with a 6 mm wall thickness on both the body and rear cover. Internal wave-breaking baffles reduce liquid surge during transit, enhancing vehicle stability. The tank is divided into sewage and clean-water zones and receives a standard rust-proofing treatment for extended service life.

2. MORO PM80A Vacuum Pump — High-Efficiency Suction

At the heart of the system is the MORO PM80A vacuum pump, delivering:

  • Free air capacity: 424 CFM

  • Max vacuum: 28 inHg

  • Max pressure: 29 PSIG

  • Rotation speed: 1,100 RPM

  • Oil consumption: 0.05 US gal/hr

This pump drives the suction hose deep into sewers, cesspits, and gullies to effectively extract silt, mud, and heavy sludge.

3. Dual Separator Protection

  • Oil-gas separator: Captures oil mist from the vacuum pump exhaust, returning lubricant to the pump for reuse and preventing performance degradation.

  • Water-vapor separator: Removes moisture from extracted gas before it reaches the pump, protecting internal components from water damage and corrosion.

4. Hydraulic Dump & Rear Door System

  • Tank lift angle up to 45° for fast, complete discharge

  • Hydraulically opened rear door with mechanical interlocking lock for safe, sealed operation

  • Rear sewage outlet enables gravity-assisted unloading

5. High-Pressure Cleaning System

A built-in high-pressure cleaner flushes the suction port and pipelines before and after operation, removing residual debris and maintaining unobstructed flow.

6. Safety & Monitoring

  • Liquid level alarm and anti-overflow valve prevent tank overfilling

  • Pressure gauge provides real-time hydraulic system monitoring

  • Access ladder and guardrails ensure safe top-deck operation


Standard Configuration

Component Specification
PTO Equipped
Gear pump China famous brand
Multi-way valve Equipped
Hydraulic cylinders 4 sets
Hydraulic oil tank Standard
High-pressure cleaner Standard
Drive shaft Standard
Oil-gas separator Standard
Water-gas separator Standard
Pressure gauge Standard
Suction pipe Standard
Liquid level alarm Standard
Anti-overflow valve Standard
Suction hose Standard
Drain valve Standard

Applications

  • Municipal sewer cleaning and maintenance

  • Septic tank and cesspit emptying

  • Gully and catch-basin desilting

  • Industrial wastewater transfer

  • Crude oil and oily water collection

  • Construction site sludge removal

  • Environmental sanitation and waste management


Why Choose Our Vacuum Truck Tanker Body Kit?

  • OEM / ODM customization — tank volume, material, pump brand, painting, and logo tailored to your requirements

  • Proven components — MORO vacuum pumps, ISUZU-compatible chassis integration

  • Rigid quality control — automatic machine welding, pressure testing, rust-proof treatment

  • Global export experience — shipped to sanitation fleets and contractors worldwide


Hot Tags

10,000L vacuum truck tanker body kit, vacuum sewage suction truck upper body, ISUZU sewage tank truck body, MORO PM80A vacuum pump truck, 10 cubic meter sewer suction tanker, hydraulic dump vacuum truck kit, China vacuum truck body manufacturer, septic tank pump truck upper body, 4×2 sewage suction truck assembly, custom vacuum tanker body factory


Need a quote or custom configuration? Send an inquiry with your chassis model, required tank volume, and target market — our engineering team will respond within 24 hours.

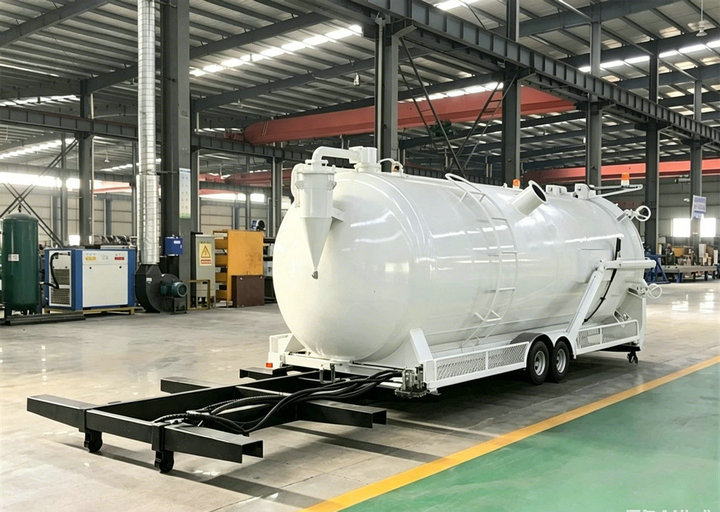

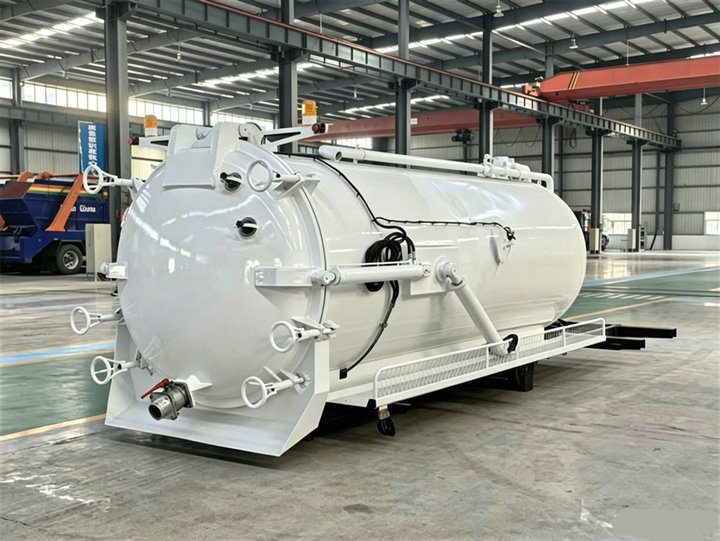

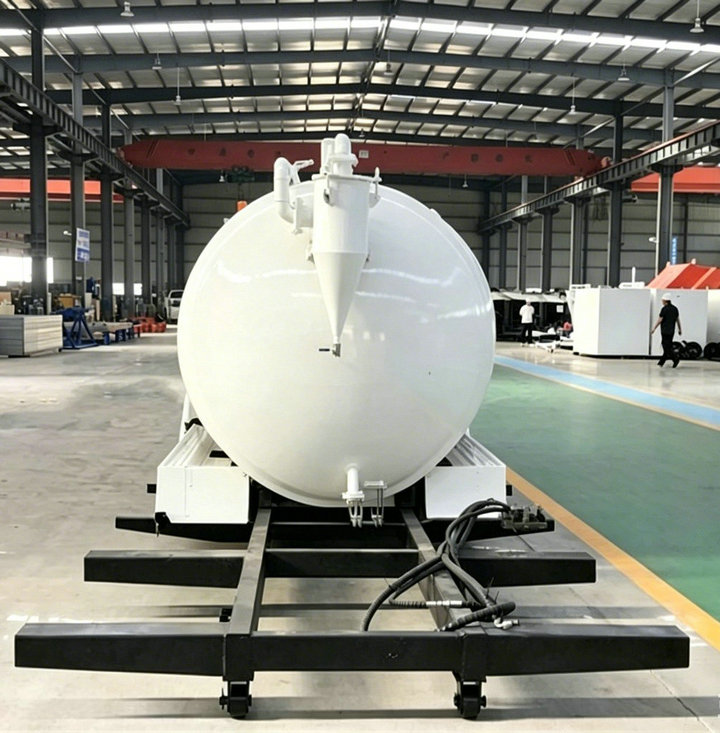

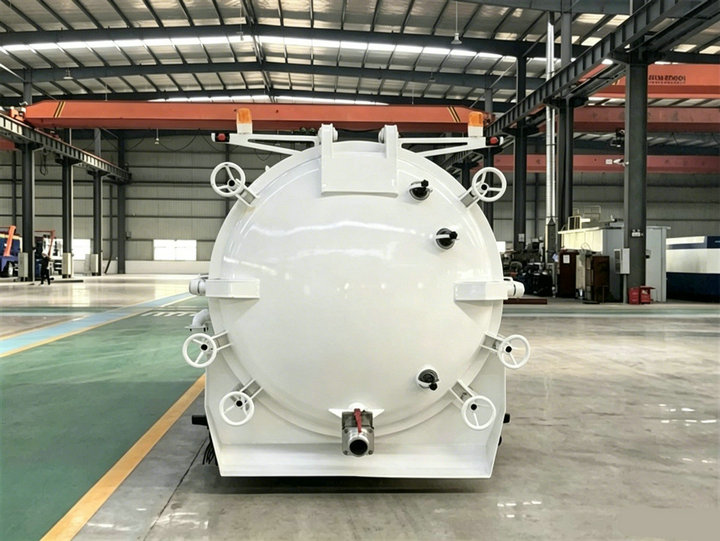

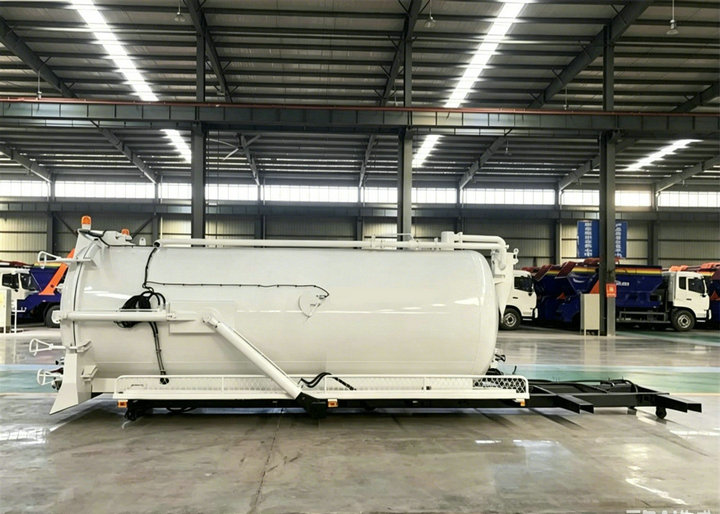

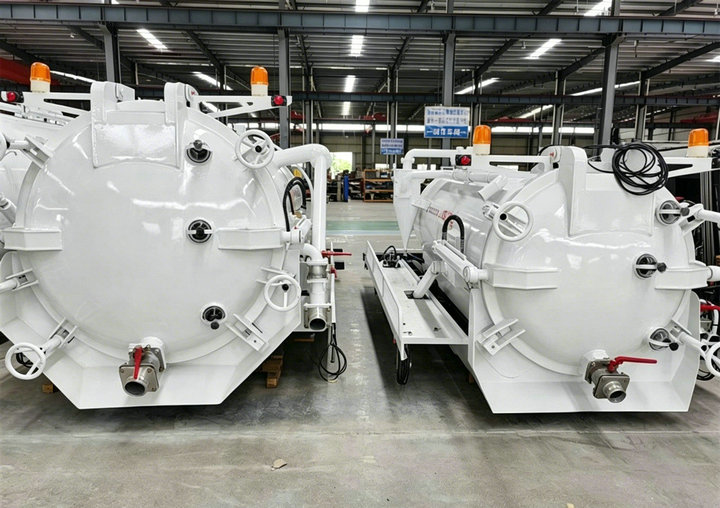

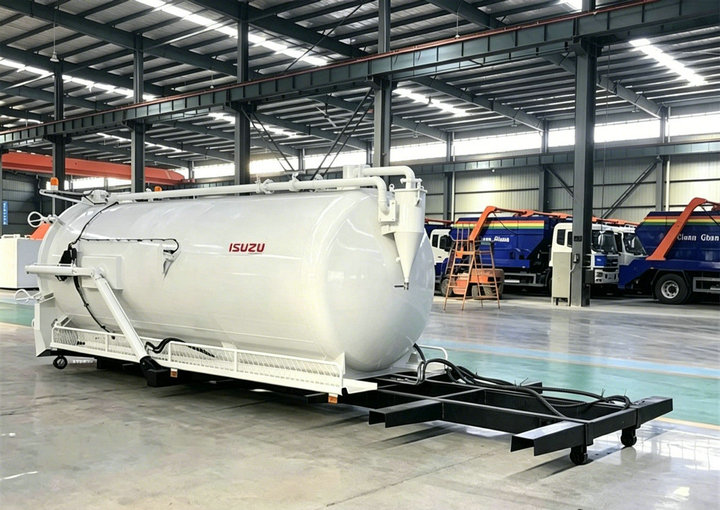

10000L Vacuum Truck Tanker Body Kit (10)10000L Vacuum Truck Tanker Body Kit (3)10000L Vacuum Truck Tanker Body Kit (8)10000L Vacuum Truck Tanker Body Kit (6)10000L Vacuum Truck Tanker Body Kit (5)10000L Vacuum Truck Tanker Body Kit (9)10000L Vacuum Truck Tanker Body Kit (7)
