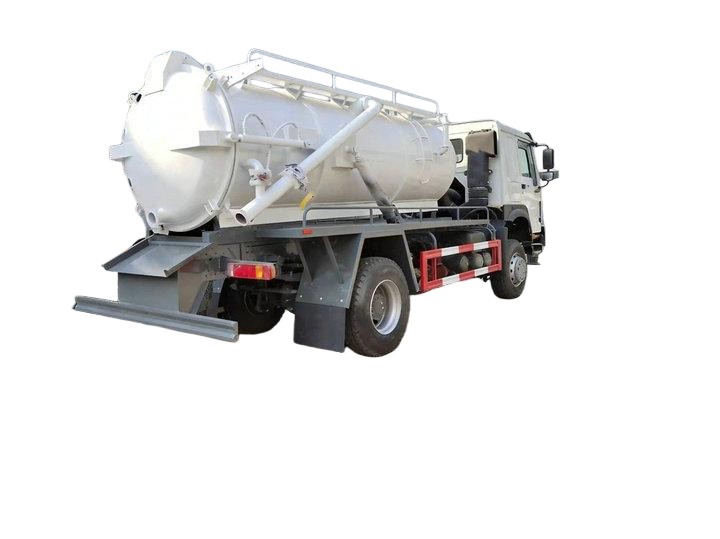

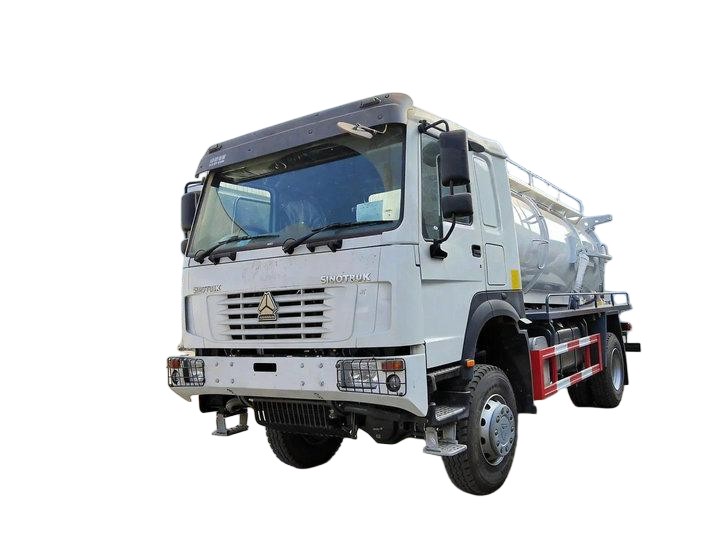

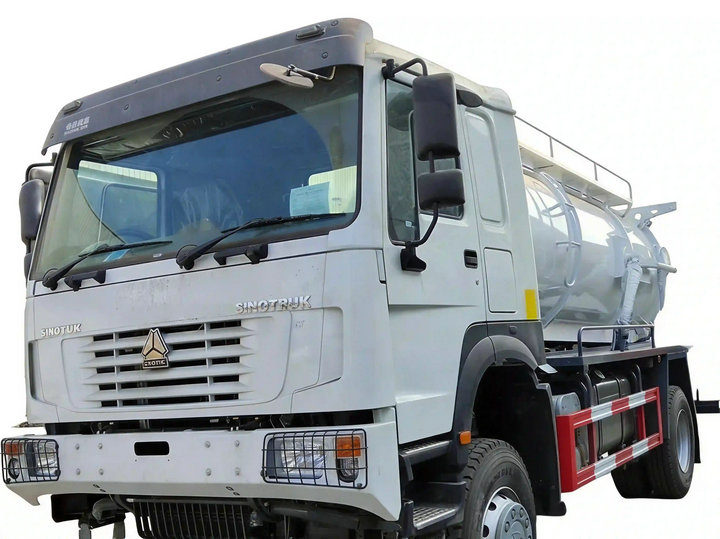

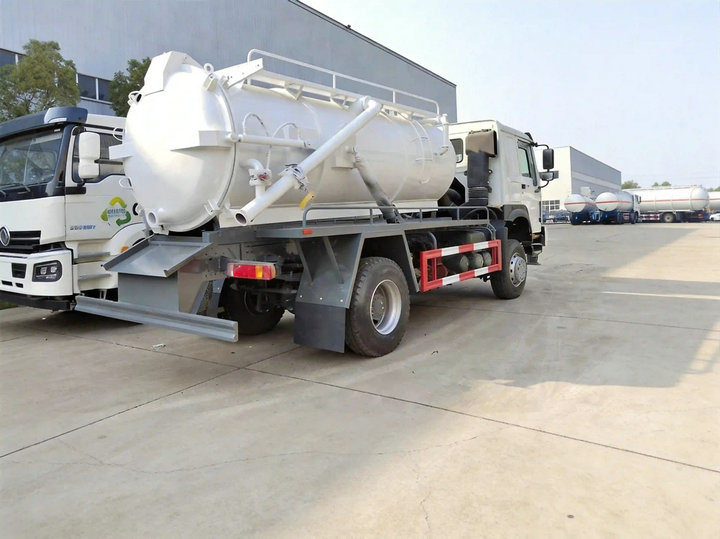

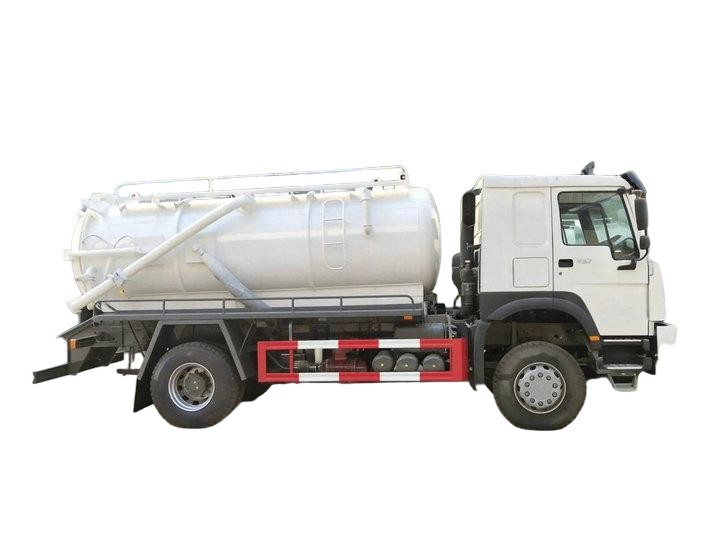

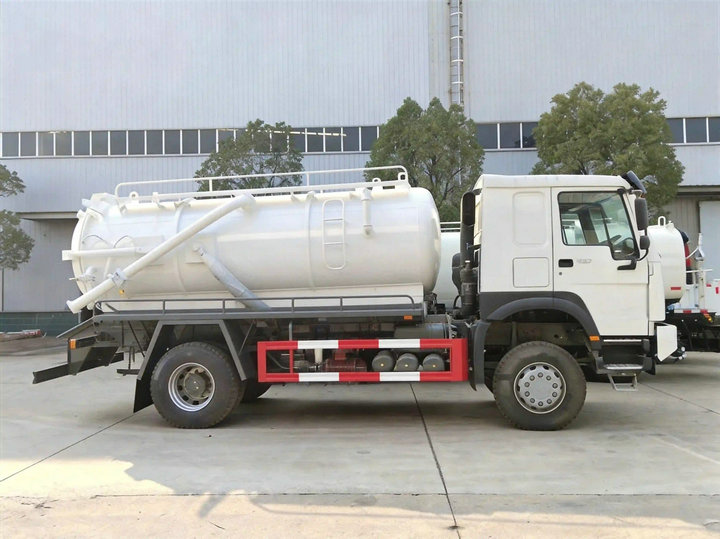

HOWO 4×4 Sewage Suction Truck 10,000L Off-Road Vacuum Tanker
The HOWO 4×4 Sewage Suction Truck (Model: DRZ5100GXFZZ) is a heavy-duty vacuum tanker purpose-built for sewage collection, transportation, and disposal in demanding environments.
SINOTRUK HOWO 4×4 off-road chassis, this truck delivers reliable performance on construction sites, rural areas, and municipal facilities where standard 4×2 vehicles cannot reach.
Powered by a Weichai WP10.300E22 diesel engine (300 HP) and paired with a reinforced chassis, the truck handles heavy loads and rough terrain with confidence. The 10,000-liter Q235 carbon steel tank is corrosion-resistant and leak-proof, while the high-efficiency vacuum pump (96% vacuum rate, 45 L/s suction speed) ensures fast, spill-free loading and unloading.
| Item | Specification |
|---|---|
| Model | DRZ5100GXFZZ |
| Tank Capacity | 10,000 liters (10 cbm) |
| Drive Type | 4×4 |
| Engine | Weichai WP10.300E22, 300 HP, Diesel, Euro III |
| Emission Standard | Euro III |
| Condition | New |
3. Product Description (Keyword-Rich Body)
Key Features & Benefits
Off-Road 4×4 Capability
The permanent 4-wheel drive system provides superior traction on muddy roads, steep slopes, and unpaved construction sites. Whether operating in urban sewer networks or remote mining areas, the HOWO 4×4 sewage truck maintains stable maneuverability where two-wheel-drive tankers get stuck.
High-Efficiency Vacuum System

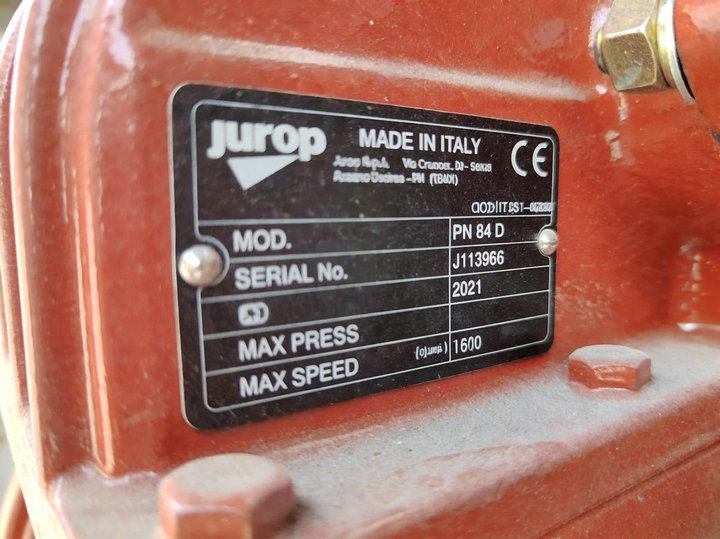

Equipped with a premium vacuum pump (China famous brand or Italy brand optional), the truck achieves a 96% vacuum rate with a suction speed of 45 L/s and a 6-meter suction lift. Low RPM operation reduces noise and extends service life while maintaining high vacuum performance.
Durable Tank Construction

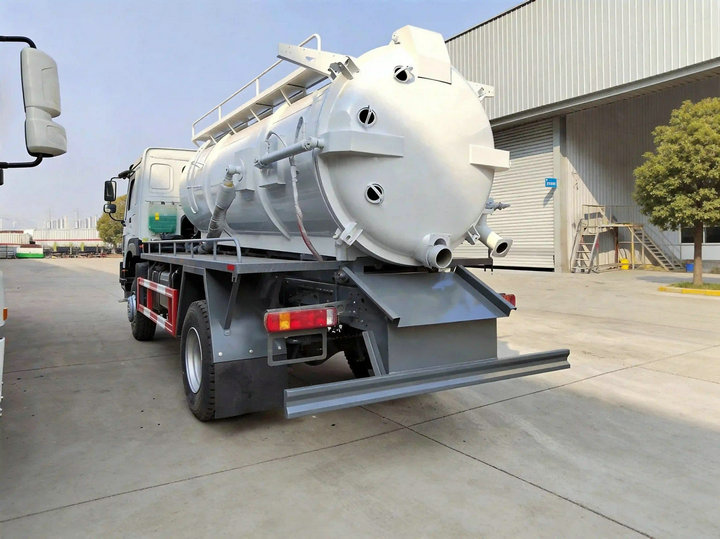

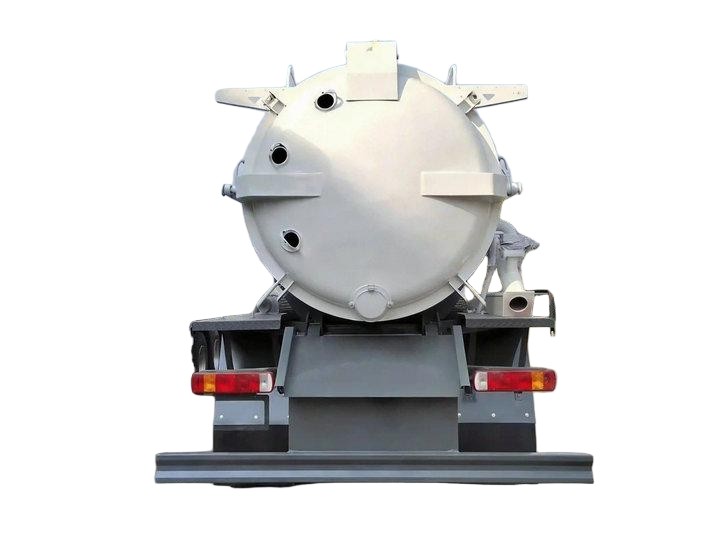

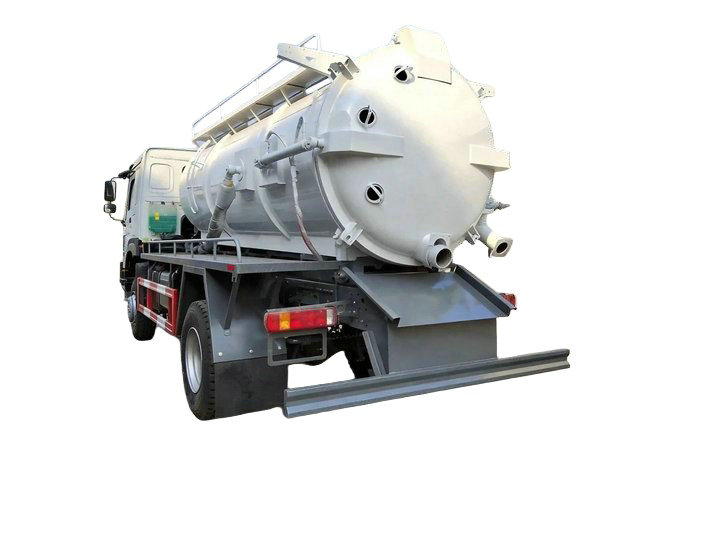

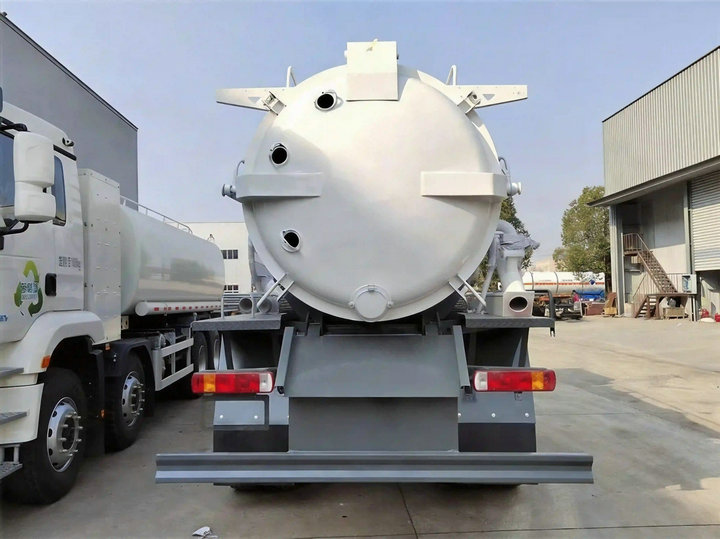

The sewage tank is fabricated from Q235 carbon steel (stainless steel optional) with welded seams tested for leakage resistance. The rear door opens hydraulically, allowing complete discharge of solid sludge and debris.
Safety & Operator Comfort

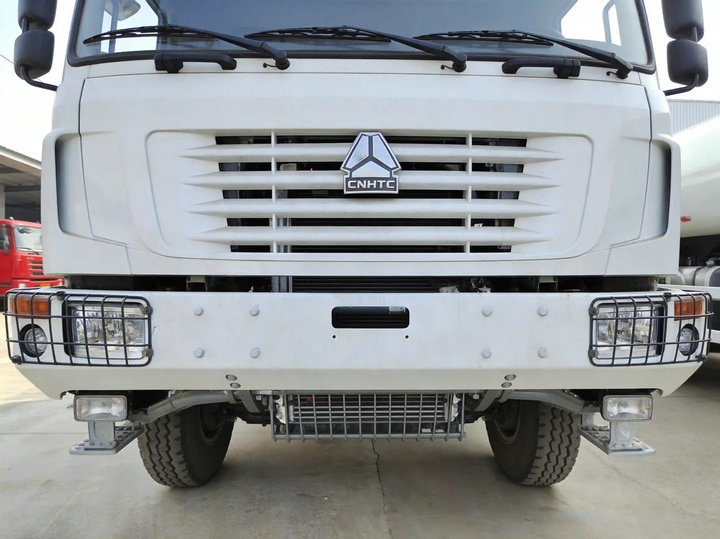

Long-row 100W warning light on cab roof + rear work light
Aluminum alloy rolling shutters on both equipment compartments with interior lighting
Air-conditioned cab seating 3 persons
Power steering with hydraulic assistance
Air brakes with reinforced diaphragm clutch
4. Technical Specifications
Chassis & Drivetrain
| Parameter | Value |
|---|---|
| Chassis Brand | SINOTRUK HOWO |
| Drive Type | 4×4 |
| Curb Weight | 16,000 kg |
| Wheelbase | 4,600 mm |
| Overall Dimensions | 8,800 × 2,500 × 3,200 mm |
| Front/Rear Axle Load | 6,000 / 10,000 kg |
| Wheel Track (Front/Rear) | 1,503 / 1,494 mm |
| Front/Rear Overhang | 1,185 / 1,285 mm |
| Approach/Departure Angle | 20° / 14° |
| Max Speed | 95 km/h |
| Clutch | Reinforced diaphragm clutch |
| Brakes | Air brake |
| Steering | Power steering, hydraulic with power assistance |
| Tires | 14.00R20 radial, super wearable (6 pcs + 1 spare) |
| Transmission | Manual, 6 forward + 1 reverse |
| Cab | 3-person, air-conditioned |
Engine
| Parameter | Value |
|---|---|
| Engine Brand | Weichai |
| Model | WP10.300E22 |
| Fuel Type | Diesel |
| Horsepower | 300 HP |
| Emission Standard | Euro III |
Sewage Suction System
| Parameter | Value |
|---|---|
| Tank Capacity | 10,000 L (10 cbm / 2,640 gallons) |
| Tank Material | Q235 carbon steel (stainless steel optional) |
| Vacuum Pump | China famous / Italy brand |
| Vacuum Rate | 96% |
| Suction Speed | 45 L/s |
| Suction Lift | 6 m |
| Inlet/Outlet Hose | 6 m / 7 m / 9 m / 15 m (optional) |

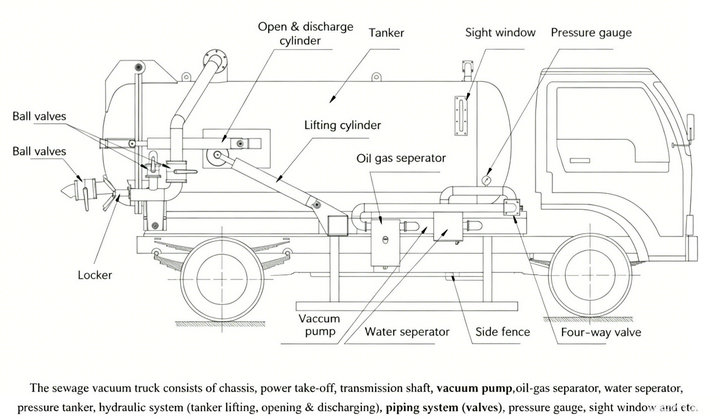

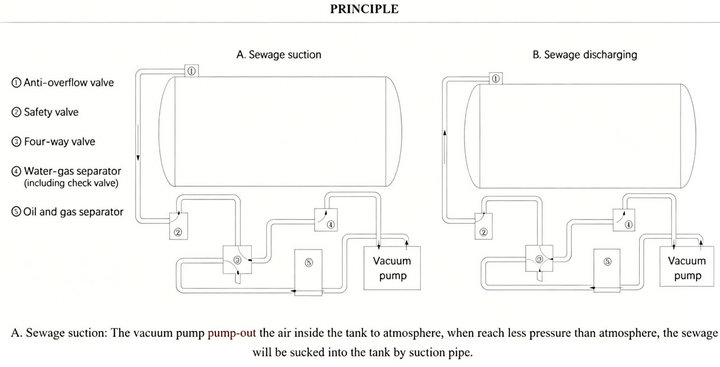

| Key Components | Water-gas separator, oil-gas separator, four-way valve |
Optional Configurations
Tank capacity: 8,000 L / 10,000 L
Drive type: 4×2 / 4×4 / 6×4 / 6×6 / 8×4
Tank material: Carbon steel / stainless steel
Color: Customizable
Rear door: Hydraulic opening for solid sludge discharge
5. Applications
Typical Applications
Municipal Sewage Management — Clearing septic tanks, sewer lines, and sewage treatment plants in urban and suburban areas.
Construction Site Dewatering — Removing slurry and wastewater from excavation pits and tunneling projects.
Industrial Waste Transport — Hauling liquid industrial waste to designated treatment facilities.
Off-Road & Remote Operations — Mining camps, oil fields, and rural communities where paved roads are unavailable.
6. Why Choose This HOWO 4×4 Sewage Truck
Genuine SINOTRUK HOWO chassis — proven durability and global parts availability
Weichai diesel engine — high torque, reliable, fuel-efficient
4×4 off-road capability — works where 4×2 tankers cannot
96% vacuum rate — faster loading, less downtime
Factory-direct pricing — competitive FOB/CIF terms from China manufacturer
Customizable configuration — tank size, material, pump brand, and accessories tailored to your market
| DRZ5100GXFZZ | New condition/Left hand drive/4x4 | ||
| Chassis | Brand | Howo | |
| Curb weight(kg) | 16000kg | ||
| Wheelbase(mm) | 4600 mm | ||
| Dimensions(mm) | 8800*2500*3200 mm | ||
| Front/Rear Axle loading(kg) | 6000/10000 kg | ||
| Wheel track (front/rear) (mm) | 1503/1494 mm | ||
| Front/Rear overhang(mm) | 1185/1285mm | ||
| Approach/Departure angle(°) | 20/14 | ||
| Max. driving speed(km/h) | 95 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Air brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 14.00R20,radial tire,super wearable | ||
| Transmission | Manual type, 6 Forwards and 1 reverse | ||
| Cab | It can accommodate three people. With Air Conditioner | ||
| Brand | Weichai engine | ||
| Fuel type | Diesel | ||
| Engine | Horsepower(HP) | 266hp | |
| Emission standard | Euro III | ||
| Sewage Suction & Cleaning System | |||
| Sewage tank | Capacity(cbm/liters) | 8cbm/8000 liters/2100 gallons/10cbm/10000liters | |
| Tank material | Q235 carbon steel | ||
| Vacuum pump | China famous brand/Italy brand,powerful vacuum pump,vacuum rate 96%,suction speed: | ||
| 45L/s,suction lift:6m,low RPM,low nioise,high efficiency and high vacuum | |||
| Inlet and Outlet pipe | 6m/7m/9m/15m | ||
| Main parts | 1. Water-gas separator | ||
| 2. Oil-gas separator | |||
| 3. Four way valve | |||
| Remarks | 1.The color is optional; | ||
| 2.Rear door can be hydrualic opened for discharging completely of solid | |||
| stuff. | |||
| 3.Tank material can be carbon steel or stainless steel | |||
