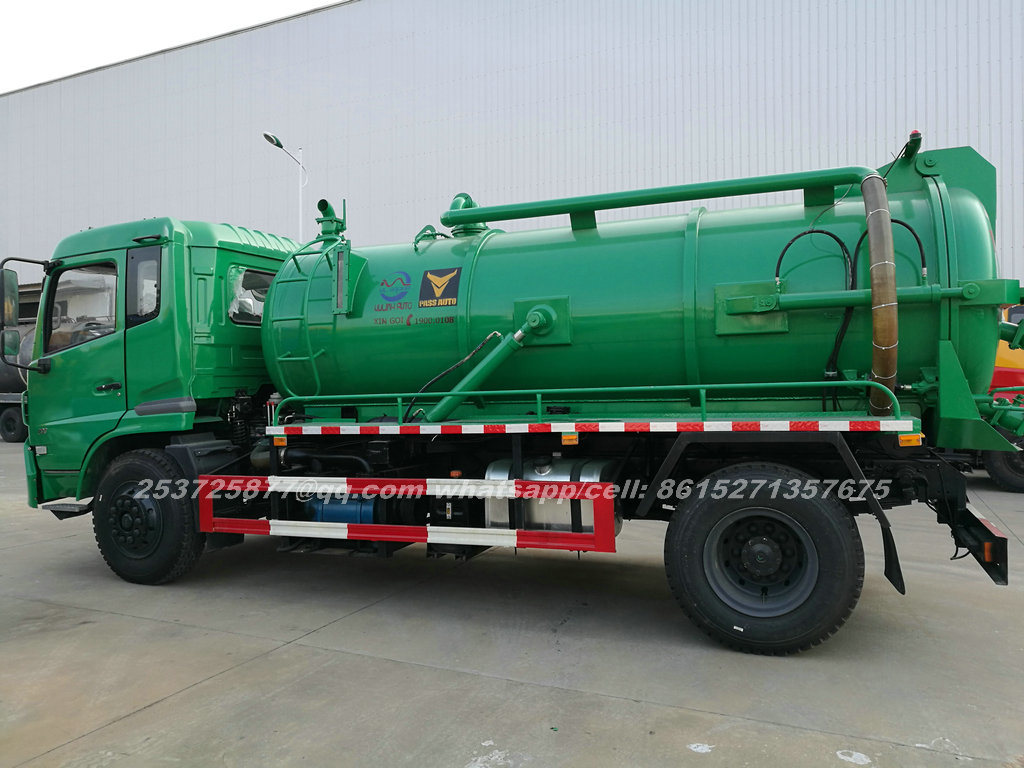

High Capacity 10m3 10000L Diesel Vacuum Tanker Truck
| Quantity: | |
|---|---|
-
DRZ5160
-
DF
-
8705
-
Shanghai, China
-
800
-
T/T
Samll 4000L - 5000L LHD/RHD Fecal suction truck sale
CONTACT US
Cellphone: (+86)15271357675
Website: www.truckinchina.com
Hubei Dong Runze Special Vehicle Equipment Co., Ltd.
Detailed Product Description
Type: | 4 X 2 Sewage Suction Tanker Truck | G. V. W. ( Kg ): | 16000 |
| Wheelbase (mm): | 4500 | Tire & Quantity: | 10.00R20 & 6+1 |
| Engine: | YC4E160-33 | Maximum Power: | 118kw/160hp |
| Tank Material: | Q235 Carbon Steel | Tank Volume (L): | 10000 |

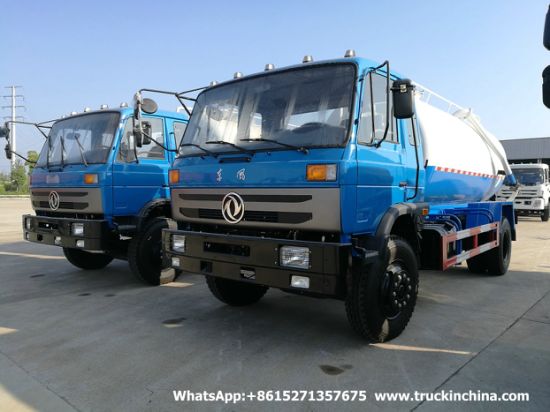

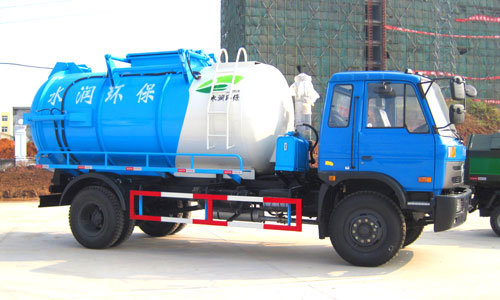

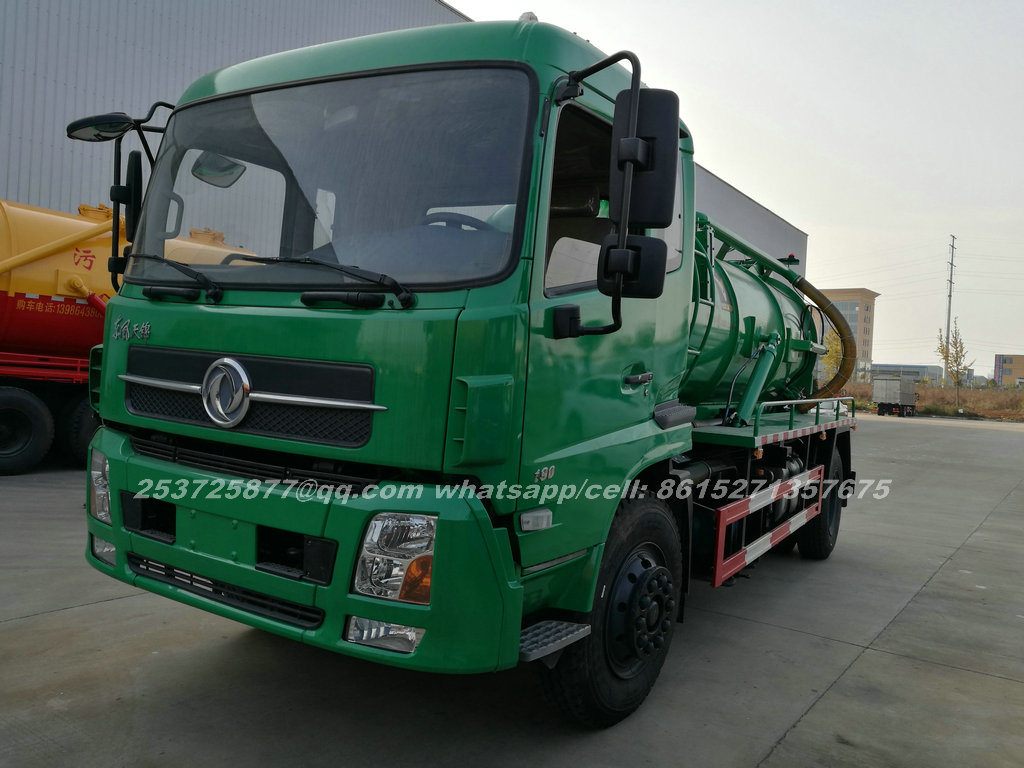

4 X 2 Dongfeng Vacuum Tank Truck 10M3 10000L Sewage Suction Tanker Truck
Product Description:
Sewage suction truck is to collect, clean up the transport, sewage sludge, and avoid the secondary pollution of sanitation vehicles, new USES the vacuum pump, the suction, suction cjay, suitable for use in a sewer in the warp, excrement and urine, mud, oil and other liquid material pump, the loading and unloading.
1.Product Parameter:
Products Technical Specification | |
Type | 4 * 2 Sewage Suction Truck |
Brand | Dongfeng |
Cab | One and half row |
Vehicle Description | |
Overall dimensions (mm) | 7300 * 2490 * 3350 |
G.V.W (kg) | 16000 |
Curb weight(vehicle) (kg) | 8405 |
Loading capacity (kg) | 8000-10000 |
Max speed (Km/h) | 90 |
Engine Description | |
Engine model | YC4E160-33 |
Maximum power | 118kw / 160hp |
Displacement (L) | 4.26 |
Chassis Description | |
Chassis Model | EQ1168GLJ3 |
Wheel base (mm) | 4500 |
F / R track base (mm) | 1900 / 1800 |
F / R overhang (mm) | 1250 / 2100 |
Approach/Departure angle (°) | 30 / 26 |
Spring plate | 9 / 11+8 |

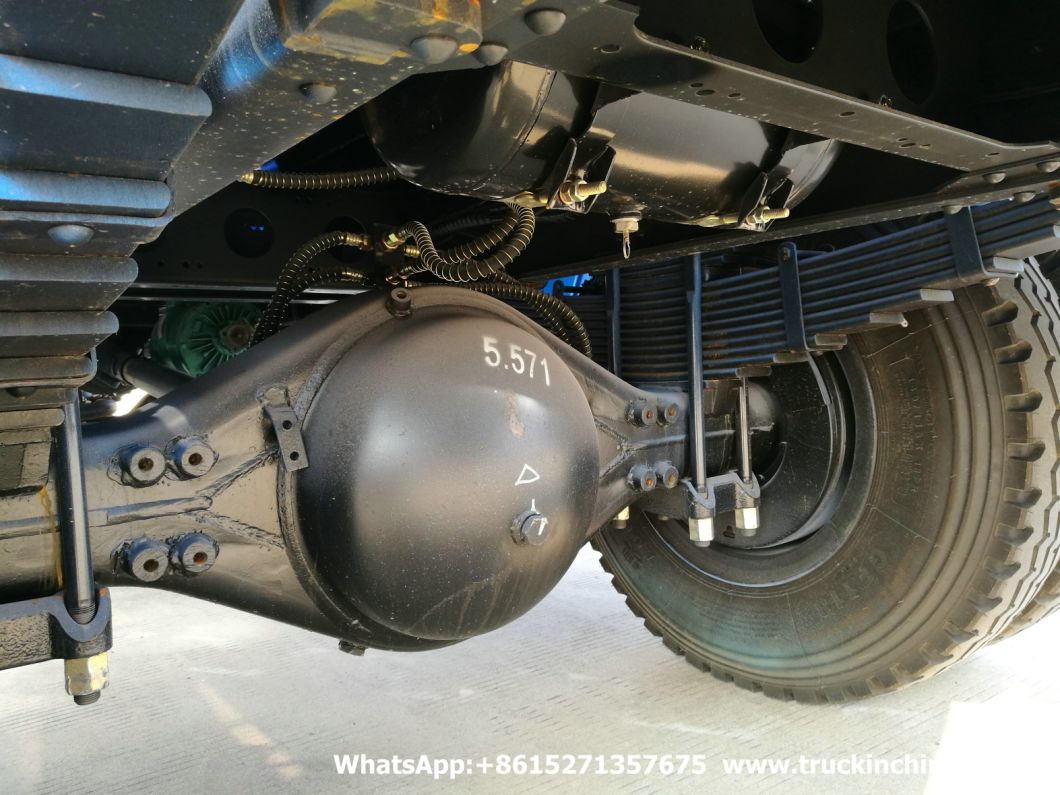

Front axle / rear axle load capacity (kg) | 6000 / 10000 |
Type of fuel | Diesel |
Gear box | 6-speed with over drive |
Brake system | Air braking |
Operation control system | Power steering wheel |
Electric system | 24V |
Tires&Tire quantity | 10.00R20 & 6+1 |
Sewage Suction Tank Description | |
Tank volume (m3) | 10 m3 |
Tank material | Q235 Carbon Steel |
Thickness (mm) | Tank body:5mm End plate:6mm |
The max.inclined angle | ≥ 45° |
Tank lifting time | ≤ 45s |

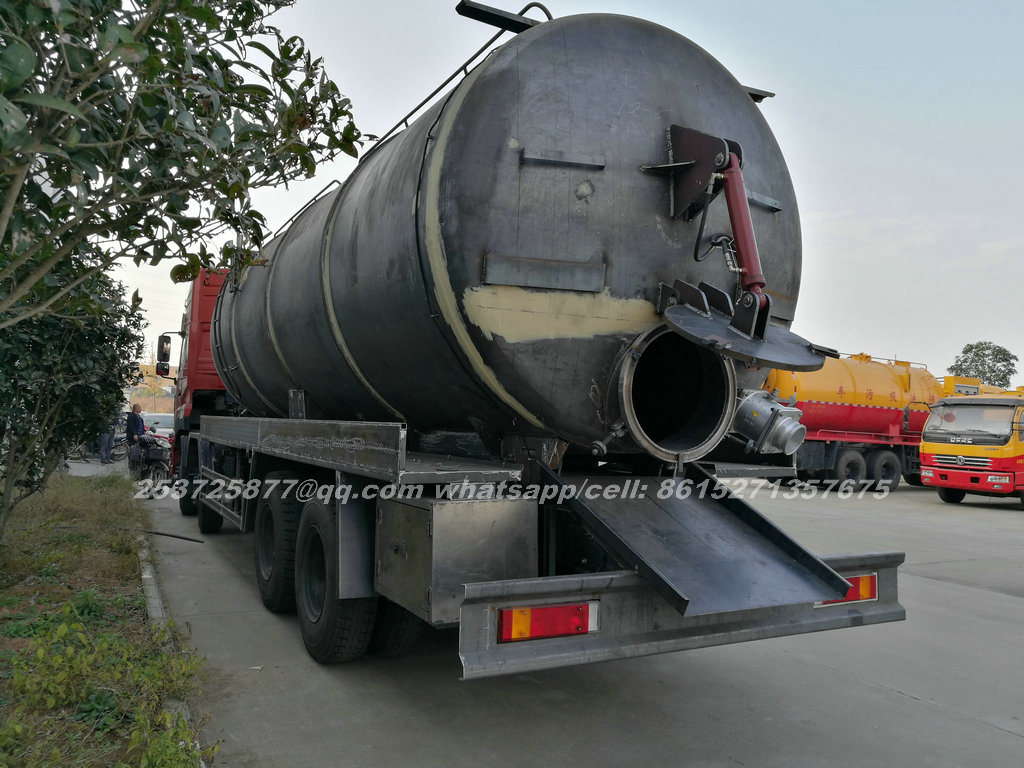

Rear cover open angle | ≥ 75° |
Rear cover open time | ≤ 25s |
Vacuum pump model | 68 / 400 |
Vacuum pump manufacture | Yifeng Suizhou |
Absolute vacuum pressure | ≤ 0.007Mpa |
Effective absorption distance | ≥ 5M |
The suction pipe diameter | 100 mm |

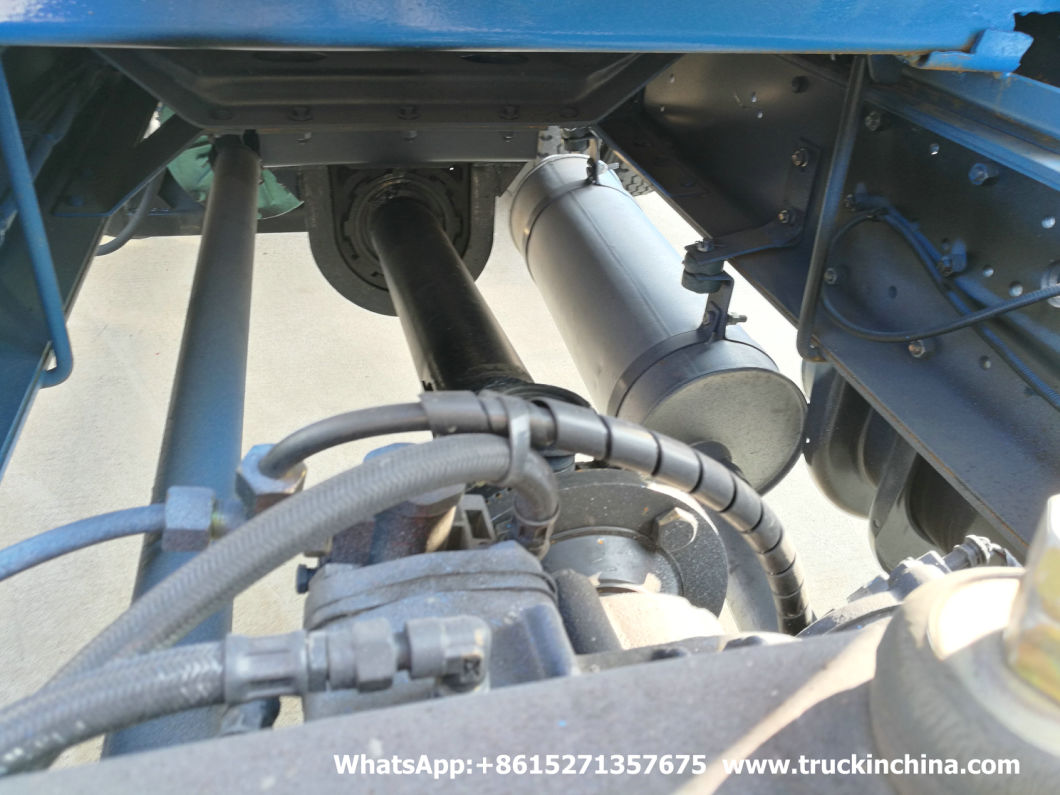

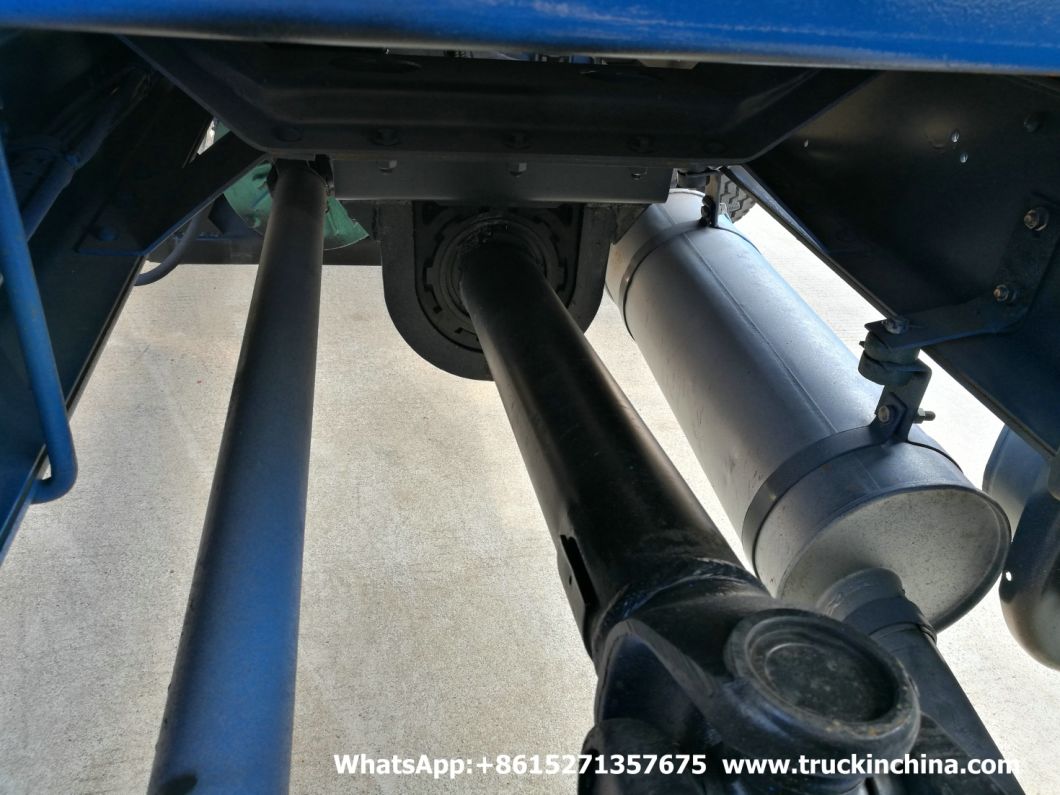

Power takeoff form | Sandwich power takeoff,full-power output |

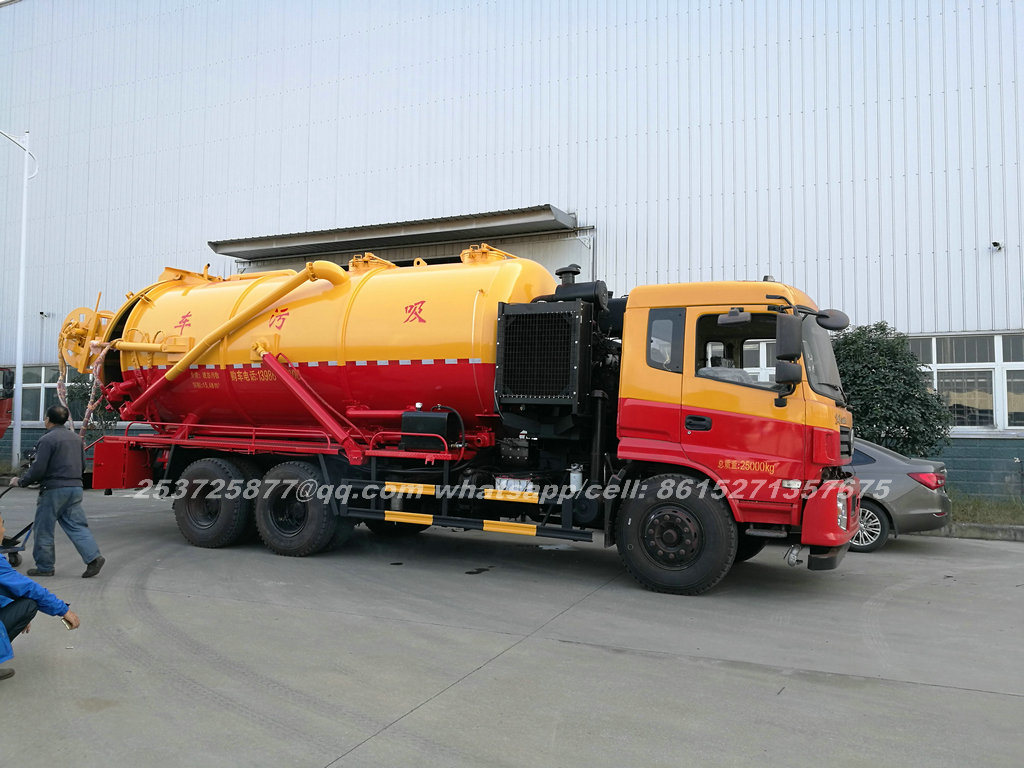

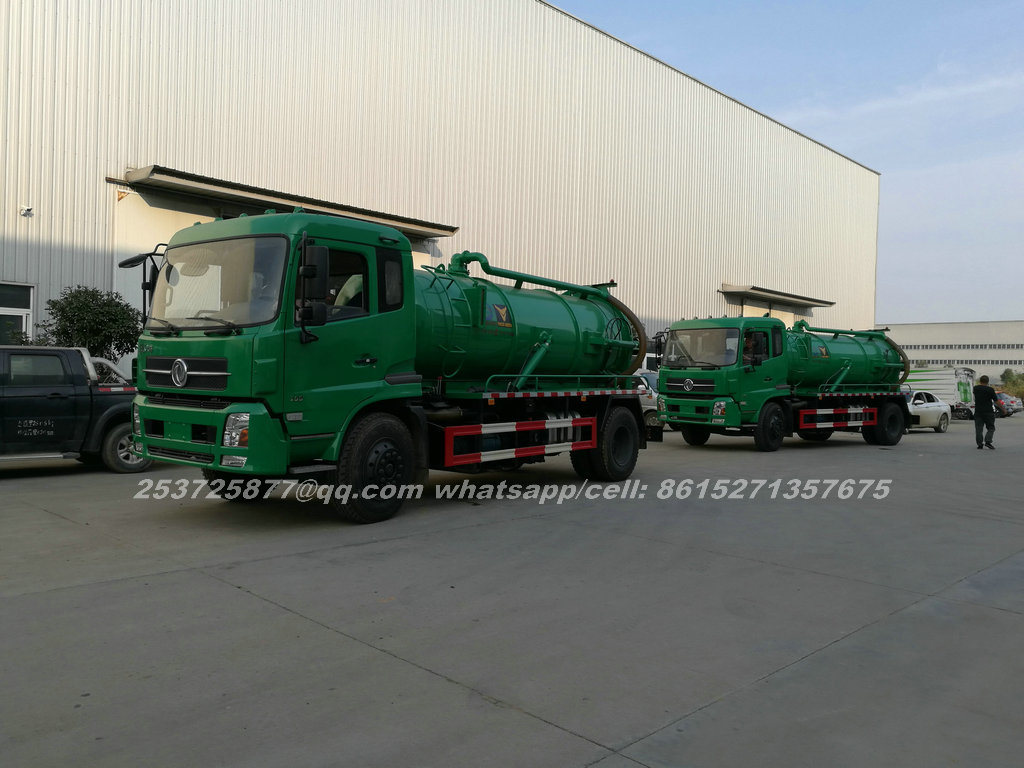

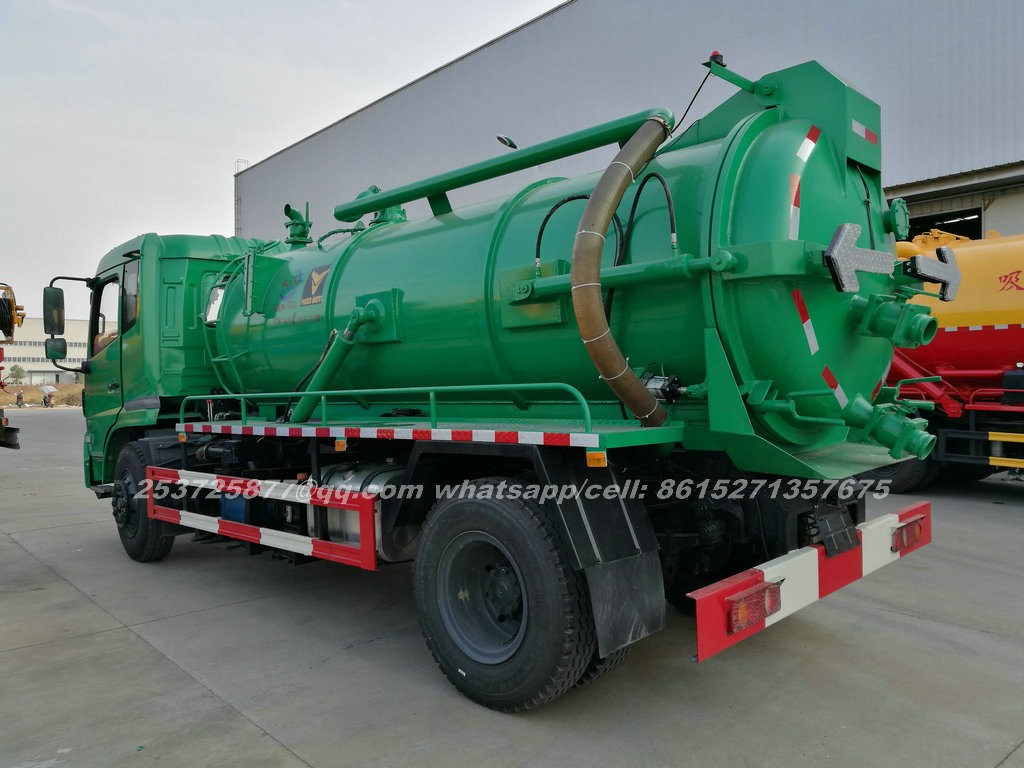

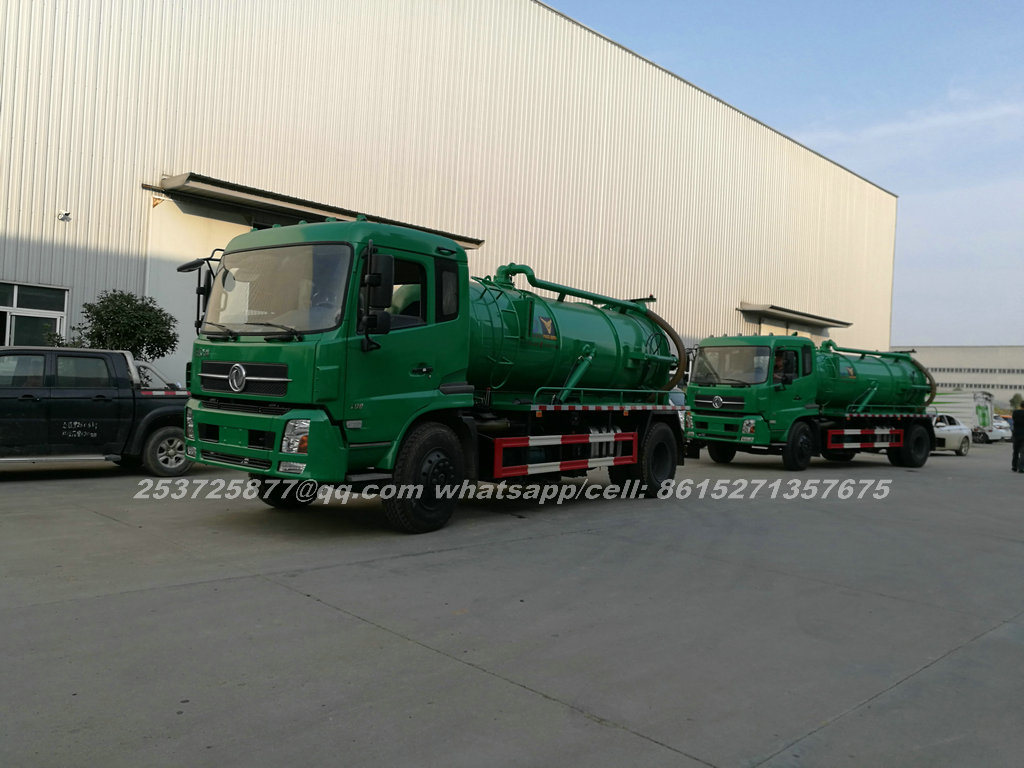

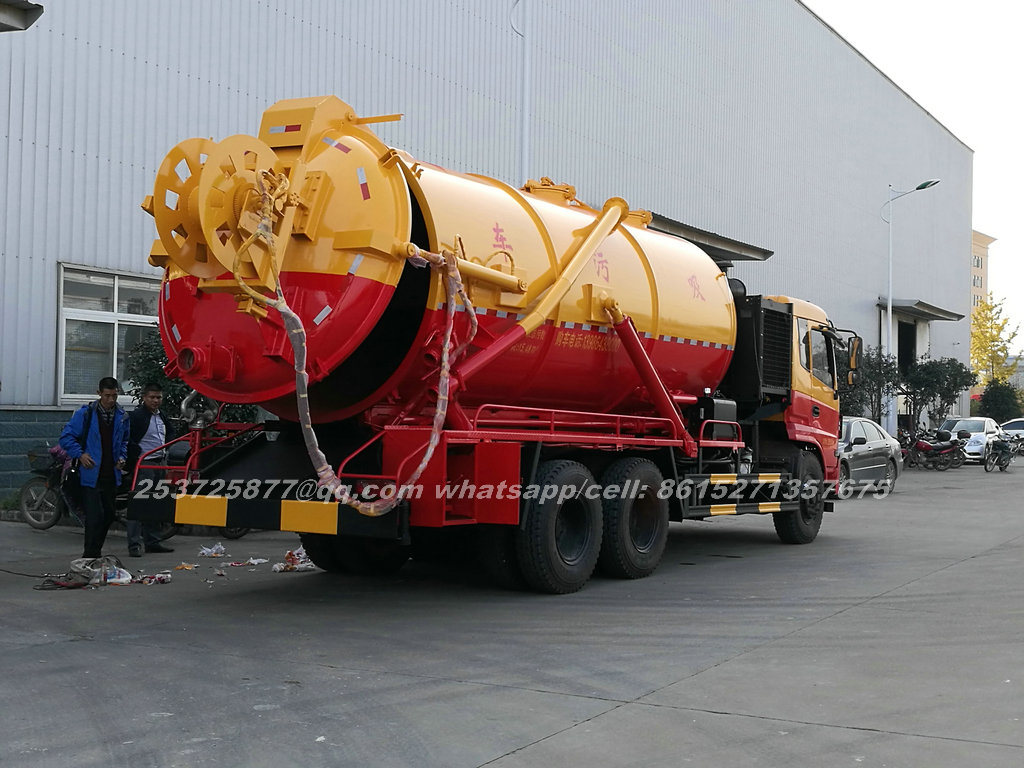

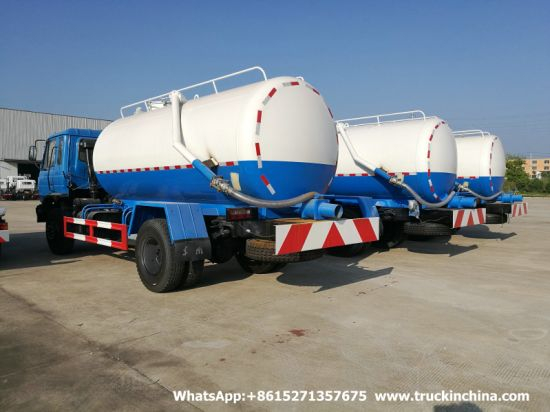

Vacuum sewage suction truck
Here the price is for standard configuration. Selective configuration and any change according to the buyer's requirements please confirm the price with our company.
| Standard configuration | Chassis,sub frame,vacuum sewage tank,oil water separator, water gas separator, hydraulic cylinder for unloading device, domestic vacuum pump, pressure gauge,suction hose, gravity flow valve, connected device,observation tube, automatic anti overflow valve, hydraulic suite,rear door hydraulic opening. |
| Selective configuration | Italy BP vacuum pump,Italy hydraulic motor,liuqid ring vaccum pump with vice engine price add $5000~$10000, combine with high pressure jeting price add $5000-$10000 |
| Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | hp/standard | Tire | EXW Price USD | CIF Price USD | |
| L | mm | mm | ||||||||
| DRZ5240GXWH | CAMC | HN1240P29E2M3J | 20000 | 10250X2000X3460 | 5220+1350 | 270/ Euro 5 | 11.00R20 | $56,111 | $66,111 | |
| DRZ5160GXWD | DONGFENG | DFL1160BX | 10000 | 8470X2500X3700 | 4700 | 190/ Euro 5 | 9.00-20 | $34,190 | $41,190 | |
| DRZ5250GXWD | DONGFENG | DFL1250 | 20000 | 10240X2500X3460 | 5350+1300 | 260/ Euro 5 | 11.00R20 | $54,048 | $64,048 | |
| DRZ5060GXWE | DONGFENG | EQ1060TJ20D3 | 4000 | 5850X1960X2550 | 3300 | 95/ Euro 5 | 7.00-16 | $16,317 | $21,317 | |
| DRZ5090GXWE | DONGFENG | EQ1090T9ADJ3AC | 6000 | 6995X2285X2650 | 3800 | 120/ Euro 5 | 7.50R16 | $21,095 | $26,095 | |
| DRZ5110GXWE | DONGFENG | EQ1100FKJ | 6000 | 7135X2490X2950 | 3950 | 140/ Euro 5 | 9.00-20 | $21,413 | $26,413 | |
| DRZ5108GXWE | DONGFENG | EQ1108KJ | 10000 | 7350X2495X3050 | 3950 | 170/ Euro 5 | 9.00-20 | $26,508 | $31,508 | |
| DRZ5126GXWE | DONGFENG | EQ1126KJ1 | 10000 | 8470X2500X3700 | 4700 | 190/ Euro 5 | 9.00-20 | $28,413 | $36,413 | |
| DRZ5141GXWE | DONGFENG | EQ1141KJ | 10000 | 8310X2495X3350 | 4500 | 190/ Euro 5 | 10.00-20 | $28,095 | $36,095 | |
| DRZ5253GXWE | DONGFENG | EQ5253GFJ2 | 16000 | 10250X2500X3460 | 4350+1300 | 210/ Euro 5 | 10.00-20 | $39,714 | $47,714 | |
| DRZ5250GXWC | FAW | CA1250P63K1L5T1AE4Z | 20000 | 9585X2500X3220 | 4800+1350 | 280/ Euro 5 | 11.00R20 | $59,619 | $69,619 | |
| DRZ5163GXWB | FOTON | BJ1163VKPGG-1 | 10000 | 8250X2480X3350 | 5000 | 160/ Euro 5 | 9.00R20 | $31,603 | $39,603 | |
| DRZ5257GXWB | FOTON | BJ5257GNFJH-S1 | 20000 | 10000X2490X3350 | 4725+1300 | 270/ Euro 5 | 10.00-20 | $51,667 | $52,667 | |
DRZ5070GXWQ | ISUZU | QL1070A1KAY | 6000 | 6750X2170X2760 | 3815 | 120/ Euro 5 | 7.00-15 | $29,841 | $35,841 | |
| DRZ5160GXWQ | ISUZU | QL1160ANFRY | 10000 | 8735X2480X2810 | 5000 | 240/ Euro 5 | 10.00-20 | $60,730 | $68,730 | |
| DRZ5250GXWQ | ISUZU | QL1250DNFZY | 16000 | 9860X2480X2810 | 4350+1300 | 280/ Euro 5 | 11.00-20 | $81,206 | $89,206 | |
DRZ50503GXWQ | ISUZU | QL10503HARY | 4000 | 6090X1980X2710 | 3360 | 98/ Euro 5 | 7.00-15 | $24,190 | $29,190 | |
| DRZ511009GXWQ | ISUZU | QL11009MARY | 10000 | 8410X2495X3350 | 4475 | 190/ Euro 5 | 8.25-20 | $37,651 | $45,651 | |
| DRZ5161GXWH | JAC | HFC1161P3K2A47F | 10000 | 8250X2300X2900 | 4700 | 160/ Euro 5 | 11.00R20 | $37,651 | $45,651 | |
| DRZ5254GXWN | North-Benz | ND1254B41J | 16000 | 9050X2480X3030 | 4100+1350 | 270/ Euro 5 | 11.00R20 | $54,778 | $62,778 | |
| DRZ5255GXWFS | SHACMAN | SX1255NN464 | 20000 | 9950X2490X3350 | 4575+1400 | 290/ Euro 5 | 12.00R20 | $58,825 | $66,825 | |
| DRZ5165GXWS | SHACMAN | SX1165UN461 | 10000 | 8480X2500X3700 | 4600 | 270/ Euro 5 | 12.00R20 | $41,476 | $49,476 |
| DRZ5255GXWS434 | SHACMAN | SX1255UM434 | 16000 | 9600X2490X3250 | 4325+1350 | 290/ Euro 5 | 12.00R20 | $54,143 | $62,143 |
| DRZ5167GXWZ | SINOTRUK | ZZ1167M4611W | 10000 | 8470X2500X3700 | 4600 | 266/Euro 5 | 12.00-20 | $44,984 | $50,984 |
| DRZ5257GXWZ | SINOTRUK | ZZ1257N4341W | 15000 | 8900X2500X3600 | 4325+1350 | 336/Euro 5 | 12R22.5 | $56,286 | $64,286 |
2. Packing and Shipping:
Truck is nude packing, shipping in container, in bulk , in ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
3. Company Information:
Hubei Dong Runze Special Vehicle Equipment Co., Ltd. is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Our advantage:
(1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.
(2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
(3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.
If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.
4. Our Service:
Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
We highly recommend this sewage suction tank truck. It's in an excellent condition and also with good quality and competitive price. Further information, pls feel free to cantact with me or visit our website, we will offer our best service.
If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.
Looking forward to receiving your inquiry!
