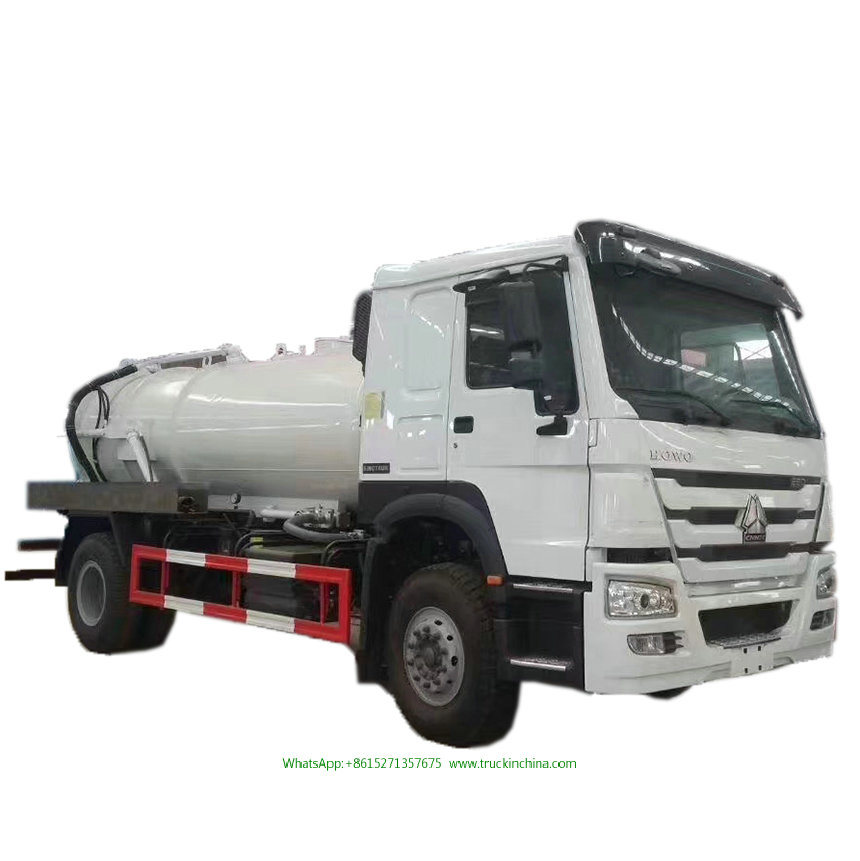

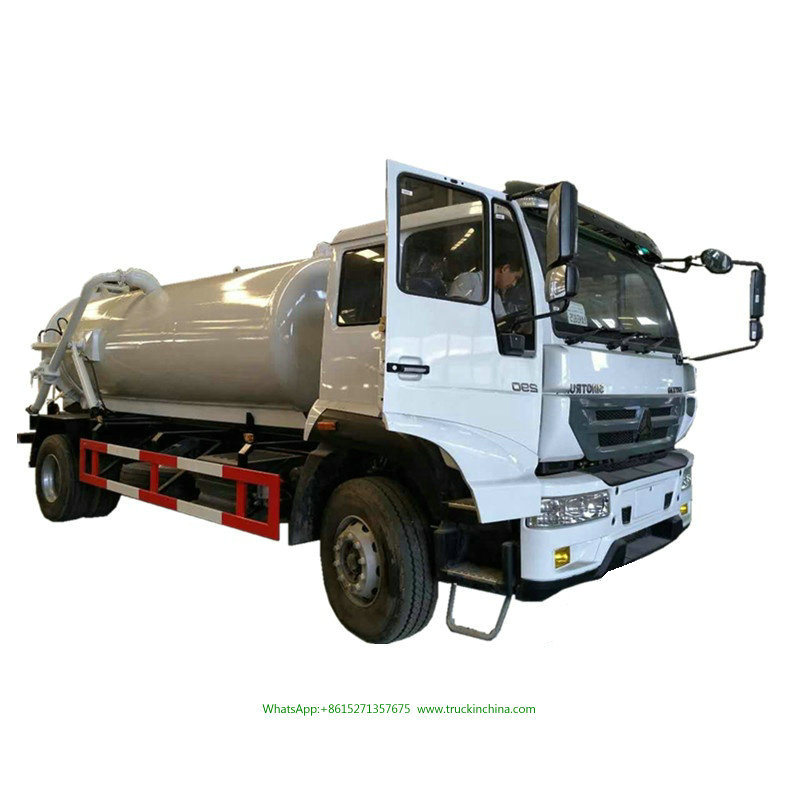

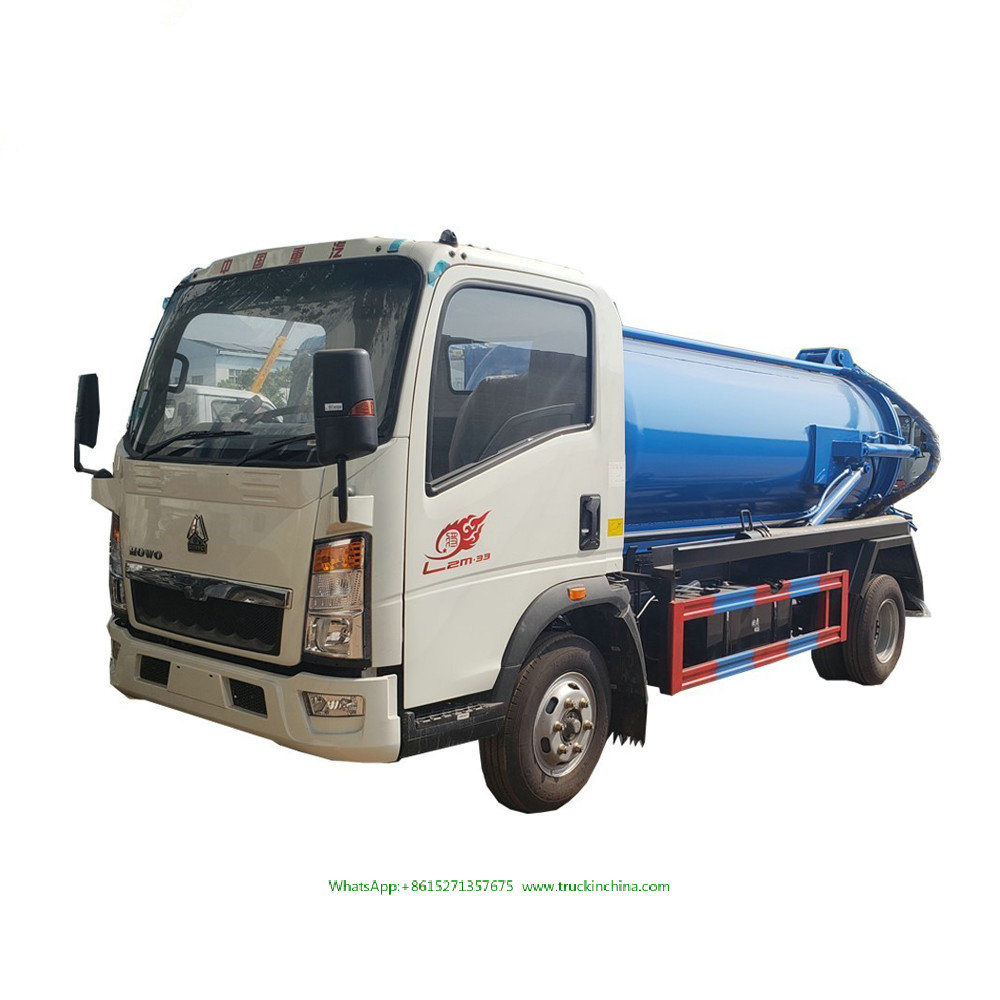

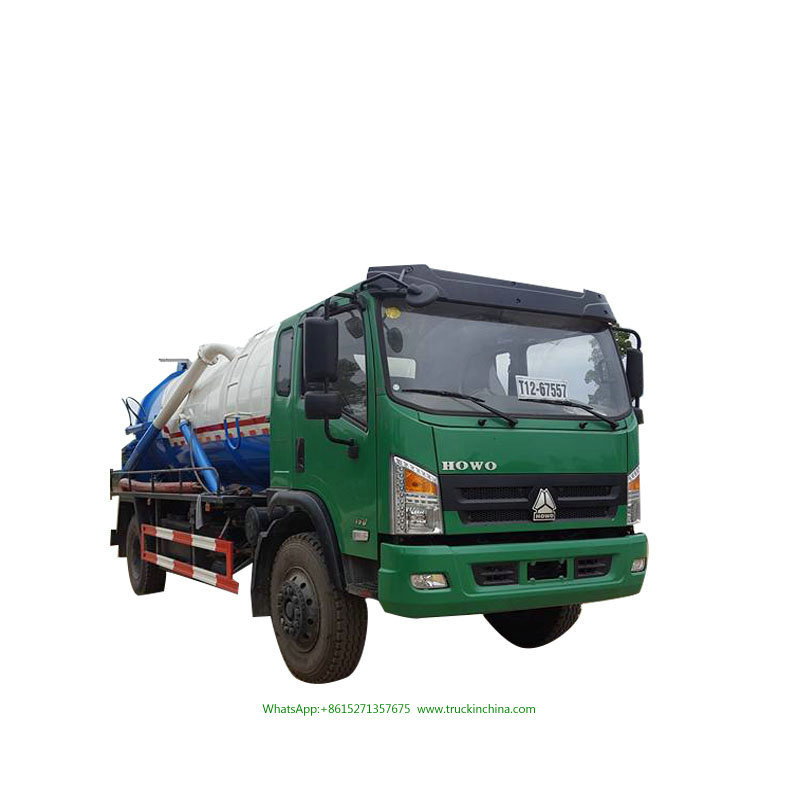

HOWO 8~10 Cbm Septik Tank Vacuum Suction Sewage Tanker Truck for Africa Cesspit Emptier
HOWO 8~10 Cbm Septik Tank Vacuum Suction Sewage Tanker Truck for Africa Cesspit Emptier
| Quantity: | |
|---|---|
-
DRZ5160GXWZ
-
HOWO
-
8705
-
Shanghai, China
-
10000
-
T/T, Western Union
HOWO 8~10 Cbm Septik Tank Vacuum Suction Sewage Tanker Truck for Africa Cesspit Emptier
Product Description
Chassis brand: Foton. (Dongfeng, HOWO, JAC, SHACMAN, FAW for optional )
Capacity: 5cbm ( 5-42cbm for optional)
Driving type: left hand drive, right hand drive
Type: 4x2 (6x4, 8x4 are for optional)
Parameters of sewage suction truck:
| Parameters for LHD HOWO 4x2 120hp 5000liters sewage suction truck | ||
| Chassis information | ||
| Overall dimension(mm) | 6095*2250*2550 | |
| Chassis | HOWO, LHD | |
| Cab | 1080 , 2 seats , could be overturned. No A/C | |
| Drive type | 4*2 | |
| Wheelbase(mm) | 3360 | |
| Curb weight(Kg) | 2930 | |
| Engine | Brand | Chaochai, CY4102-E3C |
| Horse power | 120hp | |
| Fuel type | Diesel | |
| Displacement | 3856 ml, Euro III | |
| Axles | 2 axles , front axle 2.4t, rear axle 4.2t | |
| Gearbox | WLY6T46 , 6 forwards gear, 2 rear gear | |
| Tire | 7.00R16 , 6 pcs+1 spare tire | |
| Tank | 1. Tank volume: 5000 liters | |
| 2. Material of the tank: round tank is made by 6mm carbon steel | ||
| 3. Accessories: anti-overfill valve, level indicator, suction hose, hand washing equipment, water oil separator, high quality wire strengthened hose 6m long ; vacuum pump with quick suction and discharge function | ||

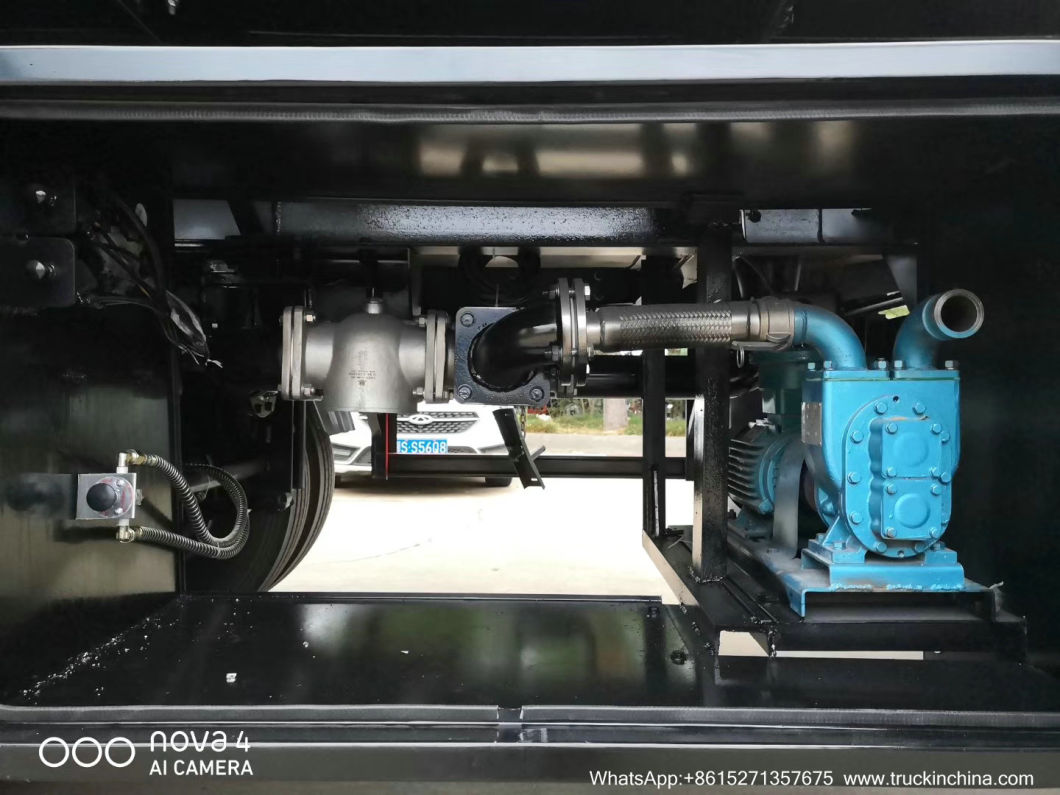

| Vacuum system | 1. One vacuum suction pump, water-ring vacuum type, not oil-ring vacuum pump 2. Vacuum suction pipe: 6m long, diameter DN65mm (also could choose DN100) 3. Max vacuum suction vertical depth: 7m | |

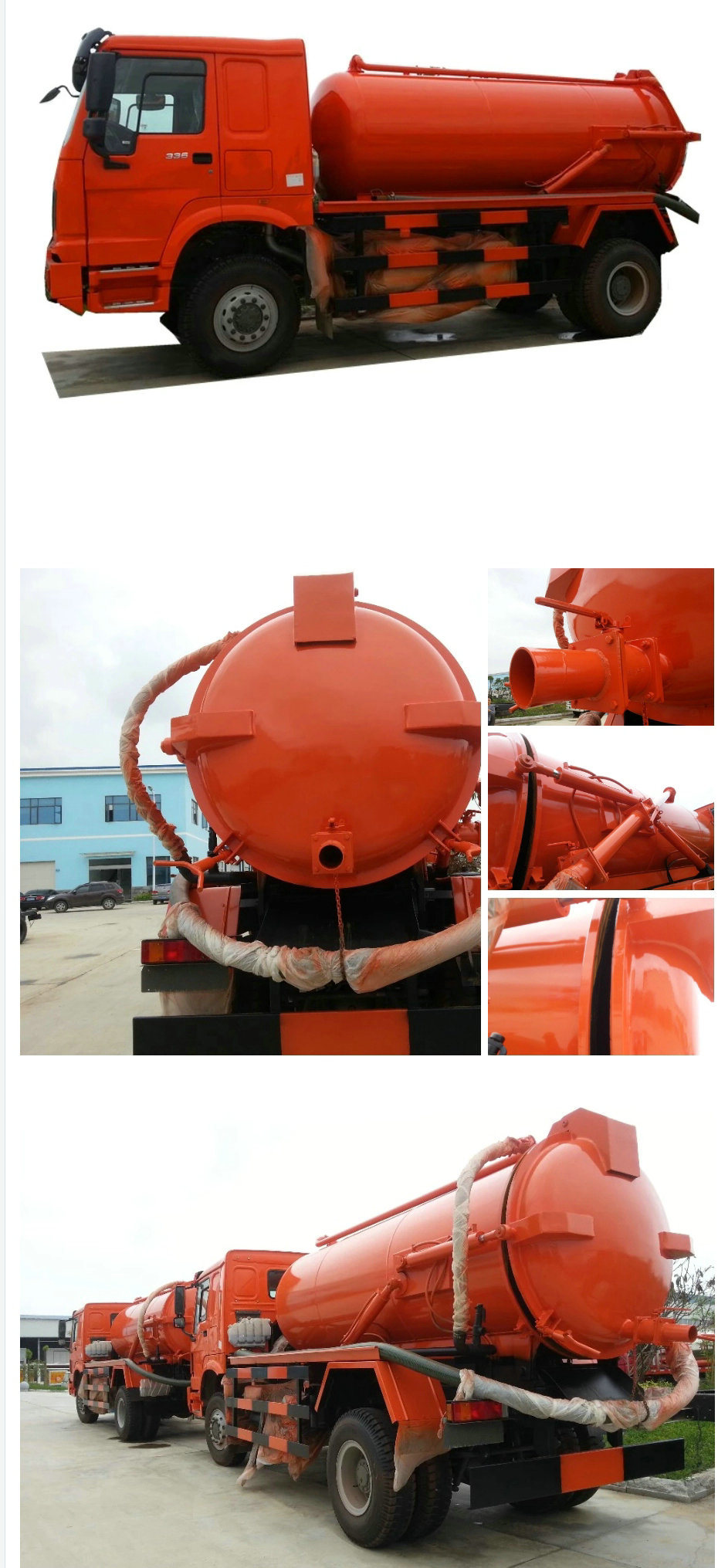

Detailed image
HOWO 4*2 Golden Prince 4000L water tanker 4000L sewage tanker Multiple using water cleaner sewage suction truck
Advantages and features:
1, used for cities' environment-keeping and municipal-maintaining.
2, can add sprinkling device on the truck according to customer's requirement and the tank of feces and water are separated. It can be a dual-purpose vehicle.
The parameter and pictures of Dongfeng 4*2 4000L water tanker 4000L sewage tanker Multiple using water cleaner sewage suction truck:
| TANK BODY | |||
| Tank | Capacity | 3~5CBM | |
| Dimension | 2100*1400mm(Length*Diameter) | ||
| Material | Q235 high tension steel | ||
| Thickness | 4mm | ||
| PUMP | |||
| Vacuum Suction Pump | Model | SK-6 | |
| Vertical Suction Range | 9~10M | ||
| Flow Rate | 1.5m³/min | ||
| Rubber tube | 7M | ||
| Adequate Vacuum, Strong suction, Stable Working, Easy Operation and Maintenance | |||
Equipment tank with material of carbon steel, high-power vacuum pump, dump body, back cover can be opened by hydraulic, back cover equipped with self-flowing hole and special valve, suction height can be 5-8 meter, equipped with special sewage suction pipe;
HOWO 4x2 154hp used vacuum truck 80000l sewage suction truck vacuum tanker truck
Technical parameter for sewage suction trucks
| Vehicle Main Dimensions | (L x W x H)mm | 8600x2500x3200 | ||
| Wheel base (mm) | 4600 | |||
| Wheel track (front/rear) (mm) | 2022/1830 | |||
| Approach/Departure angle(°) | 16/14 | |||
| Weight in KGS | Tare Weight | 10150 | ||
| Loading Capacity | 13000 | |||
| Front axles loading capacity(HF7 drum) | 1x7000 | |||
| Rear axles loading capacity(ST16) | 2x16000 | |||
| Max. driving speed(km/h) | 90 | |||
| Engine | Brand | SINOTRUK | ||
| Model | WD615.87 | |||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Horse Power(HP) | 290HP | |||
| Emission standard | Euro | |||
| Gearbox | HW15710, 10 forwards & 2 reverse | |||
| Steering Gear | ZF8098,power steering, hydraulic steering with power assistance | |||
| Fuel tank (L) | 400L | |||
| Tire | 12.00 R20 all steel radial tire , 11 pieces | |||
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |||
Tank Body
| Sewage body capacity | 10m³ |
| Tanker Body Material | 6mm steel / Q235 high tensile strength steel |
| End plate | 6mm steel sheet/Q235 high tensile strength steel |
HOWO 15~20 CBM Vacuum suction sewage tanker truck for UN
Cesspit Emptier HOWO 15000 liters sewage suction tank truck(6x4 drive type,266hp)
Euro 3, Euro 4 septik truck sewage tanker Cesspool Emptying Truck Septic tank Truck
Material of tank Carbon steel. Thickness: 6mm
Cesspit Emptier HOWO 15000 liters sewage suction tank truck(6x4 drive type,266hp)
Euro 3, Euro 4 septik truck sewage tanker Cesspool Emptying Truck Septic tank Truck
Material of tank Carbon steel. Thickness: 6mm
HOWO 15000 liters sewage suction tank truck | |||
Emission Standard | EUR 2 | ||
Driving Type | 6×4 | ||
Sewage tank volume (L) | 15000 liters | ||
Dimensions | |||
Wheelbase(mm) | 4325+1350 | ||
Overall Dimension(mm) | 8400×2480×3460 | ||
Weight parameters | |||
GVW(kg) | 25000 | ||
Rated Payload (kg) | 13350 | ||
Curb weight(kg) | 11650 | ||
Front axle load(T) | 7 Ton front axle load capacity | ||
Rear axle load(T) | Styre 16x2 Ton rear axle load capacity | ||
Front axle span(mm) | 1939 | ||
Rear axle span(mm) | 1800/1800 | ||
Front/rear overhang(mm) | 1560/2133 | ||
Max speed(km/h) | 90 | ||
Engine performance | |||
Engine model | WD615 series | ||
Engine manufacture | CNHTC | ||
Engine type | Straight in-line,6 cylinders,water-cooling,direct injection | ||
Displacement(L) | 9.726L | ||
Max. output(kw/Hp) | 196kw/266hp | ||
Drive line system | |||
Clutch | GF420J styre technology, Dry-type single shock spring clutch | ||
Transmission | 9 forwarder,1 reverse gear, Mechanical control, manual operation | ||
Spring suspension type-Leaf spring mechanical suspension | |||
No. of leaf of spring | 6/10/12+1 | ||
Brake system | |||
Service braking | Pneumatic braking system | ||
Parking braking | Spring brake, acting on the front and rear axle, emergency braking | ||
Cab description | |||
Crew cut, one and half cab,3 passengers allowed, air-conditioner, the cab can be tippable | |||
Tire specification | |||
Tire specification | 11.00-20,total 10 tires | ||
Sewage suction tanker system description | |||
Suction pump | Vacuum sewage suction pump | ||
Vacuum degree (kpa) | 90Kpa | ||
Pump type | vacuum pump model:50QZXDG-30/40 | ||
Rated speed (R/min) | 500r/min | ||
Pump speed (L/s) | 318m3/h | ||
Suction range (m) | »8m | ||
Lift angle of tank (°) | 30° | ||
Tank material | Q235A | ||
Full suction time (m) | About 6 minutes | ||
Absolute working pressure (Mpa) | 10Mpa | ||
Inlet /outlet hole diameter (mm) | DN100 | ||
Description:
The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5 min; suction width: ≥ 8 m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.
Applications:
Rinsing underground sewage pipes, the collection and transportation of sludge and city life waste and building operations such as muddy water in liquid waste and other functions.
Competitive Advantage:
1. Equipped with special vacuum pump, power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. Time for full suction < 5min
2. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.
3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.
4. The diesel engine ( air compressor unit ), providing compressed air.
Specifications:
http://www.truckinchina.com/Vacuum-truck-Combined-Jetting-c76669986.html
2. Packing and Shipping:
Truck is nude packing, shipping in container, in bulk , in ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
3. Company Information:
Hubei Dong Runze Special Vehicle Equipment Co., Ltd. & TIC TRUCKS INDUSTRY CO.,LIMITED is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Our advantage:
(1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.
(2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
(3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.
If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.
4. Our Service:
Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
We highly recommend this sewage suction tank truck. It's in an excellent condition and also with good quality and competitive price. Further information, pls feel free to cantact with me or visit our website, we will offer our best service.
If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.
Looking forward to receiving your inquiry!
