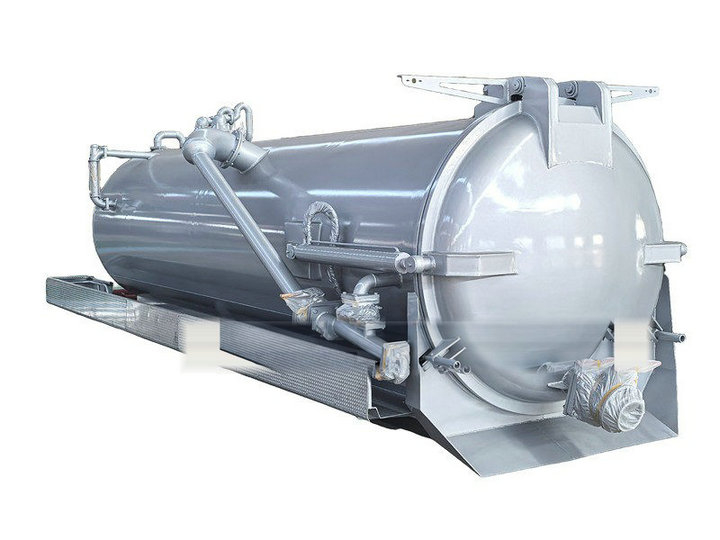

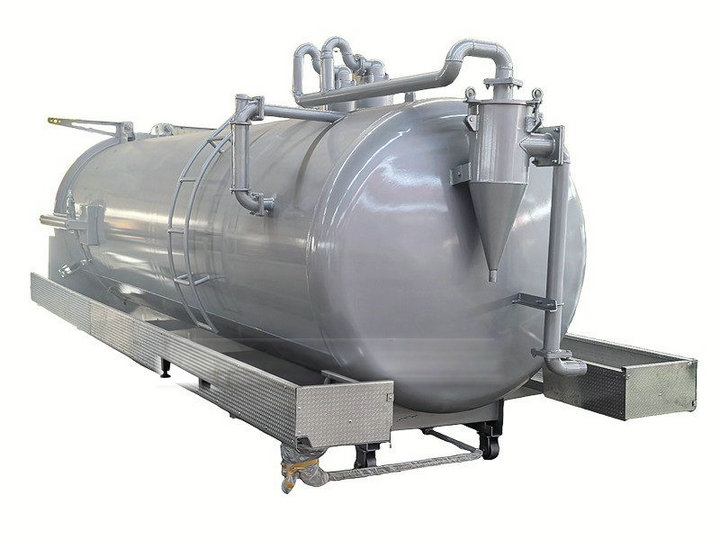

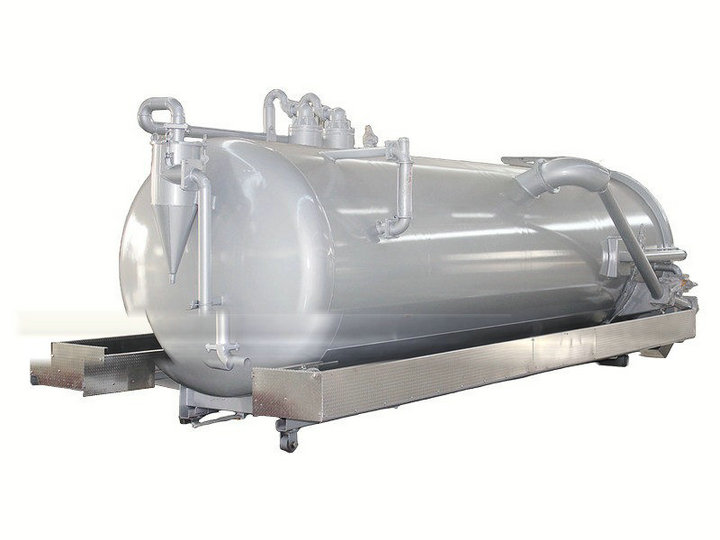

8CBM Septic Vacuum Tank Truck Superstructure Body Kits with Jurop Pump PN155D
| Lead Time: | 20 Days |
| Work Capacity: | 8 CBM |

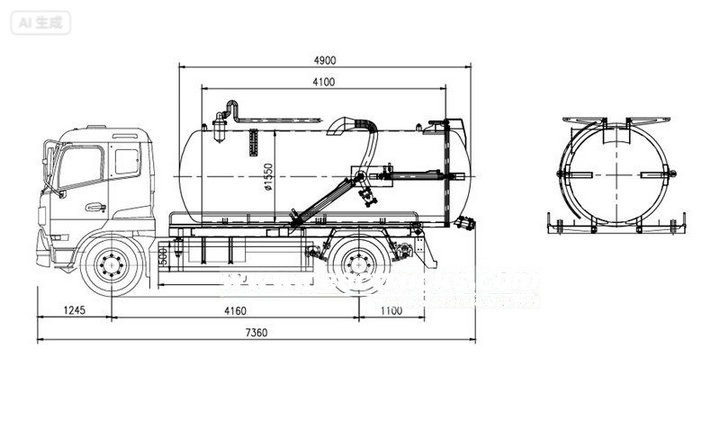

| Dimension ( Mm ): | 4920 x 2210 X 2130 |
| Remarks: | Optional Jurop pump |
8CBM septic pump tanker body kits with Jurop pump
Product Features
●Efficient Suction: The Jurop pump provides powerful suction for rapid extraction of sewage and sludge.
●Large-Capacity Sewage Tank: The tank boasts a large capacity and a strong seal to prevent leaks.
●Adjustable Suction Hose: The suction hose is adjustable in length and angle to accommodate diverse cleaning needs.
●Intelligent Control System: The liquid level sensor and control system are easy to operate, ensuring safe and efficient operation.
8CBM septic pump tanker body kits with Jurop pump (also called 8cbm vacuum suction pump truck superstructure, sludge vacuum pump tanker truck upper body, vacuum tanker truck upper body, 8cbm septic tank pump truck upper body kits, gully sucker vacuum truck upper body) will be used to mounted onto chassis to clean and collect liquid such as dirty water, sludge, septic, crude oil. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

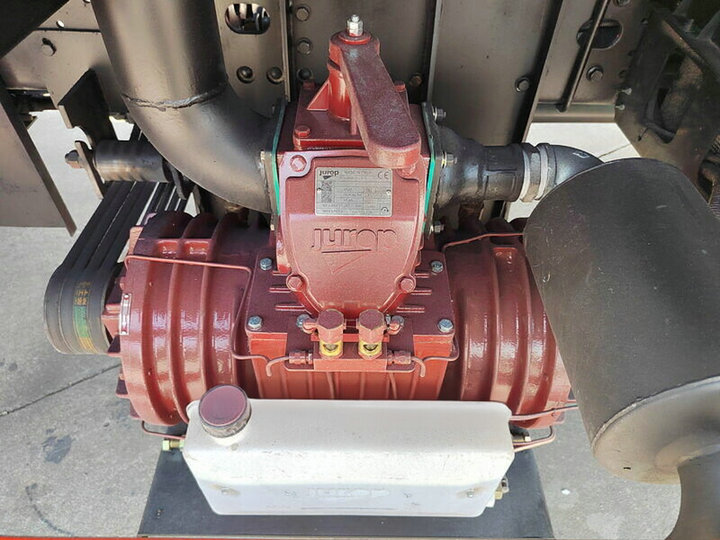

The Jurop PNR155D vacuum pump is a high-efficiency negative pressure device designed specifically for sanitation vehicles. It is commonly used in upper systems such as sewage suction trucks and fecal suction trucks. known for its robust design, high flow rate (around 15,200 l/min), and ability to achieve significant vacuum levels for applications like wastewater transfer and other vacuum services.
It features an air injection cooling system for operation, automatic lubrication, and a heat-resistant construction with Kevlar vanes to ensure durability and longevity.
●The 8CBM septic pump tanker body kits with Jurop pumps operate by relying on a vacuum pump, creating negative pressure inside the tank, generating strong suction that quickly draws sewage, slurry, and impurities into the tank.
●To prevent backflow of waste, the system is equipped with an overflow valve and a filter device, ensuring safe and reliable operation. When the tank is full, a hydraulic system lifts the tank and opens the rear cover, allowing waste to be quickly discharged.
●The overall operation process is simple and efficient, and it maintains stable cleaning performance in various environments and working conditions.
» Ⅱ.Product Parameter for 8CBM septic pump tanker body kits with Jurop pump：
8CBM septic pump tanker body kits with Jurop pump | |||
Tank Capacity | 8CBM | Self suction height | 7 m |
Tank Material | Carbon steel, 6mm thick | Suction hose | 5 m length with DN 110 mm |
Vacuum pump model | Jurop pump PN155D | Max Vacuum | 28″ Hg |
maximum vacuum | ≥11 MPa | Discharging system | Gravity discharge or pump fuel out from tank body. |
Vacuum pump | PTO driven vacuum pump 60m3/h | Rear cover | Hydraulic control |
Suction time | 250(S) | Tank lifting angle | ≥45° |
Color and Logo | According to wish | ||
Standard equipment | In-cab controls, hydraulic pump, emergency stop, over pressure device, lever detector, working light, anti-static belt, fire extinguisher, reflectors and mud flaps, water level gauge, pressure gauge... With standard tools for chassis and so on. | ||
Documents | English operation manual, Spare parts list, and all necessary export docs. | ||
» Ⅲ.Product Details & Advantages:
8CBM septic pump tanker body kits with Jurop pump have the advantages of reasonable structure, stable performance and wide application. They are important equipment in the fields of municipal sanitation, industrial wastewater treatment and agricultural dredging.
1. Efficient Suction Performance
●The Jurop vacuum pump boasts strong negative pressure and stable pumping speed, enabling rapid suction of large volumes of waste, making it particularly suitable for continuous operation.
●The flexible and adjustable suction hose adapts to varying operating conditions, ensuring efficient and effective operation.
2. Safe and Reliable Design

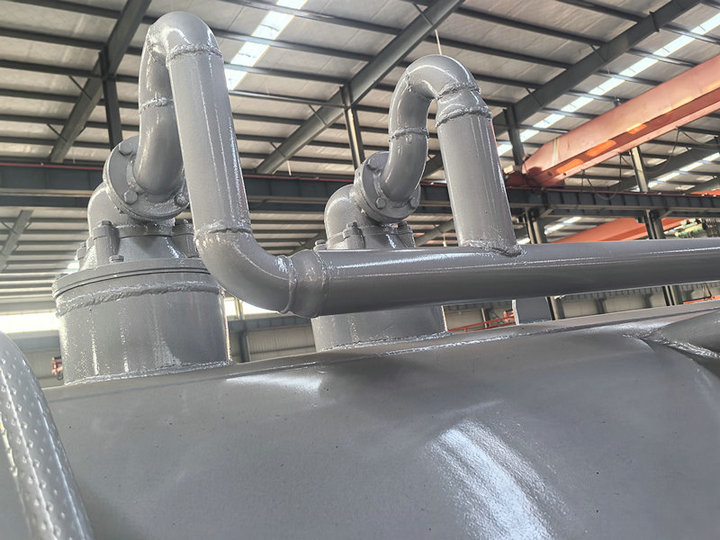

●The top-loading system is equipped with an anti-overflow valve and filter to effectively prevent backflow of dirt and impurities from entering the pump body, extending the service life of the equipment.
●A liquid level sensor monitors the tank capacity in real time, preventing the risk of overflow and ensuring safe and reliable operation.
3. Convenient Operation and Highly Adaptable

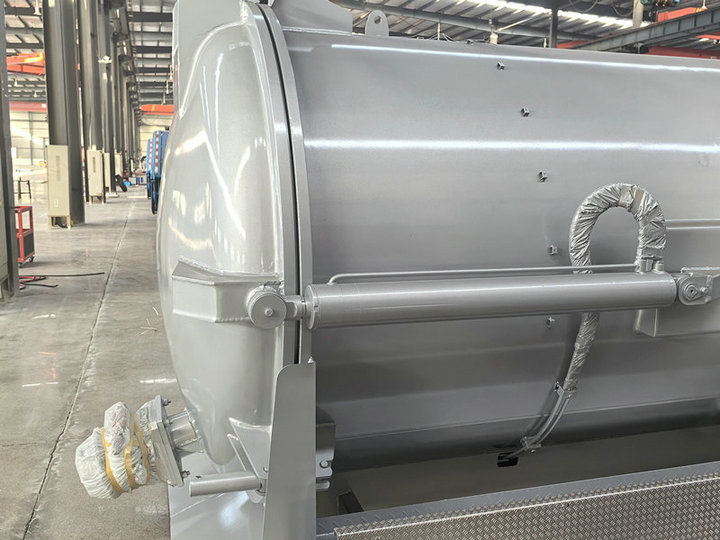

●The hydraulic system enables the complete lifting of the tank and opening of the rear cover, ensuring quick and thorough unloading. The control system is simple and easy to master, reducing operational complexity.
●The vehicle is designed for durability and adaptability, meeting diverse needs, including municipal cleanup, industrial wastewater transportation, and rural sewage treatment.
