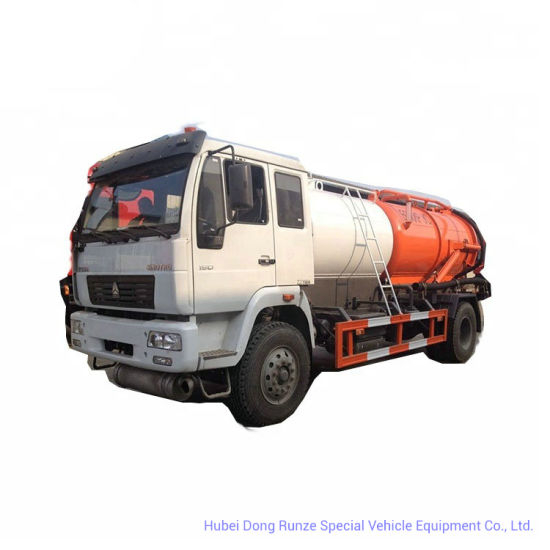

Sinotruk HOWO Combined Sewer Jetting Vacuum Tanker Truck (12000L Tank Cleaner Clean water 4m3, Wast Sewage Tank 6m3 RHD -LHD 4X2)
| Quantity: | |
|---|---|
-
DRZ5160
-
HOWO
-
8705
-
Shanghai, China
-
800
-
T/T
Sinotruk HOWO 6 wheels Vac Tanker Sewage Sludge Truck With 8000L 12000L Septic Tank RHD or LHD 4X4 .4x2
Cesspit Emptier Vacuum Tanker Truck
For Cesspool Emptier
carbon - stainless steel
Sinotruk HOWO Combined vacuum jetting truck 8Tons -10Tons High Pressure Cleaning and Vacuum Suction Sewer Trucks
SINORUCK HOWO SEWAGE TRUCKS
| DIMENSIONS | |||
| Tare Weight | 7000kg | ||
| Overall Length | 8000mm | ||
| Overall Width | 2470mm | ||
| Cabin | 2080 mm extended cabin with one bed | ||
| Photo for reference. Final products can be made according to exact requirements | |||
| SPECIFICATION | |||
| Engine | Brand | YUCHAI | |
| Model | YC4E160 | ||
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Emission Standard | Euro II | ||
| Gearbox | DC 6-forward & 1-reverse manual gearbox | ||
| Steering | hydraulic steering with power assistance | ||
| Tire | 8.25R20 all steel radial tires ,7 pcs including 1 spare tire | ||
| Total Volume | 8 CBM | ||
| Tanker Body Material | 5mm steel / Q345 high tensile strength steel | ||
| Pump | Chinese brand double pump | ||
| Hydraulic system | Equipped for lifting tank body and opening tank end cover | ||
| Time for full suction | < 5 min | ||
| Volume of tank | Sewage Sludge | 5-8 m3 |
| Clean Water | 1.5 -4m3 | |
| Color | Painted in the corporation's colours with logo on both front doors as specified by the client | |
| Material of tanker | 6mm Carbon steel | |
| Special function | Suction height | ≥5 (m) |
| Suction time | 250(S) | |
| Maximum Inclination Angle | ≥45° | |
| Maximum vacuum | ≥11 Mpa | |
| Lifting time | ≤45 S | |
| The Cover opening Angle | ≥75° | |
| The cover opening time | ≤25 S | |
| Suction pipe | 3m length and 100 mm in diameter | |
The pictures are for your reference only.
Sewage suction truck capacity from 3000 litres to 20,000 litres
Fecal suction truck capacity from 3000 litres to 10,000 litres
septic tank truck, sewage suction truck, toilet truck,sewer truck, vacuum truck
Detailed Product Description
| Product Technical Specifications | ||||
| Item | Descriptions | Spesifications and Types | ||
| Vehicle | Brand | Dong Run Ze | ||
| Overall Dimensions L*W*H | 8670*2500*3690mm | |||
| Weights | GVW. | 16000kgs | ||
| Kurb Weight | 10520kgs | |||
| Rated Payload | 5350kgs | |||
| Chassis | Chassis Brand | Sino truck | ||
| Drive Type | 4x4 | |||
| Steering | LHD or RHD | |||
| Engine | Brand | Sinotruck engine | ||
| Power | 266HP /196kw | |||
| Emmission Level | EURO 2 or Euro 3 or EURO 4 | |||
| Performance | Max. Speed | 76km/h | ||
| Wheel base | 4300 mm | |||
| Tyre Specifications | 11.00-20 18PR,11.00R20 18PR,12.00-20 | |||
| No. of Tyre | 6 pcs (1 spare tyre included) | |||
| Cab | Cab Capacity | 2 persons allowed | ||
| Body/Superstructure | Tank | Capacity | 8-10 m³ | |
| Material | 5mm or 6mm high quality carbon steel | |||
| Vacuum pump | China famous vacuum pump | |||
| Vacuum rate | 99% thorically | |||
| Suction head | 6m | |||
| Rotation speed | 500 rpm,low noise,high efficiency | |||
| Basic Equipments | Install vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose | |||
| Paint | Tank color is according to client's requirements. | |||
| Optional Equipments | Italy or Spain vacuum pumps | |||
| Stainless steel | ||||
| Anti-rust coating inside tank | ||||
SINOTRUK HOWO 4X2 Vacuum Pump Sewage Suction Tank Truck( 8m3)
diameters:
SINOTRUK HOWO 4x2 vacuum cleaning Truck | |
1. chassis Model: ZZ1167M4617C | |
Engine:266 HP Euro II | |
Gear Box: HW13710CL | |
Steering: ZF8098 hydraulic steering with power assistance | |
Driving Alex: ST16 | |
Cab:HW70 standard cab, without sleeper, with air conditioner | |
Wheelbase: 4600mm | |
Tyre: 80R22.5 tubeless tire | |
Front Axle: HF7 drum style | |
Safty belt | |
Carriage Internal Dimensions: | |
Color: red, blue, yellow, white, blue | |
The Configuration Of the Tank | |
vacuum pump:JuropPN58D | |
gear oil pump: CBGj2080 | |
motor: CMZ2040 (CMZ2040) | |
front elevation sylinder: DEFFAND φ150*3880 | |
open the door cylinder at the rear: DEFFANDφ63*φ40*870 | |
tank material: head:6/Q235-B / body:6/Q235-B | |
solution tank: 20L,plastic | |
rear sewage draining exit: 6″ butterfly bamper | |
tank preservative: no solvents ethylene paint | |
mudflap: PVC | |
Lateral reflective marking: red and white | |
rear reflective marking: red and white | |
polussion hose: 4″ black hose | |
| Tank | Capacity | 8000 -12000Liters | |
| Material | 6mm high quality carbon steel Q235/Q345 | ||
| Vacuum | Pump | China famous vacuum pump | |
| Rating rotate speed | 1400R/M | ||
| Min rotate speed | > 800R/M | ||
| Max. Suction head lift | >6 meters | ||
| Time for full suction | < 15min | ||
| Basic Equipments | a. The vacuum pump and hydraulic system are driven by the engine power through the power take-off(PTO); b. The suction truck is equipped with a level inspection window and a self-flowing port, a hand washing device, an anti-overflow valve, a suction pipe of 8 meters, a hydraulic opening of the rear door, and a SK-15 water circulation vacuum pump. The suction truck has a large suction stroke and suction. Besides, the tank has a lifting function. | ||
| Coating | a. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects. b. The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability. c. Tank color is customerized if necessary | ||
| Optional Equipments | Italy or Spain vacuum pumps | ||
| Stainless steel | |||
| Anti-rust coating inside tank | |||
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
HOWO Combined vacuum jetting truck
8Tons -10Tons High Pressure Cleaning and Vacuum Suction Sewer Trucks:
| outside dimension (L×W×H)mm | 8400×2500×3100 |
| Kerb mass | 10260 Kg |
| Chassis Model /Manufacturer | ZZ1167 |
| driving type | 4×2 |
| Wheelbase | 4600 mm |
| Engine | |
| model | WD615.87 |
| Type | Diesel, 6-cylinder in line with water cooling, turbo-charging |
| Max. power/rotated speed | 213(KW) /2200(rpm) 290hp |
| Displacement(ML) | 9720 |
| Emission level | Euro 3- 5-6 |
| Tyre | 12.00-20 With one spare tire |
| Tool Kit + Wheel Spanner and Jack | |
| Max Speed | 90 Km/h |
| Construction | All steel welded construction with tilt cab. |
| Pressure / Vacuum Tank | |
| Dirty Water Tank Capacity | 4000L |
| Material | Q235A |
| Thickness of body/dish end | 6mm |
| Water tank: | |
| Volume | 2000L |
| Material | Q235A 6mm thickness |
| One 450mm manhole, with level gauge | |
8000Liters Sludge Trucks Vacuum Suction Sewage Vehicles
Looking forward to receiving your inquiry!
