Sinotruk HOWO 10 Wheels VAC Tanker Sewage Sludge Truck with 16000L Septic Tank Rhd or LHD 6X4 /6X6
| Quantity: | |
|---|---|
-
DRZ5250
-
HOWO
-
8705
-
Shanghai, China
-
800
-
T/T
Sinotruk HOWO 10 wheels Sewage Truck With 16000L 18000L Septic Tank Rhd or LHD 6X4 /6X6
Cesspit Emptier Vacuum Tanker Truck
For Cesspool Emptier
carbon - stainless steel
RHD OR LHD 6x4 - 6x6
6*6 Septic Tanker Truck HOWO All Wheel Driving Sewer Septic Vacuum Trucks

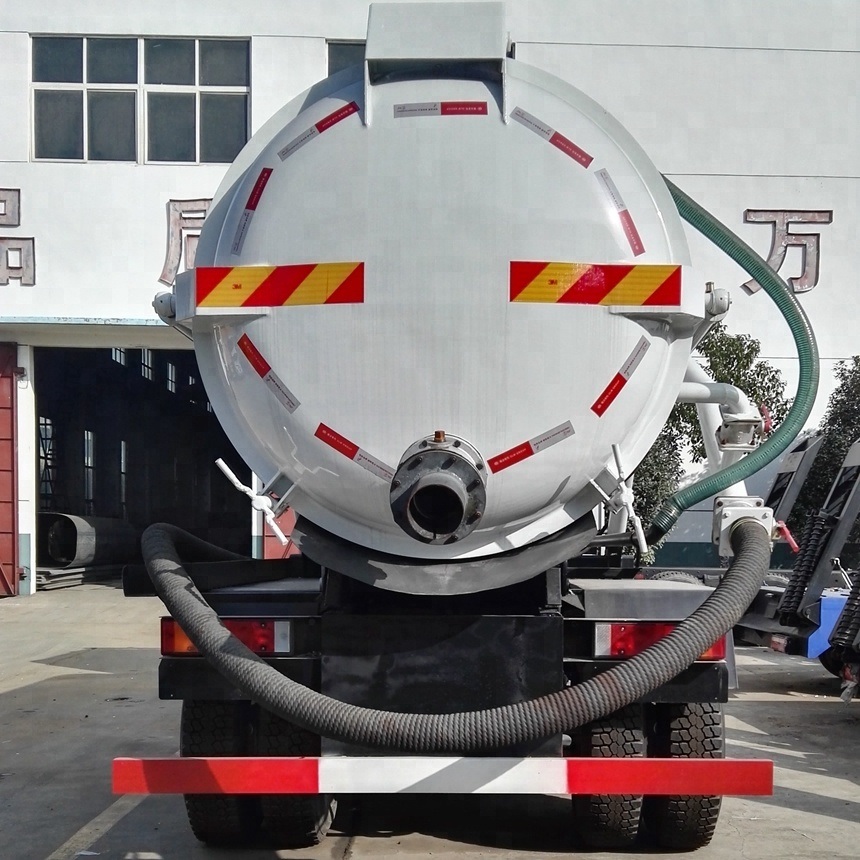

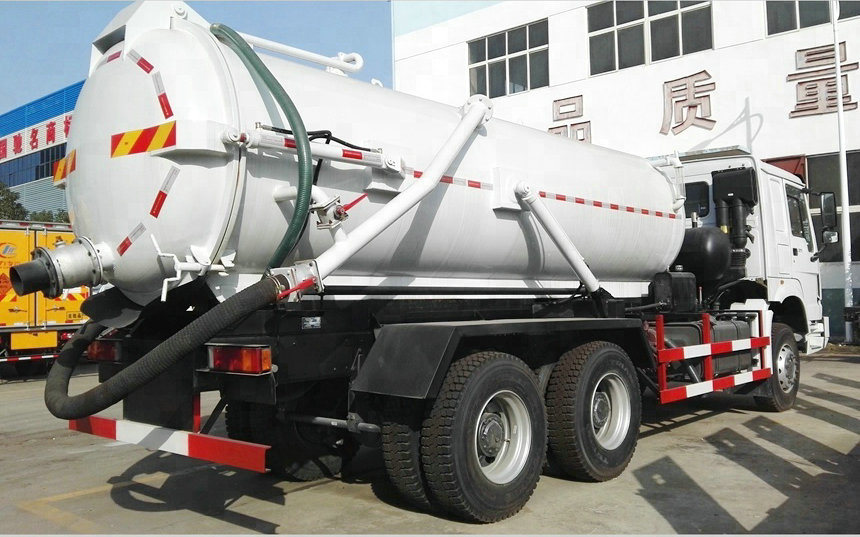

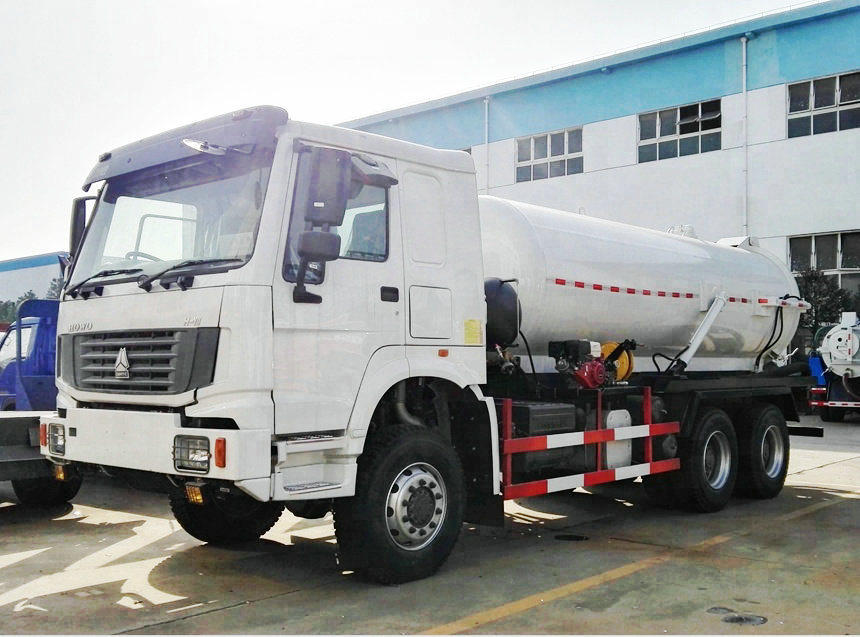

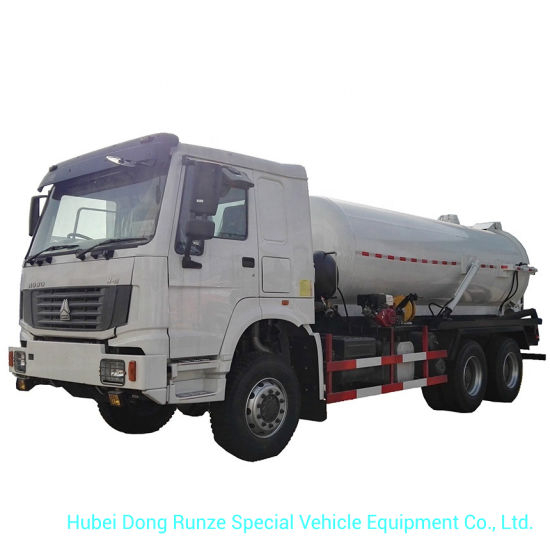

The pictures are for your reference only.
Sewage suction truck capacity from 3000 litres to 20,000 litres
Fecal suction truck capacity from 3000 litres to 10,000 litres
The Specification of 6*6 Septic Tanker Truck HOWO All Wheel Driving Sewer Septic Vacuum Trucks For Off-road Septic Tanker Truck :
1. Septic Tanker Truck include power take off, transmission, vacuum suction fecal pump, water separator, oil and gas separator, multi-way valve, suspender, fecal tank, discharge valve, water tank, fecal level indicator, vacuum pressure meter, pipe system and so on.
2. Vacuum Sewage Suction Truck , Self-discharge and self suction.
3. The Truck Mounted Vacuum Cleaner Sewage Body can Self Dumper;
4. Fill tank all time ≤10min, long service life, and high working speed, convenient transportation.
5. Suitable for collecting and transport manure, biogas slurry, mud, oil and other liquid goods.
| outside dimension (L×W×H)mm | 9000*2500*3200 | |
| Kerb mass | 12380 Kg | |
| Chassis Model /Manufacturer | ZZ2167 | |
| driving type | 6*6 | |
| Cabin | With one bed | |
| Wheelbase | 4350+1300 mm | |
| Min Grand Clearance | 300mm | |
| Engine | ||
| model | WD615.69 | |
| Type | Diesel, 6-cylinder in line with water cooling, turbo-charging &electrical control inner | |
| Max. power/rotated speed | 247kw/1100-1600r/min | |
| Displacement(ML) | 9726ml | |
| Company of engine | Sinotruck engine | |
| Emission level | Euro 2 | |
| Type of fuel | diesel | |
| Steering: ZF8098 | ||
| Gear box : HW19710 10 forwards and 2 reverser | ||
| Brake type: service braking; dual circuit compressed air brake; parking brake (hand drive), spring energy air cut brake and ABS | ||
| clutch | Φ430MM C-type diaphragm spring clutch | |
| Front axle | STR steel front steering drive axle | |
| Rear axle | ST16 rear drive axle. Retio: 5.73 | |
| Tyre | 12.00-20 4pcs +1spare tire | |
| Max Speed | 90 Km/h | |
| air condition | With | |
| Construction | All steel welded construction with tilt cab. | |
| Electrical system: VDO Electric system, 24V, Negarive grounded | ||
| Volume of tank | 12m3 | |
| Tank size | 4900*1600mm | |
| Thickness of tank | 6mm | |
| Model of vacuum pump | Max pressure: 7000Pa | |
| Suction Speed:68L/s | ||
| Rotation Speed: 800r/min | ||
| Suction Depth: 6m | ||
| Pipe Diagram: Diameter 100 mm, length of 3 m with symmetric connections | ||
| Vacuum pump is droved by PTO, to self-suck and self-discharge by four-way valve. this truck can suck the mud, sewage, dejection and the dirty water with small stone under by vacuum pump | ||
septic tank truck, sewage suction truck, toilet truck,sewer truck, vacuum truck
Detailed Product Description
| Subject | SINOTRUK HOWO 18000 Liters sludge vacuum suction tanker truck |
| Overall Dimension | 10450*2500*3150mm |
| Tank Volume | 18000 Liters |
| Chassis Model | ZZ1257N5847E1 |
| Wheelbase | 5825+1350mm |
| Gross Weight | 25000kgs |
| Curb Weight | 13270kgs |
| Engine | |
| Engine Brand | SINOTRUK HOWO |
| Model | D10.34-50 |
| Type | In-line, 6-cylinder, water cooling, 4-stroke,supercharging intermediate cooler, high pressure common rail |
| Displacement Volume(ml) | 9726 |
| Net Power(kw) | Min 249 KW at rated RPM |
| Fuel Type | Diesel |
| Emission Standard | From Eour3 to Eour5 |
| Clutch System | Model | Single plate, dry friction | |
| Steering System | Power Steering | Left hand driving, RHD is available | |
| Transmission System | Manually operated | 9-forwards and 1- reverse | |
| Brake System | Service Brake | Hydraulic disk brakes | |
| Park Brake | Air Brake & Hand Brake, | ||
| Suspension System (Front & Rear) | Semi-elliptical leaf spring with telessopic shock absorber (both front & rear) | ||
| Tyre | Tyre Quantity | 10 pcs | |
| Tyre Specification | 315/80R22.5 18PR | ||
| Cabin | The cabine of 3 persons (including driver) , ABS, air conditioning,electric glass, adjustable headlights,USB,etc | ||
| Tank | Capacity | 18000 Liters | |
| Material | 6mm high quality carbon steel Q235/Q345 | ||
| Vacuum | Pump | China famous vacuum pump | |
| Rating rotate speed | 1400R/M | ||
| Min rotate speed | > 800R/M | ||
| Max. Suction head lift | >6 meters | ||
| Time for full suction | < 15min | ||
| Basic Equipments | a. The vacuum pump and hydraulic system are driven by the engine power through the power take-off(PTO); b. The suction truck is equipped with a level inspection window and a self-flowing port, a hand washing device, an anti-overflow valve, a suction pipe of 8 meters, a hydraulic opening of the rear door, and a SK-15 water circulation vacuum pump. The suction truck has a large suction stroke and suction. Besides, the tank has a lifting function. | ||
| Coating | a. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects. b. The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability. c. Tank color is customerized if necessary | ||
| Optional Equipments | Italy or Spain vacuum pumps | ||
| Stainless steel | |||
| Anti-rust coating inside tank | |||
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
15000L/15m3 Sinotruk Howo Sewage Pump Truck Vacuum Truck
Items | Descriptions | Specifications and Types |
General | Truck Name | 15000L Vacuum suction sewage truck |
Traction Type | 6*4 | |
Drive type | LHD/RHD | |
Curb Weight (kg) | 14000 | |
Loading weight(kg) | 20000-30000 | |
Overall Dimensions(mm) | 10500×2600×3900 | |
Engine | Engine Model | WD615.69 |
Engine Brand | Sinotruk | |
Fuel Type | Diesel | |
Power | 247kw/366hp | |
Emission Standard | Euro II | |
Displacement(ml) | 9726 | |
Engine Type | 6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling | |
Chassis | Brand | Sinotruk Howo |
Tire Specification | 12.00R20 Radial tyre | |
Tire No. | 10+1 | |
Wheelbase (mm) | 4325+1350 | |
Front axle | HF9(9 ton) | |
Rear axle | HC16(16 ton double reduction axle) | |
Gearbox | HW19710(10 speeds) | |
Cabin | HW76 flat roof cabin, one sleeper, air conditioner | |
Steering | ZF8118 | |
PTO | HW70 PTO | |
Tank body | Tank Volume | 15000L/15m3 |
Hydraulic Cylinder | 2 hydraulic cylinders on right and left side, for discharging and cleaning | |
Thickness | Tank 5mm, shell cover 6mm | |
Tank material | Q235 | |
Pipe | 6m | |
Other | vacuum pump, safety valve, etc. | |
Looking forward to receiving your inquiry!
CONTACT US
Cellphone: (+86)15271357675
Website: www.truckinchina.com
Road to Your Success
