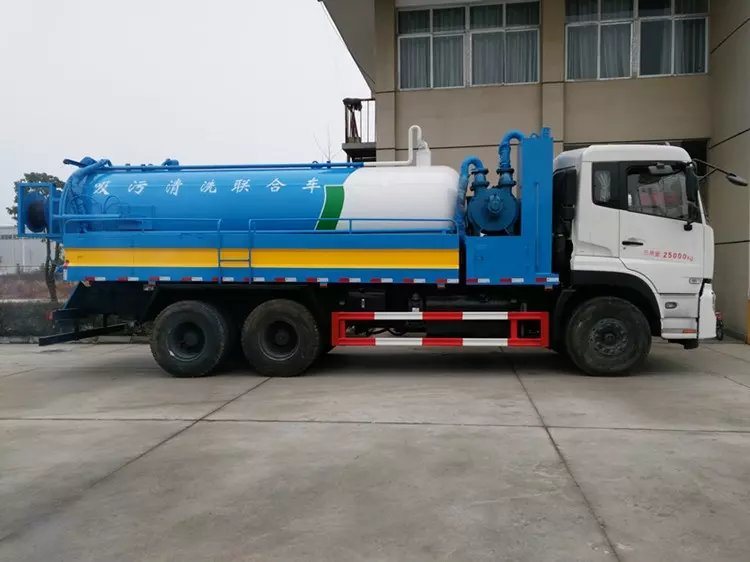

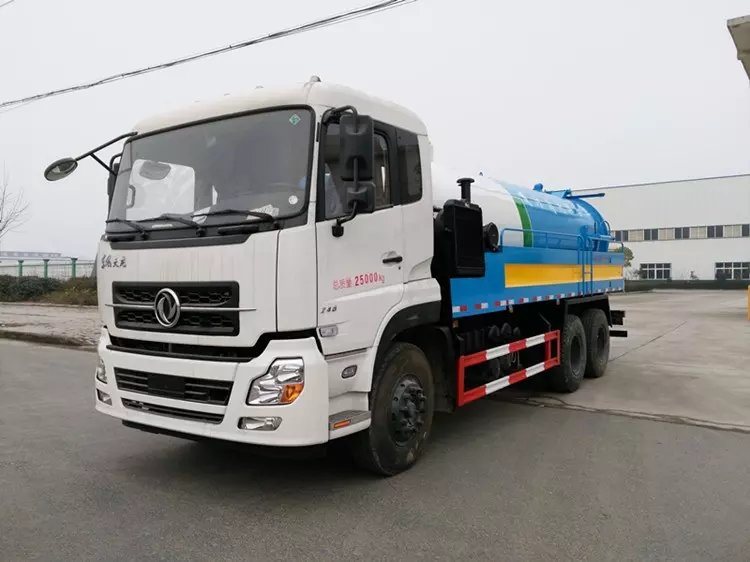

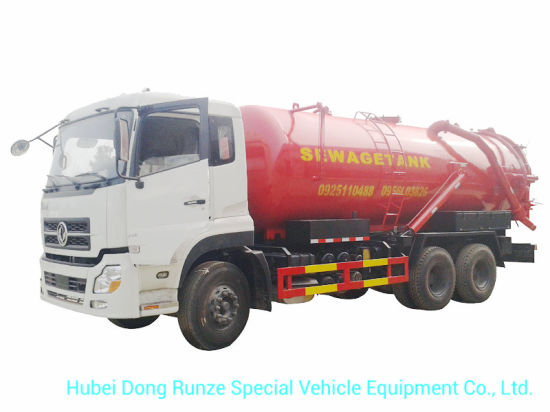

Septic Tank Truck Mounted with High Pressure Vacuum Pump 10 Wheels 18, 000 Liters-20, 000liters Rhd or LHD 6X4 /6X6
| Quantity: | |
|---|---|
-
DRZ5250GXWD
-
DF
-
8705
-
Shanghai, China
-
800
-
T/T
King Run Septic Tank Truck Mounted with High Pressure Vacuum Pump 10 wheels 16,000 Liters-20,000Liters RHD OR LHD 6x4 /6x6
For Cesspool Emptier
carbon - stainless steel
RHD OR LHD 6x4 - 6x6
The pictures are for your reference only.
Sewage suction truck capacity from 3000 litres to 20,000 litres
Fecal suction truck capacity from 3000 litres to 10,000 litres
septic tank truck, sewage suction truck, toilet truck,sewer truck, vacuum truck
Detailed Product Description
| Product Technical Specifications | ||||
| Item | Descriptions | Spesifications and Types | ||
| Vehicle | Brand | CHENGLIWEI | ||
| Overall Dimensions L*W*H | 8670*2500*3690mm | |||
| Weights | GVW. | 25000kgs | ||
| Kurb Weight | 16520kgs | |||
| Rated Payload | 5350kgs | |||
| Chassis | Chassis Brand | Dongfeng | ||
| Drive Type | 6x4 | |||
| Steering | LHD or RHD | |||
| Engine | Brand | Dongfeng engine | ||
| Power | 260 HP | |||
| Emmission Level | EURO 2 or Euro 3 or EURO 4 | |||
| Performance | Max. Speed | 76km/h | ||
| Wheel base | 4350+1350 mm | |||
| Tyre Specifications | 11.00-20 18PR,11.00R20 18PR,12.00-20 | |||
| No. of Tyre | 6 pcs (1 spare tyre included) | |||
| Cab | Cab Capacity | 2 persons allowed | ||
| Body/Superstructure | Tank | Capacity | 15-20 m³ | |
| Material | 5mm or 6mm high quality carbon steel | |||
| Vacuum pump | China famous vacuum pump | |||
| Vacuum rate | 99% thorically | |||
| Suction head | 6m | |||
| Rotation speed | 500 rpm,low noise,high efficiency | |||

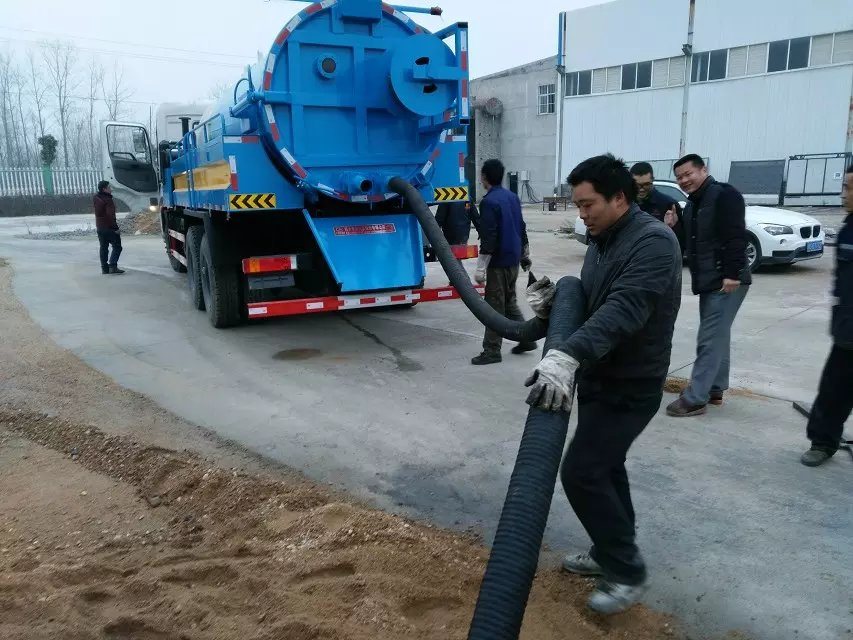

| Basic Equipments | Install vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose | |||
| Paint | Tank color is according to client's requirements. | |||
| Optional Equipments | Italy or Spain vacuum pumps | |||
| Stainless steel | ||||
| Anti-rust coating inside tank | ||||
vacuum sucker trucks
Basic equipment of sludge tank truck
Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,
water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.

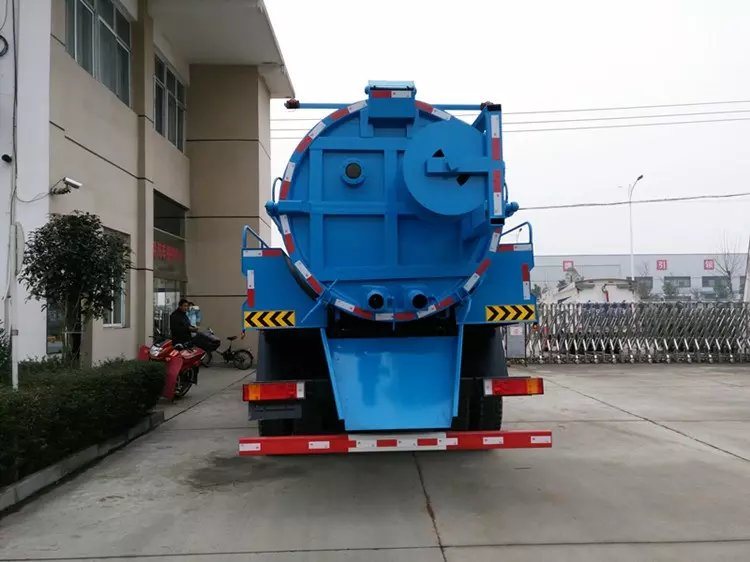

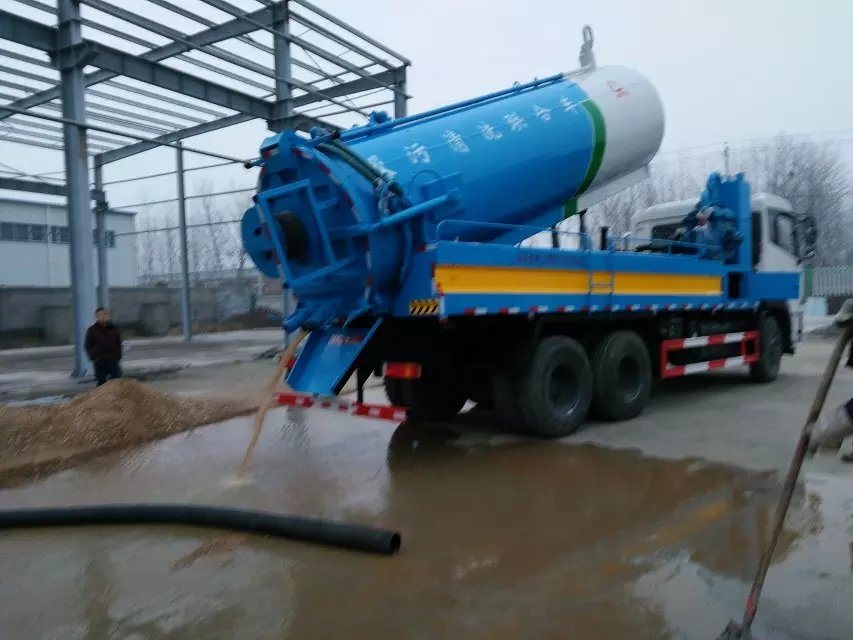

1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed
hydraulically. With full opening design, discharge can be very quick&complete.
2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit
emptier.
brand new high pressure vacuum suction truck
| Product name | Dongfeng sewage sucking truck | Option | |
| Colour | Customized | ||
| Overall Dimensions(mm) | 9590×2500×3800 | ||
| Wheel base(mm) | 4350+1350 | ||
| Front and Rear Axle Load | 5ton | ||
| GVW(kg) | 25000 | ||
| Curb weight(kg) | 13005(Kg) | ||
| Number of axes: | 2 | ||
| Certificate | SGS CCC ISO | ||
| Fuel type | Diesel | ||
| Tire Size | 11.00R20 | ||
| Tank size (mm) | 5500×Φ2000 | ||
| Vertical suction | ≥8 m | ||
| Time | Full time<5 min Emptying time<4min | ||
| Max speed | 99km/h | ||
| Equipped truck chassis | |||
| Brand | Dongfeng | Howo,Dayun,Futon,JAC,Dongfeng,etc. | |
| Wheel drive | LHD/RHD | ||
| Driving cab | 3 seats | ||
| Axle load: | 2640/4720 | ||
| Emission standard | Euro 3 | Euro 5-6 | |
| Operation Method | Manual or Automatic | ||
| Special function description: | 1. The Dongfeng Tianlong suction truck suction pump is a double pump. The tank material is made of WISCO 5mm high-quality steel plate. The head is made of 6mm steel plate, which can effectively avoid the phenomenon of tank and head suction. 2. The ball valve of the car uses stainless steel ball valve, which not only increases the aesthetics, but also improves the corrosion resistance and frost crack resistance. The vacuum pump liner and the blade are centrifugally cast from wear-resistant ductile iron silicon steel, which is a high-efficiency suction pump. 3. The tank and metal accessories are pre-coated phosphating, sprayed with polymer anti-corrosive primer and metal topcoat, strong adhesion, good corrosion resistance, uniform paint film, long-lasting color, beautiful appearance, able to withstand moisture, Dust, salt spray and other adverse environments can prevent cracking, peeling, rust, fading and other problems. 4. The can body head is once die-casted, the tank can be opened later, and the double top is self-unloading. The dirt in the tank can be directly dumped through the back cover, which has a high degree of vacuum (more suction than the suction truck) and a large tonnage. High efficiency and more versatile features are especially suitable for the drainage, sedimentation and discharge of sediments in pipelines, pipeline sediments, dredging of dead angle mud trenches, cleaning of industrial drain pipes, wall surfaces, etc., especially for sucking sewer mud Large objects such as silt, stones, bricks, etc., and can also be used for watering, water transportation and rushing roads, and can be used for fire fighting in case of emergency. | ||
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
Looking forward to receiving your inquiry!
