Dongfeng 6X6 off Road Military All Wheel Drive Vacuum Sewage Tank Truck Factory 12cbm
| Quantity: | |
|---|---|
-
DRZ5180
-
DF
-
8705
-
Shanghai, China
-
1000
-
T/T, Western Union

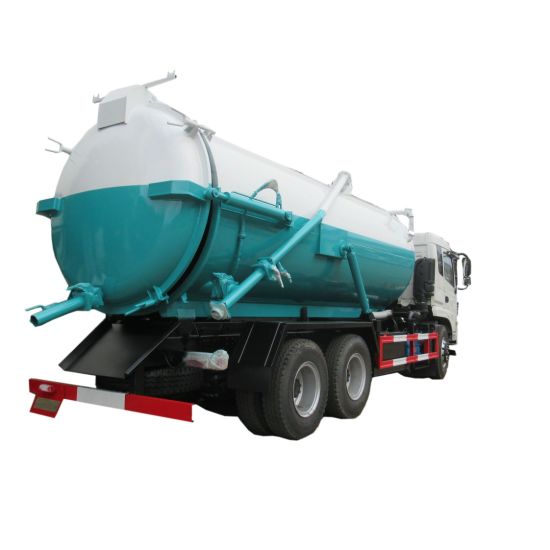

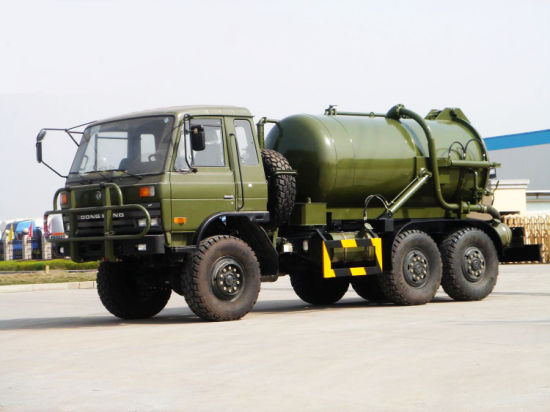

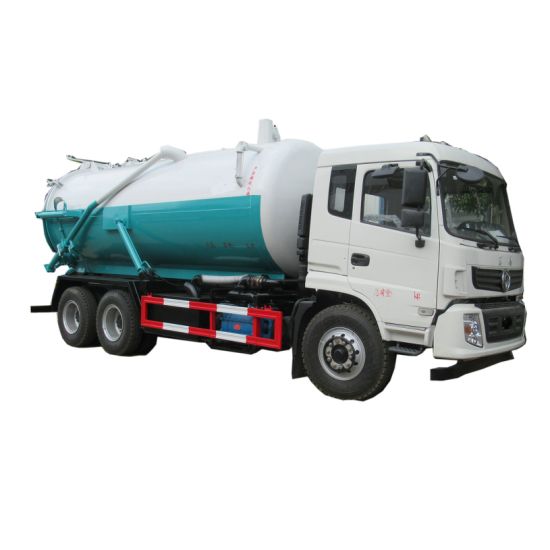

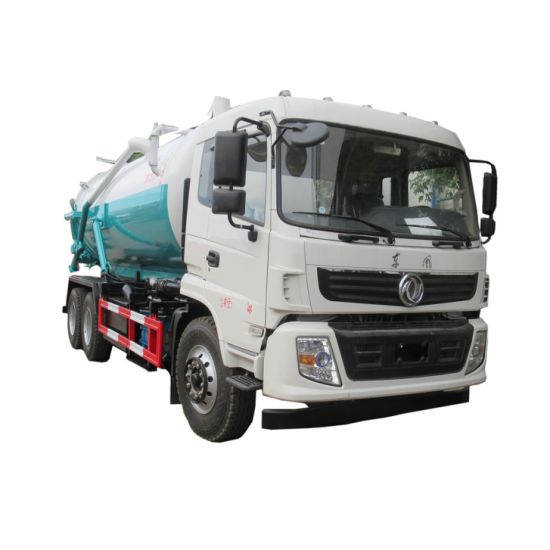

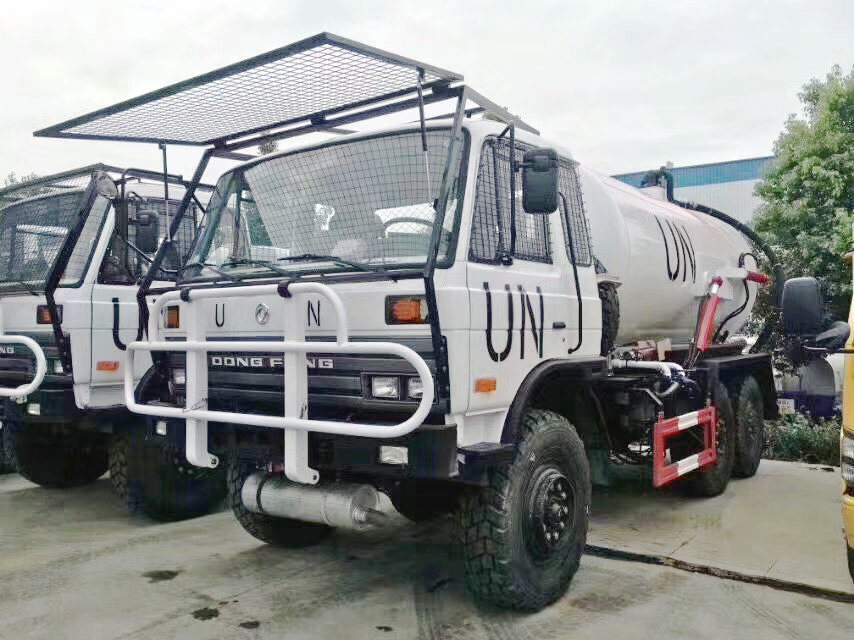

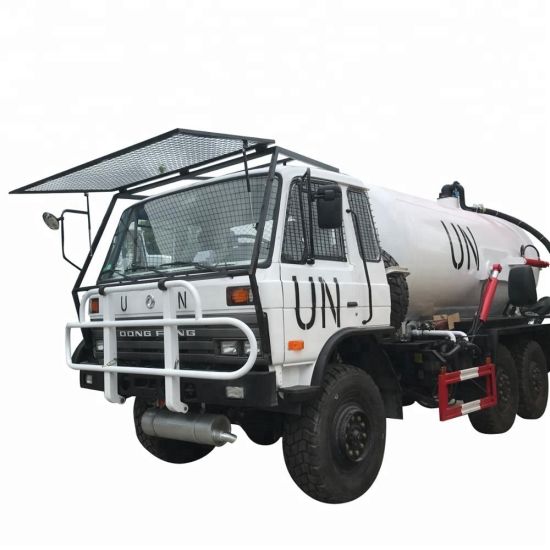

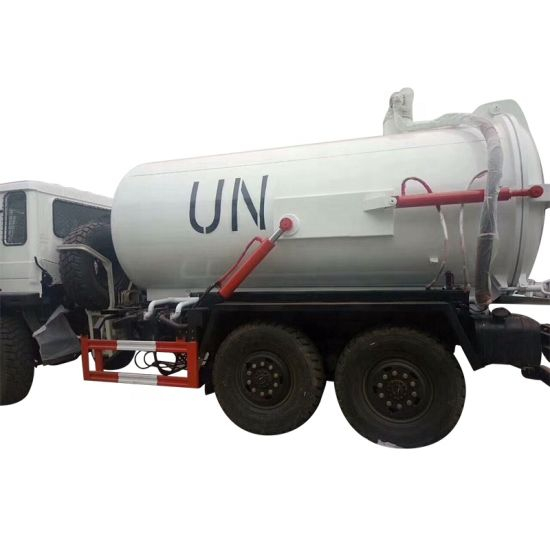

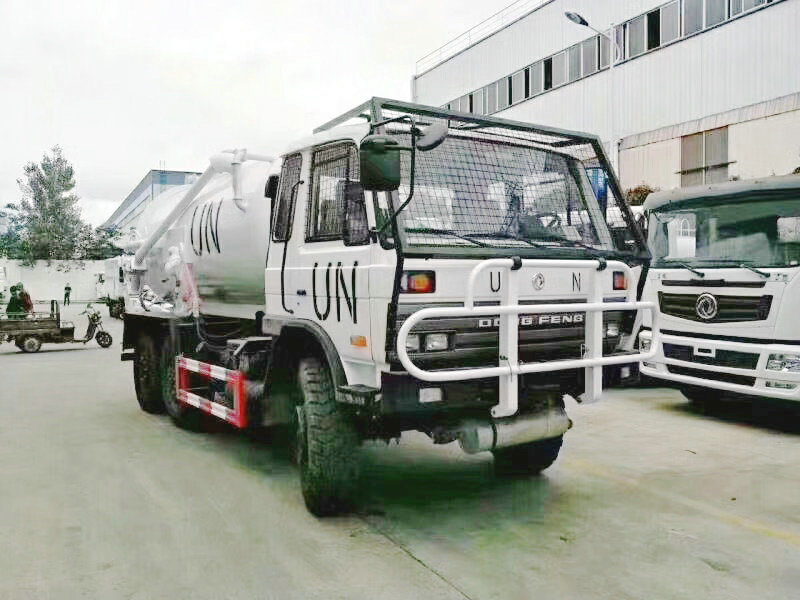

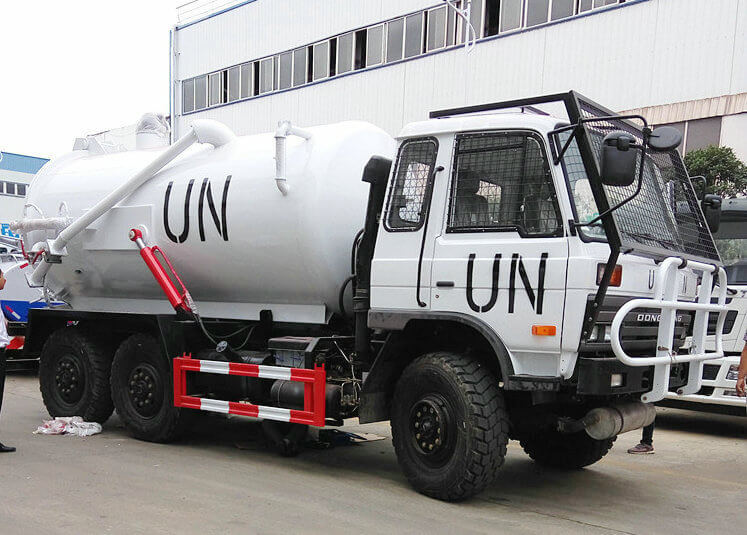

Dongfeng 6X6 off Road Military All Wheel Drive Vacuum Sewage Tank Truck Factory 12cbm
Dongfeng 6X6 off Road Military Standard All Wheel Drive Vacuum Sewage Tank Truck Factory Sale
Euro 3, Euro 5-6
septik truck sewage tanker Cesspool Emptying Truck

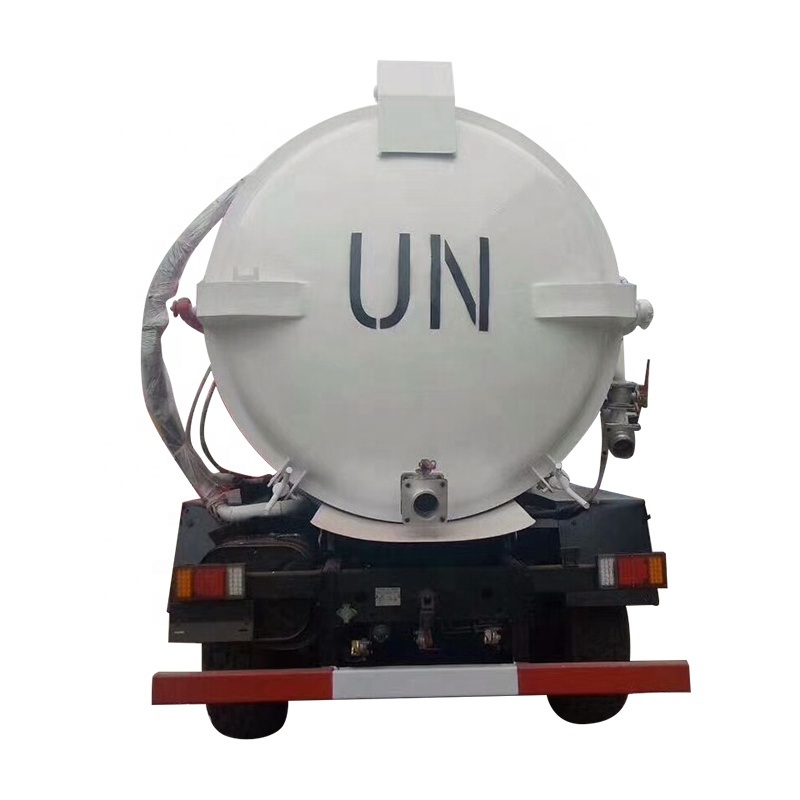

1.Manually operated rear door of Vacuum Tank

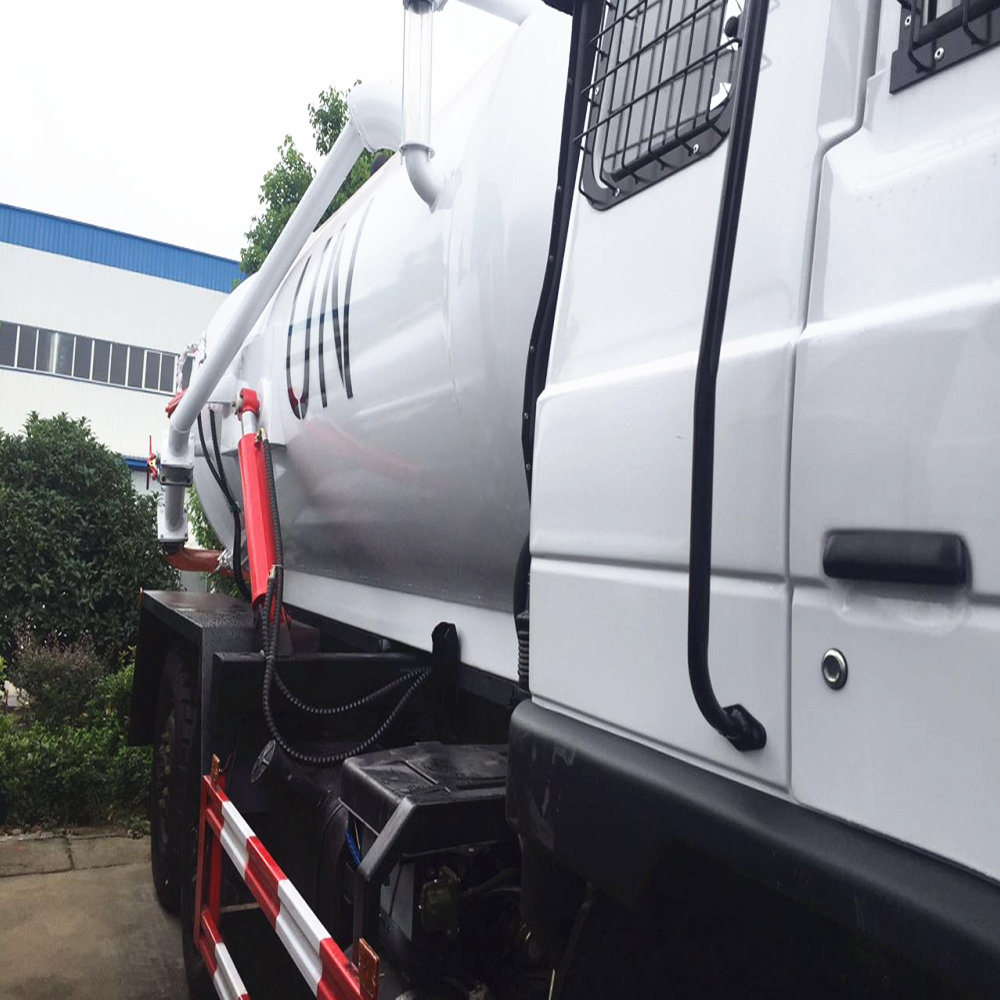

2. Tipping Cylinder for tilting Vacuum Tank.
Euro 3,
Truck Chassis model | EQ2102(6*6 drive type) EQ5160GLJ | |
Dimension(Lx Wx H)(mm) | 7760×2470×2740 | |
Track(front/rear)(mm) | 1876/1870 | |
Front/rear overhang (mm) | 1410/625 | |
Approach / Departure angle () | 35/34 | |
Wheel distance(mm) | 3475+1250,3500+1250 | |
Total mass (kg) | 10675 | |
Kerb mass (kg) | 6965 | |
Rated load weight (kg) | 3715 | |
Drive type | 6x6 | |
Max.grade ability (%) | 60% | |
Max.slop ability (%) | 40% | |
Min.turning circle (m) | 18.8 | |
Max speed (km/h) | 90 | |
Max.brake distance (m) | 8m | |
Min.ground clearance (mm) | 305 | |
Vertical obstacle-navigation Height (mm) | 700 | |
Climbing trenches depth (mm) | 700 | |
Max.fording depth (m) | 1 | |
Engine | Engine model:EQ6BT5.9; or B190 Engine manufacture: Dongfeng cummins co.,Ltd Rated power(kw/r/min):118/2800 | |
Displacement (L) | 5.880 | |
Max.power (kw/hp) | 118kw/160hp ;or 140kw/190hp | |
Max rated speed (r/min) | 2800 | |
Fuel consumption (L/100km) | 26.5L | |
Emission standard | Euro II | |
Fuel tank (L) | Main fuel tank:145L,spare fuel tank:50L | |
Fuel tank material | Aluminum alloy | |
Clutch | Valeo 350 | |
Dry single plate, hydraulic control booster Mechanical operation with hydraulic assistance | ||
Mechanism,5 gears, 5 forward,1reverse gear Manual operation | ||
Braking | Service Brake | Brake gap can be adjusted automatically double circulation air brake system |
Assistant brake | WEVB(Engine exhaust brake) | |
Park brake | Spring brake effect to middle and rear tires | |
Steering description | Whole circulation in ball type, hydraulic power assistance | |
Vehicle frame dimension(mm) | 232x75x6.5 | |
Front axle description(T) | 3.7T | |
Rear axle description(T) | 4Tx2 axle | |
Tire and number | 12.5R-20 off-road tire,6+1 tires | |
Cab | 1. Full steel skeleton structure cab 2. One sleeper bed in the cab,with Air-conditioner 5.Air- damping driver\\\\ s seat | |
Optional winch: | Install 10 tons of hydraulic winch | 1 | $6,600 | $6,600USD |
which has excellent performance with reasonable price. Euro 4
| Chassis Specifications | |
| Chassis Model | DFS5160GLJ |
| Fuel type | Diesel |
| Cabin | Dongfeng153,Half row |
| Whole Vehicle main dimensions (mm) | |
| Overall dimensions (L×W×H) | 7760*2500*3150 |
| Box dimensions ((L×W×H) | 5000*2500*2020 |
| Wheel base | 3500+1250 |
| Front track | 1916 |
| Rear track | 1876/1876 |
| Weight data (kg) | |
| G.V.W | 10740 |
| Curb weight (chassis) | 9600 |
| Whole vehicle main performance | |
| Max. speed (km/h) | 90 |
| Max. slope of climb (%) | 30 |
| Engine Specifications | |
| Model | ISDe185 40 |
| Emission Standards | EURO IV |
| Maximum power | 136kw / 185HP |
| Number of cylinders | 6 |
| Displacement (L) | 6.7 |
| Rated power speed | 2500RPM |
| Maximum torque | 700N.m |
| Maximum torque speed | 1400RPM |
| Engine size | 810x720x820mm |
| Compression ratio | 17.3:1 |
| Bore x Stroke | 107x124mm |
| Engine Type | Inline six cylinder electronically controlled high pressure common rail system enhanced particulate filter |
Engine Manufacturer | Dongfeng Cummin |
| Others | |
| Gear box | 6-speed |
| Axle | 3 |
| Suspension | Spring plate 10/12 |
| Steering Wheel | Lelf hand drive |
| Brake system | Air braking |
| Electric device | 24V |
| Oil tank capacity | 160L |
| Tyres & Quantity | 12.5R20 / 6 |

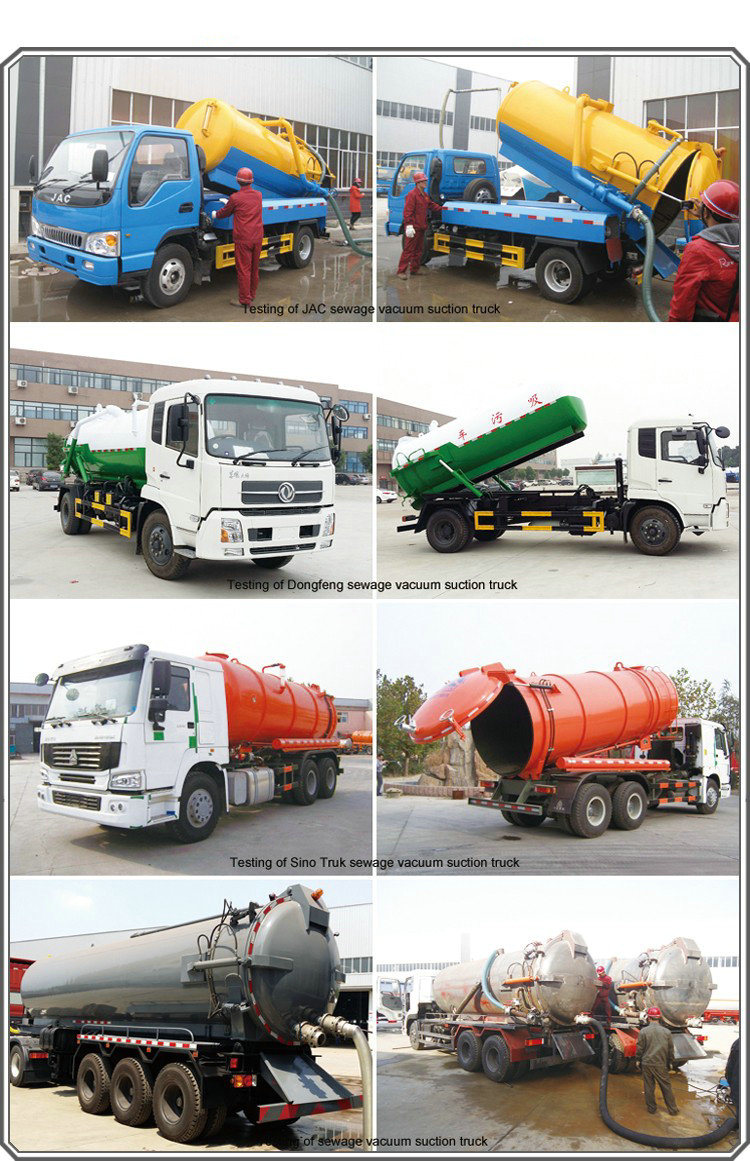

Vacuum Sewage Suction Truck vacuum tanker Jetting truck SINO SHACMAN,HOWO,DFL,HINO /UD,BENZ,MAN,ISUZU 9-20m3 vacuum tanker beiben Vacuum Sewage Suction Truck
SINO SHACMAN ,DONGFENG DFL,FAW,BEIBEN NORTH BENZ , HOWO ,FOTON ,JAC ISUZU Chassis,DF NISSAN-UD Chassis,HINO Chassis, JMC Chassis,JAC Chassis, Hongyan IVECO, Hualing-CAMC Chassis,MAN chassis or tractor tank trailer and so on all are optioanl
1.Factory direct sale
2.Specialized in Trucks 10 years
3.a competitive price.
4.with CCC,ISO9001,SGS,ASME
5.chassis is optional SINO SHACMAN ,HOWO, DFL, HINO /UD, BENZ, MAN ,SUZU 4x2 ,4x4,6X4 ,6x6,8x4,8x8 .
6.Engine min horse power is 95HP - 115 hp - 120HP~ 240HP~380HP
7.the tank volume is 3000L~12000-18000L~20000L
8.the tank produce as you requiry
9. pump is vacuum pump .
10. The Rear cover can be opened.
Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier
