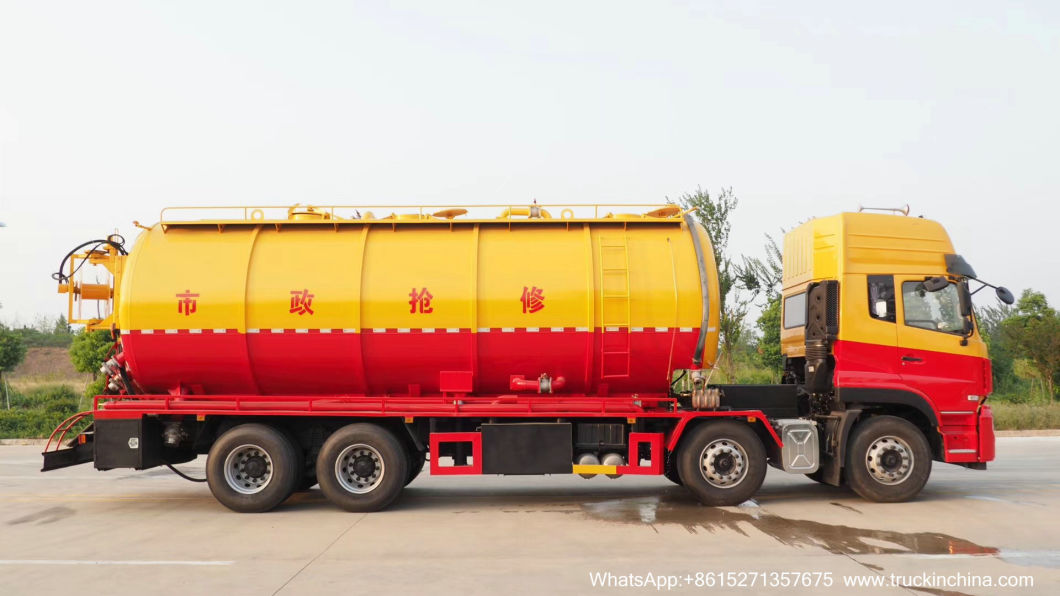

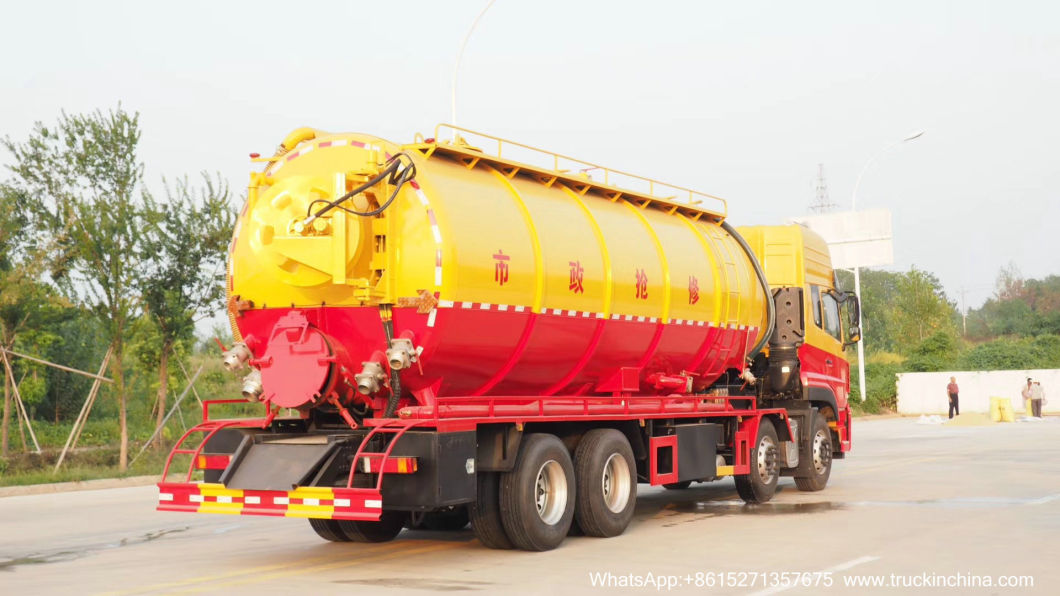

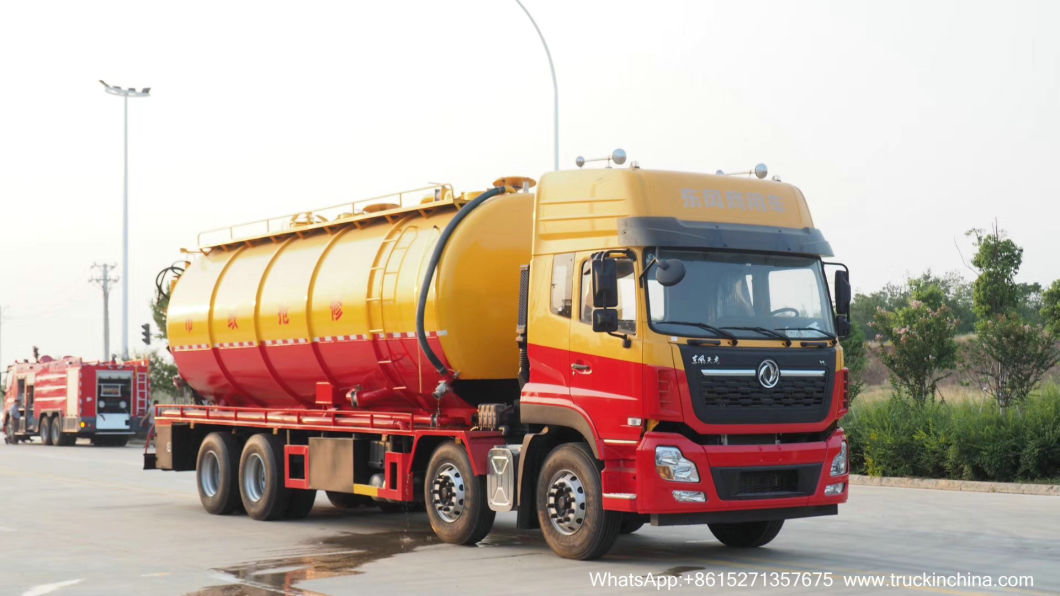

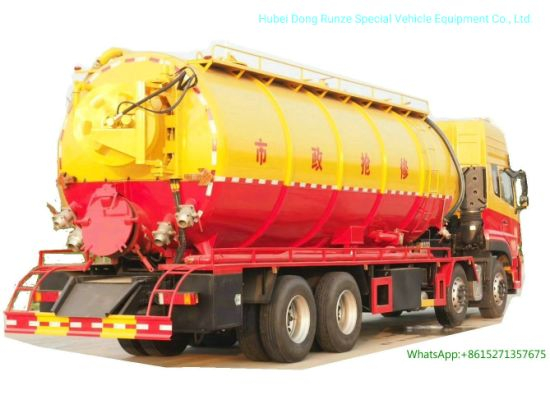

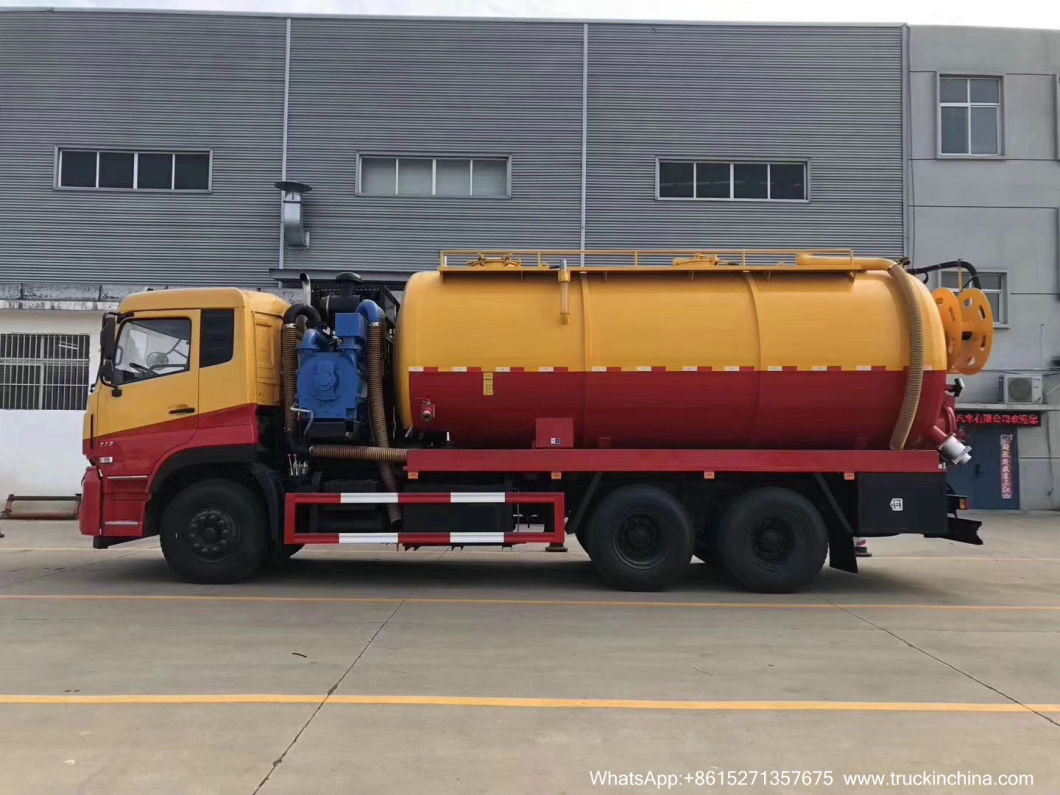

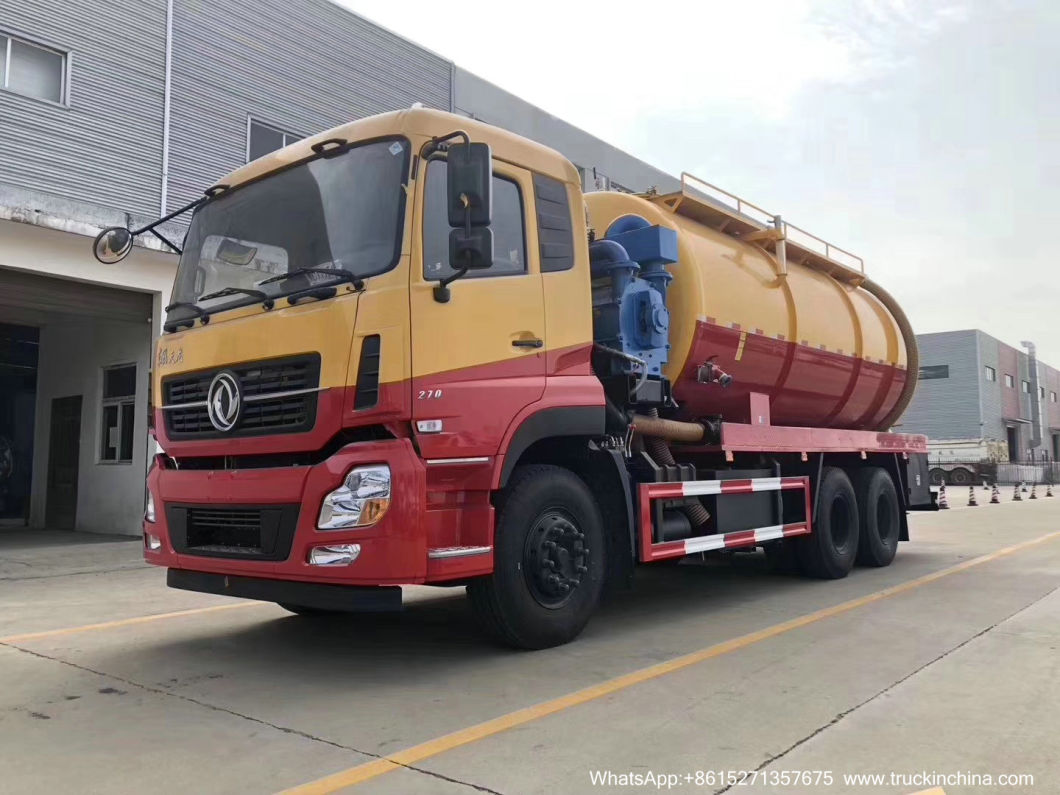

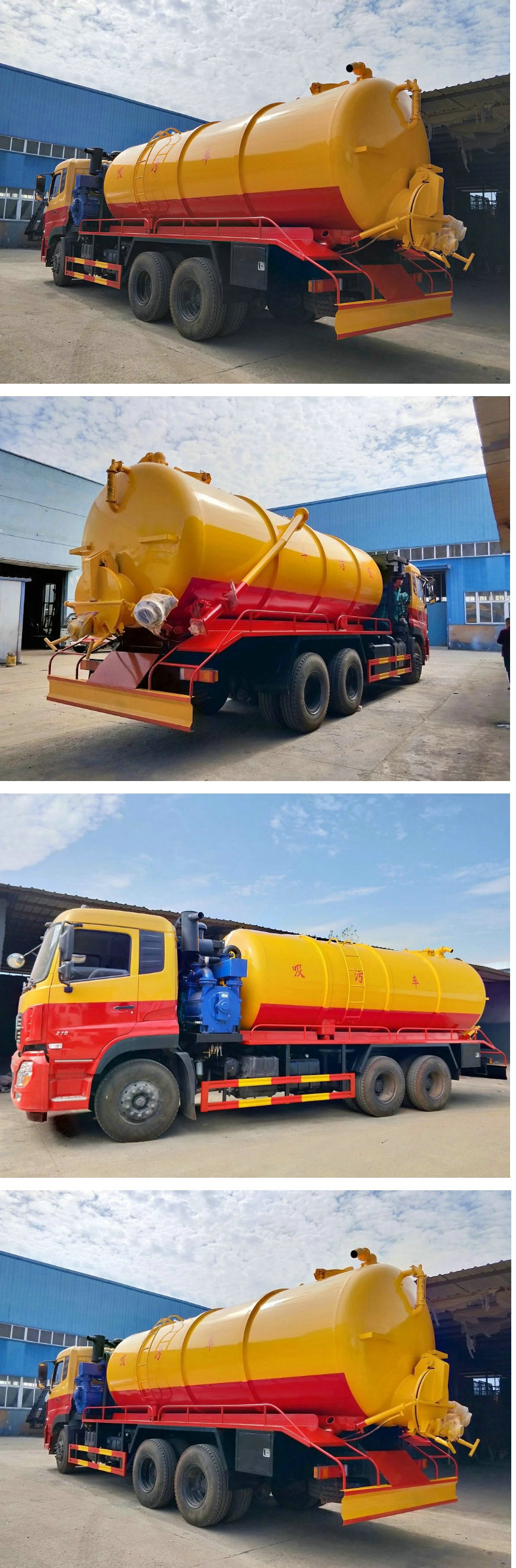

30ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck 18m3 Wast Sludge 10m3 Clean Water Tank)
30ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck 18m3 Wast Sludge 10m3 Clean Water Tank)
| Quantity: | |
|---|---|
-
DRZ5311
-
DF
-
8705
-
Shanghai, China
-
800
-
T/T
25Ton-30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck )
High Pressure Combined Vacuum Sewage Sewer Water Jetting Truck
30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck 18m3 Wast Sludge 10m3 Clean Water Tank ) Cesspit Emptier Vacuum Tanker Truck
For Cesspool Emptier
DFH1310A1
carbon - stainless steel
Sludge and Water Tank
| Shape | Cylindrical shaped tank with external reinforce rings |
| Material | Mild steel |
| Primary shut off | SS float ball prevents overfilling sludge tank. |
| Shell thickness | 5mm,6mm |
| Tipping cylinder | Front tipping and double acting cylinder |
| Safety support | Support the tank to ensure safety when it's tipped up |
| Sight glasses | 3units are mounted at the rear of the tank |
| Over pressure safety | Over pressure relief valve on tank top |

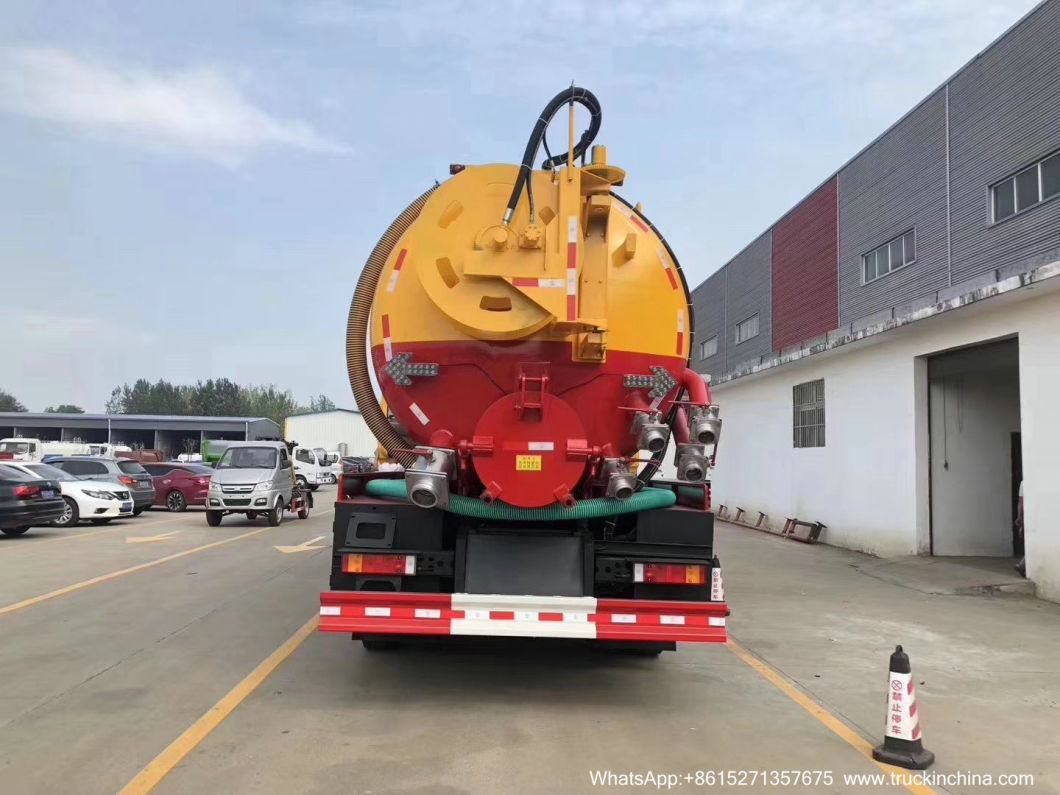

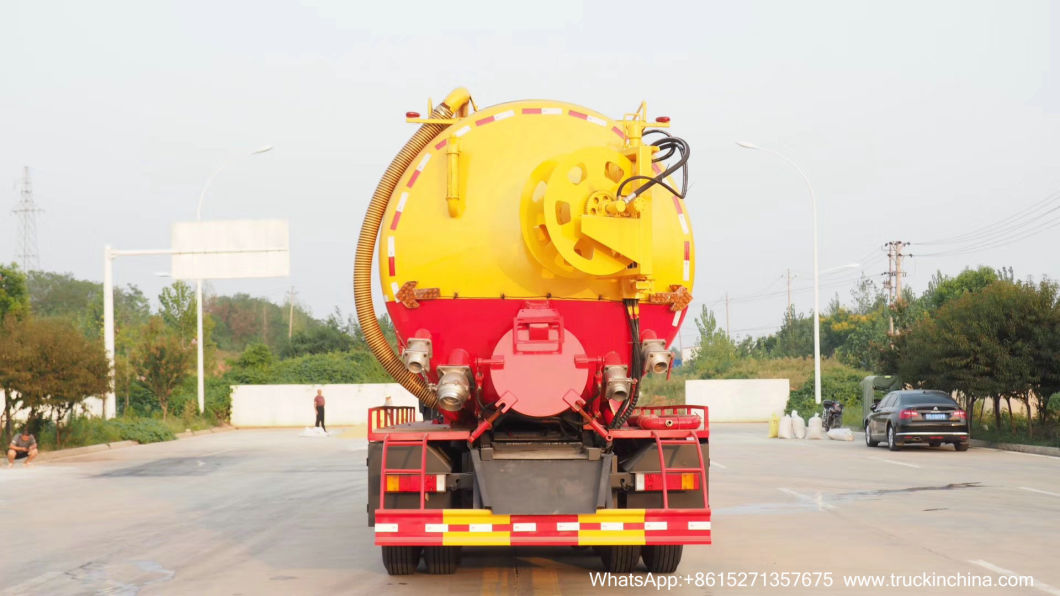

| Full opening rear lid | Hydraulically opening and locking |
| Inlet and Outlet Valve | Pneumatically and Manual operation |
Vacuum system

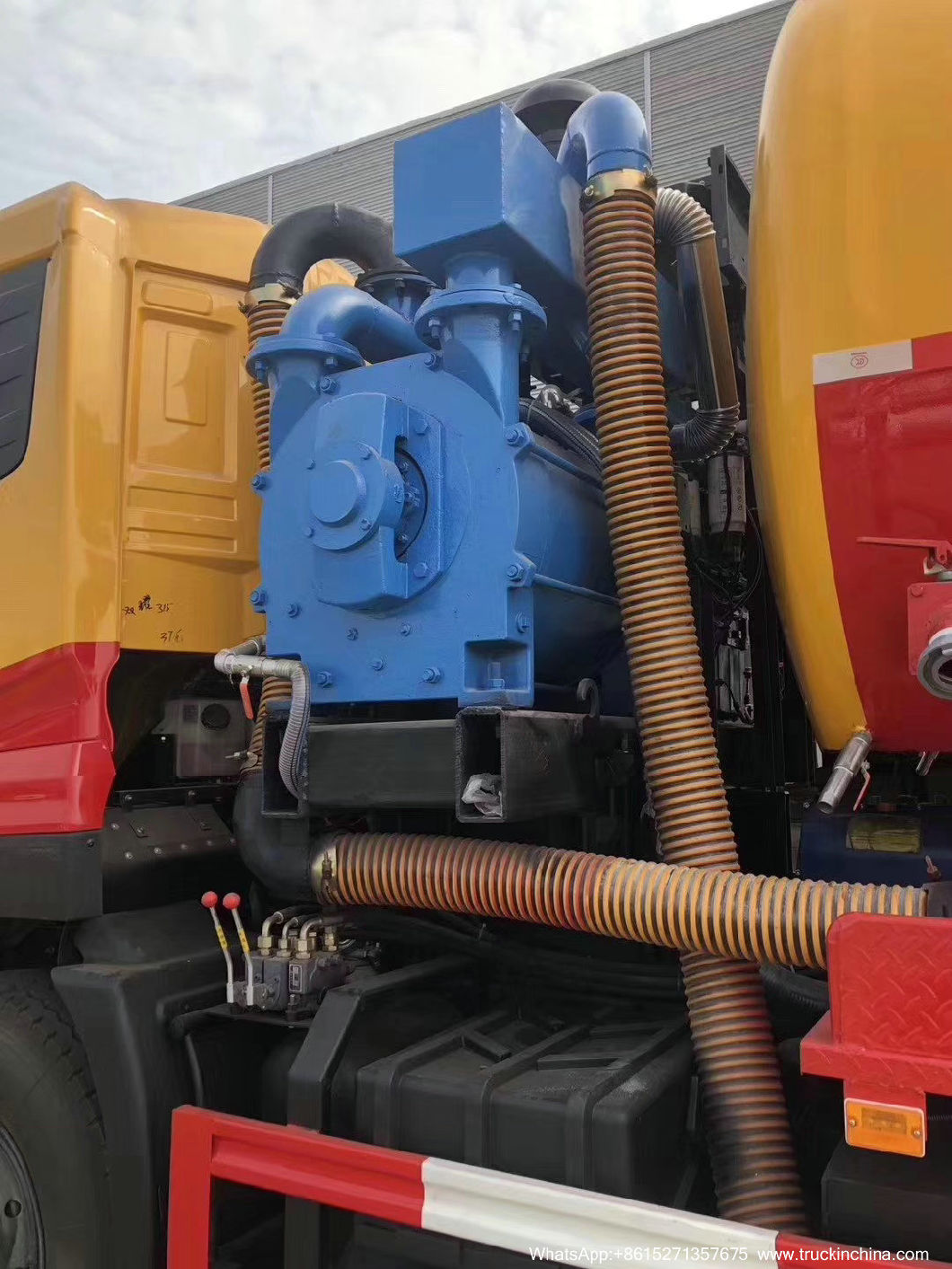

| Vacuum pump | Liquid ring vacuum pump |
| Max vacuum level | 95% |
| Continuous vacuum level | 80% |
| Rotate speed | Max 900r/min |
| Pump cooling | Cooling Water tank 1,000L, mounted behind cab |
| Protection | 1.Aluminum filter 2. Vacuum pressure relief valve |
| Telescopic suction boom | Stainless steel material. Swivel in both vertical and horizontal plane. 270°horizontal rotation, 6m working radius, 6m below ground and 1.4m extension.. |
High Pressure Combined Vacuum Sewage Sewer Water Jetting Truck
Reverse discharge system
Pressure switch system allows reverse discharging filtered water via suction boom or outlet valve, with only mud or solid waste left in tank. This reduces cycle dumping time, no need to go and back many times.
DFH1310A1 ChassisTechnical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | ISL9.5-292E51A | 9460 cc | 9.5 L | 577 cuin | 215 kW | 292 hp | Dongfeng Cummins Engine Co., Ltd. |
| 2 | ISL9.5-315E51A | 9460 cc | 9.5 L | 577 cuin | 232 kW | 315 hp | Dongfeng Cummins Engine Co., Ltd. |
| 3 | ISL9.5-340E51A | 9460 cc | 9.5 L | 577 cuin | 251 kW | 341 hp | Dongfeng Cummins Engine Co., Ltd. |
| 4 | ISL9.5-360E51A | 9460 cc | 9.5 L | 577 cuin | 268 kW | 364 hp | Dongfeng Cummins Engine Co., Ltd. |
| 5 | dCi350-51 | 11120 cc | 11.1 L | 679 cuin | 257 kW | 349 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 6 | dCi385-51 | 11120 cc | 11.1 L | 679 cuin | 283 kW | 385 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 7 | dCi420-51 | 11120 cc | 11.1 L | 679 cuin | 309 kW | 420 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 8 | DDi75S315-50 | 7530 cc | 7.5 L | 460 cuin | 232 kW | 315 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 9 | DDi75S350-50 | 7530 cc | 7.5 L | 460 cuin | 257 kW | 349 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| Performance | ||||
|---|---|---|---|---|
| Fuel | diesel fuel | |||
| Environmental standard | GB17691-2005 National V / Euro 5, GB3847-2005 | |||
| Maximum speed | 90 km/h | 56 mph | ||
| ABS | have | |||
| Capacity | ||||
|---|---|---|---|---|
| Rated load capacity | 18170 kg, 18105 kg | 18.2 t, 18.1 t | 40,058 lbs, 39,915 lbs | |
| Quasi-total mass of trailer | 18000 kg | 18 t | 40,000 lbs | |
| Load factor (the ratio of the payload of a vehicle to its weight) | 1.44 | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 12700 kg | 12.7 t | 28,000 lbs | |
| Gross vehicle weight rating | 31000 kg | 31 t | 68,000 lbs | |
| Axle load distribution | 6500 kg / 6500 kg / 18000 kg () 6.5 t / 6.5 t / 18 t () 14,300 lbs / 14,300 lbs / 40,000 lbs () | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 11980 mm | 39′4″ | ||
| Overall width | 2500 mm / 2550 mm | 8′3″ / 8′5″ | ||
| Overall height | 3200 mm / 3870 mm | 10′6″ / 12′9″ | ||
| Cargo body | ||||
|---|---|---|---|---|
| Cargo body length | 9400 mm / 9600 mm | 30′11″ / 31′6″ | ||
| Cargo body width | 600 mm / 800 mm | 2′0″ / 2′8″ | ||
| Cargo body height | 2300 mm / 2400 mm / 2450 mm | 7′7″ / 7′11″ / 8′1″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 4 | |||
| Wheelbase | 1850+4600+1350 mm, 1850+4600+1400 mm, 2050+4400+1350 mm, 2050+4400+1400 mm | 6′1″+15′2″+4′6″, 6′1″+15′2″+4′8″, 6′9″+14′6″+4′6″, 6′9″+14′6″+4′8″ | ||
| Front track | 2040 mm / 2040 mm | 6′9″ / 6′9″ | ||
| Rear track | 1860 mm / 1860 mm | 6′2″ / 6′2″ | ||
| Front/rear overhang | 1500 mm / 2680 mm, 1500 mm / 2630 mm | 5′0″ / 8′10″, 5′0″ / 8′8″ | ||
| Angle of approach | 22° | |||
| Angle of departure | 9° | |||
| Leaf springs | 9 / 9 / 10, 8 / 8 / 10, 3 / 3 / 4, 9 / 9 / -, 3 / 3 / - | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 12 | |||
| Tyres dimension | 11.00-20, 11.00R20, 295/80R22.5, 12R22.5 | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Seating capacity | 2, 3 | |||
| Steering control | steering wheel30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck ) | |||
| 25Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck ) Main technical parameters of DRZ5258GQWES cleaning and suction truck | |||
| Product Name: | Cleaning and suction truck | Appearance size: | 945010050 x 2500 x 36503800 (mm) |
| Chassis type: | EQ1258GSZ5DJ | Cargo size: | X (mm) |
| Total quality: | 25000 (Kg) | Approach / departure angle: | 29/12 (degree) |
| Rated quality: | 10805 (Kg) | Suspension ahead: | 1515/31501250/34151450/3215 (mm) |
| Preparation quality: | 14000 (Kg) | Maximum speed: | 90 (km/h) |
| Engine | Engine manufacturing enterprise | Displacement (ML) | Power (kw) |
| ISD21050 YC6JA240-50 ISB21050 YC6A240-50 YC6A270-50 WP7.270E51 ISD24550 | Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Limited by Share Ltd Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Limited by Share Ltd Guangxi Yuchai Machinery Limited by Share Ltd Weichai power company limited Dongfeng Cummins Engine Co., Ltd. | 6700 6870 5900 7520 7520 7470 6700 | 155/211 177/241 155/211 177/241 199/271 199/271 180/245 |
| Emission standards: | GB17691-2005 country V, GB3847-2005 | ||
| Axle number: | Three | Front tread: | (mm) |
| Wheelbase: | 4350+1300 4750+1300 5900+1300 4900+1300 5350+1300 4350+1350 4750+1350 5900+1350 4900+1350 5350+1350 | Rear wheelbase: | (mm) |
| Tires: | Tire specifications: | ||
| Fuel types: | diesel oil | Spring number: | |
| Axle load: | 7000/18000 (two axis group) | Number of cab drivers: | Three |
| Vehicle notes: | 1. The purpose of the vehicle is to clean and absorb pollutants. The main equipment is vacuum pump and tank. The tank size is (straight section length * diameter) (mm): 5400 * 2100, of which the tank front is clear water tank (straight section 1965mm), the rear end is the sewage tank (straight length 3435mm). The two cans are independent and cannot be fully loaded at the same time. When cleaning function, use clean water tank and use sewage tank when absorbing sewage function. The effective volume of the sewage tank is 13.6 cubic meters, medium: liquid dirt, density: 800 kg / cubic meter; the effective volume of the water tank is 10.08 cubic meters, medium: water, density: 1000 kg / cubic meter, 2, only using wheelbase (mm): 4350+13004750+1300. The corresponding relationship between length / wheelbase / front suspension / rear suspension is (mm): 9450/4350+1300/1515/22859450/4350+1300/1250/25509450/4350+1300/1450/235010050/4750+1300/1515/248510050/4750+1300/1250/275010050/4750+1300/1450/2550. The side / rear protective material is Q235, the side bolt is connected, the rear welding is welded, the section size is 300 * 50mm, and the lower edge is 500mm from the ground. Select the tank top guardrail style - install side suction pipe - choose the rear opening hydraulic opening mode - select the rear valve - select the rear cleaning tube reel style; 3, with the chassis optional cab; install the satellite positioning function of the driving recorder; ABS manufacturer: East Kokno commercial vehicle braking system (Shiyan) Co., Ltd.; model: 3631010-C2000. | ||
30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck )
| Main technical parameters of DRZ5311GQWDV cleaning and suction truck | |||
| Product Name: | Cleaning and suction truck | Appearance size: | 11980 x 2550 x 3850 (mm) |
| Chassis type: | DFH1310A1 | Cargo size: | X (mm) |
| Total quality: | 31000 (Kg) | Approach / departure angle: | 22/11 (degree) |
| Rated quality: | 1387513810 (Kg) | Suspension ahead: | 1500/23001500/23601500/2410 (mm) |
| Preparation quality: | 16995 (Kg) | Maximum speed: | 90 (km/h) |
| Engine | Engine manufacturing enterprise | Displacement (ML) | Power (kw) |
| DCi350-51 DCi385-51 DCi420-51 DDi75S315-50 DDi75S350-50 DCi450-51 DCi465-51 | Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. | 9460 9460 9460 11120 11120 11120 7530 | 232/316 251/342 268/365 257/350 283/385 309/421 232/316 |
| Emission standards: | GB17691-2005 country V, GB3847-2005 | ||
| Axle number: | Four | Front tread: | (mm) |
| Wheelbase: | 1850+4600+1350 1850+4600+1400 2050+4400+1350 2050+4400+1400 1850+4100+1350 1995+4600+1350 | Rear wheelbase: | (mm) |
| Tires: | Tire specifications: | ||
| Fuel types: | diesel oil | Spring number: | |
| Axle load: | 6500/6500/18000 (two axis group) | Number of cab drivers: | 2,3 |
| Vehicle notes: | 1. The purpose of the vehicle is to clean and absorb pollutants. The main equipment is vacuum pump and tank. The size of the tank is straight section length * diameter (mm): 7100 * 2350, of which the tank front is clear water tank (the outer dimension is 2600mm), and the rear end is the sewage tank (the outer dimension is 4500mm). The two cans are independent and cannot be fully loaded at the same time. When cleaning function, use clean water tank and use sewage tank when absorbing sewage function. The effective volume of the sewage tank is 18 cubic meters, medium: liquid dirt, density: 800 kg / cubic meter; the effective volume of the water tank is 10 cubic meters, medium: water, density: 1000 kg / cubic meter, 2, wheelbase / rear suspension corresponding to (mm): 1850+4600+1350/26801850+4600+1400/ 26302050+4400+1350/26802050+4400+1400/2630. Optional rear valve; optional rear reel - pick up the aisle and guardrail on the top of the tank; the side / rear protective material is Q235, the side bolts are connected, the rear welding is welded, the section size is 300 50mm, the lower edge is 500mm from the ground. 3, with the chassis optional cab; install satellite positioning function of the travel recorder; ABS model / manufacturer: 3631010-C2000/ East knkner commercial vehicle braking system (Shiyan) Co., Ltd. | ||
25Ton-30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck )
High Pressure Combined Vacuum Sewage Sewer Water Jetting Truck
30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck 18m3 Wast Sludge 10m3 Clean Water Tank ) Cesspit Emptier Vacuum Tanker Truck
For Cesspool Emptier
DFH1310A1
carbon - stainless steel
Sludge and Water Tank
| Shape | Cylindrical shaped tank with external reinforce rings |
| Material | Mild steel |
| Primary shut off | SS float ball prevents overfilling sludge tank. |
| Shell thickness | 5mm,6mm |
| Tipping cylinder | Front tipping and double acting cylinder |
| Safety support | Support the tank to ensure safety when it's tipped up |
| Sight glasses | 3units are mounted at the rear of the tank |
| Over pressure safety | Over pressure relief valve on tank top |
| Full opening rear lid | Hydraulically opening and locking |
| Inlet and Outlet Valve | Pneumatically and Manual operation |
Vacuum system
| Vacuum pump | Liquid ring vacuum pump |
| Max vacuum level | 95% |
| Continuous vacuum level | 80% |
| Rotate speed | Max 900r/min |
| Pump cooling | Cooling Water tank 1,000L, mounted behind cab |
| Protection | 1.Aluminum filter 2. Vacuum pressure relief valve |
| Telescopic suction boom | Stainless steel material. Swivel in both vertical and horizontal plane. 270°horizontal rotation, 6m working radius, 6m below ground and 1.4m extension.. |
High Pressure Combined Vacuum Sewage Sewer Water Jetting Truck
Reverse discharge system
Pressure switch system allows reverse discharging filtered water via suction boom or outlet valve, with only mud or solid waste left in tank. This reduces cycle dumping time, no need to go and back many times.
DFH1310A1 ChassisTechnical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | ISL9.5-292E51A | 9460 cc | 9.5 L | 577 cuin | 215 kW | 292 hp | Dongfeng Cummins Engine Co., Ltd. |
| 2 | ISL9.5-315E51A | 9460 cc | 9.5 L | 577 cuin | 232 kW | 315 hp | Dongfeng Cummins Engine Co., Ltd. |
| 3 | ISL9.5-340E51A | 9460 cc | 9.5 L | 577 cuin | 251 kW | 341 hp | Dongfeng Cummins Engine Co., Ltd. |
| 4 | ISL9.5-360E51A | 9460 cc | 9.5 L | 577 cuin | 268 kW | 364 hp | Dongfeng Cummins Engine Co., Ltd. |
| 5 | dCi350-51 | 11120 cc | 11.1 L | 679 cuin | 257 kW | 349 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 6 | dCi385-51 | 11120 cc | 11.1 L | 679 cuin | 283 kW | 385 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 7 | dCi420-51 | 11120 cc | 11.1 L | 679 cuin | 309 kW | 420 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 8 | DDi75S315-50 | 7530 cc | 7.5 L | 460 cuin | 232 kW | 315 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 9 | DDi75S350-50 | 7530 cc | 7.5 L | 460 cuin | 257 kW | 349 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| Performance | ||||
|---|---|---|---|---|
| Fuel | diesel fuel | |||
| Environmental standard | GB17691-2005 National V / Euro 5, GB3847-2005 | |||
| Maximum speed | 90 km/h | 56 mph | ||
| ABS | have | |||
| Capacity | ||||
|---|---|---|---|---|
| Rated load capacity | 18170 kg, 18105 kg | 18.2 t, 18.1 t | 40,058 lbs, 39,915 lbs | |
| Quasi-total mass of trailer | 18000 kg | 18 t | 40,000 lbs | |
| Load factor (the ratio of the payload of a vehicle to its weight) | 1.44 | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 12700 kg | 12.7 t | 28,000 lbs | |
| Gross vehicle weight rating | 31000 kg | 31 t | 68,000 lbs | |
| Axle load distribution | 6500 kg / 6500 kg / 18000 kg () 6.5 t / 6.5 t / 18 t () 14,300 lbs / 14,300 lbs / 40,000 lbs () | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 11980 mm | 39′4″ | ||
| Overall width | 2500 mm / 2550 mm | 8′3″ / 8′5″ | ||
| Overall height | 3200 mm / 3870 mm | 10′6″ / 12′9″ | ||
| Cargo body | ||||
|---|---|---|---|---|
| Cargo body length | 9400 mm / 9600 mm | 30′11″ / 31′6″ | ||
| Cargo body width | 600 mm / 800 mm | 2′0″ / 2′8″ | ||
| Cargo body height | 2300 mm / 2400 mm / 2450 mm | 7′7″ / 7′11″ / 8′1″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 4 | |||
| Wheelbase | 1850+4600+1350 mm, 1850+4600+1400 mm, 2050+4400+1350 mm, 2050+4400+1400 mm | 6′1″+15′2″+4′6″, 6′1″+15′2″+4′8″, 6′9″+14′6″+4′6″, 6′9″+14′6″+4′8″ | ||
| Front track | 2040 mm / 2040 mm | 6′9″ / 6′9″ | ||
| Rear track | 1860 mm / 1860 mm | 6′2″ / 6′2″ | ||
| Front/rear overhang | 1500 mm / 2680 mm, 1500 mm / 2630 mm | 5′0″ / 8′10″, 5′0″ / 8′8″ | ||
| Angle of approach | 22° | |||
| Angle of departure | 9° | |||
| Leaf springs | 9 / 9 / 10, 8 / 8 / 10, 3 / 3 / 4, 9 / 9 / -, 3 / 3 / - | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 12 | |||
| Tyres dimension | 11.00-20, 11.00R20, 295/80R22.5, 12R22.5 | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Seating capacity | 2, 3 | |||
| Steering control | steering wheel30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck ) | |||
| 25Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck ) Main technical parameters of DRZ5258GQWES cleaning and suction truck | |||
| Product Name: | Cleaning and suction truck | Appearance size: | 945010050 x 2500 x 36503800 (mm) |
| Chassis type: | EQ1258GSZ5DJ | Cargo size: | X (mm) |
| Total quality: | 25000 (Kg) | Approach / departure angle: | 29/12 (degree) |
| Rated quality: | 10805 (Kg) | Suspension ahead: | 1515/31501250/34151450/3215 (mm) |
| Preparation quality: | 14000 (Kg) | Maximum speed: | 90 (km/h) |
| Engine | Engine manufacturing enterprise | Displacement (ML) | Power (kw) |
| ISD21050 YC6JA240-50 ISB21050 YC6A240-50 YC6A270-50 WP7.270E51 ISD24550 | Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Limited by Share Ltd Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Limited by Share Ltd Guangxi Yuchai Machinery Limited by Share Ltd Weichai power company limited Dongfeng Cummins Engine Co., Ltd. | 6700 6870 5900 7520 7520 7470 6700 | 155/211 177/241 155/211 177/241 199/271 199/271 180/245 |
| Emission standards: | GB17691-2005 country V, GB3847-2005 | ||
| Axle number: | Three | Front tread: | (mm) |
| Wheelbase: | 4350+1300 4750+1300 5900+1300 4900+1300 5350+1300 4350+1350 4750+1350 5900+1350 4900+1350 5350+1350 | Rear wheelbase: | (mm) |
| Tires: | Tire specifications: | ||
| Fuel types: | diesel oil | Spring number: | |
| Axle load: | 7000/18000 (two axis group) | Number of cab drivers: | Three |
| Vehicle notes: | 1. The purpose of the vehicle is to clean and absorb pollutants. The main equipment is vacuum pump and tank. The tank size is (straight section length * diameter) (mm): 5400 * 2100, of which the tank front is clear water tank (straight section 1965mm), the rear end is the sewage tank (straight length 3435mm). The two cans are independent and cannot be fully loaded at the same time. When cleaning function, use clean water tank and use sewage tank when absorbing sewage function. The effective volume of the sewage tank is 13.6 cubic meters, medium: liquid dirt, density: 800 kg / cubic meter; the effective volume of the water tank is 10.08 cubic meters, medium: water, density: 1000 kg / cubic meter, 2, only using wheelbase (mm): 4350+13004750+1300. The corresponding relationship between length / wheelbase / front suspension / rear suspension is (mm): 9450/4350+1300/1515/22859450/4350+1300/1250/25509450/4350+1300/1450/235010050/4750+1300/1515/248510050/4750+1300/1250/275010050/4750+1300/1450/2550. The side / rear protective material is Q235, the side bolt is connected, the rear welding is welded, the section size is 300 * 50mm, and the lower edge is 500mm from the ground. Select the tank top guardrail style - install side suction pipe - choose the rear opening hydraulic opening mode - select the rear valve - select the rear cleaning tube reel style; 3, with the chassis optional cab; install the satellite positioning function of the driving recorder; ABS manufacturer: East Kokno commercial vehicle braking system (Shiyan) Co., Ltd.; model: 3631010-C2000. | ||
30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck )
| Main technical parameters of DRZ5311GQWDV cleaning and suction truck | |||
| Product Name: | Cleaning and suction truck | Appearance size: | 11980 x 2550 x 3850 (mm) |
| Chassis type: | DFH1310A1 | Cargo size: | X (mm) |
| Total quality: | 31000 (Kg) | Approach / departure angle: | 22/11 (degree) |
| Rated quality: | 1387513810 (Kg) | Suspension ahead: | 1500/23001500/23601500/2410 (mm) |
| Preparation quality: | 16995 (Kg) | Maximum speed: | 90 (km/h) |
| Engine | Engine manufacturing enterprise | Displacement (ML) | Power (kw) |
| DCi350-51 DCi385-51 DCi420-51 DDi75S315-50 DDi75S350-50 DCi450-51 DCi465-51 | Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. | 9460 9460 9460 11120 11120 11120 7530 | 232/316 251/342 268/365 257/350 283/385 309/421 232/316 |
| Emission standards: | GB17691-2005 country V, GB3847-2005 | ||
| Axle number: | Four | Front tread: | (mm) |
| Wheelbase: | 1850+4600+1350 1850+4600+1400 2050+4400+1350 2050+4400+1400 1850+4100+1350 1995+4600+1350 | Rear wheelbase: | (mm) |
| Tires: | Tire specifications: | ||
| Fuel types: | diesel oil | Spring number: | |
| Axle load: | 6500/6500/18000 (two axis group) | Number of cab drivers: | 2,3 |

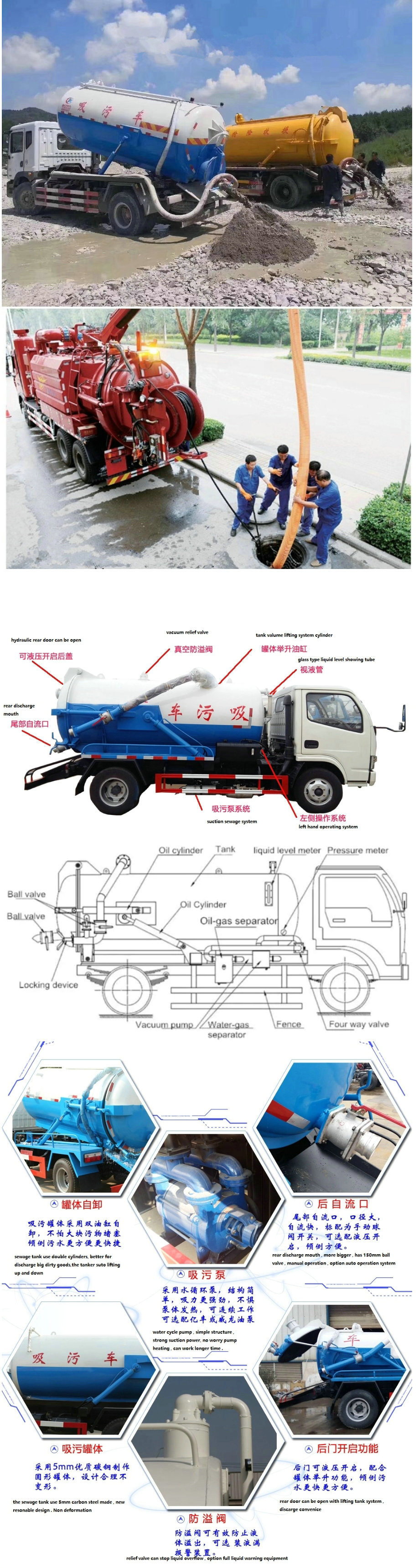

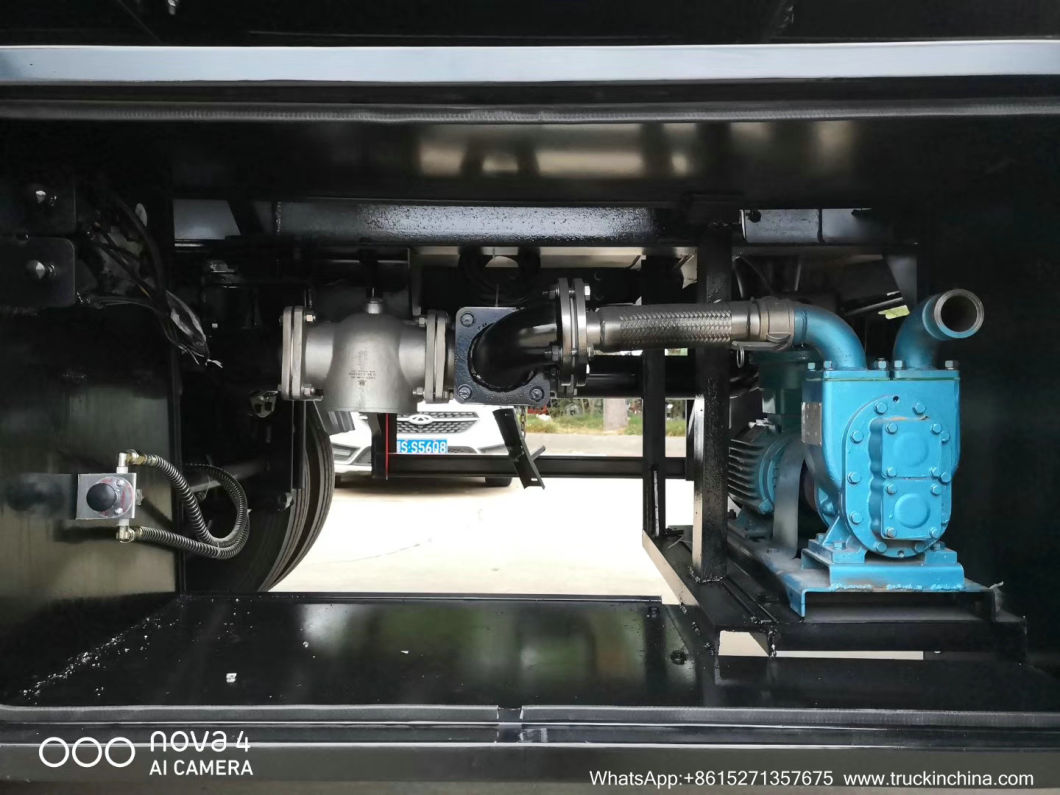

| Vehicle notes: | 1. The purpose of the vehicle is to clean and absorb pollutants. The main equipment is vacuum pump and tank. The size of the tank is straight section length * diameter (mm): 7100 * 2350, of which the tank front is clear water tank (the outer dimension is 2600mm), and the rear end is the sewage tank (the outer dimension is 4500mm). The two cans are independent and cannot be fully loaded at the same time. When cleaning function, use clean water tank and use sewage tank when absorbing sewage function. The effective volume of the sewage tank is 18 cubic meters, medium: liquid dirt, density: 800 kg / cubic meter; the effective volume of the water tank is 10 cubic meters, medium: water, density: 1000 kg / cubic meter, 2, wheelbase / rear suspension corresponding to (mm): 1850+4600+1350/26801850+4600+1400/ 26302050+4400+1350/26802050+4400+1400/2630. Optional rear valve; optional rear reel - pick up the aisle and guardrail on the top of the tank; the side / rear protective material is Q235, the side bolts are connected, the rear welding is welded, the section size is 300 50mm, the lower edge is 500mm from the ground. 3, with the chassis optional cab; install satellite positioning function of the travel recorder; ABS model / manufacturer: 3631010-C2000/ East knkner commercial vehicle braking system (Shiyan) Co., Ltd. | ||
