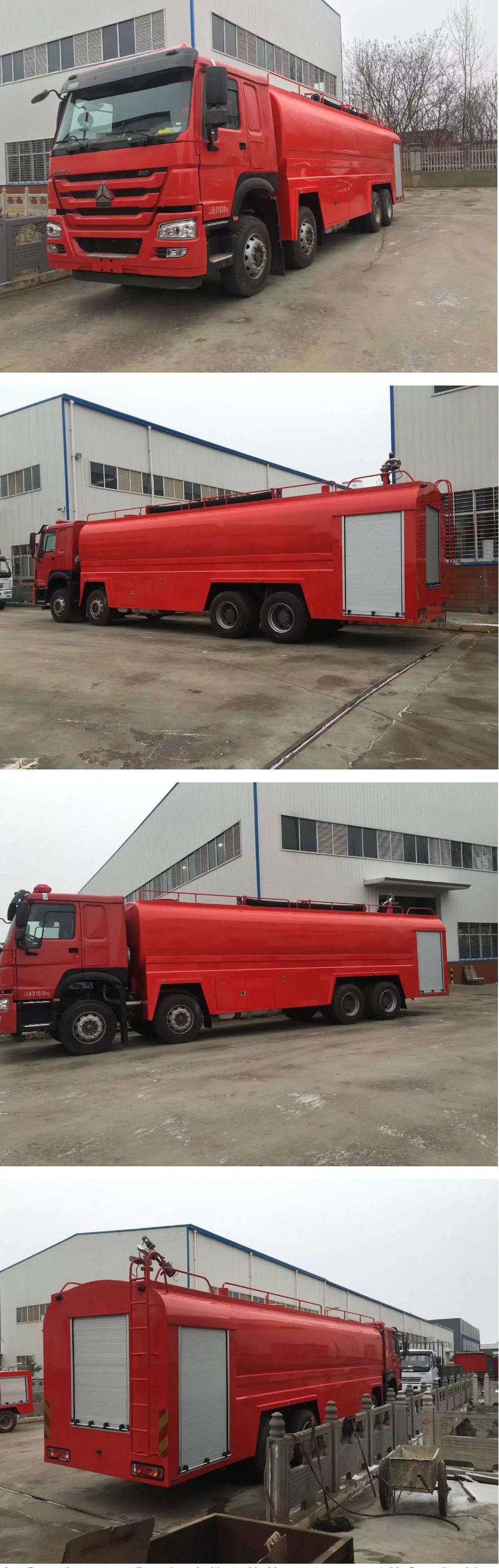

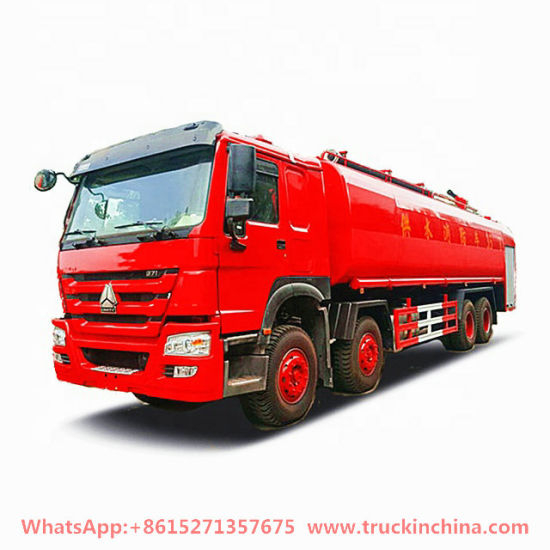

Sinotruk HOWO 12 Wheelers Water Bowser Fire Trucks 20000 -28000liters with Fire Pumper
| Quantity: | |
|---|---|
-
Shanghai, China
-
10000
-
T/T
Sinotruk HOWO 12 wheelers Water Bowser Fire Trucks 20000 -28000Liters With Fire Pumper with Fire Montior, Fire Pump
equip Fire Pump, Fire Monitor, Optional Front Spraying Nozzle. with Mulitifunction of Water truck and Fire Truck.
SINOTRUK HOWO 6x4 266hp 20cbm water tank fire truck
Fire Water Truck equips with Special Fire pump, fire monitor, fire Power Take Off. The fire monitor can be installed on the top of tank or at the rear of truck. With fire Connection, can be fill water through Fire Hydrant, with self-discharge valve.
The fire water tank truck with big capacity water tank body, can transport the water and fire personal away the fire to put off the fire, it also can put our the fire directly suction the water source, or supply the water to other fire truck and fire fighting equipment. The fire water tank truck also can supply and transport water to dry areas, it is suit for to put out the common fire. It is suit for police fire brigade and the fire brigade of enterprises. Meantime, the water fire fighting truck is suit for landscaping, fire sprinkler, fire, mine dust, put out the fire for living area, fire power plant.
SINOTRUK HOWO 6x4 266hp fire-fighting vehicle/ pumper engine
| Dimension(Lx W xH)(unloaded)(mm) | 9895×2496×2958 | ||||
| Tank Volume (mm) | 20cbm tank body(thickness):5mm ,material: carbon steel; sprinkling equipment both in front and in rear; special anti-corrosion treatment | ||||
| Approaching angle/Departure angle(°) | 13.5/11.5 | ||||
| Overhang(front/rear) (mm) | 1500/2445 | ||||
| Wheel base (mm | 4300+1350 | ||||
| Max speed(km/h) | 90 | ||||
| Curb weight(kg) | 12450 | ||||
| Loading Weight(kg) | 12400 | ||||
Engine (Steyr technology, made in China) | Model | WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection | |||
| Fuel type | Diesel | ||||
| Power, max(kw/rpm) | 247/2200 | ||||
| Emission | EURO | ||||
| Fuel tanker capacity | 300 | ||||
| Transmission | Model | HW19710 | |||
Brake system | Service brake | Dual circuit compressed air brake | |||
| Parking brake | spring energy, compressed air operating on rear wheels | ||||
Steering system | Model | ZF8098 | |||
| Front axle | HF9 | ||||
| Rear axle | HC16 | ||||
| Tyre | 12.00R20 | ||||
Electrical system | Battery | 2X12V/165Ah | |||
| Alternator | 28V-1500kw | ||||
| Starter | 7.5Kw/24V | ||||
| Cab | HOWO76 cab, all-steel forward control,55ºhydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||||
.Technical parameter reference
| Product name | Howo 8*4 fire fighting truck |
| Tank capacity | 21.2m3 |
| Tank size(mm) | 8350*2420*1250 |
| Cab seat | 2 |
| Gross weight(kg) | 40000 |
| Curb weight(kg) | 18350 |
| Dimension(mm) | 11850*2500*3660 |
| Max speed(km/h) | 95 |
| Axle load(kg) | 8000/8000/27000 |
| Front/ back track(mm) | 2022/2022,1830/1830 |
| Front/ back suspension(mm) | 1500/2600 |
| Wheelbase(mm) | 1800+4600+1350 |
| Tire NO | 12 |
| Tire spec | 12.00-20,12.00R20 |
| Engine model | D12.42-40 |
| Displacment(ml) | 11596 |
| Power(kw) | 309 |
| Horse power(hp) | 420 |
Fire fighting water tank lorry truck 28000L
Sinotruk HOWO 12 wheelers Water Bowser Fire Trucks 20000 -28000Liters With Fire Pumper with Fire Montior, Fire Pump
equip Fire Pump, Fire Monitor, Optional Front Spraying Nozzle. with Mulitifunction of Water truck and Fire Truck.
SINOTRUK HOWO 6x4 266hp 20cbm water tank fire truck
Fire Water Truck equips with Special Fire pump, fire monitor, fire Power Take Off. The fire monitor can be installed on the top of tank or at the rear of truck. With fire Connection, can be fill water through Fire Hydrant, with self-discharge valve.
The fire water tank truck with big capacity water tank body, can transport the water and fire personal away the fire to put off the fire, it also can put our the fire directly suction the water source, or supply the water to other fire truck and fire fighting equipment. The fire water tank truck also can supply and transport water to dry areas, it is suit for to put out the common fire. It is suit for police fire brigade and the fire brigade of enterprises. Meantime, the water fire fighting truck is suit for landscaping, fire sprinkler, fire, mine dust, put out the fire for living area, fire power plant.
SINOTRUK HOWO 6x4 266hp fire-fighting vehicle/ pumper engine
| Dimension(Lx W xH)(unloaded)(mm) | 9895×2496×2958 | ||||
| Tank Volume (mm) | 20cbm tank body(thickness):5mm ,material: carbon steel; sprinkling equipment both in front and in rear; special anti-corrosion treatment | ||||
| Approaching angle/Departure angle(°) | 13.5/11.5 | ||||
| Overhang(front/rear) (mm) | 1500/2445 | ||||
| Wheel base (mm | 4300+1350 | ||||
| Max speed(km/h) | 90 | ||||
| Curb weight(kg) | 12450 | ||||
| Loading Weight(kg) | 12400 | ||||
Engine (Steyr technology, made in China) | Model | WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection | |||
| Fuel type | Diesel | ||||
| Power, max(kw/rpm) | 247/2200 | ||||
| Emission | EURO | ||||
| Fuel tanker capacity | 300 | ||||
| Transmission | Model | HW19710 | |||
Brake system | Service brake | Dual circuit compressed air brake | |||
| Parking brake | spring energy, compressed air operating on rear wheels | ||||
Steering system | Model | ZF8098 | |||
| Front axle | HF9 | ||||
| Rear axle | HC16 | ||||
| Tyre | 12.00R20 | ||||
Electrical system | Battery | 2X12V/165Ah | |||
| Alternator | 28V-1500kw | ||||
| Starter | 7.5Kw/24V | ||||
| Cab | HOWO76 cab, all-steel forward control,55ºhydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||||
.Technical parameter reference
| Product name | Howo 8*4 fire fighting truck |
| Tank capacity | 21.2m3 |
| Tank size(mm) | 8350*2420*1250 |
| Cab seat | 2 |
| Gross weight(kg) | 40000 |
| Curb weight(kg) | 18350 |
| Dimension(mm) | 11850*2500*3660 |
| Max speed(km/h) | 95 |
| Axle load(kg) | 8000/8000/27000 |
| Front/ back track(mm) | 2022/2022,1830/1830 |
| Front/ back suspension(mm) | 1500/2600 |
| Wheelbase(mm) | 1800+4600+1350 |
| Tire NO | 12 |
| Tire spec | 12.00-20,12.00R20 |
| Engine model | D12.42-40 |
| Displacment(ml) | 11596 |
| Power(kw) | 309 |
| Horse power(hp) | 420 |
Fire fighting water tank lorry truck 28000L
