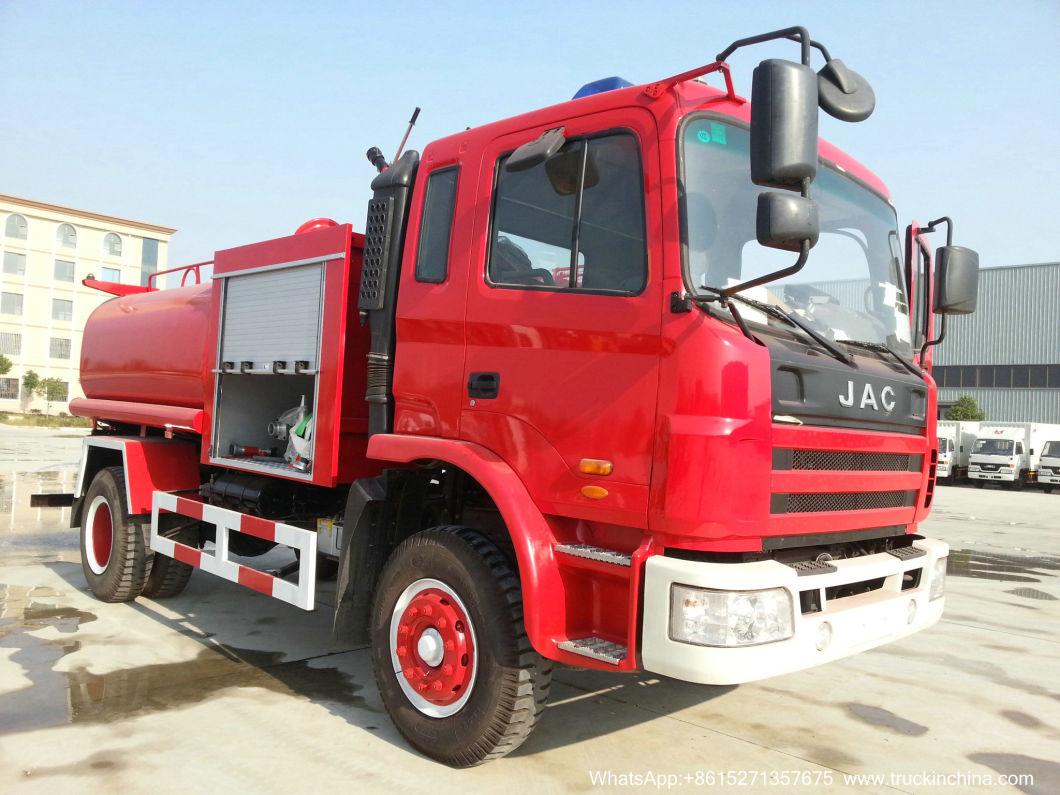

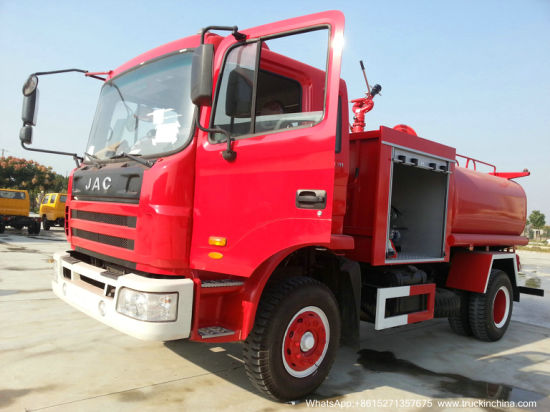

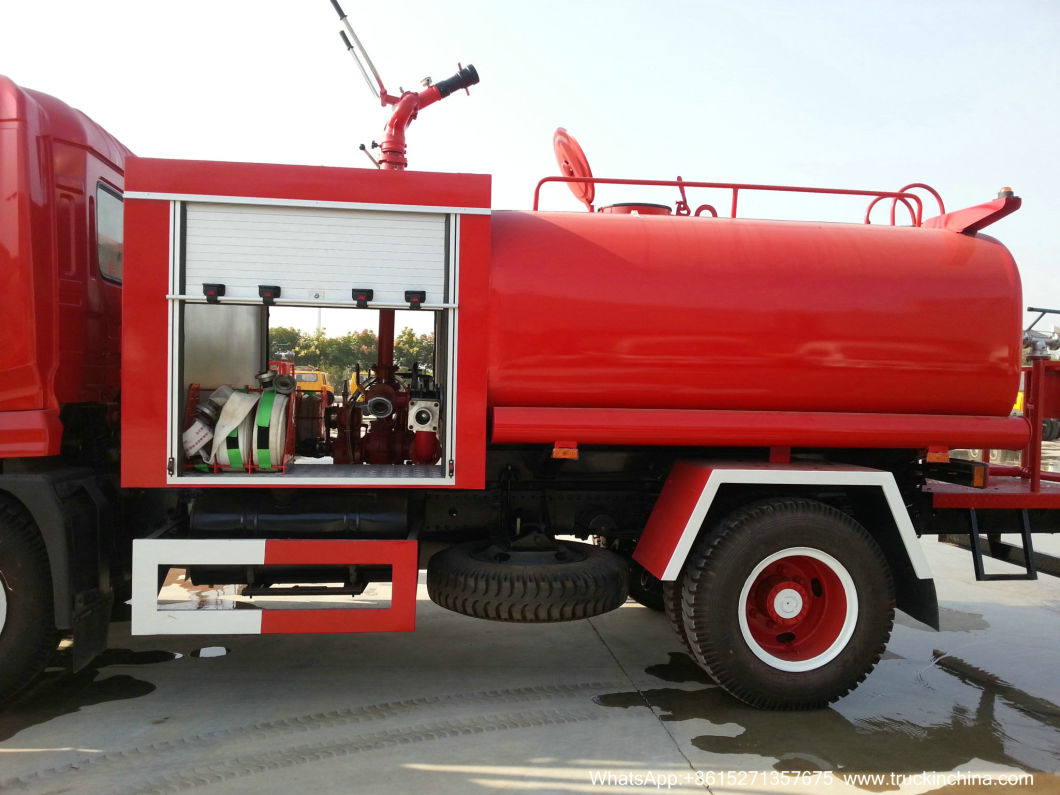

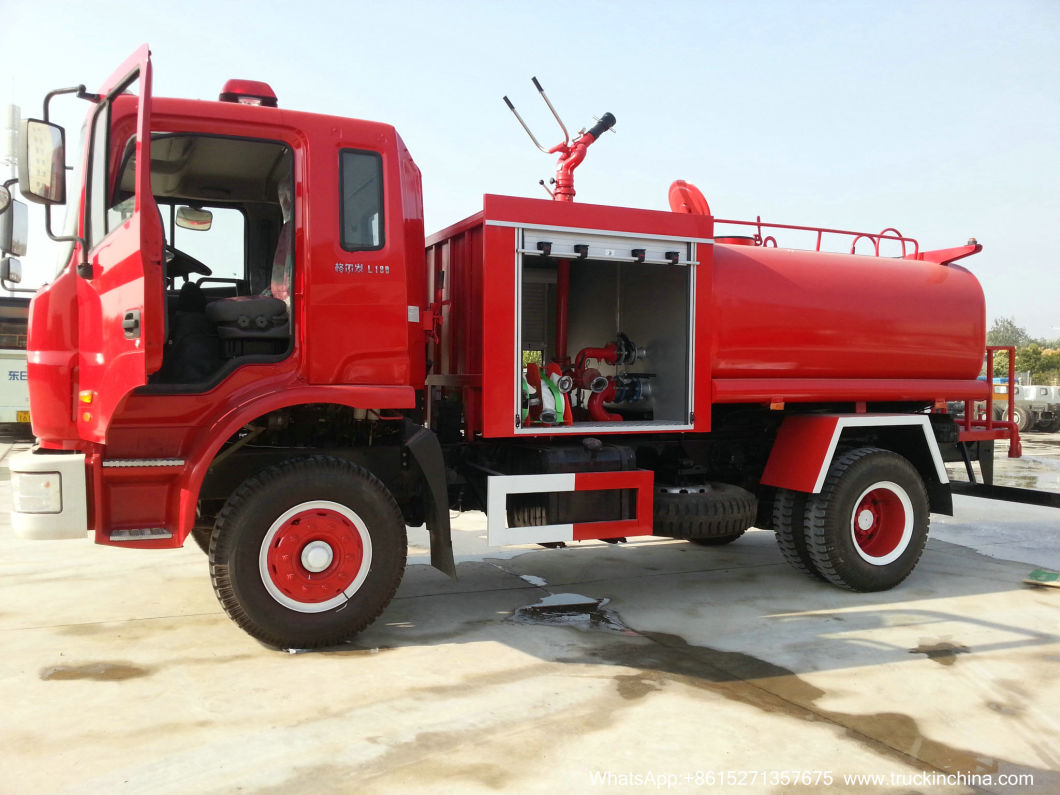

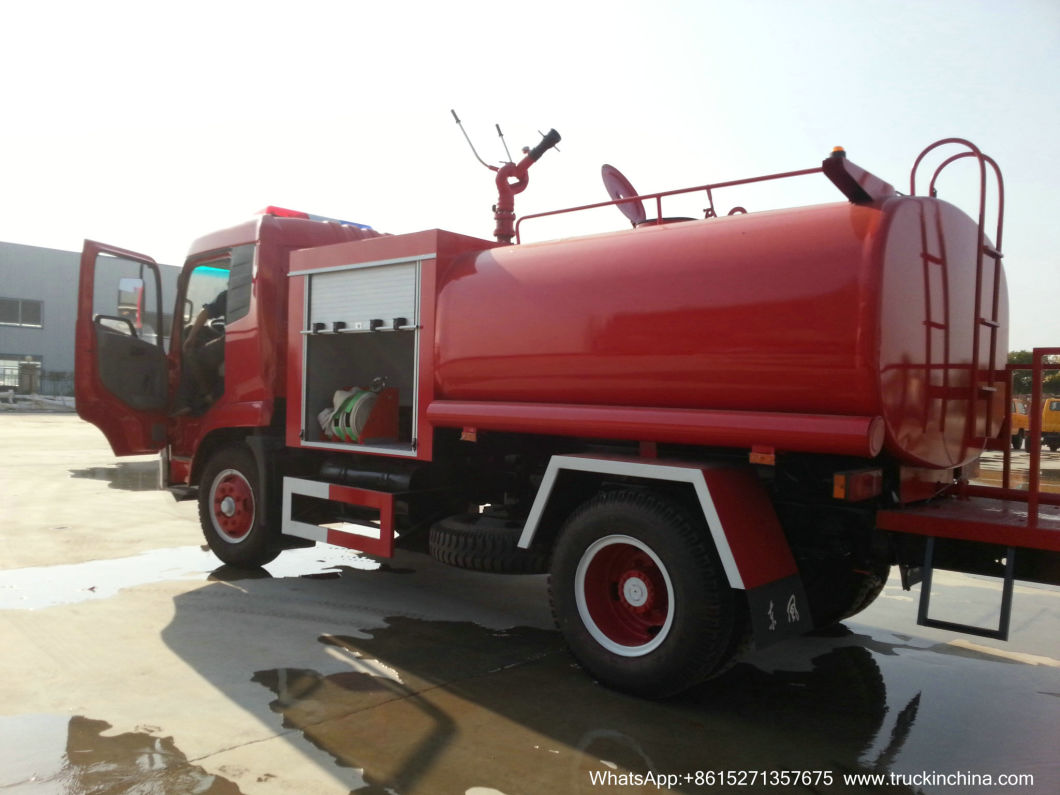

JAC 6 Wheels Drive 6 Ton Water Tanker Mounted with With Fire Water Pump and Fire Monitor Water Cannon Spray 50M
4x2 Water Tanker Fire Truck Mounted with Fire Pumper LHD.RHD

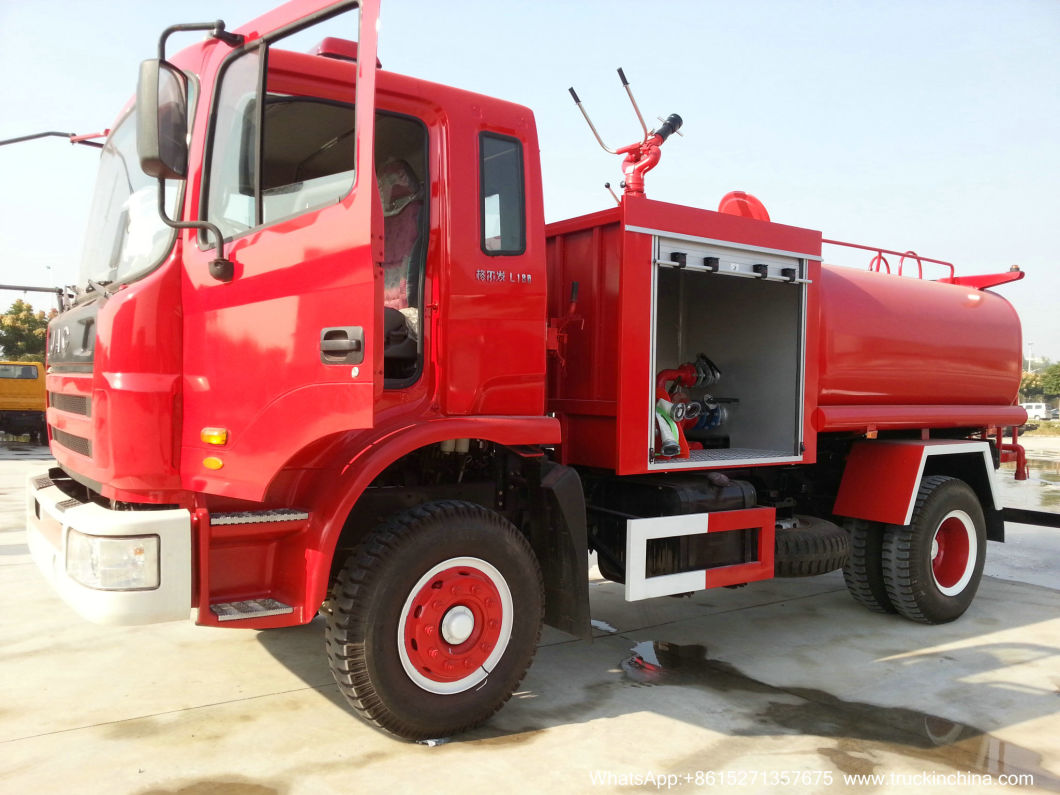

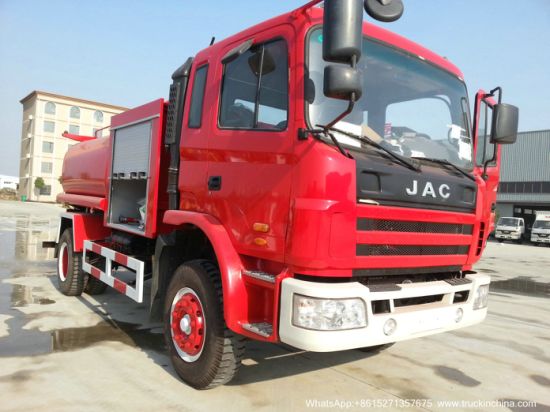

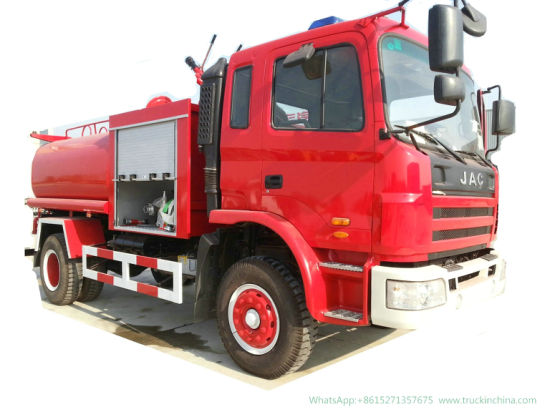

JAC Heavy water tanker fire truck
optional tank capacity as clients speical need.
Overall dimensions 8500X2500X3150mm Curb weight 7405kg
Tank dimensions 5200X2000X1100mm Tank volume water:5000 ~7000L

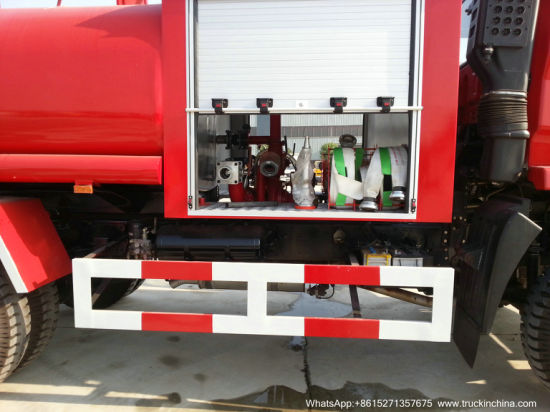

Various types of fire pumps and parameters
1, Fire pump Model: CB10/20
Flow: 20L/S, Pressure: 1.0Mpa
Fire gun Model: SP20, Range: 48m
Applicable tonnage: 2.5 tons of fire trucks
Applicable models: Dongfeng Small fighter fire truck, Jiangling Shun, Qing Ling, Chongqing Isuzu 4x2/6x4/4x4/6x6 fire truck

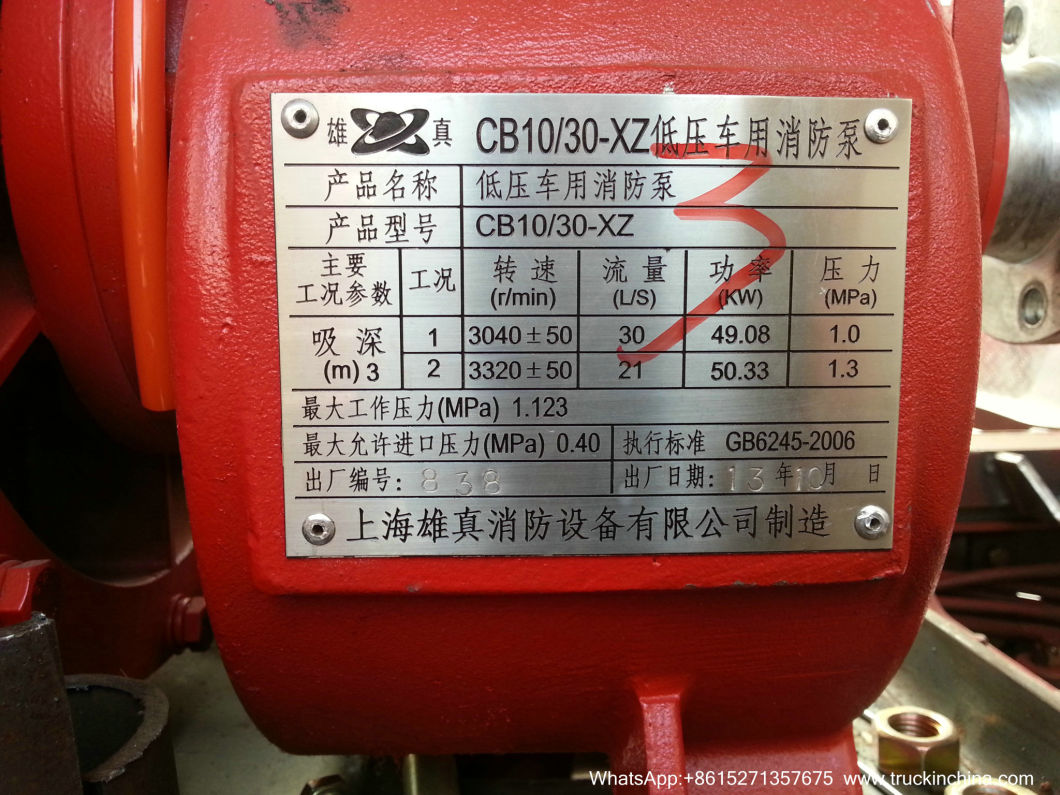

2, Fire pump Model: CB10/30
Medium Pressure pump: CB20.10/15.30
Low-Pressure flow/pressure: 30L/S/1.0MPA
Medium pressure flow/pressure: 15L/S/2.0MPA
Flow: 30L/S, Pressure: 1.0Mpa
Applicable tonnage: 3.5 tons of fire trucks
Applicable car: 4x2/6x4/4x4/6x6 fire truck
3, Fire pump Model: CB20.10/20.40
Low-Pressure flow/pressure: 40L/S/1.0MPA
Medium pressure flow/pressure: 20L/S/2.0MPA
Atmospheric pump: CB10/40
Flow/Pressure: 40L/S/1.0MPA
Applicable tonnage: 4 tons, 6 tons of fire trucks
Applicable model: 4x2/6x4/4x4/6x6 fire truck
4, Fire pump (atmospheric pump) Model: CB10/60
Flow: 60L/S, Pressure: 1.0Mpa
Fire gun Model: SP20, Range: 48m
Applicable tonnage: 8 tons of fire trucks
Applicable car: 6x4/6x6/8x4/8x8 fire truck
5, medium and low pressure pump: Model: CB20.10/30.60
Low-Pressure flow/pressure: 60L/S/1.0MPA
Medium pressure flow/pressure: 30L/S/2.0MPA
Applicable tonnage: 8 tons of fire trucks
Applicable car: 6x4/6x6/8x4/8x8 fire truck
6, Fire pump Model: CB20.10/30.60
Low-Pressure flow/pressure: 60L/S/1.0MPA
Medium pressure flow/pressure: 30L/S/2.0MPA
Applicable tonnage: 12 tons of fire trucks
Applicable model: 6x4/6x6/8x4/8x8 fire truck
7, Atmospheric pump model: CB10/60
Flow: 60L/S, Pressure: 1.0Mpa
Applicable tonnage: 12 tons of fire trucks
Applicable model: 6x4/6x6/8x4/8x8 fire truck
8, Fire pump Model: CB10/60
Flow: 60L/S, Pressure: 1.0Mpa
Applicable tonnage: 20 tons of fire trucks
Applicable car: Heavy-duty 6x4/6x6/8x4/8x8 fire engines
9, medium and low pressure pump: CB20.10/30.60
Low-Pressure flow/pressure: 60L/S/1.0MPA
Medium pressure flow/pressure: 30L/S/2.0MPA
Applicable tonnage: 20 tons of fire trucks
Applicable car: Heavy-duty 6x4/6x6/8x4/8x8 fire engines
Various types of fire guns and parameters
1, Jug fire gun Model: SP40
Flow: 40L/S, Pressure: 1.0MPA, Range: 55m
Foam Fire Truck Cannon: PL32, Flow: 32L/S, Pressure: 1.0Mpa, Range: water ≥ 50m, foam: ≥ 45m
2, Jug fire gun Model: SP30
Range: 55m
Foam Fire Truck Cannon: PL24, Flow: 24L/S, Pressure: 1.0Mpa, Range: water ≥ 45m, foam: ≥ 40m
3, Foam fire fighting gun: PP48
Flow: 48L/S/1.0MPA, water range: ≥ 60 meters, foam range: ≥ 55 meters
Pitcher Fire Gun: SP50, water range: ≥ 65 meters
4, Blister dual-purpose cannon: PL48
Flow: 48L/S/1.0MPA, water range: ≥ 60 meters, foam range: ≥ 55 meters
Tank fire Gun: SP80, Flow: 50L/S/1.0MPA, water range: ≥ 65 meters
Chassis parameters
Chassis model HFC1161P3K2A47F Chassis brand JAC
Overall dimensions 7230x2495x3070mm Wheel base 4700mm
Front/rear wheel track 1963 ,1800 mm Front/rear suspension 1530/1000mm
Approach/departure angle 20/19° Maximum speed 95km/h
Chassis Manufacturer Anhui Jianghuai Automobile Co., Ltd
Cab Configuration A row and a half deluxe cab(with sleeping berth), allowable 3 passengers, air condition, electric window, traveling data recorder
Color Red, other color is optional
Engine Model YC4E160-42
Emission Euro 4
Type 4 cylinders, in-line, 4-stroke,water-cooled, turbo inter-cooling, direct injection, diesel engine
Rated power 160hp, rated power speed 2600rpm
Displacement 4260ml
Max.torque 550N.m
Bore x stroke 110X112mm
Manufacturer Guangxi Yuchai Machinery Group Co., Ltd
Tire Size 11.00R20 steel wire tire
Number 6+1 nos
Clutch Φ430 diaphragm clutch
Frame 245X75X7mm
Fuel tank 300L iron oil tank
Rear axle Boying 8 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V, DC
Transmissions gearbox CA6T138-85, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard
Water tank structure parameters
Tank dimensions 5200X2000X1100mm Tank volume 5000 ~7000L
Tank material Carbon steel Tank thickness 4/5mm
Nozzle sprinkling width ≥14m Range of water fire cannon ≥50m
Suction height ≥7m Color and Logo Optional
Standard configuration Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.
Selective configuration Stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc.
