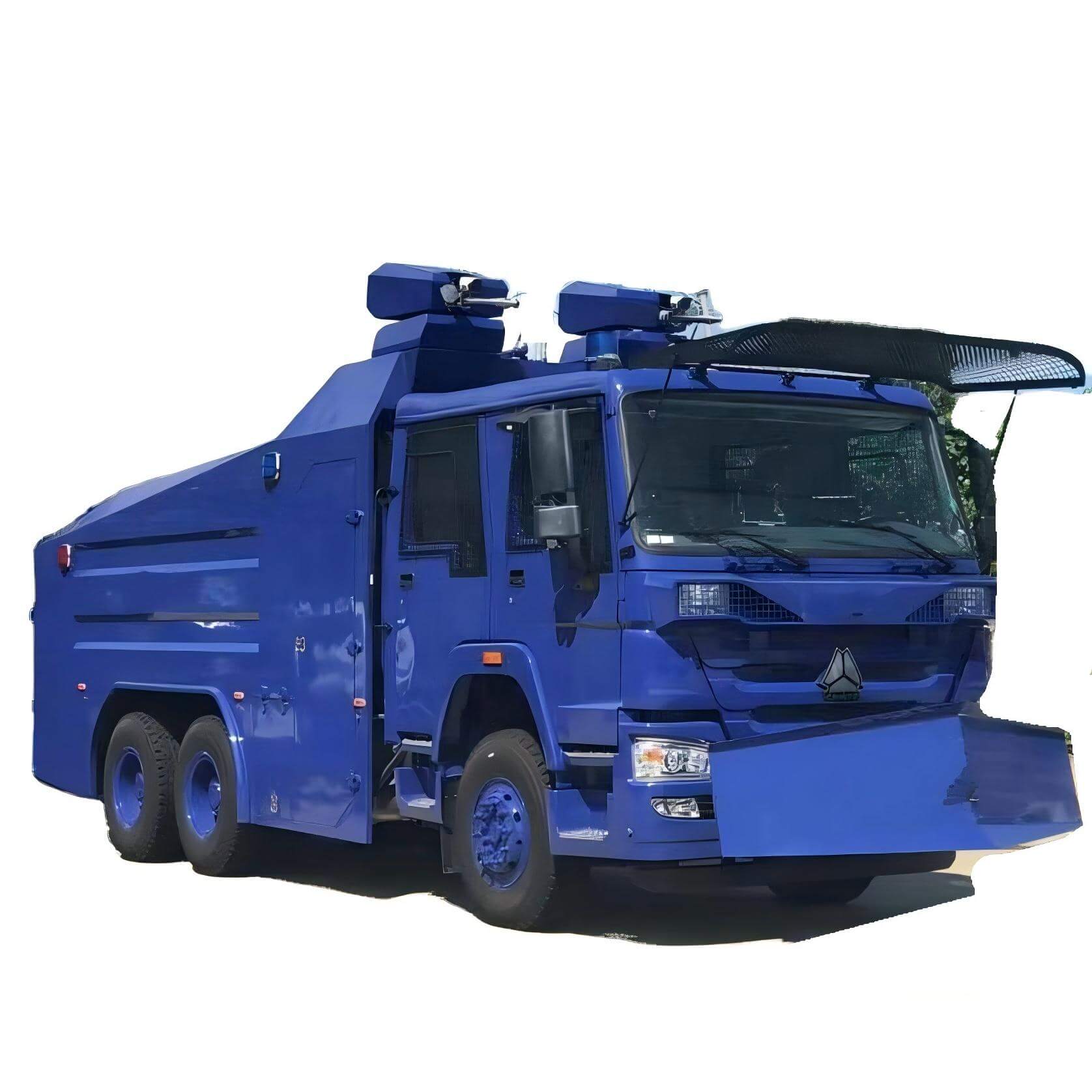

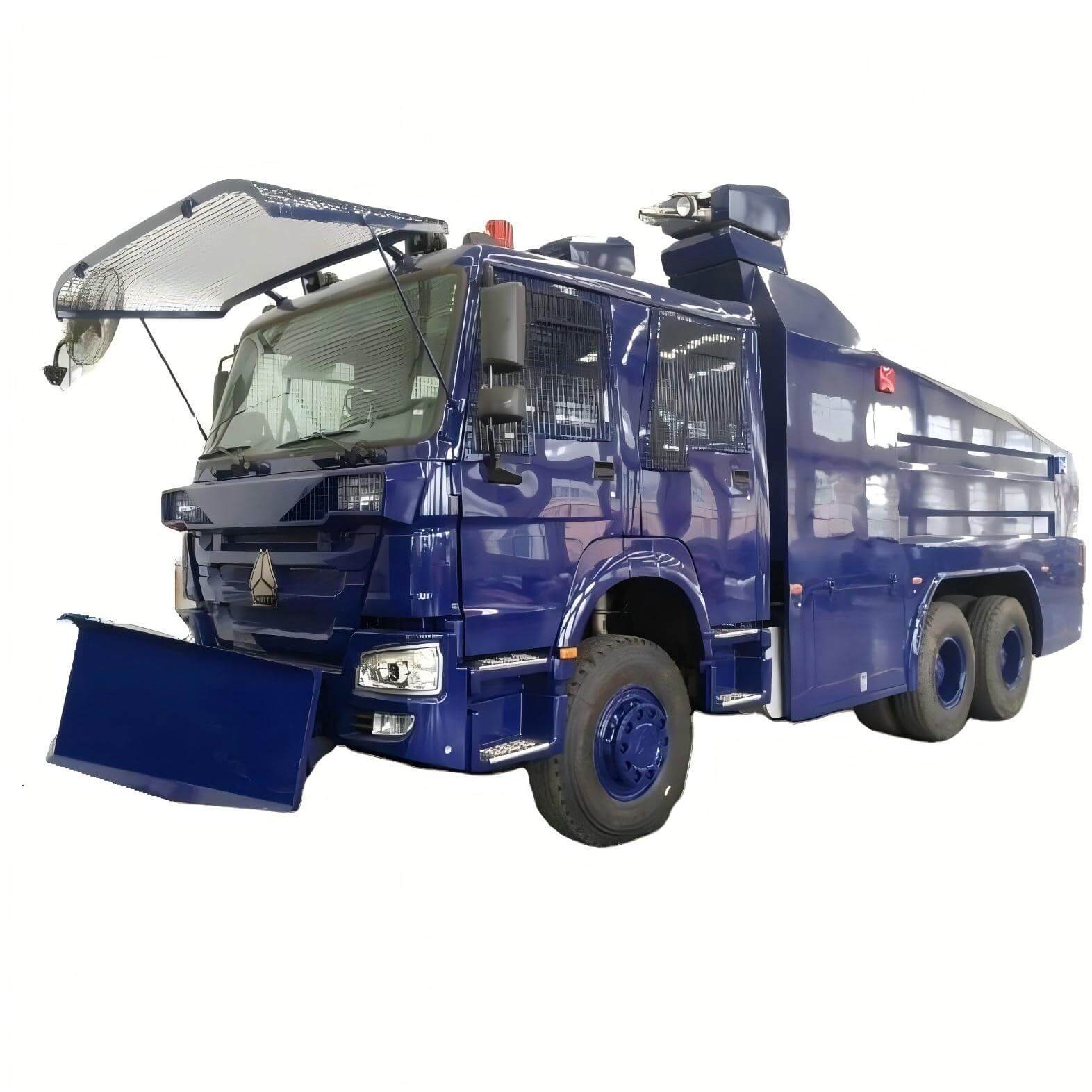

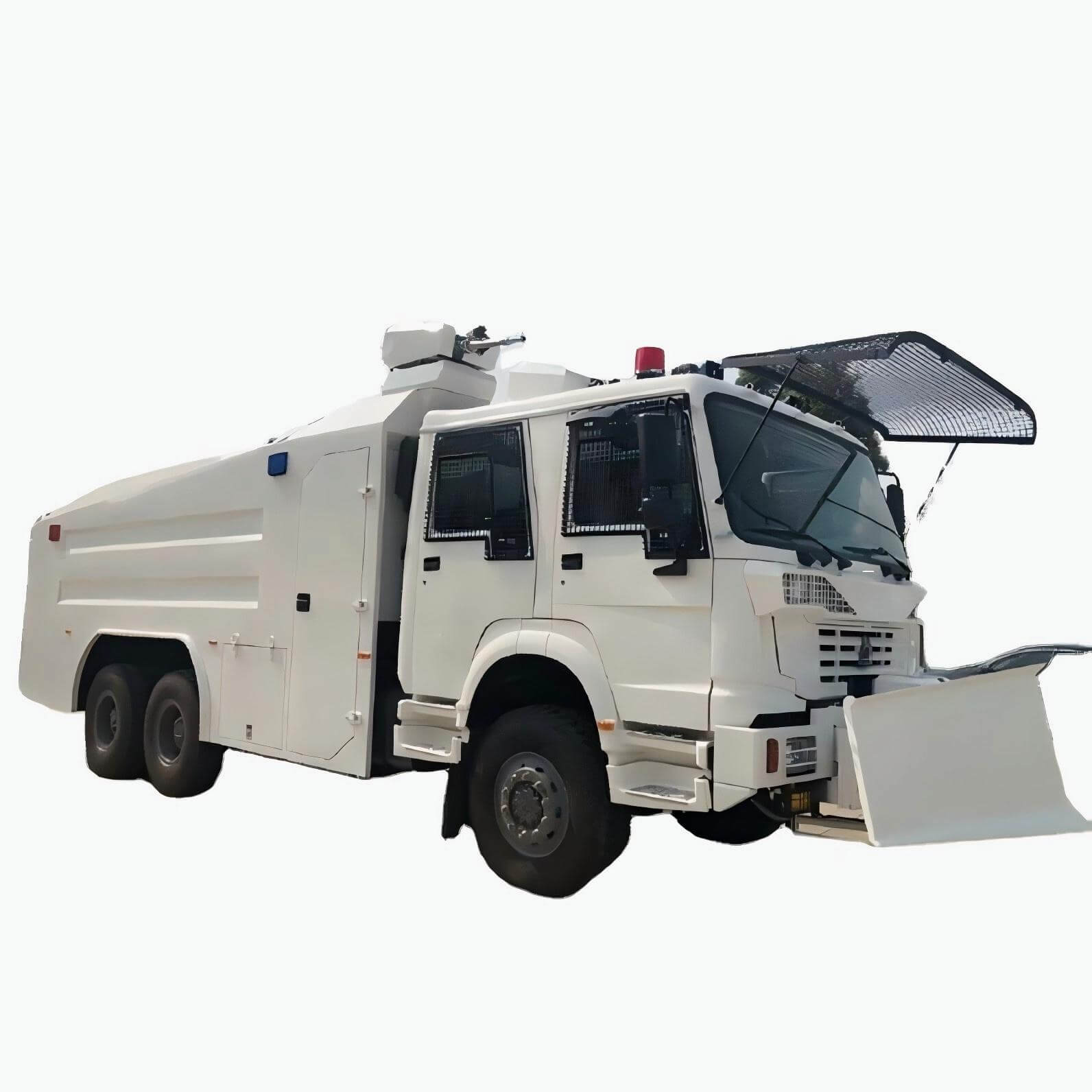

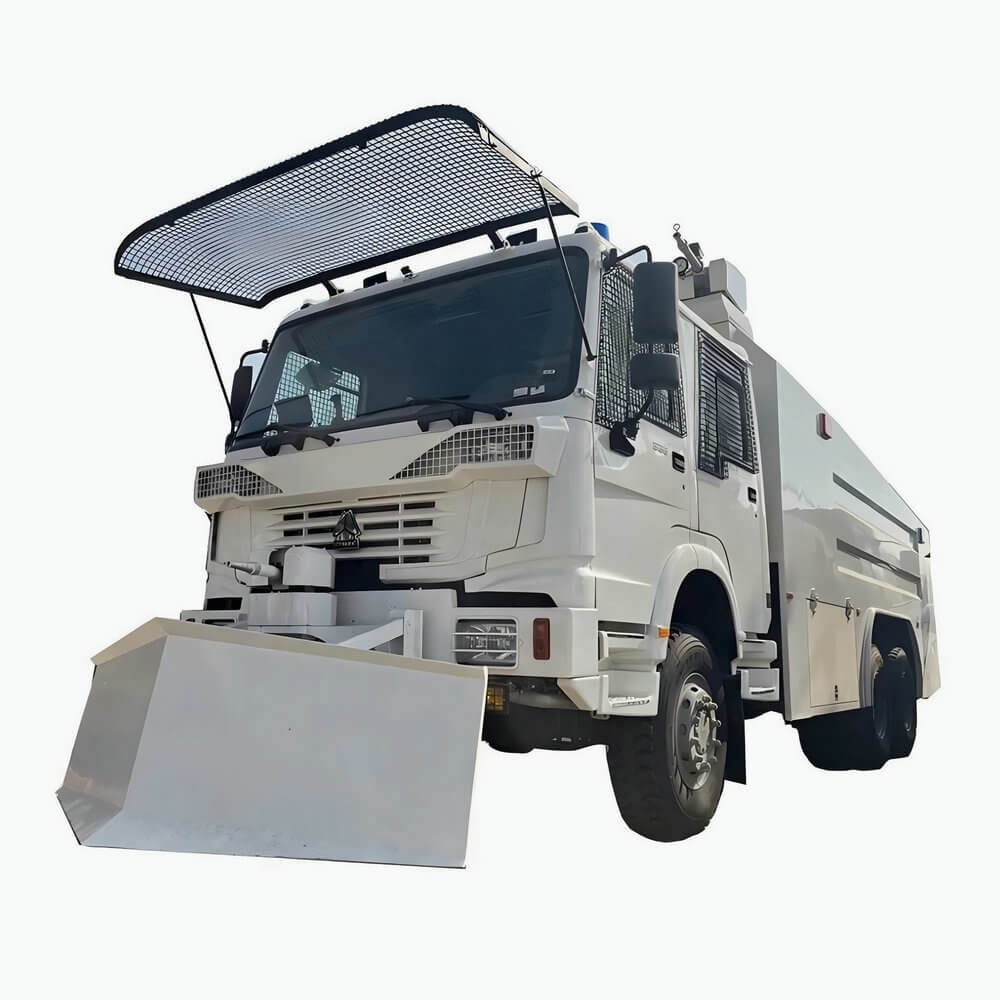

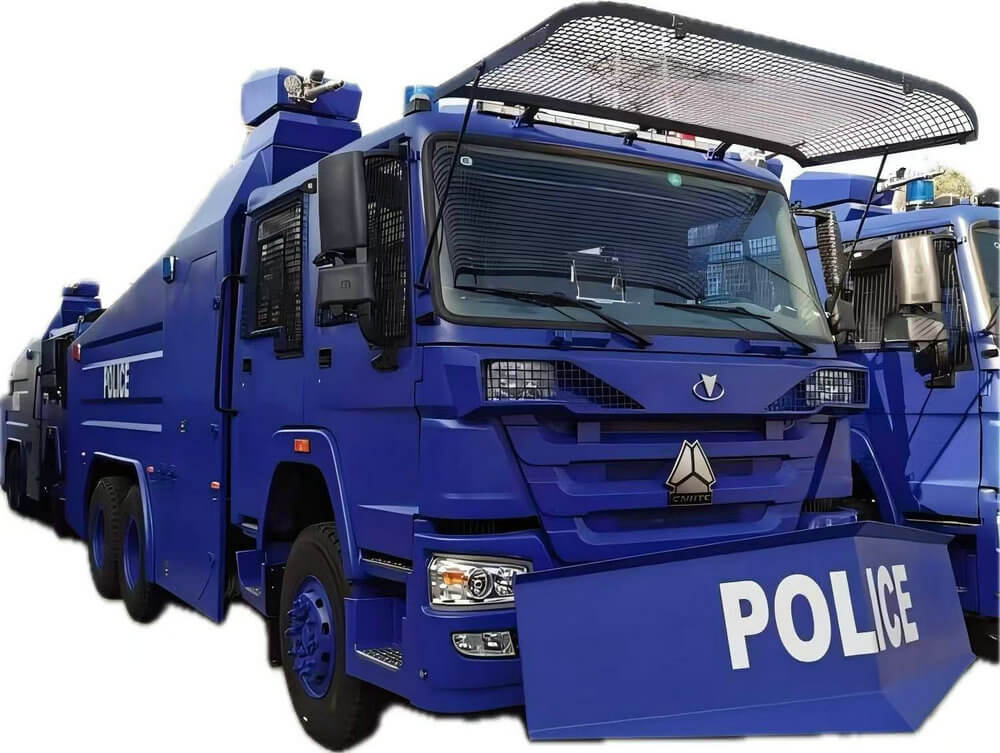

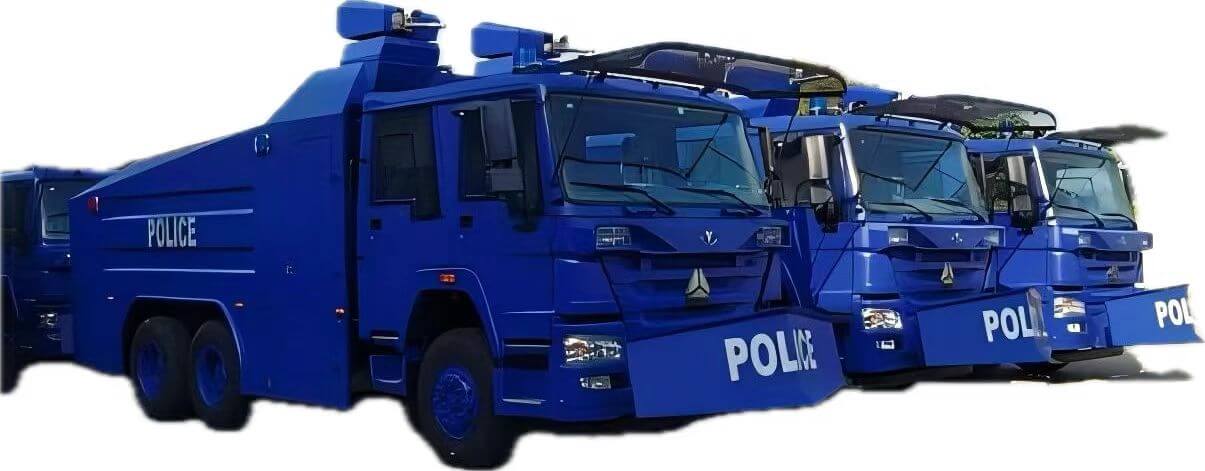

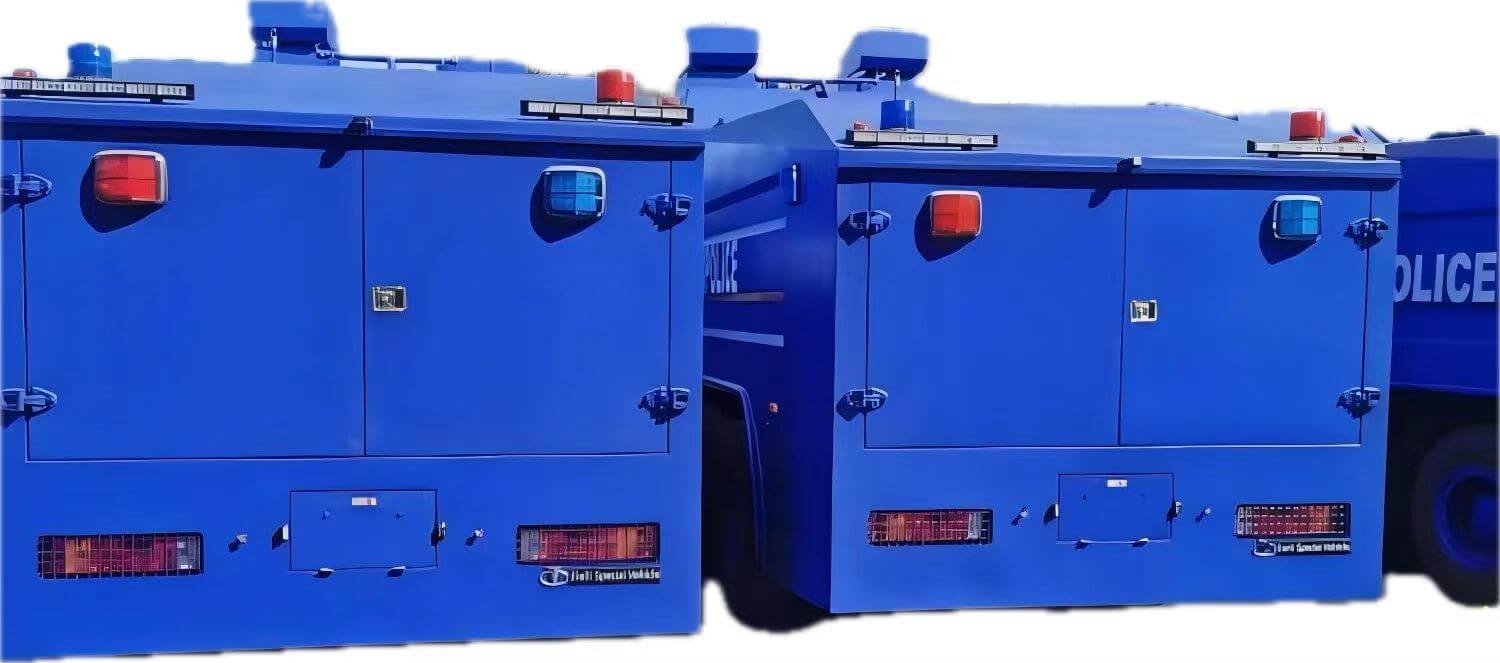

HOWO Armored Anti-Riot Water Cannon Vehicle 6×4
Riot Control with or Without Fatal Blow
Ant-Riot Control water cannon vehicle factory
Main technical parameters
Overall dimensions: | 10660×2496×3950(mm) | Fuel Type: | Diesel oil |
Gross Weight | 25000(Kg) | ||
Net weight | 14450(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 13/12(°) | Front/rear overhang: | 10160(Kg) |
Axle Load: | 7000/18000 | Wheelbase: | 2650/2310(mm) |
Tire Number | 10(pcs) | Tire Specifications: | 4300+1400,4325+1350, 4600+1400,4625+1350, 5200+1400,5225+1350, 5800+1400,5825+1350(mm) |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 101(km/h) |
Front wheel track: | 2110(mm) | Rear wheel track: | 385/65R22.5/315/80R22.5 18PR,385/65R22.5/12.00R20 18PR,385/65R22.5 20PR/315/80R22.5 18PR,385/65R22.5 20PR/12.00R20 18PR |
Engine | Displacement (ml) | Power (kw)/ horsepower (ps) |
MC13.54-61;MC11.46-61;MC11.43-61;MC11.40-61;MC13H.57-61;MC13.50-60;MC13.48-60;MC11.44-60;MC11.40-60;MC13H.60-61;MC13.50-61;MC11H.46-61;MC11H.49-61;WP10.5H430E62;WP10.5H460E62;WP12.460E62 | 12419;10518;10518;10518;13020;12419;12419;10518;10518;13020;12419;11050;11050;10520;10520;11596 | 400;341;319;297;422;371;356;327;297;444;371;341;363;316;338;338 |
Cab Operating Area Modification
Equipment integration cabinets should be installed between the pilot and co-pilot; The integrated control console shall be installed at the position of the co-pilot instrument panel.
Cab anti-virus modification
The cab must be equipped with a positive pressure device, and a poison gas filter must be installed at the air inlet to prevent gas from entering the cab when the water cannon sprays gas.
Cabin body insulation layer
The whole vehicle should be foamed, with a thickness of ≥ 40 mm to meet the functions of heat preservation and heat insulation.
Should be equipped with door lock and limit mechanism.
Aluminum alloy ladder
It should be made of special aluminum profiles, light in weight and high in strength, and installed on the right side of the upper door at the rear of the shelter.
Rear tail push-pull ladder
Stainless steel push-pull ladder should adopt stainless steel skeleton, push-pull structure design, be installed at the rear of the shelter and under the upper door, and be hidden for getting on and off the bus.
It should be made of 304 stainless steel for the overhaul and maintenance of roof equipment.
Ladder climbing
Extrapolation window
Special push windows for RVs, with locking mechanism, curtains, invisible screen windows, etc.
The front windshield shall be designed with forward-probing windshield and waterproof devices and anti-riot devices
Anti-riot net
Net, explosion-proof net can be turned up as a whole, and the material is steel mesh and ≥ 3 mm The frame is made of Q235 steel plate, and the whole frame is treated with anti-rust treatment.
Skirt, skirt door
The material should be made of aluminum alloy, connected by rubber hinges, and equipped with locks.
Hydraulic parking support system
Hydraulic support legs ≥ 4, and the load bearing capacity of a single leg should be ≥ 8T.
It adopts high-strength carbon steel V-shaped structure obstacle clearing shovel with overall anti-rust treatment. The vehicle obstacle clearing capacity is ≥ 2 tons. It adopts a split structure to divert obstacles to both sides of the vehicle.
Barrier clearing shovel
Hydraulic system of obstacle clearing shovel
Hydraulic system of obstacle clearing shovel, obstacle clearing shovel should be lifted up and down with control handle
Water storage capacity ≥ 6 tons, welded with thickened steel plates, equipped with reinforced keel, anti-wave grid, access port, water collection tank, etc., and sprayed with special anti-rust paint as a whole.
Combat ready water tank
Combat ready water tank water supply and drainage pipeline
It should be made of metal round pipe, the valve should be made of manual ball valve, and the interface should be made of special fire-fighting joints. It can be connected with tap water and other water sources with special conversion joints for other interfaces
Mixing reagent tank
Welded with stainless steel, the inside is divided into three independent mixing reagent tanks, integrated with water tank filling, drainage pipelines and interfaces, and a exhaust valve is installed on the top of the volatile mixing reagent tank.
Place the reagents to volatilize, and the interfaces are all carried out by the fuel tank filling port, using gravity for filling, and the water storage capacity is ≥ 200 L/piece
Mixed reagent supply and drainage pipeline
It should be made of stainless steel round pipe and corrosion-resistant rubber hose, and the valve should be made of stainless steel manual ball valve
Water and gas circuit system
Including main water pipe, mixing pipe, gas storage tank, gas circuit connection, solenoid valve, etc
Front gun waterway system
High-pressure resistant large-diameter hydraulic hose, arranged along the bottom of the car body
Vehicle sprinkler system
The upper and lower sprinkler system of the whole vehicle, including mixing device, sprinkler pipeline and sprinkler head, etc.
Flow rate ≥ 60 L/s @ 1.0 MPa, maximum vacuum degree ≥
Power-taking fire pump
85kPa, water diversion time ≤ 50s (provided when bidding is provided
Control handle
Industrial rocker control handle.
Using stainless steel electronically controlled fire gun, the control method should meet three control methods, horizontal rotation of 0 ~ 360 ° and vertical rotation of-70 ° ~ 90 °; Flow rate ≥ 40 L/s @ 1.0 MPa, water column range ≥ 60 meters .
Main and auxiliary water cannons
It adopts stainless steel electronically controlled fire gun, and the control mode meets three control modes: horizontal rotation of 0 ~ 360 ° and vertical rotation of-70 ° ~ 90 °; Flow rate ≥ 20 L/s @ 0.8 MPa, water column range ≥ 50 meters .
Front water cannon
The water cannon control system should adopt PLC bus distributed control
Water cannon integrated control system
System, including the horizontal and pitch rotation mechanism of the anti-riot water cannon, the injection angle and injection direction of the water cannon need to be controlled in the cab
The supplier must provide the electrical schematic diagram and installation photos of the water cannon PLC control system
It is equipped with 1 water cannon fire hose with a length of ≥ 20 m, 1 fire wrench, 1 set of fire adapter, 1 set of tap water supply pipe, and 1 set of other water supply accessories, which should meet the needs of municipal fire protection, tap water, rivers and lakes and other water sources. Supply demand.
Water supply accessories
Drainage accessories
Set up the drain line.
Water pipe insulation system
Water pipes should be insulated with thermal insulation cotton, and anti-freezing modifications such as water pipeline air blowing devices should be installed.
≥ 6 integrated liquid level digital displayThe indicator displays the liquid level information of the combat readiness water tank, shower water tank, drinking water tank and three groups of mixing reagent tanks respectively. It is installed inside the cab and can observe the liquid level change of the water tank in real time.
Liquid level display
Vertical structure, special stainless steel boiler for hot water; Fuel Type: Diesel; Power ≥ 70kw, maximum temperature ≥ 97 ℃,
Oil boiler
Water output ≥ 700 L/H.
Hot water
Adopt 304 stainless steel water tank, connected to the boiler, store heat Box
Electric control box
Boiler control electric control box, professional customized electric control cabinet, surface spray treatment
Water supply pump
A microcomputer should be used to automatically control the booster water supply pump, the outlet pressure is adjustable, equipped with a pressure sensor, and can automatically start and
Water purifier
The material should be 304 stainless steel, vertical water purifier structure
Waterproof floor
Large pattern anti-slip aluminum plate should be laid on the surface, and waterproof design should be carried out between the aluminum plate and the side wall
Clean water tank
Water storage capacity ≥ 1 ton, using 304 stainless steel water tank, equipped with water purifier filtration, with outlet
Clean water tank water supply and drainage pipeline
According to the vehicle configuration, modification of waterway and anti-freeze treatment, it should meet the supply needs of tap water, municipal fire protection and other water sources
Hot and cold water outlet
Meet one hot water outlet and one normal temperature water outlet
Indoor waterproof lighting lamp
LED indoor waterproof lighting lamp
Mains access
Extreme plug-in is used for safety protection, the protection level is ≥ IP54, and the insulation resistance is ≥ 500 megohms.
It should be installed with steel fixed brackets, and the exterior of high temperature resistant plastic
Cable reel
Shell, steel bearing; 220V input, special plastic shell; Cable length ≥ 30 meters, square ≥ 3 * 2.5 square millimeters.
Voltage ≥ 12 V, capacity ≥ 100 AH.
Battery protection
It should meet the requirements of controlling the charging and discharging of the starting battery and maintenance-free battery.
Lightning protection of power supply system
Surge protector, 2P, ≥ 40KA.
Anti-static chain
It should be grounded to prevent static electricity.
Outdoor lighting lamp 4 sets
Top configuration of vehicle box LED lighting, 2 sets on the left and right
Distribution box
The distribution box should be equipped with the control system, which should be equipped with measures such as switching between power supplies and leakage protection, including auxiliary materials, insurance and connectors.
The whole vehicle should be sprayed according to the requirements of the purchaser.
Standard appearance
Color registration and character registration should be carried out according to the requirements of the purchaser.
Long row of explosive warning lights
Length ≥ 1.8 m, power ≤ 90 W, LED red and blue long row warning lights.
Alarm Power ≥ 200 W, including calling, controller, etc.
Strobe light Power ≤ 10 W, red and blue LED stroboscopic lights, half red and half blue.
Equipped with 350M vehicle-mounted cluster radio, including frequency writer and software
Reflective
Stick reflective plates or reflective stickers on the whole vehicle.
Reversing monitoring system
Reversing display ≥ 7 inches, equipped with infrared waterproof rearview camera.
HD riot camera
The main and auxiliary guns should be equipped with stainless steel anti-riot cameras and infrared fixed-focus all-in-one machines.
Strong lighting lamp
Strong roof lighting lamp, installed above the main and auxiliary cannons, is used for night lighting of the water cannon spray area, and can rotate with the main and auxiliary cannons.
Special display device
Should be equipped with ≥ 8 inch industrial image output terminal and customized special fixed base. ≥ 1 T hard disk storage, video input: supports 4 PoE IPC (RJ45 interface) access, each channel supports up to 4MP/3MP camera access, using standard H.264, H.265 code streams,
Hard disk video recorder
Supports double streaming.
Fire extinguisher ≥ 2 KG dry powder fire extinguisher, including fixing frame.
Vehicle-mounted tool ,car repair tools, tool kits, etc.
