20T SITRAK 20M Jib Water Foam Tower Fire Fighting Truck JP20

20T SITRAK 20M Jib Water Foam Tower Fire Fighting Truck JP20
water tank : 15 m3, foam tank : 5 m3
20m boom , fire monitor >80m,≥120L/S . Water pump ≥100 L/s
Price for refer only. Final Price Offer Discount.
Price: $ 288000
Discount Price: $ 278000
Availability:
Quantity:

  • XZJ5436JXFJP20/G4

  • DONG RUN ZE

  • 8705301000

20T SITRAK 20M Jib Water Foam Tower Fire Fighting Truck JP20

water tank : 15 m3,  foam  tank : 5 m3

20m boom , fire monitor >80m,≥120L/S . Water pump ≥100 L/s

Chassis Sinotruck :ZZ5446V516MF5  Main technical parameters

Overall dimensions:

11930×2540×3960(mm)

Fuel Type:

Diesel oil

Total mass:

42650(Kg)



Net

22200(Kg)

Rated load mass:

20000(Kg)

Approach Angle/Departure Angle:

17/10 (°)

Front/rear overhang:

1492/2518(mm)

Axle Load:

8760/8350/12840/12700

Wheelbase:

1950+4500+1400,1950+3825+1350,1950+4400+1400,1950+4425+1350,1950+4525+1350,1950+4600+1400,1950+4625+1350,1950+4800+1400,1950+4825+1350,1950+5100+1400,1950+5125+1350,1950+5400+1400,1950+5425+1350(mm)

Number of shafts:

4

Maximum speed:

90(km/h)

Number of tires:

12(PCS)

Tire Specifications:

385/65R22.5 20PR/315/80R22.5 18PR,385/65R22.5 20PR/12.00R20 20PR,385/65R22.5 20PR/12.00R20 18PR

Fuel consumption:

(L/100Km)

Number of spring pieces:

4/4/5,11/11/5,11/11/12

Front wheel base:

2110/2110213 5/2135 (mm)

Rear wheel base:

1850/1850(mm)

Engine type

Engine manufacturer

Volume (ml)

Power (kw)

MC13.54-61; MC11.40-60; MC11.44-60; MC11.40-61; MC11.43-61; MC11.46-61; MC11H.46-61; MC11H.49-61; MC13.48-60; MC13.50-60; MC13.46-61; MC13.50-61; MC13H.51-61; MC13H.54-61; MC13H.57-61; MC13H.60-61; WP10.5 H430E62; WP10.5 H460E62

China Heavy Duty Automobile Group Co., LTD.

12419; 10518; 10518; 10518; 10518; 10518; 11050; 11050; 12419; 12419; 12419; 12419; 13020; 13020; 13020; 13020; 10520; 10520

400; 297; 327; 297; 319; 341; 341; 363; 356; 371; 341; 371; 378; 400; 422; 444; 316; 338

This model is a special operation vehicle for fire fighting.

The total volume  20 cubic meters,

water tank 15 cubic meters,  foam tank volume is 5 cubic meters

Integrated side and rear protection structure rear protection height :442mm,

The main special devices are boom, fire pump, fire cannon.

Chassis wheelbase 1950+4500+1400mm

Optional vehicle logo, strobe light color, side and rear upper modeling color.

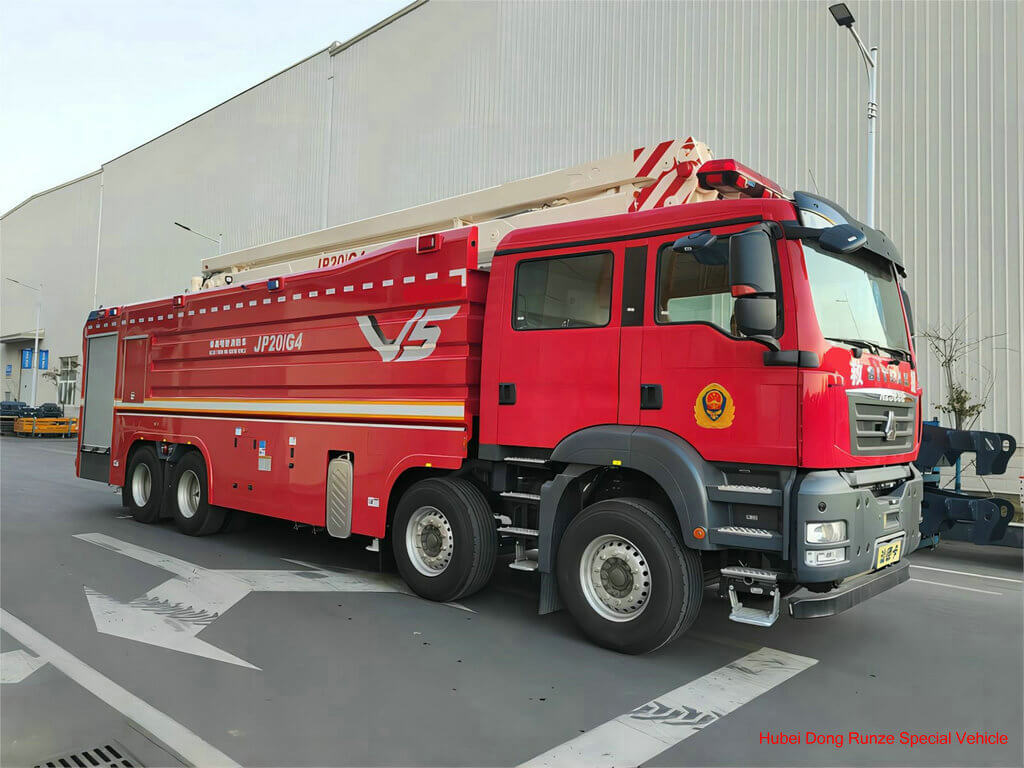

water foam tower fire truck JP20 (1)

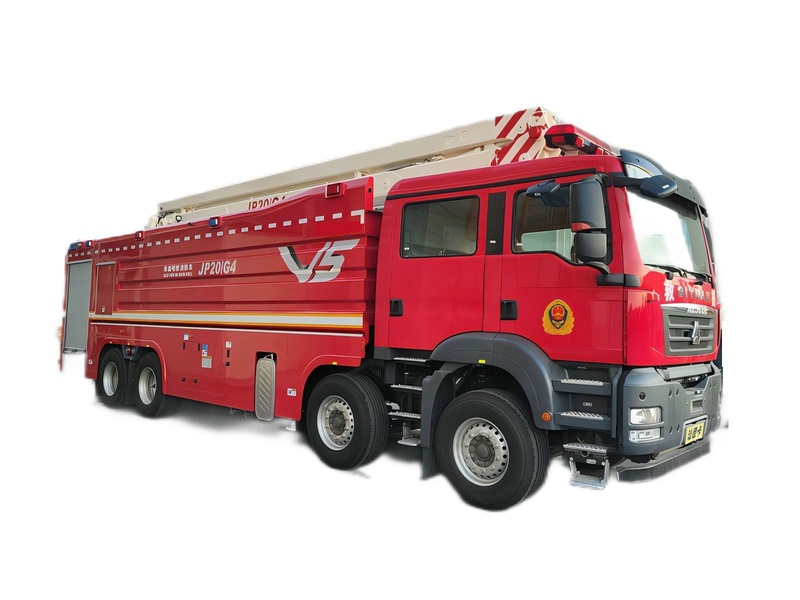

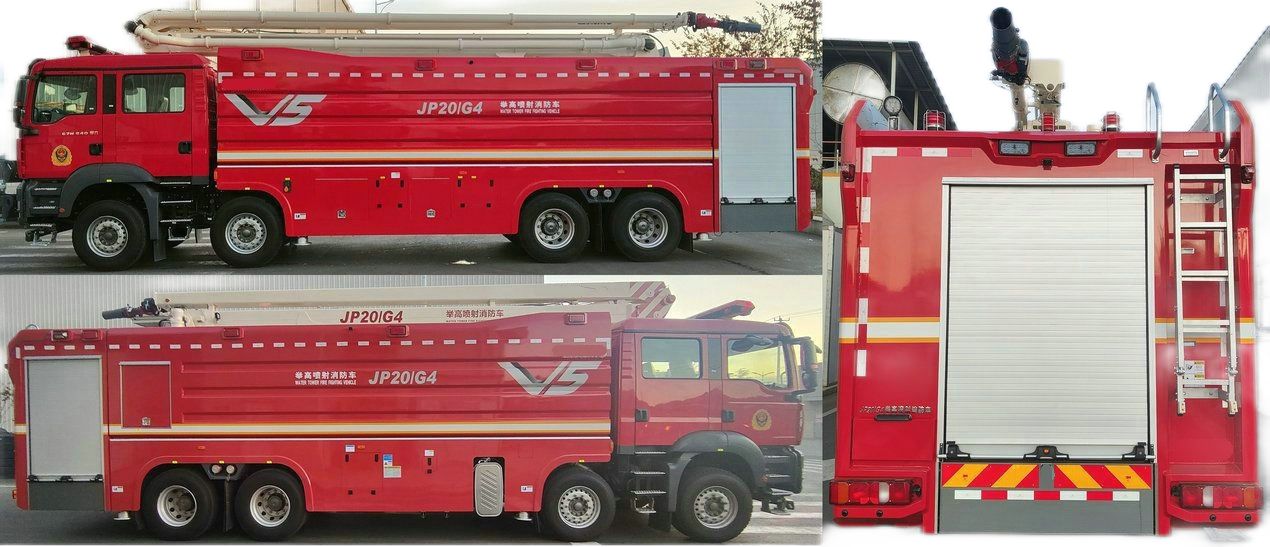

water foam tower fire trucks JP20-G4 (4)
