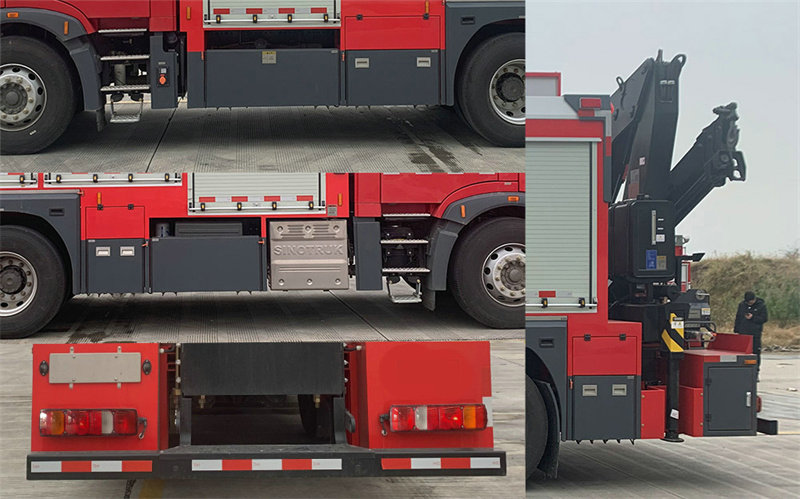

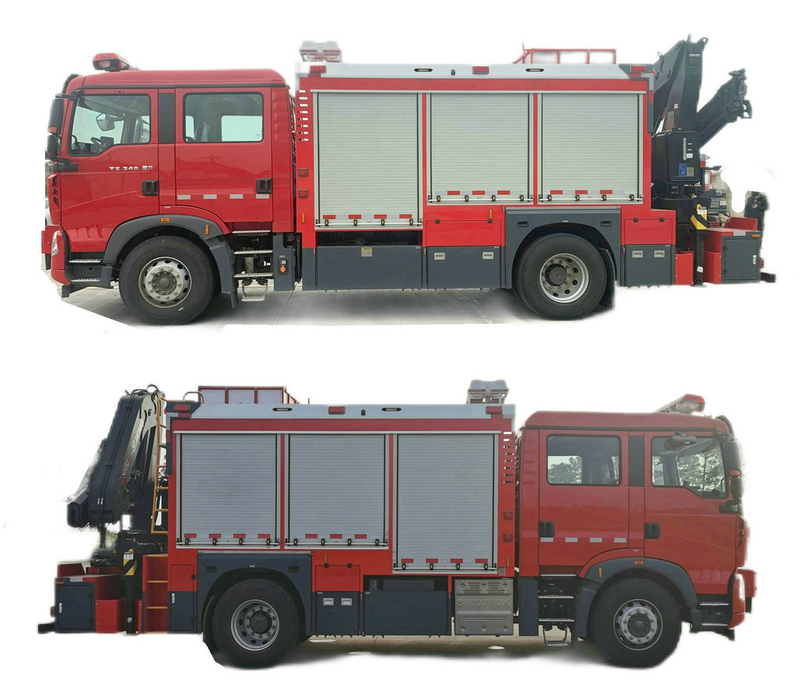

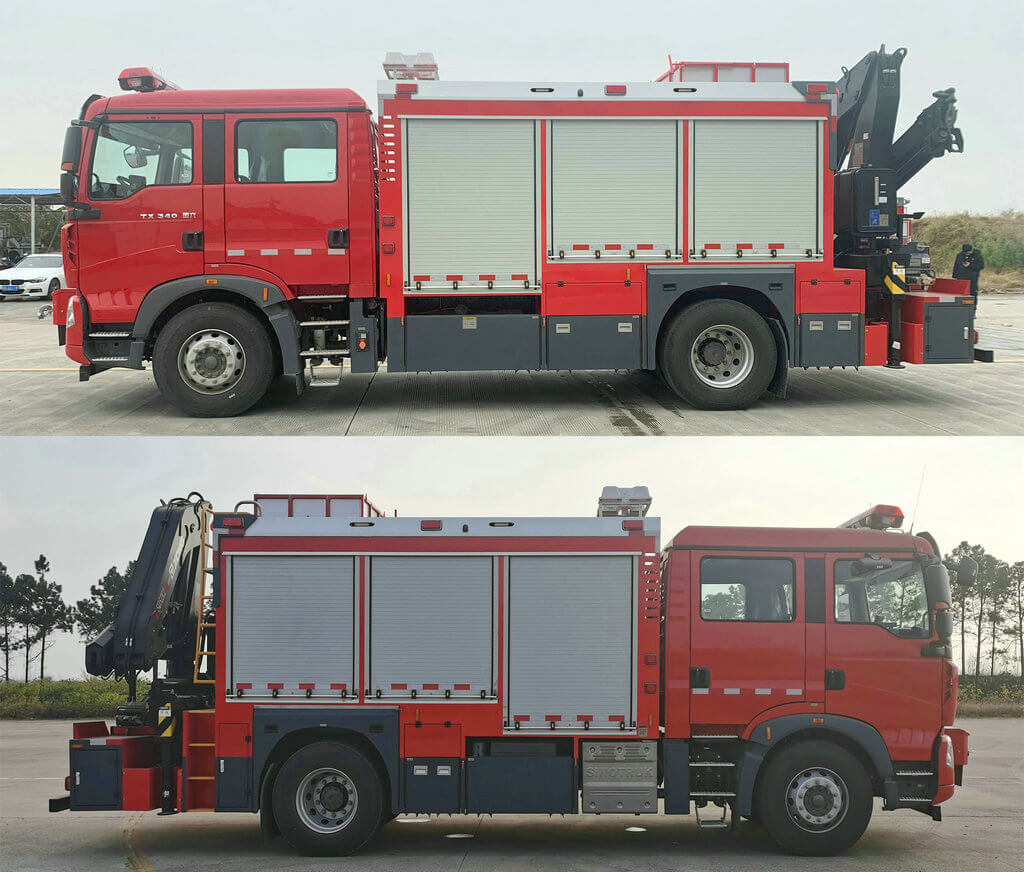

HOWO Chemical Rescue Fire Trucks With Decontamination system
2m3 Water Tank ,7000kg winch, 4x500W lighting system.15KVA Generator
Crane SQ5ZK2 Lifting 5000kg multi-functional chemical decontamination fire truck
Chassis ZZ5207TXFV471GF5
| Quantity: | |
|---|---|
|
| |
-
5170TXFHJ80/HT6
-
HOWO
-
8705309000
HOWO Chemical Rescue Fire Trucks With Decontamination system
2m3 Water Tank ,7000kg winch, 4x500W lighting system.15KVA Generator
Crane SQ5ZK2 Lifting weight 5000kg
multi-functional chemical decontamination fire truck
Chassis ZZ5207TXFV471GF5
HOWO Chemical Rescue Fire Trucks
Tank material: high quality low temperature resistant polymer PP material or 304 stainless steel, tank: ≥2000L
All seats should be equipped with seat belts, tire pressure monitoring system, 360-degree tachograph (memory ≥64G) and reverse radar
Folding crane: maximum lifting weight ≥5000Kg
Tools and equipment list
N0.
name
Specifications
Unit
Quantity
Remarks
1
Cable reel
220V 30m
Set
1
Cable reel 380V 30m
Set
1
2
Mobile lamp
500w
Set
2
3
Mobile light stand
Set
2
4
Fire axe
GFP810
Set
1
5
Shovel
JFXFQ
Set
1
6
Iron collar
JFXFTT-C
Set
1
7
Dry powder fire extinguisher
MFZ4
Set
1
ABC Dry powder
8
Car brake
QH13007
Set
4
9
Leg pads
QH1902
Set
2
10
Undercarriage tools
Set
1
Main technical parameters
Overall dimensions: | 9250×2545×3560(mm) | Fuel Type: | Diesel oil |
G.W | 16850(Kg) | ||
Net | 14400(Kg) | Rated load : | 2000(Kg) |
Approach Angle/Departure Angle: | 17/9 (°) | Front/rear overhang: | 1430/2690(mm) |
Axle Load: | 5600/11250 | Wheelbase: | 4200,4500,4600,4700,5000,5600,5600(mm) |
Number of shafts: | 2 | Maximum speed: | 100(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 315/80R22.5,12.00R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 11/9+8,10/9+6,4/9+6,4/5,3/9+8,3/3+2 |
Front wheel base: | 1950,2035(mm) | Rear wheel base: | 1848,1860(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07H.35-60; WP8.350 E61. MC11.44-60; MC07.34-60; MC07.31-60; WP9H350E62; MC11.40-60; MC11.40-61; MC11.43-61; MC11.46-61. | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD. | 7360; 7800; 10518; 6870; 6870; 8800; 10518; 10518; 10518; 10518 | 257; 257; 327; 251; 228; 257; 297; 297; 319; 341 |
Tank volume :2m3 Special devices are truck crane, winch, lighting system. | |||
The pump room should be fully enclosed and warm, the pipeline should be wrapped and insulated, and the fuel heater should be installed in the pump room (the fuel is taken from the chassis's own tank, which can control the fuel amount in real time).
Double rows of four doors, car radio interface reserved in the cab, 2 people in the front row of the cab, 4 people in the back row of the cab, 4 air breathing apparatus placement rack, air breathing apparatus frame clamp can be adjusted, 6.8L or 9L air breathing apparatus can be placed, and shock absorber protection device is provided.
The seat design is ergonomic, with a storage box under the seat and a separate three-point seat belt for each occupant. Electric hydraulic turnover device, electric windshield wiper, heater, built-in heating and cooling air conditioning, 2 level foot
Equipment box:
1) Material: The main skeleton adopts high-quality aluminum oxide profile lap structure, and the mask adopts high-quality aluminum oxide plate bonding structure. The equipment frame adopts baffles and special profiles.
2) Rolling shutter door: The equipment box adopts a locked aluminum alloy rolling shutter door, and three rolling shutter doors are installed on both sides. There are two LED lighting belts inside each equipment box, which are switched on and off with the rolling shutter door. The anti-sink above the rolling shutter door is made of special aluminum alloy opening model material, and LED lighting belt is installed on the profile to form a wraparound lighting.
3) Roof protection: the use of integrated aluminum alloy extrusion profile. Flash lights are installed on the outside, and LED lighting belts are installed on the inside to achieve full roof lighting.
4) Flap pedal: integrated aluminum alloy extruded profile, surface with horizontal non-slip flange, bearing capacity ≥150kg. Double locking with mechanical spring and door stop, safe and reliable. The linkage flip pedal is installed above the tire, and it is convenient and quick to open and close the equipment with one action.
5) Rear ladder: aluminum alloy ladder is set on the right side of the rear compartment to facilitate personnel to access the roof.
6) Take and place mechanism: can be used in the form of flat plate, vertical revolving door, etc., to ensure quick take and place equipment, push and pull light, reliable locking.
●Tank material: made of 304 stainless steel, the overall outer surface of the insulation layer; Bottom plate thickness: ≥4mm, side plate thickness ≥4mm, slutty plate thickness ≥3mm, piping system is made of 304 stainless steel pipe, solid welding, reliable, tank and pipeline no leakage, durable. Equipment: The top is equipped with a φ450mm manhole cover, water level indicator, overflow pipe, and the bottom is equipped with a sewage outlet. Type: Liner type. Rated capacity L: ≥2000 L.
●Electrical configuration: the whole vehicle is equipped with a main power switch, the vehicle is equipped with flash lights above both sides, and the safety sign light and side recovery reflector (combined type) are installed below, and the rear indicator light is equipped. Concealed LED lighting belt is installed in the rain eave above the rolling shutter door, the LED lighting belt is installed in the inside of the parapet wall of the roof, and the equipment box and pump room are equipped with lighting. Equipped with a 24V charging socket, equipped with a fire truck quick start guarantee system, the fire truck can be charged to ensure that the fire truck quickly alarm.
●Alarm light alarm: the top of the cab is equipped with a long row of red alarm lights. The alarm power is ≥100W, the alarm, alarm light, flash light circuit is an independent additional circuit, and the control device is installed in the cab.
●Fuel system: diesel oil tank ≥200 liters.
●Lifting lighting system:
1) Generator power ≥15KVA.
2) Frequency: 50HZ.
3) Voltage: 220V/380V.
4) Starting mode: electric starting.
5) Fuel type: Gasoline, V-type twin cylinder.
6) Lifting rod: aluminum alloy material.
7) Lighting power: 4x500W.
8) Light source type: LED.
9) Rotation Angle: horizontal ≥420°, pitch ≥420°.
10) Maximum ground height: ≥8m.
11) Control box: with emergency switch, ammeter, voltmeter; With overload, leakage protection device, mains and generator input switching function; Input: generator AC380V, 16A (rear) Mains AC220V, 32A (front); Output: AC220V/380V, 16A one (front); On the panel, there are "power on, power off, light on, light off, rise, fall, tilt, tilt, left, right, reset, emergency stop" buttons, precautions, etc. Operation mode: panel operation, wired control (line length 5 meters), wireless control (control distance ≥50 meters), with one-key automatic reset function.
12) Installation position: located in the front of the box.
Traction winch system:
1) Drive type: electric control.
2) Maximum tension ≥7000kg.
3) Wire rope diameter: ≥11.5mm.
4) Wire rope length: ≥36m.
5) Installation position: located in the front of the body, provided with 4 blocks .

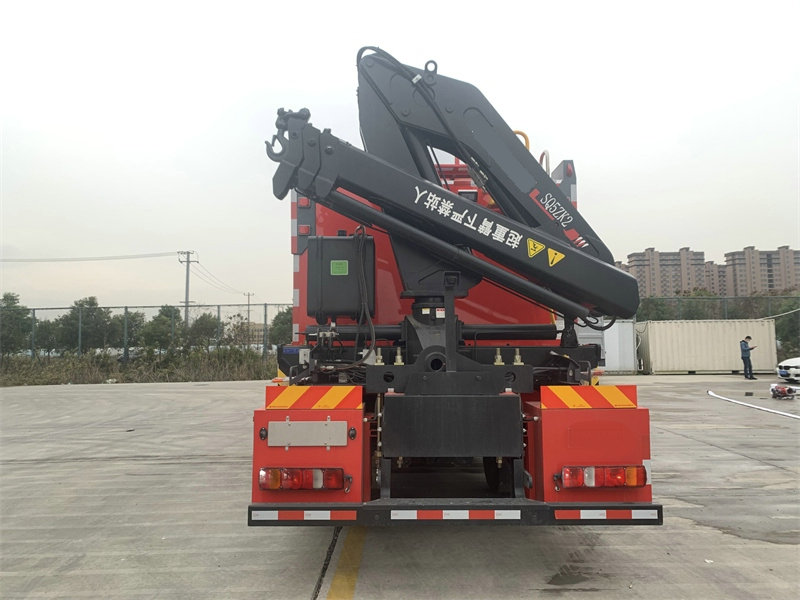

●Folding crane:
1) Drive type: hydraulic.
2) Maximum lifting torque ≥10.5t.m.
3) Maximum lifting weight ≥5000Kg.
4) Maximum arm length ≥8.3m.
5) Variation range: 0° ~ 75°.
6) Rotation Angle: ≥420°.
7) Leg span ≥5200 mm.
8) The maximum working pressure is not less than 28Mpa.
9) System rated flow ≥24L/min.
10) Use ambient temperature: -25℃ ~ 40℃.
11) Installation position: located at the rear of the truck.
●Decontamination system: mobile high pressure washer, hot water decontamination machine flow: ≥10L/min. Decontamination system assembly: including public decontamination tent, manual diaphragm suction pump, electric charging and exhaust pump, decontamination sewage pump, mobile high pressure cleaning machine, high pressure hot water cleaning machine, warm air generator (including temperature control instrument), decontamination liquid mixing tank, water storage bag, pollution collection bag, oil fence, adsorption pad, toxic material sealing bucket each set.
