Hydrostatic Testing Machine, Air Pressure Testing Machine - Fire Extinguisher Check Device Hydrotest Rig
Hydrostatic Testing Machine, Air Pressure Testing Machine - Fire Extinguisher Check Device Hydrotest Rig
| Quantity: | |
|---|---|
- Shanghai, China
- T/T
- Wood Box
Automatic Type Fire Extinguisher Powder Filler (Fire Extinguisher Production or Maintenance Machine)
Test pressure and cleaning machine
Carbon Dioxide Filling Machine GTM-B
Carbon Dioxide Filling Machine GTM-D
Powder Filling Machine GFM16-1B
Powder Filling Machine GFM16-1
Automatic Filling Fire Extinguisher GFM8-2

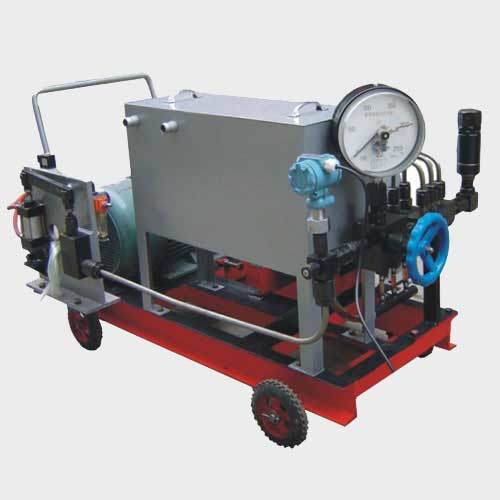

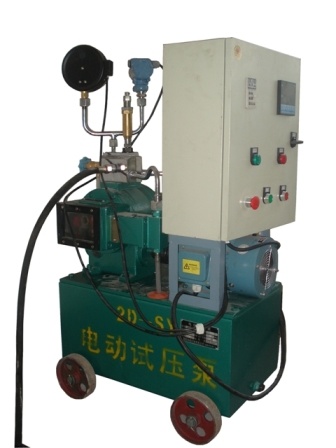

Hydrostatic Testing Machine MSJ-12
Air Pressure Testing Machine MQJ-8
Text Pressure and Cleaning Machine
Fire Extinguisher Clamper pneumatic
Fire Extinguisher Clamper manual HYDROTEST RIG
| Machine Picture | Model | Technical Parameters and Price |
GFM8-2 | Advance features 1. Filling Continuously and automatically. 2. Good to environment by using powder tank. 3. High accuracy filling by using electronic weighing scale 4. Long using period by adopting filters.
| |
| Automatic type | ||
| fire | ||
| extinguisher | ||
| powder filler | ||
Advance features 1. Easy operation and maintenance. 2. Small weight and movable. 3. Height adjusting by manual wheel. | ||
GFM16-1B Fire extinguisher powder filler | Technical parameters Power 1.1KW Voltage 220V Filling precision1Kg≤0.02 Filling Speed5kg/min Weight90Kg Overall size800X400X1350mm | |
| 92*56*136cm 0.7m3 160kg Cell / :+8615271357675 EXW$2675 | ||
Advance features 1. Easy operation and maintenance. 2. Small weight and movable. 3. Height adjusting by manual wheel. | ||
Fire extinguisher powder filler (stainless | Technical parameters Power 1.1KW Voltage 220V Filling precision1Kg≤0.02 Filling Speed5kg/min Weight90Kg | |
| steel type) | Overall size800X400X1350mm | |
| 92*60*137cm 0.8m3 158kg Cell / :+8615271357675 EXW$2375 | ||
Advance features 1. Easy operation and maintenance. 2. Small weight and movable. 3. Height adjusting by manual wheel. | ||
GFM16-1 Fire extinguisher powder filler | Technical parameters Power 1.1KW Voltage 220V Filling precision1Kg≤0.02 Filling Speed5kg/min Weight90Kg | |
| (common type) | Overall size800X400X1350mm | |
| 92*60*137cm 0.8m3 158kg Cell / :+8615271357675 EXW$2175 | ||
Advance features 1. Easy operation and maintenance. 2. Small weight and movable. 3. Height adjusting by manual wheel. | ||
GFM16-1A Fire extinguisher powder filler | Technical parameters Power 1.1KW Voltage 380V/220V Filling precision1Kg≤0.02 Filling Speed4kg/min Weight90Kg Overall size800X400X1350mm | |
| 92*56*129cm 0.66m3 158kg Cell / :+8615271357675 EXW$2200 | ||
| Specifications Filling time and error table list | ||
GTM-D | ||
| Co2 filling machine | Voltage 220V 50Hz Filling pressure3 to 10 Mpa Environment temperature 5ºC-45ºC Frozen arrange more or less 10 ºC -15 ºC compared with the environment temperature. | |
| 120*80*132cm 1.27m3 208kg Cell / :+8615271357675 EXW$5000 | ||
| Filling time and error table list | ||
GTM-C Pumping Co2 filling machine | This machine need not be heated or cooled and CO2 can be directly filled into the fire extinguisher form the large steel cylinder. CO2 is free from influence of environmental temperature in filling; The original pressure in the CO2 steel can is 3~ 5Mpa and the filling pressure is 6~10Mpa. The filling speed 1~6Kg/min. Voltage 380V&220V; Power 2.7KW. Measurement 2600×800×900mm | |
| 273*91*107cm 2.66m3 335kg Cell / :+8615271357675 EXW$8200 ( stop order) | ||
| Filling time and error table list | ||
GTM-B | ||
| Carbon | ||
| dioxide | ||
| filler | Technical Parameters | |
| Working Temperature and Pressure Parameters | ||
| of the Thermostat of the Filler | ||
| A. Thermal uniform temperature is controlled in | ||
| the range of 38 ºC -45 ºC with a pressure of 9-10Mpa, heater power of 6KW and voltage of 380V. B. Cold uniform temperature is controlled in the range of -5 ºC -5 ºC with a pressure of ≤7Mpa and power source voltage of 220V. 68*62*110cm 0.46m³ 117*71*126cm 0.99m³ 149*64*61cm 0.58m³ 400kg Cell / :+8615271357675 EXW$5500 | ||
MDG1.7 Fire extinguisher nitrogen filler | Technical parameters Filling pressure1.7Mpa Voltage220V Power100W Weight30kg Overall size585X500X1000mm 68*62*110cm 0.46m³ 50 Cell / :+8615271357675 EXW$788 | |
Nitrogen for extinguisher filling machine with safe protective device | Technical parameters Filling pressure1.7Mpa Voltage220V Power100W Weight30kg Overall size585X500X1000mm 68*62*110cm 0.46m³ 50 Cell / :+8615271357675 EXW$800 | |
| MDG-XB model fire extinguisher N2 filling and gauge check machine is invited by our company for N2 filling and pressure gauge check. | ||
MDG-XB Nitrogen filling and timing machine | Technical parameters Pressure1.7Mpa Power100W Voltage220V Weight30kg Overall size585X500X1000mm | |
| 68*62*110cm 0.46m³ 50 Cell / :+8615271357675 EXW$1200 | ||
| Technical parameters Voltage220V Power2KW Weight75kg Overall size1000X462X1100mm | ||
| 110*58*83cm 0.53m³ 73 | ||

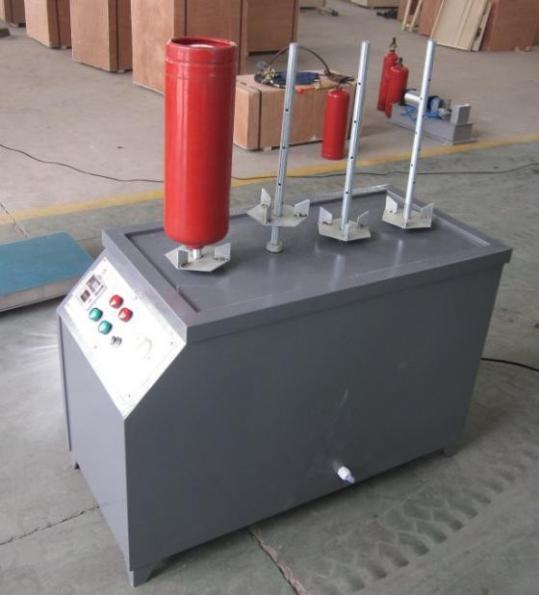

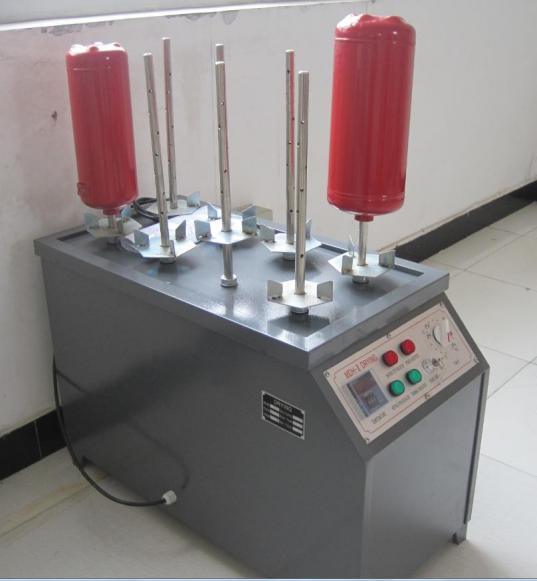

| MDH-11 Drying machine | 4 Bowsers Cell / :+8615271357675 EXW$788 | |
| 8 Bowsers Cell / :+8615271357675 EXW$1150 | ||
XBY Fire extinguisher check device | Technical parameters Pressure1.7Mpa Voltage220V Power100W Weight30kg Overall size585X500X1000mm 110*58*83cm 0.53m³ 73 Cell / :+8615271357675 EXW$1200 | |
MQS Fire | Specifications Overall size 1080X850X900mm Weigt95Kg Voltage380V or 220V Temperature 0ºC to 1000ºC Power4 to 8KW | |
| extinguisher | ||
| airtight test | ||
| box | 100*80*120cm 0.96m³ 100kg Cell / :+8615271357675 EXW$900 | |

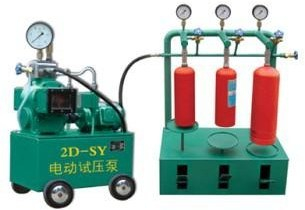

Testing-Pressu re test stand | This machine is used to test the cylinder pressure and it is consisted of hydraulic pressure test pump and test stand. The hydraulic test pump can be different types according to requirement. The machine showed in the pictures has three connectors. We can also supply machine of different connectors according to requirement. The connector divided to quick link connector and quick testing connector. Technical parameters Max. test pressure40Mpa Test capacity20pcs/hour Voltage380V Power1.1KW Weight220kg Overall size 655X480X1055mm 950X650X1200mm Cell / :+8615271357675 EXW$2375 | |
Test pressure and cleaning | Technical parameters Adjustable pressure1-6Mpa Water flow10L/min Test capacity50pcs/hure Voltage220V Power1.3KW Weight185kg Overall size1635X650X1340mm | |
| machine | 174*82*140cm 2.0m³ 185 | |
| Cell / :+8615271357675 EXW$3233 | ||
Water type extinguisher filling | Technical parameters Filling precision1kg≤±0.015 Filling speed6kg/min Voltage220V Power90W Volume of liquid tand50L Weight45kg Overall size600X580X950mm | |
| machine | 75*76*107cm 0.6m³ 105 Cell / :+8615271357675 EXW$3100 | |
Fire extinguisher clamper | This clamper is controlled by air cylinder for fire extinguisher cylinder clamping. Specifications Overall size670X200X250mm Clamping diameter80 to 180mm Air cylinder distance 150mm Air source pressure0.6Mpa to 0.8Mpa | |
| (pneumatic) | ||
| φ80-180 mm 79*32*35 0.08m³ 25kg Cell / :+8615271357675 EXW$866 | ||
| This machine is operated by hand for the fire | ||
| extinguisher clamping. | ||
Fire | φ80-φ180 mm 94*41*38 0.15 45kg | |
| extinguisher | Cell / :+8615271357675 EXW$300 | |
| clamper | ||
| (manual) |
