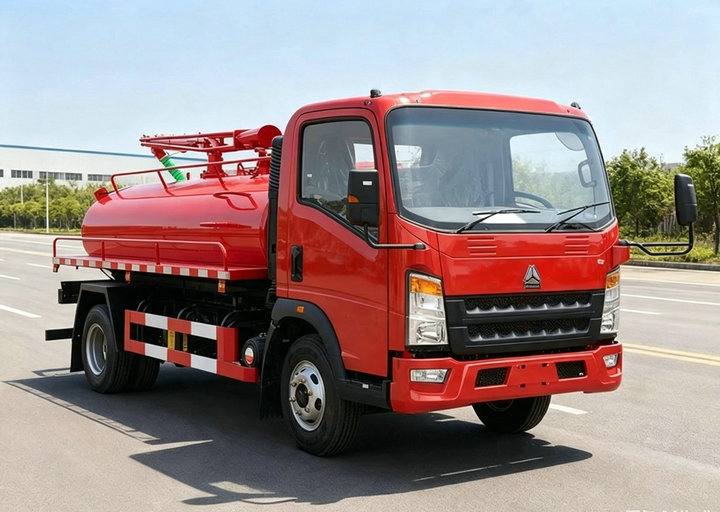

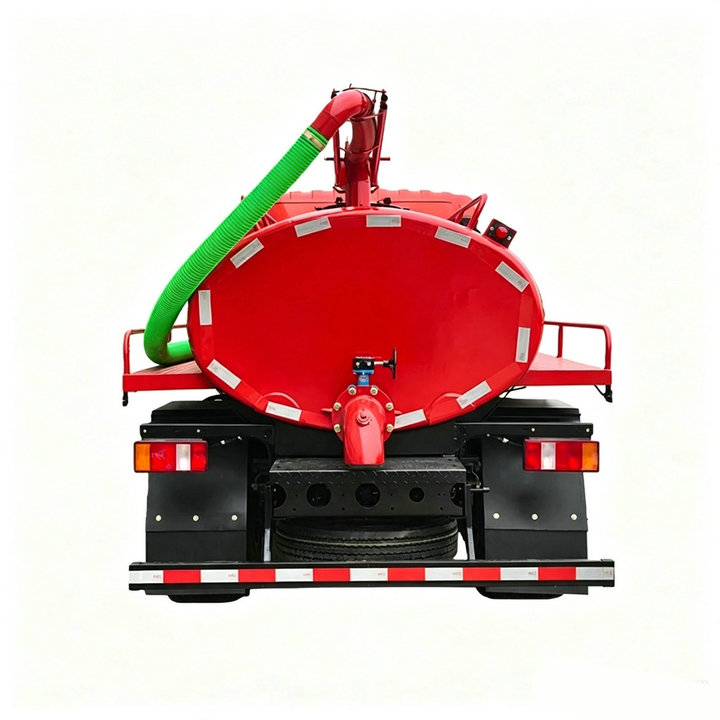

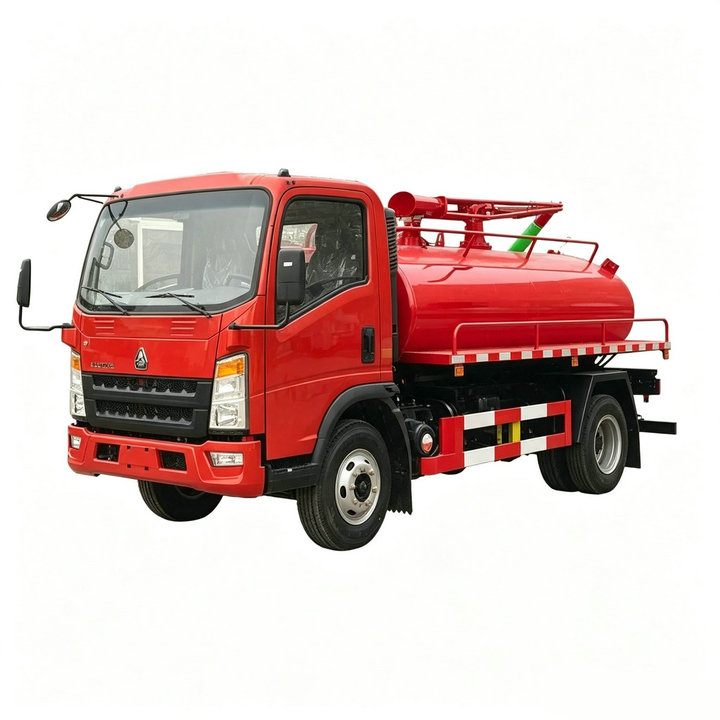

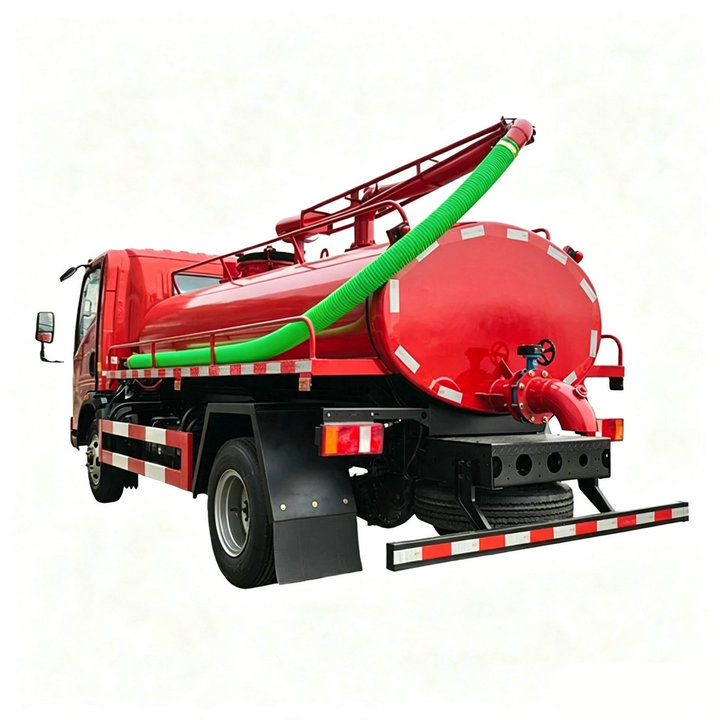

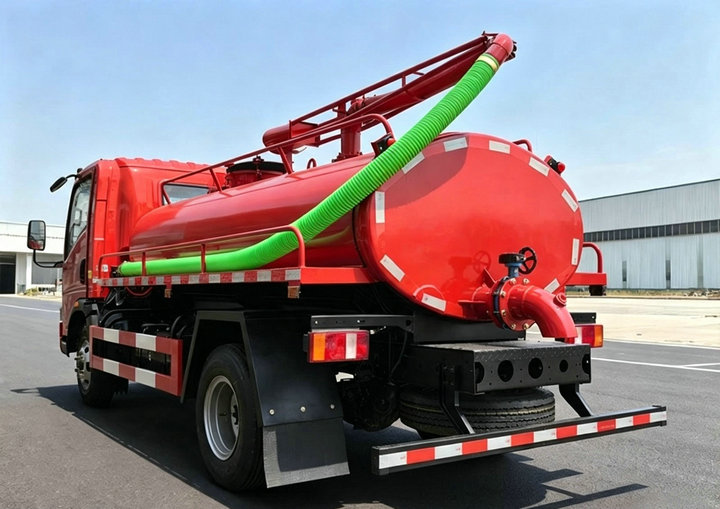

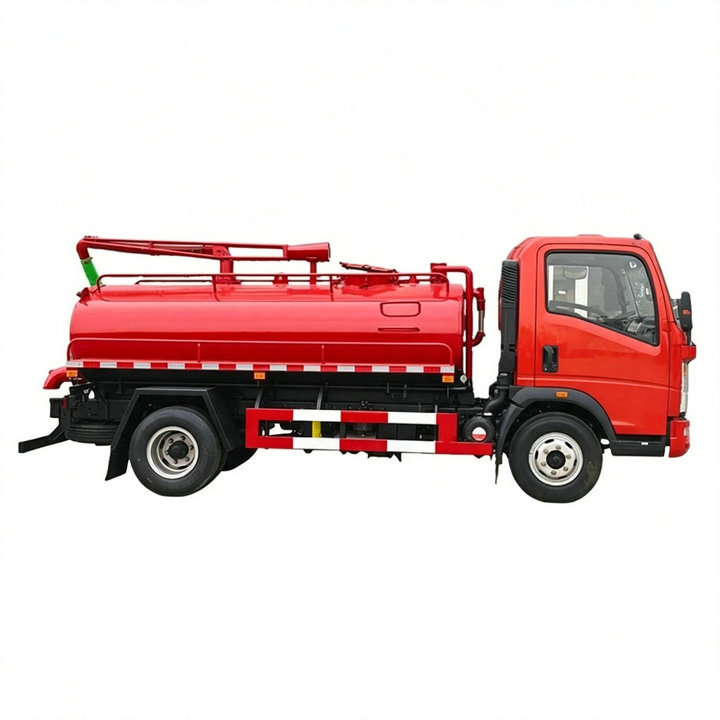

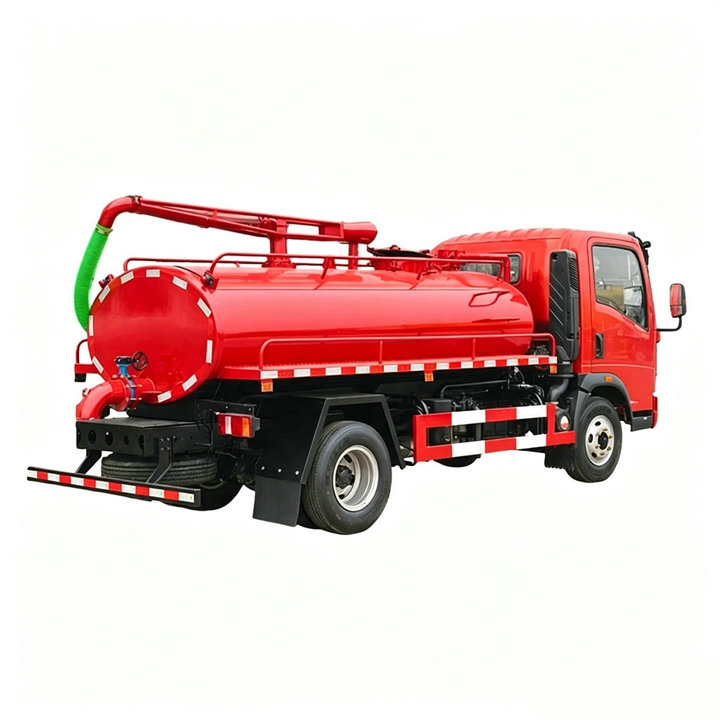

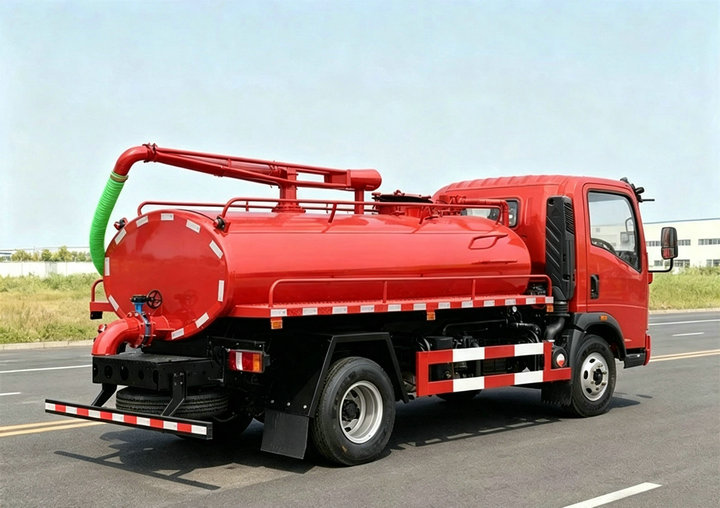

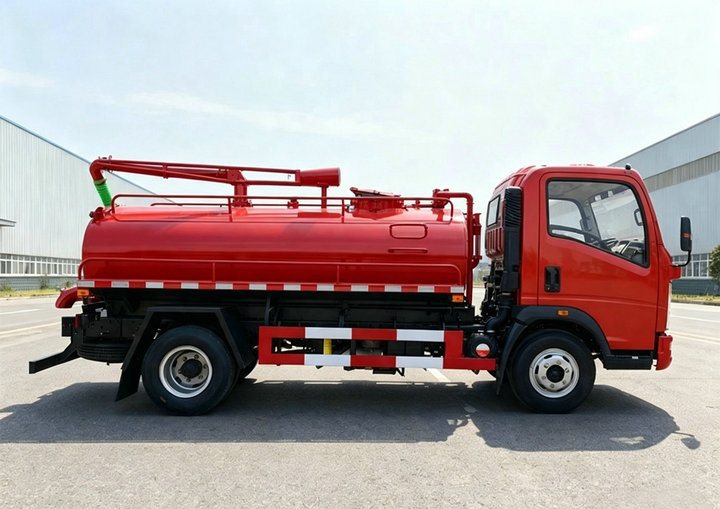

HOWO 5KL Sludge Sewage Septic Vacuum Suction Tanker Truck
HOWO 5 CBM Sludge Septic Vacuum Suction Tanker Truck | 5000 Liters Sewage Pump Vacuum Truck
The SINOTRUK HOWO 5 CBM sludge suction tanker truck, also named 5000L sewage pump tanker truck, septic tank vacuum cleaner truck and sludge collector truck, is a dedicated sanitation vehicle for sewage, fecal sludge, sediment waste extraction & transportation. Equipped with a standard 5000L vacuum tank and 141HP ISF3.8 diesel engine on a 4×2 lightweight HOWO chassis, this sewage suction truck delivers stable, high-efficiency waste removal performance for municipal sanitation, factory industrial waste treatment and environmental remediation projects.
1. Product Basic Info
Model No.: DRZ5070GXWZZ HOWO sludge suction truckEffective Tank Volume: 5 CBM / 5000 LitersDrive Form: 4×2 two-axle light commercial chassisOutput Power: 141 HP (105kW)Target Users: Sanitation companies, municipal engineering bureaus, industrial parks, property management groups
2. Full Technical Specifications of HOWO 5 Cubic Sludge Suction Tanker
Overall Vehicle Parameters
| Item | Technical Data |
|---|---|
| Complete Vehicle Model | DRZ5070GXWZZ HOWO sludge Septic Vacuum suction tanker truck |
| Drive Type | 4x2 rear wheel drive |
| Gross Vehicle Weight(GVW) | 8500 kg |
| Curb Weight | 3700 kg |
| Max Travel Speed | 100 km/h |
| Overall Dimension LWH | 5850x2150x2700 mm |
Engine System
| Item | Technical Data |
|---|---|
| Engine Model | ISF3.8S3141 diesel engine |
| Fuel Type | Diesel |
| Rated Power | 141 HP / 105 KW |
| Emission Standard | Euro III |
| Displacement | 3760 ml |
| Engine Structure | 4-cylinder inline, water cooling, turbocharged & intercooled |
Chassis Configuration (SINOTRUK HOWO Original Chassis)
| Item | Technical Data |
|---|---|
| Chassis Brand | SINOTRUK HOWO light truck chassis |
| Tire Quantity | 6 tires + 1 spare tire |
| Tire Size | 7.50R16 |
| Wheelbase | 3360 mm |
| Gearbox | WLY651 manual transmission, 6 forward gears + 1 reverse gear |
| Steering | Right-hand drive (LHD customized available) |
| Brake System | Full air brake system |
| Radiator | Tropical climate enhanced heat dissipation radiator |
Superstructure Vacuum Tank Equipment
| Item | Technical Data |
|---|---|
| Vacuum Pump | WL / WY Vacuum Pump VAC Pump :WL Series Septic Tank Vacuum Pump Cesspool Emptying Pump ,vacuum suction Pump , sewage Pump , slurry Pump vacuum pump 65QZXDH-110/7000 50QZXDF-98/8500 1000 8500Pa(91.5%) For 3-5 Ton Vacuum tanker 65QZXDG-68/400 500 400Pa(99.6%) For 8 -20Ton Vacuum tanker WY Series Septic Tank Vacuum Pump Optional Italy Original MORO PM70A Rotary Vane Vacuum Pump |
| Max Suction Depth | 6m to 8m |
| Tank Capacity | 4000L(4 CBM) ,5000L (5 CBM) |
| Tank Material | High-quality carbon steel |
| Tank Plate Thickness | Tank side wall 3mm, tank bottom 4mm thickened anti-wear plate |
| Supporting Standard Equipment | PTO power takeoff, multi-way hydraulic valve, vacuum pressure gauge, water-gas separator, oil-gas separator, hydraulic oil tank, liquid level observation window |
| Tank Exterior Color | Customized red, blue, yellow or other colors per customer demand |
Optional Upgraded Accessories
Optional Upgraded AccessoriesImported Italy / Spain high-pressure vacuum pump
Full stainless steel anti-corrosion tank body
Internal epoxy anti-corrosion coating for sewage tank
Long-distance suction hose, remote hydraulic control system
3. 4 Core Competitive Advantages of Our HOWO 5000L Sludge Suction Truck
3.1 Stable & Powerful 141HP Diesel Power System
This HOWO sludge suction tanker truck adopts ISF3.8S3141 four-cylinder turbocharged intercooled diesel engine, rated 141 HP power output, meeting Euro III emission standards. The direct injection fuel supply design provides strong low-speed torque, which perfectly matches long-hour continuous sewage sludge extraction work. The engine maintains low fuel consumption under heavy load, greatly reducing daily operation costs of sanitation fleets.
3.2 Industrial-Grade Efficient Vacuum Suction System

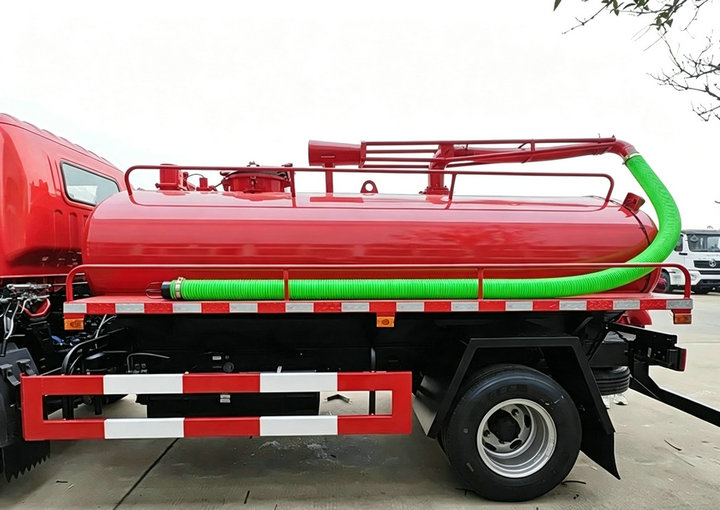

The sewage pump tanker truck relies on chassis PTO to drive the vacuum pump, forming strong negative pressure inside the 5 cubic tank to quickly suck sludge, feces, sewage and sediment. The standard 6-8m green anti-corrosion suction hose supports flexible operation in narrow residential alleys and underground drainage wells. Equipped with multi-stage gas-liquid separation devices, it effectively protects the vacuum pump from corrosion by sewage impurities and extends pump service life. Front and rear dual control valves realize one-button suction & discharge operation, simple for workers to master.
3.3 Thickened 5 CBM Carbon Steel Vacuum Storage Tank

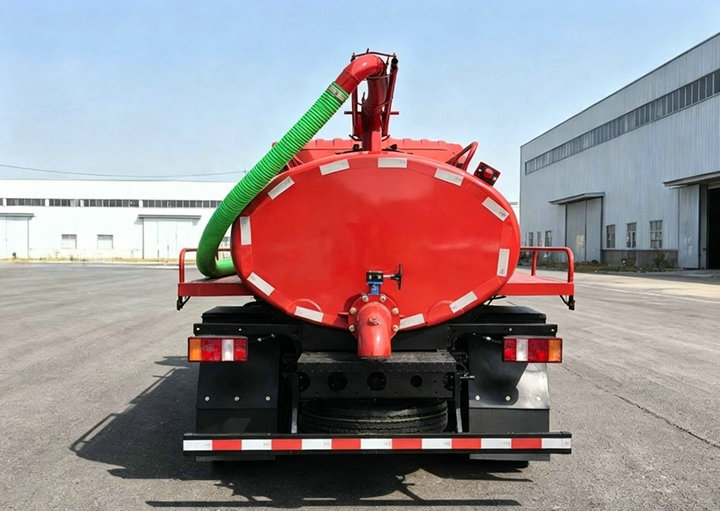

The core container of the HOWO septic tank cleaner truck is a 5000L integrated rolling carbon steel tank. The tank bottom is thickened to 4mm to resist friction and impact of heavy sludge, while the side wall adopts 3mm steel plate for lightweight and structural stability. The inner wall adopts arc seamless design to avoid sludge residue and facilitate tank internal cleaning after work. The tank top has a large maintenance manhole, convenient for regular inspection and dirt removal.
3.4 Complete Safety Monitoring Hydraulic Supporting System

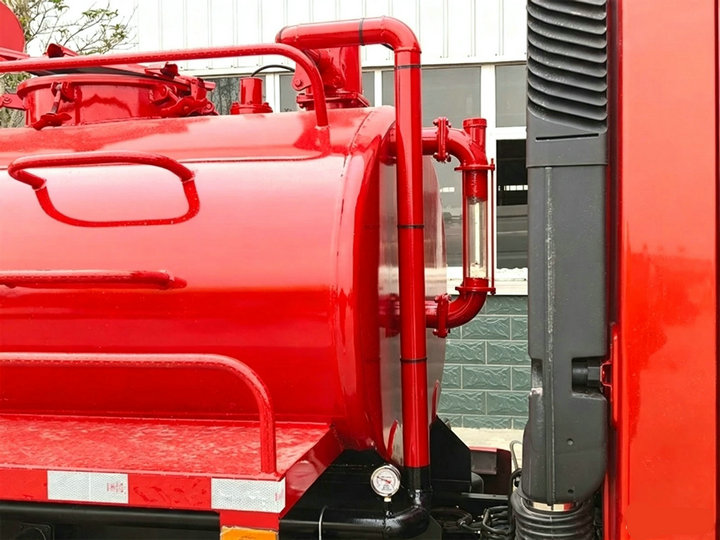

Every HOWO 5 CBM sludge suction tanker truck is equipped with a precision vacuum pressure gauge, which displays real-time negative pressure data inside the tank to prevent over-suction and tank deformation. The liquid level observation window reminds operators to stop feeding when the tank is full, avoiding sewage overflow. The matched hydraulic multi-way valve realizes stable pressure control during suction and unloading, with overload protection function to prevent pipeline burst accidents during high-pressure sewage discharge.
4. Wide Application Scenarios of HOWO 5 Cubic Septic Vacuum Truck
Our SINOTRUK HOWO sewage suction truck is a multi-functional sanitation vehicle widely used in municipal, industrial, residential and environmental protection fields:
- Municipal Fecal & Septic Tank ManagementPerfect for urban sanitation departments to clean community septic tanks, public restrooms, underground sewage wells. The 4×2 short wheelbase HOWO chassis has flexible turning performance, adapting to narrow urban road network operations.
- Factory Industrial Organic Waste DisposalSuitable for food processing plants, breeding farms, textile factories to collect high-concentration organic sludge, waste water residues, livestock manure. The thickened anti-corrosion tank avoids chemical corrosion from industrial sewage.
- Sanitation Emergency Sewage CleanupRapid response for flood sewage backflow, pipeline blockage, sewage leakage emergency treatment. High-power vacuum pump quickly extracts accumulated sewage and mud to restore public environmental hygiene.
- Commercial Block Sanitation ServiceFor catering streets, shopping malls, hotel centralized septic tank maintenance. The fully sealed suction tank eliminates odor leakage and does not interfere with surrounding commercial operations.
- Rural & Residential Community Sanitation MaintenanceRegular sludge cleaning for villa communities, rural residential septic tanks. The 5000L medium capacity balances single transport volume and road passing ability in rural villages.
- Environmental Remediation Engineering ProjectsSupport river silt cleaning, wetland sewage treatment, construction site mud waste transportation for environmental protection engineering companies.
5. Why Buy HOWO 5 CBM Sludge Suction Tanker Truck From Our Factory
| Product Name | HOWO 5 CBM Sludge Suction Tanker Truck | ||
| Overall | Vehicle Model | DRZ5070GXWZZ | |
| Drive Type | 4*2 | ||
| Gross Vehicle Weight | 8500 kg | ||
| Curb Weight | 3700 kg | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H(mm) | 5850x2150x2700 mm | ||
| Engine | Engine Model | ISF3.8S3141 | |
| Fuel Type | Diesel | ||
| Power | 141 HP(105KW) | ||
| Emission Standard | Euro III | ||
| Displacement | 3760 ml | ||
| Engine Type | 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | SINOTRUK | |
| Tire No. | 6 pieces with 1 spare tire | ||
| Tire Specification | 7.50R16 | ||
| Wheelbase (mm) | 3360 mm | ||
| Gear Box | WLY651 ,6 Forward & 1 Reverse Gear,manual | ||
| Steering Wheel | Right hand drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for tropical climate | ||
| Body/Superstructure | Pam vacuum | WL/WY/YF China's famous vacuum pump or MEC / Moro /Jurop Italian pump WL / WY Vacuum Pump VAC Pump :WL Series Septic Tank Vacuum Pump Cesspool Emptying Pump ,vacuum suction Pump , sewage Pump , slurry Pump vacuum pump 65QZXDH-110/7000 50QZXDF-98/8500 1000 8500Pa(91.5%) For 3-5 Ton Vacuum tanker 65QZXDG-68/400 500 400Pa(99.6%) For 8 -20Ton Vacuum tanker WY Series Septic Tank Vacuum Pump Optional Italy Original MORO PM70A Rotary Vane Vacuum Pump | |
| Suction head | 6m-8m | ||
| Tank | Capacity | 5000L | |
| Material | High quality carbon steel | ||
| Thickness | Side 3mm, bottom 4mm | ||
| Base | Install a vacuum pump and a hydraulic system driven by the engine through | ||
| Equipment | PTO. One multi-way valve, pressure gauge, water-gas separator, oil-gas separator, hydraulic oil tank, level inspection window | ||
| The color of the tank is according to customer requirements. | |||
| Optional Equipment | Italian or Spanish vacuum pump | ||
| Stainless steel | |||
| Anti-corrosion coating inside the tank | |||
- Factory Direct Supply, No Middleman MarkupWe are a professional sanitation truck manufacturer with independent assembly workshop for HOWO sewage suction trucks. All vehicles are directly produced and sold, providing competitive ex-factory wholesale prices for bulk buyers.
- Customized Production ServiceSupport LHD/RHD chassis conversion, tank color customization, stainless steel tank upgrade, imported vacuum pump replacement and other personalized configurations to meet different country road and sanitation standards.
- Strict Factory Quality InspectionEach HOWO sludge vacuum truck undergoes full water tightness, vacuum suction and road test before delivery to eliminate pipeline leakage and insufficient negative pressure problems.
- Complete Export Documentation SupportWe provide full set of export papers including factory inspection certificate, vehicle invoice, CO certificate, EAC certification for Russia/CIS countries, and assist customers with port shipment.
- Global After-Sales SupportSupply spare parts of vacuum pumps, hydraulic valves, hoses and chassis accessories at cost price; provide remote video operation and maintenance guidance for overseas clients.
FAQ
Q1: What’s the max suction distance of this HOWO 5 CBM sludge suction tanker truck?
A: Standard matching 6-8m suction hose, we can extend to 10m customized long hose for deep well operation.
Q2: Can this sewage pump tanker truck be fitted with stainless steel tank?
A: Yes, 304 stainless steel tank is optional for corrosive industrial sewage transportation.
Q3: Is RHD HOWO sludge suction truck available for Southeast Asia, Africa markets?
A: We support both left-hand drive and right-hand drive SINOTRUK HOWO chassis customization.
Q4: What vacuum pump brands can be installed on the truck?
Standard domestic high-efficiency pump, optional Italy MORO, Spain imported vacuum pumps with stronger suction power.
