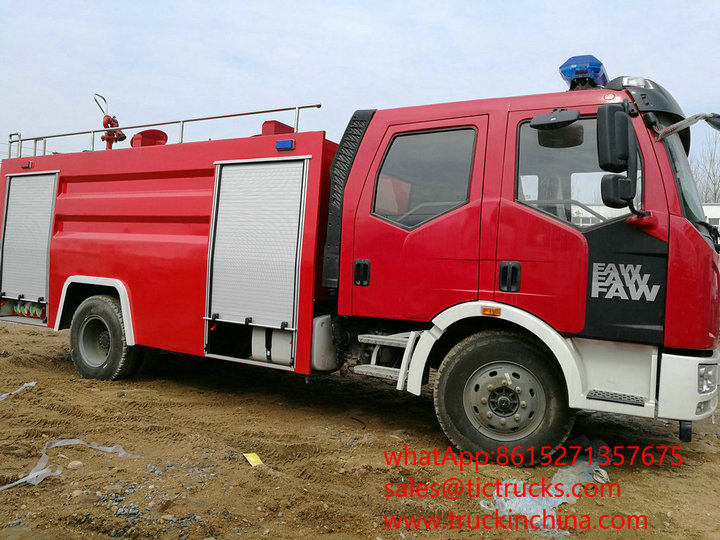

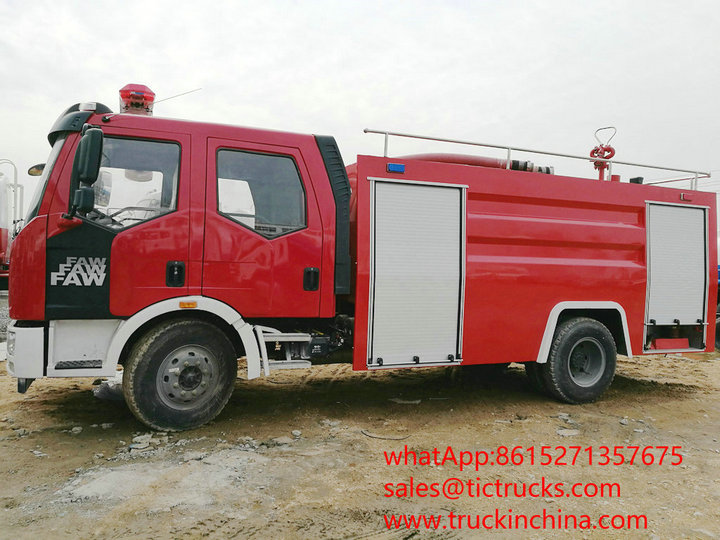

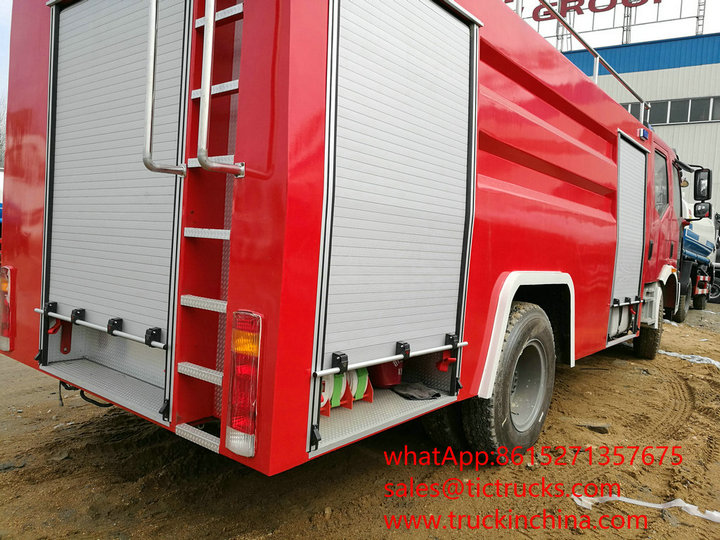

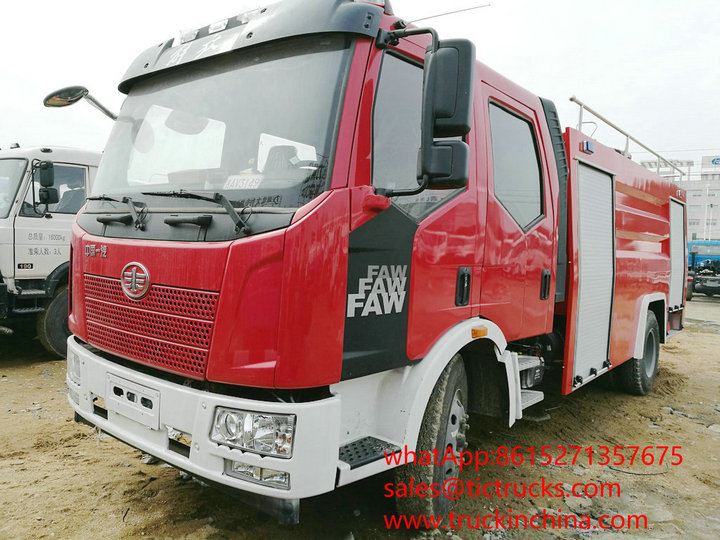

Fire fighting FAW J6 Fire Pump Truck 8000L EURO 5
| FOB: | |
|---|---|
| Availability: | |
| Quantity: | |
|
| |
-
DRZ5160TSFJ
-
DRZ
-
8705309000
Fire fighting FAW J6 Fire Pump Truck 8000L EURO 5
7200L,1200-1600Gallon
FAW J6 Fire Pump Truck 8000L , Hubei Dong Runze Special Vehicle Equipment Co., Ltd
- See more at: http://www.truckinchina.com/FAW-J6-Fire-Pump-Truck-8000L-for-sale-id596424.html#sthash.baq98t9n.dpuf
Fire fighting FAW J6 Fire Pump Truck 8000L EURO 5
7200L,1200-1600Gallon
FAW J6 Fire Pump Truck 8000L , Hubei Dong Runze Special Vehicle Equipment Co., Ltd
- See more at: http://www.truckinchina.com/FAW-J6-Fire-Pump-Truck-8000L-for-sale-id596424.html#sthash.baq98t9n.dpuf
Fire fighting water tank lorry truck 7200L-8000L,
1200-1800Gallon CA1160P62K1L4A2E4 / CA1160P62K1L2A1E4Z
| Chassis: | CA1160P62K1L2A1E4Z | Fuel type: | diesel fuel |
| Engine: | BF6M2012-22E4; BF6M2012-20... | Rated capacity (kg): | 4505 |
| Displacement (cc): | 6060; 6060; 6060 | Wheelbase (mm): | 5300, 5000, 4700, 4500,... |
| Power (kW): | 165; 150; 139 | Dimensions (mm): | 8870 × 2500 × 3170 |
| JIEFANG diesel truck chassis | Jiefang CA1160P62K1L4A2E4 flathead diesel truck chassis Specification | |||
| Company Name : | China First Automobile Group Corporation | ||
| Chassis Type: | CA1160P62K1L4A2E4 | Chassis Category: | II |
| Product Name: | Flathead diesel truck chassis | Product Brand: | Jiefang |
| Zip Code: | 130011 | Catalog number : | 1 |
| Specifications: | Length: 8250,8700,8900 Width: 2349 Height: 2705,3475 | ||
| Fuel Type: | Diesel fuel | According to the standard : | GB3847-2005, GB17691-2005 State IV |
| Steering Type : | Steering wheel | ||
| Number of axes: | 2 | Wheelbase: | 4800,5000,5300 |
| Spring: | 7/10 +3 and 10 /12 +8,7 / 7 +6 | Number of tires : | 6 |
| Tire Size: | 9.00-20,9.00 R20, 10R22.5 | Tread : | Front track Rear track 1800 1800, 1900 |
| The total mass : | 15795 | ||
| Curb weight: | 4750 | Quality Trailer : | |
| Semitrailer saddle : | Front passenger : | 3 | |
| Close to the departure angle: | 18/10 | Rear suspension : | 1400/ 2050 , 1400/ 2300 , 1400/ 2200 |
| Maximum speed: | 96 | ||
| Picture: | |||
| JIEFANG diesel truck chassis | Jiefang CA1160P62K1L4A2E4 flathead diesel truck chassisEngine Specification | |||
| Engine Model | Engine Manufacturer | Displacement (ML) | Power (ML) |
| BF6M2012-18E4R BF6M2012-16E4R BF6M2012-18E4 BF6M2012-16E4 | China First Automobile Group Corporation China First Automobile Group Corporation China First Automobile Group Corporation China First Automobile Group Corporation | 6060 6060 6060 6060 | 139 121 139 121 |
| Identification code : | LFNAFUJJ × × × × × × × × × LFNAFUJK × × × × × × × × × LFNAFUJM × × × × × × × × × LFNAFUKJ × × × × × × × × × LFNAFUKK × × × × × × × × × LFNAFUKM × × × × × × × × × | ||
| Other: | Net engine power values : BF6M2012-16E4R, BF6M2012-16E4 engines to 118kW, BF6M2012-18E4R, BF6M2012-18E4 engines to 136kW, VIN and engine mapping : LFNAFUJJ corresponding 4800mm wheelbase and BF6M2012-16E4R, BF6M2012-16E4 engines , LFNAFUJK corresponding 5000mm wheelbase and BF6M2012-16E4R, BF6M2012-16E4 engines , LFNAFUJM corresponding 5300mm wheelbase and BF6M2012-16E4R, BF6M2012-16E4 engines , LFNAFUKJ corresponding 4800mm wheelbase and BF6M2012-18E4R, BF6M2012-18E4 engines , LFNAFUKK corresponding 5000mm wheelbase and BF6M2012 -18E4R, BF6M2012-18E4 engines , LFNAFUKM corresponding 5300mm wheelbase and BF6M2012-18E4R, BF6M2012-18E4 engines, the length dimension corresponding relationship : +2050,8700 8250 = 1400 = 1400 +5000 +4800 = 1400 +5300 + +2300,8900 2200 , optional ABS, ABS anti-lock braking system manufacturers, Changchun Bureau of automotive Brake Co., Ltd. Model : CM4XL, optional shroud , optional sunshield, installed with satellite positioning function tachograph | ||
| JIEFANG diesel truck chassis | Jiefang CA1160P62K1L4A2E4 flathead diesel truck chassisOther Information | |
| Jiefang CA1160P62K1L4A2E4 flathead diesel truck chassis all models | Using China First Automobile Group Corporation chassis all models |
- >
Pls feel free to contact me for more details:
| Technical parameters | ||||
| The totalmass(kg) | 16000 | Curb Weight(kg) | 7380 | |
| Rated the quality of(kg) | 8425 | Chassis Model | CA1160P62K1L2A1E4Z | |
| Approach / departure angle(°) | 20/14 | Front overhang / rear overhang | 1400/2100,1400/2300 | |
| Dimensions(mm) | 7300,8200X2500X2950 | Compartment dimension(mm) | ||
| Number of axles | 2 | Maximum speed | 90 | |
| Tire Specifications | 10.00-20 18PR,10.00R20 18PR, 11R22.5 16PR,10.00-20 16PR,10.00R20 16PR | Number of tires | 6 | |
| Front track | 1914 | Rear track | 1860 | |
| Wheelbase | 5300,5000,4700,4500,4200,4000,3800,3650,5600 | Axle load | 6000/10000 | |
| Number of spring | 10/12+8,13/12+8,12/12+8 | Type of fuel | Diesel | |
| Emission Standards | Euro III/Euro IV | |||
| Engine parameters | ||||
| Engine Model | BF6M2012-22E4 | Engine Manufacturer | China first automobile group co., LTD | |
| Engine Displacement | 6060 | Engine power | 165 | |
| Chassis Description | 1,FAW 4x2 chassis, flat cab with left/right hand drive/AC 2,220 Horsepower with Cyliner diesel engine,Euro III/Euro IV Emission Standard , 9 shift gearbox. | |||
| Modified Description | 1. The tanker is made by 4-6mm carbon steel plate or corrosion resistant plate. 2. Equipped with front (rear,side)sprinkler, with rear working platform,Greening water cannon, 360°rotatable, adjust water to high or low(spray like columnar,vaporific,drizzle) 3.Equipped with high power water pump, Japan technology: Sprinkler width≥15m Water cannon gunshot≥50m Vertical suction≤6.5m Flush pressure:250-450KPa Time of drawing water :≥5minutes Pump capacity:1000 L/minute; | |||
| Component | Basic composition:chassis,tanker,PTO,transmission shaft,special self-priming pump,pipeline,jet,rear work platform.Optional equipment:GPS, gimbaled nozzle,VVB,pneumatic valve,visual operating system,external power,medicament tray. | |||
| Purpose | Our company develop all kinds of watering trucks, mainly used in city roads,big factory,troops,parks,cleaning,proventing dust,watering,crop-dusting and so on.We can produce different all kinds of watering trucks according to customer's requirements. | |||
| Product advantage | High Quality with best price. | |||
Fire fighting water tank lorry truck 7200L-8000L,
1200-1800Gallon CA1160P62K1L4A2E4 / CA1160P62K1L2A1E4Z
| Chassis: | CA1160P62K1L2A1E4Z | Fuel type: | diesel fuel |
| Engine: | BF6M2012-22E4; BF6M2012-20... | Rated capacity (kg): | 4505 |
| Displacement (cc): | 6060; 6060; 6060 | Wheelbase (mm): | 5300, 5000, 4700, 4500,... |
| Power (kW): | 165; 150; 139 | Dimensions (mm): | 8870 × 2500 × 3170 |
| JIEFANG diesel truck chassis | Jiefang CA1160P62K1L4A2E4 flathead diesel truck chassis Specification | |||
| Company Name : | China First Automobile Group Corporation | ||
| Chassis Type: | CA1160P62K1L4A2E4 | Chassis Category: | II |
| Product Name: | Flathead diesel truck chassis | Product Brand: | Jiefang |
| Zip Code: | 130011 | Catalog number : | 1 |
| Specifications: | Length: 8250,8700,8900 Width: 2349 Height: 2705,3475 | ||
| Fuel Type: | Diesel fuel | According to the standard : | GB3847-2005, GB17691-2005 State IV |
| Steering Type : | Steering wheel | ||
| Number of axes: | 2 | Wheelbase: | 4800,5000,5300 |
| Spring: | 7/10 +3 and 10 /12 +8,7 / 7 +6 | Number of tires : | 6 |
| Tire Size: | 9.00-20,9.00 R20, 10R22.5 | Tread : | Front track Rear track 1800 1800, 1900 |
| The total mass : | 15795 | ||
| Curb weight: | 4750 | Quality Trailer : | |
| Semitrailer saddle : | Front passenger : | 3 | |
| Close to the departure angle: | 18/10 | Rear suspension : | 1400/ 2050 , 1400/ 2300 , 1400/ 2200 |
| Maximum speed: | 96 | ||
| Picture: | |||
| JIEFANG diesel truck chassis | Jiefang CA1160P62K1L4A2E4 flathead diesel truck chassisEngine Specification | |||
| Engine Model | Engine Manufacturer | Displacement (ML) | Power (ML) |
| BF6M2012-18E4R BF6M2012-16E4R BF6M2012-18E4 BF6M2012-16E4 | China First Automobile Group Corporation China First Automobile Group Corporation China First Automobile Group Corporation China First Automobile Group Corporation | 6060 6060 6060 6060 | 139 121 139 121 |
| Identification code : | LFNAFUJJ × × × × × × × × × LFNAFUJK × × × × × × × × × LFNAFUJM × × × × × × × × × LFNAFUKJ × × × × × × × × × LFNAFUKK × × × × × × × × × LFNAFUKM × × × × × × × × × | ||
| Other: | Net engine power values : BF6M2012-16E4R, BF6M2012-16E4 engines to 118kW, BF6M2012-18E4R, BF6M2012-18E4 engines to 136kW, VIN and engine mapping : LFNAFUJJ corresponding 4800mm wheelbase and BF6M2012-16E4R, BF6M2012-16E4 engines , LFNAFUJK corresponding 5000mm wheelbase and BF6M2012-16E4R, BF6M2012-16E4 engines , LFNAFUJM corresponding 5300mm wheelbase and BF6M2012-16E4R, BF6M2012-16E4 engines , LFNAFUKJ corresponding 4800mm wheelbase and BF6M2012-18E4R, BF6M2012-18E4 engines , LFNAFUKK corresponding 5000mm wheelbase and BF6M2012 -18E4R, BF6M2012-18E4 engines , LFNAFUKM corresponding 5300mm wheelbase and BF6M2012-18E4R, BF6M2012-18E4 engines, the length dimension corresponding relationship : +2050,8700 8250 = 1400 = 1400 +5000 +4800 = 1400 +5300 + +2300,8900 2200 , optional ABS, ABS anti-lock braking system manufacturers, Changchun Bureau of automotive Brake Co., Ltd. Model : CM4XL, optional shroud , optional sunshield, installed with satellite positioning function tachograph | ||
| JIEFANG diesel truck chassis | Jiefang CA1160P62K1L4A2E4 flathead diesel truck chassisOther Information | |
| Jiefang CA1160P62K1L4A2E4 flathead diesel truck chassis all models | Using China First Automobile Group Corporation chassis all models |
- >
Pls feel free to contact me for more details:
| Technical parameters | ||||
| The totalmass(kg) | 16000 | Curb Weight(kg) | 7380 | |
| Rated the quality of(kg) | 8425 | Chassis Model | CA1160P62K1L2A1E4Z | |
| Approach / departure angle(°) | 20/14 | Front overhang / rear overhang | 1400/2100,1400/2300 | |
| Dimensions(mm) | 7300,8200X2500X2950 | Compartment dimension(mm) | ||
| Number of axles | 2 | Maximum speed | 90 | |
| Tire Specifications | 10.00-20 18PR,10.00R20 18PR, 11R22.5 16PR,10.00-20 16PR,10.00R20 16PR | Number of tires | 6 | |
| Front track | 1914 | Rear track | 1860 | |
| Wheelbase | 5300,5000,4700,4500,4200,4000,3800,3650,5600 | Axle load | 6000/10000 | |
| Number of spring | 10/12+8,13/12+8,12/12+8 | Type of fuel | Diesel | |
| Emission Standards | Euro III/Euro IV | |||
| Engine parameters | ||||
| Engine Model | BF6M2012-22E4 | Engine Manufacturer | China first automobile group co., LTD | |
| Engine Displacement | 6060 | Engine power | 165 | |
| Chassis Description | 1,FAW 4x2 chassis, flat cab with left/right hand drive/AC 2,220 Horsepower with Cyliner diesel engine,Euro III/Euro IV Emission Standard , 9 shift gearbox. | |||
| Modified Description | 1. The tanker is made by 4-6mm carbon steel plate or corrosion resistant plate. 2. Equipped with front (rear,side)sprinkler, with rear working platform,Greening water cannon, 360°rotatable, adjust water to high or low(spray like columnar,vaporific,drizzle) 3.Equipped with high power water pump, Japan technology: Sprinkler width≥15m Water cannon gunshot≥50m Vertical suction≤6.5m Flush pressure:250-450KPa Time of drawing water :≥5minutes Pump capacity:1000 L/minute; | |||
| Component | Basic composition:chassis,tanker,PTO,transmission shaft,special self-priming pump,pipeline,jet,rear work platform.Optional equipment:GPS, gimbaled nozzle,VVB,pneumatic valve,visual operating system,external power,medicament tray. | |||
| Purpose | Our company develop all kinds of watering trucks, mainly used in city roads,big factory,troops,parks,cleaning,proventing dust,watering,crop-dusting and so on.We can produce different all kinds of watering trucks according to customer's requirements. | |||
| Product advantage | High Quality with best price. | |||
