Customize Truck Mounted Generater Electric Power with 3T Diesel Oil Refueling System
Special devices : diesel generator set, 3T Diesel Oil Tank,Refueling Bowser machine
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
DSMQ5180XDYS6
-
SINOTRUCK
-
8705909990
-
Shanghai, China
-
10000
-
T/T, Western Union

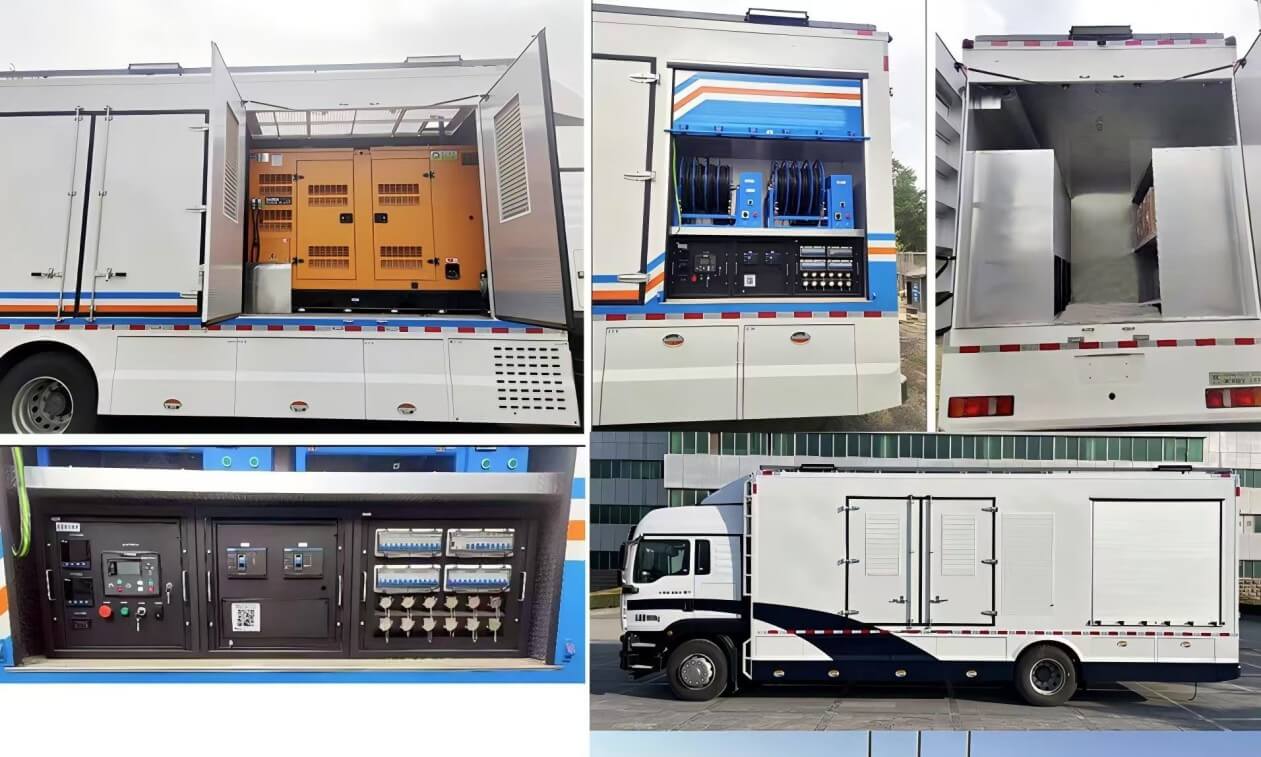

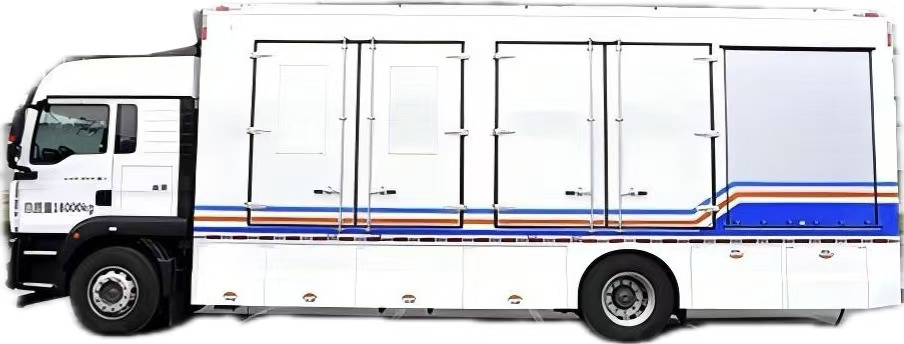

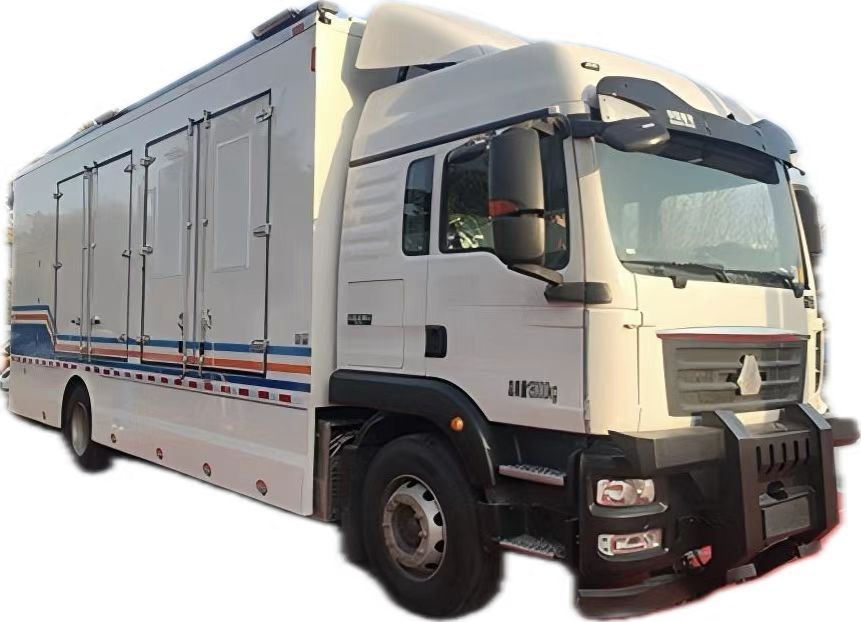

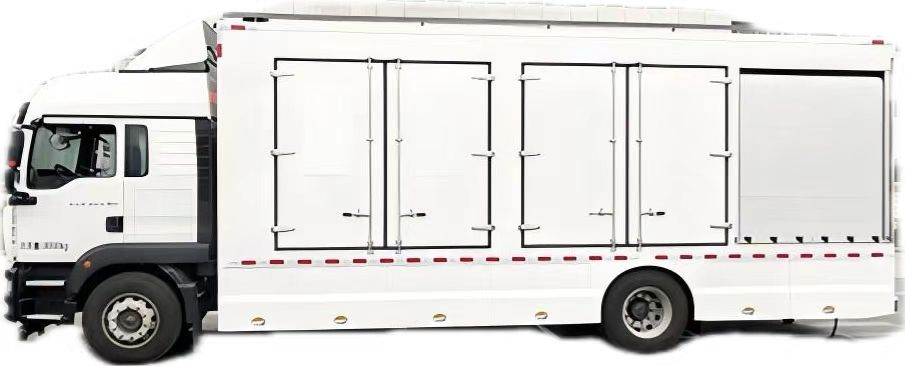

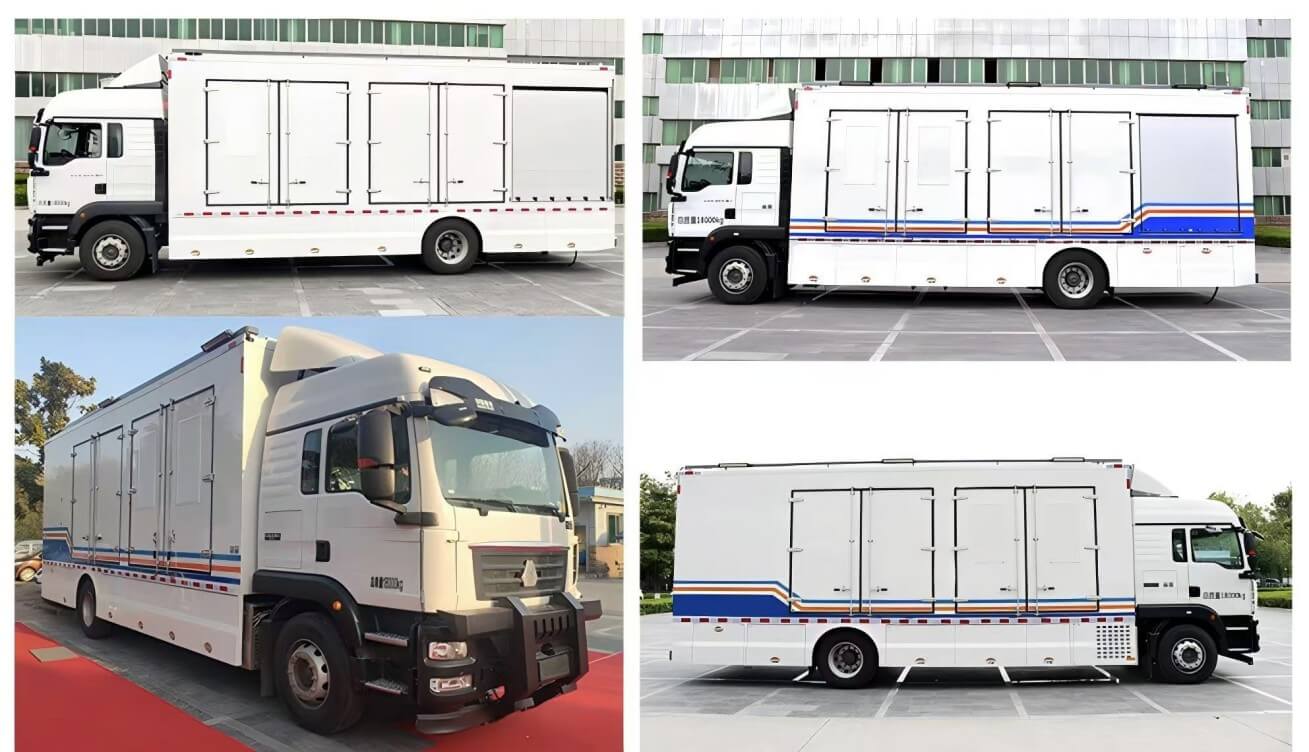

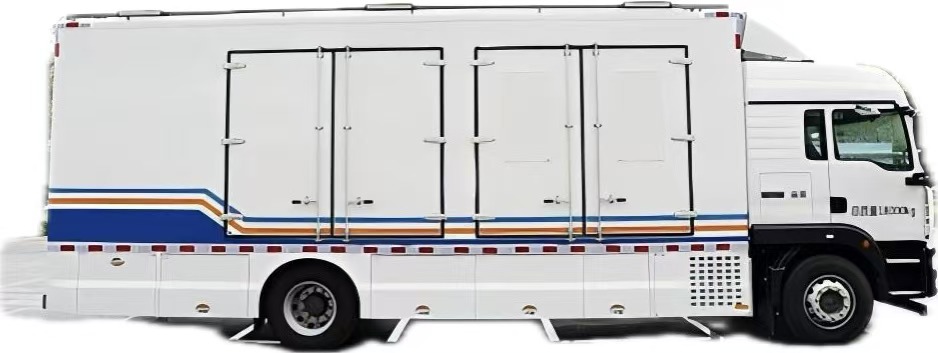

Customize Truck mounted Generater Electric Power Generation Vehicle with 3T Diesel Oil Refueling System
Equipped with generator set, electric coil, external output control box and other special devices, mainly used for rescue and disaster relief and major political meetings, events and other occasions to meet the emergency power demand
Main technical parameters
Overall dimensions: | 10675,10485×2550×3880(mm) | Fuel Type: | Diesel oil |
Gross Weight | 18000(Kg) | ||
Net weight | 17870,17805(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 14/9,16/9(°) | Front/rear overhang: | 1640/3235,1450/3235(mm) |
Axle Load: | 6500/11500 | Wheelbase: | 4500,4700,5000, 5200,5600,5800, 6300,3600,3800, 4200(mm) |
Axle Number | 2 | Maximum speed: | 110(km/h) |
Tire Number | 6(pcs) | Tire Specifications: | 295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR, 10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR, 315/60R22.5 18PR,12.00R20 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/4,2/3+2,3/3+2,3/9+8,3/7+3,3/7+6, 7/7+3,7/7+6,11/9+8,3/-,3/2+-,2/2+-,2/- |
Front wheel track: | 1900,1950,1998,2015,2035(mm) | Rear wheel track: | 1850(mm) |
Engine | Displacement (ml) | Power (kw)/ horsepower (ps) |
MC07.29-60;MC07.31-60;MC07.33-60;MC07.25-60;WP7.270E61;WP6H245E61;MC07H.35-60; MC07H.33-60;MC07.34-60;MC07.27-60;MC05H.25-60;WP8.350E61;WP7.300E61;WP6H270E61;MC07H.29-60; WP7H270E62;WP7H300E62;WP7H320E62;MC07.25-61;MC07.27-61;MC07.29-61;MC07H.31-61;MC07H.33 | 6870;6870;6870;6870;7470; 6220;7360;7360;6870;6870;4910;7800;7470;6220;7360;6800;6800;6800;6870;6870;6870;7360;7360;7360;7360 | 213;228;240;188;199;180; 257;240;251;202;180;257;220;199;213;199;221;235;190;202;213;228;240;254;258 |
Item | Target name | Brand, specification and model / main service content | quantity |
1. | Class II chassis | Shandeka ZZ5186 XXYN561 GF1 Wheelbase: 5,800 mm: engine work Rate: 257kw; Eruo 6 emissions; Max speed: 110 km/h; | 1 |
2. | gen | Dong Runze HY-120S1 work rating Rate: 120KW, rated voltage: AC380V/220V | |
3. | The body | Dong Runze SY850000 Chamber body frame mining With steel pipe assembly welding, the whole car polyurethane Foaming, the box frame for the whole Electrophoresis rust prevention treatment | |
4. | Spray requirements | Dong Runze SY-PT is customized according to customer needs | |
5. | Hydraulic auxiliary support system | The SY2811000 legs can be operated either separately or simultaneously | 1 |
6. | Left and right working doors | Dong Runze SY6110000 High-strength steel skeleton | 1 |
7. | Then open the door | Dong Runze SY6130000 High-strength steel skeleton | 1 |
8. | roll-up door | Dong Runze SY6160000 Aluminum profile skeleton | 1 |
9. | Side warehouse door and warehouse body | Dong Runze SY5902000 Aluminum profile skeleton | 1 |
10. | Equipment frame | Dong Runze SY6150000 High-strength steel skeleton | 1 |
11. | The top ladder | Dong Runze SY5210000 Stainless steel material, anti-skid pedal | 1 |
12. | The cabin ladder | Dong Runze SY5230000 Aluminum alloy material | 1 |
13. | window-shades | Dong Runze SY5220000 Aluminum alloy material, manual control to open and close | 1 |
14. | Interior lighting maintenance light | Dong Runze SY-NZ 10 Voltage; DC24V: Power: 10W; | 1 |
15. | Lift lighting | Dong Runze CTD-19J2B70(150)A Lift height of 1.8 meters, lifting light Light 2 * 150 WLED lamp head | 1 |
16. | AC380V Total cable winch | Dong Runze HMT-DP30L34 * 95 mm2 cable, cable length: 30 m | 1 |
17. | AC220V Manual cable tray | Dong Runze HMT-XP30L23 * 6mm2 three-core cable, 30 m | 6 |
18. | AC380V Manual cable tray | Dong Runze HMT-XP30L34 * 4 mm2 IV Core cable, 30 m: | 6 |
19. | automatic switching control equip | Dong Runze SY-FDJ-ATS with the generator The Group is equipped with a special automatic switch cabinet, Automatic switching with the mains power supply | 1 |
20. | Distribution control system | The Dong Runze SMQ-350-DY is included AC380V Export, AC220V, and output | 1 |
21. | Input / output interface switch | Taixing Hangyu Y50DX12 Group 10 220V / 380V power output and Enter the socket | 1 |
22. | Ground extreme lightning protection | Dong Runze SMQ-JD100 with grounding bolts and 8 m grounding copper wire | 1 |
23. | Working word type alarm lamp | The Dong Runze TBD-GH2W16A-68 is 1.7 m long and equipped with a 200W alarm | 1 |
24. | Reverse image | Dong Runze SY-DY LCD reversing monitoring screen | 1 |
25. | Driving recorder | The Dong Runze SY-XC10 camera resolution Rate 1280X720,7-inch LCD monitor | 1 |
26. | PDCParking Distance Control | 4 for the number of Dong Runze SY-LD50 probes | 1 |
27. | Fill The Light | Dong Runze JH-300-608B for easy material access at night | 1 |
28. | Fuel Reserve Tank | Dong Runze SY2810000 Oil storage capacity of 3 tons, storage fuel type: diesel oil | 1 |
29. | Flying Tanker | Dong Runze SY-0.55KW Flow rate range: 10~45L / min, motor power: 550W | 1 |
30. | Dry-Chemical Fire Extinguisher | ABC33kg Fire extinguisher | 2 |
31. | Disinfection Facilities | Snow Wright HJ-1401 Mobile Type | 1 |
