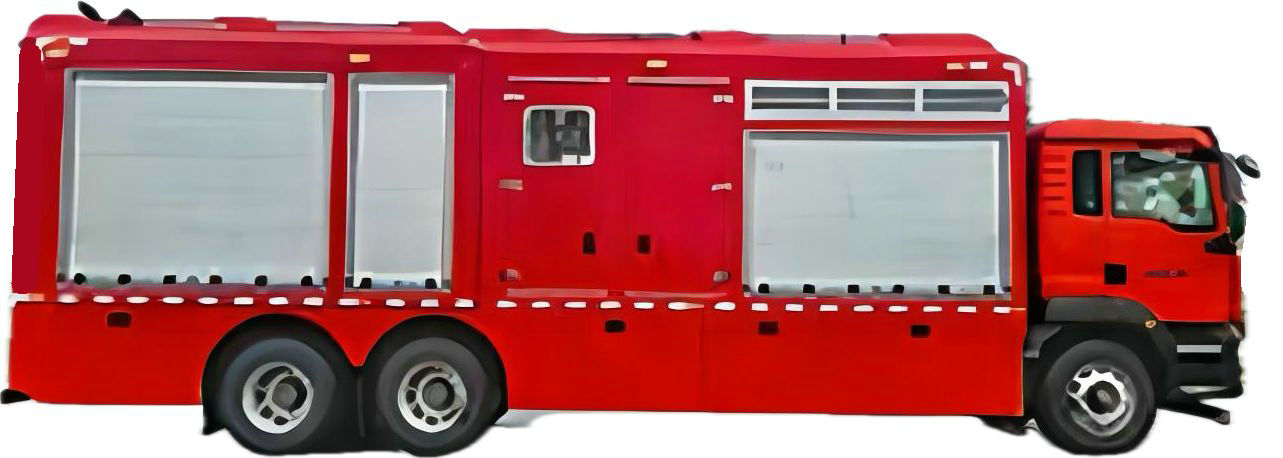

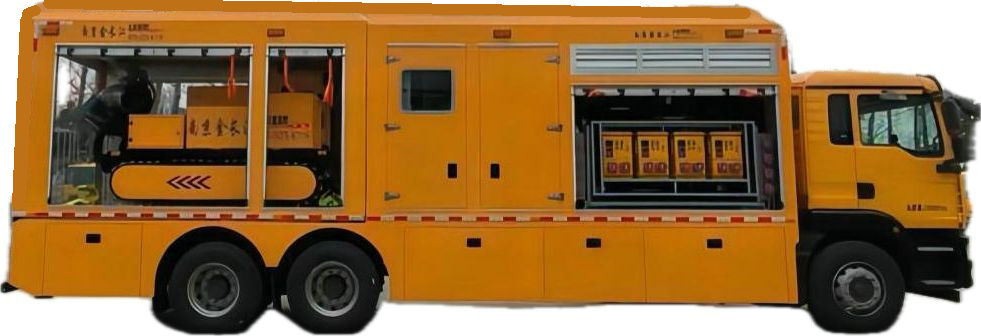

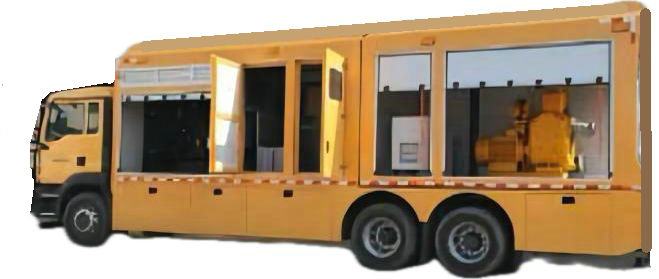

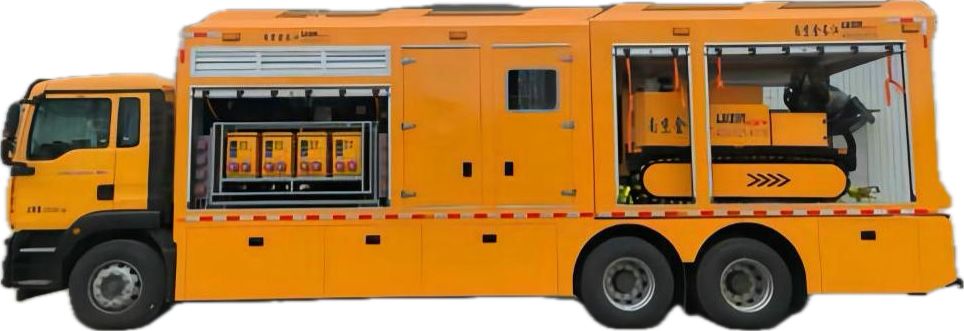

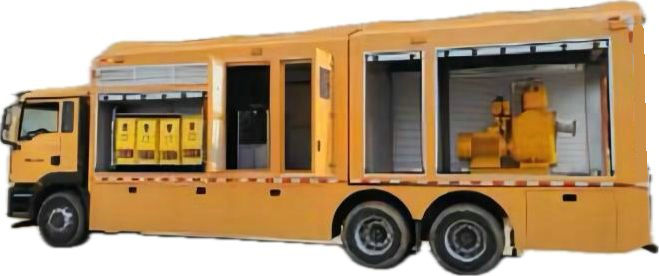

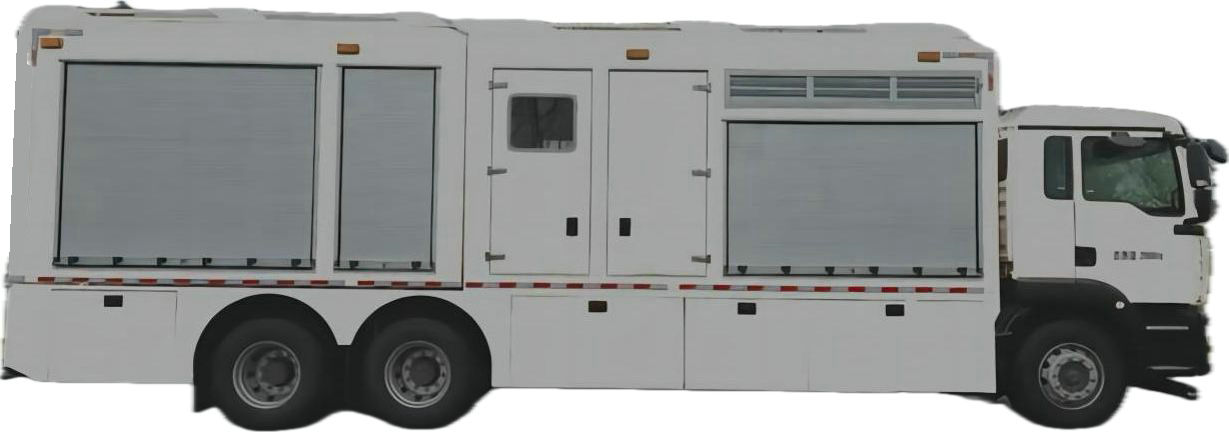

SITRAK Large Flow Drainage Emergency Rescue Truck 7200M3/h

SITRAK Large Flow Drainage Emergency Rescue Truck 7200M3/h

Chassis model: ZZ5256XXYN504GF1

Special device: 100KW -250KW generator set, drainage device, control system, etc., mainly used for emergency rescue, emergency power generation, emergency rescue

Optional A: 100KW generator set, drainage  Pump 4200 M3/h

1. Total flow rate ≥1800m³/h. Equipped with three portable submersible pumps, single pump flow ≥600m³/h, head≥8m, 10m head, flow ≥500m³/h, single pump weight ≤25kg;

2, configure a control cabinet, control cabinet protection level ≥IP44, weight ≤19KG, water pump has a separate

Control system with visual operation interface, with leakage, current overload, missing item, overvoltage, undervoltage,

Over frequency, under frequency, motor overheating and other protection.

3, each pump  equipped with a special diving cable, the length  more than 20 meters, and the use of quick joint between the control cabinet,

Joint waterproof rating IP67 and above.

4, portable submersible pump drainage pipe  lined with polyurethane canvas hose, hose diameter: DN200mm,

Single portable submersible pump configuration ≥50 meters of water, 25 meters/roll, working pressure 0.8mpa, burst pressure

Force ≥2.4mpa, pipe mouth incision should be flush. The portable pump quick connector is made of stainless steel with anti-loose

Safety device, convenient water pipe quick connection;

5, the configuration of generator set: rated output power ≥100KW, rated current 180A, rated frequency 50HZ,

Frontal voltage 230/400V; Speed control mode: electronic speed control. Equipped with floating charge, starting battery, battery main brake;With 8-hour base fuel tank.

6, Hydraulic turnover toolbox, can be placed portable submersible pump or other

Flood control materials, using hydraulic flipping mechanism, flipping can be used as a vehicle climbing ladder.

7, the top of the carriage  installed with lifting lights, 2*1000=2000W, the working voltage of the lamps :AC220V, liters

Drop height ≥1.8 meters, horizontal rotation 360°, vertical rotation 330°, wireless remote

Controlled operation, can adapt to all-weather work, convenient night construction.

8, the middle of the car  equipped with a lounge room, the lounge area  ≥2 ㎡, the internal configuration of external heating and air-conditioning,

The door  equipped with observation window, sleeping berth and water dispenser, the ground is made of wooden floor, the interior wall is made of wood grain board,

Convenient emergency personnel on duty rest.

crawler mobile pump (sub-car) flow ≥2400m³/h (double pump head, can be drained separately,

Can also be drained at the same time), lift ≥15m.

2. The fuel tank volume  ≥250L, and the oil volume fully meets the full load operation of the pump for more than 8 hours.

3, the water pump and other special drainage equipment is integrated on the track chassis, using anti-stripping steel track + rubber block,

It will not cause damage to the ground, has a long service life, and is a walking tracked mobile pump station.

4, the car has its own power, no need chassis to provide power, the working radius is not limited, power ≥160kw;

5, pump power source: installed engine to provide power, no need to connect hydraulic tubing, convenient and fast;

6, small size, length × width × height ≤3300×1900×1800(mm), generally low environment can be passed

Excessive; At the same time, the sub-car has the function of water pump forward and down, which increases the working space of the sub-car pumping and drainage, and the front probe distance

At least 1m away, the descent distance is ≥1m lower than the ground.

7, crawler mobile pump (sub-car) mass ≤4000kg;

8, the use of water cooling structure, to achieve good cooling effect;

9. The pumping position of the sub-car can be adjusted by remote control according to the actual water condition on site; No manual handling required

Or other auxiliary equipment can realize remote operation of mobile pumping station away from the mother car drainage operation;

10, system control: remote control + emergency manual control (for remote control failure, you can emergency manual

Operation transfer);

11, the maximum wading depth of the car ≥500mm, good body tightness

12. Protection performance level of electric control system of sub-car ≥IP55

13, control mode: full hydraulic mechanism control, electronic module key operation, and can achieve wireless remote

Control operation; The remote control operating system should be able to control the start and stop of the sub-car engine, speed regulation, clutch of the force extractor and liquid

Pressure system pressure regulation and other functions, the operation of the remote control should be simple and fast;

14, the sub-car is equipped with 100 meters lined with polyurethane canvas hose, hose diameter ≥DN200mm, drainage pipe

The quick joint adopts German standard joint, aluminum alloy material, a total of 8 sets, each section of water pipe is equipped with a set. Install in

Both ends of the drainage hose are convenient for the connection between the water pipe and the water pipe;

The pump body of the portable submersible pump is made of high strength aluminum alloy. Water pump impeller and flow guide body adopt high strength

Stainless steel, impeller surface coating Vickers hardness ≥1400,   portable submersible pump equipped with stainless steel filter, high strength floating ring.

2, the body of the car is made of SPCC high-quality cold rolled steel plate, thickness ≥1.5mm. The skirt is made of SPCC

High quality cold rolled steel plate, thickness ≥2mm. The frame adopts Q235 high-strength rectangular tube, and the chassis in the car adopts

Q235 pattern steel plate, thickness ≥3mm.

Optional B : 250KW generator set, drainage 7200 M3/h

(1) Configuration: a mobile drainage pumping station (including two pumps) and 8 portable submersible pumps.

(2) The specified point flow of a single pump in the mobile drainage pump station ≥1200m³/h, the two pumps are ≥2400m³/h, and the specified point lift of a single pump  ≥10 m

(3) Portable hydraulic pump single pump flow ≥600m³/h, that is, 8 pumps flow ≥4800m³/h; Lift of a single pump ≥8m

Control system

(1) Control mode: The mobile pump station is controlled by hydraulic drive, wireless remote control, electronic module key operation, and various parameters of equipment operation can be monitored through the LCD screen.

(2) Identification display: The mobile pump station operation control system should be able to clearly reflect the engine speed, engine water temperature, hydraulic system pressure, oil temperature. The function corresponding to each control button should be clearly marked, and the operation should be simple and convenient.

Remote control system

(1) The remote control system has the functions of controlling the mother car and mobile drainage pumping station

(2) The remote control system should be able to control the start and stop of the vehicle engine, the hydraulic system and other functions;

(3) The display device should be able to clearly reflect the working state of the vehicle, including engine speed, fuel level, upper hydraulic system pressure, hydraulic oil temperature, hydraulic oil level and other parameters. Each parameter should be clearly identified

Hydraulic system: The hydraulic motor for the vehicle to drive the water pump: the use of inclined axial plunger quantitative motor.

Hydraulic pipe fittings: When the vehicle works in the mobile pumping station, it adopts its own power source, without connecting with the mother car, and can independently drain the emergency without distance limitation.

 Cooling system: The cooling of the hydraulic system of the vehicle adopts an air-cooled system

The hydraulic oil temperature is 75℃ after the system continuously works at full load for more than 6 hours.

 Lifting remote control searchlight: the CTY18-21000 model searchlight produced by Shenyang Pioneer Co., Ltd. is configured with two lamp heads, which can rotate 360° left and right and 330° up and down; Can carry out 1.8m lifting; Single light 2000W, to meet the needs of flood relief at night.

1. Drain hose

2.(1) Material: polyurethane, anti-aging.

3.(2) Size: hose inner diameter: 12 inch DN300 used in mobile pumping station.

4.(3) Length: The single pump head piping length of the mobile pumping station is 50 meters, divided into 2 sections, each of 25 meters.

5.(4) Pressure: working pressure is 0.3MPa, bursting pressure is 3.0MPa.

6. (5) Other requirements: The pipe mouth incision should be flush. The diameter of a single water pipe can be consistent; It can be used with the corresponding quick connector, convenient and fast.

7. Quick connector: Aluminum alloy connector, each section of water pipe is equipped with a set. It can be installed on both ends of the drainage hose to facilitate the connection between the water pipe and the water pipe.

8. Mobile drainage pump station: the structure integrates special drainage equipment such as pumps on the track chassis, which will not damage the ground. It is a self-walking tracked mobile pump station with wide working area and strong adaptability.

9. Mobile drainage pump station: Power source mobile drainage pump station has its own power, no need to connect the mother car.

10. Mobile drainage pump station: water pump

11. Pump drive mode: hydraulic direct drive.

12. Number of pumps: 2.

13. Pump performance: the specified point flow of a single pump of the equipment: 1200m³/h, the specified point lift of a single pump: 10m

14. The suction port of the pump can be lower than 1m below the ground, with strong adaptability. 29. Pump power source: The equipment comes from the mobile pump station with its own engine.

15. Mobile drainage pump station: Overall dimension length: 3300mm; Width: 1900mm; Height: 1800mm, can adapt to low environment work.

16. Mobile drainage pump station: Mass mobile drainage pump station mass 4000kg.

17. Mobile drainage pump station: The sub-carriage of the vehicle can completely fall on the ground, and the mobile drainage robot can directly enter the carriage and drive off the carriage

18. Mobile drainage pump station: hydraulic drive, wireless remote control operation, climbing capacity of 35°, travel speed of 2km/h.

19. Mobile drainage pump station: The important operating performance parameters of the vehicle can be remotely adjusted according to the actual water conditions on site pumping position. Do not need any manual handling or other auxiliary equipment, can achieve remote control operation; The drainage distance of the mobile pumping station is not limited by the mother car.

20. Mobile drainage pumping station: system control remote control + manual control Remote control intelligent and convenient, remote control radius 100m; Manual control is safe and reliable. Remote control and manual control are not limited to each other.

21. Fire extinguisher: The vehicle is equipped with 2 portable dry powder fire extinguishers, which can be placed on the vehicle and easily accessible before use.

22. Maintenance tools: The vehicle is equipped with common maintenance tools, which can meet the needs of daily maintenance.

23. Portable submersible pumps: The number of pumps is equipped with 8 8SZQ600-8-22 portable submersible pumps produced by Zhejiang Chuangmei Electromechanical Co., LTD.

24. Portable submersible pump: pump driving mode and power source from the vehicle generator set using permanent magnet synchronous motor to drive the pump. Power source: Jianghao brand JHK-250GF generator set, Cummins QSL8.9-G30 engine + Hengsheng HSJ314ESS generator set power: 250kw

25. Portable submersible pump: flow and lift when the flow of a single pump is 600m³/h, the lift is 8m, the outlet caliber: 8 inches (DN200) power: 22kw, protection grade: IP68

26. Portable submersible pump: pump weight The maximum weight of a single pump is 31kg(excluding cables and water pipes).

27. Portable submersible pump: material pump impeller material: stainless steel material; Shell material: high quality aluminum alloy material, surface anodized treatment.

28. Portable submersible pump: Dimensions length 250mm, width 280mm, height 650mm 44. Portable submersible pump: cable single pump cable length 20m, pump cable material: JHS grade submersible cable; 45. Portable submersible pump: The water pipe is made of polyurethane hose with wear resistance, pressure resistance, wrinkle resistance, tensile resistance and aging resistance; Hose inner diameter: 200mm (±5mm); Each pump is equipped with 50 meters, divided into 2 sections, each section 25 meters; Eight pumps are equipped with a total of 400 meters. Working pressure 0.3MPa, bursting pressure 3.0MPa; The incision of the pipe mouth can be flush, and the diameter of a single water pipe can be consistent. It needs to be used with the corresponding quick connector. The drainage pipe must be carried with the car, simple collection and placement, 1 person can operate.

29. Portable submersible pump: quick joint adopts aluminum alloy joint, diameter: 200mm(±5mm), each section of water pipe is equipped with a set. The quick connector is installed at both ends of the drainage hose to facilitate the connection between the water pipe and the water pipe and facilitate quick disassembly.

30. Portable submersible pump: Each portable submersible pump thrown by the control system can be controlled separately, speed regulation, and the complementary influence between the pumps; Portable submersible pum
