4X4 Water Tanker Fire Truck Mounted with Fire Pumper LHD. Rhd
| Quantity: | |
|---|---|
-
Shanghai, China
-
10000
-
T/T
4x4 Water Tanker Fire Truck Mounted with Fire Pumper LHD.RHD
4WD Fire Fighting Truck With Water Bowser
2.5Tons -3Tons Water tanker With Fire Monitor.
Diesel Oil 95HP Engine. Four Door, With Air Condition.
Tyre: 7.00-16 (6+1 spare tyre)
Volume of Water Tank: 2Ton -3.5Tons
Categories: 4x4 Special Vehicles, Water Bowser Trucks, Water Spray Trucks, Fire Fighting Truck, Fire Water Tank Truck
4WD All Wheel Drive Fire Truck With Water Tank 3.5Tons
Fire Pumper Truck
4WD Fire Fighting Truck With Water Bowser 2.5Tons -3Tons Water tanker With Fire Monitor.
Diesel Oil 95HP Engine. Four Door, With Air Condition.
Tyre: 7.00-16 (6+1 spare tyre)
4WD Fire Fighting Truck equip Fire Pump, Fire Monitor, Optional Front Spraying Nozzle. with Mulitifunction of Water truck and Fire Truck.
Spraying Range by Fire Monitor: more than 50m
Fire Water Truck equips with Special Fire pump, fire monitor, fire Power Take Off. The fire monitor can be installed on the top of tank or at the rear of truck. With fire Connection, can be fill water through Fire Hydrant, with self-discharge valve.
The fire water tank truck with big capacity water tank body, can transport the water and fire personal away the fire to put off the fire, it also can put our the fire directly suction the water source, or supply the water to other fire truck and fire fighting equipment. The fire water tank truck also can supply and transport water to dry areas, it is suit for to put out the common fire. It is suit for police fire brigade and the fire brigade of enterprises. Meantime, the water fire fighting truck is suit for landscaping, fire sprinkler, fire, mine dust, put out the fire for living area, fire power plant.
the specification of 4WD All Wheel Drive Fire Truck With Water Tank:
| Fire Pumper Truck | ||
| Chassis Model /Manufacturer | Dongfeng with air-condition | |
| Overall Dimension | 6260×1900×2750 mm | |
| Kerb Weight | 2655KGS | |
| front overhang/rear overhang | 962/1576 | |
| Engine | Model/Rated Power | CY4102-C3F / 95HP Dongfeng Chaochai Motor Co., Ltd. |
| Emission Standard | Euro 3 | |
| Type & Size of Tyre | 7.00-16 | |
| driving type | 4×2 | |
| Wheel Base | 3300 mm | |
| Number of leaf spring of suspension | 5/8+4 | |
| Max Speed | 90 Km/h | |
| Volume of tank | 3500L | |
| Material: high quality carbon steel plate, Structure: welding, there is clapboard inner. Equipment: 1 manholes, | ||
| Fire fighting pump and pipeline system: Fire fighting nozzle: Rotation angle of fire fighting turrent Nozzle: 360° | ||
| sandwich PTO | ||

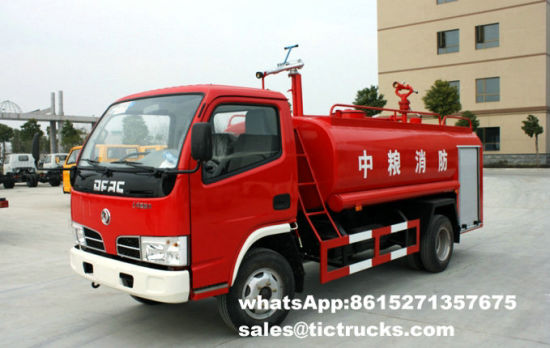

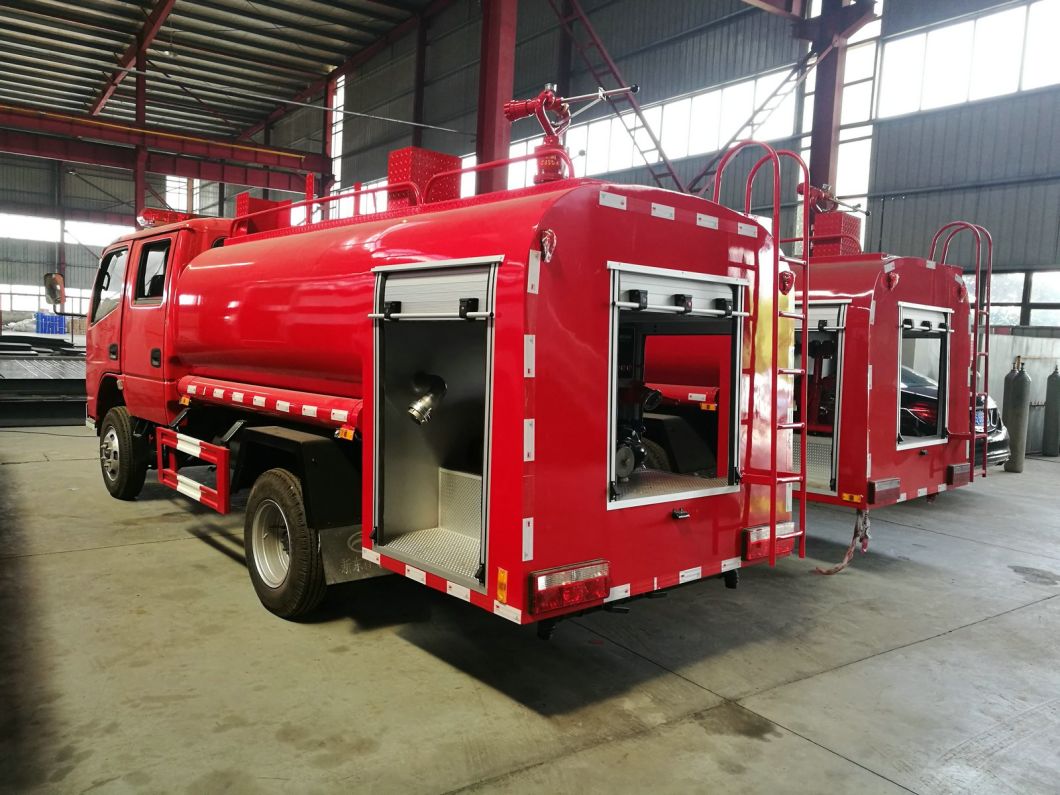

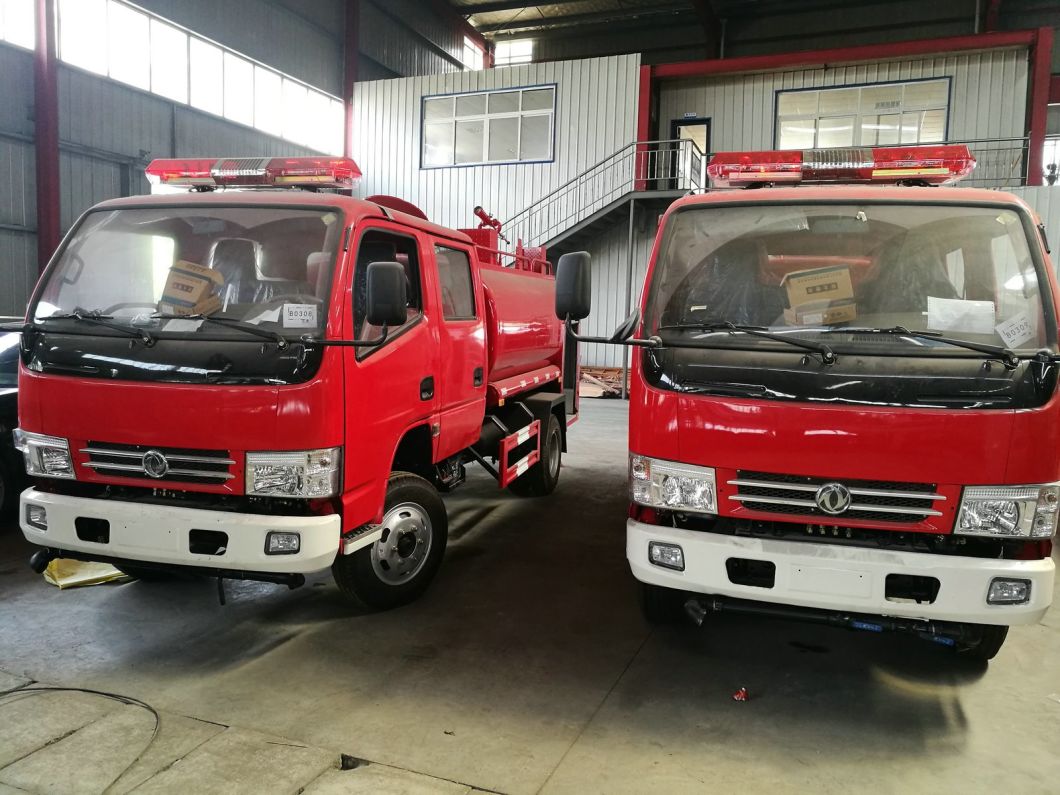

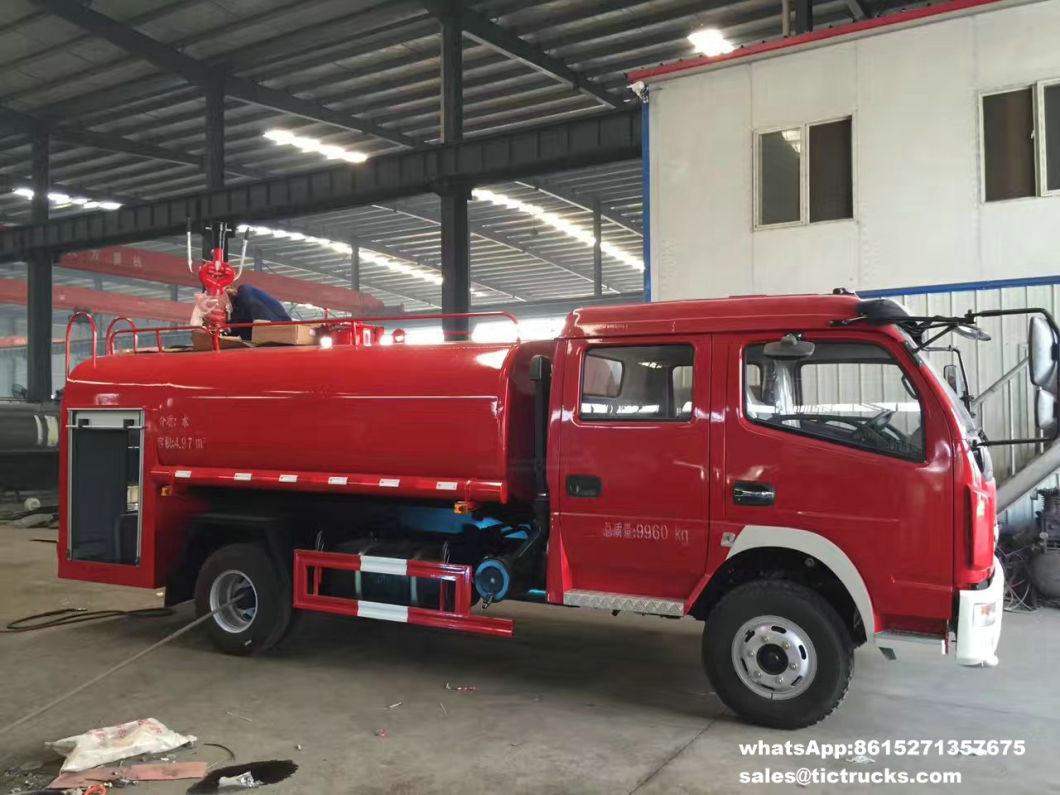

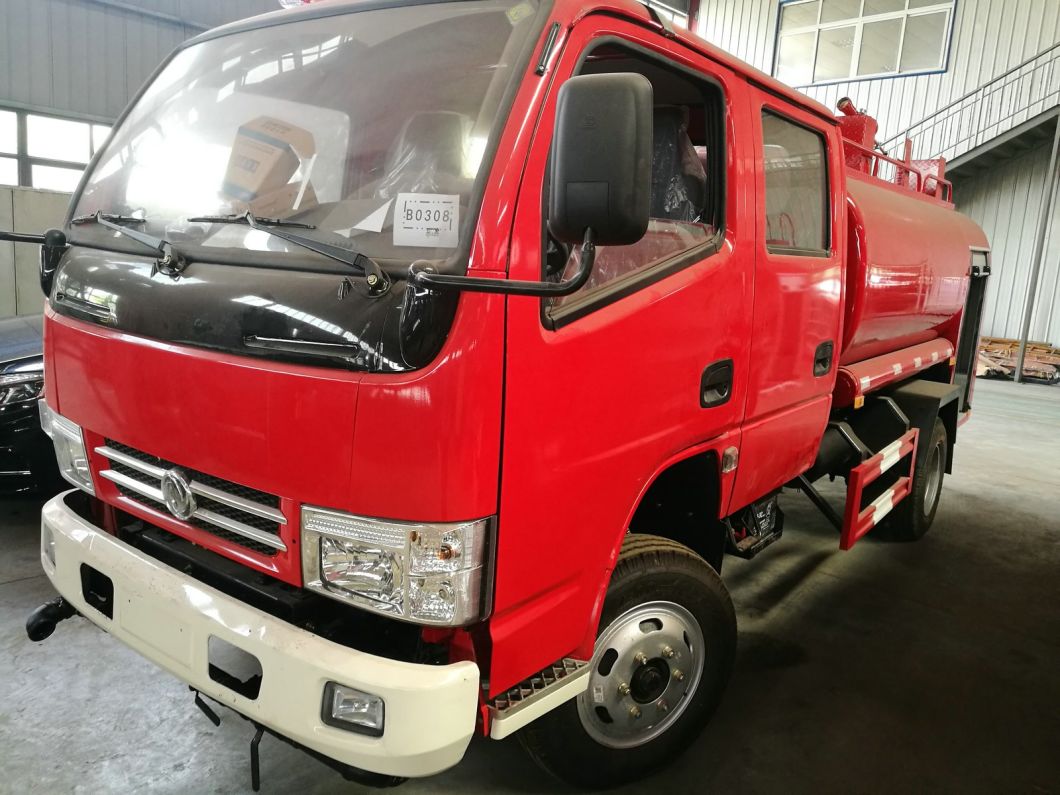

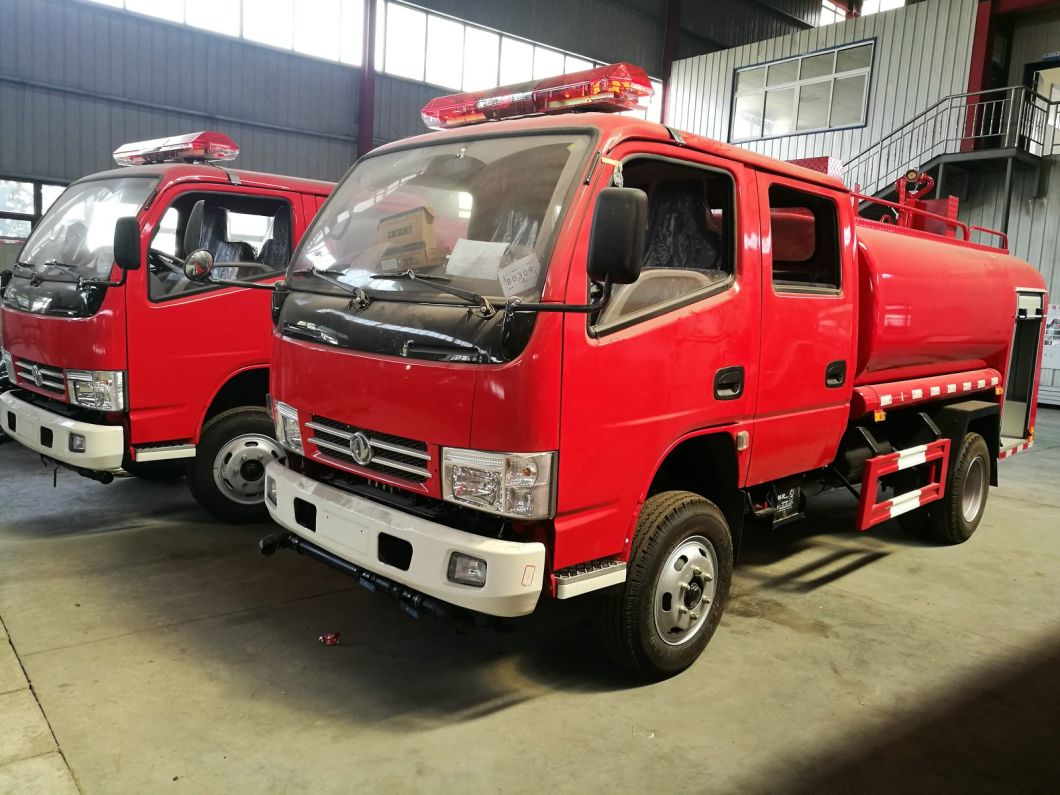

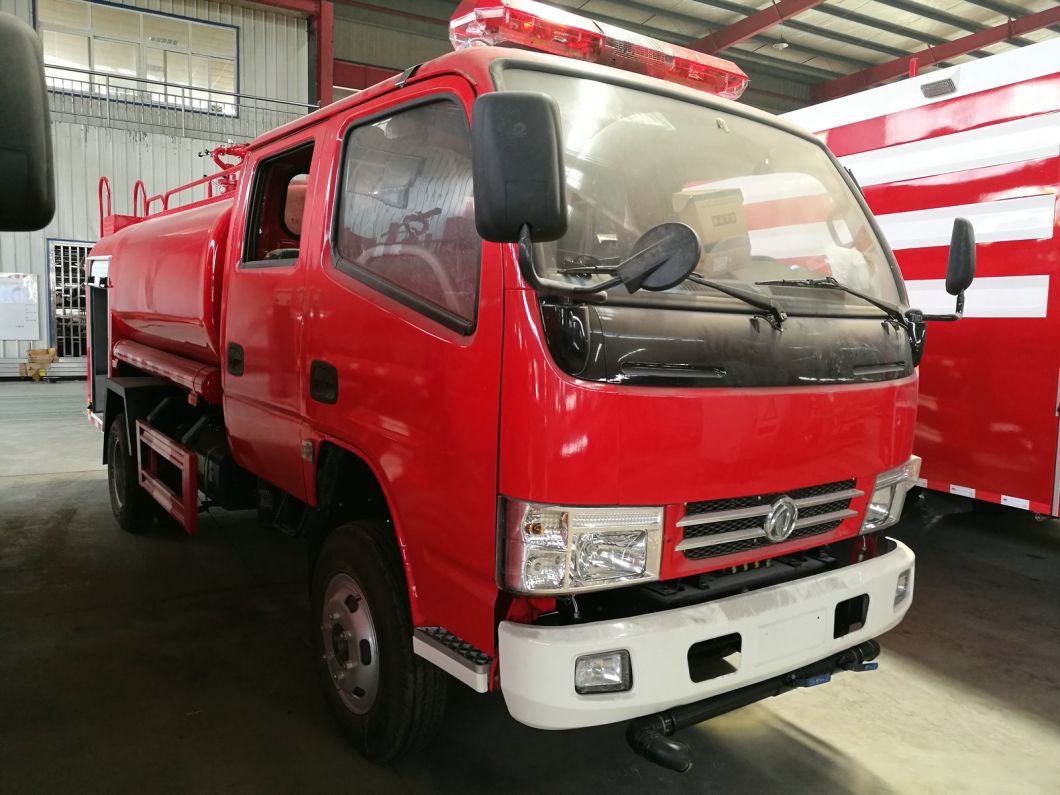

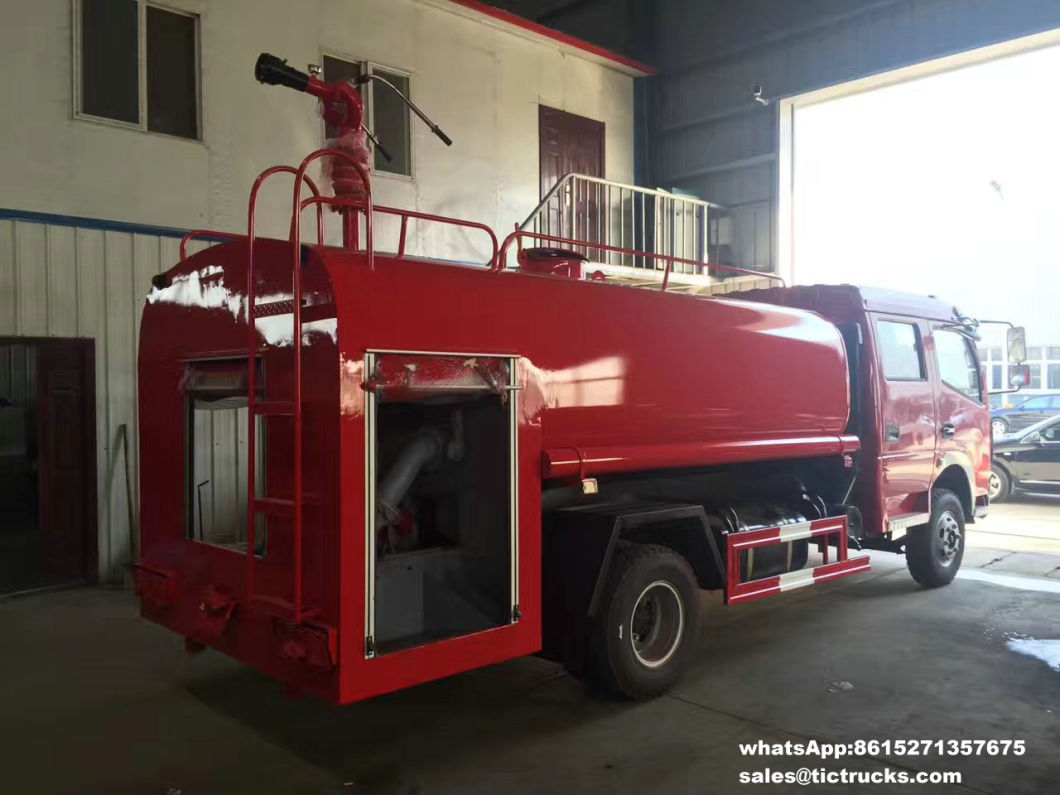

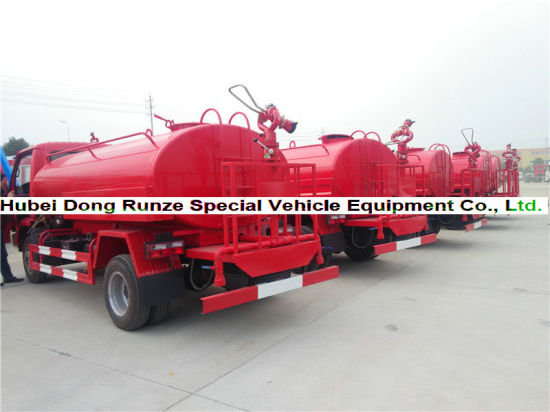

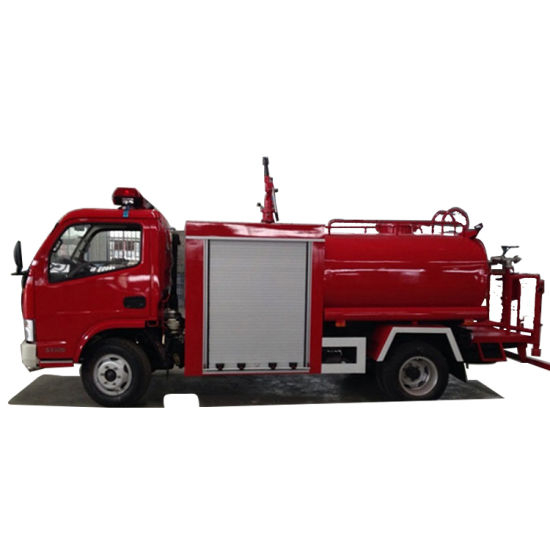

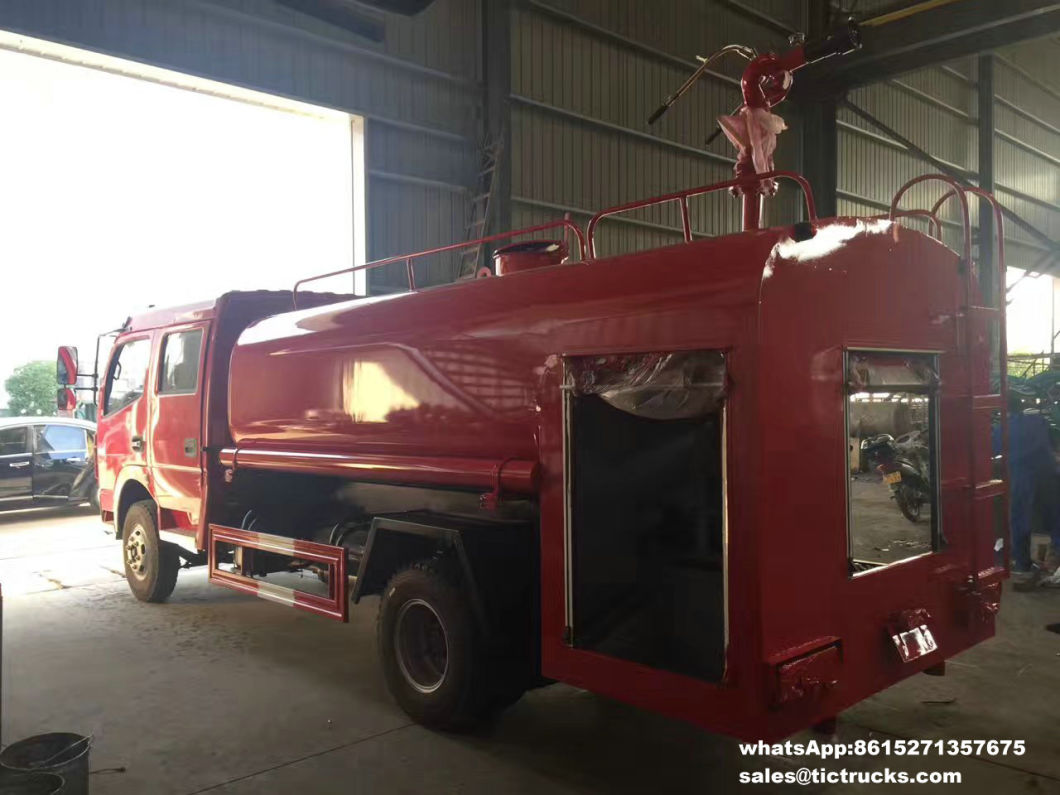

The Picture of 4WD All Wheel Drive Water Fire Trucks
keywords:Dongfeng Fire Fighting Tanker Truck , Dongfeng Multifunctional Fire Truck , Dongfeng Fire Engine Truck , Dongfeng Fire Tanker Truck , Water Fire Fighting Tanker Truck , Fire Fighting Tank Truck , Water Fire Fighting Tank Truck , Dongfeng Fuel Tanker Truck
HOWO Foam Fire Truck 4 X 4 Off Road All Wheel Drive with 6500Liters Water Foam Tank
Similar Keywords: foam truck tanker, fire fighting tank truck, fire and rescue truck, fire appliance, fire engine, fire apparatus, fire truck tank, fire service truck, fire fighting vehicle
Structural classification
The structure of the rescue vehicle consists of the chassis of the vehicle, the bodywork of the bodywork (built-in rescue equipment), the power take-off and transmission, the generator (shaft or independent generator), winch (hydraulic or electric) Generally arm-type, behind the body), lifting lighting systems, electrical systems. According to the different uses of emergency rescue fire trucks, the specific configuration of the car is not the same, such as truck crane, winch, generator, landing lights, not necessarily all the rescue vehicles have. Emergency rescue fire trucks are divided into ordinary rescue vehicles, chemical rescue fire engines, special rescue vehicles (such as earthquake rescue vehicles, etc.).Rescue fire truck Category:
Emergency rescue fire engines can be divided into: light and heavy vehicles two types.
Light car configuration: Qingling chassis as a carrier, special features are: traction, power generation, lighting and rescue rescue tools.
Heavy-duty vehicle configuration: with Isuzu Dongfeng Chassis as a carrier, special functions are: lifting, traction, power generation, lighting and rescue rescue tools.
Function type
Car equipped with a variety of fire-fighting equipment, firefighters special protective equipment, fire dismantling tools and fire detectors, is responsible for rescue mission special fire truck.
Chassis model: EQ1168GU5
Chassis manufacturer: dongfeng motor company
Rescue crane: XCMG 5 tons, maximum hoisting of 7.4m, prewinch calibration tension of 8000kgf(3629kg)
Generator: imported Honda generator, voltage 380V, power 10kv/A, manual start/electric start
Lighting system: main lamp stand 4+1000W automatic lifting searchlight head DC12V, lifting height 7.6m, air pump AC220V, electric control box AC380V, electric remote control
Force extractor: sandwich type full power extractor
Engine: isb190-50 (190 HP)
Tire model: 9.00-20 16PR
Overall dimensions: 7360 x 2480 x 3330mm
The wheelbase: 4700 mm
| Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | |
| L | mm | mm | RMB | USD | ||||||
| DRZ5050GXFSGE | DONGFENG | EQ1050NJ20D3 | 2500 | 6260X1900X2750 | 3300 | CY4102-C3F | 95/Euro 3 | 6.15-16 | 135800 | 19980 |
| DRZ5060GSSXFE | DONGFENG | EQ1060TJ20D3 | 5000 | 5980X1980X2380 | 3300 | CY4102-C3F | 95/Euro 3 | 7.00-16 | 101200 | 14890 |
| DRZ5090GSSXFE | DONGFENG | EQ1090T9ADJ3AC | 6000 | 6995X2285X2980 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 122300 | 17990 |
| DRZ5090GXFSGE | DONGFENG | EQ1090T9ADJ3AC | 4000 | 7025X2095X2840 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 170400 | 25060 |
| DRZ5100GSSXFE | DONGFENG | EQ1100FKJ | 7000 | 7350X2440X2990 | 3950 | YC4E140-33 | 140/Euro 3 | 9.00-20 | 123300 | 18140 |
| DRZ5108GSSXFE | DONGFENG | EQ1108KJ | 9000 | 7450X2480X3185 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 147400 | 21680 |
| DRZ5108GXFSGE | DONGFENG | EQ1108KJ | 5000 | 7490X2500X2280 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 192500 | 28310 |
| DRZ5126GXFSGE | DONGFENG | EQ1126KJ1 | 6000 | 8315X2500X3300 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 249700 | 36730 |
| DRZ5141GSSXFE | DONGFENG | EQ1141KJ | 11000 | 8105X2490X3250 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 159400 | 23450 |
| DRZ5141GXFSGE | DONGFENG | EQ1141KJ | 6000 | 8115X2500X3300 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 247700 | 36430 |
| DRZ5253GSSXFE | DONGFENG | EQ5253GFJ2 | 15000 | 9950X2480X3750 | 4350+1300 | B210 33 | 210/Euro 3 | 10.00-20 | 212600 | 31270 |
| DRZ5090GXFSGPME | DONGFENG | EQ1090T9ADJ3AC | 2400 | 7025X2095X2840 | 3800 | B140 33 | 140/Euro 3 | 7.50R16 | 197500 | 29050 |
| DRZ5070GXFSGQ | ISUZU | QL1070A1KWY | 3000 | 6820X2000X2820 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-16 | 218100 | 32080 |
| DRZ5160GXFSGQ | ISUZU | QL1160AMFRY | 6000 | 8360X2485X3420 | 4500 | 6HK1-TCNG40 | 240/Euro 4 | 10.00-20 | 457300 | 67250 |
| DRZ5250GXFSGQ | ISUZU | QL1250DRFZY | 15000 | 9775X2490X3560 | 5100+1300 | 6HK1-TCSG40 | 280/Euro 4 | 11.00-20 | 621800 | 91450 |
| DRZ50703GXFSGQ | ISUZU | QL10703HWRY | 2500 | 6260X1980X2780 | 3360 | 4JB1CN | 98/Euro 4 | 7.00-15 | 182000 | 26770 |
| DRZ51609GXFSGQ | ISUZU | QL11609MFRY | 6000 | 8070X2500X3370 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 | 378000 | 55590 |
| DRZ5167GXFSGZ | SINOTRUK | ZZ1167M4617C | 8000 | 8820X2500X3450 | 4600 | WD615.92 | 266/Euro 3 | 11.00-20 | 401600 | 59060 |
| DRZ5257GSSXFZ | SINOTRUK | ZZ1257M4641W | 20000 | 9895X2496X2958 | 4325+1350 | WD615.92 | 266/Euro 2 | 12.00-20 | 295300 | 43430 |
| DRZ5257GXFSGZ | SINOTRUK | ZZ1257N4347C | 15000 | 9680X2500X3650 | 4325+1350 | WD615.69 | 336/Euro 3 | 12.00-20 | 476800 | 70120 |
| DRZ5257GXFSGZ1 | SINOTRUK | ZZ1257S4647C | 16000 | 10265X2500X3580 | 4600+1350 | WD615.96 | 375/Euro 3 | 12.00-20 | 473300 | 69610 |
Special Specification:
1. Front located 4 ton wrecker shovel, equipped with highpower lifter,
can easily adjust the height of the wrecker shovel, convenient for
switching between driving and operation state of wrecker.
2. double row cab,exclude driver, also can take 2+3 person.
3. the top of the cab is equipped with professional fire warning lights.
4. available to install a full power disconnected power takeoff between
the gearbox and engine.
5. water tank volume is 4 cubic meters.
6. high-power water pumps which can spout 40-50 meters of water column.
7. available to install 2 fire fans and 2 fire fighting high-pressure water cannons.

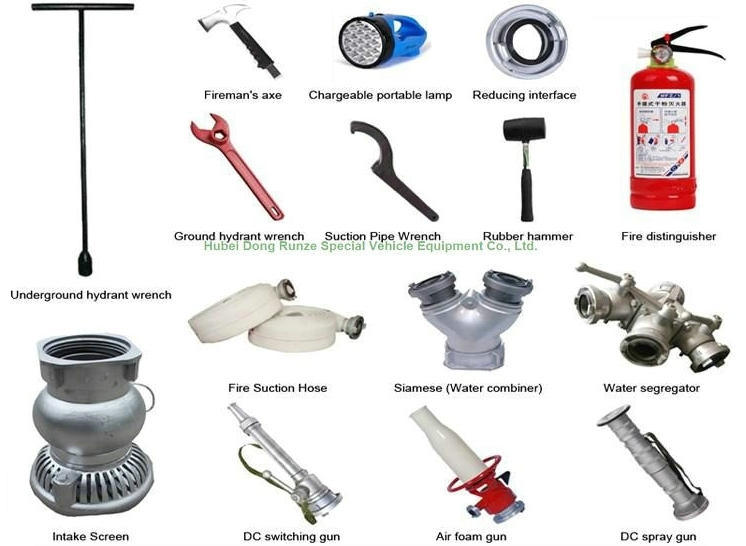

8. can be equipped with fire extinguishers, fire hammer,
fire shovel, fire hose, fire fighting racket and other professional
fire fighting equipments
