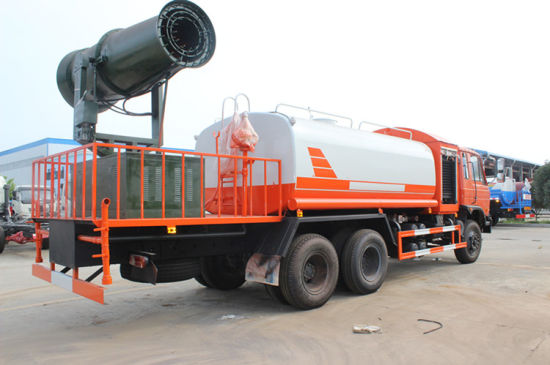

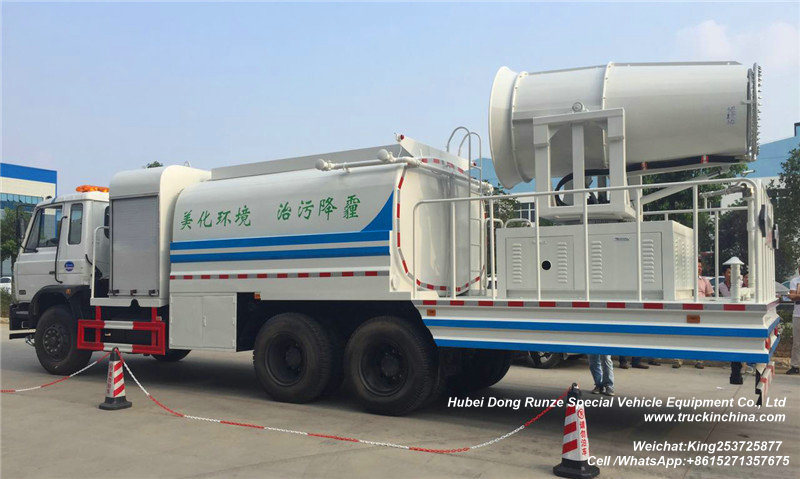

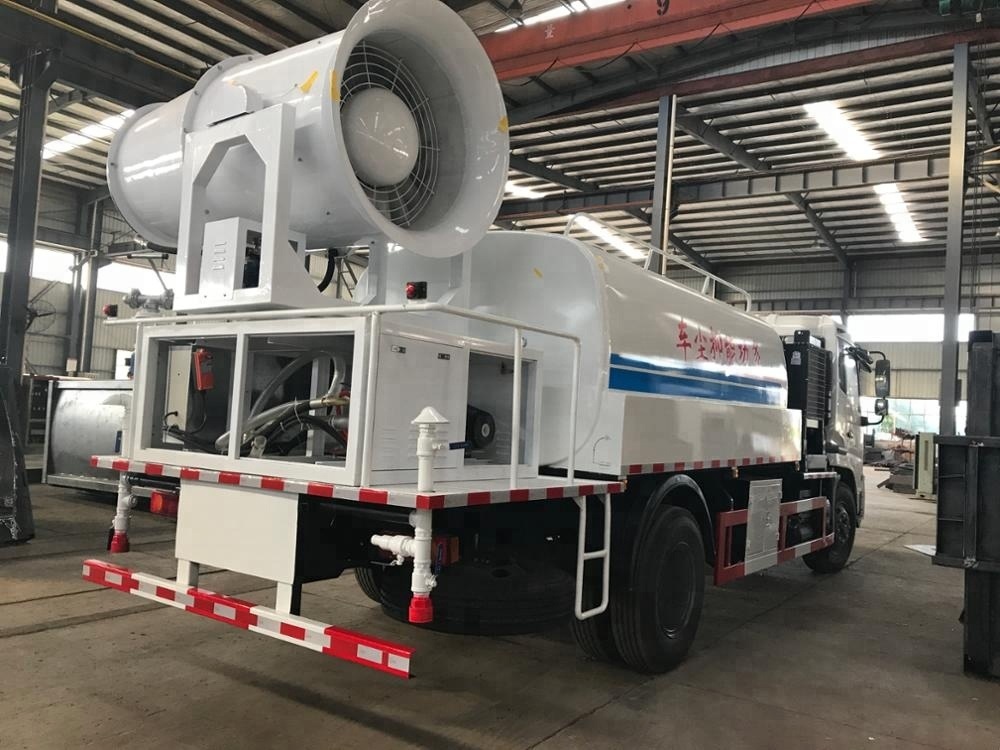

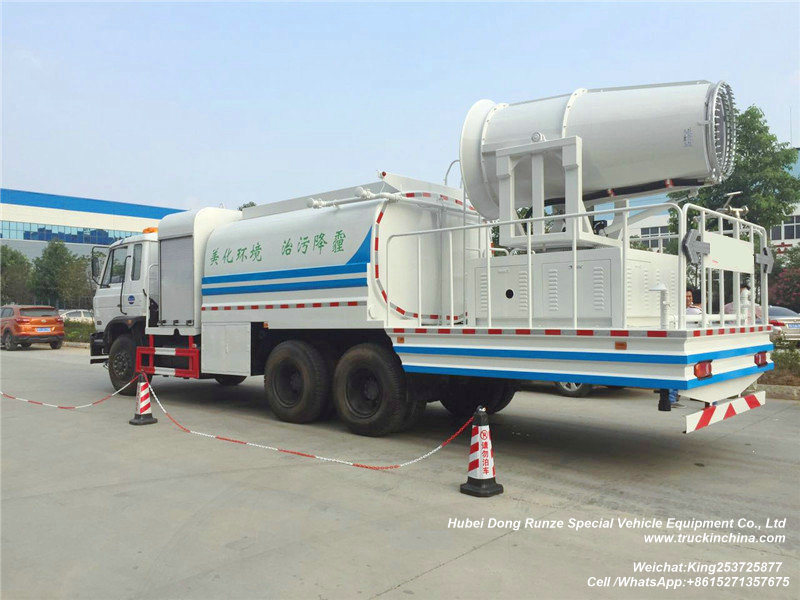

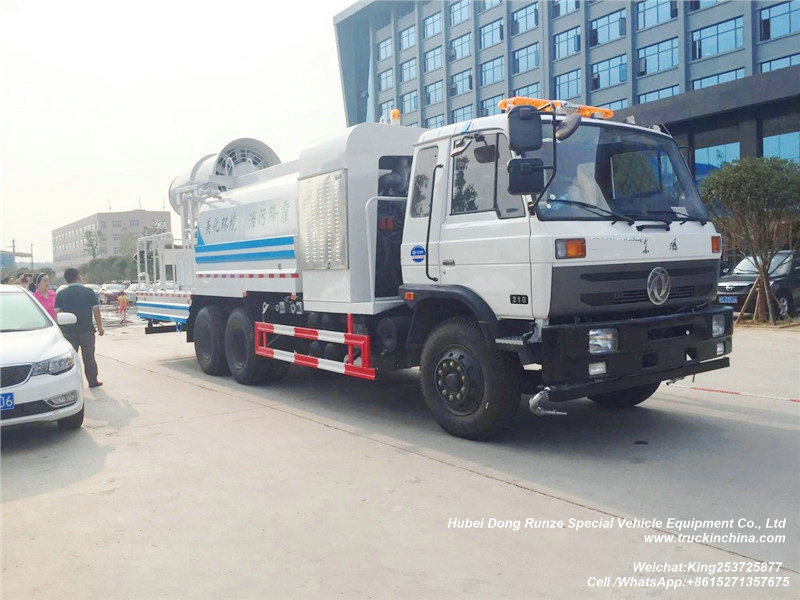

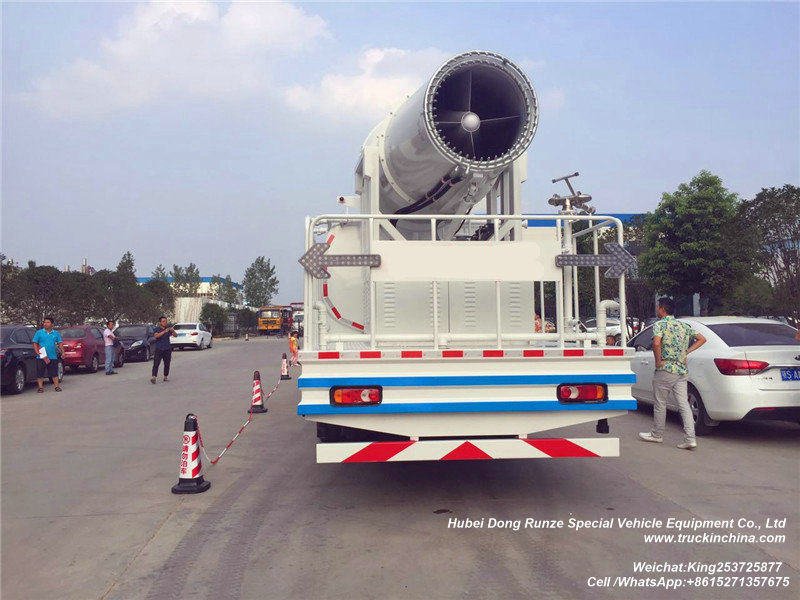

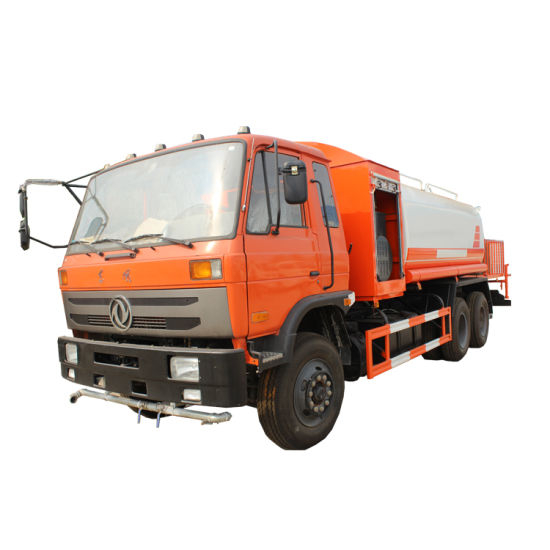

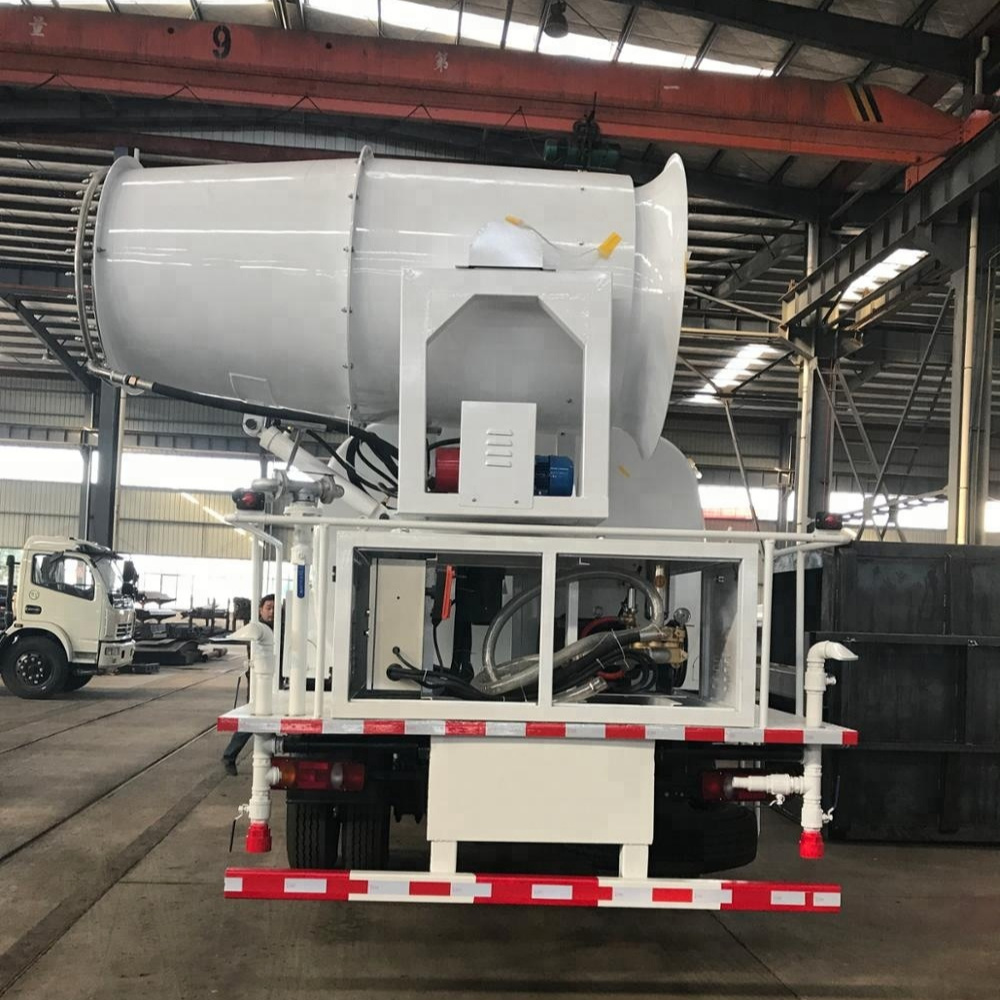

Truck Mounted Dust Suppression Unit for Water Sprayer Mining Dust Control Disinfection Tanker
| Quantity: | |
|---|---|
-
Shanghai, China
-
10000
-
T/T, Western Union
Dongfeng Dust control Water Truck 16000 ~20000Litres Spray Machine disinfection Trucks
↵
Multi Fuction Vehical Spray Mist Fog Cannon
Pesticide Spray
Mine Dust Suppression
Water Sprinkle / Water Transport/ Wash Road
Fire Fighting
Disinfection Sterilization,Epidemic Prevention
Emergence Electric Power Supply
Disinfection Tanker , water/ oil tanker truck Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
Multi-functional Water Sprinkler Dust Suppression Truck dust control truck with low price
ance, complete functions, safety and reliability.
6x4 dust suppression truck equipped with diesel engine power generator voltage transformer and 120 meters dust fighter
| Dongfeng brand emission 15000 liter Dust suppression vehicle | ||
General | Vehicle Brand | DRZ |
| Chassis Brand | Dongfeng | |
| Overall Dimension | 10580,10380×2500×3850(mm) | |
| GVW / Kerb Weight | 25000 / 13500 kg | |
Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
Engine | Engine Brand | DONGFENG |
| Fuel Type | Diesel | |
| Power | 177kw | |
| Displacement | 7520ml | |
| Emission Standard | Euro 4 | |
Chassis | Drive Type | 6X4, left hand drive |
| Front / Rear suspension | 1450/3480,1250/3480(mm) | |
| Wheelbase/No. of axle | 4350+1300,4750+1300,5350+1350,5850+1350(mm)/3 | |
| Tyre Specification | 11.00-20 18PR,11.00R20 18PR | |
| Tyre Number | 10tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Axle weight | 7000/18000 | |
Tank | Tank Capacity | 15000 - 17000L |
| Tank Material | Carbon steel | |
| Tank dimension | ||
| All other standard accessories: manhole, ladder, inlet, discharge. | ||
Fog Cannon | Horizontal range (static wind state) | 50 meters |
| Pitch angle | -10°~45° | |
| Sprayer dimension | 1780mm×1000mm×2080mm | |
| Horizontal rotation angle | 0°~360° | |
| Working pressure | 0-3.5 (Mpa) | |
ater truck special function | A. Water tank capacity(L):16000L- 20,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% | |
Welcome all around world customer visit our factory.- which has excellent performance with reasonable price.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
| Model | DS-120 |
| Throw | 120m without wind |
| Volume Flow | 120L-160L/min |
| Fog Droplet Size (Adjustable ) | 30-300μm |
| Water Pressure(Mpa) | 2.5-3.5Mpa |
| Horizontal Rotation Angle (Adjustable ) | ±160° Automatic |
| Pitching Angle (Adjustable ) | -10°~45° |
| Coverage Area | 34000~40000m² without wind |
| Product Size(L*W*H) | L295*W154*H275 (cm) |
| Water Tank Capacity (Optional) | 4000-20000L |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Warranty | 1year |
| Model | DS-100 |
| Throw (m) | 100 |
| Volume Flow (L/min) | 120~160 |
| Water Pressure (MPa) | 2.5~3.5 |
| Fog Droplet Size ( um ) | 30-200 |
| Horizontal Rotation Angle (Remote Control) | ±160° Automatic |
| Pitching Angle (Remote Control) | -10°~45° |
| Coverage Area | 23000~27000m² without wind |
| Degree of Protection | Not less than IP55 |
| Overall Dimensions (L*W*H) | L277*W154*H271cm |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-30 |
| Throw | Horizontal: 30m; Vertical: 20m (without wind) |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150 μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 180° Manual |
| Overall Dimensions | L130 * W115 * H148 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Diesel generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-35 |
| Throw Distance | Horizontal: 35m; Vertical: 20m |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 360° Automatic |
| Overall dimension | L145 * W113 * H176 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Gasoline generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-40 |
| Throw | Horizontal: 40m; Vertical: 25m (no wind) |
| Volume Flow | 16-24L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~45° |
| Horizontal Rotation Angle | 180° Manual / 360° Automatic |
| Overall Dimension | L1560 * W750 * H1700 (mm) |
| Water Tank Capacity (Optional) | 400-4000L |
| Auxiliary Power Unit | diesel generator set (optional), plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-50 |
| Max Throw | 50m*no wind condition |
| Discharge (Adjustable) | 16~30L/min (less water consumption) |
| Fog Droplet Size (Adjustable) | 30um-50um /50um-100um |
| Horizontal Rotation Angle | 180°manual control / 320°remote control |
| Pitching Angle | -10°~40° |
| Coverage Area | 5000~7000m² without wind |
| Water Pressure | 1.5~3.5MPa |
| Auxiliary Power Unit | 20KW Diesel Generator Set |
| Dimensions(L*W*H) | 158×145×175cm |
| Sprayer Tank | According to customer's requirements |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-60 |
| Throw | ≥60m |
| Volume Flow | 70L-80L/min |
| Fog Droplet Size (Adjustable ) | 30-150 µm |
| Water Pressure(Mpa) | 2.0~3.5Mpa |
| Water Pressure(bar) | 20-35bar |
| Water Pressure(kg) | 20-35kg |
| Motor RPM | 2900 |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | -10°~45° |
| Coverage Area | 8,000 ~10,000m2 |
| Product Size ( L * W * H) | L220 * W154 * H239 (cm) |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-80 |
| Throw | 80m no wind |
| Volume Flow (Adjustable) | 105L-118L/min |
| Fog Droplet Size (Adjustable ) | 30-150um |
| Water Pressure (Mpa) | 2.5~3.5Mpa |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | 10° +45° |
| Coverage Area | 15000~17000m² without wind |
| Overall Dimensions (L*W*H) | L241*W153*H250(cm) |
