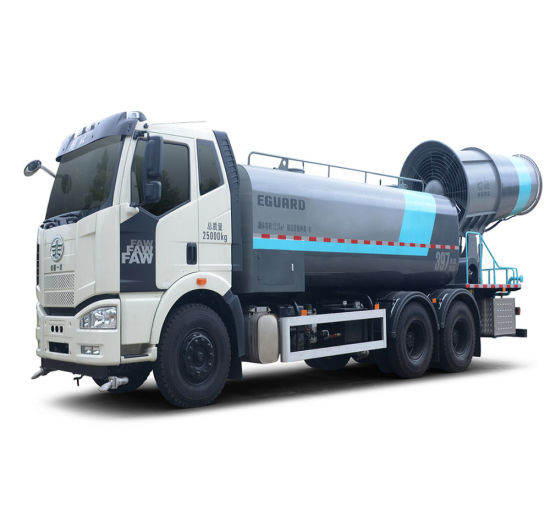

FAW Mining Dust Control Water Mist Sprayer Dust Suppression Truck (Disinfection Tanker, Emergency Power Supply)
| Quantity: | |
|---|---|
-
Shanghai, China
-
10000
-
T/T, Western Union
FAW Dust control Water Truck 16000 ~20000Litres
Multi-functional Water Sprinkler Dust Suppression Truck dust control truck with Emergency Power Supply Vehicle ,sterilization spray , sterilization spray machine , disinfection sterilization spray machine
Multi Fuction Vehical Spray Mist Fog Cannon
Pesticide Spray
Mine Dust Suppression
Water Sprinkle / Water Transport/ Wash Road
Fire Fighting
Disinfection Sterilization,Epidemic Prevention
Emergence Electric Power Supply
6x4 15CBM dust suppression vehicle, 50/60/80/100 meters dust control truck for sale
Disinfection sterilization,epidemic prevention ,Pesticide spray, spray mist fog cannon,dust supression,water sprinkle,Emergence Electric Power Supply.Multi fuction vehical
water/ oil tanker truck Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale
Multi-functional Water Sprinkler Dust Suppression Truck dust control truck with low price
ance, complete functions, safety and reliability.

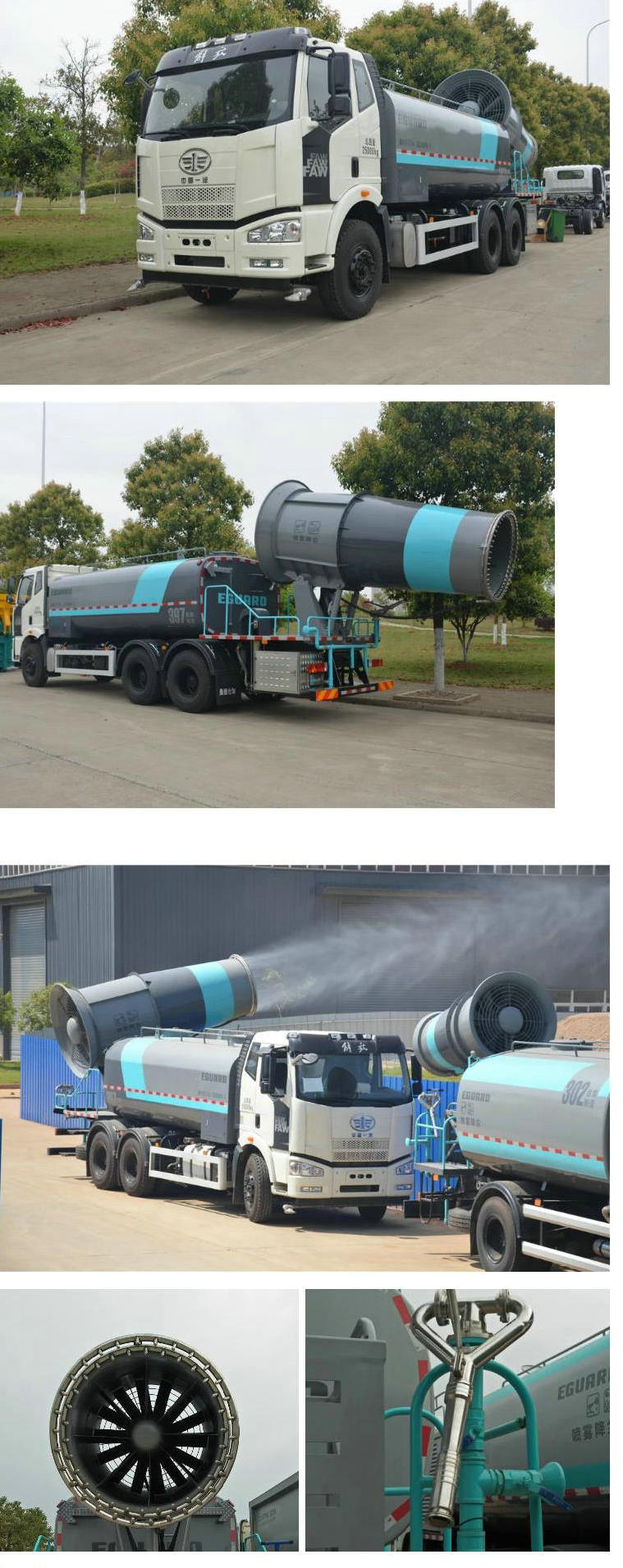

multi-functional dust suppression vehicle include two parts: dust suppression spray device and low pressure flushing device.

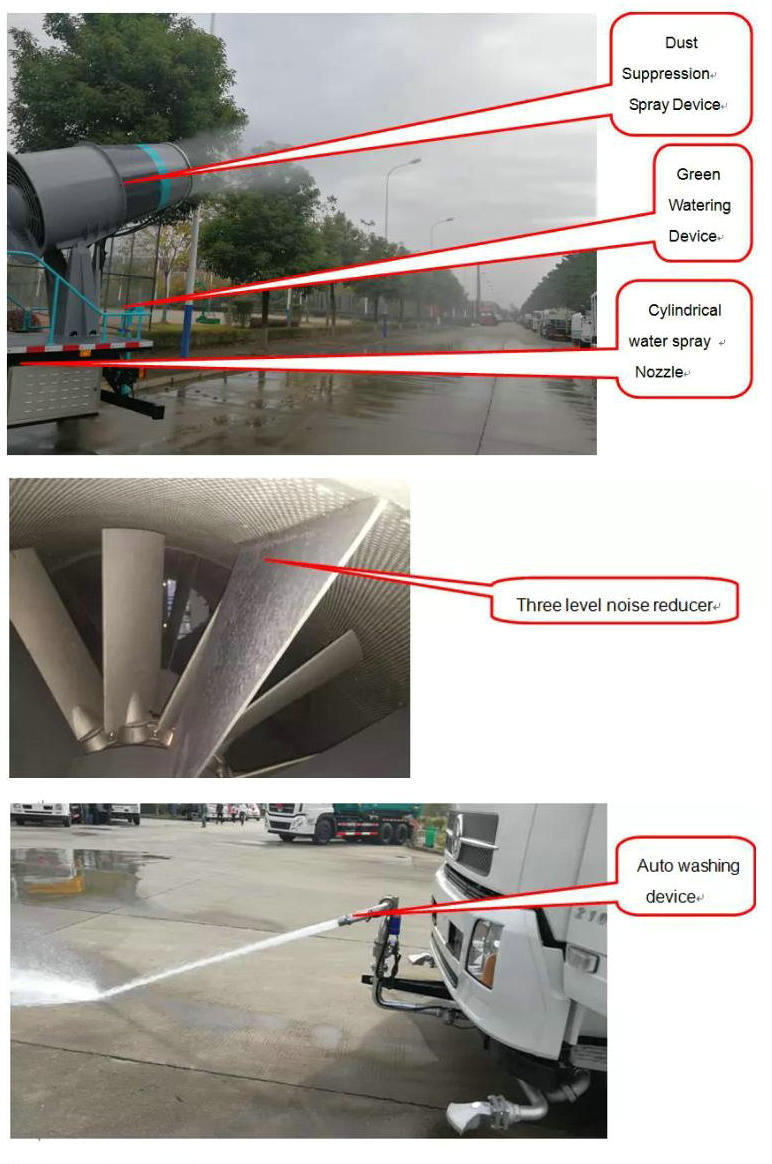

1) Dust suppression spray device:
The closed hydraulic system is driven by the chassis full power take-off device. Thanks to the hydraulic system that directly drives the spray fan, the energy efficiency is high and the spray range is very long. The fan adopts alloy blades, and the fan has three levels silencers that make the working noise is low.
Standard devices include front duckbill flushing, cone hedging, rear sprinkler nozzle, remote water cannon, greening irrigation, pressure outlet interface, etc.
Automatic washing device is optional installed, which can move up and down, rotate around and change the shape of water column.
Vehicle application condition
1) Haze settlement operation
In condition of severe fog and haze in the air, water fog spray operations can be carried out in important areas such as main roads, squares, air quality monitoring points. Fine particles floating in the air could be absorbed by atomized droplets and they settle on the road surface. It can reduce the concentration of pollutants by more than 70% and significantly improve the air quality. Its horizontal spray distance is greater than 100m, and vertical spray height is greater than 30m.

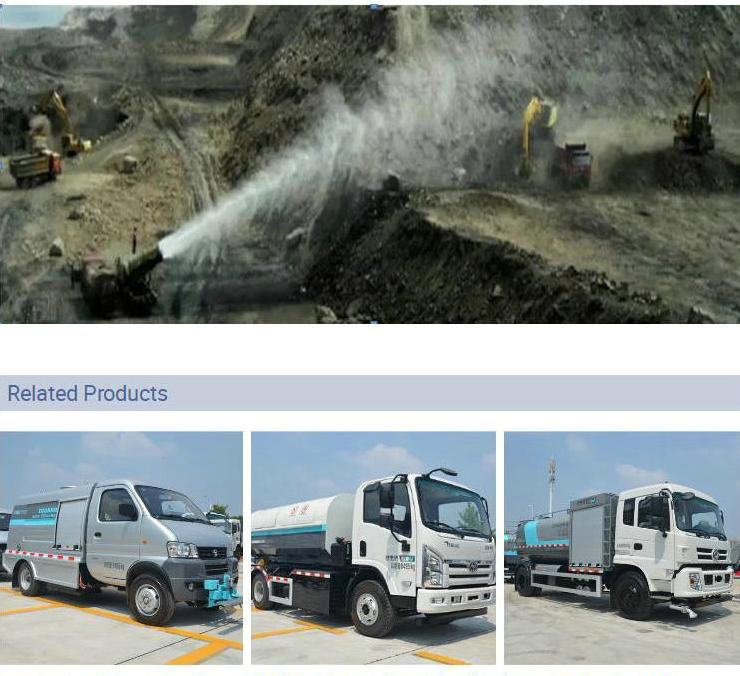

2) In the places of demolition blasting, mine excavation crushing and other work occasions which produce a large amount of dust. In this way, large flow of atomized droplets can settle dust in real-time and large-scale, effectively preventing dust pollution diffusion.
3) Drug spraying operation
It can spray herbicides and insecticides on farmland, grassland and mountain forests, and disinfectant spraying on special sites such as landfills and epidemic prevention areas. Compared with traditional manual spraying, the operation efficiency is more than 100 times higher.
4) Road washing operation
The car is equipped with a front duck-billed washing device, a middle-cone hedging device and a rear sprinkler working device, which can replace a common cleaning car for road surface washing operation. Automatic washing device can also be optional selected to wash the road surface.
5) Long distance water cannon operation
A stainless steel long-range water cannon with an effective range of more than 38 meters and a flow rate of more than 800L/min that installed at the rear of vehicle, which can be used for many purposes, including auxiliary fire fighting, watering of garden greening belts, etc.
6) Other application
Customers can also use the fog spray fans and waterways flexibly according to local specific needs, so that new functions can be realized. For example, using spray device for dust removal and cleaning operations on roadside trees or green belts; in heavy snow weather, in order to prevent snow from breaking trees and blocking roads, we can use the high speed airflow generated by spray fans to blow up accumulated snow on trees.
| DRZ250TDY5JF multi-function dust suppression vehicle | |||
| Item | Parameter | ||
Working specification | Working Speed | Low pressure washing | 8-20km/h |
| Fog spray system | 8-20km/h | ||
| Longest range of water fog spray | >120m | ||
| Water flow rate of fog spray | 120~260L/min | ||
| Longest working time of fog spray | 125min | ||
| Water flow rate of low pressure washing | 600~800L/min | ||
| Low pressure washing width | ≥24m | ||
| Water spray width | 14m | ||
| Water cannon range | ≥38m | ||
| Maximum volume of water tank | 15m³ | ||
| Drive performance | Highest speed at full load | 94km/h | |
| Brake distance(Full load at the speed of 60km/h) | ≤36.7m | ||
| Minimum turning diameter | <19.7m | ||
Mass parameter | Kerb weight | 13100kg | |
| payload | 11900kg | ||
| GVW | 25000kg | ||
Structure Size | Overall dimension(L×W×H) | 11830x2500x3900mm | |
Tread | Front wheel | 1950mm | |
| Rear wheel | 1878mm | ||
| Approach angle | 13° | ||
| Departure angle | 9° | ||
| Min. ground clearance | 210mm | ||
ater truck special function | A. Water tank capacity(L):16000L- 20,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% | |
Welcome all around world customer visit our factory.- which has excellent performance with reasonable price.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
| Model | DS-120 |
| Throw | 120m without wind |
| Volume Flow | 120L-160L/min |
| Fog Droplet Size (Adjustable ) | 30-300μm |
| Water Pressure(Mpa) | 2.5-3.5Mpa |
| Horizontal Rotation Angle (Adjustable ) | ±160° Automatic |
| Pitching Angle (Adjustable ) | -10°~45° |
| Coverage Area | 34000~40000m² without wind |
| Product Size(L*W*H) | L295*W154*H275 (cm) |
| Water Tank Capacity (Optional) | 4000-20000L |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Warranty | 1year |
| Model | DS-100 |
| Throw (m) | 100 |
| Volume Flow (L/min) | 120~160 |
| Water Pressure (MPa) | 2.5~3.5 |
| Fog Droplet Size ( um ) | 30-200 |
| Horizontal Rotation Angle (Remote Control) | ±160° Automatic |
| Pitching Angle (Remote Control) | -10°~45° |
| Coverage Area | 23000~27000m² without wind |
| Degree of Protection | Not less than IP55 |
| Overall Dimensions (L*W*H) | L277*W154*H271cm |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-30 |
| Throw | Horizontal: 30m; Vertical: 20m (without wind) |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150 μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 180° Manual |
| Overall Dimensions | L130 * W115 * H148 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Diesel generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-35 |
| Throw Distance | Horizontal: 35m; Vertical: 20m |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 360° Automatic |
| Overall dimension | L145 * W113 * H176 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Gasoline generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-40 |
| Throw | Horizontal: 40m; Vertical: 25m (no wind) |
| Volume Flow | 16-24L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~45° |
| Horizontal Rotation Angle | 180° Manual / 360° Automatic |
| Overall Dimension | L1560 * W750 * H1700 (mm) |
| Water Tank Capacity (Optional) | 400-4000L |
| Auxiliary Power Unit | diesel generator set (optional), plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-50 |
| Max Throw | 50m*no wind condition |
| Discharge (Adjustable) | 16~30L/min (less water consumption) |
| Fog Droplet Size (Adjustable) | 30um-50um /50um-100um |
| Horizontal Rotation Angle | 180°manual control / 320°remote control |
| Pitching Angle | -10°~40° |
| Coverage Area | 5000~7000m² without wind |
| Water Pressure | 1.5~3.5MPa |
| Auxiliary Power Unit | 20KW Diesel Generator Set |
| Dimensions(L*W*H) | 158×145×175cm |
| Sprayer Tank | According to customer's requirements |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-60 |
| Throw | ≥60m |
| Volume Flow | 70L-80L/min |
| Fog Droplet Size (Adjustable ) | 30-150 µm |
| Water Pressure(Mpa) | 2.0~3.5Mpa |
| Water Pressure(bar) | 20-35bar |
| Water Pressure(kg) | 20-35kg |
| Motor RPM | 2900 |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | -10°~45° |
| Coverage Area | 8,000 ~10,000m2 |
| Product Size ( L * W * H) | L220 * W154 * H239 (cm) |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-80 |
| Throw | 80m no wind |
| Volume Flow (Adjustable) | 105L-118L/min |
| Fog Droplet Size (Adjustable ) | 30-150um |
| Water Pressure (Mpa) | 2.5~3.5Mpa |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | 10° +45° |
| Coverage Area | 15000~17000m² without wind |
| Overall Dimensions (L*W*H) | L241*W153*H250(cm) |
