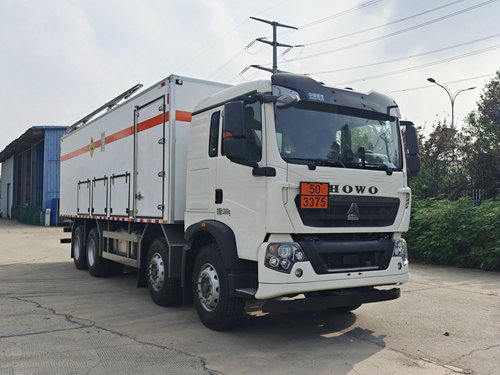

HOWO 12T -14T Onsite Blend Mixing Charging Emulsion ANFO Explosives Bulk Delivery Truck

HOWO 12T -14T Onsite Blend Mixing Charging Emulsion ANFO Explosives Bulk Delivery Truck
bulk explosive trucks Price for refer only. Final Price Offer Discount.
Price: $ 244000
Discount Price: $ 233000
Availability:
Quantity:

  • 5326THRZZ6XTP/5320THRZBBQ

  • HOWO

  • 8705909990

  • Shanghai, China

  • 300

  • T/T

  • 1

HOWO 12T -14T Onsite Blend Mixing Charging Emulsion ANFO Explosives Bulk Delivery Truck

14 T ON-SITE MIXED EMULSION EXPLOSIVE TRUCK

5326THRZZ6XTP

Specifications

Overall Dimensions

10655×2550×3750 mm

Gross Weight

32000 kg

Curb Weight

17580 kg

Rated Payload

14290, 14225 kg

Approach/Departure Angle

19/12 °

Front/Rear Overhang

1430/2250 mm

Axles

4

Max Speed

80 km/h

Tires

12

Tire Options

315/80R22.5 18PR; 295/80R22.5 18PR; 12R22.5 18PR; 12.00R20 18PR; 11.00R20 18PR

Fuel Consumption

31.99–33.24 L/100km

Engine Model

Manufacturer

Displacement (ml)

Power (kW)


MC07H.35-60 / -61 / -35P-61

Sinotruk

7360

257, 254, 258


MC11H.40-61 / .46-61 / .49-61

Sinotruk

11050

297, 341, 363


WP9H350E62; WP8T360/380E62

Weichai Power

8800; 8240

257; 265; 279


  •  Special equipment: power take-off, outer casing, matrix emulsion & sensitizer delivery system, hydraulic system, electric control system. The electric system controls mixing raw materials in fixed ratios and charging into blast holes; the mixture reacts to form emulsion explosive.

  • Equipped with radial tires; disc brakes on 1st & 2nd axles; front exhaust pipe; tire blowout emergency protection on steering wheels; fire extinguisher; static conductive grounding strip.

    Fixed wheelbase: 1800+3775+1400 mm

    Fixed tire size: 12R22.5 18PR

    Speed limiter: 80 km/h; driving recorder with satellite positioning.

  • EBS controller: WABCO (Shanghai) / EBS3

  • Side & rear underrun protection: material Q345B, bolted.

    Rear protection: 120×80 mm, ground clearance 450 mm

  • Fuel consumption (L/100km):

    MC07H.35P-61: 32.38 | WP12.490E62: 33.24 | WP8.350E61: 31.99 | WP8T380E62: 32.73

    MC07H.35-60: 33.01 | MC11.46-61: 32.11 | MC11H.49-61: 32.76 | WP10H400E62: 32.94

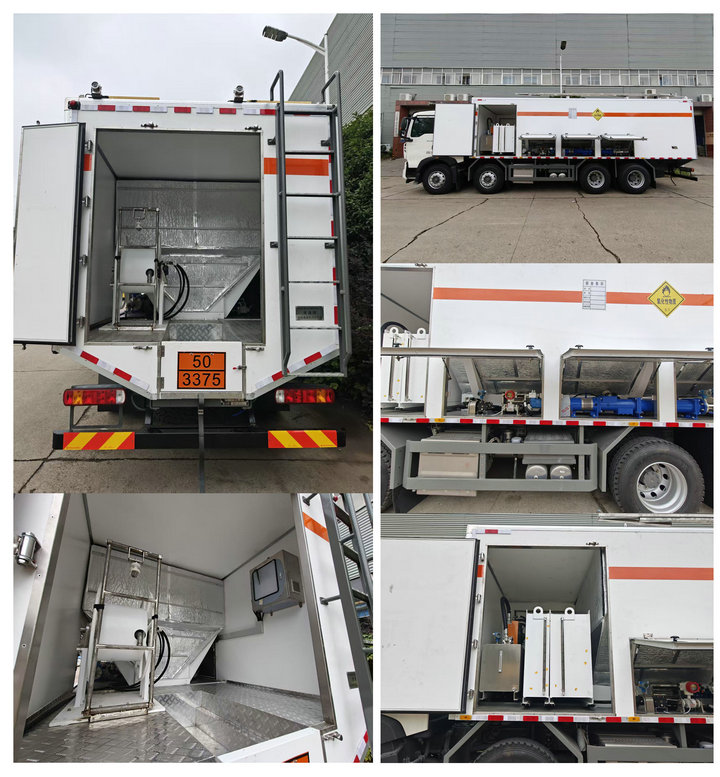

ANFO Explosive Delivery Truck for Onsite Mixing and Loading (17)

On-site Mixed & Charged Emulsion Explosive Truck

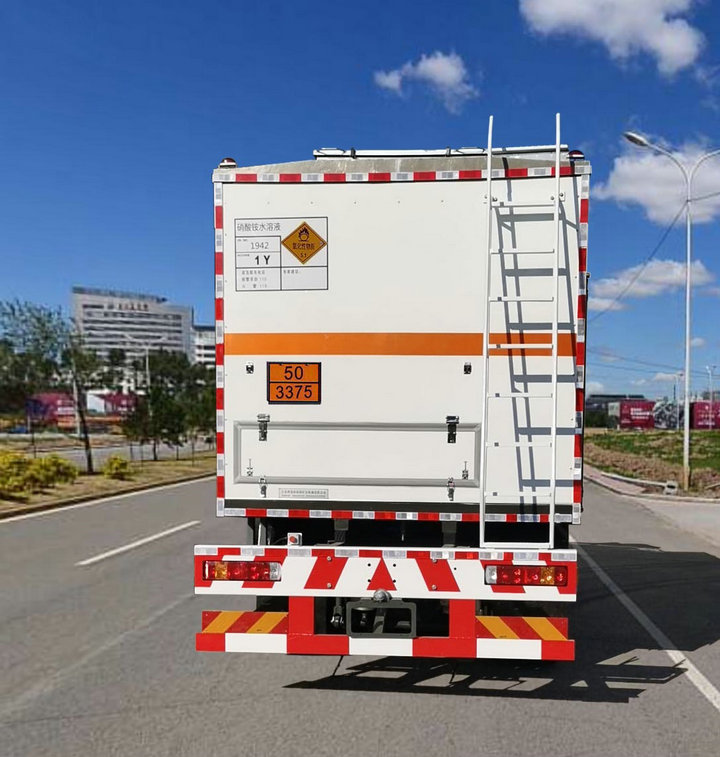

ANFO Explosive Delivery Truck for Onsite Mixing and Loading (5)

5320THRZBBQ   12 T ON-SITE MIXED EMULSION EXPLOSIVE TRUCK

Item

Specifications


Overall Dimensions

10790×2500×3830 mm


Gross Weight

32000 kg


Curb Weight

19070 kg


Rated Payload

12800, 12735 kg


Approach/Departure Angle

19/10 °


Front/Rear Overhang

1430/2385 mm


Axles

4


Max Speed

80 km/h


Tires

12


Tire Specifications

315/80R22.5 18PR, 295/80R22.5 18PR, 12R22.5 18PR, 12.00R20 18PR, 11.00R20 18PR


Fuel Consumption

38.0, 37.4, 37.21 L/100km


Engine Model

Manufacturer

Displacement (ml)

Power (kW)

MC11.43-61; MC11.44-60; MC07H.33-60; MC09.35B-60; MC09.35-60; MC07.31-60; MC07.34-60; WP10H400E62; MC07H.35-60; MC09.38-60; MC07.33-60; WP9H350E62; MC11.40-60; MC11.40-61; WP8.350E61; MC11.46-61; MC11H.46-61; WP10.5H430E62; WP12.430E62; WP12.490E62; WP12.460E62; MC07H.31-61

Sinotruk; Weichai Power

6870–11596

228–360

  • Special equipment: power take-off assembly, emulsion matrix tank, fuel system, screw pumping system, hydraulic system, computer numerical control system. Mainly used for wet-hole charging in open-pit mines via delivery pump, rear telescopic boom and conveying pipe, enabling precise charging of properly proportioned explosives into blast holes.

  • Transport medium: Ammonium Nitrate Emulsion Matrix, Class 5.1 (Oxidizing Substances). It is a Type AT dangerous goods vehicle equipped with dangerous goods signs and marker lamps.

  • Equipped with disc brakes, tire blowout emergency protection on all steering wheels, radial tires, fire extinguisher, static conductive grounding strip, and rear marker board conforming to national standards.

  • Fixed wheelbase: 1800+3775+1400 mm; front exhaust system; rear axle with air suspension.

  • Side & rear protection: material Q235A, bolted connection. Rear protection: 53×120 mm, ground clearance 400 mm.

  • Speed limiter: 80 km/h; driving recorder with satellite positioning.

  • ABS (model 4460046300, WABCO); optional EBS (controller: WABCO, model: EBS3).

  • Fuel consumption (L/100km): MC07.34-60: 38.0; MC07H.35-60: 37.4; MC07H.35-61: 37.21.

  • Optional: rear styling, cab, fenders, bumper, sun visor, rear glass window, roof antenna, right rear small window, aluminum alloy wheels, front exhaust, layout of fuel tank, urea tank, battery box, air tank, muffler, etc.

 Mixed Emulsion Explosive Truck 、Explosive Mixing And Charging Trucks

The transported substance is ammonium nitrate emulsion, classified as Class 5.1 (Oxidizing substances). Dangerous goods marking complies with Class 5.1. Dangerous goods transport vehicle type: EX/ⅡUNECE.Special equipment includes power take-off, outer box, emulsion matrix & sensitizer delivery system, hydraulic system and electric control system. Under electric control, raw materials are mixed proportionally and charged into blast holes to form emulsion explosive on site.


Site mixed explosives vehicle 、ANFO / Explosive Delivery Trucks ANFO mix units

ANFO TRUCK  Dong Runze Special Vehicle  Heavy ANFO Units — Heavy ANFO Manufacture
