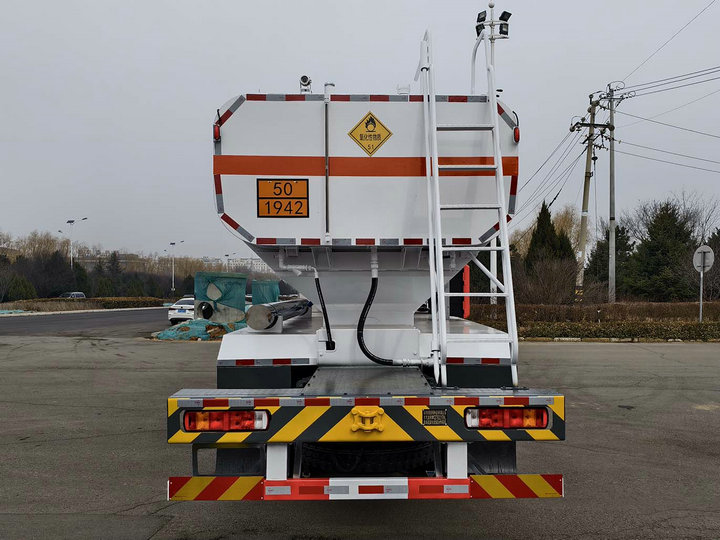

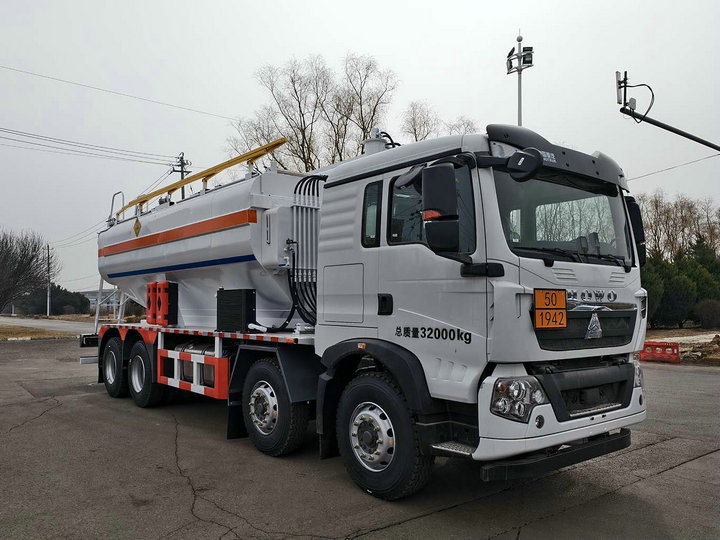

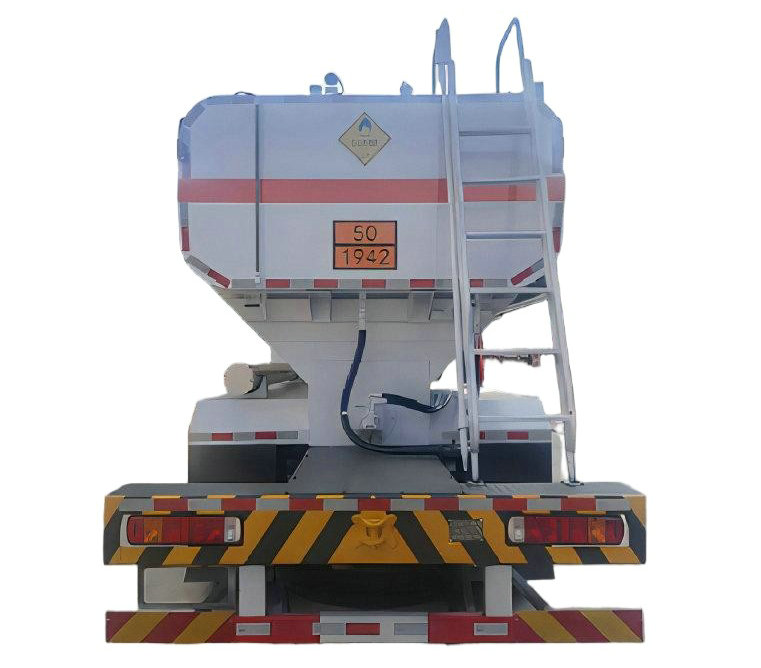

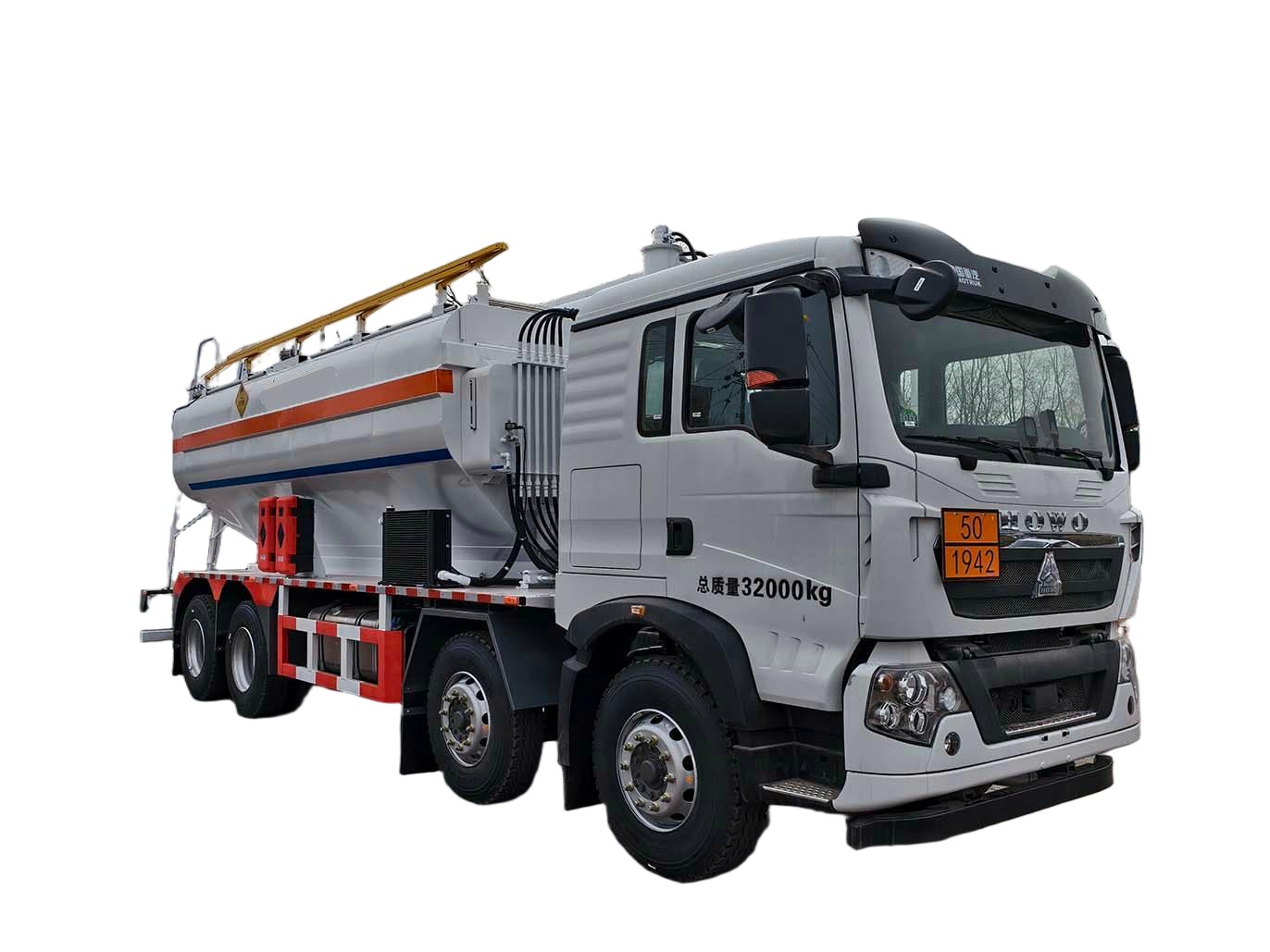

17T HOWO Bulk On-site Mixed Granular ANFO Mixing And Charging Truck
Mixed Emulsion Explosive Truck 、Explosive Mixing And Charging Trucks
Item | Specifications |
Overall Dimensions | 10720,10870×2510×3870 mm |
Gross Weight | 32000 kg |
Curb Weight | 14700 kg |
Rated Payload | 17105, 17170 kg |
Approach / Departure Angle | 19/13, 15/13 ° |
Front / Rear Overhang | 1430/2315, 1500/2220 mm |
Fuel Type | Diesel |
Emission Standard | China VI |
Axle Load | 6500/7000/18500 kg (tandem axle group) |
Wheelbase | 1800+3775+1400, 1800+4275+1400, 1800+4575+1400, 1950+3800+1400, 1950+4600+1400, 1800+3200+1400, 1950+4300+1400, 2100+3500+1400, 2300+3500+1400 mm |
Number of Axles | 4 |
Max Speed | 80 km/h |
Number of Tires | 12 |
Tire Specifications | 315/80R22.5 18PR, 295/80R22.5 18PR, 12R22.5 18PR, 12.00R20 18PR, 11.00R20 18PR |
Fuel Consumption | 37.44, 37.21 L/100km |
Leaf Spring Quantity | 3/3/-/-, 2/2/-/-, 4/4/-/-, 2/2/1+-/1+-, 3/3/1+-/1+-, 3/3/2+-/2+-, 4/4/2+-/2+-, 11/11/-/- |
Front Track | 2015/2015, 2035/2035, 2060/2060, 2000/2000 mm |
Rear Track | 1850/1850, 1870/1870 mm |
Steering Mode | Steering wheel |
Engine Model | Manufacturer | Displacement (ml) | Power (kW) |
MC07H.35-60; MC07H.35-61; MC07H.35P-61 | Sinotruk | 7360 | 257; 254; 258 |
MC11H.40-61; MC11H.46-61; MC11H.49-61 | Sinotruk | 11050 | 297; 341; 363 |
WP9H350E62; WP8T360E62; WP8T380E62 | Weichai Power | 8800; 8240; 8240 | 257; 265; 279 |
Site mixed explosives vehicle 、ANFO / Explosive Delivery Trucks ANFO mix units
The special equipment consists of power take-off assembly, dry material tank, screw conveying system, hydraulic system, computer digital control system, etc. It is mainly used for dry-hole explosive charging in open-pit mines. It operates through a three-stage screw conveying system (top screw included) and can accurately load explosives with different ratios into blast holes. This is a dangerous goods transport vehicle (Type AT), transporting substances of Class 5.1.
Engine MC07H.35-60: fuel consumption 37.44 L/100km
Engine MC07H.35-61: fuel consumption 37.21 L/100km
Engine MC11H.46-61: fuel consumption 33.69 L/100km
ANFO TRUCK Dong Runze Special Vehicle Heavy ANFO Units — Heavy ANFO Manufacture
The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.
Ammonium Nitrate/Fuel Oil
is widely used in
coal mining,
quarrying, metal
mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck
Emulsion explosives type BCRH-15;
Granulated explosives of ANFO type BCLH-15;
Mixed Heavy ANFO explosives BCZH-15.
The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.
when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 10~22 tons;
when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;
when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;
The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.
Technological equipment of the truck enables the production of explosives on the basis of various emulsions both hot and cold type. For this purpose, the truck has two tanks for gassing agent of two different formulations.
Truck equipment is mounted on Sinotruck HOWO 8x4 chassis with MAN Tech MC Engine , which provides the truck with improved driving characteristics on the charging unit (reducing the likelihood of boreholes filling up, receiving better handling, and the geometric flotation).
Series Classification
BCLH Series: On-site Mixed ANFO Explosive Truck
BCRH / BCZH Series: On-site Mixed Emulsion Explosive Truck
Core Technical Parameters
1. BCLH Series ANFO Explosive Truck
| Model | Power | Porous Granular Ammonium Nitrate | Diesel Oil | Charging Efficiency |
|---|---|---|---|---|
| BCLH-15 | 273kW | 14500kg | 1000kg | 450kg/min |
| BCLH-15G | 273kW | 14500kg | 1000kg | 350kg/min |
| BCLH-8 | 202kW | 8000kg | 600kg | 300kg/min |
| BCLH-8G | 202kW | 8000kg | 600kg | 250kg/min |
2. BCRH / BCZH Series Emulsion Explosive Truck
| Model | Power | Loading Materials | Charging Efficiency |
|---|---|---|---|
| BCRH-15B | 248kW | Water-based material:14500kg, Oil-based material:1000kg, Sensitizer:120kg | 280kg/min |
| BCRH-15C | 248kW | Water-based material:12500kg, Oil-based material:800kg, Dry material:2500kg, Sensitizer:120kg | 280kg/min |
| BCRH-15D | 248kW | Emulsion base:15000kg, Catalyst:120kg, Sensitizer:120kg | 280kg/min |
| BCRH-15D Export Version | 248kW | Emulsion base:15000kg, Catalyst:120kg, Sensitizer:120kg | 280kg/min |
| BCRH-15E | 248kW | Emulsion base:13000kg, Dry material:2500kg, Catalyst:120kg, Sensitizer:120kg | 280kg/min |
| BCZH-15 | 248kW | Emulsion base:11000/4500kg, Dry material:4500/11000kg, Catalyst:150kg, Sensitizer:150kg | 200-280kg/min |
Main Features
Rated power: 202kW, 248kW, 273kW optional
Load capacity: 8-ton grade & 20-ton
Working efficiency: 250~450kg/min
Stable output of emulsion type: 280kg/min; higher efficiency for ANFO type
Application: Mining and engineering blasting, realizing on-site mixing and charging with high safety and efficiency
Charge efficiency: Emulsion Explosive 250～280Kg/Min,
Ammonium Oil Explosive 300～450Kg/Min,
Heavy Ammonium Oil Explosives 300～400Kg/Min,
Heavy Emulsion Explosives 200～280Kg/Min
Charge efficiency charge water hole 100-200kg / min
Charge dry hole 300-450kg / min
Measurement error ± 2%
