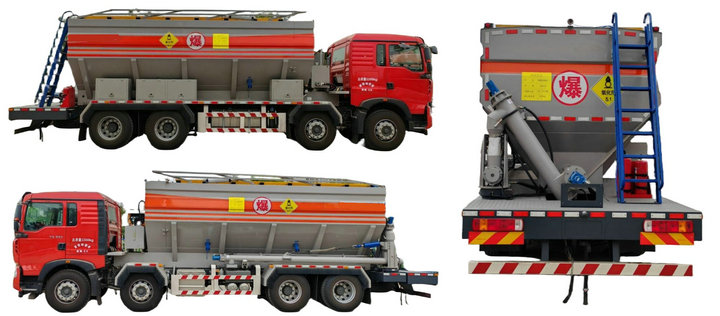

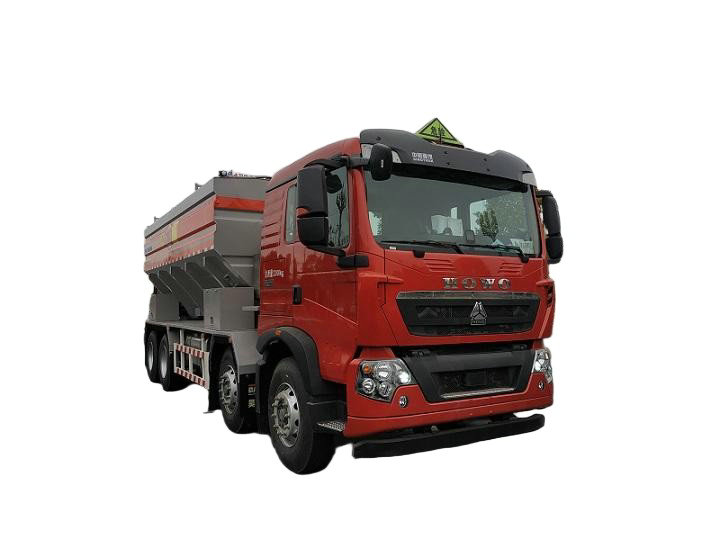

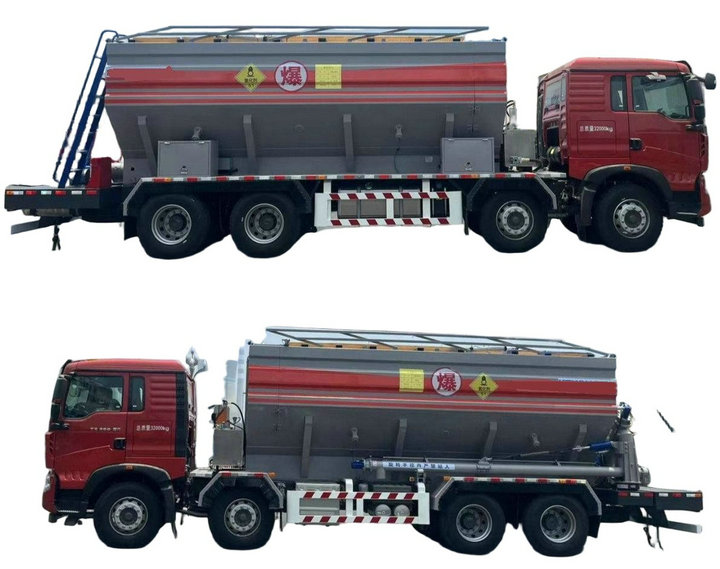

HOWO 16 Ton On-site Mixed ANFO Explosive Truck Mixing And Charging Truck

HOWO 16 Ton On-site Mixed ANFO Explosive Truck Mixing And Charging Truck
Price for refer only. Final Price Offer Discount.
Price: $ 218000
Discount Price: $ 198000
Availability:
Quantity:

  • 5322THASHTR

  • HOWO

  • 8705909990

  • Shanghai, China

  • 300

  • T/T

  • 1

HOWO 16 Ton On-site Mixed ANFO Explosive Truck Mixing And Charging Truck

On-site Mixed Ammonium Nitrate Fuel Oil Explosive Mixing And Charging Truck

Carrying capacity:Porous granular ammonium nitrate 15500kg diesel 1000kg

Delivery efficiency:450kg/min

Measurement error:± 2%

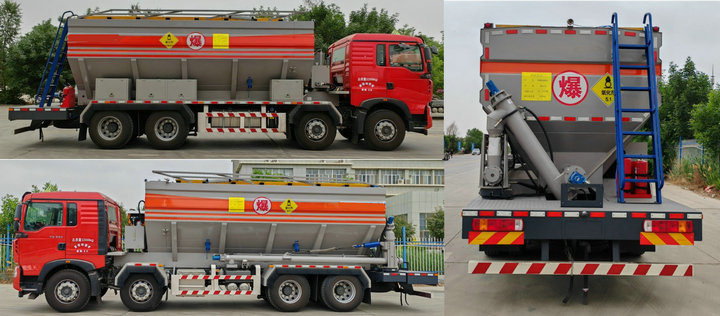

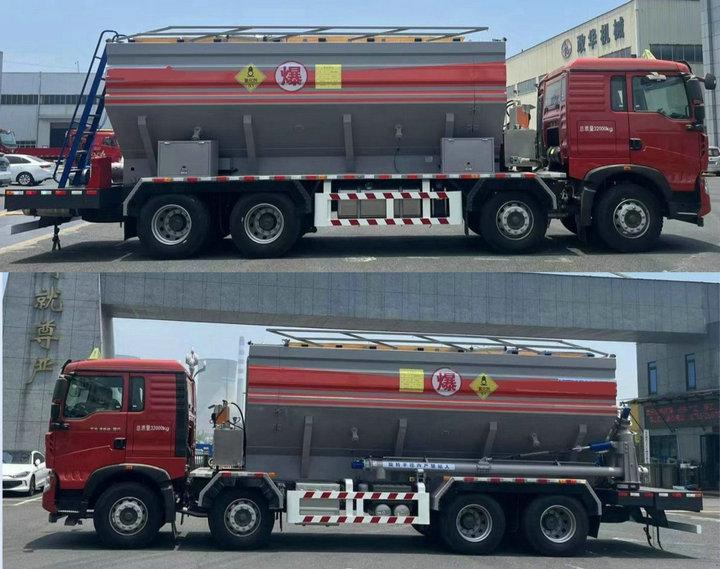

Side helix rotation Angle:150 °On-site Mixed ANFO Explosive Truck (2)On-site Mixed ANFO Explosive Truck (5)

Item

Details

Item

Details

Overall Dimensions

10870×2500×3600(mm)

Steering Type

Steering Wheel

Gross Mass

32000(Kg)

36000(Kg)

Payload

16000(Kg)

Curb Mass

15950(Kg)

Rated Payload

15920(Kg)

16000(Kg)

17000(Kg)

18000(Kg)

19000(Kg)

20000(Kg)

Approach/Departure Angle

19/10(°)

Front/Rear Overhang

1430/2465(mm)

Fuel Type

Diesel

Emission Standard

China VI  Euro 6

Axle Load

6500/7000/18500(tandem axle group)

Wheelbase

1800+3775+1400, 1800+4275+1400, 1800+4575+1400, 1950+3800+1400, 1950+4600+1400, 1800+3200+1400, 1950+4300+1400, 2100+3500+1400(mm)

Number of Axles

4

Max Speed

80(km/h)

Number of Tires

12

Tire Specifications

315/80R22.5 18PR, 295/80R22.5 18PR, 12R22.5 18PR, 12.00R20 18PR, 11.00R20 18PR

Fuel Consumption

33.6(L/100Km)

Leaf Spring Quantity

3/3/-/-, 2/2/-/-, 4/4/-/-, 2/2/1+-/1+-, 3/3/1+-/1+-, 3/3/2+-/2+-, 4/4/2+-/2+-

Front Track

2015/2015, 2035/2035, 2060/2060, 2000/2000(mm)

Rear Track

1850/1850, 1870/1870(mm)

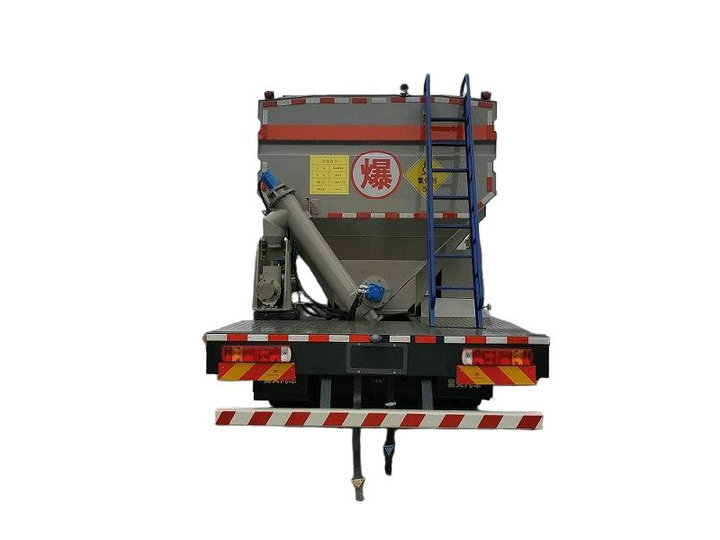

The special equipment consists of a power take-off device, material bin, screw conveying system, screw mixing system, hydraulic system and electrical control system. Operated by the electrical system, it mixes various raw materials in a certain proportion and fills them into blast holes; the mixture reacts to form ANFO. This vehicle is a special operation vehicle.

Engine Model

Manufacturer

Displacement(ml)

Power(kw)

MC11.43-61; MC11.44-60; MC07H.33-60; MC09.35B-60; MC09.35-60; MC07.31-60; MC07.34-60; WP10H400E62; MC07H.35-60; MC09.38-60; MC07.33-60; WP9H350E62; MC11.40-60; MC11.40-61; WP8.350E61; MC11.46-61; MC11H.46-61; WP10.5H430E62; WP12.430E62; WP12.490E62; WP12.460E62; MC07H.31-61; M

Sinotruk Group Co., Ltd.;Weichai Power Co., Ltd.

10518; 10518; 7360; 8765; 8765; 6870; 6870; 9500; 7360; 8765; 6870; 8800; 10518; 10518; 7800; 10518; 11050; 10520; 11596; 11596; 11596; 7360; 7360; 7800

319; 327; 240; 260; 260; 228; 251; 294; 257; 279; 240; 257; 297; 297; 257; 341; 341; 316; 316; 360; 338; 228; 254; 257

 Site mixed explosives vehicle 、ANFO / Explosive Delivery Trucks ANFO mix units


ANFO TRUCK  Dong Runze Special Vehicle  Heavy ANFO Units — Heavy ANFO Manufacture
